Aiwa CX-NMT720 User manual

For assistance and information
call toll free I-800-BUY-AIWA
(United States and Puerto Rico)
88-N FT-903-11
980311 BMI-U-9 tlrir%i
DIGITAL AIJDICI

“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your Aiwa
dealer in case of difficulty.
IModel No. ISerial No. (Lot No.) I
ICX-NMT720 II
SX-NA702
SX-R275
ISX-C605 I I
ITS-W35 (NSX-MT721 only) II
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
Installation
1
2
3
4
5
6
7
8
Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
Heat —Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41 “F) or greater than 35°C (950 F).
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands —When placed
or mounted on a stand or cart, the
unit should be moved with care.
Quick stops, excessive force, and m
●k
uneven surfaces may cause the 3
A~-
unit or cart to overturn or fall.
Condensation —Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for afew hours,
then try to operate again.
Wall or ceiling mounting —The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
Instructions.
Electric Power
1Power sources —Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
2Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over and
try again. [fit still does not easily insert into the outlet, please
call aqualified service technician to service or replace the
outlet. To avoid defeating the safety feature of the polarized
plug, do not force it into apower outlet.
3AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power outlet.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
1ENGLISH

4
5
Extension cord —To help prevent electric shock, do not use
apolarized AC power plug with an extension cord, receptacle,
or other outlet unless the polarized plug can be completely
inserted to prevent exposure of the blades of the plug.
When not in use —UnplugtheAC powercord from the power
outlet if the unit will not be used for several months or more.
When the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned
off
Outdoor Antenna
1
2
Power lines —When connecting an outdoor antenna, make
sure it is located away from power lines.
Outdc~orantenna grounding —Be sure the antenna system
is properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANS1/NFPA70, provides information
on prclper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals themselves,
Antenna Grounding According to the National Electrical Code
T. ANTENNA LEAD IN WIRE
f’*-‘
+
‘
GROUND CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT GROUNDING CONDUCTORS
(NEC SECTION 81021)
GROUND CLAMPS
~pOwER SERVICE eBOUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
NEC.NATIONAL ELECTRICAL CODE
Mainten~
Clean the unit only as recommended in the Operating
Instructicms
Damage Reauirina Service
Have the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF,
PRECAUTIONS ...................................................................1
PREPARATIONS
SETTING UP .......................................................................3
REMOTE CONTROL ...........................................................5
BEFORE OPERATION ........................................................6
SOUND
AUDIO ADJUSTMENTS .................................................... 7
RHYTHM PLAY FUNCTION (BEAT MASTER) .................7
GRAPHIC EQUALIZER ......................................................8
DSP SURROUND ....................................m ........................ 10
RADIO RECEPTION
MANUAL TUNING .............................................................11
PRESETTING STATIONS ................................................ 12
TAPE PLAYBACK
BASIC OPERATIONS ...................................................... 13
CONTINUOUS PLAY ....................................................... 14
CD PLAYING
BASIC OPERATIONS ...................................................... 15
PROGRAMMED PLAY ..................................................... 16
RECORDING
BASIC RECORDING ........................................................ 17
DUBBING ATAPE MANUALLY ...................................... 18
DUBBING THE WHOLE TAPE ........................................ 18 ❑
Al EDIT RECORDING ..............................m................m...... 19
PROGRAMMED EDIT RECORDING ............................... 20
DOLBY PRO LOGIC
ADJUSTING SPEAKER LEVEL BALANCE ...................21
PLAY WITH DOLBY PRO LOGIC ................................... 22
KARAOKE
MICROPHONE MIXING ......................m ............................ 23
KARAOKE PROGRAM .................................................... 24
CLOCK AND TIMER
SETTING THE CLOCK ...................................s................ 25
SETTING THE SLEEP TIMER ......................................... 25
SETTING THE TIMER ...................................................... 26
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ....................... 27
LISTENING TO EXTERNAL SOURCES ......................... 27
CONNECTING ADVD PLAYER ...................................... 28
GENERAL
CARE AND MAINTENANCE ........................................... 29
TROUBLESHOOTING GUIDE ......................................... 29
SPECIFICATIONS ............................................................ 30
PARTS INDEX ................................................... Back cover
ENGLISH 2

The DOLBY PRO LOGIC system which is the biggest feature of
this stereo system provides you with multi channel sound in your
home.
Complete setting and connection of the main unit, supplied
speakers, your TV and video equipment according to the following
procedure,
Check your system and accessories
@) CX-NMT720 Compact disc stereo cassette receiver
@SX-NA702 Front speakers
n
D
TS-W35 (For NSX-MT721 only)
Sub woofer
u
Remote control AM antenna
Operating Instructions, etc.
FM antenna
*,,m, ...,,-- !. .%+ ,m.*,’ I*W e%si-,-%-, ,,s, .l’,l’ml,:!u,i; .sh~wr$sl+ !? W”:WW *FxesawMAlh%a-. . ..
... -.,. ,,.. . . . .. . ..
.-. ...
,6 ,%,
‘.,,a,
POSITIONING THE SPEAKERS
To achieve the optimum effects obtainable with the DOLBY PRO
LOGIC system, it is important to position the speakers properly.
Refer to the following illustration to find out the best location in
your room,
@Front speakers
@Center speaker
Position in the center of the two front speakers. In addition,
position on or below the TV set, if connecting aTV set to the
unit.
@Surround speakers
Place the surround speakers directly to the side of or slightly
behind the listening area. Align them horizontally, about 1
meter (3.2 feet) above ear height.
@Subwoofer (For NSX-MT721 only)
Place the subwoofer on the floor close to awall or in acorner
of the room.
●No sound is heard from the center and surround speakers when
the DOLBY PRO LOGIC, the SURROUND system and the 5.1
CH (page 28) are set to off.
●The center speaker sounds when the DOLBY PRO LOGIC or
the 5.1 CH (page 28) is set to on.
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
120 VAC. Check that the rated voltage matches your local
voltage.
IMPORTANT
Connect the s~eakers, antennas, and all o~tional eaui~ment first.
Then connect the AC cord in the end. ‘ ‘
3ENGLISH

AII ~FM antenna
zFront speaker 4Center speaker I I
5Subwoofer
1Connect the supplied antennas. 3Connect the surround speakers.
Connect the FM antenna to FM 75 Qterminals and the AM Connect the surround speaker cords to SURROUND
antenna to AM LOOP terminal. SPEAKERS terminals. m
There is no difference between the surround speakers. Both
speakers can be connected as R(right) or L(left).
4Connect the center speaker.
Connect the center speaker cord to CENTER SPEAKEFl
terminal,
2Connect the front speakers. 5Connect the subwoofer. (only for NSX-MT72!1)
The speaker placed on the right side of the unit facing you is Connect the subwoofer cord to SUB WOOFER terminal.
“the right speaker” and another one is “the left speaker”. ..-.i,:::..,
‘::;,,
..“. G.‘
dd‘2”$9:
,,
($$@’*
●O.
c)
#
.
.’ 8’ 06Connect the video equipment.
Connect VIDEO/AUX jack of this unit to the audio outpW jack
of the video equipment with an optional audio connecting cord.
.
The cords with white stripes should be connected to 07Connect the Television to the video equipment.
terminals and the other cords to Oterminals. Refer to the Operating Instructions of the connected
equipment for details.
8Connect the AC cord to an AC outlet.
ENGLISH 4

To position the antennas
FM feeder antenna:
Extend this antenna horizontally in aT-shape and fix its ends to
the wall.
AM antenna:
Position to find the best possible reception.
To stand the AM antenna on asurface
Fix the claw to the slot.
To mount the surround speakers on the wall
Mount each speaker on a s~ot that can hold its weight.
●Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.
cDo not leave objects generating magnetism, such as credit
cards, near the speakers, as these objects may be damaged.
●Do not bring the FM antenna near metal objects or curtain rails.
●Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
●Do not unwind the AM antenna wire.
ITo connect other optional equipment+ page 27 and 28. I
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two R6 (size AA) batteries.
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well,
. If the remote control is not going to be used for an extended
period of time, remove the batteries to prevent possible
electrolyte leakage.
●The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
-Other remote controls are used nearby (those of atelevision,
etc.)
5ENGLISH

To turn the power on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX,
CD, MD). Playback of the inserted disc or tape begins, or the
previously tuned station is received (Direct Play Function).
POWER is also available.
When the unit is turned on, the disc compartment may open and
close to reset the unit.
To turn the power off
Press POWER.
Flash windows
The windows on the top of the unit and the cassette decks light
up or flash while the unit is being powered on.
To turn off the light of the top window, press ■while pressing
CD. To turn back on, repeat the above.
The light of the cassette decks cannot be turned off.
To dim the illumination of the display
1Press DISPLAY twice so that “DIMMER” is displayed.
2Within 4seconds, turn MULTI JOG to select the dimmer mode
as follows,
~DIMMERO -DIMMER 1~DIMMER 2- DIMMER 37
DIMMER O: The normal display.
DIMMER 1: The illumination of the display is dimmer than
usual.
DIMMER 2: The illumination of the display is dimmer than
DIMMER fl.
DIMMER 3: The illumination of the display is dimmer than
DIMMER 2, and the spectrum analyzer and the illumination
on the buttons light off.
Game Demo
When the AC cord is connected, the display window demonstrates
the game Demo. When the power is turned on, the game lDemo
is overridden by the operation display. When the power is t!urned
off, the game Demo is restored.
To cancel the game Demo
Press DEMO. To re-activate the game Demo, press DEMO
again.
To play the game Demo
1Press DEMO so that the game Demo displays,
2Press +>.
Three numbers on the display start to run
3Press Wonce.
The number on the left side stops.
4Press ■twice to stop the remaining two numbers.
●You can enjoy the game Demo with game sound by pressing
DEMO while the power is on.
Scoring:
20 points are given to start the game.
If all the numbers are eaual, 50 points are added to the score.
If not equal, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to O, you lose.
To reset the game Demo
Press DEMO twice, then press +>, The game starts again.
To mute the game sound
Once, cancel the game Demo by pressing DEMO. Then, keep
pressing DEMO until “)) OFF is displayed.
To restore the game sound, keep pressing DEMO again until
“)) ON” is displayed.
●During playing the game Demo, ❑and +- are available only
for the game Demo. Cancel the game Demo to use these
buttons for the functions such as CD playing, etc.
●To change the game sound, see “RHYTHM PLAY FUNCTION>’
on page 7.
●During the game Demo, some indicators unrelated wil,h thl:!
actual operation light up on the display.
To change the spectrum analyzer display
3patterns of spectrum analyzer display can be shown.
Press DISPLAY once, and turn MULTI JOG within 4seconds to
select the desired spectrum analyzer display.
ENGLISH 6

Turn VOLUME on the main unit, or press VOLUME on the
remote control.
The volume level is displayed as anumber from Oto MAX (50).
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
To change the Ieftiright balance
Press MANUAL SELECT on the remote control. UR is displayed
for 2seconds. Press MDOWN or -UP on the remote
control within these 2seconds.
●The DOLBY PRO LOGIC and the DOLBY DIGITAL
SURROUND front speakers level is also changed, (See page
21 and 28)
BBE SYSTEM
The BBE system enhances the clarity of high-frequency sound,
It also enriches the Karaoke function to make your voice sound
clear and pleasant.
Press BBE,
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
●The BEE system dose not perform while the 5.1 CH (page 28)
is selected.
The T-BASS system enhances the realism of low-frequency
sound.
Press T-BASS.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
You can enjoy music of CDs, tapes or etc. mixed with rhythm
patterns programmed in the unit,
:--———.
g
r— xl
,!-——— _____ .__ ..___.-,,
1
2pattern.
The rhythm pattern is displayed cyclically as follows,
tI
++
Waltz 1,2,3 H.Rock 1,2,3
t(Hard Rock) +
+J
4Beat 1,2,3 Samba 1,2,3
11
8Beat 1,2,3 Salsa 1,2,3,
+t
1+
Mereng 1,2,3
16 Beat 1,2,3_ (Merengue)
To change the tempo of the selected rhythm pattern
Press RHYTHM ~while the selected rhythm pattern is
displayed, then turn MULTI JOG to select the rhythm tempo.
The rhythm tempo can be changed from 90 to 160.
m
Low frequency sound may be distorted when the T-BASS system
is used for adisc or tape in which low frequency sound is originally
emphasized. In this case, cancel the T-BASS system.
7ENGLISH

To change the volume level of the selected rhythm pattern
Press RHYTHM wwhile the selected rhythm pattern is
displayed, then turn MULTI JOG to select the volume level.
The volume level can be changed from 1to 4.
To cancel the rhythm play function
Press MULTI JOG.
To restart the rhythm play function
Press MULTI JOG again, The rhythm pattern selected last time
starts.
●When the GAME pattern is selected, the rhythm tempo and
the rhythm volume level cannot be changed.
●The signal output from LINE OUT jack is affected with the
rhythm play function.
EQUALIZATION CURVE
This unit provides the following 5different programmed
equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
CLASSIC: Enriched sound with heavy bass and fine treble,
LATIN: Accented higher frequencies for Iatin music.
GEQ
Press GEQ, and turn MULTI JOG to select one of the
programmed equalization curve within 4seconds.
“GRAPHIC EQUALIZER lights up
“GRAPHIC EQUALIZER” appears (except “GEQ OFF) and the
GEQ mode is displayed cyclically as follows.
c
ROCK- POP+ JAZZ~CLASSIC~ LATIN
~---------- Progra:med mode ----------:
GEQ OFF— M4 —M3 —M2 +--.+-MI+ 1
(cancel) 1..... . Manual mode --...;
To display the current GEQ mode
Press GEQ. The current mode is displayed for 4seconds,
To cancel the selected mode
Press GEQ, and turn MULTI JOG to select” GEQ OFF within 4
seconds, “GRAPHIC EQUALIZER” disappears.
—.
Using the headphones
Connect headphones to the PHONES jack with astandard stereo
plug (a6.3 mm, 1/4 inch).
No sound is output from the speakers while the headphones are
plugged in.
●When the headphones are plugged in, the SURROUND system,
the DOLBY PRO LOGIC and the 5.1 CH (page 28) do not
function.
Sound adjustment during recording
These voice wave data incorporated in this product are Yamaha The output volume and tone (except BBE and Rhythm play
Corporation’s copyrightable property and we are licensed by function) of the speakers or headphones may be freely varied
Yamaha Corporation. without affecting the recording.
ENGLISH 8

SETTING ANEW EQUALIZATION CURVE
MANUALLY
The equalization curve can be customized to suit your preference.
1Press GEQ LOW.
The lowest level frequency indicator flashes for 4seconds.
2Within 4seconds, turn MULTI JOG to adjust the
level of the lowest frequency.
3Press GEQ HIGH.
The highest level frequency indicator flashes for 4seconds.
4Within 4seconds, turn MULTI JOG to adjust the
level of the highest frequency.
The frequency level indicators between the lowest and the
highest are adjusted accordingly.
%“1,:,,,, ,., ,., 1:4
Up to 4customized equalization curves can be stored as the
manual modes Ml -M4.
7Set anew equalization curve with HIGH, LOW,
and MULTI JOG.
See“SETTING ANEW EQUALIZATION CURVE MANUALLY”.
The created curve is displayed for 4seconds.
2Within 4seconds, press ENTER.
‘[M 1” flashes on the d“isplay for 4seconds.
●If this step is not completed within 4seconds, press GEQ
first to display “GEQ ON”. Then press ENTER within 4
seconds.
3
4
Within 4seconds, turn MULTI JOG to select one
of the manual modes Ml -M4 to store the curve.
Within 4seconds, press ENTER.
The new equalization curve is stored.
To select the stored equalization curve
Press GEQ, and turn MULTI JOG to select one of the manual
modes Ml -M4 within 4seconds.
9ENGLISH

The DSP (Digital Signal Processor) SURROUND adjusts the
delay time, the input mode and the feedback level to give a
resonant surround sound, allowing you to enjoy the real sound
presence of different environments.
This unit has been programmed with 4different SURROUND
modes. You can also create and memorize up to 4of your own
surround settings.
SELECTING’- ‘A PROGRA-MMED DSP
SURROUND MODE
MULTI JOG
;.. ~..(
.. ,.—___ _ .-
SURROUND
When you select the programmed DSP SURROUND mode, the
sound presence of adisco (DISCO), live music performance
(LIVE), movie theater (MOVIE) or concert hall (HALL) can be
obtained.
Press SURROUND, and turn MULTI JOG to select
the desired Programmed mode within 4seconds.
DSP SURROUND
“DSP SURROUND” appears and the DSP SURROUND mode is
displayed cyclically as follows.
E
DISCO —LIVE —MOVIE —HALL
‘---------- Programmed mode ----------:
DSPOFF— M4— M3— M2~ Ml 3
(cancel) ~--.___ Manual mode -----~
Equalization curves are selected automatically to match the DSP
SURROUND modes and can also be selected or turned off to
suit your preference.
To display the current DSP SURROUND mode
Press SURROUND. The current mode is displayed for4 seconds.
To cancel the eelected mode
Press SURROUND, and turn MULTI JOG to select “DSP OFF”
within 4seconds. “DSP SURROUND” disappears.
MULTI JOG
____
DELAY (delav time)
Increasing the number in the display increases the delay time
and surround effect. “1 5“, “20”, “30” or “50” mSec can be
selected.
To adjust the delay time
Press DELAY, and turn MULTI JOG to select one of the levels
within 4seconds.
L-R, L+R (in~ut mode)
When “L+R” is displayed, the surround effect increases,
especially in the center.
When “L-R” is displayed, it increases on the outside.
To select ainput mode
Press EFFECT m, and turn MULTI JOG to select “L-R or
“L+R” within 4seconds.
L-R- L+R
FB (feedback level)
Increasing the number in the display increases the echo
Alevel from “OFF” (0) to “7” can be selected.
To adjust the level of feedback
Press EFFECT twice, and turn MULTI JOG to select one of
the levels within 4seconds.
FBOFFel +2*-----6*7
When the music source is monaural
Select “LIVE” or “MOVIE” to obtain asimulated stereo effect.
When “DISCO or “HALP is selected, no sound will be heard
from the surround speakers.
ENGLISH 1~

1
2
3
4
.-
‘3U
)\\
:..__________.__—- ——-
-.1’ /

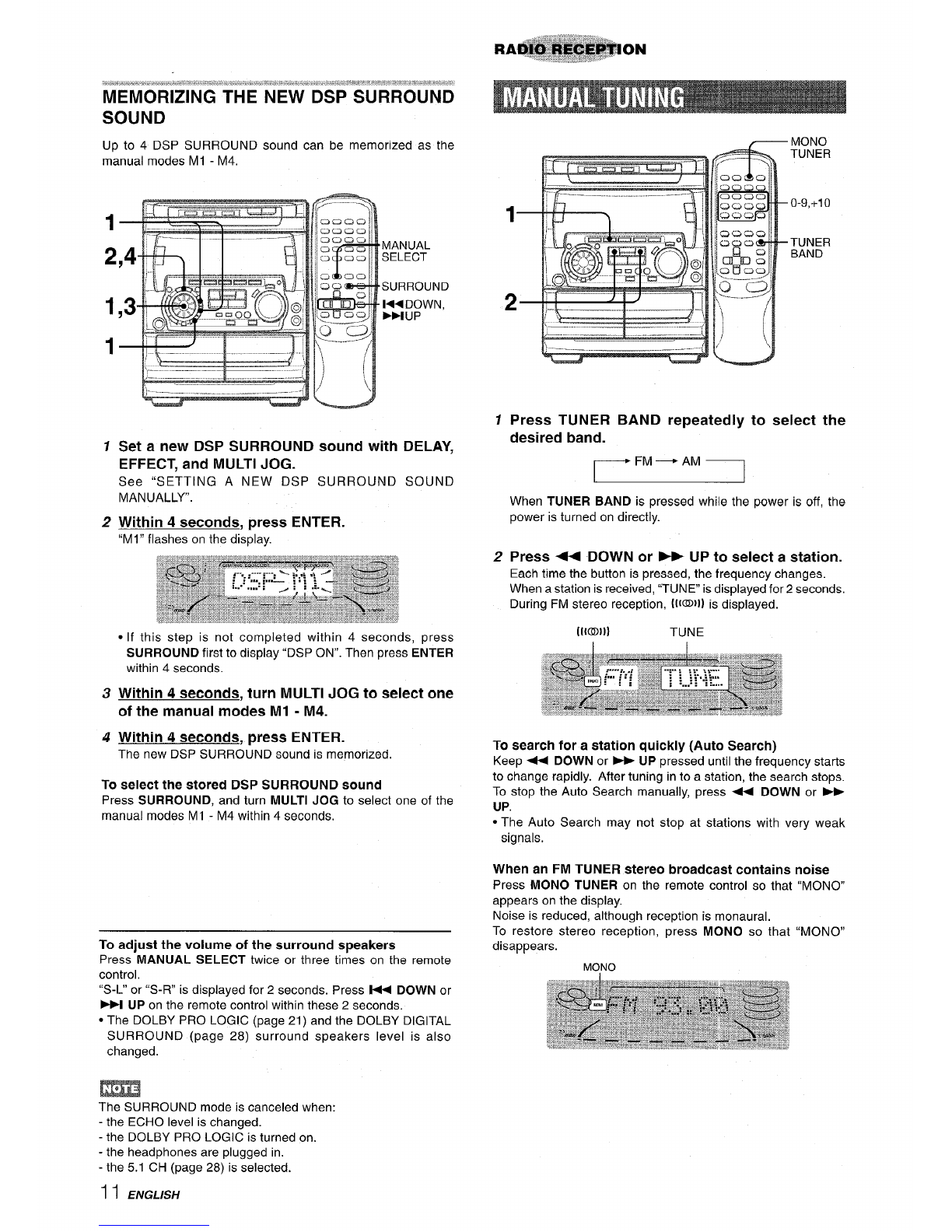

Set anew DSP SURROUND sound with DELAY,
EFFECT, and MULTI JOG.
See “SETTING ANEW DSP SURROUND SOUND
MANUALLY.
Within 4seconds, press ENTER.
“MI” flashes on the display.
●If this step is not completed within 4seconds, press
SURROUND firstto display “DSP ON”. Then press ENTER
within 4seconds.
Within 4seconds, turn MULTI JOG to select one
of the manual modes Ml -M4.
Within 4seconds, press ENTER.
The new DSP SURROUND sound is memorized.
To select the stored DSP SURROUND sound
Press SURROUND, and turn MULTI JOG to select one of the
manual modes Ml -M4 within 4seconds,
To adjust the volume of the surround speakers
Press MANUAL SELECT twice or three times on the remote
control,
“S-L” or “S-R” is displayed for 2seconds. Press MDOWN or
FM UP on the remote controlwithin these 2seconds.
●The DOLBY PRO LOGIC (page 21) and the DOLBY DIGITAL
SURROUND (page 28) surround speakers level is also
changed.
—MONO
1Press TUNER BAND repeatedly to select the
desired band.
~FM— AM—l
2
When TUNER BAND is pressed while the power is off, the
power is turned on directly.
Press ++ DOWN or *UP to select astation.
Each time the button is pressed, the frequency changes.
When astation is received, “TUNE is displayed for 2seconds.
During FM stereo reception, (l(m)]) is displayed.
([KEN)) TUNE
To search for astation quickly (Auto Search)
Keep +DOWN or -UP pressed until the frequency starts
to change rapidly. After tuning in to astation, the search stops.
To stop the Auto Search manually, press -DOWN or ~
UP.
●The Auto Search may not stop at stations with very weak
signals.
When an FM TUNER stereo broadcast contains noise
Press MONO TUNER on the remote control so that “MONO”
appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, press MONO so that ‘(MONO”
disappears.
The SURROUND mode is canceled when:
-the ECHO level is changed.
-the DOLBY PRO LOGIC is turned on.
-the headphones are plugged in.
-the 5.1 CH (page 28) is selected.
1IENGLISH

0-9,+1 o
TUNER
BAND
The unit can store atotal of 32 preset stations, When astation is
stored, apreset number is assigned to the station. Use the preset
number to tune in to apreset station directly,
1
2
Press BAND to select aband. ‘M%}
“:*;
Press numbered buttons O-9 and +1Oto select a‘“:~~:
preset number.
Example:
To select preset number 20, press +10, +10 and 0, g
To select preset number 15, press +10 and 5. $$:.
Selecting apreset number on the main unit E
,,. ,,1
‘a
“:, ;::
Press TUNER BAND to select aband. Then, press, <E* ~! ““
.,,.,. -,
DIRECTION/PRESET repeatedly or turn MULTI JOG. $:*,;
Each time +P DIRECTION/PRESET is pressed, the next #$
ascending number is selected. w
~
To clear apreset station
Selectthe presetnumberofthe stationto be cleared.Then, press
■CLEAR, and press II SET within 4seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one,
1
2
3
Press TUNER BAND to select aband, and press
<DOWN or FF UP to select astation.
Press 11 SET to store the station.
Apreset number beginning from 1in consecutive order for
each band is assigned to the station,
Preset number
Repeat steps 1and 2.
The next station will not be stored if atotal of 32 preset stations
for all the bands have already been stored,
——
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval.
Press POWER while pressingTUNER BAND.
To reset the interval, repeat this procedure.
m
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
ENGLISH 1:2

●On deck 1, tapes are always played back on both sides.
On deck 2, you can select areverse mode to play back one or
both sides.
●Use Type I(normal), Type II (high/CrOz) or Type IV (metal)
tapes for playback.
1Press TAPE and press AEJECT to open the
cassette holder.
AE JEC T–
Insert atape with the exposed side down. Push the cassette
holder to close.
2Press 4> to start play.
The tape counter indicates the
Playing deck number tape running length.
Playback side indicator
-: The front side is being played (forward).
+: The back side is being played (reverse).
To select areverse mode (deck 2only)
Each time REV MODE is pressed, the reverse mode changes.
To play one side only, select =.
To play from front side to reverse side once only, select Z).
To play both sides repeatedly, select C=).
●When tapes are loaded in both decks, =) on the display
indicates Continuous Play.
To select aplaying deck
When tapes are loaded in both decks, press TAPE firstto select
adeck.
The selected deck number is displayed.
To stop play, press ■.
To pause play (deck 2only), press II. To resume play, press
again,
To change the playback side, press<> DIRECTION/PRESET
in play or pause mode.
To fast forward or rewind, press Uor W. Then press Wto
stop the tape.
To start play when the power is off (Direct Play Function)
Press TAPE. The power is turned on and play of the inserted
tape begins.
To set the tape counter to 0000
Press ■CLEAR in stop mode.
The counter is also set to 0000 when the cassette holder is
opened and closed.
13 ENGLISH

If there is a4-second or longer blank between each track, a
search for the beginning of the current or next track during
playback can be done easily.
Press +4 or -during playback referring to the playback side
indicator (+ or >) on the display.
For example, when -is pressed while >is displayed,
playback of the next track starts.
Music sensor function may not be able to detect tracks under
the following conditions:
●Blanks of less than 4seconds between tracks
●Noisy blanks
●Long passages of low-end sound
●Low overall recording levels
,____ __ ————--,—-
After playback on one deck finishes, the tape in the other deck
will start to play without interruption.
1Insert tapes into deck 1and deck 2.
2
3
4
Press TAPE DECK1/2 to select
played back first.
Press REV MODE to select 11.
Press +➤to start playback.
Playback continues until ■is pressed.
the deck to be
About cassette tapes
●To prevent accidental erasure, break offthe plastictabs
on the cassette tape after recordingwith ascrewdriver or
other pointed tool.
Side AII
@
m(q)
\:ii>
;0
*
Type II tape Tab for side A
detection
slot
To record on the tape again, cover the tab openings with
adhesive tape, etc. (On Type II tapes, take care nclt to
cover the Type II tape detection slot.)
●120-minute or longer tapes are extremelythin and easily
deformed or damaged. They are not recommended.
●Take up any slack in the tape with apencil or similar tool
before use. Slack tape may break or jam in the mechanism.
ENGLISH I~

AOPEN/CLOSE DISC
DISC CHANGE
DISC =.-=
rL/+Y I-,% ~:-p-_ ––--m?illlR..JGJL JL.n ‘IB -a . .
LOADING DISCS
Press CD, then press 4OPEN/CLOSE to open the
disc compartment. Load disc(s) with the label side
up.
To Dlav one or two discs, place the discs on tray 1and 2.
To dav three discs, press DISC CHANGE to rotate the trays
after placing two discs. Place the third disc on tray 3.
Close the disc compartment by pressing AOPEN/CLOSE.
o
:$@@
.. rD!SC CHANGE
Tray 1
Tray number of the
disc to be played Total playing time
Total number of tracks
Load discs.
To plav all discs in the disc compartment, press +E.
Play begins with the disc on tray 1.
Number of track being played Elapsed playing time
To plav one disc only, press DISC DIRECT PLAY 1-3.
The selected disc is played once.
To play with the remote control
Press DISC DIRECT PLAY, then press numbered buttons 1-3
within 3seconds to select adisc.
To stop play, press ■.
To pause play, press 1I. To resume play, press again.
To search for aparticular point during playback, keep -
or -pressed and release it at the desired point.
To skip to the beginning of atrack during playback, press
<or FF repeatedly or turn MULTI JOG.
To remove discs, press AOPEN/CLOSE.
To start play when the power is off (Direct Play Function)
Press CD. The power is turned on and play of the loaded disc(s)
begins.
When 4OPEN/CLOSE is pressed, the power is also turned on
and the disc compartment is opened.
To check the remaining time
During play, press CD EDIT/CHECK. The amount of time
remaining until all tracks finish playing is displayed. To restore
the playing time display, repeat the above.
Selecting atrack with the remote control
1
2
Press ‘DISC DIRECT PLAY, then press numbered buttons
1-3 within 3seconds to select adisc.
Press numbered buttons O-9 and +1 Oto select atrack.
Example:
To select the 25th track, press +1 O, +10 and 5.
To select the 10th track, press +1 Oand O.
The selected track starts to play and continues to the end of
that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without
interrupting play.
1Press DISC CHANGE.
2Remove the discs and replace with other discs.
3Press 4OPEN/CLOSE to close the disc compartment.
●When loading an 8-cm (3-inch) disc, put it onto the inner circle
of the tray.
●Do not place more than one compact disc on one disc tray.
●Do not tilt the unit with discs loaded. Doing so may cause
malfunctions.
●Do not use irregular shape CDs (example: heart-shaped,’
octagonal ones). It may result in malfunctions.
15 ENGLISH

Use the remote control.
RANDOM play
All the tracks on the selected disc or all the discs can be played
randomly,
REPEAT play
Asingle disc or all the discs can be played repeatedly.
Press RANDOM/REPEAT.
Each time it is pressed, the function can be selected cyclically.
RANDOM play —RANDOM lights up on the display.
REPEAT play —=lights up on the display.
RANDOM/REPEAT play —RANDOM and %light up on the
display,
Cancel —RANDOM and CL disappear from the display.
To dav all discs, press +> to start play.
To ~lav asinde disc, press one of DISC DIRECT PLAY 1-3 to
start play.
m
During random play it is not possible to skip to the previously
played track with 4.
Up to 30 tracks can be programmed from any of the inserted
discs.
Use the
1
2,3
remote control.
1
2
Press PRGM twice in stop mode.
“PRGM” is displayed .
PRGM
●When the PRGM is pressed once in step 1, the unit enters
the KARAOKE PROGRAM (page 24).
Press DISC DIRECT PLAY, then press numbered
buttons 1-3 within 3seconds to select adisc.
Goto the next step when the tray stops rotating.
3
4
5
Press numbered buttons O-9 and +1Oto program ,*,
atrack. $;:
To select the 10th track, press +10 and O. $;&~
‘y;g~;
Total number of
Selected track number
Program number
selected tracks
Total playing “time of
the selected track,
Repeat steps 2and 3to program other tracks.
Press 4bto start play.
To check the program
Each time +or F> is pressed in stop mode, adisc number,
track number, and program number will be displayed.
To clear the program
Press 9CLEAR in stop mode.
To add tracks to the program
Repeat steps 2 and 3 in stop mode. The track will be programmed
after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again
To play the programmed tracks repeatedly
After programming the tracks, press RAN130M/REPEAT ❑
repeatedly until ~appears on the display.
m
During programmed play, you cannot perform random play,
checking the remaining time, and selecting adisc or track.
ENGUSH 16

This section explains how to record from the tuner, CD player, or
external equipment.
l__~_l
3
Preparation
“Use Type I(normal) and Type II (high/CrOz) tapes for recording.
●Set the tape to the point where recording will start.
1
2
3
4
Insert the tape to be recorded on into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
Press REV MODE to select the reverse mode.
To record on one side only, select 1.
To record on both sides, select => or (1).
Press function (CD, TUNER, VIDEO/AUX or MD)
and prepare the source to be recorded.
To record from aCD, press CD and load the disc(s).
To record from aradio broadcast, press TUNER and tune
in to astation.
To record from aconnected source, press VIDEO/AUX or
MD.
Press ●REC/REC MUTE to start recording.
When the selected function is CD, playback and re;ording
start simultaneously.
When recording from aconnected source, start playback of
the source.
To stop recording, press ■.
To pause recording, press II. (Applicable when the source is
TUNER, VIDEO/AUX or MD) To resume recording, press it again.
To start recording with the remote control
First press ●/0 REC/REC MUTE, and then press 4> within 2
seconds.
Sound adjustment during recording
The output volume and tone (except BBE and Rhythm play
function) of the speakers or headphones may be freely varied
without affecting the recording.
..“-----..”.”.”.”...L,”w,*~****-*~m,*,!j!j
$*eiwa*w4@:---8w%Jw$ww-ww*w*ww#mwx-&-. w&........-. %.-
INSERTING BLANK SPACES
Insertion of 4-second blank spaces enables you to activate the
Music Sensor function. (Applicable when the source is TUNER,
VIDEO/AUX or MD.)
1Press .REC/REC MUTE during recording or while in
recording pause mode.
~on the display flashes for 4seconds and the tape runs
without recording. After 4seconds, the deck enters the
recording pause mode.
2Press II to resume recording.
To insert ablank space of less than 4seconds, press ●
REC/REC MUTE again while ~isflashing.
To insert blank spaces of more than 4seconds, after the deck
enters recording pause mode, press ●REC/REC MUTE again.
Each time the button is pressed, a4-second blank space is
added.
To erase arecording
Make sure the microphone is not connected to this unit and the
Rhythm play function (page 7) is canceled.
Set the microphone volume and the echo level to OFF (See page
23).
1
2
3
4
Insertthe tape to be erased into deck 2 and press TAPE DECK
1/2 to display ‘(TP 2“.
Set the tape to the point where the erasure is to be started.
Set the reverse mode by pressing REV MODE.
Press ●REC/REC MUTE to start the erasure.
17 ENGLISH

1,3
■
4
2
m
●Set the tape to the point where recording will start.
●The reverse mode is automatically set to =.
Note that recording will be done on one side of the tape only.
1
2
3
4
Press TAPE.
Insert the original tape into deck 1and the tape
to be recorded on into deck 2.
Insert the tapes with the sides to be played back or recorded
on facing out from the unit.
Press TAPE DECK 1/2 to select deck 1.
“TP 1” is displayed.
Press 0REC/REC MUTE to start recording.
Playing and recording start simultaneously.
To stop dubbing
Press El.
This function allows you to make exact copies of both sides of
the original tape. The reverse side of both tapes will start
simultaneously as soon as the longer tape has been reversed.
m
●Dubbing does not start from apoint halfway in the tape.
●The reverse mode is automatically set to =1.
1
2
3
Press TAPE.
Insert the original tape into deck 1and the tap~e
to be recorded on into deck 2.
Insert each tape with the side to be played back or recorded
on facing out from the unit.
Press SYNC DUB once or twice to start recording.
@For recording at normal speed, press it once to display
NORM-DUB.
@For recording at high speed, press it twice to display
HIGH-DUB.
o
The tapes are rewound to the
and recording starts.
To stop dubbing
Press ■.
m
beginning of the front sides,
Recording does not start, if the erasure prevention tab on either
side of the tape is broken off.
ENGLI:3H 18

6Press ●REC/REC MUTE to start recording on
Ah==-’-..
0-9,+10
The Al edit recording function enables CD recording without
worrying about tape length and track length. When aCD is
inserted, the unit automatically calculates the total track length,
If necessary, the order of tracks is rearranged so that no track is
cut short.
(Al: Artificial Intelligence)
m
Al edit recording will not start from apoint halfway into the tape.
The tape must be recorded from the beginning of either side.
1
2
3
4
5
Insert the tape into deck 2.
Insert the tape with the side to be recorded on first facing out
from the unit.
Press CD and load the disc(s).
Press CD EDIT/CHECK once.
“EDIT” is displayed. EDIT
●When “PRGM~ is displayed, press CD EDIT/CHECK again.
Press DISC DIRECT PLAY 1-3 to select adisc.
Press numbered buttons O-9 on the remote
control to designate the tape length.
10 to 99 minutes can be specified.
Example: When using a60-minute tape, press 6 and O.
In afew seconds] the tracks to be recorded on each side of
the tape are determined.
.-, -or M“ULTI JOG are also available to designate
the tape length.
Remaining time Programmed
Tape length of recording tracks for side A
the first side.
The tape is rewound to the beginning of the front side, the
lead segment is played through for 10 seconds, and recording
starts. When recording on the front (side A) ends, recording
on the back (side B) starts.
To stop recording
Press ■CLEAR. Recording and CD play stop simultaneously.
To clear the edit program
Press ■CLEAR twice sothat “EDIT” disappears on the display.
To check the order of the programmed track numbers
Before recording, press CD EDIT/CHECK to select side Aor B,
and press +or -repeatedly.
Programmed
Track number track numbers
Program number
To add tracks from other discs to the edit program
If there is any time remaining on the tape after step 5, you can
add tracks from other discs in the CD compartment
1
2
3
4
Press CD EDIT/CHECK to select side Aor B.
Press DISC DIRECT PLAY 1-3 to select adisc.
Pressnumberedbuttonsonthe remotecontroltoselecttracks.
Atrack whose playing time is longerthan the remaining time
cannot be programmed.
Repeat steps 2and 3to add more tracks.
Time on cassette tapes and editing time
The actual cassette recording time is usually alittle longer than
the specified recording time printed on the label. This unit can
program tracks to use the extra time. When the total recording
time is alittle longer than the tape’s specified recording time
after editing, the display shows the extra time (without aminus
mark), instead of the time remaining on the tape (with the minus
mark).
●The Al edit recording function cannot be used with discs
containing 31 tracks or more.
●Recording is inhibited if the erasure prevention tab on either
side of the tape is broken off.
Tape side
A: First recording side
B: Second recording side
19 ENGLISH
