SERVICE MANUAL
COLOR TELEVISION
TV-AN2110
S/M Code No. 09-003-340-3R1
NH

2
When servicing and checking on the TV, note the followings.
NOTICES BEFORE REPAIRING
To make the best use of this equipment, make sure to
obey the following items when repairing (or mending).
1. Do not damage or melt the tunicate of the leading
wire on the AC1 side, including the power supply
cord.
2. Do not soil or stain the letters on the spec.
inscription plates, notice labels, fuse labels, etc.
3. When repairing the part extracted from the
conducted side of the board pattern, fix it firmly
with applying bond to the pattern and the part.
4. Restore the following items after repairing.
1) Conditions of soldering of the wires (especially,
the distance on the AC1 side).
2) Conditions of wiring, bundling of wires, etc.
3) Types of the wries.
4) Attachment conditions of all types of the insulation.
5. After repairing, always measure the insulation
resistance and perform the voltage-withstand test
(See Fig-1).
1) The insulation resistance must be 7.0 to 9.5 MΩ
when applying 500V per second.
2) In the voltage withstand test, apply 1.0 kV for 1
minute and check that the GO lamp lights.
* Breaking current set to 10 mA.
* Connect the safety checker as shown in Fig-1,
then measure the resistance and perform the test.
* Do not touch the equipment during testing.
* For details of the safety checker, refer to the supplied
Operation manual.
board. The inside wiring is designed not to get close to
the pyrogenic parts and high voltage parts. Therefore,
put these parts in the original positions.
5. Take care of the cathode-ray tube.
By setting an explosion-proof cathode-ray tube in this
equipment, safety is secured against implosion.
However, when removing it or servicing from the
back, it gives out shock that is dangerous. Take
enough care to deal with it.
6. Avoid an X-ray.
Safety is secured against an X-ray by giving
considerations to the cathode-ray tube and the high
voltage peripheral circuit, etc. Therefore, when
repairing the high voltage peripheral circuit, use the
designated parts and do not change the circuit.
Repairing, except indicates, causes rising of high
voltage, and the cathode-ray tube emits an X-ray.
7. Perform a safety check after servicing.
Confirm that the screws, parts and wiring which were
removed in order to service are put in the original
positions, or whether there are deteriorated portions
around the places serviced.

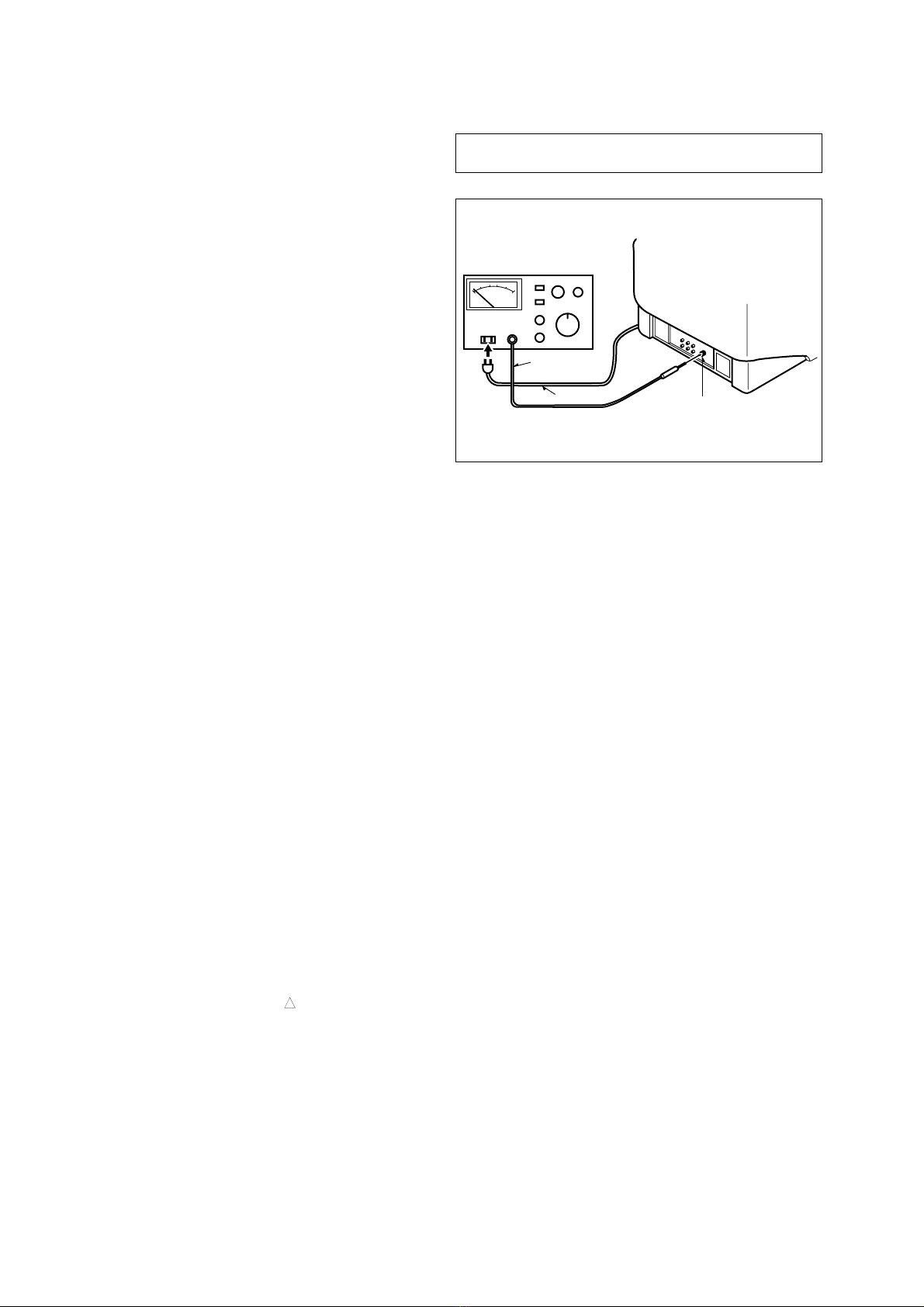

Fig-1
Insulation resistance: 7.0 to 9.5 MΩ(500 V/s)
Voltage-withstand: 1.0 kV for 1 minute.
1. Keep the notices.
As for the places which need special attentions, they
are indicated with labels or seals on the cabinet,
chassis and parts. Make sure to keep the indications
and notices in the operation manual.
2. Avoid an electric shock.
There is a high voltage part inside. Avoid an electric
shock while the electric current is flowing.
3. Use the designated parts.
The parts in this equipment have the specific
characteristics of incombustibility and withstand voltage
for safety.
Therefore, use a part which has the same character
as the replaced part. Especially as to the important
parts for safety which is indicated in the circuit
diagram or the table of parts with a mark, the
designated parts must be used.
4. Put parts and wires in the original position after
assembling or wiring.
There are parts which use the insulation material such
as a tube or tape for safety, or which are assembled so
that these parts do not make contact with the printed
!
Earth cable
AC cable
Safety checker (Model7110,etc.)
Connect the earth cable
to the outside metal part
terminal.

3
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 8Z-JAK-901-010 IB,NH (E) -AN2110/ 2010/1410
2 8Z-JAE-951-010 RC UNIT,RC-ZVT18
3 87-A90-702-010 ANT ASSY,TV 5 SEC (NTSC)
!4 87-A91-015-010 PLUG,CONVERSION JT-0475A
Tuner System Frequency synthesized tuner
TV System NTSC-M
Channel Coverage VHF: 2 to 13
UHF: 14 to 69
CATV: 5A, A-1 to A-5, A to W, W+1 to W+84
Program Memory 181
Antenna Input 75 ohms, unbalanced
Picture Tube 20’’
Screen Size 404 (W) x 303 (H) mm (16 x 12 in.)
480 mm (Visible diagonal) (19 in.)
Video Input 1 Vp-p 75 ohms
Audio Input 0.5 Vrms., 33 k ohms more
Speaker 120 x 60 mm (43/4x 2 3/8in.)
Operating Voltage 110 - 240 V, 50/60 Hz
Power Consumption 105 W
Phone Jack Stereo-mini jack
Operating Temperature 5°C - 40°C
Operation Humidity 35% - 80%
Dimensions 610 (W) x 440 (H) x 483 (D) mm
(241/8x 173/8x 191/8in.)
Weight 19.5 kg (42.9 lbs.)
SPECIFICATIONS
• Design and specifications are subject to change without notice.

4
Anode cap
CRT GND
Hook CRT
CRT GND
Grip
DISASSEMBLY INSTRUCTIONS
1. REAR CABINET REMOVAL
(1) Remove four screws 1and three screws 2, then remove
the rear cabinet in the direction of the arrow. (See Figure1-
1)
Figure 1-1
2. HIGH-VOLTAGE CAP (ANODE CAP) REMOVAL
2-1. Cautions before Removing
Discharge the anode voltage
(1) The anode voltage is not discharged completely from the
CRT of this unit even after the power is turned off. Be
sure to discharge the residual anode voltage before
removing the anode cap.
Do not use pliers
(2) Do not use pliers, etc. to remove the anode cap. If you
used pliers and bent the hook to remove the cap, the spring
characteristics of the hook could be lost, and when
reinstalled, the cap would come off from the CRT anode
button easily, causing an accident.
Do not turn the anode cap
(3) If the anode cap is turned in the direction of its
circumference, the hook is likely to come off.
2-2. Anode Cap Removal
Discharge the anode voltage. (See Figure 2-1)
(1) Connect a flat-bladed screwdriver to the CRT GND via
an alligator clip.
(2) Use a tester to check the end of the screwdriver and ground
of the TV for continuity.
(3) Touch the hook with the end of the screwdriver.
Caution : Be careful not to damage the anode cap.
(4) Turn over the anode cap.
Caution : Be careful not to damage the anode cap.
Figure 2-1
Figure 2-2
Front cabinet
Rear cabinet
Anode cap
CRT
Hook
Anode button

5
(5) Push the anode cap with your thumb in the direction of
arrow 1 as shown in the figure, then lift the cap in the
direction of arrow 2to release the hook on one side. (See
Figure 2-3)
(6) Turn over the anode cap on the side where the hook was
released and pull out the cap in the direction opposite to
that on which the cap was pushed. (See Figure 2-4)
Caution : Do not pull out the anode cap straight up.
: Do not pull the cap forcibly. After removing
the cap, check that the hook is not deformed.
Figure 2-3
3. ANODE CAP REINSTALLTION
Observe the cautions carefully so that no accident occurs
due to a defect in installing the anode cap and so it does
not come off.
3-1. Caution before Reinstalling
Never turn the anode cap after installing it
Never re-use the hook when it has been deformed
(1) If the anode cap is turned after it is installed, it may come
off. Therefore, arrange the high-voltage cable before
attaching the anode cap. (See Figure 3-1)
(2) If you have attached the anode cap before arranging the
high-voltage cable, arrange the cable carefully so the cap
does not turn.
3-2. Anode cap reinstallation
(1) Use a clean cloth moistened slightly with alcohol to clean
the installation section. (See Figure 3-2)
Caution : Check that the installation section is free from
dust, foreign matter, etc.
(2) Coat the anode cap installation circumference with an
appropriate amount of the specified silicone grease (KS-
650N).
Caution : Be careful that silicone grease does not enter
the anode button.
CRT CRT
Anode cap
Hook Hook
Anode cap
Hook
Anode button
CRT
Left Right
Anode cap
Anode button
Installation
section
Figure 2-4
Figure 3-1
Figure 3-2

6

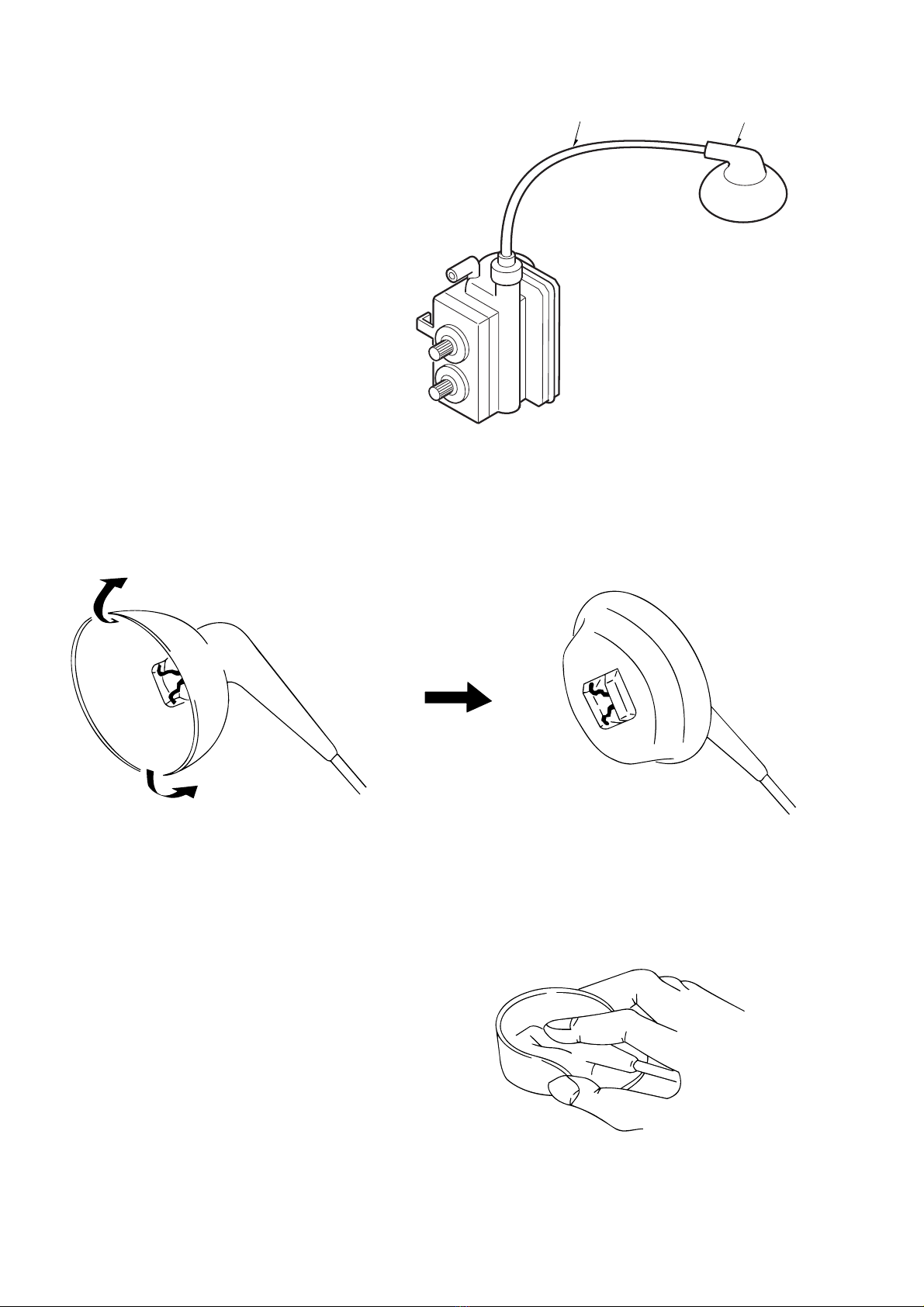

(3) Eliminate twisting, etc. of the high-voltage cable and
arrange it so that no twisting occurs. (See Figure 3-3)
Caution : If the cable is not arranged correctly, the anode
cap could turn and cause an installation defect.
(4) Turn over the rubber cap symmetrically on the left and
right. (See Figure 3-4)
Caution : Take great care not to damage the anode cap.
Figure 3-3
(5) Fit your forefinger over the projection at the center of the
cap and hold the cap between your thumb and middle
finger. (See Figure 3-5)
High-voltage cable Anode cap
Figure 3-4
Figure 3-5

7
(6) Apply the hook on one side to the anode button as shown
on the figure. (See Figure 3-6)
Caution : Check that the hook is held securely.
(7) Apply the hook on the other side to the anode button as
shown in Figure 3-7.
(8) Pull the anode cap slightly with the rubber cap turned
over and visually check that the hook is engaged securely.
(9) Release your hand from the rubber cap of the anode cap.
Caution : Cover the anode cap so that it does not lift.
(10) Hold the skirt of the andoe cap slightly to improve the
close contact between the cap and CRT.
(11) Check that the anode cap is in close contact with the CRT.
(See Figure 3-8)
Figure 3-8
Figure 3-7
Figure 3-6
Anode button
Skirt
Hook
Anode button
Anode button
Hook
Anode button
Hook
30°

8

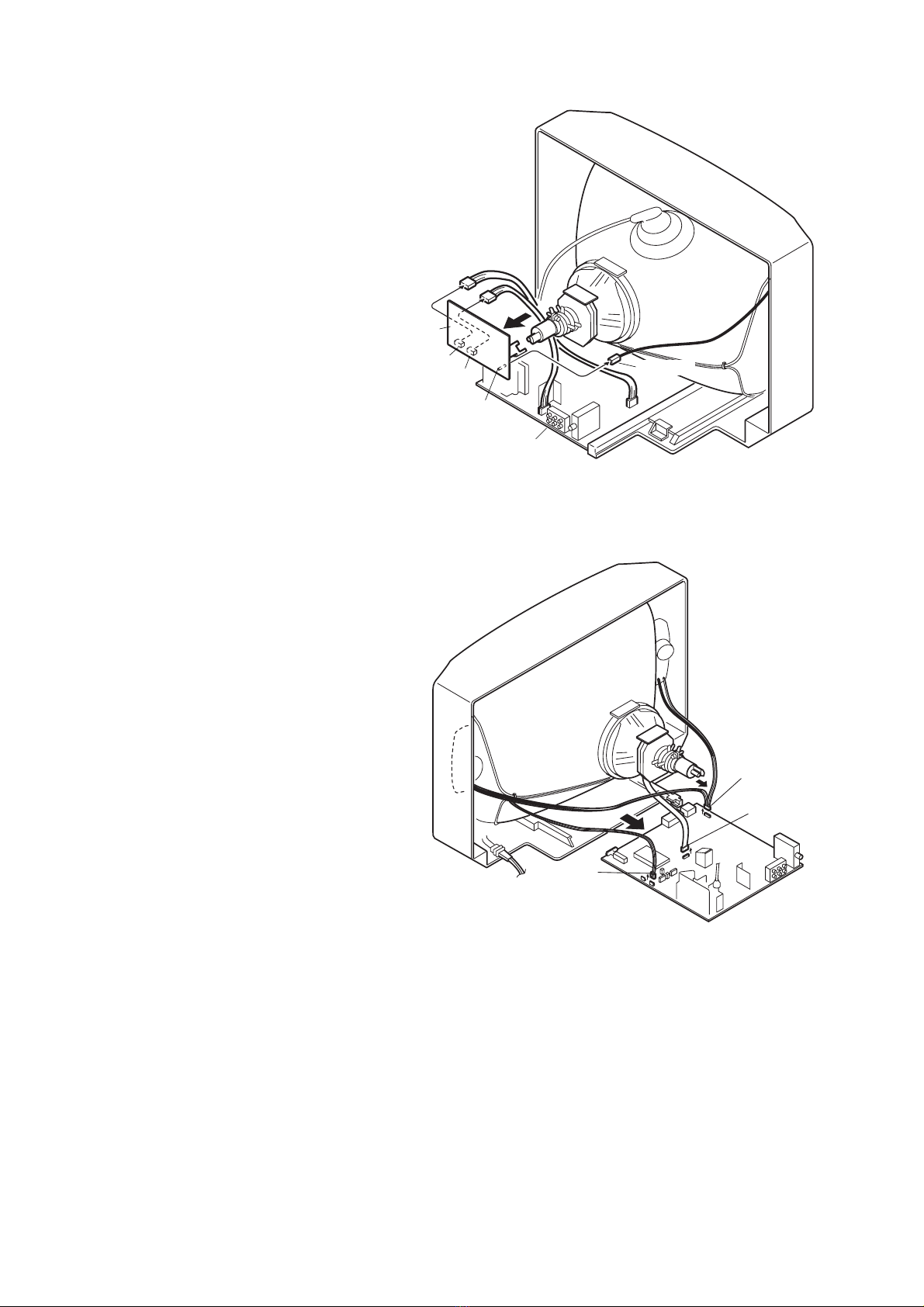

4. NK C.B REMOVAL
(1) Disconnect CN903 (CRT GND).
(2) Disconnect CN901, CN902.
(3) Pul out the NK C.B. in the direction of arrow.
(See Figure 4)
5. MAIN C.B REMOVAL
(1) Disconnect CNA401, CN601 and CN802.
(2) Pull out the Main C.B. in the direction of the arrow.
(See Figure 5)
Figure 4
BT301
BT601
CN901
CN902
CN903
MAIN C.B
CRT GND
NK C.B
CN601
CN802
CNA401
Figure 5

9
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-A20-364-010 IC,KIA7809PI
87-027-666-010 IC,TC4052BP
87-A20-312-010 IC,M62420SP
87-070-237-010 IC,LA7832
87-A30-041-110 TR,SE115N
87-A20-611-080 IC,M51943BSL-700A
8Z-JAD-621-010 IC,M37272M8-165SP
87-A91-538-010 RCR UNIT,SBX1981-72P
87-A21-433-010 IC,KS24C041I
87-A21-299-010 IC,LA6458SLL
8Z-JBJ-605-010 IC,TA1268N
87-002-421-010 IC,NJM2233BL
87-A21-283-010 IC,AN5277
87-A21-259-010 IC,MM1454XD
87-A21-169-010 IC,MM1124B
87-A21-345-010 IC,NJM2150
87-A21-344-010 IC,STR-F6656
TRANSISTOR
89-337-794-580 TR,2SC3779 D/E
87-A30-091-080 FET,2SJ460
87-A30-114-080 TR,2SD1207T
89-208-922-380 TR,2SB892 ST
87-026-269-080 TR,DTA114ES
89-327-854-080 TR,2SC2785F
89-111-755-080 TR,2SA1175F
87-A30-121-080 TR,DTC 323 TS
87-A30-090-080 FET,2SK2541
87-A30-176-010 TR,2SC1573A P/Q/R
89-320-012-080 TR,2SC2001L
87-A30-095-010 TR,2SD2333LS/C202
DIODE
87-017-654-060 DIODE,GBU6JL6131
87-070-111-060 DIODE,RU30A
87-017-352-090 DIODE,RU3YX
87-070-112-060 DIODE,RU4YX
87-017-931-080 ZENER,MTZJ5.6B
87-002-743-080 ZENER,MTZJ 33B
87-070-136-080 ZENER,MTZJ5.1B
87-A40-523-080 ZENER,MTZJ9.1B
87-A40-348-080 ZENER,MTZJ3.3A
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-286-080 DIODE,RGP10JE-5025
87-070-274-080 DIODE,1N4003 SEM
87-017-932-080 ZENER,MTZJ6.2B
87-A40-450-090 DIODE,RU 1P
87-A40-611-080 ZENER,MTZJ3.9B
87-A40-249-080 ZENER,MTZJ 15A

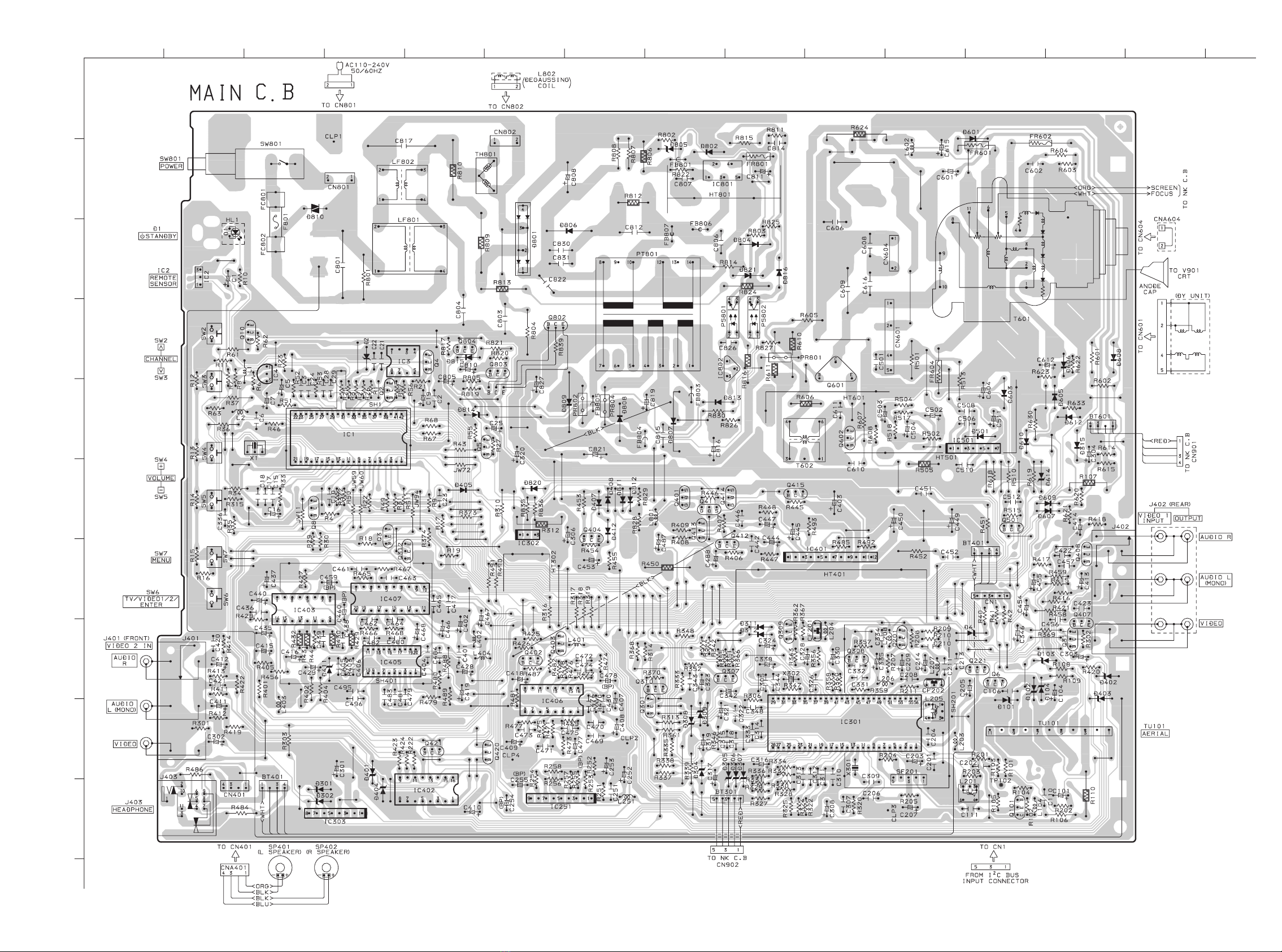

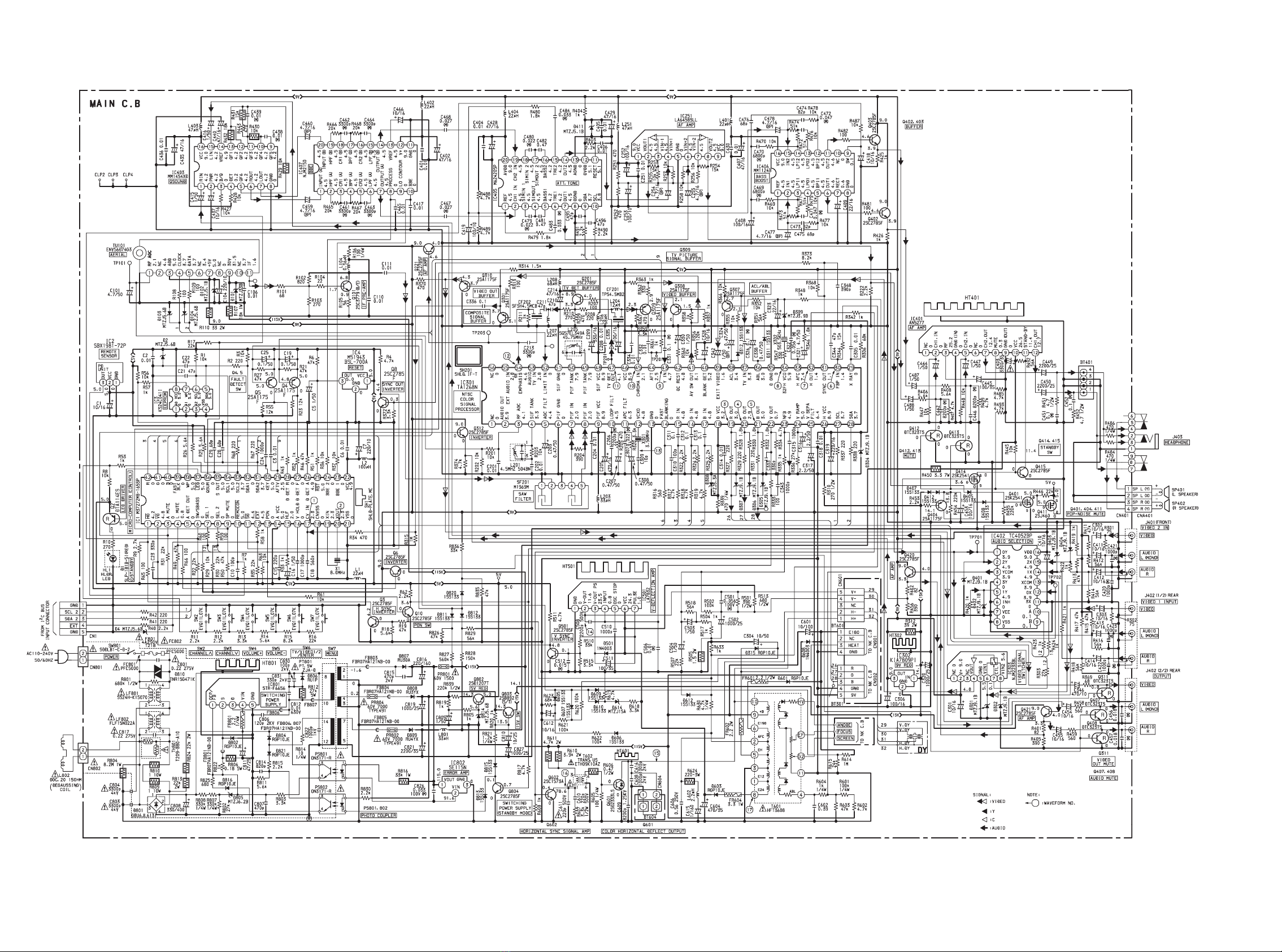

MAIN C.B
BT301 87-JBC-625-010 CONN ASSY,5P V WHT TV-NK
BT401 8Z-JAE-615-110 CONN ASSY,4P V GRAY JK
BT601 87-JBC-626-010 CONN ASSY,4P V WHT TV-NK
C1 87-016-624-080 CAP,E 10-16 SSL
C2 87-018-134-080 CAPACITOR,TC-U 0.01-16
C3 87-018-134-080 CAPACITOR,TC-U 0.01-16
C5 87-016-633-080 CAP,E 1-50 SSL
C6 87-018-134-080 CAPACITOR,TC-U 0.01-16
C7 87-016-621-080 CAP,E 220-10 SSL
C10 87-018-119-080 CAP, CER 100P-50V
C15 87-018-123-080 CAP, CER 220P-50V
C16 87-016-633-080 CAP,E 1-50 SSL
C17 87-018-131-080 CAP, CER 1000P-50V
C18 87-018-128-080 CAP, CERA-SOL SS 560P
C19 87-016-629-080 CAP,E 0.1-50 SSL
C21 87-018-115-080 CAP, CER 47P-50V
C22 87-018-115-080 CAP, CER 47P-50V
C23 87-018-125-080 CAP, CER 330P-50V
C24 87-018-131-080 CAP, CER 1000P-50V
C25 87-016-629-080 CAP,E 0.1-50 SSL
C28 87-018-117-080 CAP,TC-U 68P-50 SL
C29 87-018-117-080 CAP,TC-U 68P-50 SL
C101 87-016-636-080 CAP,E 4.7-50 SSL
C104 87-016-621-080 CAP,E 220-10 SSL
C106 87-A10-576-010 CAP,CER 0.01-50 Z YF
C110 87-018-134-080 CAPACITOR,TC-U 0.01-16
C111 87-018-134-080 CAPACITOR,TC-U 0.01-16
C201 87-018-134-080 CAPACITOR,TC-U 0.01-16
C202 87-018-134-080 CAPACITOR,TC-U 0.01-16
C203 87-016-632-080 CAP,E 0.47-50 SSL
C204 87-018-134-080 CAPACITOR,TC-U 0.01-16
C205 87-016-577-080 CAP,E 470-16 SSL
C207 87-016-632-080 CAP,E 0.47-50 SSL
C208 87-018-134-080 CAPACITOR,TC-U 0.01-16
C209 87-016-576-080 CAP,E 330-16 SSL
C210 87-018-115-080 CAP, CER 47P-50V
C211 87-A11-080-080 CAP,TC U 47P-50 J CH
C214 87-016-627-080 CAP,E 47-16 SSL
C251 87-018-134-080 CAPACITOR,TC-U 0.01-16
C252 87-016-574-080 CAP,E 100-16 SSL
C253 87-A10-112-080 CAP,E 100-10 SSL
C254 87-015-464-080 CAP,E 4.7-16 BP
C255 87-015-464-080 CAP,E 4.7-16 BP
C301 87-016-624-080 CAP,E 10-16 SSL
C302 87-016-624-080 CAP,E 10-16 SSL
C303 87-016-624-080 CAP,E 10-16 SSL
C304 87-016-637-080 CAP,E 10-50 SSL
C305 87-018-134-080 CAPACITOR,TC-U 0.01-16
C306 87-016-574-080 CAP,E 100-16 SSL
C308 87-016-632-080 CAP,E 0.47-50 SSL
C310 87-018-119-080 CAP, CER 100P-50V
C311 87-A11-148-080 CAP,TC U 0.1-50 Z F
C312 87-A11-148-080 CAP,TC U 0.1-50 Z F
C313 87-A11-148-080 CAP,TC U 0.1-50 Z F
C314 87-018-134-080 CAPACITOR,TC-U 0.01-16
C315 87-018-131-080 CAP, CER 1000P-50V
C316 87-016-634-080 CAP,E 2.2-50 SSL
C317 87-016-634-080 CAP,E 2.2-50 SSL
C318 87-018-134-080 CAPACITOR,TC-U 0.01-16
C319 87-016-575-080 CAP,E 220-16 SSL
C320 87-016-587-090 CAP,E 1000-25 M SSL
C321 87-016-636-080 CAP,E 4.7-50 SSL
C323 87-016-625-080 CAP,E 22-16 SSL
C324 87-016-632-080 CAP,E 0.47-50 SSL
C328 87-016-624-080 CAP,E 10-16 SSL
C330 87-016-633-080 CAP,E 1-50 SSL
C332 87-018-134-080 CAPACITOR,TC-U 0.01-16
C333 87-018-125-080 CAP, CER 330P-50V
C334 87-018-134-080 CAPACITOR,TC-U 0.01-16
C335 87-016-574-080 CAP,E 100-16 SSL
C336 87-A11-148-080 CAP,TC U 0.1-50 Z F
C338 87-016-632-080 CAP,E 0.47-50 SSL
C342 87-010-529-080 CAP,E 1-50 BP
C343 87-018-131-080 CAP, CER 1000P-50V
C344 87-A11-080-080 CAP,TC U 47P-50 J CH
C346 87-016-622-080 CAP,E 470-10 SSL
C348 87-018-126-080 CAP,TC-U 390P-50 B
C401 87-018-134-080 CAPACITOR,TC-U 0.01-16
C402 87-016-627-080 CAP,E 47-16 SSL
!C403 87-010-399-090 CAP,E 3300-35 SME
C404 87-018-134-080 CAPACITOR,TC-U 0.01-16
C405 87-018-134-080 CAPACITOR,TC-U 0.01-16
C406 87-018-134-080 CAPACITOR,TC-U 0.01-16
C407 87-016-627-080 CAP,E 47-16 SSL

10
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C408 87-016-574-080 CAP,E 100-16 SSL
C409 87-016-625-080 CAP,E 22-16 SSL
C410 87-016-624-080 CAP,E 10-16 SSL
C411 87-016-624-080 CAP,E 10-16 SSL
C412 87-016-624-080 CAP,E 10-16 SSL
C413 87-016-624-080 CAP,E 10-16 SSL
C414 87-016-624-080 CAP,E 10-16 SSL
C415 87-016-633-080 CAP,E 1-50 SSL
C416 87-016-633-080 CAP,E 1-50 SSL
C417 87-018-134-080 CAPACITOR,TC-U 0.01-16
C418 87-016-624-080 CAP,E 10-16 SSL
C419 87-A10-112-080 CAP,E 100-10 SSL
C428 87-016-627-080 CAP,E 47-16 SSL
C429 87-016-627-080 CAP,E 47-16 SSL
C430 87-018-134-080 CAPACITOR,TC-U 0.01-16
C435 87-016-627-080 CAP,E 47-16 SSL
C436 87-018-134-080 CAPACITOR,TC-U 0.01-16
C437 87-016-624-080 CAP,E 10-16 SSL
C440 87-016-627-080 CAP,E 47-16 SSL
C444 87-016-633-080 CAP,E 1-50 SSL
C445 87-016-591-080 CAP,E 100-35 SSL
C447 87-016-633-080 CAP,E 1-50 SSL
C449 87-016-588-090 CAP,E 2200-25 SSL
C450 87-016-588-090 CAP,E 2200-25 SSL
C453 87-016-574-080 CAP,E 100-16 SSL
C454 87-016-624-080 CAP,E 10-16 SSL
C455 87-016-624-080 CAP,E 10-16 SSL
C459 87-015-464-080 CAP,E 4.7-16 BP
C460 87-015-464-080 CAP,E 4.7-16 BP
C465 87-018-134-080 CAPACITOR,TC-U 0.01-16
C466 87-016-624-080 CAP,E 10-16 SSL
C473 87-018-118-080 CAP,TC-U 82P-50 B
C474 87-018-118-080 CAP,TC-U 82P-50 B
C475 87-018-117-080 CAP,TC-U 68P-50 SL
C476 87-018-117-080 CAP,TC-U 68P-50 SL
C477 87-015-464-080 CAP,E 4.7-16 BP
C478 87-015-464-080 CAP,E 4.7-16 BP
C487 87-016-633-080 CAP,E 1-50 SSL
C488 87-016-633-080 CAP,E 1-50 SSL
C495 87-018-115-080 CAP, CER 47P-50V
C496 87-018-115-080 CAP, CER 47P-50V
C502 87-A10-831-080 CAP,E 1000-25 M SMG
C503 87-016-633-080 CAP,E 1-50 SSL
C504 87-016-633-080 CAP,E 1-50 SSL
C508 87-A10-469-080 CAP,CER 2200P-500 K B DD10
C510 87-018-131-080 CAP, CER 1000P-50V
C511 87-016-591-080 CAP,E 100-35 SSL
C601 87-016-644-080 CAP,E 10-100 SSL
C604 87-016-593-080 CAP,E 470-35 M SSL
C606 87-A10-675-090 CAP,M/P 0.56-250 J
C608 87-A10-833-010 CAP,CER 1000P-2K K R LONG
C609 87-A11-047-090 CAP,M/P 8200P-1.25 H PHS
!C610 87-010-974-080 CAP,CER 220P-500 B
!C611 87-010-974-080 CAP,CER 220P-500 B
C612 87-016-624-080 CAP,E 10-16 SSL
C615 87-016-215-080 CAP,E 1-160 M TWSS
C616 87-A10-833-010 CAP,CER 1000P-2K K R LONG
!C801 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)
!C803 87-A10-517-010 CAP,CER 3300P-4K M E KX
!C804 87-A10-517-010 CAP,CER 3300P-4K M E KX
C805 87-016-633-080 CAP,E 1-50 SSL
C806 87-A11-825-010 CAP,CER 120P-2K J SL
C807 87-018-127-080 CAP, CER 470P-50V
!C808 87-A11-992-090 CAP,E 330-400 105 KMH
C810 87-016-628-080 CAP,E 10-25 SSL
C811 87-016-582-080 CAP,E 47-25 SSL
C812 87-A11-302-090 CAP,M/P 0.01-630 J ECQF6(ZH)
C814 87-018-130-080 CAP,TC-U 820P-50 B
C815 87-A10-860-090 CAP,CER 470P-2K K R
C816 87-A10-731-090 CAP,E 220-160 M KMF
!C817 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)
C819 87-016-587-090 CAP,E 1000-25 M SSL
C821 87-010-446-010 CAP,E 2200-35 KME
C822 87-016-515-010 CAP,CER 1000P-1K KB
C827 87-016-587-090 CAP,E 1000-25 M SSL
C830 87-A11-824-010 CAP,CER 100P-2K J SL
C831 87-A10-858-090 CAP,CER 330P-2K KR
CF201 84-LB3-626-010 FLTR,TPS4.5MB2
CF202 87-008-574-080 FLTR,SFSH4.5MCB
CN1 87-009-195-010 CONN,5P B5BEH
CN401 87-049-469-010 CONN,4P V
CN601 87-A60-933-010 CONN,4P V B04(5-3)B-DVS-L
CN604 87-A60-485-010 CONN,2P V LV GRA
!CN801 87-099-674-010 CONN,2P VA V
!CN802 82-481-649-010 PLUG,2P MINI(*)
CNA401 87-JB8-601-010 CONN ASSY,4P SP-20
D1 87-070-110-010 LED,SLP-181B-51
D810 87-A90-965-010 VRIS,TNR15G471K
!F801 87-035-192-010 FUSE, 4AT
FB801 87-003-320-080 F-BEAD,FBR07HA121NB
FB803 87-003-320-080 F-BEAD,FBR07HA121NB
FB804 87-003-320-080 F-BEAD,FBR07HA121NB
FB805 87-003-320-080 F-BEAD,FBR07HA121NB
FB806 87-003-320-080 F-BEAD,FBR07HA121NB
FB807 87-003-320-080 F-BEAD,FBR07HA121NB
!FC801 87-033-213-080 CLAMP, FUSE
!FC802 87-033-213-080 CLAMP, FUSE
FR601 87-A00-063-060 RES,FUSE 2.2-1/2W J R-TYPE
FR602 87-A00-055-060 RES,FUSE 2.2-2WJ R-TYPE
FR604 87-A00-106-060 RES,FUSE 3.3-1W J R-TYPE
FR801 87-029-070-090 RESISTOR, FUSE 1/4W 2.2
HL1 84-LB3-216-010 HLDR,LED
J401 87-A60-856-010 JACK,PIN 3P
J402 87-A60-324-110 JACK,PIN 6P Y-W-R W/SW
J403 87-A60-858-010 JACK,3.5 BLK ST 2 SW
L2 87-005-614-080 COIL 100UH LAV35 J
L104 87-003-139-080 COIL,0.56UH
L201 8Z-JBR-612-010 COIL,SIF 4.5MHZ 504BN
L203 87-003-148-080 COIL BIAS 33UH
L204 87-003-282-080 COIL,12UH
L205 8Z-JBH-610-010 COIL,PIF-SQ57EL349A 45.75MHZ
L206 87-005-612-080 COIL,68UH J LAV35
L207 87-003-147-080 COIL, 22UH
L208 87-003-150-080 COIL, 68UH J LAL02
L251 87-005-610-080 COIL,47UH LAV35 J
L401 87-005-507-080 COIL,22UH FL0606 J
L402 87-005-507-080 COIL,22UH FL0606 J
L403 87-005-610-080 COIL,47UH LAV35 J
L404 87-005-507-080 COIL,22UH FL0606 J
L602 87-A50-040-010 COIL,2.2MH
L801 87-A50-176-080 COIL,33UH-PJ87
!LF801 87-JB8-651-010 FLTR,LINE SS24H-K15070
!LF802 8Z-JAD-610-010 FLTR,LINE FLF 15N022AV
!PR801 87-A90-090-080 PROTECTOR,1.5A 491SERIES 60V
!PR802 87-A90-195-080 PROTECTOR 7A 60V 491SERIES
!PR804 87-A90-195-080 PROTECTOR 7A 60V 491SERIES
!PS801 87-A91-407-010 P-COUPLER,ON3171-R
!PS802 87-A91-407-010 P-COUPLER,ON3171-R
!PT801 8Z-JAD-801-010 PT,SW ZJA-D
R107 87-A00-154-090 RES,M/F 18K-1W J RSF(S)
R110 87-A00-160-090 RES,M/F 33-2W J RSF(S)
R312 87-025-602-090 RES,M/O 39-2W J
R429 87-025-381-080 RES,M/F 18K-1/6W F
R430 87-025-424-080 RES,M/F 10K 1/6W F
R431 87-025-380-080 RES,M/F 15K-1/6W F
R432 87-025-381-080 RES,M/F 18K-1/6W F
R450 87-A00-624-090 RES,M/F 3.3-7W J RSV7
R505 87-A00-563-090 RES,M/F 1.5-1/2W J ERXS
R606 87-A00-196-090 RES,M/F 0.47-1/2W J RSF(S)

1211
TRANSISTOR ILLUSTRATION
2SB892
2SC1573
2SC2001
2SC3779
2SD1207
2SA1175
2SC2785
2SJ460
2SK2541
DTA114ES
DTC323TS
2SD2333
E C B B C E
E C B E C B
S D G
B E C
R610 87-A00-123-090 RES,M/F 3.9K-2W J RSI-2S B
R611 87-A00-561-090 RES,M/F 4.7K-2W J ERGS
R624 87-A00-544-090 RES,M/F 220-3W J ERGS
R804 87-A00-543-080 RES,SD 8.2M-1W J RCR60
R806 87-A00-204-090 RES,CEM 0.18-5W K
R809 87-A00-552-010 RES,CEM 1.0-10W J MPC722
R810 87-A00-552-010 RES,CEM 1.0-10W J MPC722
R812 87-A00-576-090 RES,M/F 27K-5W J RSV5
R813 87-A00-577-090 RES,M/F 22K-2W J RSF(S)
R816 87-A00-411-090 RES,M/F 33K-1W J
R824 87-A00-577-090 RES,M/F 22K-2W J RSF(S)
SF201 8Z-JBH-633-010 FLTR,SAW M1969-US
SW2 87-A90-712-080 SW,TACT EVQ11L07K
SW3 87-A90-712-080 SW,TACT EVQ11L07K
SW4 87-A90-712-080 SW,TACT EVQ11L07K
SW5 87-A90-712-080 SW,TACT EVQ11L07K
SW6 87-A90-712-080 SW,TACT EVQ11L07K
SW7 87-A90-712-080 SW,TACT EVQ11L07K
!SW801 87-A90-364-010 SW,PUSH SDDLB1-C-D-2
!T601 8Z-JBS-605-010 FBT, HFT3608(SAN)20-C
!T602 8Z-JBH-615-010 TRANS,US ETH09K10AZ
!TH801 87-A91-405-010 POS-THMS,T209-B80-A10
TU101 8Z-JBE-610-010 TU UNIT,USA ENV56D74G3
X1 87-A70-124-080 VIB,CER 8.0MHZ
X301 87-A70-007-080 VIB,XTAL 3.58MHZ AQC-1001
X302 87-030-327-010 VIB,CER CSB503F30
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

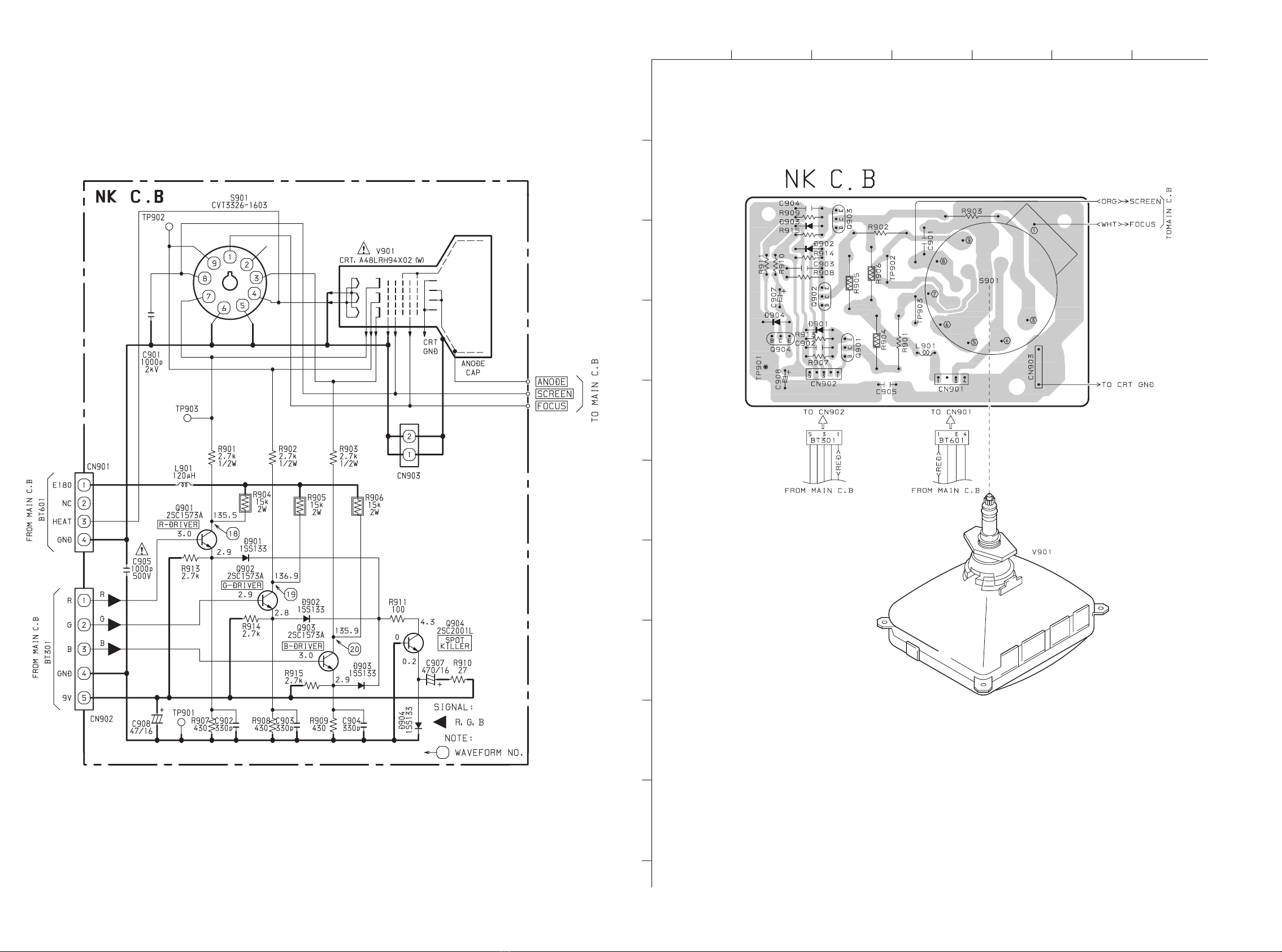

NK C.B
C901 87-012-372-010 CAP,CER 1000P-2K
C902 87-018-125-080 CAP, CER 330P-50V
C903 87-018-125-080 CAP, CER 330P-50V
C904 87-018-125-080 CAP, CER 330P-50V
!C905 87-010-976-080 CAP,CER 1000P-500 B
C907 87-016-577-080 CAP,E 470-16 SSL
C908 87-016-627-080 CAP,E 47-16 SSL
CN901 87-049-469-010 CONN,4P V
CN902 87-A60-622-010 CONN,5P V 2MM JMT
CN903 87-A60-485-010 CONN,2P V LV GRA
L901 87-005-615-080 COIL,120UH J LAV35
R904 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R905 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R906 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
S901 86-LBU-670-010 SOCKET,CRT 9P CVT3326 1603
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.

1413
SCHEMATIC DIAGRAM-1 (MAIN SECTION)
TP102
TP202
TP302

1234567
8910 11 12 13 14
A
B
C
D
E
F
G
H
I
J
1615
WIRING-1 (MAIN C.B SECTION)

1817
SCHEMATIC DIAGRAM-2 (NK SECTION)
123456
7
A
B
C
D
E
F
G
H
I
J
WIRING-2 (NK C.B SECTION)

19
WAVEFORM
IC1 Pin 17 (CV IN)
500 mV/div
20 µs/div
IC1 Pin 20 (XOUT)
1 V/div
50 ns/div
IC301 Pin 19 (R OUT)
1 V/div
20 µs/div
IC301 Pin 20 (G OUT)
1 V/div
20 µs/div
1
1
2
2
3
3
4
4
IC301 Pin 21 (B OUT)
1 V/div
20 µs/div
IC301 Pin 30 (FBP IN)
2 V/div
20 µs/div
IC301 Pin 32 (H OUT)
1 V/div
20 µs/div
IC301 Pin 34 (32FH VCO)
50 mV/div
500 ns/div
5
5
6
6
7
7
8
8

20
IC301 Pin 43 (Y IN)
200 mV/div
20 µs/div
IC301 Pin 45 (CHROMA IN)
200 mV/div
20 µs/div
IC301 Pin 47 (TV DET OUT)
500 mV/div
20 µs/div
IC301 Pin 54 (DE EMPHASIS)
200 mV/div
1 ms/div
9
9
10
10
11
11
12
12
Between X301 & C309 (VCXO)
50 mV/div
100 ns/div
IC501 Pin 2 (V-OUT)
10 V/div
5 ms/div
Q601 Collector
200 V/div
20 µs/div
Q602 Collector
50 V/div
20 µs/div
13
13
14
14
15
15
16
16

21
T601 Pin 8 (E24)
50 V/div
20 µs/div
Q901 Collector (R) --- NK C.B
20 V/div
20 µs/div
17
17
18
18
Q902 Collector (G) --- NK C.B
20 V/div
20 µs/div
Q903 Collector (B) --- NK C.B
20 V/div
20 µs/div
19
19
20
20

22
1 HD I OSD horizontal synchronised signal input terminal. "L"= active.
2 VD I OSD vertical synchronised signal input terminal. "L"= active.
3 A MUTE
O Used to mute line out sound and picture when no input signal is detected. "H" to mute.
4 L MUTE
5 A DET OUT O Not used.
6 SW/SBASS O SBASS ON "L", OFF "H".
Selecting tuner receiving band.
7 SEL1 O
Pin 7 Pin 8
TUNER L L Reset start : Both of Pin 7, Pin 8 are "H".
8 SEL2 O VIDEO 1 L H
VIDEO 2 H L
9 SP MUTE O Used to mute the speaker (sound) output.
10 REMOCON I Remote control signal is led to this pin.
11 SD I Horizontal sync. detected input. The level of this pin will be sampled by µ-P to
determine whether there is picture signal detected.
12 EXT I I2C switching.
13 PON O During standby mode, "H" level is inserted to switch off horizontal deflection and high
voltage.
14 A VCC – 5V supply.
15 HLF – Connected to filter.
16 V HOLD – Connected to condensor.
17 CV IN I Video signal input.
18 CNVSS – Connected to ground.
19 XIN I 8 MHz clock input.
20 XOUT O 8 MHz clock output.
21 VSS – Connected to ground.
22 VCC – 5 V supply.
23 BBE 1 O Pin 23 Pin 24
OFF L L
24 BBE 2 O
LOW H L
HIGH H H
25 RST I Used to reset the µ-P when power up.
26 D DET A I Connected to ground through a resistor.
27 D DET F
I Fault detection. Detect as a fault when the voltage is more than 2.5V.
28 D DET R
29 AFTV I AFT voltage from IC301 is received by µ-P during channel tuning.
30 KEY I Input key is detected by monitor.
31 SDA2 I/O I2C bus CH2 data.
32 SDA1 I/O I2C bus CH1 data.
33 SCL2 I/O I2C bus CH2 clock.
34 SCL1 I/O I2C bus CH1 clock.
Pin No. Pin Name I/O Description
IC DESCRIPTION
IC, M37272M8-165SP

23
1 NC – Not connected.
2 AUDIO OUT O Sound output. The maximum flew out current is 3.6mA.
So, the minimum load resistor is 1kΩ. (Not used)
3 RF AGC O RF AGC output.
4 SIF TANK – Tank coil connection for SIF detection circuit.
5 AGC FILT – PIF 2nd AGC filter.
6 PIF GND – GND for PIF circuit.
7 ~ 8 PIF IN I IF input. The typical input value is 90dBµV.
9 PIF VCC – VCC for PIF circuit.
10 LOOP FILT – PIF PLL loop filter.
11 APC FILT – APC filter of fsc oscillation.
12 VCXO I X'tal of 3.58MHz VCXO.
13 GND – V/C/D GND.
14 FAST BLANKING I Fast blanking of RGB input.
15 R IN I R signal input.
16 G IN I G signal input.
17 B IN I B signal input.
18 D VCC – VCC for digital circuit.
19 R OUT O R primary color signal output.
20 G OUT O G primary color signal output.
21 B OUT O B primary color signal output.
22 V OUT O Vertical pulse output.
23 NFB I NFB input.
24 V RAMP O Vertical ramp output.
25 V SEPA FILT – Vertical sync. separation filter.
26 H VCC – VCC for horizontal circuit.
35 S OUT O Not used.
36 QSUR O Surround ON "H", OFF "L".
37 LED O LED ON "L", OFF "H".
38 WP O E2PROM write protect.
39 FAST BLK O OSD blanking output.
40 B O OSD blue output.
41 G O OSD green output.
42 R O OSD red output.
Pin No. Pin Name I/O Description
IC, TA1268N
Pin No. Pin Name I/O Description

24
27 ~ 28 SCL, SDA I/O Input and output of I2C Bus.
Inputting of X-RAY protect circuit. The threshold voltage is 3.5V (typ.).
29 X RAY I If the voltage that is applied is more than the threshold voltage, the X-RAY
protect circuit make horizontal output a low.
30 FBP IN I Fly-back pulse input. The Fly-back pulse is the reference of AFC circuit, gate pulse
and so on. The current needs to keep under 1mA.
31 SYNC OUT O Sync. pulse output.
32 H OUT O Horizontal pulse output.
33 H AFC – Horizontal AFC filter. The AFC circuit fits the phase between inputted horizontal
sync. signal and horizontal pulse which is made by countdowning 32fH.
34 32FH VCO – Ceramic oscillator connection. That constitutes 32fH(503kHz) oscillation circuit.
35 D GND – GND for digital circuit.
36 ABL O ABL circuit.
37 TV IN I Inputting of PIF detected signal. The typical input amplitude is 1.0Vp-p.
38 ACL O ACL circuit.
39 EXT VIDEO I Inputting of external video signal.
40 BLANK DET – Filtering of black peak detection.
41 AV SW OUT O Video switch output which selects TV signal or external video.
Amp gain: Min. 1.7, Typ. 1.9, Max. 2.1.
42 DC REST I Filtering of APL detection.
43 Y IN I Y signal input. The typical input amplitude is 1.0Vp-p.
AFT output. Monitor signal output can be selected via Bus.
B0 B1 OUTPUT
44 AFT O 0 0 AFT
0 1 TEST purpose only
10B
1 1 (RF AGC)/2
45 CHROMA IN I Chrominance signal input. The typical input signal amplitude is 286mVp-p (at burst
signal). This IC will go to test mode when this terminal voltage is higher than 4.5V.
46 VCC – VCC for video, chroma and deflection circuit.
47 TV DET OUT O PIF detected signal output.
48 SIF VCC – VCC for SIF circuit.
49 ~ 50 PIF TANK – Tank coil connection for PIF detection circuit.
51 SIF GND – GND for SIF circuit.
52 LIMIT IN I Inputting of SIF limiter amplifier circuit.
53 AUDIO TV IN I Inputting of SIF detected signal. (Not used)
54 DE-EMPHASIS O Filtering of SIF de-emphasis.
55 EXT AUDIO IN I External audio input. (Not used)
56 NC – Not connected.
Pin No. Pin Name I/O Description
