AJ Enjoy AJ1195 Setup guide

SKU No.:
AJ1195
WARNING
WARNING
WARNING
For outdoor use only.
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or
the gas supplier.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage,personal injury,or loss of life.
Installation and service must be performed
by a qualified installer, service agency,
or the gas supplier.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
•
•
•
•
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
Propane Fire Pit
Owner’s Instruction manual

Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so
WARNING
•
approved fuel
• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
• Only use propane gas for this unit.
•Solid fuels shall not be burned in this appliance.
•
• LP GAS WARNING: Do not use any more than 1/4 in depth lava rocks/pumice stones/Lava Glass
above the bur
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
e department for help.
• Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
•
•
•
•
•
•
• Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazar dous and
should be inspected by a gas supplier.
•
•
rocks/pumice stones/LavaGlass could pop out and cause injury. Should any rocks pop out, discard
them.
• Always ensure that lava rocks/pumice stones/LavaGlass are completely dry before use. Failure to
do so will cause them to crack or pop.
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Unit may be hot while in use, do not attempt to move it while in use.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
•
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
•
• Keep all electrical cords and fuel supply hose away from heated surfaces.
Manifold pressure: 11 inch w.c. (2.74 kPa).
Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in - capacity 20 lbs.
You must use a propane tank that has a collar to protect the gas valve.
The tank system must be set up for vapor withdrawal.
The installation of this unit must adhere to local codes or Propane Storage and Handling Code,
CSA B149.2.
SAFETY INFORMATION

IF APPLICABLE:
• Allow heating item to cool completely befor e placing on lid.
• DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use.
（
may be required as necessary.) It is imperative that the control compartment, burners and
circulating airways of the appliance are kept clean.
•Combustible material should not be within 60 inches of the top of the unit, or within 48 inches
around the entire unit.
•Keep the appliance area clear and free fr
vapors and liquids.
•
•Do not add water into the unit.
•
to inspect the appliance and replace any part of the control system and any gas control that has been
under water.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave outdoors.
• Always remove protective cover before operating (if applicable).
• Do not set the protective cover over the unit until it is turned off and completely cooled down.
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while near this unit.
• Keep gas tank at least 5 feet away from unit when lit. (if exter nal tank)
• Maximum gas supply: 250 psi; Min. gas supply: 10 psi.
inspected annually and cleaned regularly.
• Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
• Keep the hose out from any pathways to eliminate any accidental damage. (if external tank)
• Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
injury.
of the U.S. Department of Transportation or the National Standard of Canada CAN/CSA-B339, LP gas
tanks, spheres and tubes for Transportation of Dangerous Goods; and Commission.
gas tank connection.
cks.
• Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the area of the appliance.
near the appliance.
• Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
(CGA791) LP
SAFETY INFORMATION

Only use the regulator and hose assembly provided with this unit. Replacement parts must be
supplied directly by TJX.
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate
the appliance.
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned “OFF” before assembling. Do NOT attempt to assemble without proper tools.

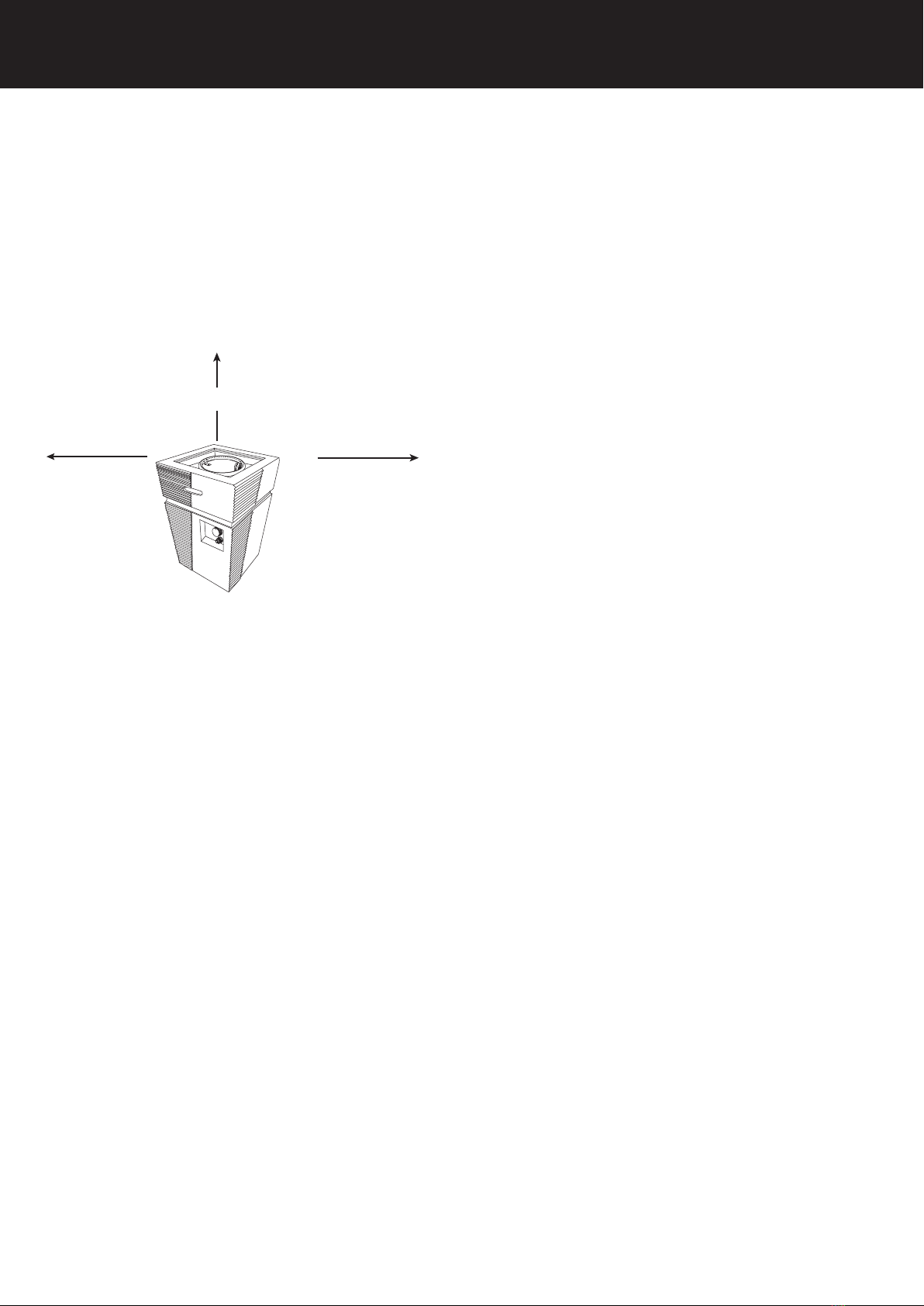

Min. Clearance
72in (182.8 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm) Combustible materials should not be within 72
inches of the top of the unit, or within 48 inches
around the entire unit.
SAFETY INFORMATION

SPECIFICATION
SPECIFICATION
（ ）

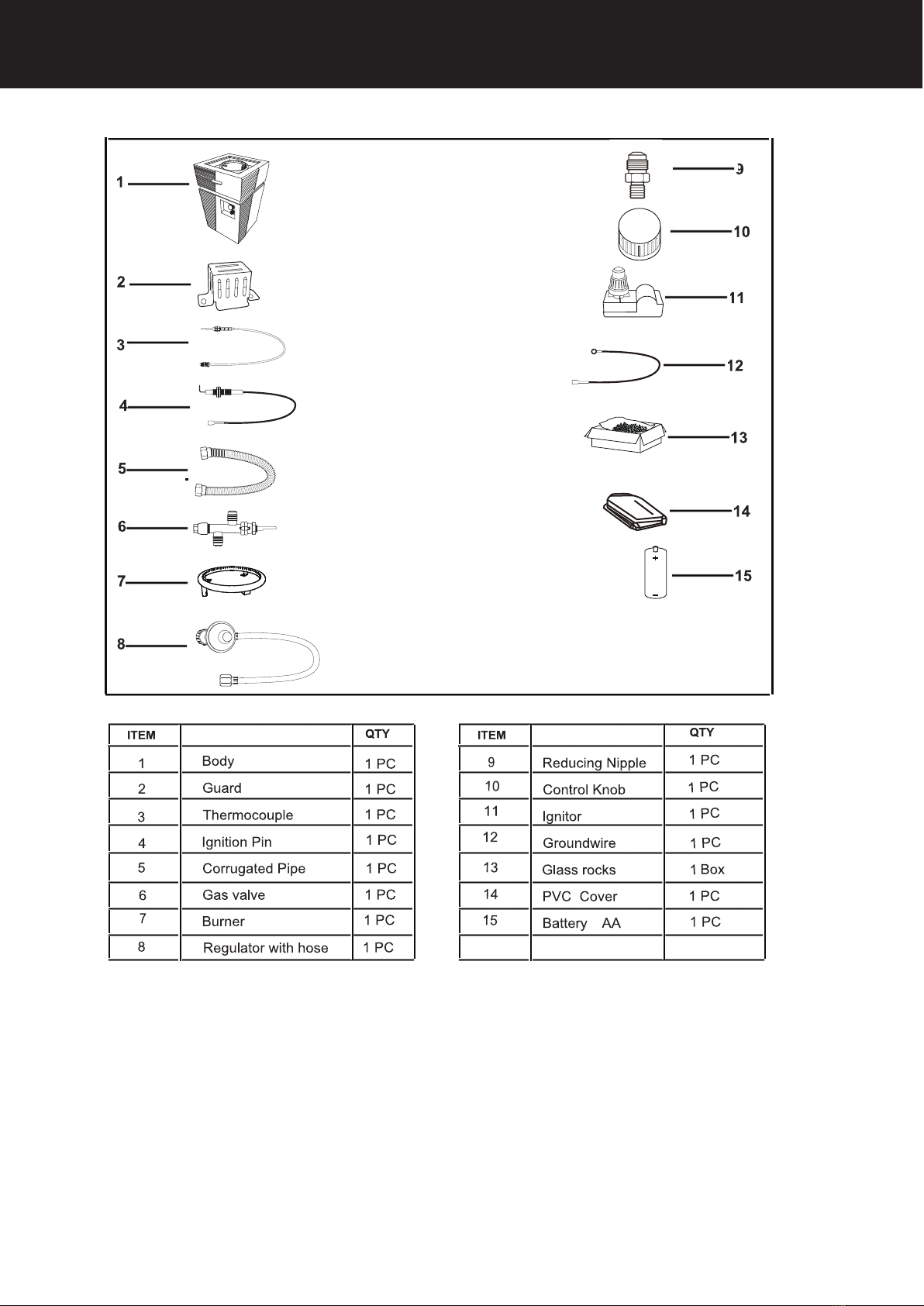

PARTS LIST

CYLINDER VALVE
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
BLACK COUPLING NUT
REGULATOR
turn clockwise to connect
turn clockwise
to reseal
Remove the plastic cap on the electronic igniter by unscrewing and slide battery into the battery
slot. Make sure the positive side of the battery faces outwards. Screw the electronic igniter cap
over the battery tightly
.
OFF

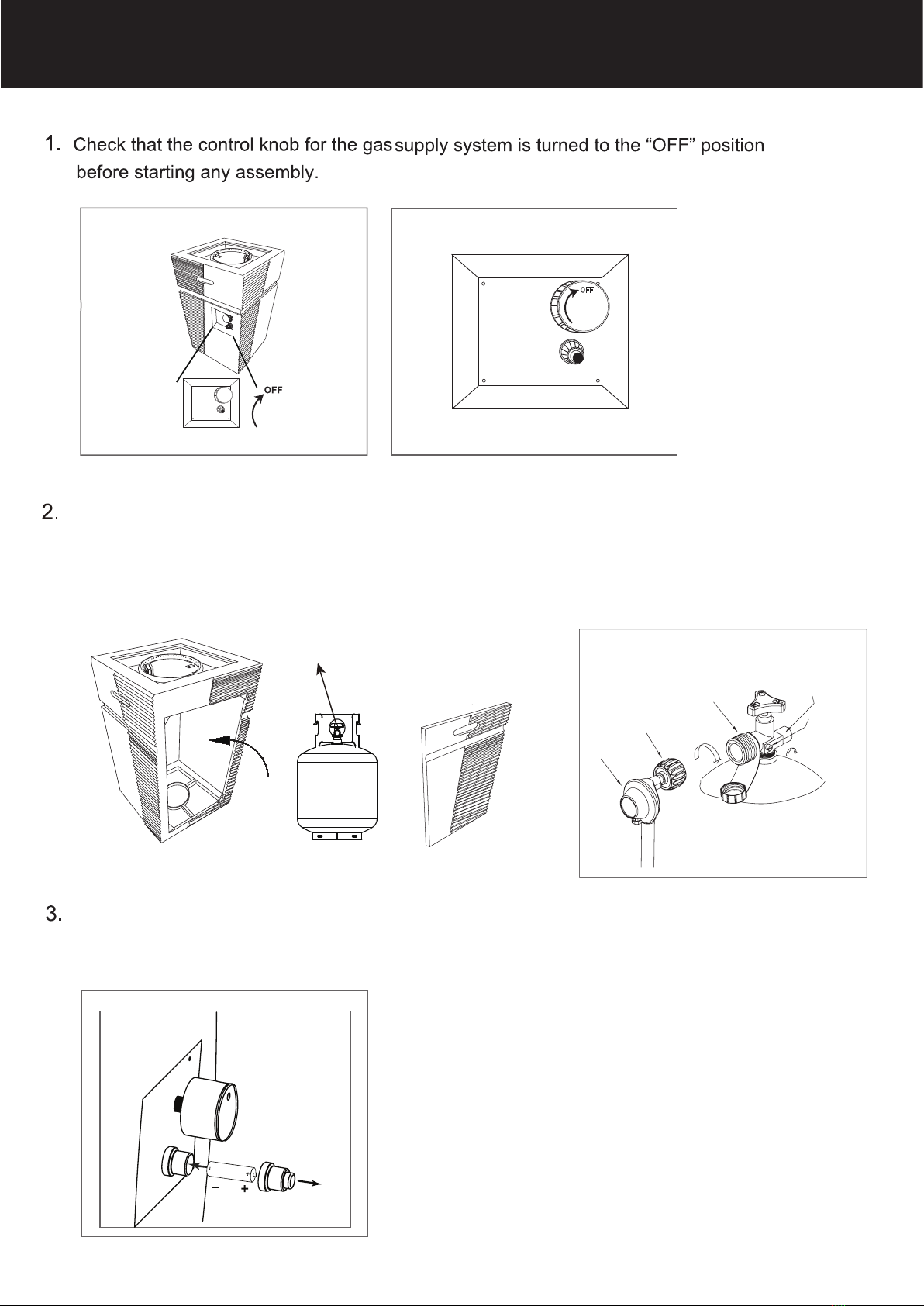

ASSEMBLY INSTRUCTIONS
Turn the cylinder valve on the tank clockwise to close the propane tank. Open the door then
put the tank into the fire pit, Attach the preassembled regulator to the cylinder valve by turning
the regulator coupling nut clockwise.
!!! Make sure it is fastened securely and tighten connections by hand only.
Door
OFF

Pour the box of clear glass rocks into the fire bowl, then spread the blue glass beads evenly.
Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor
area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off”
position. rush a soap and water mixture on all connections. Turn the gas supply on; if
bubbles occur on any connection there may be a leak. If you smell gas or a leak is discovered
turn the gas valve off, disconnect propane gas tank and do not use the appliance until the leak
is repaired.
Do not use the heating unit without inspecting the gas hose. If there are signs of wear or abrasion
you must replace the hose (if applicable). Pumice stones/lava rocks/LavaGlass could pop up and
strike somebody’s face during the process of lighting this unit; stand away from the unit for the first
20 minutes after igniting. Flame height should be a yellow/blue color between 2 - 10 inches in height.
Wait 50 minutes after extinguishing flame prior to placing a lid (if applicable) or protective cover on
heating item.
OPERATION
Do Not Cover the Ignition Screen when placing the rocks
This heating item should not be used on plastic
composite or articial wood
into the re bowl. Always keep the ignition screen visible.
WARNING
WARNING
WARNING
SCREEN
CORRECT INCORRECT
ASSEMBLY INSTRUCTIONS
Don’t light or use gas unit if glass rocks are wet. Ensure glass rocks are com-
pletely dry before igniting.
KEEP DRY

To Extinguish
1. Turn control knob clockwise to the “HIGH” position; let the knob pop up and continue
turning the control knob to the “OFF” position.
2. Close the cylinder valve on the propane gas tank if you don’t intend to use it for a long time.
OPERATION

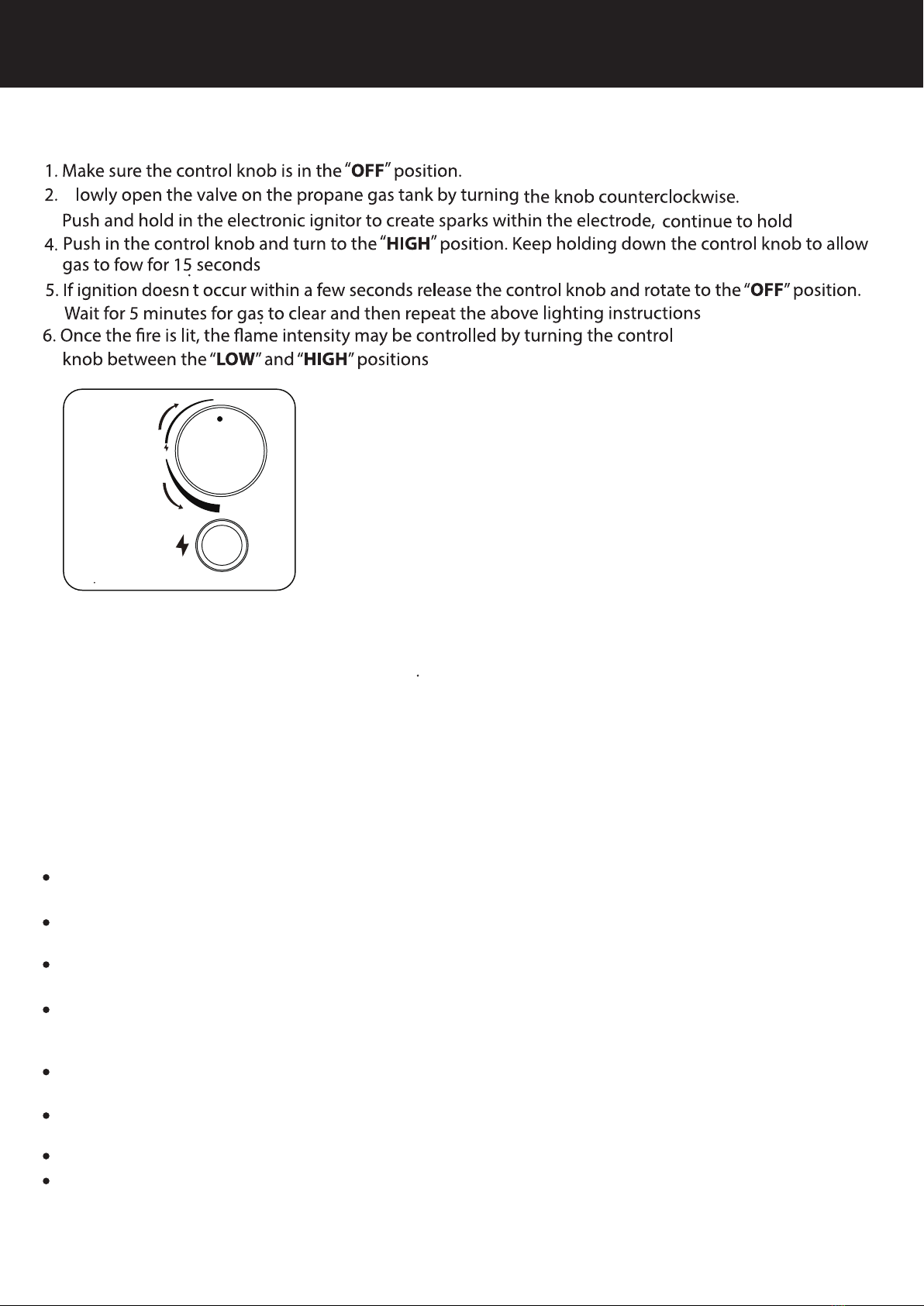

To Light
MAINTENANCE
Keep the heating item free and clear from combustible materials.
Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/
lava rocks/Lava Glass are completely cooled down. Wipe down with a soft cloth.
Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this heating unit.
Keep the heating unit stored away from direct sunlight.
If storing this unit inside, disconnect the propane gas tank from the gas valve.
Not using manufacturer approved or supplied parts/accessories may result in a defective condition
and void the warranty of this heating unit.
If desired, cover fire pit to protect exterior surfaces and to help prevent build-up in air passages.
Note: Wait until fire pit is cool before covering.
Before performing any maintenance always disconnect propane gas tank.
Store your product indoors during winter months. Avoiding extreme cold temperatures
will prevent exposure damage.
S
3.
OFF
HIGH
IGNITER-PUSH
LOW

TROUBLESHOOTING
Problem: Sudden drop in gas flow
Problem: Irregular flame pattern
Problem: Burner will not light with match
Problem: Burner will not light using igniter
Problem: The fire table emits a lot of black smoke when in use
Venturi
-
-
-
Possible Cause 4: Residue on Igniter Pin.
-

Problem: Sudden drop in gas flow, or a reduced flame height
OFF
Problem: Irregular flame pattern, flame does not run the full length of the burner
Problem: Flame blow out
-
Problem: Sudden drop in gas flow
Problem: Flame seems to lose heat when burning in cold weather -
temperature below 50°F
vaporization process is too low.
-OFF
