dellonda DG109 User manual

Model No’s. DG109, DG110
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
Dellonda Outdoor Chiminea, Fireplace, Fire Pit,
Heater, Durable Black /Corten Steel
DG109, DG110 Issue:2 19/04/21

Specication: Diameter 370mm , Height 1270mm.
About the Product
Stylish chiminea is perfect for relaxing outdoors with family and friends. Charcoal grate and mild
steel chromed grill accessory gives you the option n of cooking/grilling. Suitable for use with
untreated wood, logs and charcoal. Height: 1270mm. Some simple assembly is required. Also
available in corten steel design to give your garden a rustic aura.
Safety Instructions
• This product is intended FOR OUTDOOR USE ONLY.
• NEVER leave a burning re unattended.
• FIRE HAZARD – Hot embers may emit while in use.
• DO NOT use petrol, white spirit, lighter uid, alcohol or other similar chemicals to light a re.
• This product is ONLY suitable for use with untreated wood, logs, or charcoal.
• DO NOT use this chiminea on decking or any other ammable surfaces such as dry grass, wood chips, leaves or decorative bark.
• Always asses the weather conditions and wind direction, a gusty day can make a re burn more ercely, causing it to are up unexpectedly.
• Ensure that the chiminea is positioned at least 2 metres away from ammable items or wooden walls.
• DO NOT handle or move the chiminea whilst alight as it will become hot.
• Keep children and pets at a safe distance from the chiminea when in use.
Care and Use
• Ensure that the chiminea is positioned on a at, level, heat resistant non-ammable surface away from ammable items.
• Ensure chiminea has a minimum of 2m overhead clearance and has a minimum of 2m clearance from other surrounding items.
• Decide on the location as above. The chiminea is heavy. Always ensure that it is positioned on a level surface and is completely stable before use.
It is recommended the unit is not moved once positioned and must not be moved while in use.
• The chiminea surface will age and discolour naturally from rst use. This is to be expected.
• If the product has a wood storage compartment, DO NOT over ll it in case it catches light.
• Any scratches or marks should be treated with a suitable touch up paint and it is advised the chiminea is stored in a dry location in the off season
to prolong the lifespan.
Refer to
instruction
manual
Wear
Gloves
Warning
Hot
Surface
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
www.dellonda.co.uk 1

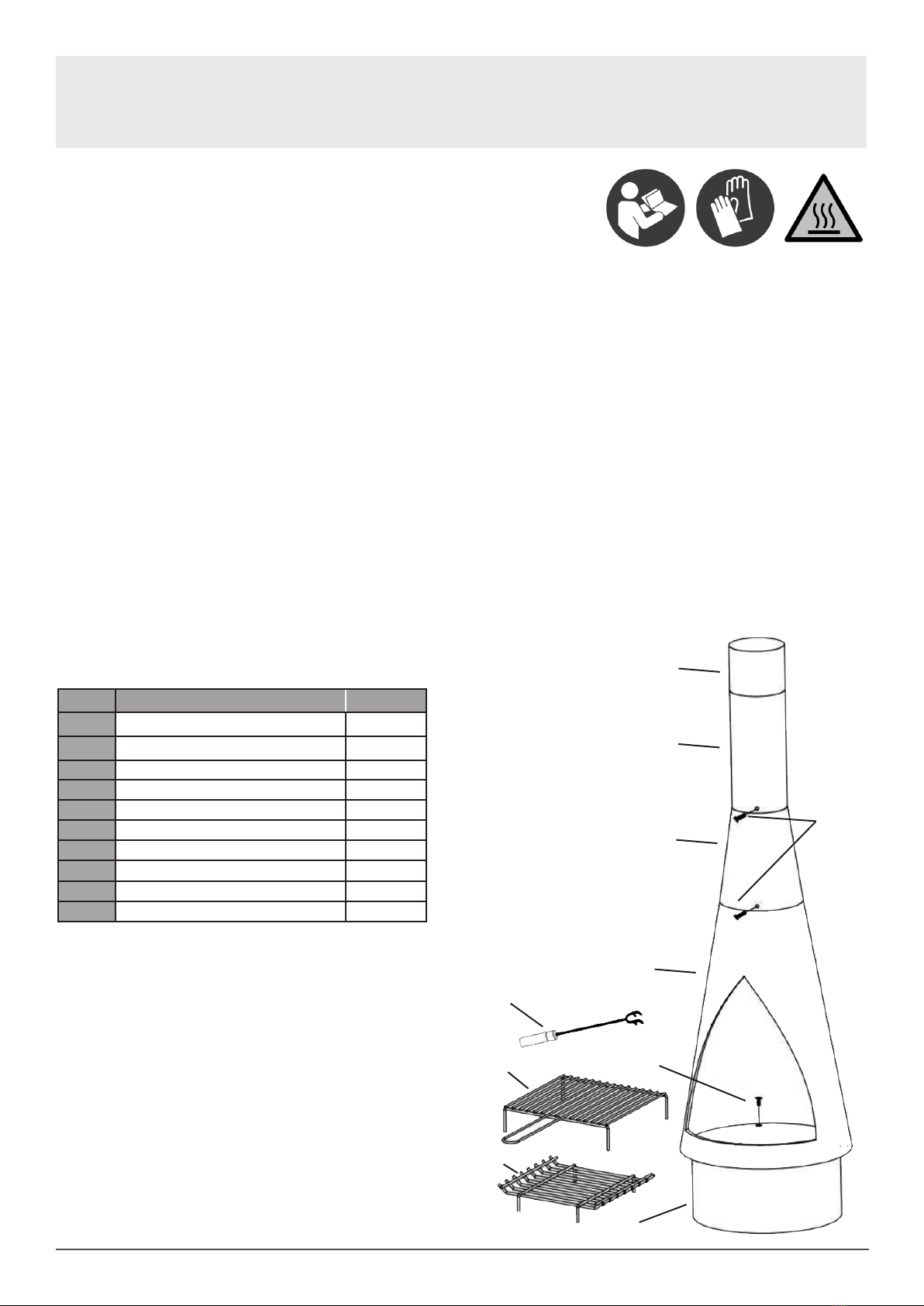

No. Parts Qty.
A Stainless Steel Flue 1
B Flue 1
C Top Body 1
D Body 1
E Base Section 1
F Fire Grate 1
G BBQ Grill Rack 1
H Poker 1
I M5 x 12mm Bolts 6
J M6 x 12mm Bolts 3
Contents A
G
F
B
C
D
E
I
J
Assembly
• Ensure you have enough space to asemble the unit and lay a card or
protective sheet down to assemble the unit on.
• Place the stainless steel ue (A) onto the main ue (B).
• Secure this ue section onto the Top Body section (C) using 3x M5 x
12mm bolts (I).
• In-turn locate this onto the main Body section (D) align the holes and
secure using 3x M5 x 12mm bolts (I).
• The assembled chiminea section can now offered onto the Base
Section (E) align the holes and bolt together using 3off M6 x 12mm
bolts (J).
• Tighten all xings.
• Place the Fire Grate (F) into the re pit
• Place the BBQ Grill rack (G) over the re grate (F) in the re pit
H

www.dellonda.co.uk 2
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations.
It is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Starting a re
• To start a re, place a small quantity of kindling wood and rolled newspaper in the unit. Light the paper and allow a ame to build up. Once
sufciently alight add logs or larger pieces of untreated wood to the unit to increase the heat slowly. Alternatively use re-lighter blocks and add
charcoal in the same manner.
• DO NOT overload the unit with fuel (untreated wood, logs, charcoal) – if the re is too intense this could damage the chiminea.
• Always ensure that fuel does NOT protrude from the front opening of the chiminea.
Cooking and Grilling
• The mild steel chromed Fire Grate and separate BBQ Grill rack accessory gives you the option of cooking and grilling food, Use the poker
provided and ALWAYS wear heat protective gloves/pads when handling any hot parts.
Extinguishing
• To extinguish the unit – stop adding fuel and allow the re in the chiminea to die or douse with sand.
• DO NOT use water as this could damage the chiminea.
Storage
• When not in use, it is recommended to cover the top of the chimney in order to prevent rainwater from entering.
• If using an outdoor cover, only position once the re has died and the unit is completely cooled.
