pleasant hearth OFG419T User manual

OUTDOOR
PROPANE FIREPIT
MODEL #OFG419T
Français p. 53
Propane cylinders
sold separately.
Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
130-10-072 Rev 05/13/2016
Espanol p. 27
C US
ANS Z21.97-2014 •CSA 2.41-2014
Outdoor Decorative Gas Appliances
™
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30AM – 4:30PM CST, Monday – Friday, or
log on to [email protected]
INSTALLER: Leave this manual with the consumer.
CONSUMER: Retain this manual for future reference.
WARNING!
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
IMPORTANT INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE

2
TABLE OF CONTENTS
Safety Information .................................................................................................................. 4
Package Contents .................................................................................................................. 7
Preparation............................................................................................................................. 8
Assembly Instructions............................................................................................................................... 9
Operation Instructions .......................................................................................................... 17
Care and Maintenance ......................................................................................................... 22
Warranty ............................................................................................................................... 23
Troubleshooting.................................................................................................................... 24
Replacement Parts List ........................................................................................................ 26
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from the
appliance and immediately call your
gas supplier or your re department.
WARNING:
Do not store or use gasoline or other
ammable vapors or liquids in the
vicinity of this or any other appliance.
An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
WARNING: For Outdoor Use Only.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or house.
Warning: Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage. Refer to
the owner’s information manual provided with this appliance.
For assistance or additional information consult a qualied
installer, service agency or the gas supplier.

3
ANSI Z21.97-2014 • CSA 2.41-2014 Outdoor decorative gas appliances
March 2014 © 2014 CSA Group 45
Figure 1
LP-Gas Cylinder Label
(See Clause 4.18.2.)
DANGER
• FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP-GAS MAYCAUSEA FIREOR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILYINJURYOR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSALOF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING• FOR OUTDOOR USE ONLY.*
DO NOT USE OR STORECYLINDER IN A BUILDING,
GARAGE OR ENCLOSED AREA.
WARNING:
Know the odor of LP-gas. If you hear, see
or smell leaking LP-gas, immediately get
everyone away from the cylinder and call the
Fire Department. Do not aκempt repairs.
CauΩon your LP-gas supplier to:
Be certain cylinder is purged of trapped
air prior to first filling.
Be certain not to over fill the cylinder.
Be certain cylinder requalificaΩon date is
checked.
LP-gas is heavier than air and may seκle in
low places while dissipaΩng.
Contact with the liquid contents of cylinder
will cause freeze burns to the skin.
Do not allow children to tamper or play with
cylinder.
When not connected for use, keep cylinder
valve turned o�. Self contained appliances
shall be limited to a cylinder of 30 lb
capacity or less.
Do not use, store or transport cylinder where
it would be exposed to high temperatures.
Relief valve may open allowing a large
amount of flammable gas to escape.
When transporΩng, keep cylinder secured in
an upright posiΩon with cylinder valve turned
o�.
WHEN CONNECTING FOR USE:
Consult manufacturer’s instrucΩons
concerning the cylinder connecΩon provided
with your appliance.
Be sure regulator vent is not poinΩng up.
Turn o�all valves on the appliance.
Do not check for gas leaks with a match or
open flame. Apply soapy water at areas
marked “X”. Open cylinder valve. If bubble
appears, close valve and have LP-gas
service person make needed repairs. Also,
check appliance valves and connecΩons to
make sure they do not leak before lighΩng
appliance.
Light appliance(s) following manufacturer’s
instrucΩons.
When appliance is not in use, keep the
cylinder valve closed.
Cylinder
Pressure relief valve
Point of connecΩon
Cylinder valve hand wheel
Liquid level indicator
(opΩonal)
DO NOT REMOVE, DEFACE, OR OBLITERATETHIS LABEL
*EXCEPT AS AUTHORIZED BYANSI/NFPA 58.
DANGER. Do not store a spare LP cylinder under or near a barbecue grill, or other heat sources.
NEVERfill an LP cylinder beyond 80%full: a fire causing death or serious injury may occur.
Use only in compliance with applicable codes.
Read and follow manufacturer’s instrucΩons.
LP-GAS CYLINDER LABEL

4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or
install the product. If you have any questions regarding the product, please call customer
service at 1-877-447-4768 8:30AM – 4:30PM CST, Monday – Friday.
DANGER
• Failure to follow the dangers, warnings and cautions contained in this owner’s manual may
result in serious bodily injury or death, or in a re or an explosion causing damage to property.
WARNING
• Maximum inlet gas supply pressure: 250 psi/ 1750 kPa. Manifold pressure with regulator
provided: 11 inch E.C./ 2.74 kPa.
• This appliance shall be used only outdoors in a well-ventilated space and shall not be used
in a building, garage or any other enclosed area.
• DO NOT use this appliance for cooking
• The installation of this product must conform with local codes or, in absence of local codes,
with either the National Fuel Gas Code, ANSIZ223.1/NFPA 54, or the CAN/CGA-B149.1,
Natural Gas and Propane Installation Code.
• Do not use this appliance if any part has been under water. Immediately call a qualied
service technician to inspect the appliance and to replace any part of the control system
and any gas control that has been under water.
• Do not store a spare or disconnected propane cylinder under or near this appliance.
• Do not operate the propane appliance if there is a gas leak present.
• Never use a ame to check for gas leaks.
• Clearance to combustible materials minimum of 24 inches/ 60.96 cm from the sides of
your propane appliance and minimum of 72 inches/ 182.88 cm from the top of your
propane appliance. Only place unit on non-combustible surfaces.
• Do not put any other appliance cover or anything ammable on, or beneath the appliance.
• The propane appliance should never be used by children. Young children should be
carefully supervised when they are in the area of the appliance.
• Children and adults should be alerted to the hazards of high surface temperatures
and keep a safe distance to avoid burning or clothing ignition.
• Should re go out while burning, turn the gas valve off. Follow the instructions and wait ve
minutes before attempting to relight.
• Never use wood or any other solid fuel in the appliance. Solid fuels shall not be burned in
this gas re pit.
• Never hang or place clothing or other ammable materials on or near the appliance.
• Never lean over the operating appliance or place hands or ngers on the upper portion of
the operational unit.
• Keep ventilation openings in cylinder enclosure free and clear of debris.
• Do not alter the appliance.
• The conversion or attempted use of natural gas in a propane unit or propane gas in a
natural gas unit is dangerous.
• For use with cylinders marked PROPANE only. DO NOT connect to a remote gas supply.
• Do not use this appliance on vehicles or boats. Always operate the appliance on a
at/level surface.

5
SAFETY INFORMATION
WARNING
• Keep any electrical supply cord and fuel supply hose away from any heated surfaces.
• Keep your appliance free and clear from combustible materials, gasoline and other
ammable vapors and liquids.
• Visually inspect burner for obstructions. Keep tank enclosure free and clear from debris.
• Do not use this appliance unless all parts are in place.
• Any guard or other protective device removed for servicing the appliance must be
replaced prior to operating the appliance.
• The hose assembly must be replaced prior to the appliance being put into operation
if there is evidence of excessive abrasion or wear or if the hose is damaged. The
replacement hose assembly shall be specied by the manufacturer.
• Installation and repair should be done by a qualied service person. The appliance
should be inspected before use and at least annually by a qualied service person.
More frequent cleaning may be required as necessary. It is imperative that control
compartment, burners and circulating air passageways of the appliance be
kept clean.
• The propane gas supply cylinder to be used must be constructed and marked in
accordance with the Specications for LP Gas Cylinders of the U.S. Department of
Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as
applicable; and provided with a listed overlling prevention device.
• Use only 20-pound cylinders (height: 18.11 inches/46 cm, tank diameter: 9.84 inches/
25 cm, foot diameter: 8.03 inches/ 20.4 cm) equipped with a cylinder connection device
compatible with the connection for the hose regulator supplied with this appliance. The
cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be
dropped or handled roughly!
• Cylinders must be stored outdoors in a well-ventilated area out of the reach of children.
• Disconnect the cylinder when the appliance is not being used.
• Disconnected cylinders must have valve caps tightly installed and must not be stored in
building or any other enclosed area.
• Do not use this appliance under umbrellas, awnings, etc.
• Only use the appliance on stable surfaces.
• Do not operate with a vinyl or PVC cover.
• Allow the unit to cool before placing a vinyl or PVC cover on the unit.
• Do not sit on unit.
• Never use charcoal or lighter uid with the re pit.
• Do not use gasoline, kerosene or alcohol for lighting.
• Never keep a lled LP cylinder in a hot car or car trunk. Heat will cause the gas pressure
to increase, which may open the relief valve and allow gas to escape.
• Do not lean over re pit when lighting. Read instructions before lighting.
• If the ame extinguishes accidentally during ignition or operation, immediately TURN OFF
the cylinder valve and then TURN OFF the control knob.

6

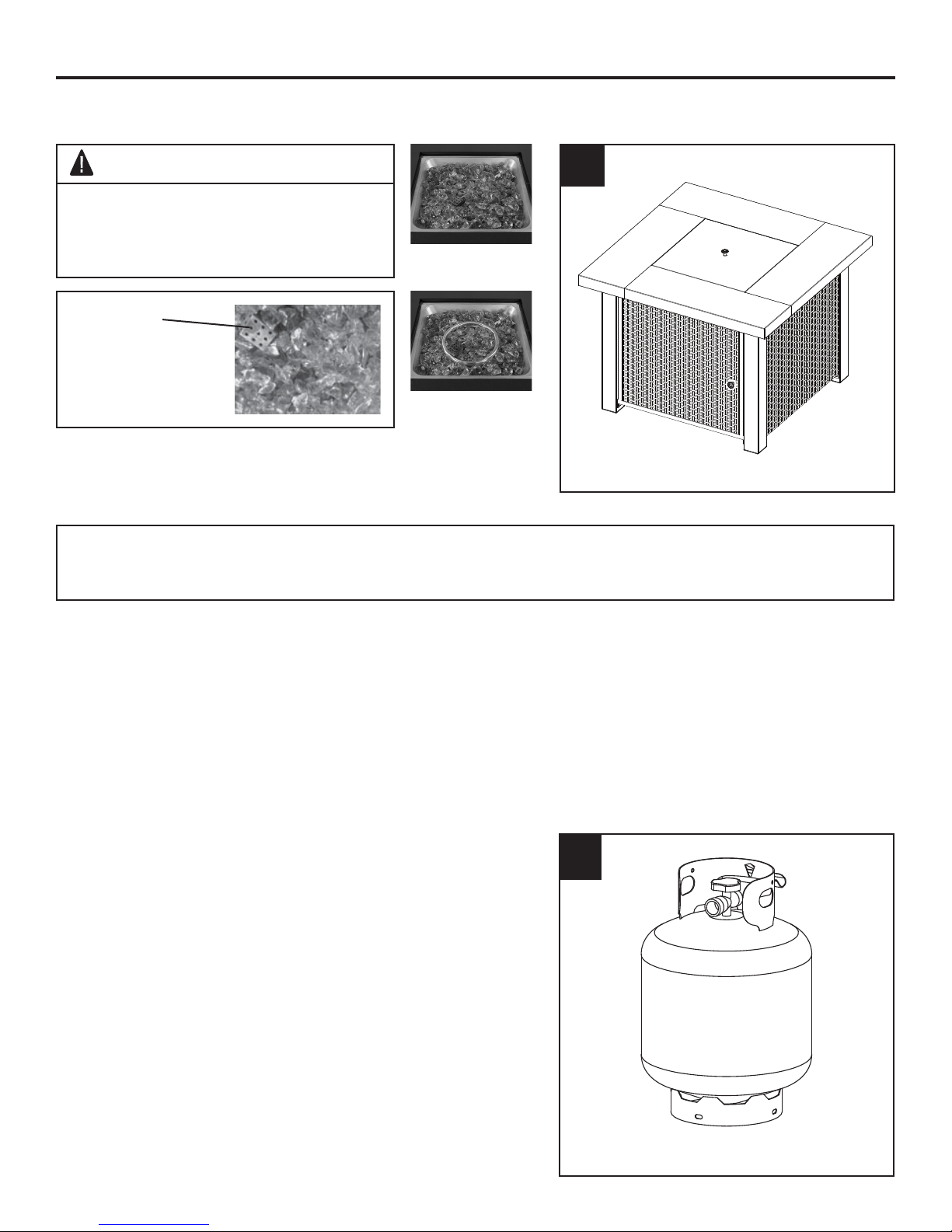

CALIFORNIA PROPOSITION 65
Combustion by-products produced when using this product contain chemicals, including Benzene,
known to the State of California to cause cancer, birth defects, and other reproductive harm.
CAUTION
GLASS ROCKS
1. Do not light or use gas unit if glass rocks are wet. Make sure glass rocks are completely dry
before lighting as intense heat could cause the rock to crack.
2. Glass rocks could hit a person’s face or eyes during the initial startup of this unit. Keep away
from the appliance for the rst 20 minutes after lighting.
F
WARNING
FOR PROPANE GAS UNITS
• The gas pressure regulator provided with the propane appliance must be used.
• The replacement pressure regulator must be those specied by the appliance manufacturer.
• Do not attempt to disconnect the gas cylinder or any gas tting while your appliance is in
operation.
• A dented or rusty propane cylinder may be hazardous and should be checked by your gas
supplier prior to use.
• Do not use a propane cylinder with a damaged valve and any other worn out parts.
• Transit and store the empty gas cylinders carefully and properly.
• If you see, smell or hear the hiss of escaping gas from the propane cylinder:
1. Disconnect propane gas cylinder
2. Do not attempt to correct the problem yourself.
3. Get to your gas supplier and/or the re department for help.
SAFETY INFORMATION

7

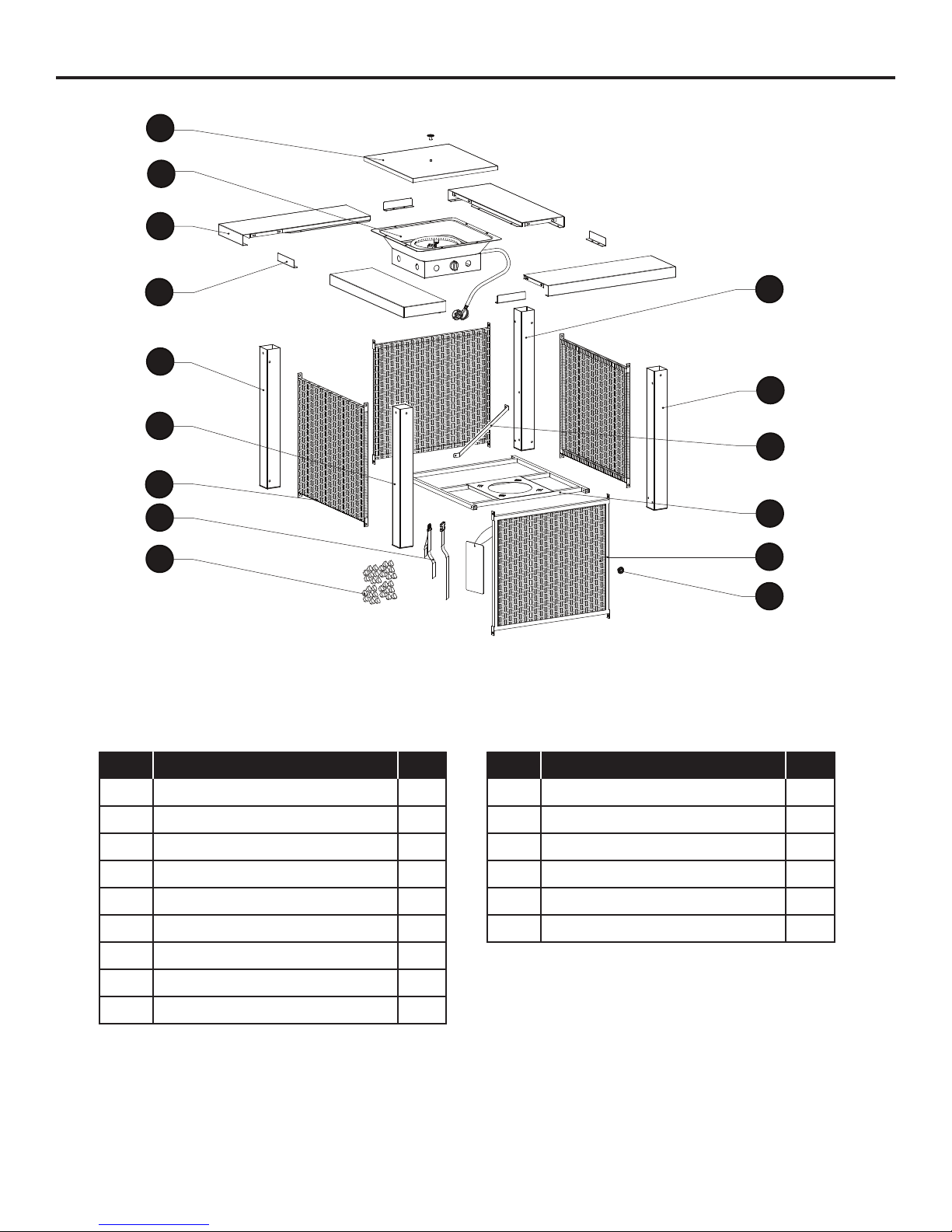

PACKAGE CONTENTS OFG419T
PART DESCRIPTION QTY.
1Table LidA
B Burner Assembly 1
4elbaT4/1C
4norIelgnAD
1E
F
Back Bracket Post (Left)
1
G
Front Bracket Post (Left)
1
H
Back Bracket Post (Right)
1
I
Front Bracket Post (Right)
3
PART DESCRIPTION QTY.
1J
1K
1L
2M
1N
1O
D
I
F
N
O
J
K
L
M
H
G
E
C
B
A
Side Panel
Bottom plate
Door
Knob
Propane Tank Strap
Glass Rocks (One Pack)
Gas Cylinder Block Belt

8

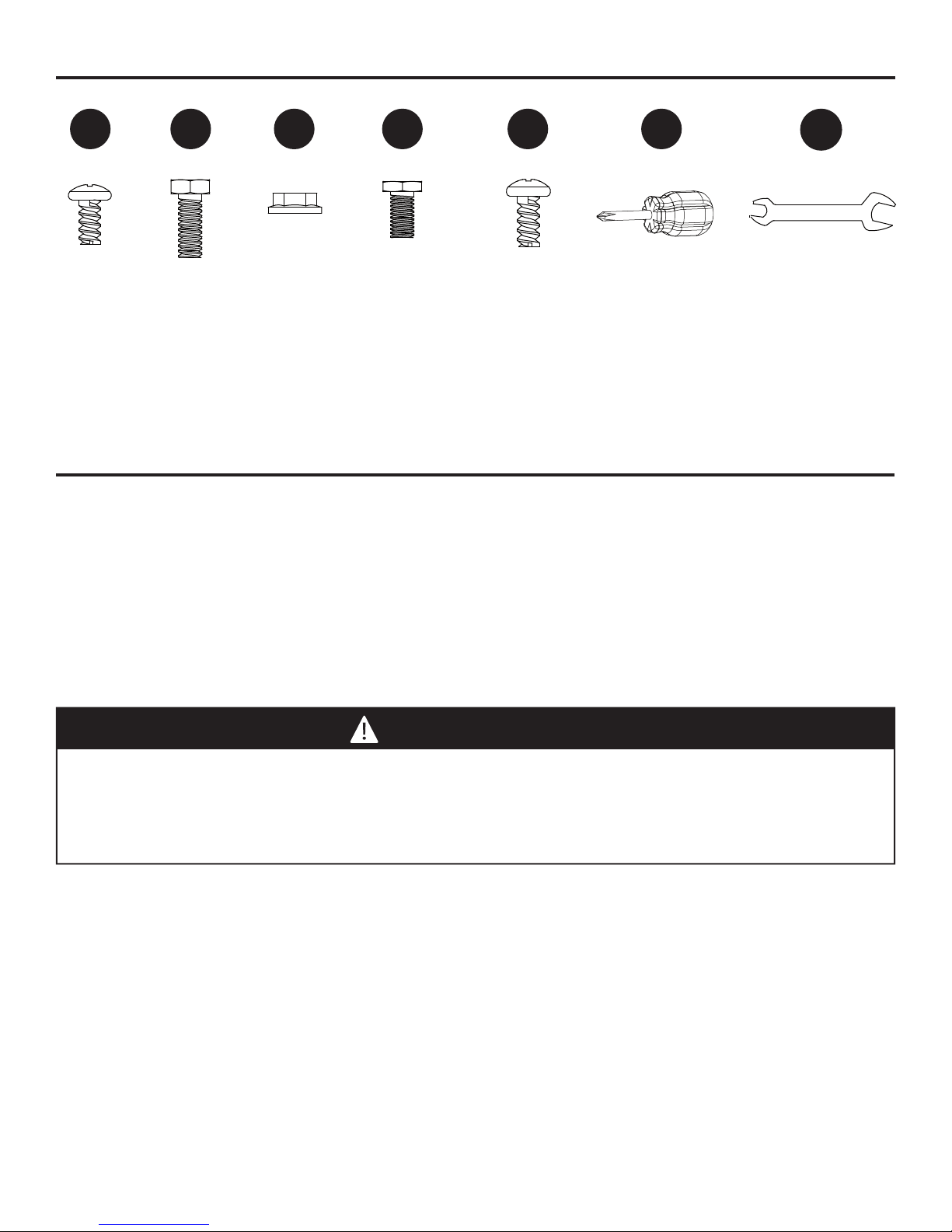

HARDWARE USED
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools required for assembly (not included):
Leak Detection Solution.
AA BB CC DD EE FF GG
Screw
M4 X 5
Qty. 2
Bolt
M6 X 30
Qty. 4
Nut
M6
Qty. 8
Bolt
M6 X 12
Qty. 42
Screw
M5 X 12
Qty. 4
Phillips
screwdriver
Qty. 1
Wrench
Qty. 1
CAUTION
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges. Wear protective
gloves if necessary. Read and follow all safety statements, warnings, assembly instructions and
use and care instructions before attempting to assemble and use.

9
Hardware Used
AA
Hardware Used
DD
1
2
3

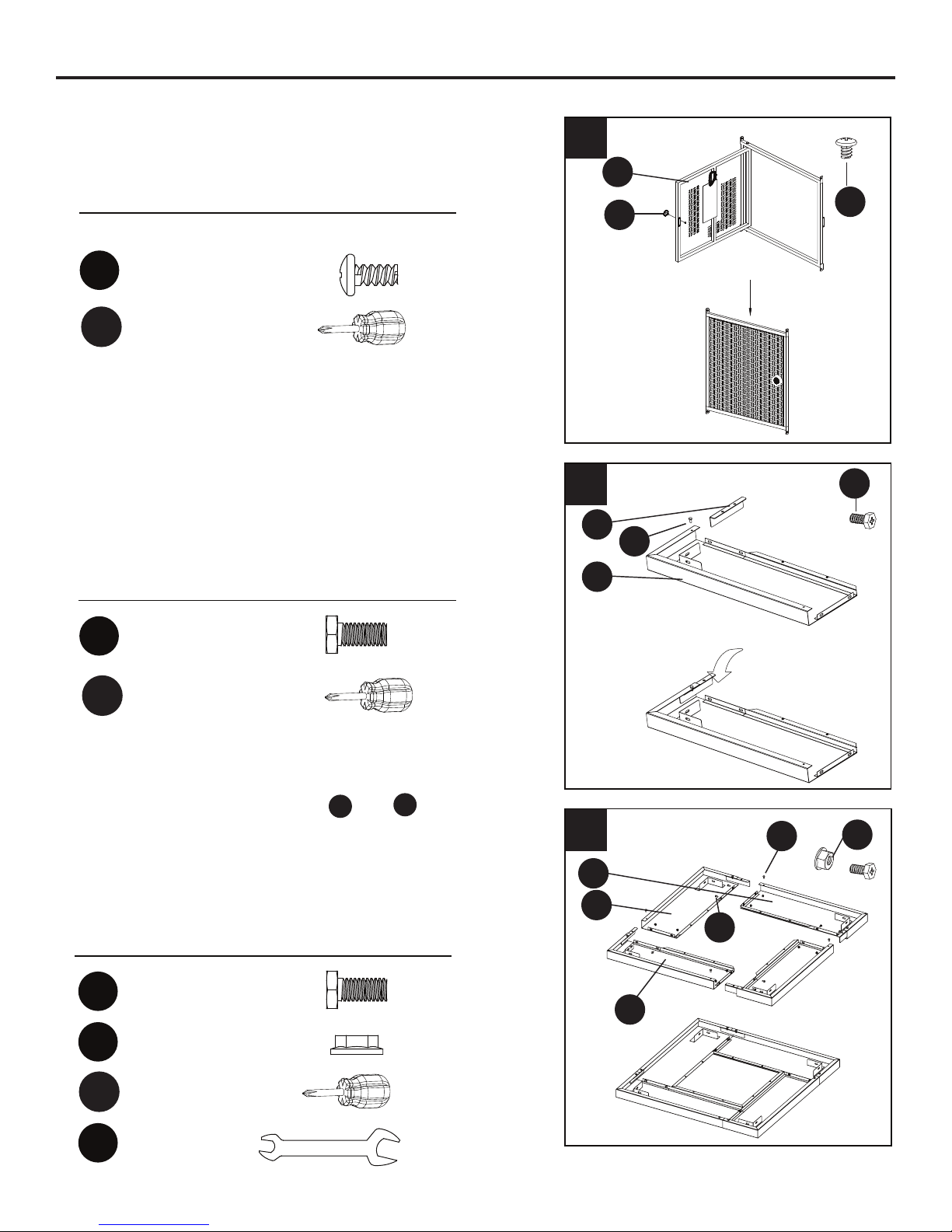

1. Attach the knob (M) on the door (L) with one M4 X 5
screw (AA).
2. Attach an angle iron (D) to 1/4 table (C) with M6 X 12
bolt (DD). Repeat procedure to complete the assembly
of the rest of three 1/4 tables. Do not tighten completely
at this time.
Screw M4 X 5 x 1
x 4
Bolt M6 X 12
2
1
Hardware Used
DD x 12
Bolt M6 X 12
CC x 8
Nut M6
L
M
D
C
GG x 1
Wrench
ASSEMBLY INSTRUCTIONS
3. Line up holes in a 1/4 table (C) with corresponding
holes from another 1/4 table (C). Insert two M6 X
12 bolts (DD) through holes. Finger tighten with
two M6 nuts (CC). Be sure 1and 2are level and
fully tightened. Repeat procedure to complete the
assembly of the rest of 1/4 tables. Once the 4 panels
are connected with 2 bolts per connection point, use
another M6 x 12 bolt (DD) to secure the edges at four
points around the table. Tighten the loose bolts from
step two completely.
FF
FF
D
C
DD
DD
DD CC
1
2
DD
C
AA
L
M
Phillips screwdriver
Phillips screwdriver x 1
FF Phillips screwdriver x 1
x 1

10
4
5-1
5-2

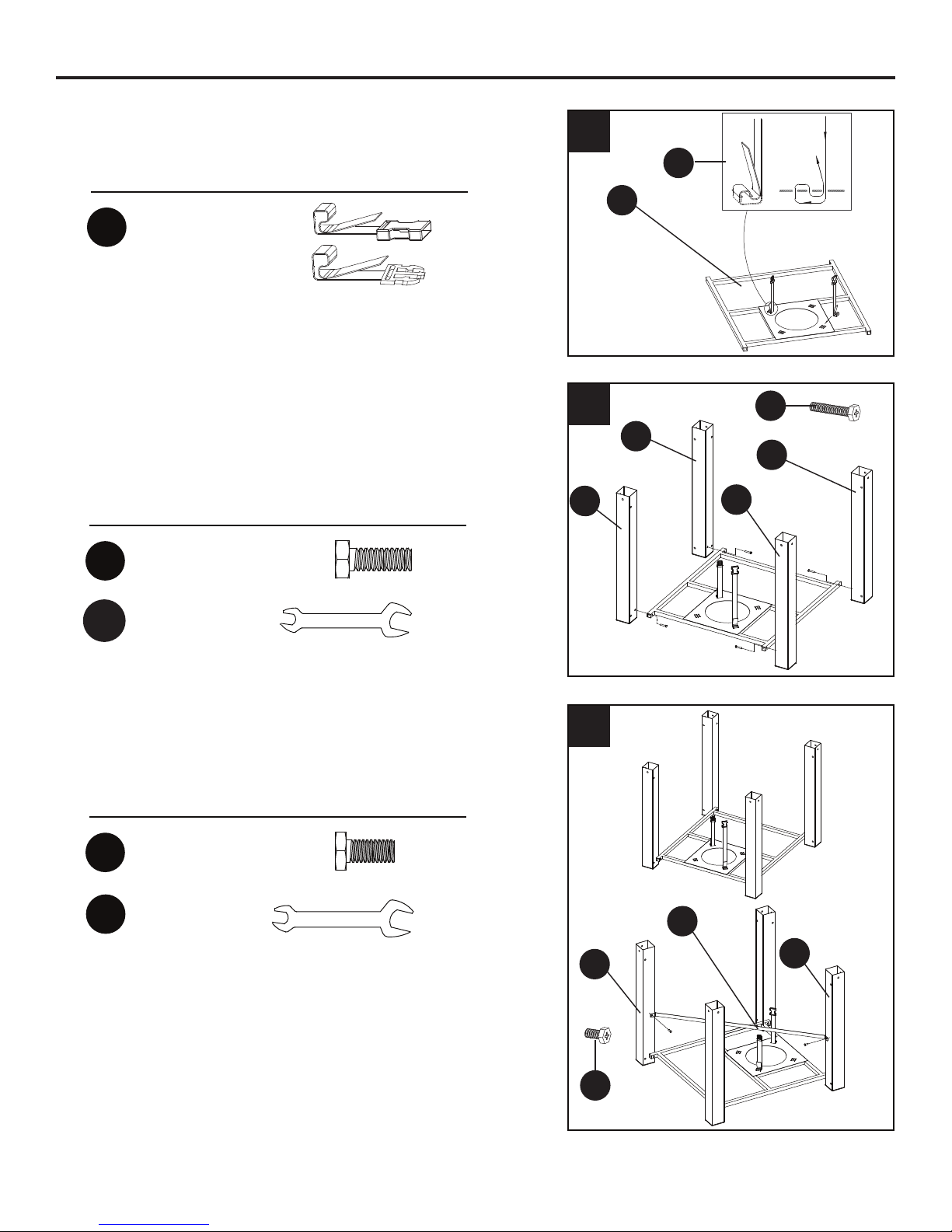

4. Attach propane tank strap (N) to bottom plate (K) .
5. Bracket Post Installation.
5-1. Attach four bracket posts (E, F, G, H) tothe bottom
plate with four M6 X 30 bolts (BB).
5-2. After assembly, attach the bracket posts (F, G) and
gas cylinder block belt (J) with two M6 X 12
bolts (DD).
Hardware Used
Nx 1
x 1
Propane tank strap
Hardware Used
BB x 4
Bolt M6 X 30
Hardware Used
DD x 2
Bolt M6 X 12
K
G
F
G
J
H
E
F
GG x 1
Wrench
ASSEMBLY INSTRUCTIONS
GG Wrench x 1
K
N
E
F
G
DD
G
BB
F
J
H

11
ASSEMBLY INSTRUCTIONS
6-1
6. Door Installation.
6-1. Place door (L) between posts F and H.
6-2. Position door between posts F (left) and H (right)
so that the knob is on the right near post H. Attach
the door bracket to post F (left) with two M6 X 12
bolts (DD). Attach to post H (right) with two more
M6 X 12 bolts (DD).
Hardware Used
7. Side panel Installation.
7-1. Attach three side panels (I) tothe bracket posts
(E, F, G, H) with 12 M6 X 12 bolts (DD).
7-1
6-2
Hardware Used
DD x 4
Bolt M6 X 12
DD x 12
Bolt M6 X 12
L
F
H
F
I
GG x 1
Wrench
GG x 1
Wrench
F
I
L
F
H
DD
DD
H

12
ASSEMBLY INSTRUCTIONS
DD
7-2
8-1
7-2. After assembly, the base assembly will look like
figure 7-2.
8. Table Installation
8-1. Lay assembled table upside down on floor. Line up
holes in assembled table with corresponding holes in
base assembly. Insert eight M6 X 12 bolts (DD)
through holes. Tighten them.
8-2. After assembly, the unit will look like figure 8-2.8-2
Hardware Used
DD x 8
Bolt M6 X 12
Base assembly
GG x 1
Wrench

13
ASSEMBLY INSTRUCTIONS
9-1
9-2

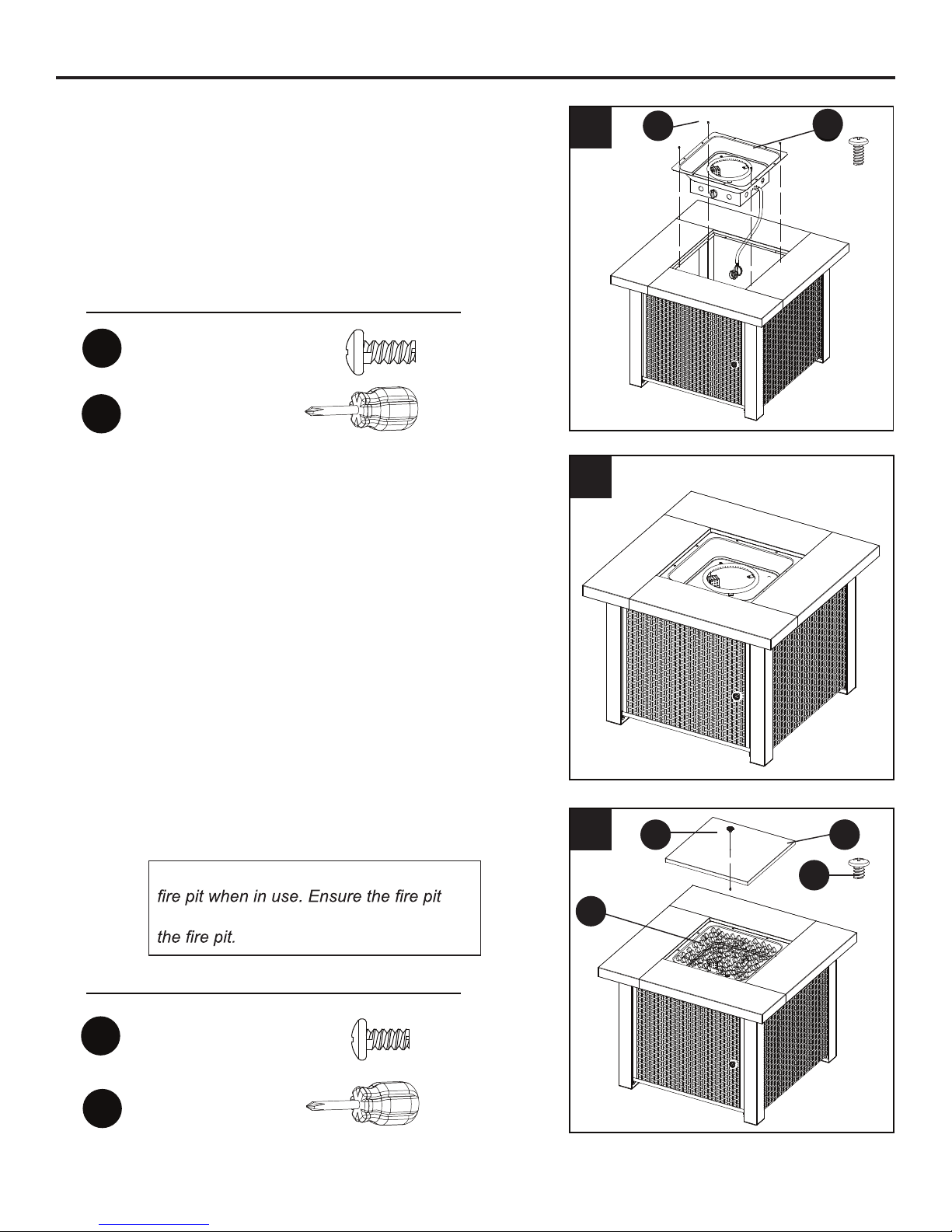

9. Burner Installation
9-1. Line up holes in the burner assembly (B) with
corresponding holes in the table assembly. Insert
four M5 X 12 screws (EE) through holes. Fasten
them. The control knob should face the front side
of the unit, the same as the door.
9-2.The total assembly parts will look like the figure 9-2.
10 - 1. Attach the knob (M) on the table lid (A) with one
M4 X 5 screw (AA). Put glass rock (one pack) (O)
above the burner and put the table lid above the
burner assembly (B). Do not cover ignition screen
with glass rocks. 10-1
Hardware Used
EE x 4
Screw M5 X 12
Hardware Used
B
A
AA Screw M4 X 5 x 1
O
FF x 1
Philips screwdriver
FF x 1
Philips screwdriver
Caution: Never place a table lid on the
has cooled before placing a table lid over
B
O
M
AA
A
EE

14
10-2. Total re pit installation complete.
11. Use only 20-pound cylinders (height: 18.11 inches/
46cm, tank diameter: 9.84 inches/ 24.99 cm, foot
diameter: 8.03 inches/ 20.4 cm) equipped with a
cylinder connection device compatible with the
connection for the hose regulator supplied with
this appliance. Propane gas and cylinder are sold
separately.
A dented, rusted or damaged propane cylinder
may be hazardous and should be checked by your
cylinder supplier. Never use a propane cylinder
with a damaged valve connection.
10-2
11
Standard 20 lb. tank
ASSEMBLY INSTRUCTIONS
The burner of the rebowl must be covered by glass rocks
completely. Otherwise the ame may be extinguished occasionally.
See the Figure CORRECT and INCORRECT for reference.
CORRECT
INCORRECT
WARNING
DO NOT COVER THE IGNITION SCREEN when
placing the glass rocks into the re bowl. Always
keep Ignition Screen visible. This screen must be
clear and free of obstructions at all times to insure
proper operation.
Screen
Do not place
glass on screen.
Keep screen clear.
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE. INTENDED FOR
RESIDENTIAL USE ONLY.
Use a glove when handling glass rocks.
Do not sit or stand on this table.
Keep children away during assembly. This item contains small parts which can
be swallowed by children.
Do not use indoors and inside any enclosure.
Retain the assembly instruction for future reference.
Installer — Please leave these instructions with the owner.

15
The propane cylinder must be constructed and marked in accordance with the specications for LP
gas cylinders of the U.S. Department of Transportation (DOT) or the standard for cylinders, spheres
and tubes for transportation of dangerous goods and commission, CAN/CSA-B339.
The cylinder must have a listed overlling prevention device.
The cylinder must have a connection device compatible with the connection for the appliance.
Never connect an unregulated propane cylinder to this appliance.
The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be
dropped or handled roughly.
If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors
is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must
be stored outdoors out of the reach of children and must not be stored in a building, garage or any
other enclosed area. Your cylinder must never be stored where temperatures can reach over
125°F / 51.5°C.
ASSEMBLY INSTRUCTIONS

16
The maximum inlet gas supply pressure: 250 psi/ 1750kPa. The minimum inlet gas supply pressure:
5 psi/ 35kPa. The minimum hourly of 10000 Btu/ 2.93 kW is required input rating for an appliance for
automatic operation at ratings less than full input rating.
Place a dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
DO NOT obstruct the ow of combustion air and ventilation air to the re pit. The propane cylinder
must be arranged for vapor withdrawal and equipped with a listed overlling prevention device.
Please use the proper cylinder orientation to provide vapor withdrawal. NOTE: The cylinder must be
fully upright for the cylinder to have vapor withdrawal only.
ASSEMBLY INSTRUCTIONS
CAUTION
a. Do not store a spare LP-gas cylinder under or near this appliance.
b. Never ll the cylinder beyond 80 percent full.
c. If the information in (a) and (b) is not followed exactly, a re causing death or serious injury
may occur.
The pressure regulator and hose assembly supplied with the appliance must
be used. The installation must conform with local codes, or in the absence of
local codes, with national fuel gas code, ANS Z223.1/NFPA54, natural gas
and propane Installation Code, CSA B149.1, or propane storage and handling
code, B149.2.
CORRECT WRONG WRONG
12. Seat and position propane cylinder in the Bottom
Plate (K) and fasten cylinder with strap (N) as
shown in the gure.
K N

17
OPERATION INSTRUCTIONS

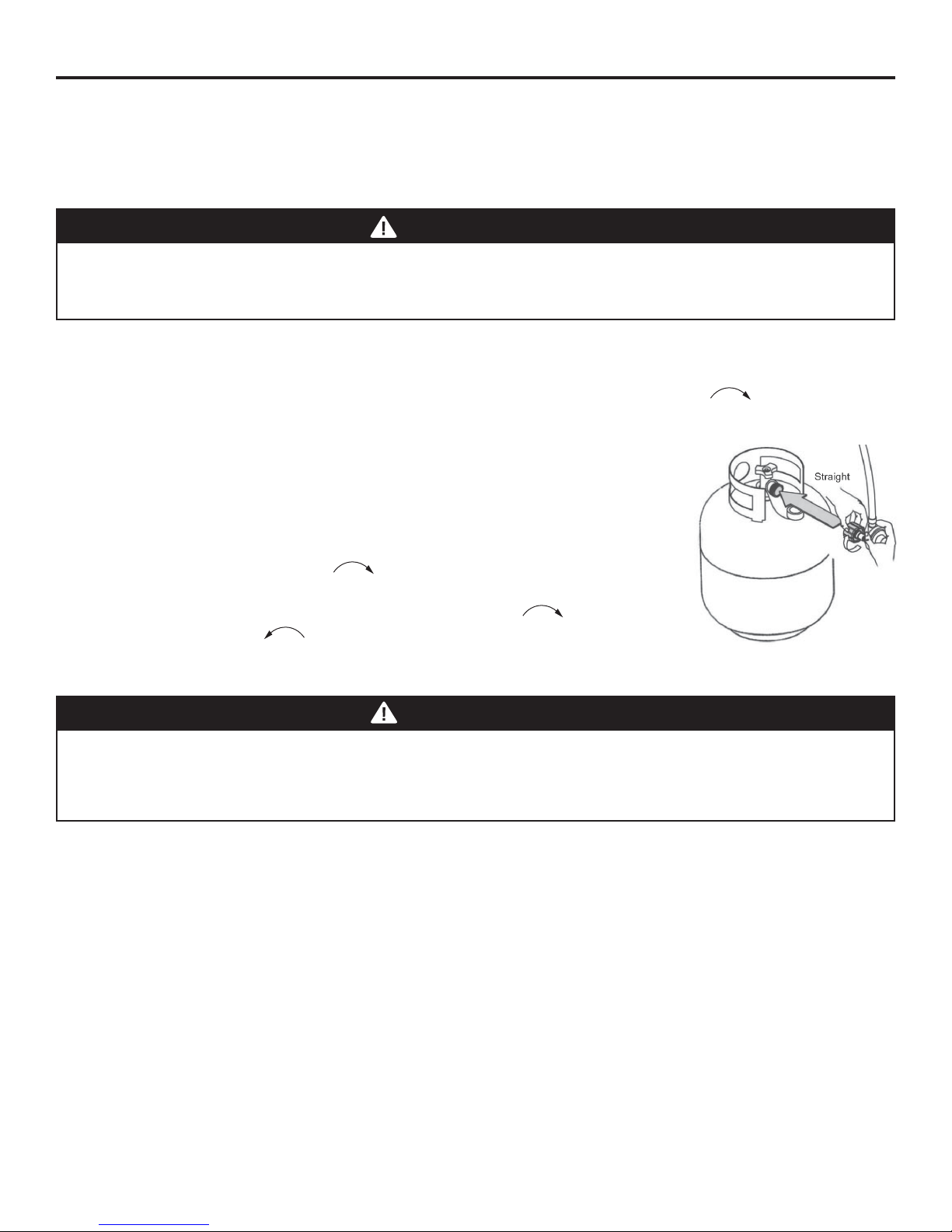

CONNECTING THE LP TANK
1. The knob on the LP tank must be closed. Make sure that the knob is turned clockwise
to a full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned off.
3. Remove the protective cap from the LP tank valve and coupling nut.
4. Hold the regulator in one hand and insert the nipple into the valve outlet.
Be sure the nipple is centered in the valve outlet. The coupling nut
connects to the large outside threads on the valve outlet. Use care –
do not cross thread the connection.
5. Hand-tighten the coupling nut clockwise until it comes to a full
stop. Firmly tighten by hand only. Do not use tools.
To Disconnect: Fully close the tank valve by turning clockwise.
Turn the coupling nut counterclockwise until the regulator
assembly detaches.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
ARNING
WARNING
In the connection process, make sure:
• the regulator inlet connector mates with the cylinder valve outlet properly, safely and rmly, and;
• the LP gas hose does not come in contact or remain in contact with the burner assembly.
CHECKING FOR LEAKS
After all connections are made, check all connections and ttings on the LP gas tank valve,
gas hose and regulator for leaks with a water and soap solution.
To prevent re or explosion while testing for a leak:
• Always perform a leak test prior to lighting the re pit.
• Do not smoke while testing for a leak.
• Always perform leak tests outdoors in a well-ventilated area.
• Do not use any source of ame while testing for leaks.
• Do not use the re pit until any and all leaks are corrected.
• If you are unable to correct a leak, disconnect the propane supply and call a gas
appliance service dealer.
Before connection, be sure that there is no debris caught in the outlet of the gas
cylinder, outlet of the regulator valve or in the outlet of the burner and burner ports.
Keep the propane cylinder valve closed and disconnect the propane cylinder from
the regulator valve when the re pit is not in use.

18
LEAK CHECK
1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three
parts water).
2. Put leak solution in a spray bottle.
3. Make sure cylinder valve and control valve are OFF.
4. Apply several drops of solution where hose attaches to regulator.
5. Apply several drops of solution where regulator connects to cylinder.
6. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connection: tighten connection and perform another leak test.
If bubbles continue appearing, the hose should be returned to the place of purchase.
3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform
another leak check. If you continue to see bubbles after several attempts, cylinder valve
is defective and should be returned to cylinder’s place of purchase.
If NO bubbles appear at any connection, the connections are secure.
Note: Whenever gas connections are loosened or removed, you must perform a complete
leak test.
Complete installation.
WARNING
• Perform all leak tests outdoors.
• Extinguish all open ames.
• NEVER leak test when smoking.
• Do not use the re pit until all connections have been leak tested and do not leak.
Hose/Regulator
connection
Regulator/Cylinder
connection
DANGER
NEVER USE A LIGHTER/FLAME TO CHECK FOR
GAS LEAKS.
OPERATION INSTRUCTIONS

19
Note: Other cylinders may be acceptable for use with this appliance provided they have the same
prole and dimensions to be compatible with the appliance nesting hole and retention means.
Before Turning Gas Supply ON:
1. Your re pit was designed and approved for outdoor use only. Do NOT use it inside a building,
garage, or any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, gasoline, and other ammable
vapors or liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and
there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during
assembly or servicing is replaced and fastened prior to starting.
Before Lighting:
1. Fire pit should be thoroughly inspected before each use, and by a qualied service person at
least annually. If relighting a hot re pit, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas
should be leak tested. If the hose leaks, it must be replaced prior to operation. Only use the
replacement hose assembly specied by manufacturer.
Lighting:
1. Turn the control knob to the “OFF” (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
) position (Figure a).
2. Fully open LP cylinder valve.
3. Push in gas control knob and turn counterclockwise to “IGNITER” ( ) (Figure b) to light the re pit.
If needed, keep depressing and turning control knob counterclockwise until the re pit lights
(You should hear a clicking sound).
4. After re pit lights, release control knob. Push in and turn the control knob to the “HIGH” (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
),
then release control knob. If you want a lower temperature, push in the control knob and turn
counterclockwise to the “LOW” (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
) (Figure c).
Note: If burner fails to remain lit, all valves should be closed and a waiting period of at least
5 minutes should pass before attempting to light.
Caution: Do not attempt to operate until you have read and understand all General Safety
Information in this manual and all assembly is complete and leak checks have been performed.
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
Figure a Figure b Figure c
OPERATION INSTRUCTIONS
Note: Other cylinders may be acceptable for use with this appliance provided they have the same
Before Turning Gas Supply ON:
garage, or any other enclosed area.
vapors or liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and
there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during
assembly or servicing is replaced and fastened prior to starting.
Before Lighting:
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas
should be leak tested. If the hose leaks, it must be replaced prior to operation. Only use the
Lighting:
1. Turn the control knob to the “OFF” position ( ) (Figure a).
2. Fully open LP cylinder valve.
Note: For initial start or after any cylinder change, hold Control Knob IN for no more than 1- 2 minutes
from gas lines before proceeding.
If needed, keep depressing and turning control knob counterclockwise until the heater lights
then release control knob. If you want a lower temperature, push in the control knob and turn
counterclockwise to the “LOW” ( ) (Figure c).
Note: If burner fails to remain lit, all valves should be closed and a waiting period of at least
5 minutes should pass before attempting to light.
Caution: Do not attempt to operate until you have read and understand all General Safety
Information in this manual and all assembly is complete and leak checks have been performed.
in.
in.
in.
in.
in.
in.
Figure a Figure b Figure c Normal Abnormal
( )
( )

20
When re pit is ON:
Burner will display tongues of blue and yellow ame. These ames should not be yellow
or produce thick black smoke, indicating an obstruction of airow through the burners.
The ame should be blue with straight yellow tops. If excessive yellow ame is detected,
turn off propane tank and re pit and consult “Care and Maintenance” on page 22.
Re-lighting:
1. Turn control knob to OFF (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
).
2. Repeat the “Lighting” steps on prior page.
3. When relighting a hot re pit, always wait at least 5 minutes.
Turning off the burner:
Push the control knob and turn to the OFF (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
) position.
Disconnecting the propane cylinder:
1. Make sure the control knob is in the OFF (
Figure a Figure b Figure c
in.
in.
in.
in.
in.
in.
Normal Abnormal
) position and wait 45 minutes until
the appliance is cool.
2. Turn off cylinder valve, then disconnect the hose regulator from the cylinder.
3. Store the cylinder in a proper location.
WARNING
FOR YOUR SAFETY
Be careful when attempting to manually ignite this
re pit. Holding in the control knob for more than
10 seconds before igniting the gas will cause a ball
of ame upon ignition.
WARNING
FOR YOUR SAFETY
Fire pit will be hot after use. Handle with extreme care.
OPERATION INSTRUCTIONS
