AJA HA5-4K Operating instructions

HA5-4K
HDMI to SDI Mini-Converter
Version 1.7r1
Published May 1, 2018
Installation and Operation Guide

HA5-4K HDMI to SDI Mini-Converter v1.7r1 2 www.aja.com
Notices
Trademarks
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc.
for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for
use with recorder, router, software and camera products. Because it matters.™ is a
trademark of AJA Video Systems, Inc. for use with camera products.
CION®, Corvid Ultra®, lo®, Ki Pro®, KONA®, KUMO®, ROI® and T-Tap® are registered
trademarks of AJA Video Systems, Inc.
AJA Control Room™, KiStor™, Science of the Beautiful™, TruScale™, TruZoom™,
V2Analog™ and V2Digital™ are trademarks of AJA Video Systems, Inc.
All other trademarks are the property of their respective owners.
Copyright
Copyright © 2018 AJA Video Systems, Inc. All rights reserved. All information in
this manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.
Contacting AJA Support
When calling for support, have all information at hand prior to calling. To contact AJA
for sales or support, use any of the following methods:
Telephone [phone]
FAX [phone]
Web https://www.aja.com
Support Email suppor[email protected]
Sales Email [email protected]

HA5-4K HDMI to SDI Mini-Converter v1.7r1 3 www.aja.com
Contents
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Contacting AJA Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter 1 – Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Default Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
AJA Mini-Cong Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Chapter 2 – Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
USB Control and Setup—Using AJA Mini-Cong . . . . . . . . . . . . . . . . . . . 7
Acquiring AJA Mini-Cong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Installing AJA Mini-Cong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Running AJA Mini-Cong. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operating AJA Mini-Cong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tabbed Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Input Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Output Tab Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

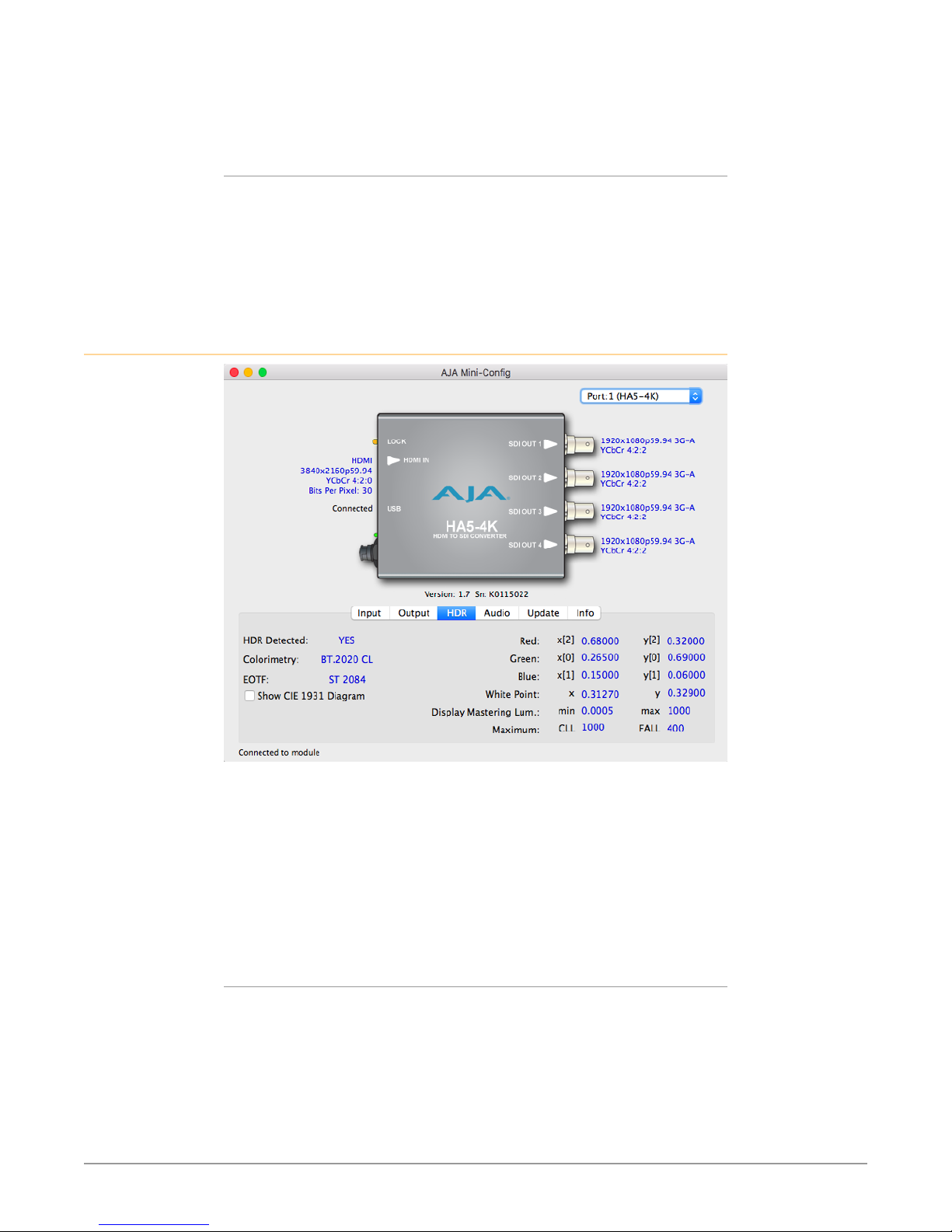

HDR Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Audio Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

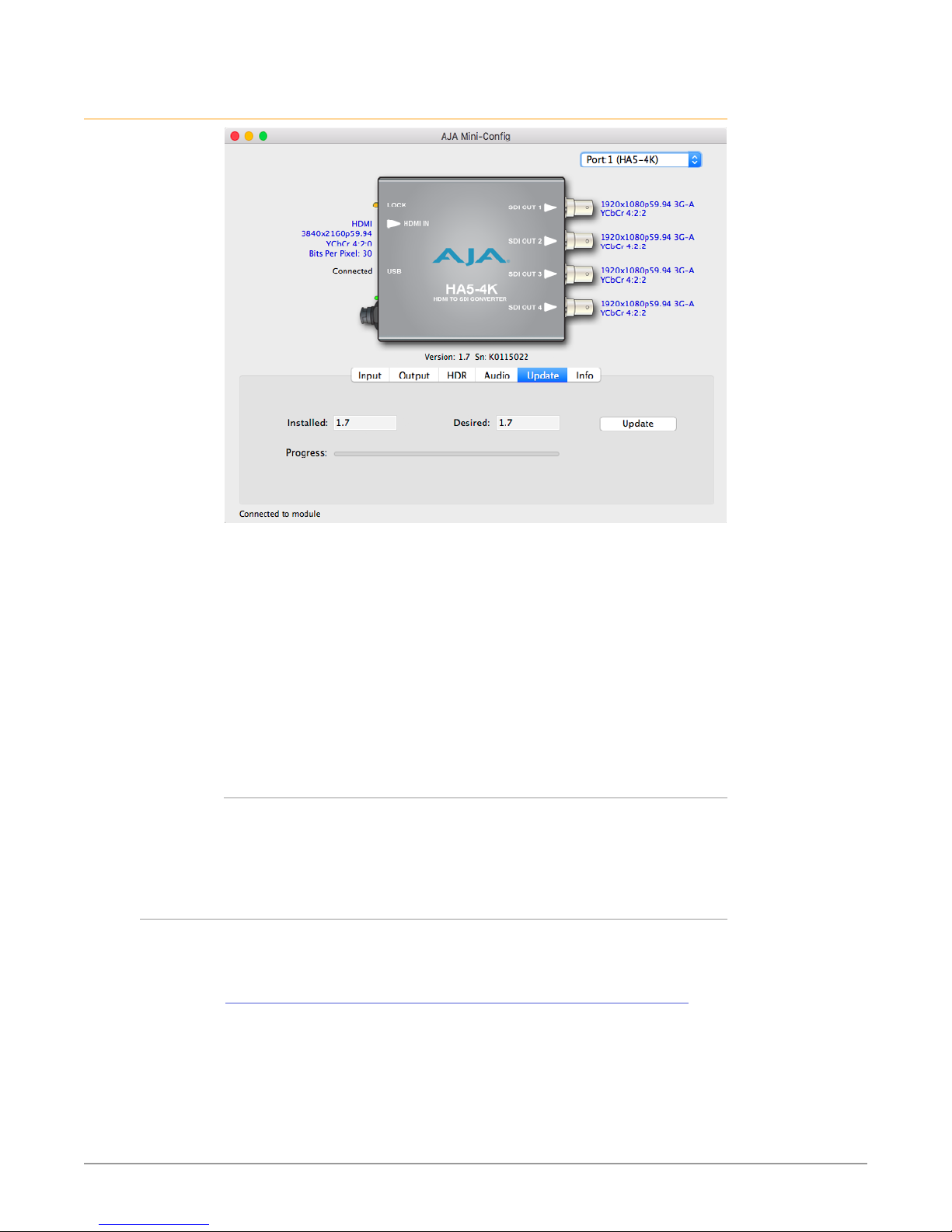

Update Tab Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Software Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

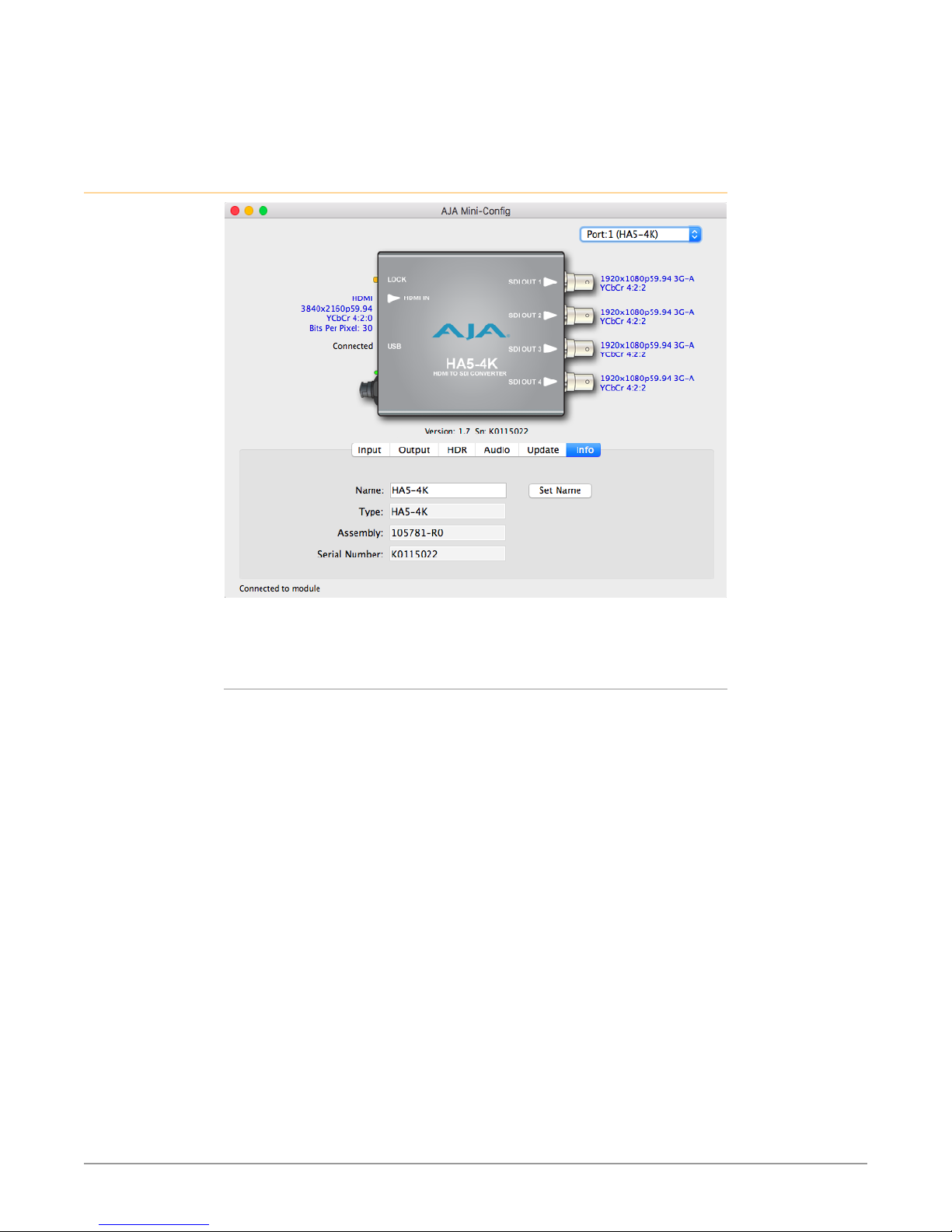

Info Tab Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Appendix A – Specications . . . . . . . . . . . . . . . . . . . . . . . . 19
HA5-4K Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Appendix B – Safety and Compliance . . . . . . . . . . . . . . . . . .22
Warranty and Liability Information . . . . . . . . . . . . . . . . . . . .29
Limited Warranty on Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Governing Law and Language; Your Rights. . . . . . . . . . . . . . . . . . . . . . 30

HA5-4K HDMI to SDI Mini-Converter v1.7r1 4 www.aja.com
Chapter 1 – Introduction
Overview
AJA's HA5-4K Mini-Converter provides high-quality conversion of HDMI v2.0
to 4K SDI with 4 x 3G-SDI outputs. HA5-4K allows conversion of HDMI video
from various sources, including DSLR's, mirrorless cameras, action cameras, or
prosumer 4K video cameras to 4K SDI for use in professional workflows. The
HA5-4K outputs SDI video with the same format and frame rate as the incoming
HDMI video. The HA5-4K also supports both Square Division and Two Sample
Interleave output mapping.
Default Operation
The HA5-4K auto configures to the connected HDMI input (no dipswitch settings
required). The auto-configure function identifies the connected input and
outputs the equivalent SDI format.
An SD or HD output signal uses only BNC SDI Out 1, and the remaining BNC
output connectors are inactive by default. However, the DA function accessible
with Mini-Config allows replication of the output signal on those extra output
BNCs.
AJA Mini-Config Control
AJA’s Mini-Config application is available for firmware updates and advanced
configuration. Configuration set via Mini-Config is stored in the HA5-4K unit
through subsequent power cycles.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 5 www.aja.com
Features
• HDMI to 4K/HD/SD-SDI (see "Appendix A – Specications" on page 19 for a
complete list of supported inputs).
• HDMI 2.0 support including:
• 4:2:2/4:4:4/4:2:0 YCbCr
• 4:4:4 RGB
• 8, 10, or 12 bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
• 2 or 8 channels of embedded audio
• SDI support including:
• SMPTE 425 Level A and B
• Quadrant or 2SI mapping
• 4:2:2/4:4:4 YCbCr
• 4:4:4 RGB
• 10 bit
• 8 channels of embedded audio
• Pad/Crop between 4K and UHD
• P to PsF conversion
• DA Function
• Support for HDMI 2.0a
• HDR Static Metadata Descriptors
• Setup via PC/Mac using USB port and supplied USB cable (AJA Mini-Cong
conguration software application available via download from AJA website)
• Uses universal input +5V power supply AJA model DWP-U-R1 (included)
• 5 year warranty
NOTE: 3D is not supported in this converter.
NOTE: 720p 4:4:4 formats are not supported in this release.
Block Diagram
Figure 1. HA5-4K Converter, Simplified Block Diagram
SDI Out
1
SDI Out
2
SDI
XMIT
Delay
Sample
Rate
Converter
SDI Out
3
SDI Out 4
Video
Video
Audio
Audio
HDMI v2.0
Input with
Embedded
Audio
USB Bus
(connect to
PC or Mac)
Control
HDMI v2.0
RCVR
Frame
Buer
and
Video
Processing
Audio
Disembed
SDI
XMIT
SDI
XMIT
SDI
XMIT
Video
Video
Video

HA5-4K HDMI to SDI Mini-Converter v1.7r1 6 www.aja.com
I/O Connections

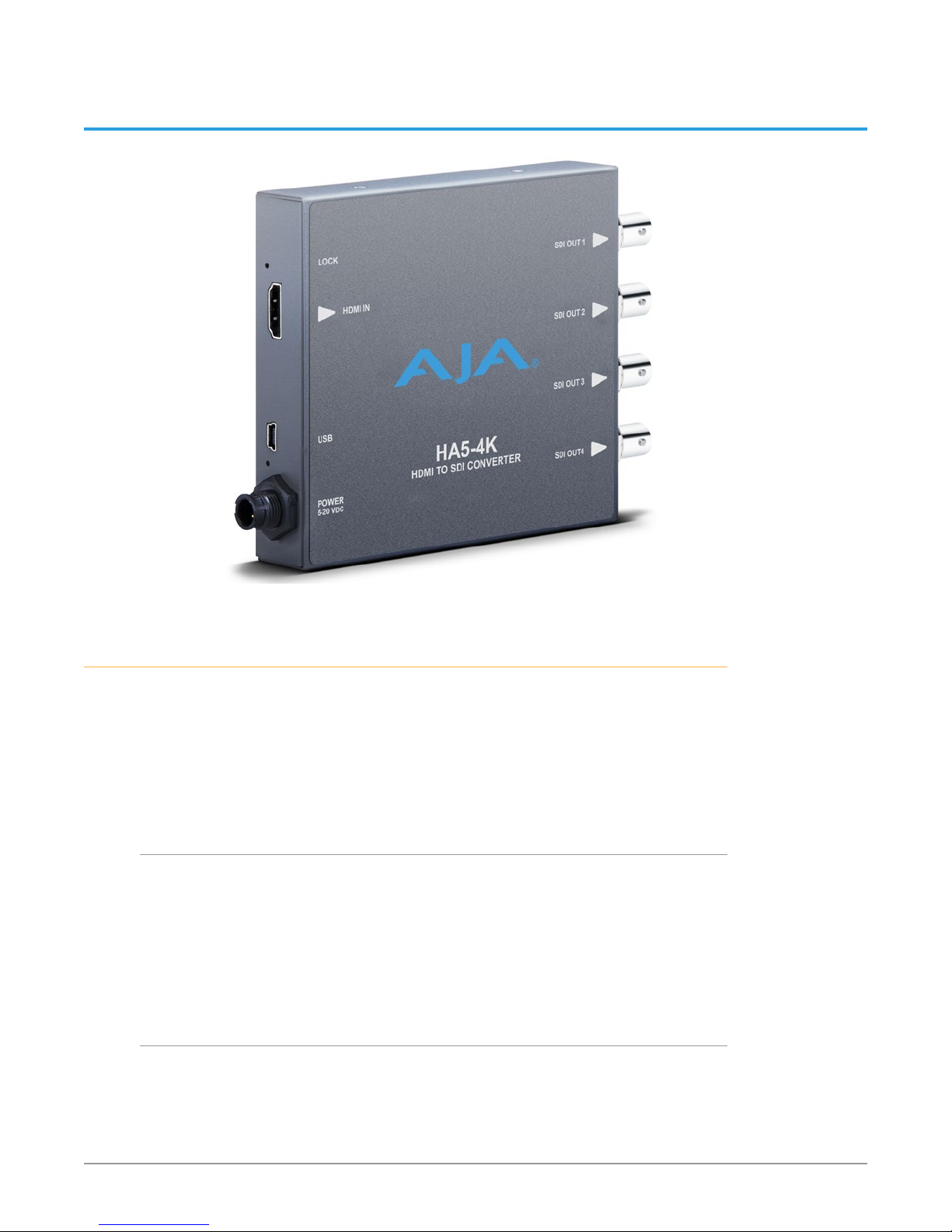

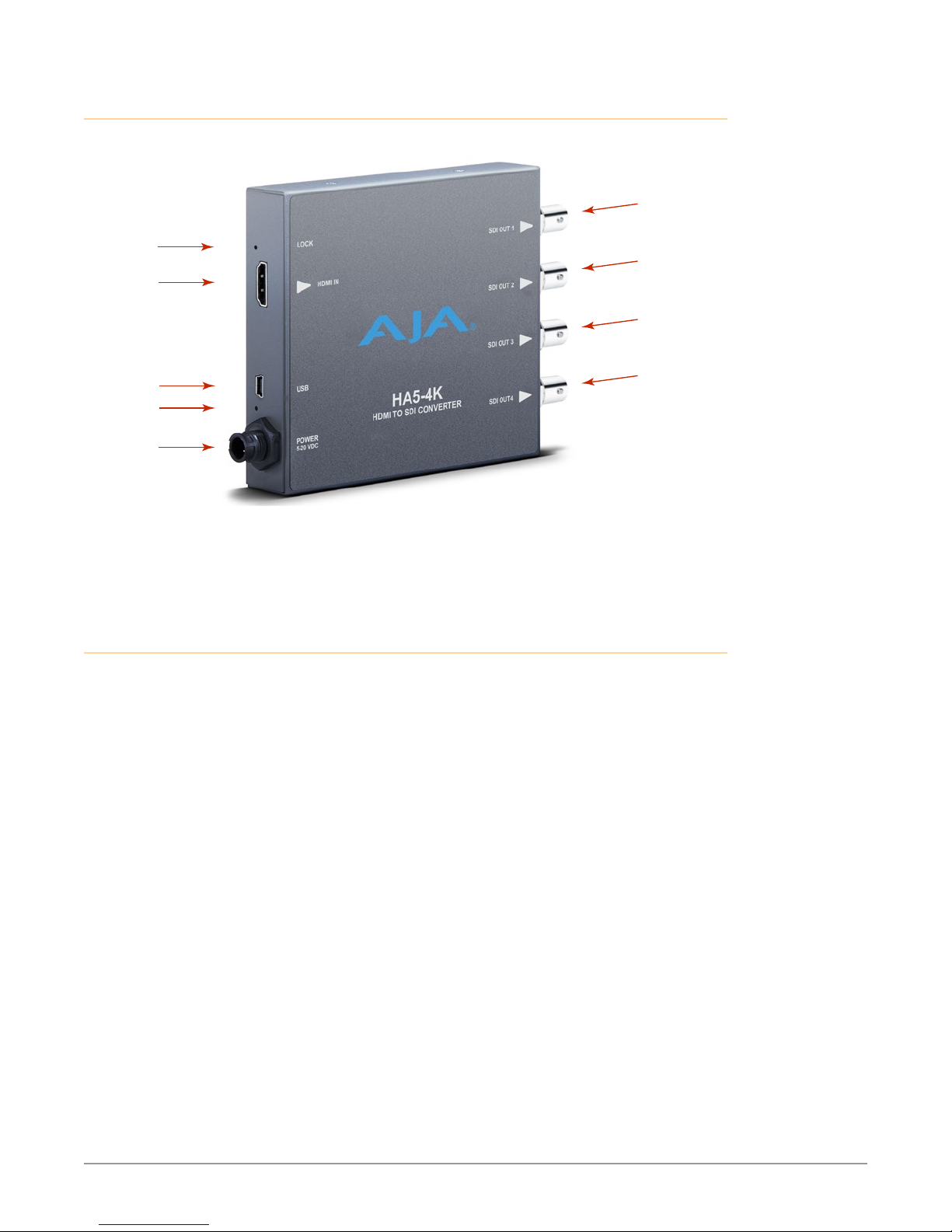

Figure 2. HA5-4K Converter Connections
Input
HDMI
Connector
USB Port
+5-20 VDC
Power
Input
SDI Output 1
SDI Output 3
SDI Output 4
SDI Output 2
Power LED
Lock LED
NOTE: The LOCK LED adjacent to the HDMI input connector indicates by color the
detected signal type. Green is SD, red is HD, amber/orange is 4K/UHD, and off is
no signal.
Installation
Typically, HA5-4K installation consists of the following steps:
1. Ensure the HA5-4K is disconnected from power.
2. Connect video equipment to the converter BNCs and HDMI connector.
3. Apply power to the converter (AJA power supply included).
4. The HA5-4K will now run using the default factory settings. If you wish to
alter the factory settings, you’ll need to:
• Install the AJA Mini-Cong software on your computer
• Attach the HA5-4K via USB
• Make your changes using AJA Mini-Cong setup screens.
This process is detailed in "USB Control and Setup—Using AJA Mini-Config" on page
7.
NOTE: The HA5-4K packs an unprecedented feature set into a mini converter box. As
a result, the unit uses approximately 10 watts of power. It will be very warm
to the touch, which is normal. The unit is engineered to operate across the full
temperature range, from 0 to 40 degrees C.
NOTE: For highest reliability, the mini converter relies on convection cooling instead
of using a built-in fan. Therefore, when installing the unit, mount in a location
where it has access to air for proper cooling. Do not stack the HA5-4K with other
mini converters.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 7 www.aja.com
Chapter 2 – Operation
USB Control and Setup—Using AJA Mini-Config
Your AJA Mini-Converter can be used right out of the box for some applications
since it is designed to recognize inputs and perform standard actions
automatically by default. However, to use its full capability, you must use AJA’s
Mini-Config software application for PCs and Macs. This same application can be
used to update to new Mini-Converter software released by AJA.
Acquiring AJA Mini-Config
AJA’s Mini-Config application is available for download from the AJA website.
To download the latest AJA Mini-Config package, which includes the AJA Mini-
Config application, Mini-Converter firmware, and documentation, go to:
https://www.aja.com/en/products/mini-converters/mini-cong-software
Select either the Windows or Mac icon to download the desired version.
Mini-Converter Documentation
Included with the AJA Mini-Config package is a complete set of documentation
for all Mini-Converters supported by AJA Mini-Config. A .PDF of the Installation
and Operation Guide for the currently connected Mini-Converter can be accessed
from the AJA Mini-Config UI via the Help/Manual drop-down menu.
Documentation for all AJA Mini-Converters that use AJA Mini-Config can also
be accessed directly in the AJA Mini-Config download package Documentation
folder, and via the Documentation icon available on the Mac installer.
Documentation (and firmware) included with the AJA Mini-Config application
are the versions available at the time of distribution. However, Mini-Converter
software, firmware and documentation are updated regularly, so newer versions
may exist.
To download the latest documentation for an individual Mini-Converter, go to:
https://www.aja.com/en/category/mini-converters
and navigate to the Support webpage of that Mini-Converter.
Installing AJA Mini-Config
PC Installation
To install AJA Mini-Config on a Windows PC:
1. Download the application from the AJA website (select the Windows icon
on the AJA Mini-Cong Support webpage).
2. Open the AJA_MiniCong.zip le
3. Double-click on the MiniInstaller.msi le.
4. A Setup Wizard will guide you through the installation.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 8 www.aja.com
Figure 3. AJA Mini-Config PC Setup Wizard
5. Click Next to begin. Answer the questions in the subsequent dialogues.
When nished, an AJA Mini-Cong shortcut will be installed on the desktop,
and you will be able to locate the AJA Mini-Cong application in the AJA
folder in the Programs listing.
NOTE: If the AJA Mini-Config application already exists on the PC, a different Setup
Wizard appears.
Figure 4. AJA Mini-Config Setup Wizard, Reinstallation
With this screen you can Repair (reinstall) or Remove (uninstall) AJA Mini-Config
on the PC.
Mac Installation
To install the application on a Mac:
NOTE: Macintosh computers must be Intel-based (G5, G4 and earlier models will not
work with AJA Mini-Config).
1. Download the application from the AJA website (select the Apple icon on
the AJA Mini-Cong Support webpage).
2. Open the AJA_MiniCong folder.
3. Double-click on the AJAMiniCong.dmg le.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 9 www.aja.com
4. Answer the prompt and a utility program will be launched.
Figure 5. AJA Mini-Config Mac Installer
5. To complete the installation drag the “MiniCong.app” icon to the
Applications folder.
Running AJA Mini-Config
Connect the Mini-Converter to the PC or Mac via the supplied USB cable. Connect
the external power supply (supplied) to the Mini-Converter.
PC Startup
To run AJA Mini-Config on a PC, double-click on the AJA Mini-Config icon on your
desktop, or open the AJA folder in the program list and click on the AJA Mini-
Config application located inside the AJA Mini-Config folder.
Mac Startup
To run AJA Mini-Config on a Mac, open the Applications folder and locate the AJA
Mini-Config application. Double-click the application to launch it.
Saving Setups
A File drop down menu on the AJA Mini-Config application bar allows you to
save the current state of the Mini-Converter to a preset file for later recall.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 10 www.aja.com
Using this feature you can set up the converter for different applications, storing
each configuration (Save Preset As...) with a unique name for easy recall (Open
Preset...).
A Revert to Factory Settings menu item similarly allows you to change the
settings back to AJA’s factory defaults.
Operating AJA Mini-Config
The AJA Mini-Config application provides a graphic interface for viewing settings
and updating software. It consists of an information area at the top that shows
the available Mini-Converters attached to the computer via USB, with a graphical
rendering of the selected Mini-Converter showing all the connectors and their
current state.
Colored text next to the connectors indicates the signal type and what the Mini-
Converter is doing:
• Blue text indicates the values automatically selected
• Black text indicates values that you have manually selected
• Red text indicates the Mini-Converter is not detecting a signal, or cannot
operate with the current user settings.
NOTE: Even if no output device is detected, the SDI connector text still shows the signal it
is outputting.
NOTE: Configuration settings in red will change based on the attached output device as
well as input signals. For improved accuracy and reliability, you should configure
the Mini-Converter only when the target output device is attached and input
signals are supplied at the inputs.
Screens are virtually the same on both PC and Mac, with subtle differences that
reflect the general look of the platform environment.
Running Multiple Mini-Converters
AJA Mini-Config can manage multiple AJA Mini-Converters connected via USB—
even when they are of differing types. However it only connects to one at a time.
You can choose which Mini-Converter you wish to control using the pulldown
menu in the upper right hand corner. If you want to configure multiple Mini-
Converters in parallel, you can do it by running multiple instances of the AJA
Mini-Config application and have each control a different Mini-Converter.
NOTE: During a Mini-Converter firmware update, only one Mini-Converter should be
connected to the computer via USB.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 11 www.aja.com
Figure 6. Example AJA Mini-Config Screen
Select a USB port and an
attached Mini-Converter
(name in parentheses)
Each connector is
labeled with the signals
currently detected or
manually selected.
Firmware version Serial Number
Tabbed screens
Message
Showing
Status
Selecting a Mini-Converter with the pulldown menu causes this application to
connect to the selected converter. The graphic of the Mini-Converter and text
below it provides:
• Type of converter
• Firmware version
• Serial number of the unit.
A status field at the bottom of the screen shows if your application is connected
and communicating with the Mini-Converter.
When configuring the Mini-Converter, select it from the top pulldown, view the
current settings and change any values. Making a change communicates that
new value to the Mini-Converter’s non-volatile memory.
Tabbed Screens
The Tabs delineate control screens with groups of controls for each type of task to
be performed. The controls for the actual configuration parameters are specific
to each Mini-Converter type. When you Click on any of the tab buttons, the pane
below the tabs will change to match your tab selection. Any changes you make
are immediately applied and will be saved, overwriting previous settings.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 12 www.aja.com
Input Tab Screen
RGB Range
Selects the Input Video Color Range for RGB signals. Choose from:
• Auto (default)
• SMPTE
• Full
Output Tab Screen

HA5-4K HDMI to SDI Mini-Converter v1.7r1 13 www.aja.com
Color Space
Selects the desired output video format. Choose from the following:
• Auto (default) Selects the video format based on the input video and the
attached device's capabilities.
• 4:2:2 YCbCr
• 4:4:4 RGB
• 4:4:4 YCbCr (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
Color Range
Selects the Color Range. Choose from the following:
• Auto - (default) Selects SMPTE vs Full based on incoming HDMI and setting of
Input Color Range.
• SMPTE
• Full
Pad/Crop
Selects pixel padding and cropping conversions between UltraHD and 4K
formats. Choose from the following:
• O - (default) No processing
• Pad - Add black pixels to the left and right sides of the raster to ll a wider
aspect ratio (UltraHD to 4K, or HD to 2K).
• Crop - Crop pixels from left and right sides of the raster to t a narrower aspect
ratio (4K to UltraHD, or 2K to HD).
Genlock
Select the genlock reference. Choose from the following:
• HDMI In (default) - Locks to incoming HDMI clock.
• FreeRun - Locks to free running SDI internal clock.
Mapping
Select the 4K/UltraHD mapping format:
• Quadrant (default) - Square Division
• 2SI - Two Sample Interleave
3G-SDI Mode
Selects the 3G SDI Video Mode. Choose from the following:
• Level A (default)
• Level B-DL
Enable PtoPsF
Choose to convert incoming progressive format HDMI video to PsF SDI video.
• O - (default) No conversion.
• On - Converts the video to PsF (if it is progressive format and low frame rate).
DA Function
Choose to replicate the signal on any extra BNC outputs. An SD or HD input signal
can be distributed to all four BNCs. A 4K/UHD LFR dual stream output signal can
be distributed to each pair (1-2 and 3-4) of BNC output connectors.
• O - (default) no video sent to any extra BNC outputs;.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 14 www.aja.com
• On - For HD/SD signals, three additional copies of the signal are sent to the SDI
Out 2, 3, and 4 BNCs. For dual link output signals one additional copy of the
signal is sent to the pair of SDI Out 3 and 4 BNCs.
4K/UHD LFR
Controls how Low Frame Rate (23.98, 24, 25, 29.97, 30 fps) incoming video will be
output, using all four BNC outputs (at 1.5 Gbps each), or two BNC outputs (at 3
Gbps each). Choose from the following:
• Quad 1.5 Gbps (default)
• Dual 3 Gbps
HDR Tab Screen
Click on the HDR tab to view the received High Dynamic Range static metadata
extensions settings.
The HDR tab displays whether a HDR Infoframe is being received on the HDMI
input. If so, it decodes and presents the static metadata descriptors as defined in
CTA-861.3 and HDMI v2.0a.
NOTE: The HA5-4K HDR function does not modify the video data.
NOTE: Hover the cursor over each parameter field to view its corresponding description
in a pop-up window.
HDR Detected
This field will report YES or NO to indicate whether a HDR Infoframe is being
received.
• YES - HDR metadata is being received.
• NO - HDR metadata is not being received.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 15 www.aja.com
Colorimetry
This field will report the Colorimetry value received from the AVI Infoframe. This
information is always transmitted from an HDMI source, regardless of whether the
HDR Infoframe is present.
Status values include the following:
• No Data
• Rec.601
• Rec.709
• BT.2020 Non-CL (non-constant luminance)
• BT.2020 CL (constant luminance)
EOTF
This field will report the Electro-Optical Transfer Function (EOTF) value received
from the HDR Infoframe.
Status values include the following:
• Trad Gamma SDR
• Trad Gamma HDR
• ST 2084 (SMPTE ST 2084)
• Hybrid Log-Gamma
• Reserved [4], not yet dened
• Reserved [5], not yet dened
• Reserved [6], not yet dened
• Reserved [7], not yet dened
Display Mastering Luminance
Represents the minimum and maximum Display Mastering Luminance values
received in the HDR Infoframe.
• Minimum: Denes the oor of the SMPTE ST 2086 color volume (in the case of
HDR) and is determined by the mastering environment.
• Range: 0.00000 cd/m2to 1.00000 cd/m2.
• Step size: 0.00002 cd/m2.
• Maximum: Denes the ceiling of the SMPTE ST 2086 color volume (in the case
of HDR) and is determined by the mastering environment.
• Range: 1 cd/m2to 65535 cd/m2.
• Step size: 1 cd/m2.
Maximum Content Light Level (CLL)
Represents the highest-value pixel component in an entire scene. It is
determined by analyzing each frame of video, and can be determined in the post
environment.
• Range: 1 cd/m2to 65535 cd/m2.
• Step size: 1 cd/m2.
Maximum Frame Average Light Level (FALL)
Represents the maximum of frame-based average light levels taken over an entire
scene, and can be determined in the post environment.
• Range: 1 cd/m2to 65535 cd/m2.
• Step size: 1 cd/m2.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 16 www.aja.com
Audio Tab Screen
SRC
Choose the audio conversion to be performed on the incoming HDMI audio.
• Convert - HDMI audio will be sample rate converted, if necessary, to 24-bit/48
KHz audio.
• Pass Through - HDMI audio will be passed to the SDI embedded audio
channels without conversion.
Embed into SDI
Choose which set of SDI embedded audio output channels will receive up to
eight channels of embedded audio received from the incoming HDMI signal.
Audio is embedded only into the SDI 1 output link, which may be carried on one
or more of the SDI Out BNC connectors, depending on configuration. Choose
from the following:
• Channels 1-8
• Channels 9-16
In Quad output mode, the SDI embedded audio will only be sent out the SDI Out
1 BNC.
In Dual output mode, when the DA function is Off the audio will only be sent out
the SDI Out 1 BNC. When the DA Function is On, the audio will also be sent out
the SDI Out 3 BNC.
In Single output mode, when the DA function is Off the audio will only be sent
out the SDI Out 1 BNC. When the DA Function is On, the audio will also be sent
out the SDI Out 2, 3, and 4 BNCs.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 17 www.aja.com
Update Tab Screen
Use this Update screen to view the software version currently installed on the
converter or install new firmware.
NOTE: When discussing Mini-Converters, “Firmware” is software that will be stored in
the Mini-Converter’s non-volatile memory and used when it is powered up. This is
something different than the AJA Mini-Config application software. The version
numbers shown in the Update screen refer only to the firmware.
Installed - This field shows the version of the firmware currently installed inside
the Mini-Converter.
Desired - This field shows the version of firmware embedded in the AJA Mini-
Config application which you can install into the Mini-Converter by clicking
the Update button.
Update
This button initiates a software update operation loading the “Desired” version of
firmware into the Mini-Converter’s non-volatile memory.
Progress - This indicator bar shows the progress of firmware installation.
Software Update Procedure
1. Check the AJA website for new AJA Mini-Cong software for your Mini-
Converter. If new software is found, download it and uncompress the le
archive (zip). Here is the URL to use when checking:
http://www.aja.com/en/products/mini-converters/mini-cong-software
2. Connect the Mini-Converter to a Mac or PC via a USB port on the computer
and run the new AJA Mini-Cong software just downloaded.
3. Click on the Update tab screen.
4. Check the Installed version level against the Desired version level. If the
Desired is newer, then click the Update button to download the new

HA5-4K HDMI to SDI Mini-Converter v1.7r1 18 www.aja.com
rmware to the Mini-Converter; progress will be shown via the “Progress”
thermometer bar.
Info Tab Screen
This screen provides basic information about the Mini-Converter. This information
is useful when calling AJA Support for service or technical support.
Name
This field allows you to give your Mini-Converter a name. This can be useful if you
have several Mini-Converters attached to a Mac/PC via USB so you can distinguish
between them easily (especially if they’re the same model).
Type - This is the factory set model name of the Mini-Converter.
Assembly - This is the factory assembly number.
Serial Number - This is the factory set unique serial number of your Mini-
Converter. If you ever call AJA Support for service, you may be asked for this
number.

HA5-4K HDMI to SDI Mini-Converter v1.7r1 19 www.aja.com
Appendix A – Specifications
HA5-4K Tech Specs
Video Formats
• (4K) 4096 x 2160p
• (UltraHD) 3840 x 2160p
• (2K) 2048 x 1080p
• (HD) 1920 x 1080p
• (HD) 1920 x 1080i
• (HD) 1280 x 720p
• (SD) 720 x 576p
• (SD) 720 x 576i
• (SD) 720 x 480p
• (SD) 720 x 480i
Video Input Digital
• 1x HDMI Type A connector, HDMI v2.0
• YCbCr 4:2:2/4:4:4/4:2:0
• RGB 4:4:4, SMPTE or Full level
• 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
• HDR Infoframe decoder as dened in CTA-861.3 and HDMI v2.0a
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080i 50, 59.94, 60
• (HD) 1280 x 720p 50, 59.94, 60
• (SD) 720 x 576p 50
• (SD) 720 x 576i 25
• (SD) 720 x 480p 59.94
• (SD) 720 x 480i 29.97
HDCP Decryption
• Not supported. By denition, SDI outputs are unencrypted.
Video Output Digital
• 4x 3G-SDI BNC, SMPTE-259/292/424
• YCbCr 4:2:2/4:4:4
• RGB 4:4:4, SMPTE or Full level
• 10-bit
• Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
• 4x 3 Gb SDI (Level A or B-Dual Link)
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30

HA5-4K HDMI to SDI Mini-Converter v1.7r1 20 www.aja.com
• 4x 1.5 Gb SDI
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
• (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
• 2x 3 Gb SDI (Level B-Dual Stream)
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
• (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
• 1x 3 Gb SDI (Level A or B-Dual Link)
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 50, 59.94, 60
• (HD) 1280 x 720p** 50, 59.94, 60
• 1x 1.5 Gb SDI
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 50, 59.94, 60
• (HD) 1280 x 720p 50, 59.94, 60
• 1x 270 Mb SDI
• (SD) 625i 50
• (SD) 525i 59.94
*PsF is Level B Dual Link
**1280 x 720p is Level A Only
Audio Input Digital
• HDMI embedded audio, 24-bit, 8-Channel
Audio Output Digital
• SDI embedded audio, 24-bit, 8-Channel
User Interface
• USB port used with supplied cable and Mini-Cong software application to
congure device via Mac or Windows.
Size (w x d x h)
• 5.76" x 4.02" x 0.90" (146.31 × 102.11 × 22.86 mm)
Weight
• 0.6 lb (0.3 kg)
Power
• 5-20VDC regulated, 10 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input
