AKA MPD26 User manual

SPECIFICATION
FUNCTION
1. Access 64 samples on 16 pressure and velocity-sensitive MPC pads with four banks each
2. MPC technologies include Note Repeat, Swing, 16 Level, Full Level, and Tap Tempo
3. Control virtually any 12 software parameter on assignable Q-Link knobs and faders
4. Dedicated transport controls transmit MMC and MIDI to DAW and sequencing
applications
5. MIDI output over USB and traditional MIDI I/O for controlling software and hardware
6. Backlit, easy-to-read screen
7. USB bus powered, class compliant: plug and play with one USB cable
8. Comes with Editor Librarian software

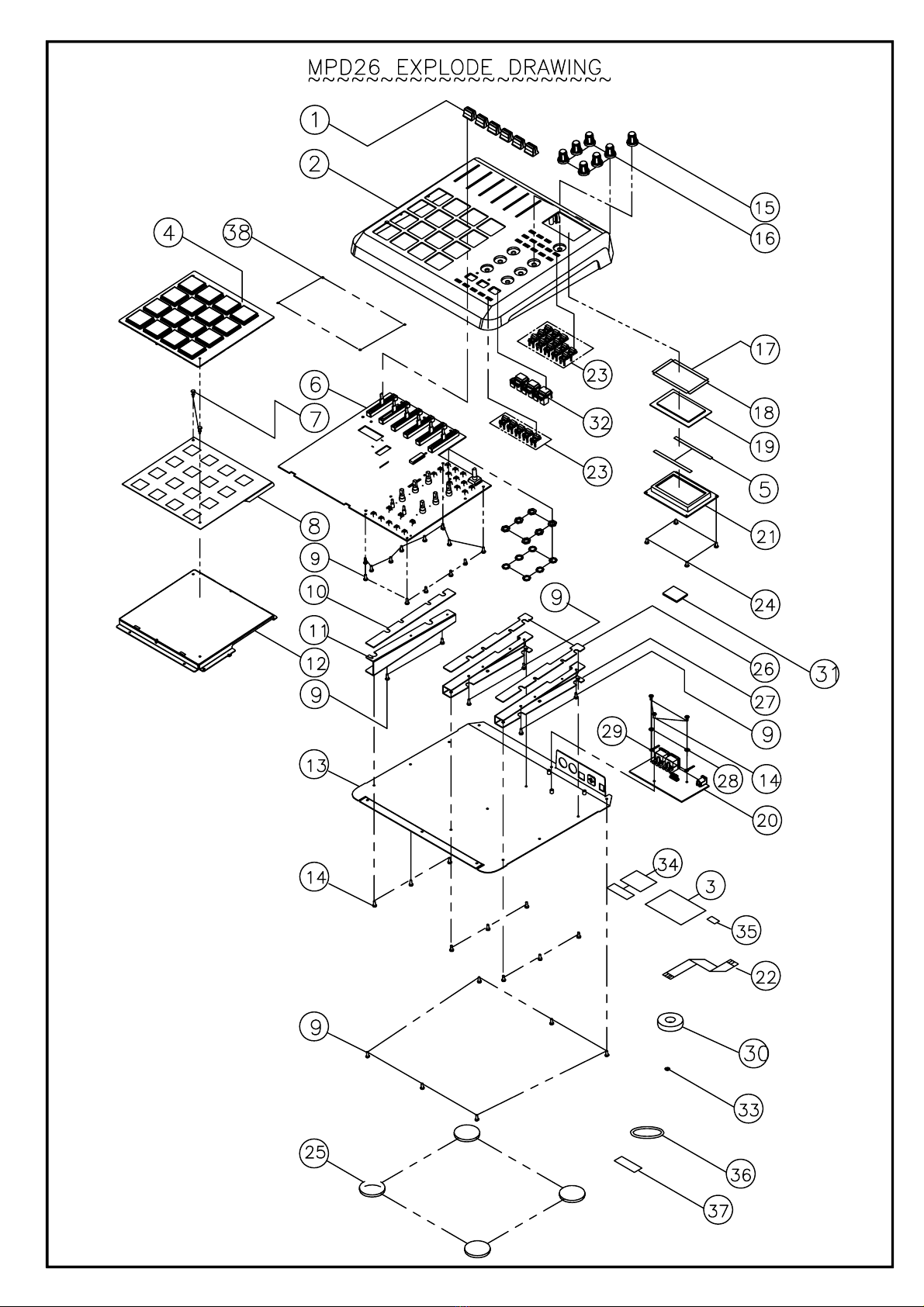

SERVICE MANUAL
MODEL: MPD26

MPD16 (BOM)
Lvl Materials SPECS Qt
y
Part Location
.1 AL7-10-0144-C SENSOR LARGE 16-KEY FSR SENSOR REV.3 18
.1 AL9-15-0423 KNOB SLIDE(ADD BLACK INK) 61
..2 PT1510602 KNOB SLIDE 1

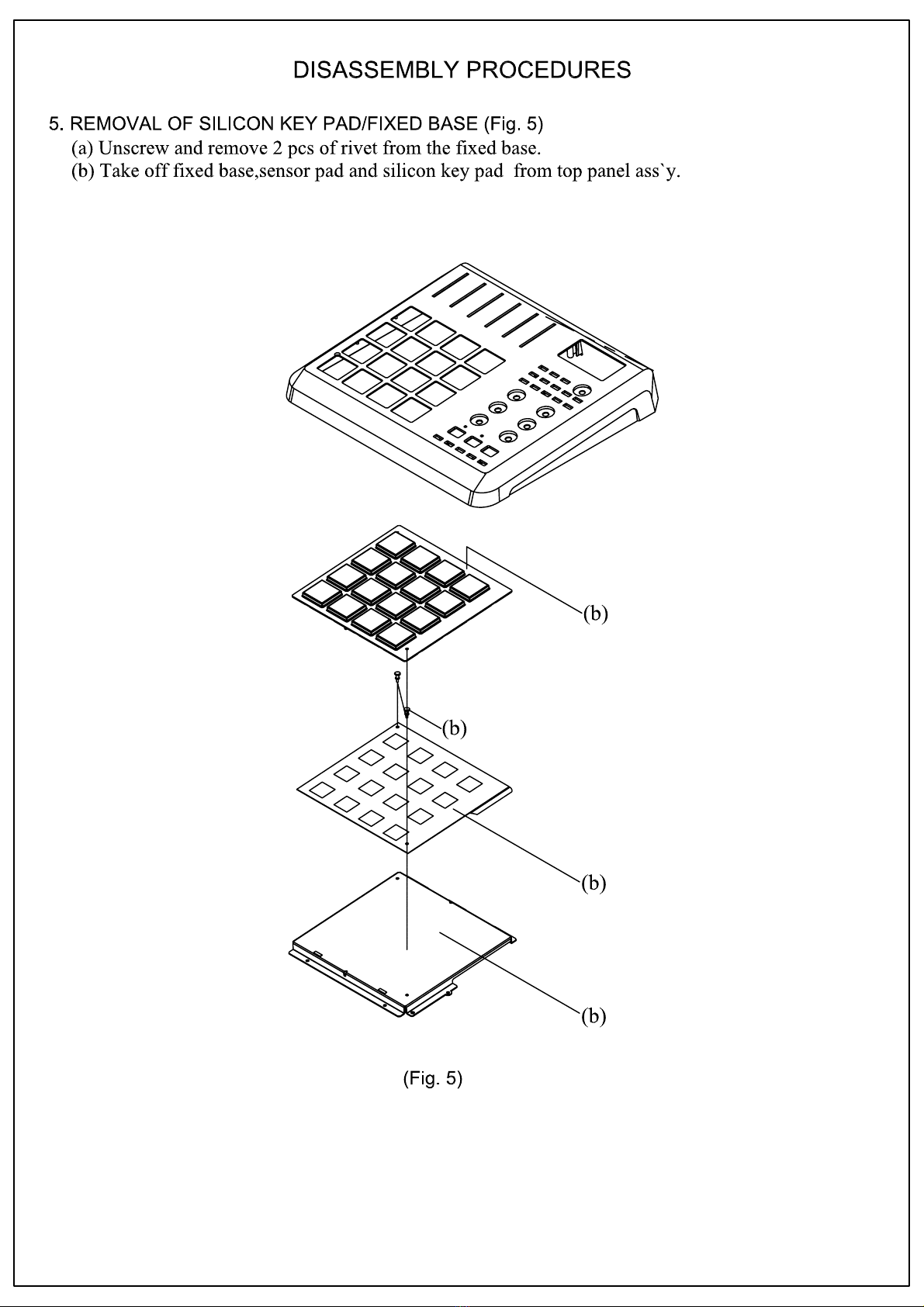

.1 AL9-30-0045 SILICON KEY PAD 14
.1 BAGL-70L WIRE CLIP 229
.1 BAOD6ID3T03 FIBER WASHER (BLUE) 438
.1 BAPR-03T RIVET 27
.1 EVA1304408 SHIELD LCD EVA 25
.1 EVA1304432 EVA (20X20X2MM) 131
.1 FFC1810002001 18P FLAT WIRE 200MM FFC 122
.1 LAC22AKA67 BARCODE & SERIAL NO LABEL AD26 335
.1 LAC42YAH298 WEEE LABEL 135
.1 LAC52ALE01 LABEL (SAFETY) 13
.1 LAC67AKA93 DOUBLE SIDE TAPE AD26 137
.1 LAC67MAR195 ADHESIVE TAPE NITTO 500 (68MMX5MM) 217
.1 LAC67MAR196 ADHESIVE TAPE NITTO 500 (50MMX7MM) 218
.1 MT1504407 FIXED HOLDER (L) 227
.1 MT1504408 FIXED BASE 112
.1 MT1504409 FIXED HOLDER (R) 111
.1 MT153030102 BOTTOM PLATE(SPRAY&PRINT) AD26 113
.1 PT1501404 LCD SCREEN 119
.1 PT1510619 PUSH BUTTON 18 23
.1 PT1510651 BUTTON (LARGE) 332
.1 PT153001401 TOP PANEL(SPRAY/PRINT) AD26 12
..2 PT1530014 TOP PANEL (R) AD26 1
.1 RU1330701 RUBBER FOOT 425
.1 RU1504304 FOOT CUSHION 110
.1 RU1504305 FOOT CUSHION 226
.1 SC0208RBBI SCREW 424
.1 SC0308RBBI SCREW 26 9
.1 SC0308RIBI SCREW 12 14
.1 TWLCM-WTDH002 MPD24 LCD ASS'Y 121
..2 CN0100000503 1P EARTH WIRE 1
..2 LCM-WTDH002 LCD 1
.1 UHA5FS233X3X12 CORE 45 O 100MHZ 23.3*3*12MM 136
.1 UHRI28X75X18 EMI COIL 130
.1 WS073307IC WASHER 228
.1 WS083205P WASHER 133

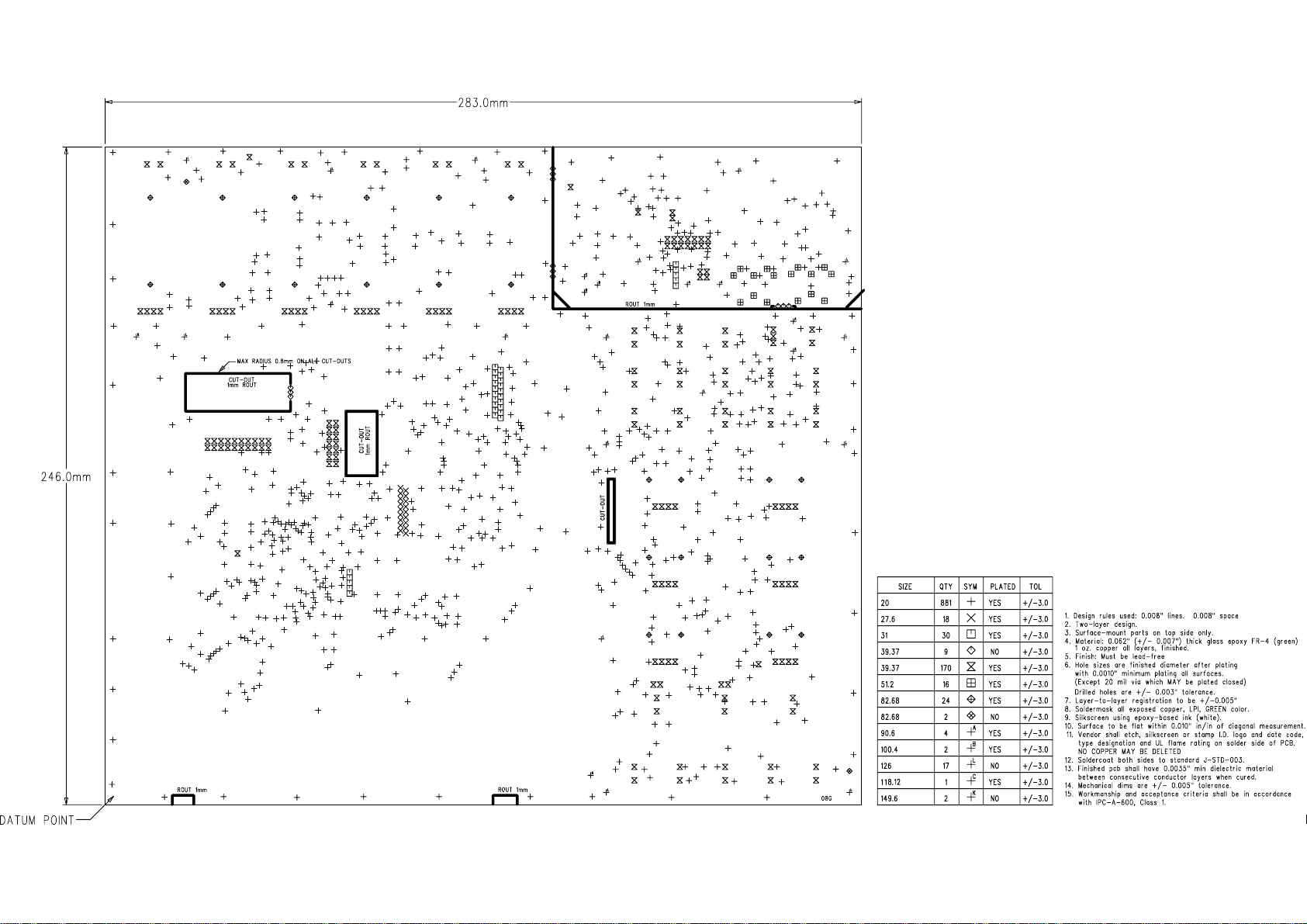

.1 TWPC09A00701 PCB ASS'Y 1
..2 PC09A007 P.C.BOARD (MAIN) AD26 1
..2 TWPC09A007A01 MAIN PCB ASS'Y
(
AD26
)
16
...3 SWEVQ11L05R TACT SWITCH (5MM) ROUND TERMINAL 21 S1~21
...3 AL0-16-1009 CHIP RES. 10 OHM,1/8W, -+1%, 0805 1R81
...3 AL0-17-0101 CHIP RES.4X100 OHM 1/16W 5% C-C=0.8MM 6R56, 78~80, 86, 87
...3 AL1-51-0475 CAP 4.7UF X5R 1206 10% 16V 6C17, 41, 45, 57, 70, 71
...3 AL2-51-4401 TRANS NPN 2N4401 40V 1A SOT-23 2Q8, 9
...3 AL2-51-4403 TRANSISTOR PNP 2N4403 40V 800MA SOT-23 2Q6, 7
...3 AL2-62-0014 I.C. 74AHC14 1U5
...3 AL2-71-1324 IC LMV324M SOT-14 1U6
...3 AL2-73-4051 IC 74HC4051 SINGLE 8-CHAN MUX 16-PIN SOIC 3U3, 7, 9
...3 CS102J5005COG CHIP CAP 1000PF/50V ±5% 0805 (NPO) 3C77~79
...3 CS103K5003X7R C.CAP 0.010UF 50V X7R,±10% SMD 0603 9C38, 39, 42, 46, 50, 51, 53, 54, 69
...3 CS104K5003X7R CHIP CAP 0.1UF/50V,X7R,+/-10%, SMD 0603 60 C1~6, 10~16, C31~36, 43, 44, 47, 52,
C58~66, 72~76, 84~106
...3 CS180J5003COG C.CAP 18PF 50V 0603 SMD 2C67, 68
...3 CS561J5005COG CAP. 560PF NPO 4C48, 49, 55, 56
...3 DIBAV70 DIODE BAV70 SOT-23 20 D5~24

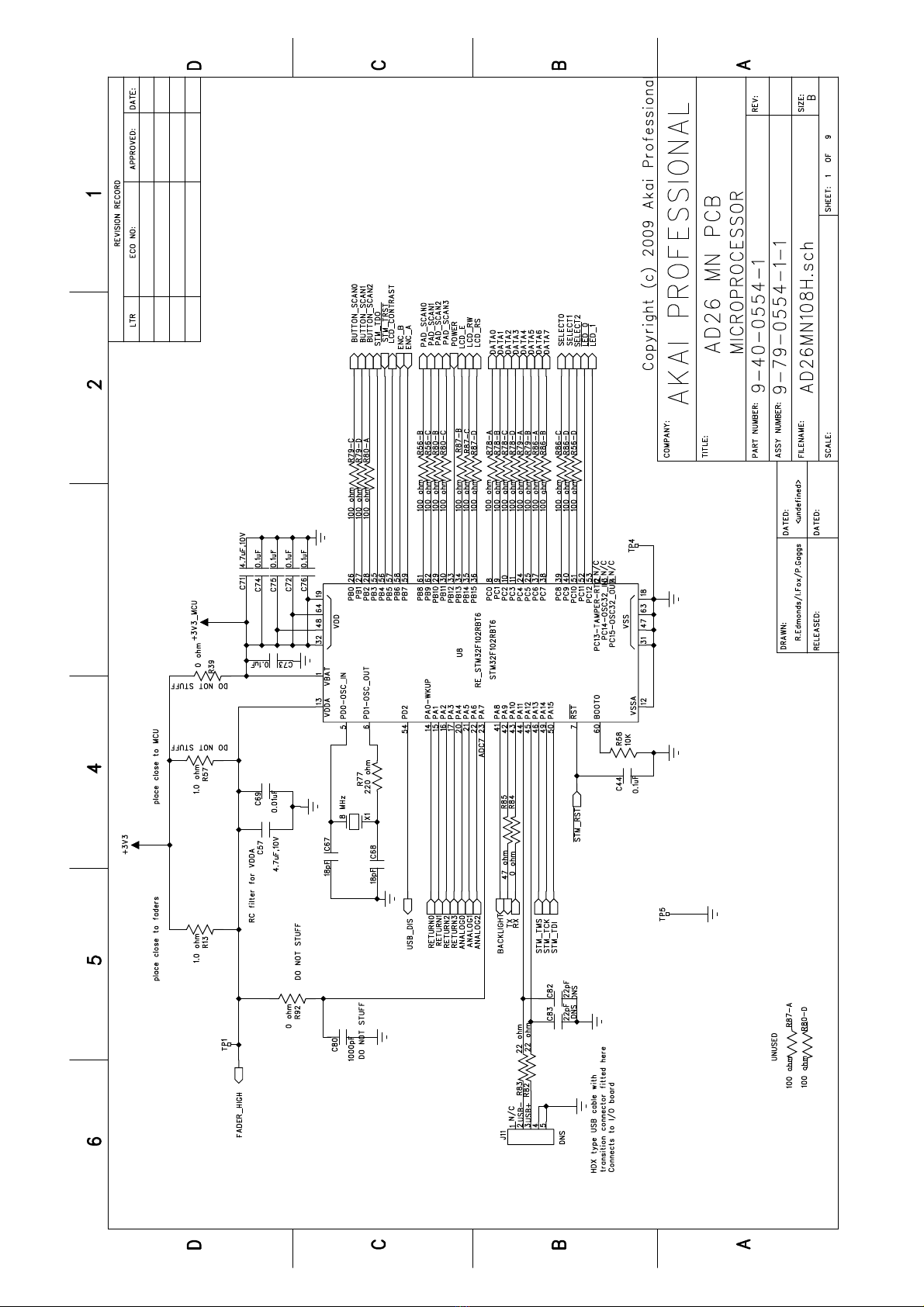

...3 ICSTM32F102RBT6 IC STM32F102RBT6 TQFP-64 1U8
...3 RS000008J05 CHIP RES. 0 Ω[ 5% SMD 0805 1R84
...3 RS000108J05 CHIP RES. 1 Ω5% SMD 0805 1R13

Lvl Materials SPECS Qt
y
Part Location
...3 RS001M08F05 CHIP RES. 1M Ω1% SMD 0805 3R11, 76, 95
...3 RS002208F05 CHIP RES. 22 Ω1% SMD 0805 2R82, 83
...3 RS004708F05 CHIP RES. 47 Ω1% SMD 0805 1R85
...3 RS010K10F03 CHIP RES. 10K Ω1% SMD 0603 21 R36, 37, 40~47, 50~52, 54, 58, 59, 64,
65, R74, 75, 98
...3 RS022010F03 CHIP RES. 220 Ω1% SMD 0603 3R77, 94, 96
...3 RS027K08F05 CHIP RES. 27K Ω1% SMD 0805 4R67, 68, 71, 72
...3 RS033K10F03 CHIP RES. 33K Ω1% SMD 0603 1R62
...3 RS047008F05 CHIP RES. 470 Ω1% SMD 0805 5R63, 66, 69, 70, 73
...3 RS04K708F05 CHIP RES. 4.7K Ω1% SMD 0805 4R48, 49, 88, 89
...3 RS100K08F05 CHIP RES. 100K Ω1% SMD 0805 2R60, 61
...3 XTM08000X6F1 Crystal 8MHz HC49SMD 1X1
...3 AA821842X SOCKET 20FMZ-ST 20P 1J7
...3 AL0-09-0044 VARIABLE RESISTOR 2.5KB 6R53, 55, 90, 91, 93, 97
...3 AL0-09-0057 SLIDE VR (STEREO) 10KB 45MM 6R8~10, 12, 14, 15
...3 AL3-02-0036 LED (AMBER) 2LED1, 2
...3 BALE48207-5A LED HOLDER 7.5MM HEIGHT 2.54 PITCH 2(LED1, 2)
...3 CN1425403001 14P FLAT WIRE 300MM 1J9
...3 FCN1R1001801 FPC CONNECTOR 18P 1J10
...3 NM1106112 VELVET CARPET 6
...3 SWDC11B20214A6 ENCODER 20 DETENT PRESS SWITCH 1E1
...3 TE952542001 DUAL CONNECTOR 20P 2.54MM 90DEG 1J8
...3 WR112830032G1 5P CONNECTOR WIRE (USB) 300MM 1J11

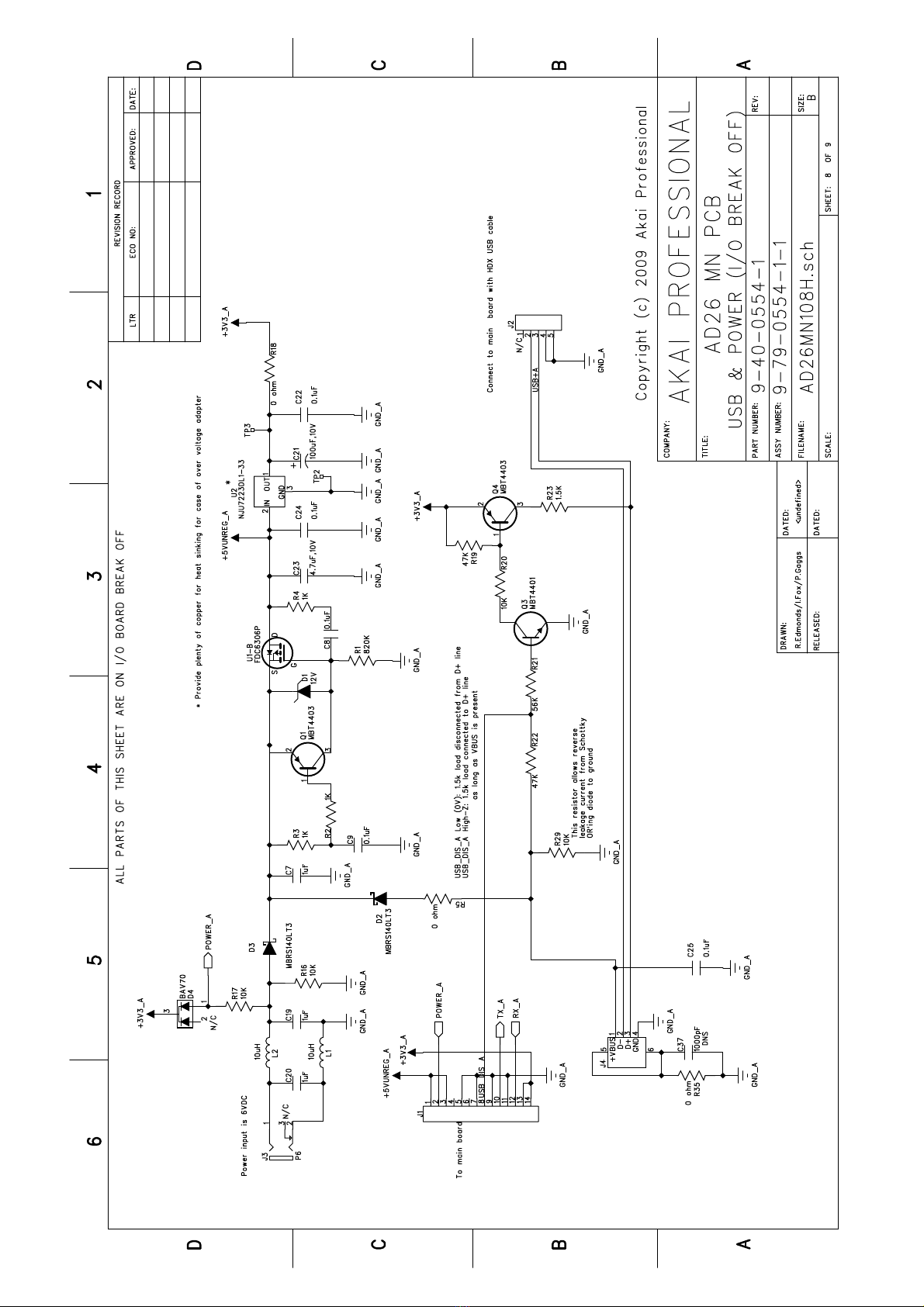

..2 TWPC09A007B01 I/O PCB ASS'Y
(
AD26
)
120
...3 AL1-51-0475 CAP 4.7UF X5R 1206 10% 16V 1C23
...3 AL2-51-0140 DIODE POWER SCHOTTKY MBRS140LT3 40V 1A 2D2, 3
...3 AL2-51-4401 TRANS NPN 2N4401 40V 1A SOT-23 3Q2, 3, 5
...3 AL2-51-4403 TRANSISTOR PNP 2N4403 40V 800MA SOT-23 2Q1, 4
...3 AL2-52-5242 DIODE ZENER MMBZ5242B 12V SOT-23 1D1
...3 AL2-54-6306 TRANS SMALL-SIGNAL DUAL EN-MOSFET FDC6306P SSOT-6 1U1
...3 AL2-61-7223 IC REG VOLTAGE NJU7223DL1-33 3.3V TO-252 1U2

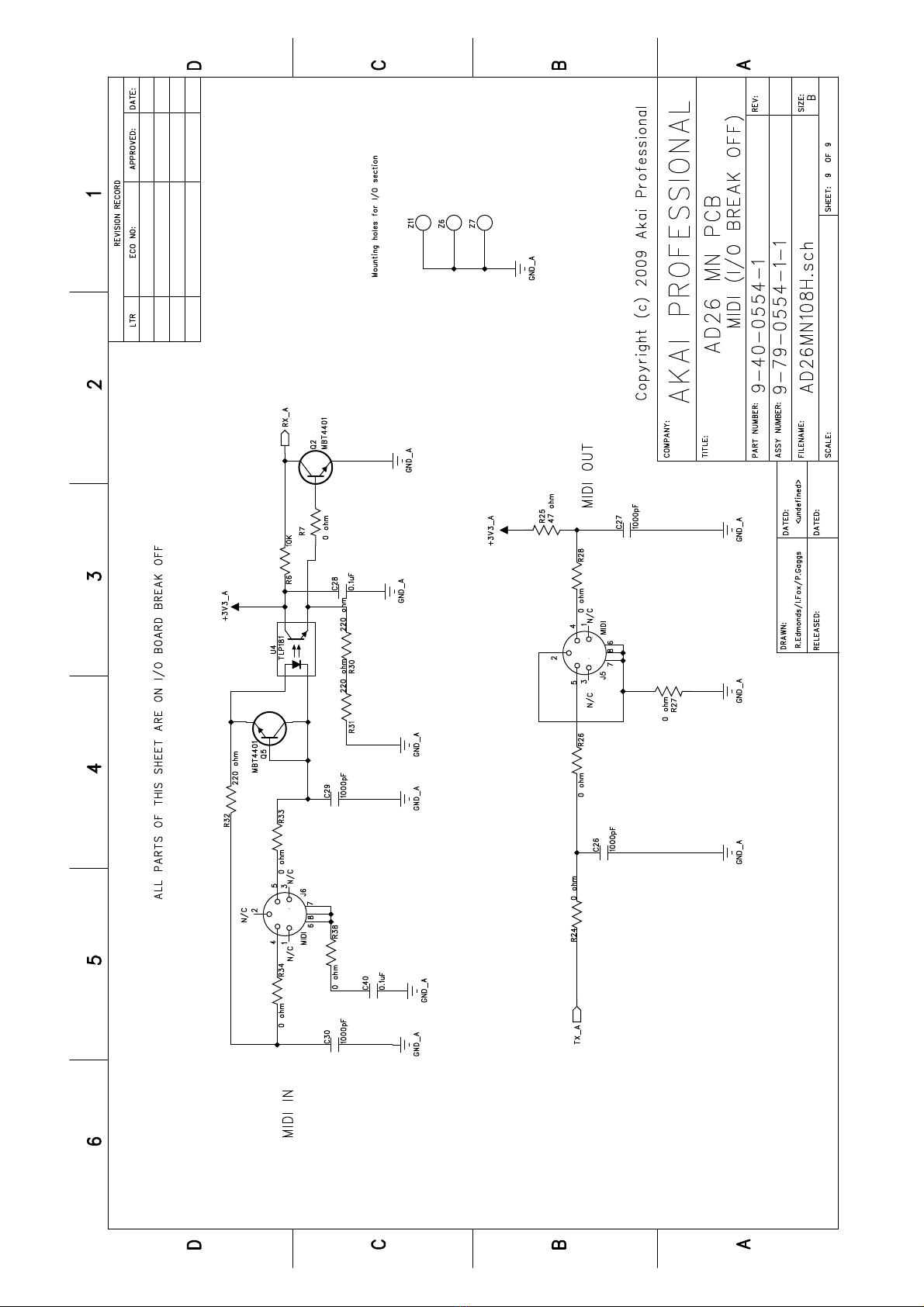

...3 AL2-74-0181 IC OPTO ISOLATOR TLP181 TRANS-OUT (SMD) 1U4
...3 CS102J5005COG CHIP CAP 1000PF/50V ±5% 0805 (NPO) 4C26, 27, 29, 30
...3 CS104K5003X7R CHIP CAP 0.1UF/50V,X7R,+/-10%, SMD 0603 7C8, 9, 22, 24, 25, 28, 40
...3 CS105K1003X5R CERAMIC CAP 1UF 10V X5R 0603 3C7, 19, 20
...3 DIBAV70 DIODE BAV70 SOT-23 1D4
...3 RS000008J05 CHIP RES. 0 Ω[ 5% SMD 0805 11 R5, 7, 18, 24, 26~28, 33~35, 38
...3 RS001K10F03 CHIP RES. 1K Ω1% SMD 0603 3R2~4
...3 RS004708F05 CHIP RES. 47 Ω1% SMD 0805 1R25
...3 RS010K10F03 CHIP RES. 10K Ω1% SMD 0603 5R6, 16, 17, 20, 29
...3 RS01K510F03 CHIP RES. 1.5K Ω1% SMD 0603 1R23
...3 RS022010F03 CHIP RES. 220 Ω1% SMD 0603 3R30~32
...3 RS047K10F03 CHIP RES. 47K Ω1% SMD 0603 2R19, 22
...3 RS056K10F03 CHIP RES. 56K Ω1% SMD 0603 1R21
...3 RS820K10F03 CHIP RES. 820K Ω1% SMD 0603 1R1
...3 UHLPF3218MF100M INDUCTOR 10UH 1A 0.29O SMD-ROHS 2L1, 2
...3 AL4-00-0002 JACK DIN 5 PIN MIDI PCB MOUNT 180°W/SHIELD SOCKET 2J5, 6
...3 AL4-08-0402 CON USB SOCKET 4 PIN FEMALE PC-MNT HORIZONTAL 1J4
...3 EC10710TS E. CAPACITOR 100UF/10V 7MM 1C21
...3 JKDJ-0702B-020 DC SOCKET 2.0MM 1J3
...3 PT1304702 INSULATOR SHEET 2(J5, 6)
...3 TE10200502 5P CONNECTOR SOCKET 180° 1J2
...3 TE962541401 14P CONNECTOR SOCKET 1J1
.1 TWPT151062001 PLASTIC KNOB ASS'Y (KNOB + COVER) 7
..2 PT1510620 KNOB 115
..2 PT1510621 KNOB COVER 116

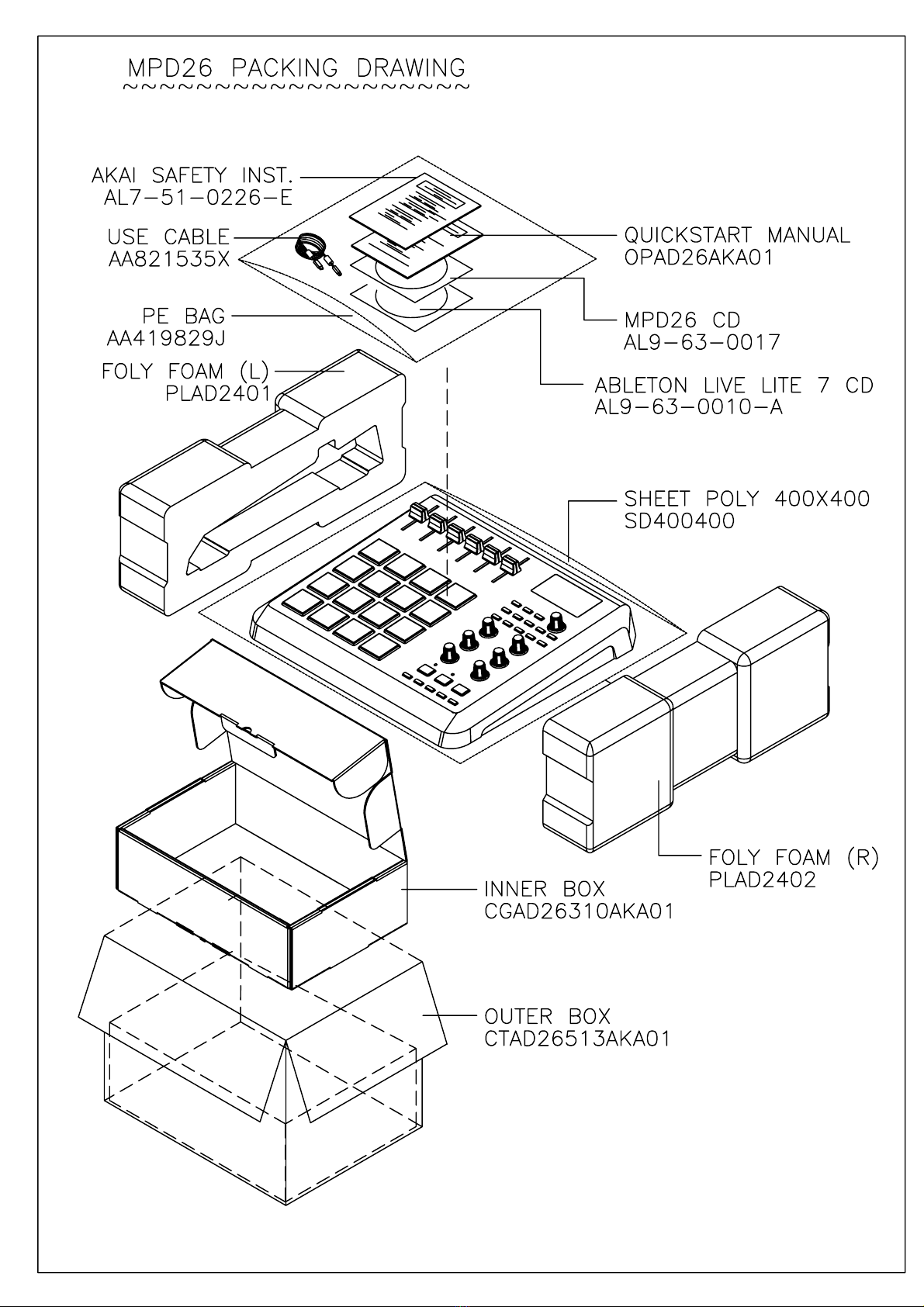

.1 AA406633J PE BAG 370X280X.03 PRINTING 0.006
.1 AA821535X CORD USB A-B L1000 BLACK 1
.1 AL7-51-0226-E AKAI SAFETY MANUAL REV.E 1
.1 AL9-63-0010-A AD32 ABLETON LIVE LITE 7 CD 1
.1 AL9-63-0017 MPD26 CD 1

Lvl Materials SPECS Qt
y
Part Location
.1 CGAD26310AKA01 INNER CARTON (AD26) 1
.1 CTAD26513AKA01 OUTER CARTON (AD26) 0.5
.1 LAC67YAH261 LABEL (GREEN MARKING) 02~03 VERSION FOR ROHS 1
.1 OPAD26AKA01 QUICK START MANUAL AD26 1
.1 PLAD2401 POLY FOAM (L) 1
.1 PLAD2402 POLY FOAM (R) 1
.1 SD400400 SHEET POLY 400X400 1

AD26AKA01
