Akai MPC 5000 User manual

SPECIFICATIONS

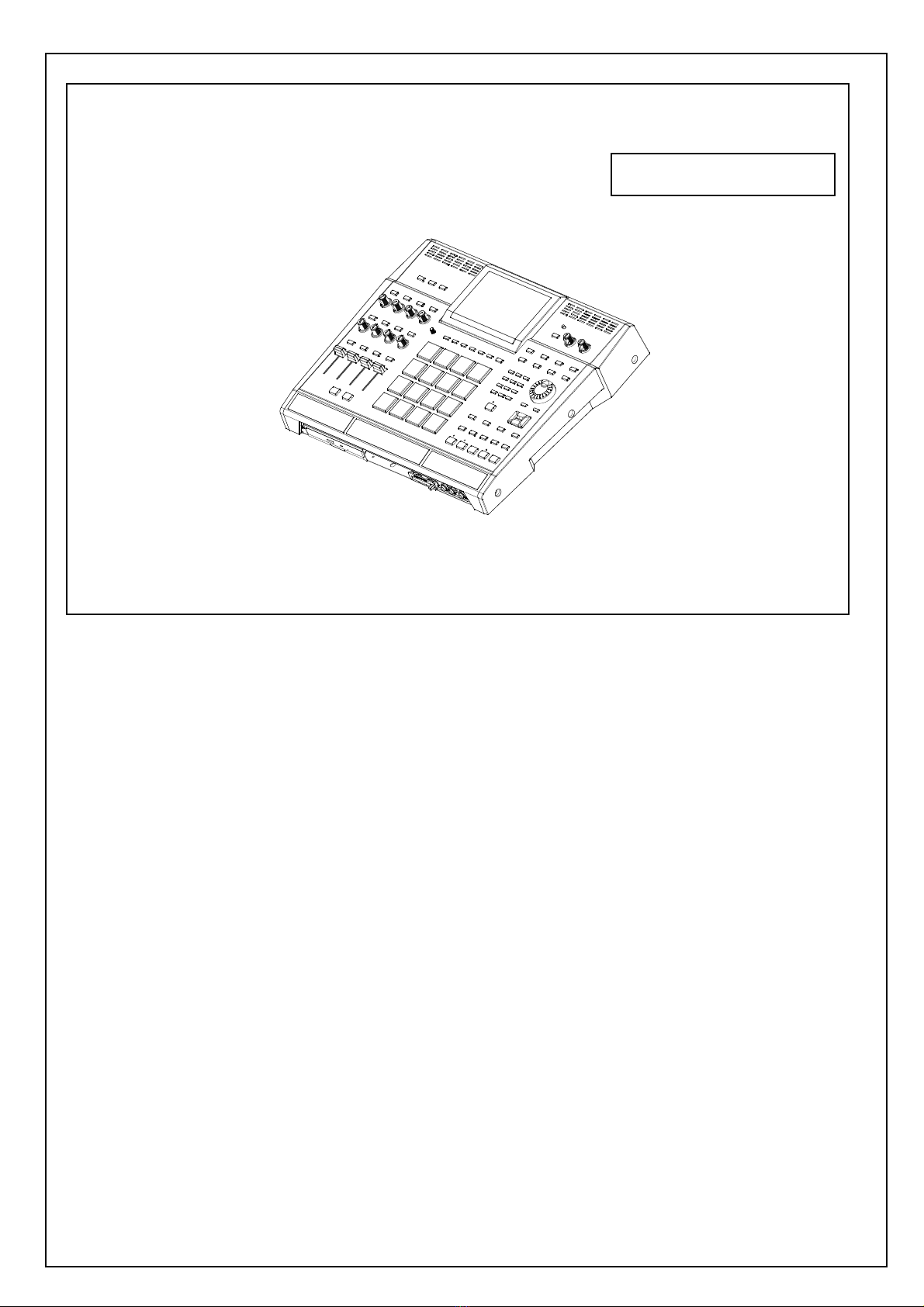

SERVICE MANUAL
MODEL: MPC5000
General
Display / 240 x 128 dot graphic LCD w/back light
Memory card slot / Compact Flash (The size of the compact flash
card
that MPC5000 can handle is from32MB to 2GB)
Dimentions (W x H x D) / 18in x 16 1/16 x 3 3/8 (6 7/8 with screen
at max)
Weight / 18.2 lbs
Power reqirement /50W
Sound generator
Sampling rate / 44.1kHz
Memory capacity / 64MB standard ,expandable to 192MB
Recording time / 12m 48sec. (64MB, MONO),38m24sec.(192MB
MONO)
Memory expansion slot / 1 x for optional EXM-E3
Data format / 16-bit linear
Polyphony / 64
Dynamic filtering / 1 State Variable Filter per voice (up to 8 pole,
depending on type)
Filter type / LOW PASS, BAND PASS, HIGH PASS, BAND
BOOST, BAND STOP, ANALOG MODELING, VOCAL
FORMANT
Preset sound memory / 16MB
Number of programs / 128
Effects
Effects / 4 stereo busses with 2 stereo effects per buss, and Master
effect
Master effect/4 band EQ, Compressor
Sequencer
Maximum events / 100,000 notes
Resolution /960 parts per 1/4-note
Sequences / 99
Tracks per sequence / 64
MIDI output channels / 64 (16 channels x 4 outputs)
Song mode / 20 songs, 250 steps per song
Drum pad / 16 (velocity and pressure sensitive)
Drum pad banks / 4
Sync mode / MIDI clock, MIDI Time Code
Transport Controls/MIDI Machine Control
Inputs/Outputs
Record input (L and R) / MIC/ 1/4-inch Combo x 2 balanced
-40dBu, input impedance 11k ohms; RCA with PHONO preamp,
Max. Input level /+10dBu
Digital input / RCA-pin x 1 S/PDIF
Stereo output (L and R) / 1/4-inch phone x 2 balanced +11dBu,
output impedance 1k Ohms,
Max. output level/ +22dBu
8 individual outputs / 1/4-inch phone x 4 balanced +11dBu, output
impedance 1k Ohms,
Max. output level /+22dBu
Phones output / 1/4-inch stereo phone x 1, 200mW / 100 ohms
Digital output / RCA-pin x 1 S/PDIF
ADAT Optical x 1 (8 Channels)
MIDI inputs / 5-pin DIN x 2
MIDI outputs /5-pin DIN x 4
USB / Slave connector x 1, USB MASS STORAGE CLASS support
(Windows 2000/Me/XP or later version, or Mac OS 9.x/10.x or later
version. )
Footswitches / 1/4-inch x 2
Standard accessories
Standard accessories / Power cable,Operator's manual
Options
EXM-E3/128MB expansion memory card (Upgrades unit to 192MB
total) CDM-25 CDR/DVD Drive
Data Compatibility
MPC1000 / SEQ, WAV, PGM
MPC2000/2000XL / SEQ, WAV, SND, PGM (Most parameters of
PGM file can be loaded.)
MPC4000 / SEQ, WAV, PGM (DRUM program only. Only note
assign and tune are loaded.)
MPC3000 / SND (THRU Computer)
Z4/Z8 / SEQ, WAV, PGM,(DRUM program only. Only note assign
and tune are loade.)
S5000/6000 / WAV only (THRU Computer)
S1000/3000 / No compatibility

DISASSEMBLY PROCEDURES

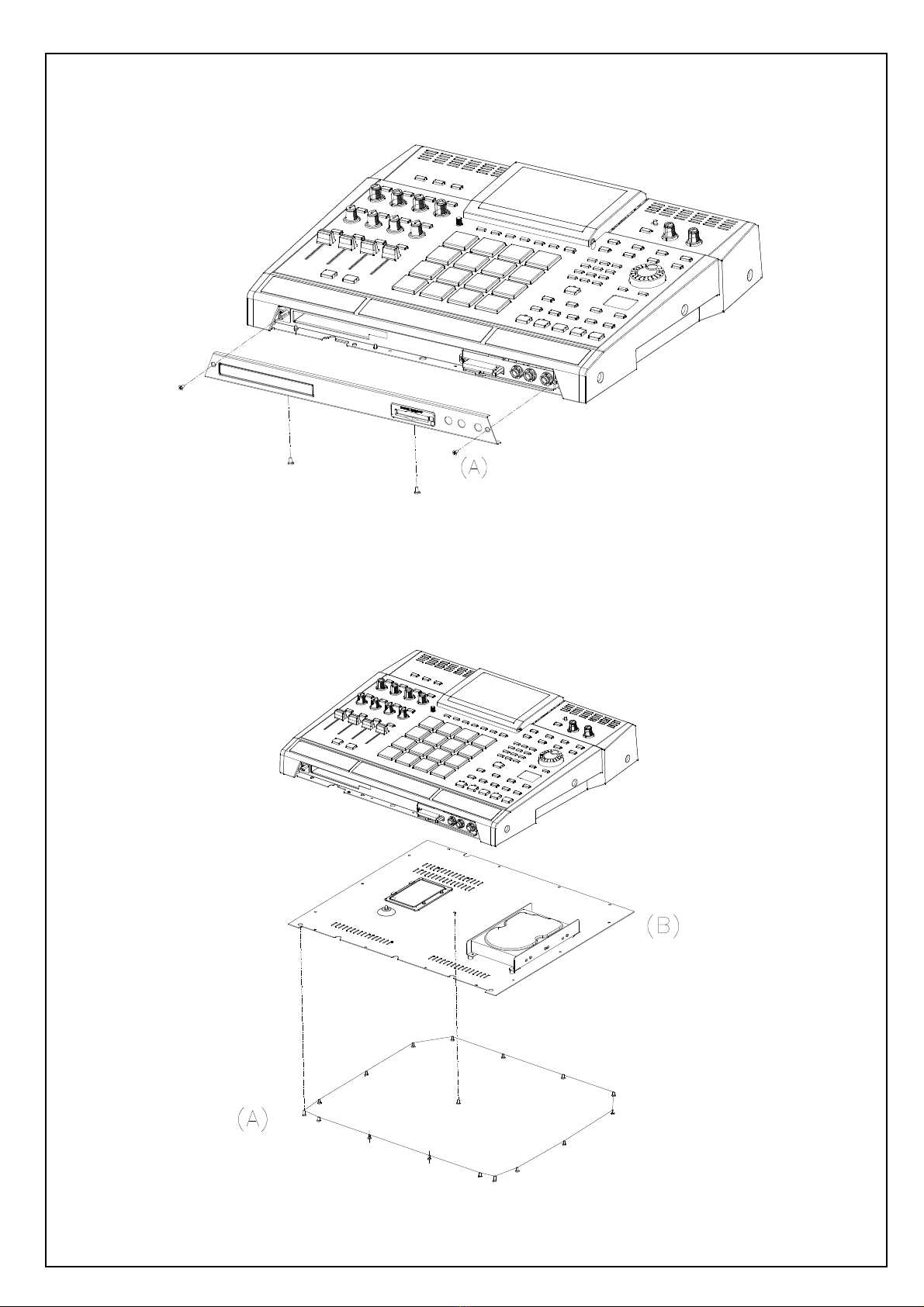

1. DISASSEMBLE THE FRONT COVER.
(A) REMOVE 4 PCS SCREW FROM FRONT COVER.
(Fig1)
2. DISASSEMBLE THE BOTTOM COVER.
(A)REMOVE 17 PCS SCREW FROM BOTTOM COVER.
(B)THE BOTTOM COVER CANNOT BE TAKEN AWAY START, FIRST LIFTS ANGLE 30~40, DISASSEMBLY CABLE
FROM HP HARD DISK, THEN TAKE THE BOTTOM COVER OFF.
(Fig2)

3. DISASSEMBLE THE SIDE CAP AND PALMREST.
(A) REMOVE 6 PCS SCREW FROM SIDE CAP.
(B) REMOVE 9 PCS SCREW FROM THE PART
(Fig3)
4. DISASSEMBLE THE TOP PANEL.
(A) REMOVE 4 PCS SIDE CAP AND 4 PCS SPACER SLIDE FROM TOP PANEL.
(B) REMOVE 6 PCS SCREW FROM TOP PANEL.
(C) REMOVE 4 PCS SCREW FROM PANEL SIDE.
(D) REMOVE 4 PCS SCREW FROM PANEL TOP.
(E) LIFT THE LCM MODLE.
(F) WIPES OUT 2 PCS SCREW FROM PANEL LCM MODLE.
(Fig4)

5. DISASSEMBLE MAIN CONTROL PCB, VOLUME PCB,Q LINK PCB,SYNTH
PCB,SELECT PCB ASS’Y.
(A) REMOVE 5 PCS SCREW FROM MAIN CONTROL PCB.
(B) REMOVE 3 PCS SCREW FROM VOLUME PCB.
(C) REMOVE 5 PCS SCREW FROM Q LINK PCB.
(D) REMOVE 3 PCS SCREW FROM SYNTH PCB.
(E) REMOVE 2 PCS SCREW FROM SELECT PCB.
(Fig5)
6. DISASSEMBLE THE PAD ASS’Y.
(A) REMOVE 6 PCS SCREW FROM THE HOLDER PAD.
(Fig6)

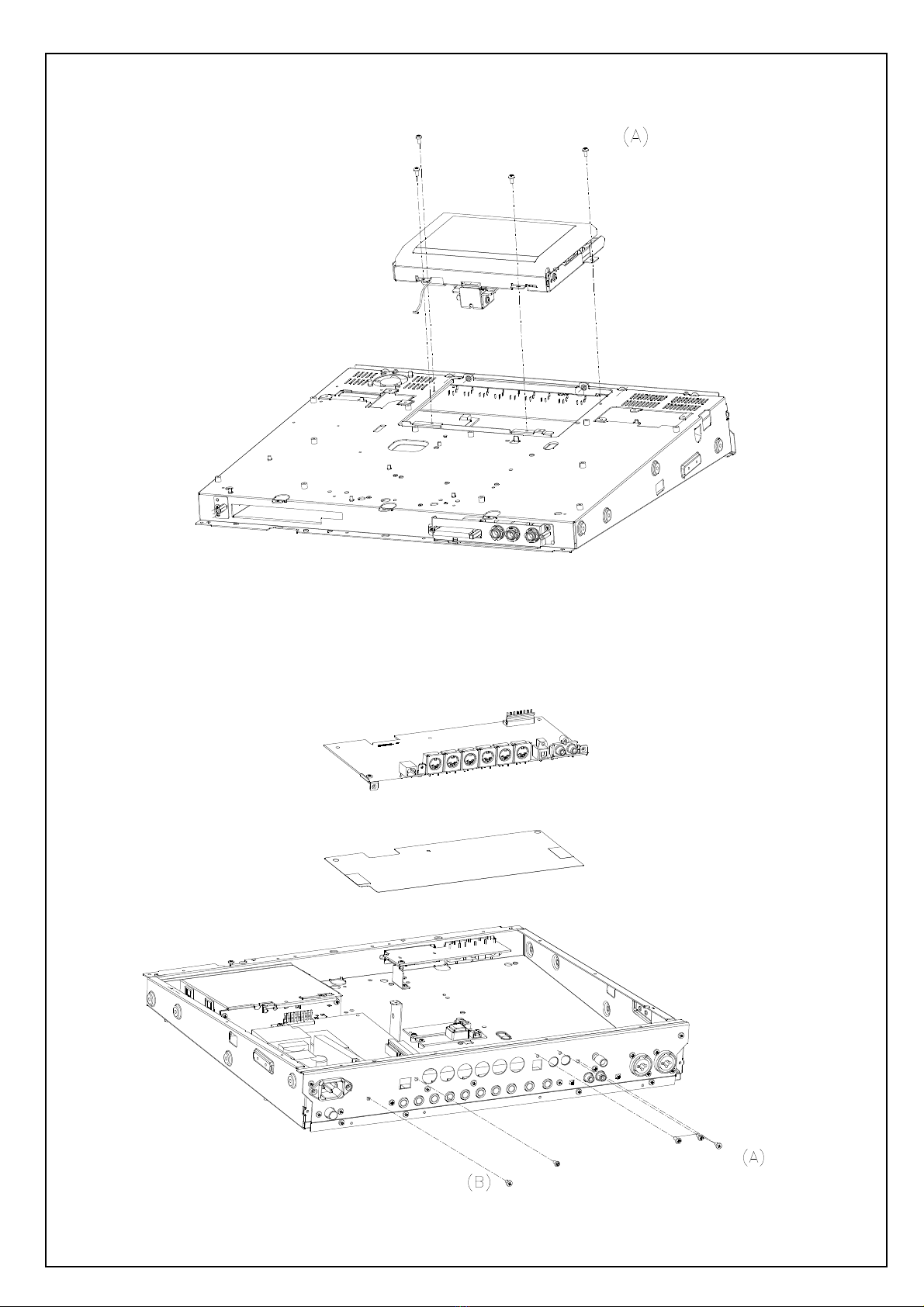

7. DISASSEMBLE PANEL LCM MODLE.
(A) REMOVE 4 PCS SCREW FROM PANEL LCD BOTTON.
(Fig7)

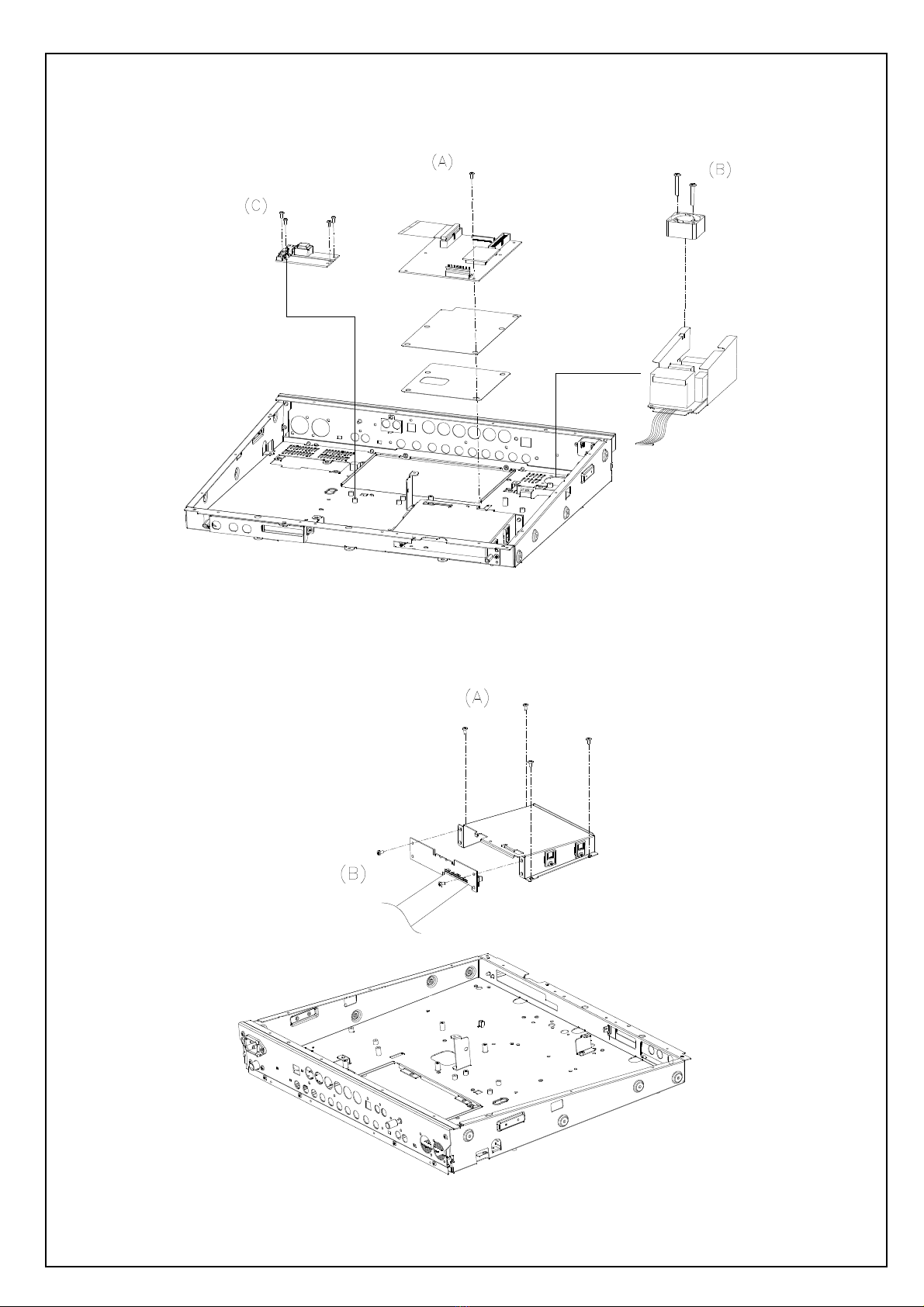

8. DISASSEMBLE THE MAIN PCB ASS’Y.
(A) REMOVE 3 PCS SCREW FROM THE REAR PANEL.
(B) REMOVE 4 PCS SCREW FROM THE REAR PANEL.
(Fig8)

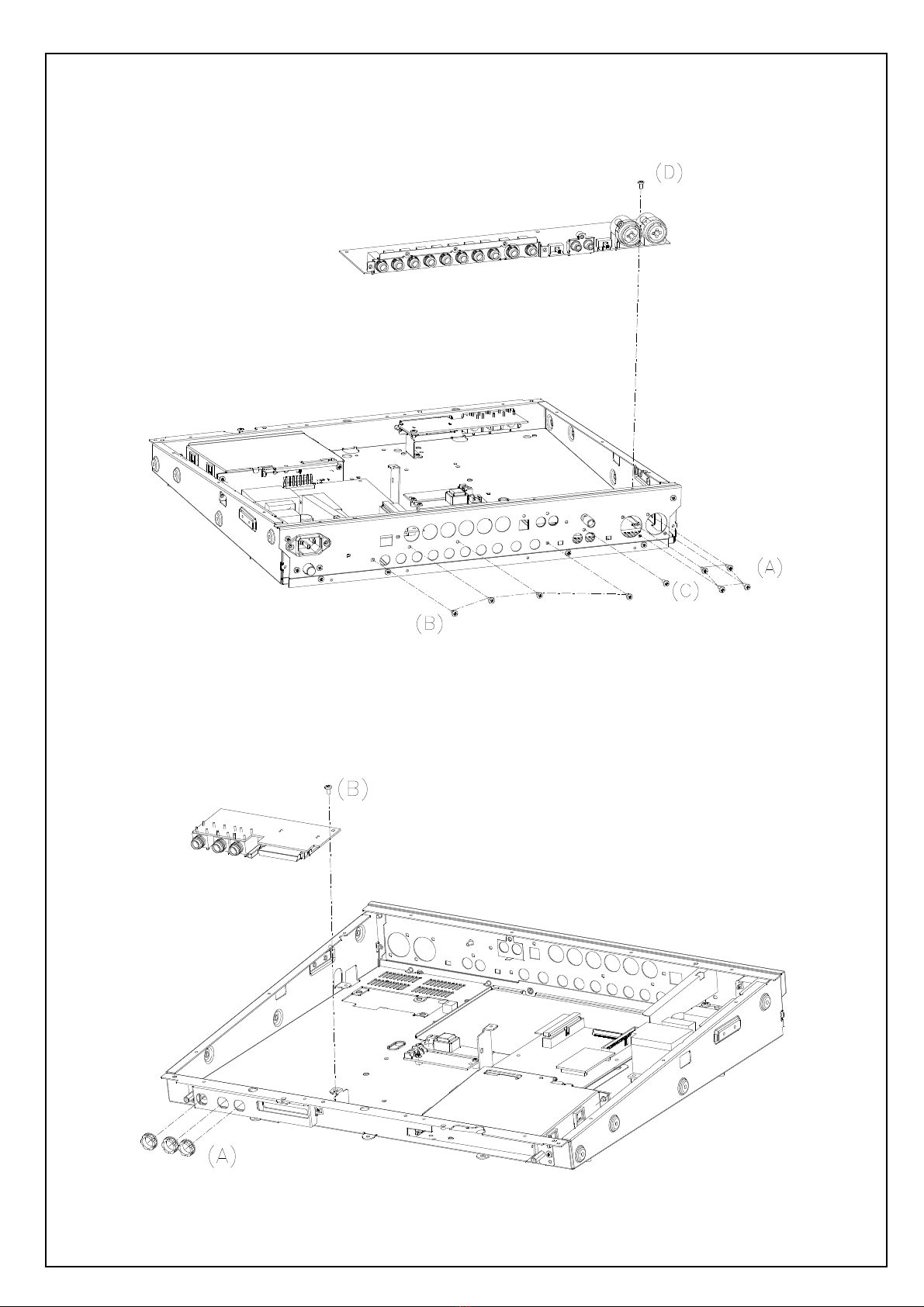

9. DISASSEMBLE THE ANALOG PCB.
(A) REMOVE 4 PCS SCREW FROM THE REAR PANEL.
(B) REMOVE 4 PCS SCREW FROM THE REAE PANEL
(C) REMOVE 1 PCS SCREW FROM THE REAE PANEL
(D) REMOVE 1 PCS SCREW FROM THE REAE PANEL
(Fig9)
10. DISASSEMBLE THE CF PCB
(A) REMOVE 3 PCS NUTS FROM HOLDER HP.
(B) REMOVE 1 PCS M SCREW FROM CF PCB.
(Fig10)

11. DISASSEMBLE THE DIGITAL EXPANSION PCB, CHASSIS.
(A) REMOVE 1 PCS SCREW AND 1PCS SCREW FROM DIGITAL EXPANSION PCB.
(B) REMOVE 2 PCS SCREW FROM THE CHASSIS.
(C) REMOVE 4 PCS 1PCS SCREW FROM THE CHASSIS.
(Fig11)
12. DISASSEMBLE THE DVD PCB.
(A)REMOVE 4 PCS SCREW FROM THE HOLDER CD.
(B)REMOVE 2 PCS SCREW FROM THE DVD PCB.
(Fig12)

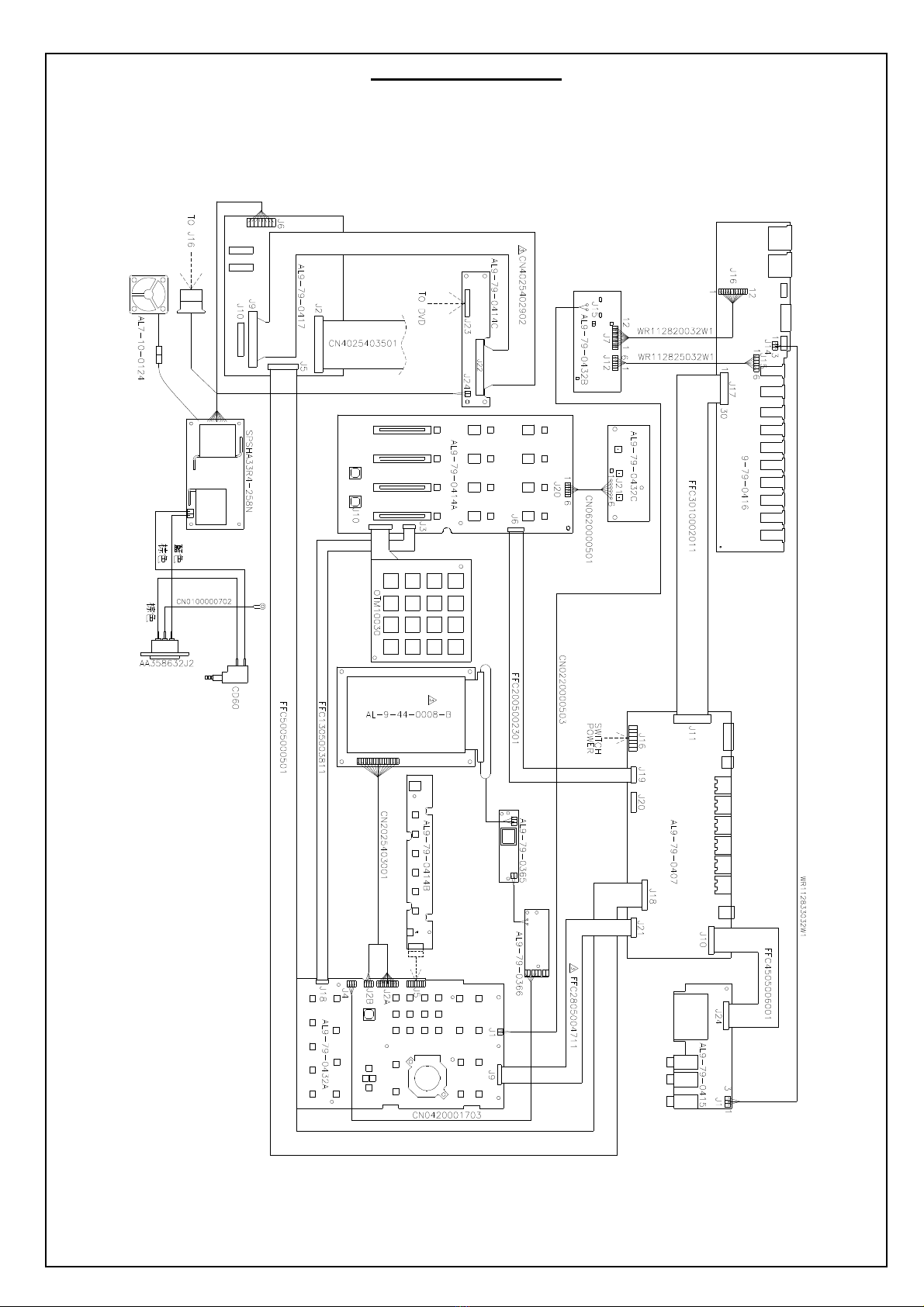

WIRING DIAGRAM
(US/EU/UK/JIS/AUS NZ)

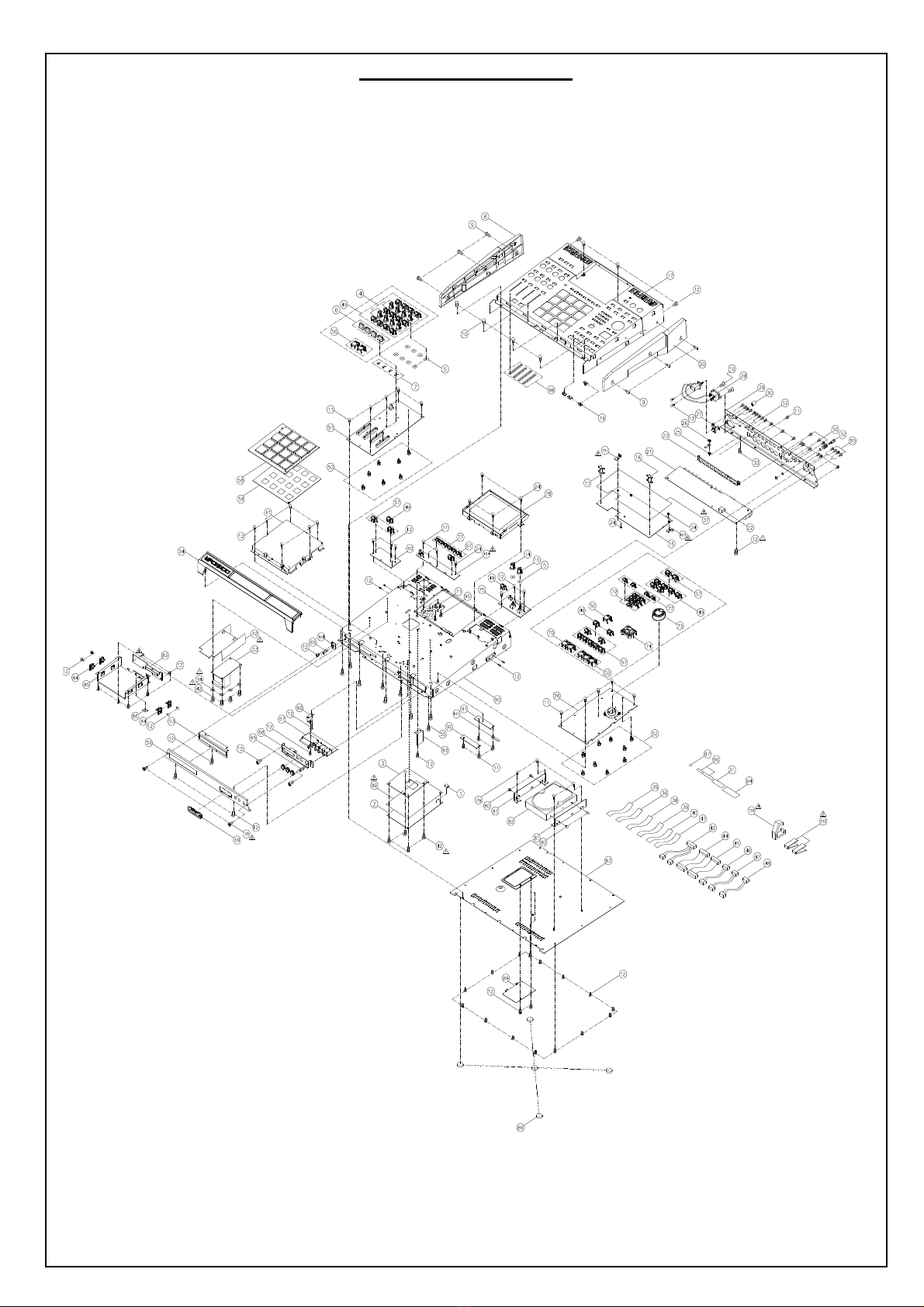

EXPLODE DIAGRAM
(US/EU/UK/JIS/AUS NZ)
EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST

EXPLODE DIAGRAM
(US/EU/UK/JIS/AUS NZ)
NOTEPLEASE VOLUNTARILY PASTES ABOVE 78-2 ATTACHES TWO TWO-SIDED RUBBER
EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST

PACKING DIAGRAM
(US/EU/UK/JIS/AUS NZ)

MPC5000AKA BOM
LEVEL
P/N DESCRIPTION QTY REF
1 AA810353J LENS LED 4 19
1 AA810525J BUTTON POWER 1 30
1 AA811571J LABEL CAUTION 1 94
1 AA812668J FOOT B 5 88
1 AA821679X SPACER SLIDE 4 7
1 AA821799X COVER MEMORY 1 89
1 AA822124X LABEL FCC-S 1 31
1 AA822272X HOLDER ADDA 1 23
1 AA822273X HOLDER HP 1 68
1 AA822275X HOLDER MIDI 2 107
1 AA822278X HOLDER FRONT 1 64
1 AA822280X PROP M.SCREW L=15.1 2 65
1 AA822283X HOLDER CD 1 85
1 AA822285X HOLDER PCB 1 66
1 AA822287X GUIDE CD 4 84
1 AA822298X BUTTON PUSH M (A) CLEAR 22 49
1 AA822299X BUTTON PUSH M (B) 12 57
1 AA822308X KNOB VOL PART (17) 1 14
2 PT1510606 KNOB VOL(8) 1
2 PT151060701 KNOB (SPRAY PAINT SILVER)(10) 1
3 PT1510607 KNOB VOL(10) 1
1 AA822311X KNOB VOL PART (18) 1 15
2 PT1510606 KNOB VOL(8) 1
2 PT151060702 KNOB CAP(RED)(11) 1
1 AA822313X KNOB VOL PART(19) 8 4
2 PT1510606 KNOB VOL(8) 8
2 PT151060703 KNOB (SPRAY PAINT BLACK)(12) 8
1 AA822330X BUTTON PUSH (B)-7 COOL GRAY 4C 10 77
1 AA822331X BUTTON PUSH (B)-8 COOL GRAY 9C 10 72
1 AA822333X BUTTON PUSH B (7) RED 187C 2 70
1 AA822334X PANEL SLOT (B) 1 69
1 AA822401X RUBBER DRUM PAD TW-LG 1 58
1 AA822775X EVA 1 86
1 AL5-00-0149 SCREW NO.6-32 UNC 4 80
1 AL7-10-0124 FAN 1 71
1 AL9-79-0365 DC-AC INVERTER 1 91
1 AL9-79-0366 DIMMERS 1 92
1 BACBS-22A PCB SUPPORT 1 18
1 BACBS-29A PCB SUPPORT 1 13
1 BAFAM-25A FLAT CABLE CLAMP 2 102
1 BAGL-40A CLIP 1 101
1 BAGL-70L CLIP 1
1 BAMCBS-5P PCB SUPPORT 16 52
1 BAWD800JB HARD DISCS 1 82
1 BAWEM-01 FLAT CABLE CLAMP 1 103
1 CN0420001703 Flat Cable 4P(2P+2P) Pitch 2.5 1 43
1 CN4025402902 Flat Cable ATA Type 20P*2 Pitc 1 44
1 CN4025403501 Flat Cable ATA Type 20P*2 Pitc 1 45

1 EVA1504406 EVA(30X30MM) 1
1 FFC1305002001 FFC 13Pin Pitch:0.5mm Length:2 1 35
1 FFC2005002301 FFC 20Pin Pitch:0.5mm Length:2 1 36
1 FFC2805004711 FFC 28Pin Pitch:0.5mm Length:4 1 38
1 FFC3010002011 FFC 30Pin Pitch:1.0mm Length:2 1 39
1 FFC4505006001 FFC 45Pin Pitch:0.5mm Length:6 1 40
1 FFC5005000501 FFC 50Pin Pitch:0.5mm Length:5 1 41
1 K46-1 CABLE TIE 5
1 LA67YH104 GND INDICATE STICKER 1 97
1 LAC27AKA01 LABEL BARCODE-B(A) 1 96
1 MT1101809 SCREW GROUND ASS'Y 1 32
1 MT1304446 BRACKET HDD 2 81
1 MT150290201 CD COVER(PAINT) 1 53
2 MT1502902 CD COVER 1
1 MT150290401 COVER FRONT SPRAY PAINT & PRIN 1 56
1 MT1504316 BRACKET 1 93
1 MT1504413 SW HOLDER 1 27
1 MT1504414 PAD HOLDER 1 61
1 MT152040301 REAR PANEL SPRAY PAINT PRINTNG 1 29
2 MT1520403 REAR PANEL 1
1 MT153000401 PANEL TOP SPRAY PAINT & PRINTI 1 17
1 MT1530201 CHASSIS MAIN 1 90
1 MT1530302 BOTTOM COVER 1 87
1 NM1106120 VELVET CARPET 10 5
1 NM1504402 FELT-45 4 98
1 NP215AKA07 INSULATION 1
1 NP215AKA08 INSULATION 1 99
1 NP215AKA09 INSULATION 1 37
1 NP215AKA10 INSULATION 1 3
1 NUT01040IIZL N FRANGE 40STL CMT 1 26
1 OTM10030 PAD SENSOR 1 59
1 PMPC3500AKA01 PAC ASS'Y 1
2 AA419829J POLY BAG(O/M A-4)-2 1
2 AA822403X INSERTION CF MPC2500 1
2 AL7-41-0005 CABLE POWER UL/CSA SJT 1
2 AL7-51-0226 SAFETY MANUAL 1
2 AL7-51-0251 EXM-E3 INSTALLATION GUIDE 1
2 AL7-55-0058 DVD ROM INSTALLATION MANUAL 1
2 CB513S035 SEPARATE WALL 1
2 CGAC35510AKA01 OUTER BOX 1
2 CTAC35513AKA01 OUTER BOX 1
2 EVA1504409 SPONGE 150X3X3 4
2 GEAKA03 DISCOUNT VOUCHER 1
2 LAC67YAH261 INDICATED LABEL(GREEN) 1
2 LAP67YAH255 LABEL 5
2 OPAC35AKA01 QUICK START MANUAL(EN) 1
2 OPAC35AKA02 OPERATION MANUAL(EN) 1
2 PE150350BO POLYBAG 1

2 PLAC3501 FOAMED(R) 1
2 PLAC3502 FOAMED(L) 1
2 SD600550 SOFT SHEET 600X550 2
2 SD900900 SOFT SHEET 900X900 1
1 PT151060101 KNOB PRINTING 1 73
2 PT1510601 JOG KNOB 1
3 ABS5000 ABS MATERIAL 0.01
1 PT151060202 SLIDER CAP(BLACK) 4 6
2 PT1510602 SLIDER CAP 4
1 PT151060301 KNOB PRINTING 1 74
2 PT1510603 KNOB 1
1 PT1510604 BUTTON PUSH B(6)(COOLGRAY 4C) 6 50
1 PT1520604 PANEL SIDE(L) 1 8
2 PM-PA727 ABS 103
2 PM3373MB COLOR RESIN 0.001
1 PT1520605 SIDE CAP(R) 1 20
2 PM-PA727 ABS 103
2 PM3373MB COLOR RESIN 0.001
1 PT1530107 PALM REST 1 54
2 PM-PA727 ABS 135
2 PM3373MB COLOR RESIN 0.001
1 RU1504401 RUBBER MAT 8X8X4.0 1 1
1 RU1504402 RUBBER MAT 10*10*8.5 2 22
1 SC0306FIBI SCREW M3*6MM PFB 2 105
1 SC0306PBBI SCREW M3*6MM PPB TAPPING 79 12
1 SC0306RBNI SCREW M3*6MM PRN TAPPING 8 24
1 SC0306RIBI SCREW M3*6MM PRB 18 11
1 SC0306RICI SCREW M3*6MM PRZ 8 42
1 SC0308FBBI SCREW M3x8mm PFB Tapping 6 10
1 SC0308PBBI SCREW M3x8mm PPB Tapping 16 55
1 SC0408BSBIL ST BID40X08STL BZN 6 9
1 SC0410BIBIL SCREW M4x8mm PBB 1 33
1 SC0425PIDI SCREW M4x25mm PPZ 2 95
1 SC3506AIBI SCREW M3.5x6 mm PFB 4 79
1 SPSHA33R4-058N SWITCHING POWER 1 63
1 TWAA358632J3 POWER STICK BASE ASS'Y 1 28
2 AA358632J2 AC SOCKET 1
2 CD60 Switch Power Push Single Row 1
2 CN0100000902 CONNECTOR-YELLOW GREEN 1P 90mm 1
2 DWAC11 Dual Isolation Cable BROWN 1P 1
2 DWLB200801 Dual Isolation Cable BLUE/BROW 1
2 HST050015BUL HEAT-SHRINKABLE TUBE 5X15MM 5
1 TWMT150431301 LCD ASS'Y 1 78
2 AA820655X PROP 1 F.SCREW L=27 1 78-17
2 AA821800X SHIELD LCD(1) 1 78-14

2 AA822276X HOLDER LEVER 1 28764
2 AA822277X LEVER 1 78-15
2 AA822279X BUSH PANEL LCD 2 28703
2 AL9-44-0008-B LCM UMS-8074MC-B 1 28611
2 CN2025403001 Flat Cable 20P(11P+9P) Pitch 2 1 78-18
2 EVA1504403 LCD SPONGE LONG 1 28642
2 EVA1504404 LCD SPONGE SHORT 2 28581
2 MT150431301 HOLDER LCD SPRAY PAINT PRINTNG 1 28795
2 PT150140601 LCD LENS 1 28522
3 PT1501406 LCD LENS 1
2 PT150440701 LCD TOP COVER SPRAY PAINT 1 28491
3 PT1504407 LCD TOP COVER 1
4 ABS5000 ABS MATERIAL 0.032
4 PM3373MB COLOR RESIN 0
2 PT150440801 LCD BOTTOM SPRAY PAINT SPRAY P 1 28672
3 PT1504408 LCD BOTTOM COVER 1
4 ABS5000 ABS MATERIAL 0.067
4 PM3373MB COLOR RESIN 0.001
2 RU1504306 RUBBER MAT 2 78-13
2 SC0306PBBI SCREW M3*6MM PPB TAPPING 6 28550
2 SC0306WIZIL PAN30X06STL CMT POLY WAVE 3 28825
2 SC0308PBBI SCREW M3x8mm PPB Tapping 6 28734
2 SP1504401 TORSION SPRING 1 78-16
2 TE522502001 Pin Header 90°2.54mm Single 1 78-19
2 WS073307IC WASHER FLAT 2 78-20
1 WR112820032W1 Isolation Cable 12P 200MM PITC 1 46
1 WR112825032W1 Isolation Cable 6P 250MM PITCH 1 47
1 WR112833032W1 Isolation Cable 3P 330MM PITCH 1 48
1 WS408604505B WASHER EXTERNAL 1 25
1 WS663309IC SPRING WASHER 3# 4 34
1 AL9-79-0407 MAIN PCB ASS'Y 1
2 AL0-16-1001 RES 1K 1% SMD 0805 1 R40
2 AL0-16-1202 RES 12.0K 1% SMD 0805 1 R18
2 AL0-16-1273 RES 127K 1% SMD 0805 1 R39
2 AL0-16-1961 RES 1.96K 1% SMD 0805 1 R38
2 AL0-17-0102 RES ARRAY 4X1K 1 R131
2 AL0-17-0103 RES ARRAY 4X10K 1/10W 0603 6 R19,87,129,142,163,165
2 AL0-17-0472 RES ARRAY 4X4.7K 1/10W 0603 7 R12,15,28,54,73,75,112
2 AL0-17-2470 RES ARRAY 4X47 1/16W 0402 73 R5,6,48~53,56,57,59~70,76,78~81,83,84
R86,88~103,105~111,115~119,128,132~140
R144~148
2 AL1-08-0476 E.CAP 47UF/25V 4 C15,17,19,20
2 AL1-16-0823 E.CAP 820UF/6.3V 3 C12,13,21
2 AL1-55-0209 CCAP SMD 20pF/50V 5% 0805 NPO 2 C2,3
2 AL1-56-0105 CCAP SMD 1UF/10V 10% 0805 X7R 2 C6,7
2 AL1-56-0151 CCAP SMD 150PF/50V 5% 0805 NPO 1 C14
2 AL1-56-0221 CCAP SMD 220pF/100V 10% 0805 X 13 C22,25,27~31,34,35,40~42,45

2 AL1-62-0104 CCAP SMD 1UF/50V 10% 0603 X7 130 C4,8,9,23,24,26,32,33,36~39,43,44,46
C47,49,51,53,54,56,57,59,62,64,66,67
C70~73,75,77,80~98,102,103,105~112
C114,116~127,129~134,136,138,141~146
C148,150~189
2 AL1-70-1471 Solid Tantalum Electrolytic Ca 1 C48
2 AL1-70-3221 Solid Tantalum Electrolytic Ca 2 C63,115
2 AL1-71-3102 Solid Tantalum Electrolytic Ca 9 C60,61,65,99~101,104,113,128
2 AL2-50-4149 DIODE SIGNAL 1N4148 100V 200mA 2 D8,9
2 AL2-51-0140 DIODE POWER SCHOTTKY MBRS140LT 4 D1,5~7
2 AL2-51-4003 DIODE POWER 300V 1A SMA 3 D2~4
2 AL2-51-4401 TRANS NPN 2N4401 40V 1A SOT-23 2 Q1,2
2 AL2-56-0749 TRANS MED-POWER PNP FZT749 SOT 1 Q3
2 AL2-61-2517 REG VOLTAGE AP1117 1.5V SOT-22 1 U35
2 AL2-61-3463 IC REG VOLTAGE MC34063A ADJ 10 1 U32
2 AL2-61-5000 IC REG VOLTAGE NCP500SN25T1 2. 1 U10
2 AL2-62-0032 IC 74AHC32 QUAD 2-IN POS OR SO 1 U16
2 AL2-64-5245 IC 74LVC16245A 16-BIT BUS TRAN 7 U19,20,27,30,37~39
2 AL2-65-2017 IC 74LVC2G17 DUAL GATE SCHMITT 6 U1~3,7,26,28
2 AL2-65-2305 IC MPC962305 ZERO DELAY BUFFER 2 U18,33
2 AL2-69-1208 IC FLASH-ROM NAND-TYPE 64M x 8 1 U29
2 AL2-69-2416 IC EEPROM SERIAL 16K SOIC-8 1 U13
2 AL2-70-5249 IC MPU MCF5249 160-PIN BGA 1 U14
2 AL2-70-6713 IC MPU DSP TMS320C6713B 272-PI 1 U21
2 AL2-74-0181 IC OPTO-ISOLATOR TLP181 TRANS- 2 U4,5
2 AL2-78-0041 IC TIMER RTC SERIAL I2C M41T00 1 U9
2 AL2-79-1582 IC CONTROLLER USB 2.0 HI-SPEED 1 U6
2 AL2-79-3305 IC CONTROLLER RESET W/OVERRIDE 1 U15
2 AL2-80-0010 IC FPGA EP1C4F324C8 324-PIN BG 1 U24
2 AL2-84-8416 IC RECEIVER DIG AUDIO 192kHz C 1 U12
2 AL2-84-8421 IC SAMPLE RATE CONVERTER ASYNC 1 U11
2 AL4-00-0002 JACK DIN 5-PIN MIDI PCB MOUNT 6 J3~8
2 AL4-01-0013 JACK RCA DUAL 2-PIN FEMALE PCB 1 J1
2 AL4-08-0402 CON USB 4-PIN FEMALE PC-MNT HO 1 J9
2 AL4-11-0009 CON DIG OPTICAL TRANSMITTER 1 J2
2 AL4-15-0803 HEADER SIL 8-PIN 3.96mm MALE L 1 J16
2 AL4-20-0001 HEADER DIL 10-PIN 1mm FEMALE S 1 J17
2 AL4-20-0002 HEADER DIL 14-PIN 1mm FEMALE S 1 J12
2 AL4-20-0004 HEADER DIL 26-PIN 1mm FEMALE S 1 J13
2 AL4-20-4000 HEADER DIL 40-PIN .050 MALE SM 2 J14,15
C AL4-21-2000 CON SIL 20-PIN FFC/FPC 0.5mm 9 1 J19
2 AL4-21-2800 CON SIL 28-PIN FFC/FPC 0.5mm 9 1 J21
2 AL4-21-3001 CON SIL 30-PIN FFC/FPC 1mm 90 1 J11
2 AL4-21-4500 CON SIL 45-PIN FFC/FPC 0.5mm 9 1 J10
2 AL4-21-5000 CON SIL 50-PIN FFC/FPC 0.5mm 9 1 J18
2 AL7-01-0043 OSCILLATOR 33.8688 MHz 3.3V SM 1 U17
2 AL7-01-0045 CRYSTAL 32.768 KHz PARALLEL 12 1 X2
2 AL7-01-0046 CRYSTAL 12 MHz PARALLEL 18pF S 1 X1
2 AL7-01-0049 OSCILLATOR 25 MHz 3.3V SMD 1 U8
2 AL7-05-0003 BATTERY 3V LITHIUM COIN-TYPE P 1 B1
2 AL7-20-0067 INDUCTOR 33uH 1.8A SMD 1 L2
2 AL7-20-0070 INDUCTOR FERRITE BEAD 120 OHMS 1 L1
2 AL7-33-0103 IC FILTER EMI SMD CHIP 2A 50V 1 E1

2 AL7-40-8865 TRANSFORMER 1-10 mHz PULSE 1:1 1 T1
2 AL9-40-0407 PCB MAIN AC35 1 -
2 AL9-61-0173 PROGRAMMED IC(2-69-3920) 1 U31
3 AL2-69-3920 IC FLASH-ROM 128Kx16 70nS TSOP 1
2 CS102J5003NPO CCAP SMD 1000PF/50V 5% 0603 NP 2 C10,11
2 CS102J5003X7R CCAP SMD 1000pF/50V 10% 0603 X 10 C74,76,78,79,135,137,139,140,147,149
2 CS103K5003X7R CCAP SMD 0.01UF/50V 10% 0603 X 6 C50,52,55,58,68,69
2 CS223K5005X7R CCAP SMD 0.022UF/50V 10% 0603 1 C5
2 ICAIC1117-18PY REG IC AIC1117-18PY SOT-223 1 U36
2 ICK4S641632E IC SDRAM K4S641632K-UC75 TSSOP 3 U22,23,25
2 M0104420 FRAME 1 -
2 MT1301807 GROUND PLATE 1 (J1)
2 RS00018J05 RES 0

5% SMD 0805 14
R9,11,27,149,153~160,162,166
2 RS01018J05 RES 1

5% SMD 0805 5 R122~126
2 RS10218J05 RES 1K 5% SMD 0805 9 R30,33,35,36,121,,130,150,152,164
2 RS10318J05 RES 10K 5% SMD 0805 21 R2,7,8,14,20,22,23,25,26,29,32,43,45~47
R55,71,72,85,104,113
2 RS12118J05 RES 120

5% SMD 0805 2 R120,151
2 RS15218J05 RES 1.5K 5% SMD 0805 1 R24
2 RS22118J05 RES 220

5% SMD 0805 2 R10,16
2 RS30218J05 RES 3K 5% SMD 0805 1 R37
2 RS39118J05 RES 390

5% SMD 0805 2 R3,4
2 RS47018J05 RES 47

5% SMD 0805 6 R44,58,74,77,114,143
2 RS47118J05 RES 470

5% SMD 0805 3 R13,21,82
2 RS47318J05 RES 47K 5% SMD 0805 4 R17,41,42,161
2 RS75018J05 RES 75 5% SMD 0805 1 R1
2 SC0306RICI SCREW M3*6MM PRZ 1 -
1 AL9-79-0414A





1
2 AA415015J Switch Tact Stem Height:4.3mm, 2 S49,50
2 AA822377X POT ROTARY B10K*2 RD14K12D L=2 8 R4,12,13,15,18,20~22
2 AA822423X POT ROTARY B10K*2 RF45112P6 L 4 R26~28,40
2 AL0-17-0103 RES ARRAY 4X10K 1/10W 0603 1 R45
2 AL0-17-0472 RES ARRAY 4X4.7K 1/10W 0603 4 R47,49,50,52
2 AL1-08-0222 E.CAP 22UF/16V(MINI) 2 C54,77
2 AL1-56-0103 CCAP SMD 0.01UF/50V 10% 0805 X 16 C56~71
2 AL1-56-0104 CCAP SMD 1UF/50V 10% 0805 X7 41 C3,12,16,19,20,22,24~27,29~33,36,38,40
C42~53,55,72~76,78~82
2 AL1-56-0222 CCAP SMD 2200pF/50V 5% 0805 NP 1 C9
2 AL2-51-4401 TRANS NPN 2N4401 40V 1A SOT-23 6 Q13,14,23,26~28
2 AL2-51-4403 TRANS PNP 2N4403 40V 800mA SOT 2 Q10,12
2 AL2-54-0138 TRANS SMALL-SIGNAL N-CHAN EN-M 1 Q11
2 AL2-61-7808 IC REG VOLTAGE NJM78L08 8V 100 1 U13
2 AL2-72-0339 IC LM339 ANALOG COMP SOP-14 3 U7,12,16
2 AL2-73-4052 IC CD4052 DIFFERENTIAL 4-CHAN 4 U4,11,14,15
2 AL3-02-0080 LED AMBER L-169XSYDK 12 D48~59
2 AL4-21-1300 CON SIL 13-PIN FFC/FPC 0.5mm 9 1 (J3)
2 AL4-21-2000 CON SIL 20-PIN FFC/FPC 0.5mm 9 1 (J6)
2 BALE48201-5A LED FIXED 1.5MM 12 (D48~59)
2 FCN1S1002001 CON SIL 20-PIN FFC/FPC 1.0mm 1 1 (J10)
2 RS00018J05 RES 0

5% SMD 0805 1 R51
2 RS10118J05 RES 100

5% SMD 0805 1 R42
2 RS10318J05 RES 10K 5% SMD 0805 1 R41

2 RS24218J05 RES 2.4K 5% SMD 0805 1 R8
2 SWSKRGAED010 Switch Tact 5mm 160gf Horizontal DIP 12 S52~63
2 TE10200602 Pin Header 90°Pitch:2.00mm S 1 (J20)
1 AL9-79-0414B SELECT PCB ASS'Y 1
2 AA822378X LED L-169XQWC-C WHITE 1 D63
2 AL0-09-1090 POT 10KB SINGLE 9mm SERRATED 2 1 R33
2 BALE48201-5A LED FIXED 1.5MM 1 (D63)
2 RS00018J05 RES 0

5% SMD 0805 1 R74
2 RS20318J05 RES 20K SMD 0805 1 R73
2 SWSKRGAED010 Switch Tact 5mm 160gf Horizontal DIP 7 S51,64,67~71
2 TE552541201 Pin Header 90°Pitch:2.54mm D 1 J8
1 AL9-79-0414C DVD PCB ASS'Y 1
2 AA822781X Female Header 180°Pitch:0.8 1 J23
2 AL1-56-0104 CCAP SMD 1UF/50V 10% 0805 X7 2 C101,102
2 AL4-14-4001 HEADER DIL 40-PIN 1 MALE SHR 1 J22
2 TE622000201 Pin Header 90°Pitch:2.00mm S 1 J24
1 AL9-79-0415 FRONT PANEL PCB ASS'Y 1
2 AA822374X SOCKET CFHP-A9-0034 50P 1 J10
2 AA822406X CF CARD ENJECTOR L=22mm 1 (J10)
2 AL0-17-0103 RES ARRAY 4X10K 1/10W 0603 2 R3,6
2 AL1-56-0104 CCAP SMD 1UF/50V 10% 0805 X7 4 C35,36,39,40
2 AL4-02-0006 JACK 1/4 MONO 5-PIN FEM MINI W 2 J6,7
2 AL4-02-0007 JACK 1/4 STEREO 7-PIN FEM MINI 1 J14
2 AL4-21-4500 CON SIL 45-PIN FFC/FPC 0.5mm 9 1 (J24)
2 AL9-40-0415 PCB FRONT PANEL AC35 1 -
2 CS102K5005X7R CCAP SMD 1000PF/50V 10% 0805 X 2 C41,42
2 NUT0102IID NUT HEX M2 2 (J10)
2 RS10218J05 RES 1K 5% SMD 0805 2 R130,132
2 RS10418J05 RES 100K 5% SMD 0805 4 R4,5,7,8
2 SC0206RINI SCREW M2*6MM PPN 2 (J10)
2 TE622000302 Pin Header 90°Pitch:2.00mm S 1 (J1)
1 AL9-79-0416 ANALOG PCB ASS'Y 1
2 AA822757X TRANS 2SC3326 SMD SC-59 12 Q13~24
2 AL0-16-1002 RES 10K 1% SMD 0805 15 R71,84,87,100,105,114~116,124,125,136
R167,173,176,177
2 AL0-16-1401 RES 1.4K 1% SMD 0805 23 R9~18,23,28,68~70,73,74,85,86,88,89
R175,178
2 AL0-16-1651 RES 1.65K 1% SMD 0805 22 R21,22,43,44,57,58,91,92,95,96,101~104
R145~148,151~154
2 AL0-16-1780 RES 178

1% SMD 0805 2 R98,99
2 AL0-16-4021 RES 4.02K 1% SMD 0805 2 R137,168
2 AL0-16-4751 RES 4.75K 1% SMD 0805 26 R25,26,39,40,42,45,76,79,80,83,90,93,94
R97,117,122,123,126,144,149,150,155,156
R159,160,163
2 AL0-16-6340 RES 634

1% SMD 0805 6 R5,8,138,141,165,169
2 AL0-16-6813 RES 681K 1% SMD 0805 2 R19,20
2 AL0-16-7321 RES 7.32K 1% SMD 0805 9 R63,72,107,108,118~121,166
2 AL0-16-9099 RES 90.9

1% SMD 0805 2 R142,170
2 AL1-07-0102 E.CAP 1000UF/6.3V 2 C85,86

2 AL1-12-0472 E.CAP 47UF/63V 4 C37~40
2 AL1-55-0221 CCAP SMD 220PF/100V 5% 0805 NP 20 C52~55,59~62,66,67,75,76,89~92,98~101
2 AL1-55-0272 CCAP SMD 2700PF/50V 5% 0805 NP 2 C65,73
2 AL1-55-0472 CCAP SMD 4700PF/50V 10% 0805 X 2 C4,7
2 AL1-56-0102 CCAP SMD 1000PF/100V 5% 0805 N 30 C13~22,27~36,44~47,82,83,104~107
2 AL1-62-0104 CCAP SMD 1UF/50V 10% 0603 X7 36 C23,24,43,51,56,57,69~72,74,79~81,87,95
C96,102,108~111,113,114,116,120~122,128
C129~13
2 AL1-62-0105 CCAP SMD 1UF/10V 10% 0603 X5R 9 C58,64,78,84,88,97,112,115,125
2 AL2-51-4401 TRANS NPN 2N4401 40V 1A SOT-23 22 Q1~12,25,27,28,30~34,36,39
2 AL2-51-4403 TRANS PNP 2N4403 40V 800mA SOT 5 Q26,29,35,37,38
2 AL2-61-5000 IC REG VOLTAGE NCP500SN25T1 2. 1 U10
2 AL2-61-7807 REG VOLTAGE LM340MP-5.0 +5V SO 1 U11
2 AL2-62-0014 IC 74AHC14 HEX SCHMITT-TRIGGER 2 U3,13
2 AL2-71-0072 'IC TL072 DUAL OPAMP SOP-8 1 U7
2 AL2-71-0074 IC TL074 QUAD OPAMP SOP-14 1 U1
2 AL2-71-1510 IC OP-AMP SINGLE THAT1510 SOP- 2 U5,6
2 AL2-71-3079 IC MC33079 QUAD OP-AMP SOP-14 5 U2,4,8,9,15
2 AL2-75-4271 IC CODEC CS4271 STEREO 24-BIT 1 U12
2 AL2-75-4382 IC CONVERTER D/A 8-CHANNEL CS4 1 U14
2 AL4-05-0028 JACK XLR 3-PIN FEM STEREO-COMB 2 (J1,2)
2 AL4-15-3000 CON SIL 30-PIN FFC/FPC 1mm 90 1 (J17)
2 AL6-01-0012 SWITCH SLIDE DPDT 2MM 2 S1,2
2 AL9-40-0416 ANALOG PCB 1 -
2 CS101J5005NPO CCAP SMD 100PF/50V 5% 0805 NPO 6 C1,2,48,49,93,118
2 CS152J5005NPO CCAP SMD 1500PF/50V 5% 0805 NP 2 C5,6
2 CS471J5005NPO CCAP SMD 470PF/50V 5% 0805 NPO 6 C9~12,94,119
2 DIZDMMBZ15ALSM Zener Diode MMBZ15VALT1G 15V S 4 D1~4
2 EC47616TS E.CAP 47UF/16V (MINI) 16 C3,8,25,26,41,42,50,63,68,77,103,117,123
C124,126,127
2 JK-6314-01-340 1/4 PHONE JACK JY-6314-0F-340 10 J4~13
2 MT1301807 GROUND PLATE 1 (J3)
2 MT1501802 LUG SOLDER-XLR 1 (J2)
2 MT1501803 GROUND PLATE-JACK 2 (J5,12)
2 RJ103100-130A JACK RCA DUAL 2-PIN FEMALE RED 1 J3
2 RS027418F05 RES 274

1% SMD 0805 2 R171,172
2 RS04M308J05 RES 4.3M 5% SMD 0805 1 R106
2 RS10118J05 RES 100

5% SMD 0805 6 R1,4,64~67
2 RS140218F05 RES 14.0K 1% SMD 0805 16 R77,78,81,82,109~112,132~135,157,158,161,162
2 RS22118J05 RES 220

5% SMD 0805 23
R29~38,47~56,75,113,174
2 RS47018J05 RES 47

5% SMD 0805 7 R127~131,143,164
2 RS47318J05 RES 47K 5% SMD 0805 6 R2,3,59~62
2 RS562218F05 RES 56.2K 1% SMD 0805 2 R6,7
2 RS62018J05 RES 62

5% SMD 0805 4 R24,27,41,46
2 TE10200601 CONNECTPin Header 180°Pitch: 1 (J15)
2 TE612000301 Pin Header 180°Pitch:2.00mm 1 (J14)
2 TE612001201 Pin Header 180°Pitch:2.00mm 1 (J16)
1 AL9-79-0417
2 AL0-17-0103 RES ARRAY 4X10K 1/10W 0603 3 R24,73,83
2 AL0-17-0104 RES ARRAY 4X100K 1/10W 0603 1 R74
2 AL0-17-0470 RES ARRAY 4X47 1/10W 0603 8 R114~121
2 AL0-17-0472 RES ARRAY 4X4.7K 1/10W 0603 2 R6,61

2 AL0-17-0680 RES ARRAY 4X68 1/10W 0603 10 R36,37,40,41,51,97~100,112
2 AL0-17-2470 RES ARRAY 4X47 1/16W 0402 32 R1,2,23,25~27,29~33,58~60,70,72,75~81
R84~91,93
2 AL1-07-0102 E.CAP 1000UF/6.3V 2 C5,7
2 AL1-16-0823 E.CAP 820UF/6.3V 3 C2~4
2 AL1-56-0151 CCAP SMD 150PF/50V 5% 0805 NPO 1 C1
2 AL1-60-2222 E.CAP 22UF/16V SMD 1 C6
2 AL1-62-0104 CCAP SMD 1UF/50V 10% 0603 X7 111 C8,11,13~18,21~35,37~43,45,48~55,57,59
C60~62,65~70,73~84,86,87,90,92~101,104
C105~114,116~127,129,131~142
2 AL1-70-3221 Solid Tantalum Electrolytic Ca 4 C12,56,71,128
2 AL1-71-3102 Solid Tantalum Electrolytic Ca 18 C9,10,19,20,36,44,46,47,58,63,64,72,85
C88,89,91,115,130
2 AL2-51-0140 DIODE POWER SCHOTTKY MBRS140LT 3 D1,2,6
2 AL2-51-4003 DIODE POWER 300V 1A SMA 3 D3~5
2 AL2-56-0749 TRANS MED-POWER PNP FZT749 SOT 1 Q1
2 AL2-61-2517 REG VOLTAGE AP1117 1.5V SOT-22 1 U11
2 AL2-61-3463 IC REG VOLTAGE MC34063A ADJ 10 1 U3
2 AL2-65-2017 IC 74LVC2G17 DUAL GATE SCHMITT 3 U7,13,14
2 AL2-65-2305 IC MPC962305 ZERO DELAY BUFFER 2 U15,16
2 AL2-66-3216 IC SDRAM 4Mb x 16 x 4 BANK 3.3 4 U5,6,18,19
2 AL2-70-6713 IC MPU DSP TMS320C6713B 272-PI 2 U4,9
2 AL2-80-0010 IC FPGA EP1C4F324C8 324-PIN BG 1 U12
2 AL4-14-4002 HEADER DIL 40-PIN 1 MALE SHR 2 (J2,9)
2 AL4-15-0803 HEADER SIL 8-PIN 3.96mm MALE L 1 (J6)
2 AL4-20-0001 HEADER DIL 10-PIN 1mm FEMALE S 1 (J4)
2 AL4-20-0002 HEADER DIL 14-PIN 1mm FEMALE S 2 (J1,3)
2 AL4-20-4000 HEADER DIL 40-PIN .050 MALE SM 2 (J7,8)
2 AL4-21-5001 CON SIL 50-PIN FFC/FPC 0.5mm 1 1 (J5)
2 AL7-01-0049 OSCILLATOR 25 MHz 3.3V SMD 2 U1,8
2 AL7-20-0067 INDUCTOR 33uH 1.8A SMD 1 L1
2 AL7-33-0103 IC FILTER EMI SMD CHIP 2A 50V 2 E1,2
2 AL9-40-0417 PCB EXPANSON DIGITAL AC35 1 -
2 CS102J5003NPO CCAP SMD 1000PF/50V 5% 0603 NP 2 C102,103
2 RS00018J05 RES 0

5% SMD 0805 4 R14,28,122,123
2 RS01018J05 RES 1

5% SMD 0805 5 R18~22
2 RS10218J05 RES 1K 5% SMD 0805 12 R3,4,10,12,13,15,17,56,63,65,66,82
2 RS10318J05 RES 10K 5% SMD 0805 11 R5,8,9,35,39,57,62,67,69,94,96
2 RS10418J05 RES 100K 5% SMD 0805 1 R71
2 RS12118J05 RES 120

5% SMD 0805 1 R16
2 RS47218J05 RES 4.7K 5% SMD 0805 2 R46,106
2 RS56218J05 RES 5.6K 5% SMD 0805 2 R42,101
2 RS68018J05 RES 68

5% SMD 0805 10
R38,44,45,48,53,95,103,104,107,110
2 RS68218J05 RES 6.8K 5% SMD 0805 2 R50,109
2 RS82018J05 RES 82

5% SMD 0805 10
R43,47,49,52,54,102,105,108,111,113
1 AL9-79-0432A CONTROL PCB ASS'Y 1
2 AA415015J Switch Tact Stem Height:4.3mm, 6 S3,4,8,12,41,42
2 AA812086J LED GREEN L-934SGD 1 D12
2 AA812087J LED RED L-934SRD-G 2 D4,8
2 AA822352X Switch Rotational Encode 24Pul 1 S13
2 AL0-17-0101 RES ARRAY 4X100 1/10W 0603 2 R16,17
2 AL0-17-0103 RES ARRAY 4X10K 1/10W 0603 4 R9,11,43,48
