Akai LTC-16RSX3M User manual

LTC16R5X3M

LTC-16R5X3M
SERVICE MANUAL
Only For Professional Service Personnel Using

CONTENTS
CONTENTS
1. --------------------------------OPERATION PARTS 2
2. --------------------SYMPTOMS and CORRECTIONS 6
3. --------------------MANI BOARD FAULT JUDGMENT 8

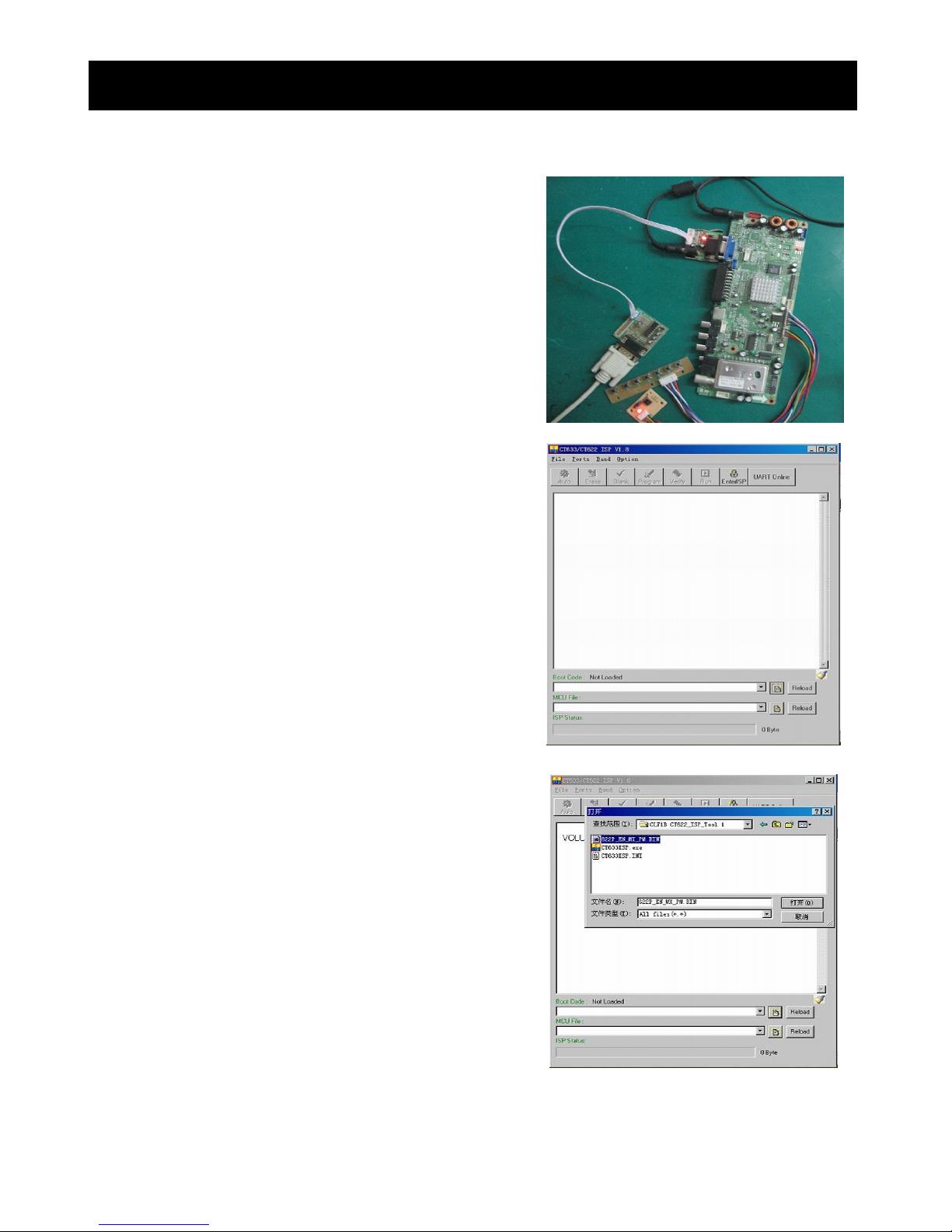

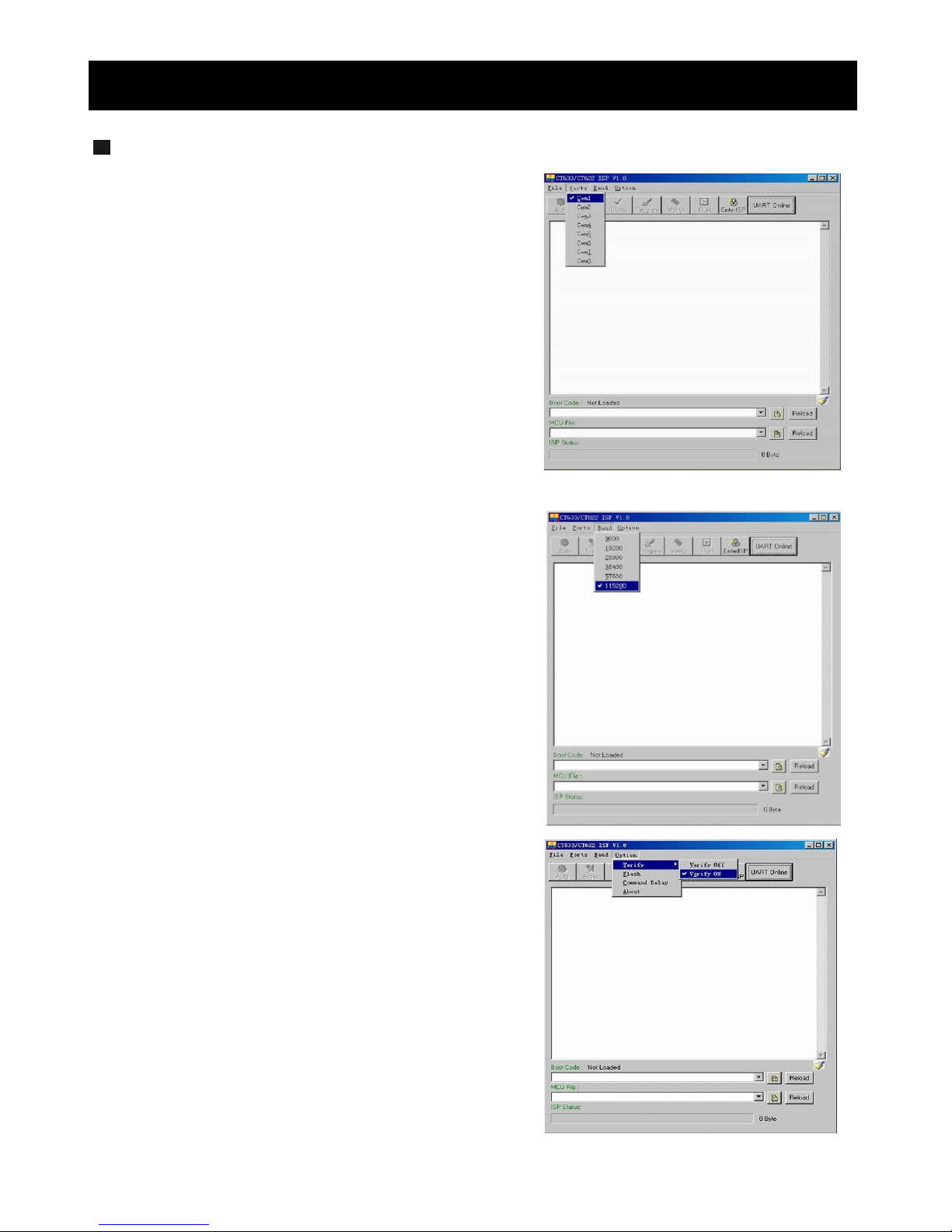

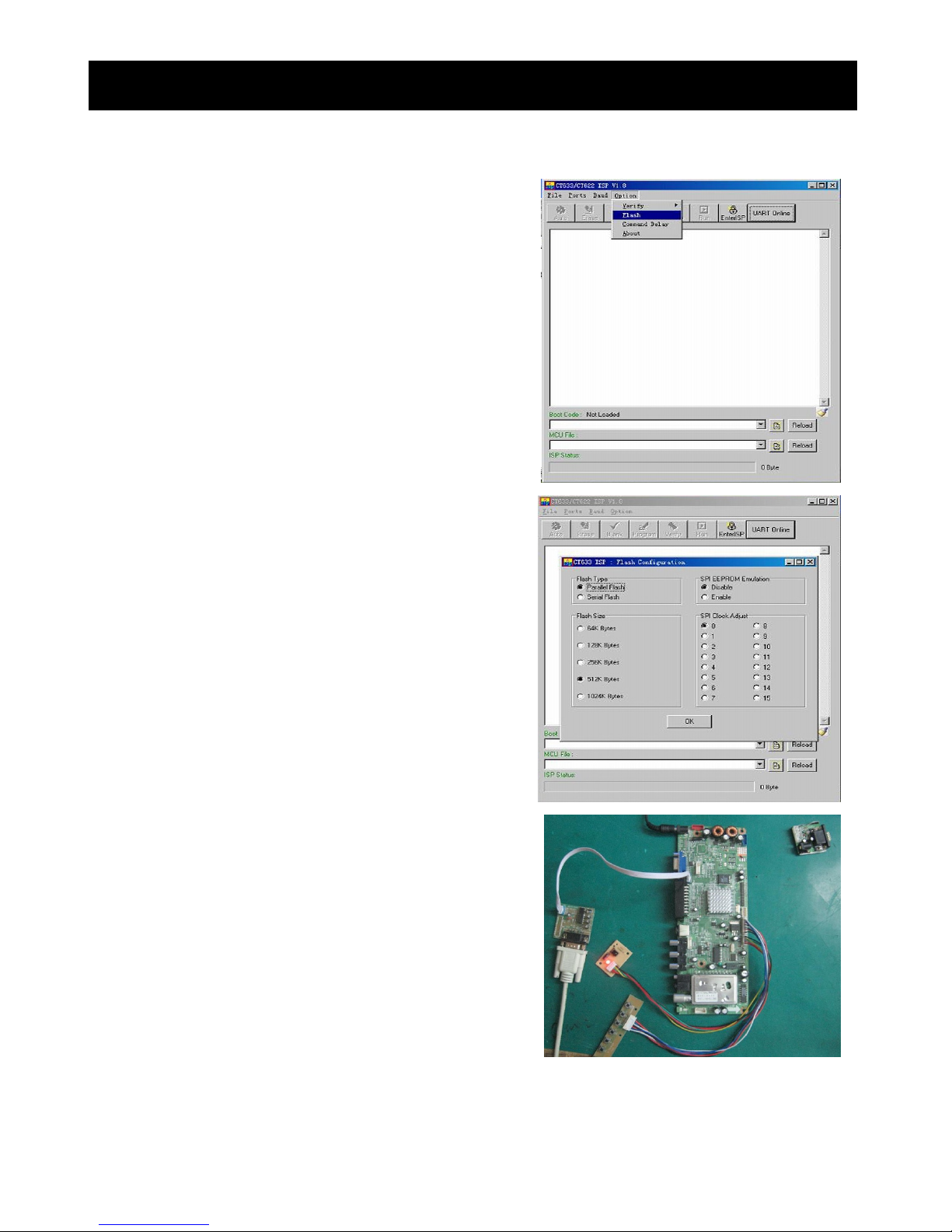

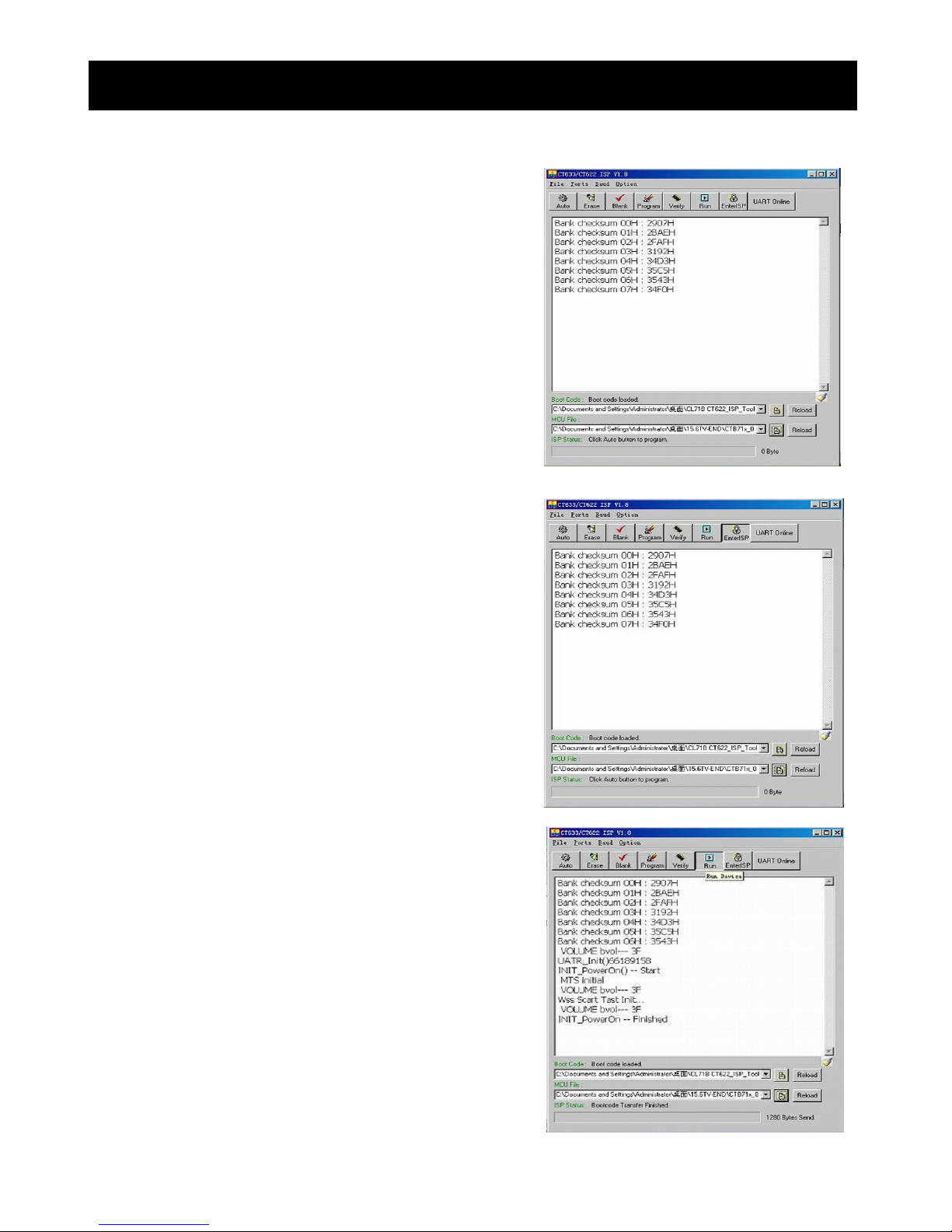

4. -----------------------------SOFTWARE UPGRADE 13
5.19 -----------------
7.SPECIFICATIONS ----------------------------------- 21
6. -----------------------MAIN ELECTRIC PARTS LIST 20
8.22
SOFTWARE DATA'S RESTORATION
ACCESSORIAL CIRCUITR DRAWING and CONFIGURATION DRAWING --
1

2

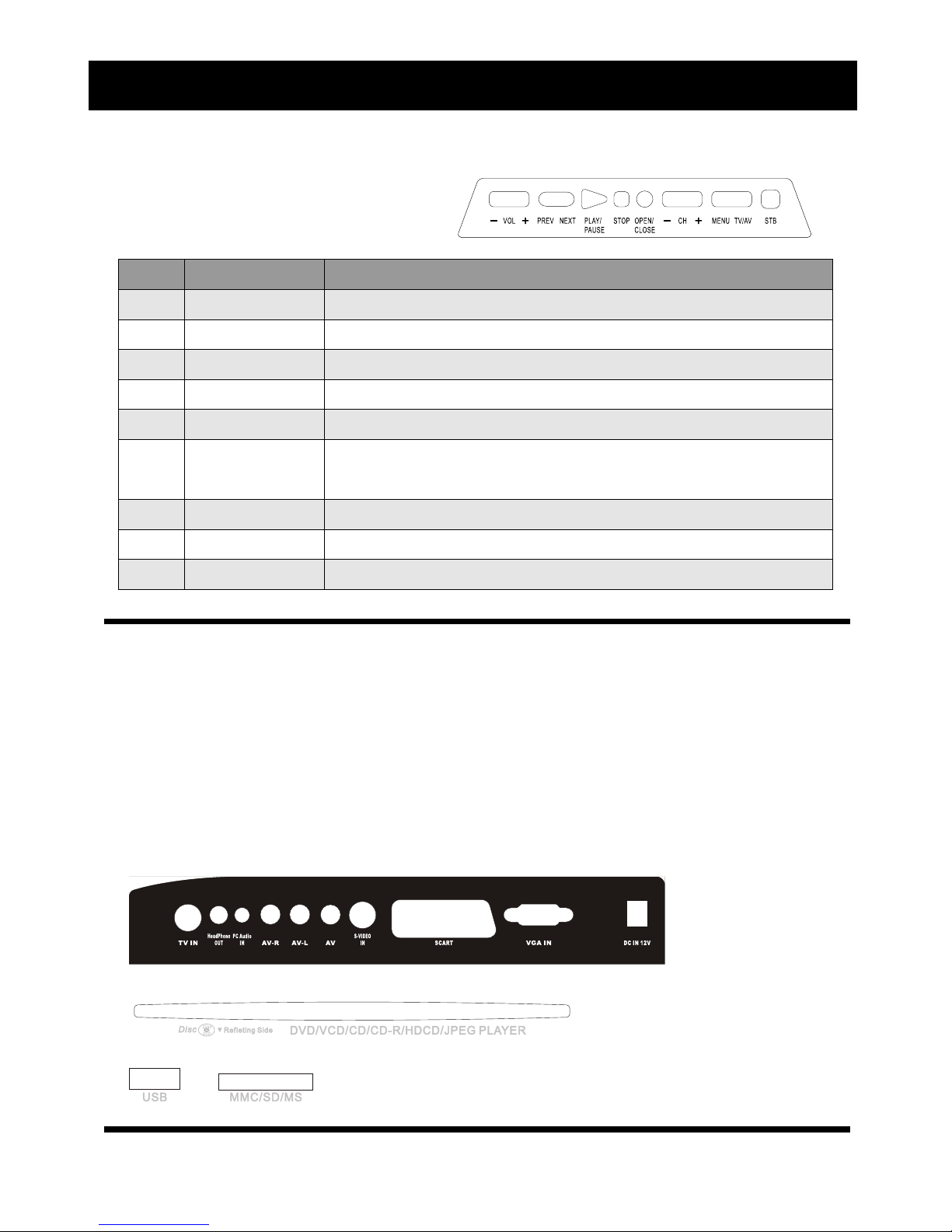

OPERATION PARTS
ITEM BUTTON NAME FUNCTION DESCRIPTION
1-VOLUME+Press to increase or decrease the sound level.
STOP STOP for DVD .
Top View of TV Set:
Switch ON the LCD TV when at standby mode or vice versa.
TV/AV Press to select the input source.
STANDBY
Press to bring up the main menu to the screen.
MENU
2
7
6
4
9
PREV/NEXT
PLAY/PAUSE
PREVIOUS/NEXT for DVD.
PLAY/PAUSE .for DVD
3
8
OPEN/CLOSE DVD DISC eject/close.
-CH+Press to scan through channels.To scan quickly channels,press and hold
down either +/- button.
5
1.TV IN
2.HeadPhone OUT
3.PC Audio IN
4.AV-R IN
5.AV-L IN
6.AV CVBS IN
7.S-VIDEO IN
1 2 345678910
8.SCART
9.VGA IN
10.DC IN 12V
11.Lorder that DVD DISC eject/close
12.USB jack
13.MMC/SD/MS socket
11
12 13
Rear View of TV Set

/
3
12
3
5
4
6
7
8
18
9
11
10
12
14
13
15
16
17
OPERATION PARTS
Remote Control Unit
1.STANDBY
2.AUTO
3.0-9
4.-/- -
5.
6.CH+ or CH-+ -
7.VOL- or VOL+
8.DISPLAY
9.ENTER
10.
Press this butto n to switc h on the TV when in standby mode or to ente r
standby mode
Press to do auto config uratio n dire ctly for PC-RGB.
Number selectio n.
To enter a program number for multipe program channel such as 2-1,etc.
Press to return to th e pre vio usly viewed program.
Press these butto ns to lower or raise th e volu me.
Press to display progra m or channel's info rm atio n.
Confir matio n key
LEFT/RIGHT
11.
12.LCD MENU
13.INPUT
14.P.MODE
15.S.MODE
16.MUTE
17.ASPECT
18.SLEEP
LCD TV Menu enter/e xit .
Press to sycle through the diffrent picture mode.
Press this butto n to select the desire sound mode.
Mute or restore sound
Press to select picture ra tio for screen.
UP/DOWN
Press these buttons to select channels in ascending or
descending order.
/
Press to cycle through the input source to select TV、
AV、S-VIDEO、SCART、PC or DVD.
P r e s s t h e s e buttons t o s e t t h e s l e e p e r timer
f o r t u r n i n g o f f T V .
