AL Tech UEC HALO 85cm DISH User manual

1
UEC
HALO 85cm DISH
User Manual
IDU Remote/Blue Tooth control
Focus mobile phone camera on the above image for link to the Full User Manual orAPP
User Manual: https://uec.com.au/fileadmin/user_upload/usermanual-altech-satautoa85p.pdf
Android: https://play.google.com/store/apps/details?id=com.dotogo.dvbconsole
iOS: https://apps.apple.com/cn/app/satremoter/id1603262701
User Manual
Android
iOS

2
Contents
1. Installation...............................................................................................................3
1.1 Inspect Parts and Get Tools.....................................................................................4
1.2 Wiring Connection......................................................................................................6
1.3 Select Location for Installation.................................................................................7
1.4 How to install ODU.....................................................................................................8
1.5 How to assemble dish .............................................................................................10
1.6 How to install cable gland entry.............................................................................11
1.7 How to install Bump Stop........................................................................................12
1.8 How to install IDU.....................................................................................................13
1.8.1 How to install IDU touch panel.....................................................................14
1.8.2 How to install IDU power box .......................................................................15
2. Operation................................................................................................................17
2.1 Monitor and Diagnostic............................................................................................20
2.2 Manual control mode...............................................................................................22

3
1. Installation
This guide explains how to install and operate the RV satellite TVRO antenna system
➢Before you install the antenna, please read each of the procedures in the installation
guide carefully and understood the safety warning information.
This icon indicates that you must pay your attention to it.

4
1.1 Inspect Parts and Get Tools
Unpack the box carefully and examine all of the supplied parts to ensure nothing was
damaged in shipment
The following items are included in the box,Ensure all components are included before
proceeding the installation
Components bundle
ODU and Baseplate
Dish
IDU Touch Panel
IDU Power Box
To Receiver Cable
(1M)
IDU to ODU Cable
(8M)
Power Cable
(1M)
Ethernet Cable
(1M)
Cable gland Entry
Bump Stop
Shore (4)
Fuse(Spare Part)
Button Sponge(5)
Screw
M8(4) M6(4) M4X16(8) M5X20(2)
User Manual

5

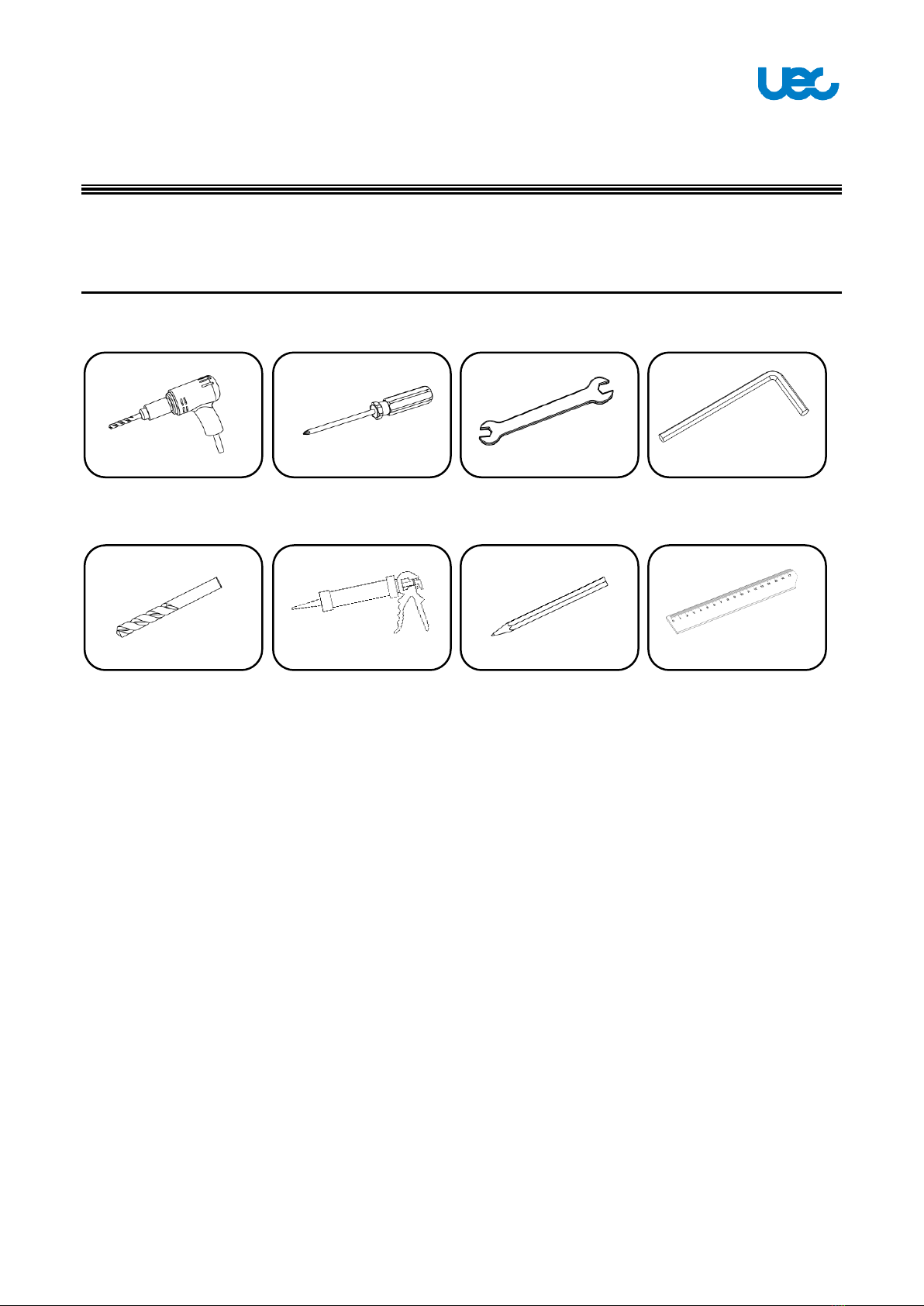

1.1 Inspect Parts and Get Tools
Gather all the tools
Power Drill
Cross-Head
Screwdriver
11mm and
13mmSpanner
6mm Allen Wrench
4mm, 10mm, 20mm
Bits
Silicon Sealant
Pencil
Ruler

6
1.2 Wiring Connection
Ethernet
Battery
Yellow ignitions (+) sense optional
and only for RV’s and not caravans
10AFUSE
(Not Supplied)
Micro USB Cable

7

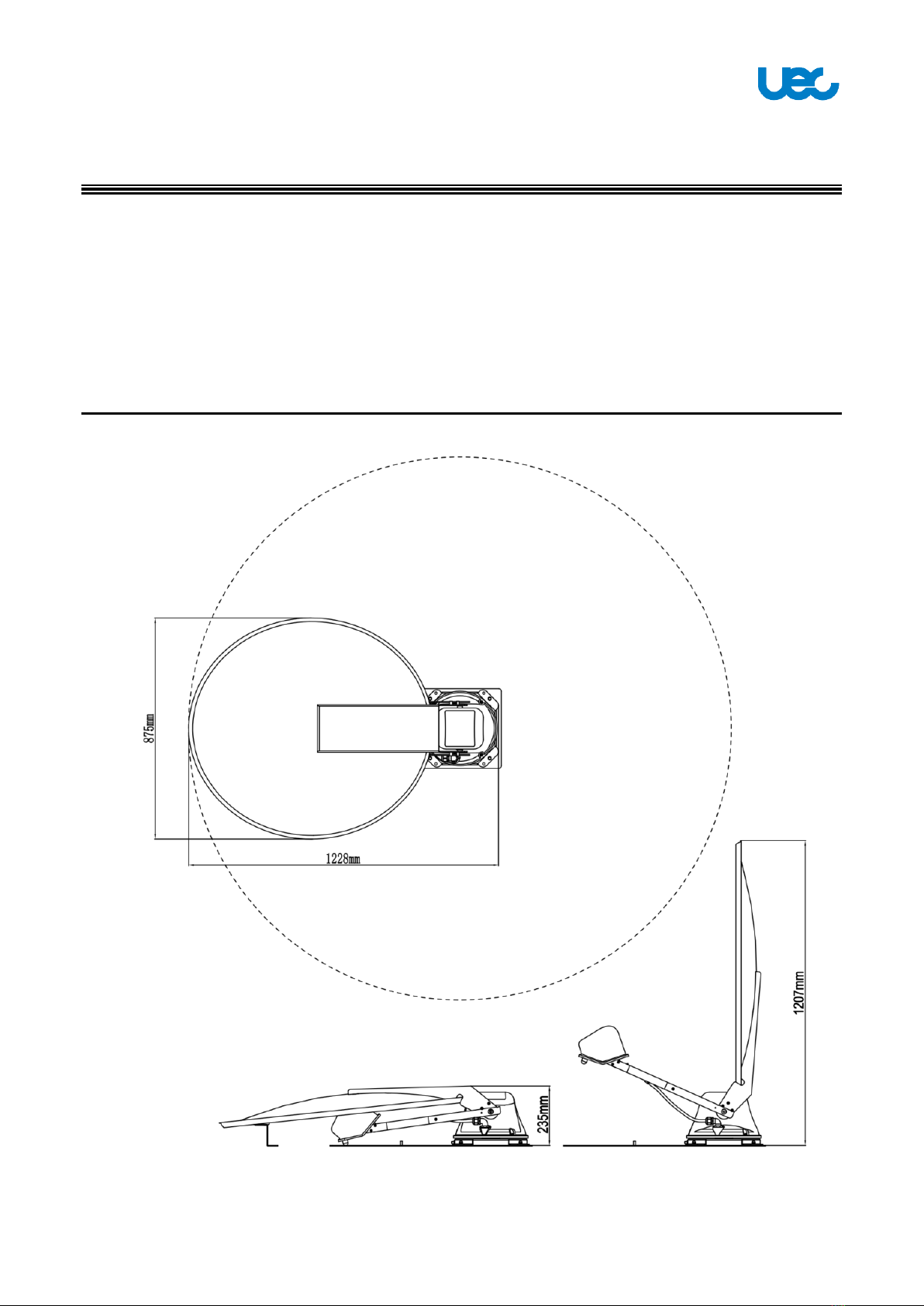

1.3 Select Location for Installation
Selecting the ODU location
Pick an area on the roof of your mobile home that will allow the ODU to be mounted as flat
and level and strong as possible
With good support that will permit the dish,once fitted and raised ,to have a full 360 degree
rotation and elevation range.
The ODU requires a clear view of the sky to receive satellite TV, The horizon at all the
directions to avoid blockage of the satellite signal.

8
Font

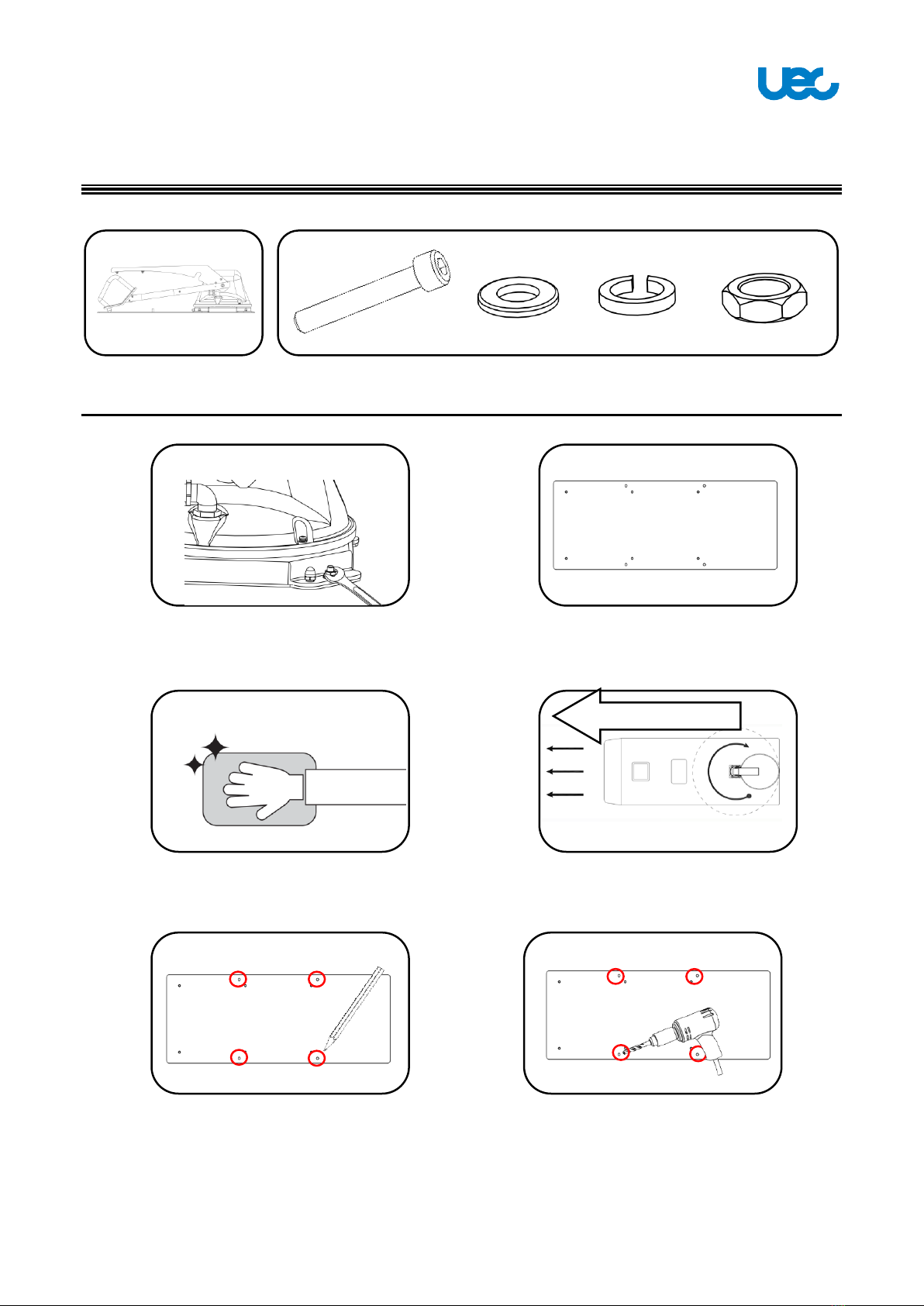

1.4 How to install ODU
Required parts for assembly
ODU and Baseplate
Scew M8(4) Flat Washer(8) Spring Washer(4) Hex. Nut(4)
❶
❷
Loosen nuts and remove nuts and
washers(8 pcs) on the main unit
Take out the base plate.Keep
the main unit and parts aside for
re-assembly after mounting plate
❸
❹
Clean the surface with cleaner
Locate mounting plate in the
centre of the vehicle roof
❺
❻
Mark 4 holes with pencil
Make 4 holes with a power drill
Direction of Travel

9
1.4 How to install ODU
❼
❽
Apply silicon sealant on the mounting plate
and leave 2cm inward gap from the line
Re-assembly the main unit
to the base plate


Apply silicon sealant around the ODU
base,include the screw

10
1.5 How to assemble dish
Required parts for assembly
ODU and Baseplate
Dish
Shore (4)
M6(4)
1. Press POWER button on
IDU power box to turn on
the unit. The dish bracket
will lift up after power-on
and the close.
2. Press POWER button of
IDU touch panel.When dish
bracket is lifted up to
vertical direction(about 90
degrees),turn the unit off.
OPTUS C1/D3
SLEEP 156.0E 0%
MENU
