Aladdin i30SE Operating instructions

1445 North Highway
Colville, WA 99114
i30SE
DIRECT VENT GAS-FIRED FIREPLACE INSERT
(Firebox Only)
OWNER’S MANUAL
AND INSTALLATION INSTRUCTIONS
DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
-Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This manual must be used for installation of the i30SE Direct Vent Gas Fired Fireplace Insert Room
Heater and retained by the homeowner for operating and maintenance instructions.
A Division of Hearth Technologies Inc.
Additional components necessary for completing the installation of this
fireplace insert are sold separately. Instructions for the installation of
those components are packaged with the individual component kits.
WARNING!
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Refer to this manual. For assistance or additional information,
consult a qualified installer, service agency or the gas supplier.
FOR YOUR SAFETY
The appliance area must be kept clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
fire-parts.com

8/00 2 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.
1. PLEASE READ THESE INSTALLATION INSTRUCTIONS COMPLETELY BEFORE BEGINNING INSTALLATION PROCEDURES. FAILURE TO
FOLLOW THEM COULD CAUSE AN APPLIANCE MALFUNCTION RESULTING IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
2. DUE TO HIGH TEMPERATURES THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND
DRAPERIES.
3. CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO
AVOID BURNS OR CLOTHING IGNITION.
4. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.
5. CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.
6. ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE REPLACED PRIOR TO OPERATING THE
APPLIANCE.
7. WARNING: DO NOT OPERATE APPLIANCE WITH THE PANEL(S) REMOVED, CRACKED OR BROKEN. REPLACEMENT OF THE PANEL(S)
SHOULD BE DONE BY A LICENSED OR QUALIFIED SERVICE PERSON.
8. INSTALLATION AND REPAIR SHOULD BE DONE BY A QUALIFIED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED
BEFORE USE AND AT LEAST ANNUALLY BY A QUALIFIED SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE
TO EXCESSIVE LINT FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.
9. ENSURE THAT THE FLOW OF COMBUSTION AND VENTILATION AIR NOT BE OBSTRUCTED.
10. ENSURE THAT ADEQUATE COMBUSTION AND VENTILATION AIR ARE PROVIDED.
Table of Contents
I. Listings and Code Approvals.................................................................................................................. 3
II. Description of the DVi30S System.......................................................................................................... 3
III. Appliance System Components ............................................................................................................. 4
IV. Pre-Installation Preparation .................................................................................................................... 5
A. Vent System Approvals...................................................................................................................... 5
B. Dimensional Requirements ............................................................................................................... 5
C. Gas Pressure .................................................................................................................................... 5
D. High Altitude Installation.................................................................................................................... 5
E. Clearances ........................................................................................................................................ 6
F. Firebox Entry...................................................................................................................................... 6
V. Step-By-Step Installation of the System ................................................................................................. 7
A. Connecting the Vent Pipe .................................................................................................................. 7
B. Gas Line Installation.......................................................................................................................... 9
C. Surround Installation (Refer to instructions packaged with surround kit of your choice.) .................. 10
D. Log Installation .................................................................................................................................. 10
E. Lava Rock and Rock Wool Placement.............................................................................................. 11
F. Cleaning of the Glass......................................................................................................................... 11
G. Installation of Glass............................................................................................................................ 12
H. Installation of Face (Refer to instructions packaged with face kit of your choice.) ............................. 12
I. Gold Trim Cleaning ............................................................................................................................ 13
J. Blower ................................................................................................................................................ 13
K. Wiring ................................................................................................................................................ 14
VI. Operating Instructions ............................................................................................................................ 16
Air Shutter Adjustment............................................................................................................................ 17
VII. Maintenance Instructions........................................................................................................................ 18
VIII. Trouble Shooting..................................................................................................................................... 19
IX. Replacement Parts ................................................................................................................................. 20
X. Notes ..................................................................................................................................................... 22
Warranty ................................................................................................................................................. 23
SAFETY PRECAUTIONS
fire-parts.com

8/00 3 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
I. LISTINGS AND CODE APPROVALS
U.S. Certification
The i30SE has been tested in accordance with ANSI
Z21.88-1998 and has been listed by Underwriters Laboratory
(UL) for installation and operation as described in these
Installation and Operating Instructions. All components are
A.G.A. or UL safety certified.
Canada Certification
The i30SE has been tested in accordance with CSA 2.33-M98
and has been listed by UL for installation and operation as
described in these Installation and Operating Instructions. All
components are C.G.A. or C.S.A. safety certified.
Local Codes
Check with your local building code agency prior to installing
this appliance to ensure compliance with all local codes, includ-
ing the need for permits and follow-up inspections. This instal-
lation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1-
latest edition, in the U.S.A. and the CANI-B149-latest edition,
in Canada.
Efficiency
The efficiency rating of the appliance is a product thermal effi-
ciency rating determined under continuous operating conditions
and was determined independently of any installed system.
If any assistance is required during installation please contact
your local dealer.
II. DESCRIPTION OF THE APPLIANCE SYSTEM
This i30SE system consists of the following:
1. Firebox
2. Venting System (must be purchased separately)
3. Termination (must be purchased separately)
4. Blower
5. Surround (must be purchased separately)
6. Front Face Kit (must be purchased separately)
Please contact your Dealer for details on optional or sepa-
rately purchased parts available for the i30SE.
Note: Illustrations throughout these instructions
reflect typical installations and are for design pur-
poses only. Actual installation may vary slightly due
to individual design preferences. However, minimum
and maximum clearances must be maintained at all
times.
The illustrations and diagrams used throughout these
installation instructions are not drawn to scale.
Note: Operation of a Direct Vent appliance may be
sporadic in high wind situations.
The i30SE is a Direct Vent Gas-Fired Fireplace Insert Room Heater. Combustion air is supplied from outside, not from inside the
house as with other types of appliances.
7 1 R 1
CERTIFIED FOR CANADA
CERTIFIE POUR LE CANADA
DO NOT REMOVE OR
COVER THIS LABEL
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL. FOYER A GAS VENTILE
- NE DOIT PAS ETRE UTILISE AVEC UN COMBUSTIBLE SOLID. THIS VENTED GAS FIREPLACE HEATER IS NOT FOR USE
WITH AIR FILTER. - NE PAS UTILISER DE FILTRE A AIR AVEC CE FOYER AU GAZ A EVACUATION.
ALADDIN HEARTH PRODUCTS
A Division of Hearth Technologies Inc.
1445 NORTH HWY.
COLVILLE, WA 99114
SERIAL
NO. DE SERIE
MODEL i30SE MFG. DATE
MODELE i30SE DATE DE FAB.
ANSI Z21.88-1998 CSA 2.33-M98
VENTED GAS FIREPLACE HEATER
FOR USE AT HIGH ALTITUDES.
GAS TYPE
ALTITUDE
MAX. INPUT/DEBIT
MIN. INPUT/DEBIT
OUTPUT
STEADY STATE THERMAL EFF.
MANIFOLD PRESSURE
PRESSION TUBULURE
MIN. INLET PRESSURE FOR THE
PURPOSE OF INPUT ADJUSTMENT
PRESS. MIN. D'ALIMENTATION
ORIFICE SIZE/DIAM. INJECTEUR
LESS THAN/MOINS DE 3 AMPERES.,
NATURAL
0-4500 FT/PI
30,000 BTUH
21,000 BTUH
23,400 BTUH
78%
3.5 IN. W.C.
C. D'EAU
4.5 IN. W.C.
C. D'EAU
.106/2.69 DIA.
115V., 60Hz.
PROPANE
0-4500 FT/PI
28,000 BTUH
22,000 BTUH
22,400 BTUH
80%
10.0 IN. W.C.
C. D'EAU
11.0 IN. W.C.
C. D'EAU
.063/1.60 DIA. IN./mm
fire-parts.com

8/00 4 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.
III. APPLIANCE SYSTEM COMPONENTS
Catalog Number Description
i30SE Direct Vent Gas Fired Insert - Natural Gas (Firebox only)
RC6 Remote Control (Battery)
RC-STAT Remote Thermostatic Control
DVIK33 Flex Kit includes 923K, 991, and Flex 3302.
Flex 3302 Flex Kit (Includes (2) 3”x30’ Chimney Liner Flex)
923GK 3” Direct Vent Chimney Liner Termination Kit (Dura-Vent product)
710 3” Chimney Liner Flex 35’ (Dura-Vent product)
980 Vertical Termination Cap with Wind Halo (Dura-Vent product)
991 High Wind Termination Cap
SRB40 Surround Bottom (4" x 41-1/2")
SRB44 Surround Bottom (4" x 45")
SRB46 Surround Bottom (4" x 47")
843-2540 Natural Gas Conversion Kit
843-2530 Propane LP Conversion Kit
Part # 710
Factory Built Fireplace Termination
Adapter Kit
Part # DVIK33
Part# 980
923GK
991
Flex 3302
fire-parts.com

A Division of Hearth Technologies Inc.
i30SE
DIRECT VENT GAS-FIRED FIREPLACE INSERT
ROOM HEATER
Amendment to
OWNER’S MANUAL
AND INSTALLATION INSTRUCTIONS
1445 North Highway
Colville, WA 99114
2 1/8"
1 1/2"
29"
20 1/8"
8 1/16" 6 1/2"
13 7/16"
IMPORTANT INSTALLATION NOTE: The diagram below REPLACES the similar diagram found
on page 5 of the Owner’s Manual (#33072C).
Please refer to these measurements, especially the boxed measurement, for installation of the rebox
with regards to your venting measurements..
fire-parts.com

8/00 5 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
IV. PRE-INSTALLATION PREPARATION
20"
1"
158
/"11"
112
/"
913 16
/"
41
12
/"
47"
2812
/"
33"
40
12
/"
46"
2134
/"
13
12
/"
311 16
/"
218
/"
10"
20
18
/"
29"
B. DIMENSIONAL REQUIREMENTS
Diagram A - i30SE Dimensions
D. HIGH ALTITUDE INSTALLATION
For U.S. installation, this appliance has been tested and
approved for elevations from 0-2000 feet.
When installing this appliance at an elevation above
2000 feet, it may be necessary to decrease the input
rating by changing the existing burner Orifice to a small-
er size. Input should be reduced 4 percent for each
1000 feet above sea level. Check with the local gas
utility for proper Orifice size identification and to see
if the gas in your area has been deregulated. This
appliance is shipped with a .106 in./2.64 mm Orifice
size on Natural Gas versions and a .063 in./1.60 mm
Orifice size on L.P. versions.
For Canadian installation, this appliance is certified for
elevations from 0-4500 feet. When installing this appli-
ance at an elevation between 0-4500 feet in Canada,
the input rating does not need to be reduced.
When installing this appliance at an elevation above
4500 feet in Canada, check with local authorities.
Consult your local gas company for assistance in deter-
mining the proper Orifice for your location or refer to
ANSI Z223.1-latest edition, Appendix F.
20-1/4"
21"
13-1/2"
29-1/2"
i30SE Minimum Firebox Opening
A. VENT SYSTEM APPROVALS
Approved vent system terminations are labeled for identifi-
cation. Two separate 3” diameter listed flexible aluminum
or stainless steel gas vent is used for both exhaust and
incoming combustion air and must be run up through the
fireplace chimney and terminated vertically. Horizontal ter-
minations MUST NOT be done. Follow the vent manu-
facturer’s installation instructions in conjunction with this
manual.
C. GAS PRESSURE
For natural gas, the minimum inlet gas supply pressure is 4.5
inches water column, and the maximum inlet gas pressure is 7.0
inches water column, for the purpose of input adjustment. Input
rate is 30,000 - 21,000 Btu/hr. For Propane Gas, the minimum
inlet gas supply pressure is 11.0 inches water column and a
maximum 14.0 inches water column. Input rate is 28,000 - 22,000
Btu/hr.
Pressure taps are located on front of the valve for both inlet and
outlet pressures.
Manifold pressure for this Fireplace Insert Room Heater is 1.7 -
3.5 inches water column for natural gas and 6.3 - 10.0 inches
water column for propane gas. This Heater has a variable adjust
manifold.
WARNING!
This appliance may only use the Direct Vent Chimney System Required with the Unit
and MUST NOT be connected to a chimneyflue servicing a separate Solid Fuel or Gas
Burning appliance.
fire-parts.com

8/00 6 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.
MANTEL
12"
MAX.
12"
MIN.
14"
TOP OF
UNIT
Diagram B - i30SE Clearances
F. FIREBOX ENTRY
Remove the glass by pulling out (3) Glass Retainer latches. See Figure 1. Lift the Glass Door Assembly up and remove from
the bottom retainer. See Figure 2.
Place Glass in a safe place until installation is complete.
Figure 1 - Glass Retainer Latches Figure 2 - Glass Removal
E. CLEARANCES TO UNIT
Diagram B shows the minimum vertical and corresponding maximum horizontal dimensions of mantels or other combustible
projections above the gas fireplace of 12 inches.
When finishing the fireplace NEVER OBSTRUCT OR MODIFY THE AIR INLET/OUTLET OPENINGS IN ANY MANNER.
While a hearth extension may be desirable for aesthetic reasons, it is not required for gas wall heaters per ANSI or
CAN/CGA testing standards.
Provide adequate accessibility clearances for servicing and proper operation.
WARNING!
FAILURE TO POSITION THE PARTS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY PARTS SPECIFICALLY APPROVED WITH THIS APLIANCE MAY RESULT IN PROPERTY DAMAGE
AND/OR PERSONAL INJURY.
fire-parts.com

8/00 7 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
V. STEP-BY-STEP INSTALLATION
A. CONNECTING THE VENT PIPE. The damper of
the masonry or factory-built chimney may have to be
removed to allow installation of the flexible-vent pipe.
Before installing the 3” flex vent pipe, mark or label
the exhaust pipe at both ends.
Install the 3-inch flexible vent pipes down through the
chimney. Remove the starting collar bracket from the
top of the unit. See Figure 3. Attach and secure
the bottom ends of the flex pipes to the starting collar
bracket with 3 sheet metal screws on each collar.
Attach the labeled pipe to the exhaust collar on the
starter collar bracket.
Note: Fireplace chimney systems must
be cleaned thoroughly and inspected
before installation of the appliance. If
any portion of the chimney system shows
signs of structural or mechanical weak-
nesses, such as cracks, leaky joints, cor-
roded or warped surfaces, the faulty por-
tion must be repaired or replaced.
INSTALLATION AND REPAIR SHOULD BE DONE BY A QUALIFIED SERVICE PERSON. THE
HEATER SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A QUALIFIED
SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL
COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE HEATER BE
KEPT CLEAN.
Tools and building supplies normally
required for installation.
Tools
Pliers
Phillips screwdriver
Tape measure
Level
Electrical drill and bits
Square
High Temperature Sealant Material
High Temperature Sealant Material. Sealants
that will withstand high temperatures (at least
350 degrees Fahrenheit); General Electric RTV103
(Black), or equivalent. Rutland, Inc. Fireplace Mortar
#63, or equivalent; Dow Corning 732 or equivalent.
Figure 3
Removing the Starter Collar
WARNING!
1. Wear gloves and safety glasses for protection.
2. Keep hand tools in good condition. Sharpen cutting edges and make sure tool
handles are secure.
3. Always maintain the minimum air space required to the enclosure to prevent fire.
4. Read the following installation instructions.
fire-parts.com

8/00 8 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.
Figure 5
Figure 6
V=14 ft. Minimum
40 ft. Maximum
Termination Cap
Adaptor
Inlet Air
Vent Pipe
Exhaust
Air Vent
Pipe
Insulation
Place the insert on the hearth and carefully slide it into the
fireplace. Be sure the gas line enters the heater through the gas
access opening and that the electrical cord is hanging out the
front of the fireplace.
Position any excess flex vent pipe back up into the chimney. Slide
the collar bracket under the lances. See Figure 4. Using handle
on Collar Bracket, pull Collar Bracket and slide unit back. Secure
the Collar Bracket with the [2] screws removed earlier.
Attach the pipe-to-cap adapter to the termination cap and to the
top of the flexible vent pipe and set the cap in place at the top of
the chimney. Attach the labeled vent pipe to the labeled collar on
the termination. See Figure 5.
Figures 6 and 7 show typical installations of the appliance.
Termination
Cap
Adaptor
Inlet
Air Collar
Exhaust
Collar
Exhaust
Starting Collar
Inlet Air
Starting
Collar
THIS FIREPLACE HAS BEEN ALTERED TO ACCOMMODATE
AN INSERT AND SHOULD BE INSPECTED BY A QUALIFIED
PERSON PRIOR TO RE-USE AS A CONVENTIONAL
FIREPLACE.
Note: The above label, located in the instruc-
tion package, must be affixed to the existing
fireplace prior to installation of the i30SE Direct
Vent Gas-Fired Heater.
Figure 4 - Reinstalling the Starter Collar
NOTE: To avoid down drafts and/or cold air
problems, it is recommended to seal off the
area between the termination cap and the top
of the solid-fuel chimney opening into which
the vent cap has been installed.
WARNING!
The exhaust pipe must only be connected
to the exhaust starting collar of the unit and
the center collar of the termination cap.
The inlet air pipe must only be connected
to the inlet air collar of the unit and
either attached to the inlet air collar of
the termination cap or terminated in the
chimney.
fire-parts.com

8/00 9 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
H (MIN.)-MINIMUM HEIGHT
FROM ROOF TO LOWEST
DISCHARGE OPENING
ROOF PITCH IS X/12
LISTED
GAS
VENT
LISTED
CAP
LOWEST DISCHARGE
OPENING
12
X
Figure 8
Termination Height
Table 1
Minimum Termination Height
B. GAS LINE INSTALLATION
A gas line must be run into the existing woodburning fireplace, for
either a factory built fireplace or masonry. It is recommended that
1/2'' inside diameter Black pipe be run into the fireplace through
the left side. If the existing unit already has gas run to it, but
through the right side, it is recommended that the gas line be
rerouted to the left side. The gas supply line should be installed
and connected to the shut-off valve by a qualified service person
in accordance with all prevailing building codes.
A 3/8” flare adapter (not supplied) is necessary to connect the
flex line (supplied) to the black pipe. Turn Gas Shut-off Valve to
the “OFF” position.
Figure 7
This option shows the air inlet not con-
nected to the adapter at the top.
V=14 ft. Minimum
40 ft. Maximum
Termination Cap
Adaptor
Inlet Air
Vent Pipe
Exhaust
Air Vent
Pipe
Insulation
Note: The appliance and its individual shutoff valve
must be disconnected from the gas supply piping
system during any pressure testing of that system
at test pressures in excess of 1/2 psi (3.5 kPa). The
appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psi
(3.5 kPa).
Check for leaks using a soap and water solution.
Seal with high temperature silicone the point where the gas line
enters the existing fireplace firebox to prevent cold air infiltration.
CAUTION:
THE GAS SUPPLY LINE SHOULD BE PURGED OF
ANY TRAPPED AIR PRIOR TO THE FIRST FIRING
OF THE UNIT.
Roof Pitch H (Min.) feet
Flat to 6/12 1.0
6/12 to 7/12 1.25
Over 7/12 to 8/12 1.5
Over 8/12 to 9/12 2.0
Over 9/12 to 10/12 2.5
Over 10/12 to 11/12 3.25
Over 11/12 to 12/12 4.0
Over 12/12 to 14/12 5.0
Over 14/12 to 16/12 6.0
Over 16/12 to 18/12 7.0
Over 18/12 to 20/12 7.5
Over 20/12 to 21/12 8.0
fire-parts.com

8/00 10 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.
C. SURROUND & OPTIONAL SURROUND BOTTOM
INSTALLATION
Refer to specific instructions packaged with the surround option
purchased for your insert.
NOTE: Remove the Front Face and Glass Door
Assemblies from the Insert before beginning the
Surround installation.
D. LOG INSTALLATION
1) Set rear log in place as shown in Fig. 15, and center
in the firebox.
2) Align flanges on bottoms of the right and left front
logs into slots on burner pan. See Fig. 16.
3) Position right top drop-in log, matching notches on
the bottom of it with notches in the top of rear and
right front logs. See Fig. 17
4) Position the center top log into grove on top of rear
log. Fig. 17.
5) Position left fork log against rear log, and position
the forked end of the twig to rest against the andiron.
See Fig. 17.
6) Set the right cross-over log in place to cover pilot
assembly. Be sure not to block the pilot. See Fig.
18.
Logs are shipped in individual packs. Removal of
wrapping should be done with care to avoid breakage.
Please contact your local dealer if you have any
questions.
Insert Surround instructions received in the
surround kit purchased and installed for your
insert here.
Right Top
Drop-in Log
#4
Center Top Log
#6
Left Fork
Log #7
Right
Cross-over
Log #5
Right
Front
#1
Left
Front
#2
Rear
Log
#3
Flanges
NOTE: #'s Are for reference only and do not
correspond to order of installation.
fire-parts.com

8/00 11 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
E. PLACING ROCK WOOL, LAVA ROCK &
VERMICULITE
NOTE: Lava rock should ONLY be placed in the channel
around the log grate. This area is shown as the white-
shaded area in Fig. 19. It is not necessary to use the
entire bag of Lava Rock.
1) Fill in the white-shaded area in Fig. 19 with Lava Rock.
2) Placing the Rock Wool.
a. Tear the Rock Wool into pieces no larger than
1/2'' diameter.
b. Do not pack the Rock Wool against the Gas Ports of
the Burner. Lay the Rock Wool pieces on the burner pan
in such a manner that the wool touches but does not cover
the holes (gas ports) in the burner pan. Flames exiting
the burner pan gas ports will then contact the Rock Wool
creating the "glowing embers" look.
It is not necessary to use the entire bag of Rock Wool.
3) Placing the Vermiculite. Sprinkle over the lava rock
taking care not to get any on the burner pan with the
Rock Wool.
Note: Placement of the Rock Wool, Lava Rock and
Vermiculite should be done with care and time, as this will
effect the look of the fire when burning.
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19 - Place Lava Rock in the white-shaded
area shown above ONLY
F. CLEAN THE GLASS
When cleaning the glass, use only non-caustic, non-abrasive
cleaners. DO NOT ATTEMPT TO CLEAN HOT GLASS. It is
dangerous, and the glass is more likely to be stained by the
cleaning agent. Stubborn film can often be removed using Cook
Top Cleaning Creme available at appliance centers.
FLANGE
SLOT
LOG INSTALLATION, cont.
#1
#2
#7
#6
#4
#5
#3
fire-parts.com

8/00 12 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.
G. INSTALLATION OF GLASS
After cleaning the glass, place the tabs on the glass frame into
the slots at the bottom of on the glass retainer. Push the top
edge of the glass frame against the unit and secure the latches
of the glass frame.
H. Installation of Faces
Refer to specific instructions packaged with the face option pur-
chased for your insert.
This space left blank for customer insertion
of the instructions received in the face kit
purchased and installed for insert.
WARNING!
Never operate this appliance with the glass
removed OR not sealed.
WARNING!
The Glass Door Assembly shall only be
replaced as a complete unit. No substitute
materials may be used.
fire-parts.com

8/00 13 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
I. GOLD TRIM CLEANING
All prints and smudges must be wiped clean from the gold trim
prior to initial burn. If this is not done, these prints will be cured
into the gold finish and set for the life of the heater. To keep the
finish looking its best, gently wipe with a soft cloth. If desired,
use a non-abrasive cleaner such as soap and water. Never use
any solvent, thinner, or abrasive cleaner since these will damage
the finish.
J. BLOWER
This appliance has a factory installed Blower, Junction Box, vari-
able speed Rheostat Control Switch and Temperature Sensor
Switch for the Blower. The Blower, temperature sensor switch
and junction box are located behind the lower grille. To provide
the 110-120 VAC, 60 HZ are needed at the junction Box. Simply
plug the 3-prong grounded cord into a 3-prong grounded 110-120
VAC, 60 HZ wall outlet. This cord exits the unit at the lower right
hand front surround corner.
The Temperature Sensor Switch will automatically turn the
Blower ON when the unit warms up. To install or service
the Blower, this appliance must be removed from the fireplace.
Remove the five sheet metal screws holding the Blower cover
in place and slide the Blower cover out. Reverse to install the
Blower.
WARNING!
This appliance is equipped with a Three-
prong (grounding) plug for your protection
against shock hazards and should be
plugged directly into a properly grounded
three-prong receptacle. Do not cut or
remove the grounding prong from this
plug.
fire-parts.com

8/00 14 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.
Wiring Diagram A
Note: This appliance must be electrically
wired and grounded in accordance with
local codes or, in the absence of local
codes, with National Electric Code ANSI/
NFPA 70-latest edition. This appliance can
be used with a thermostat.
Note: This appliance DOES require a
110-120 VAC supply for operation of the
Blower.
A 110-120 VAC outlet should be located close to the
lower right side of the appliance to allow the Blower
to be plugged in.
K. WIRING
TO TEST JUNCTION BOX ASSEMBLY FOR PROPER FUNCTION:
I. Insert terminal ends of tester into “FAN” (LH) side of the outlet.
IT SHOULD NOT LIGHT UP.
-If it does light up, disconnect power cord from power source.
-Check that only the correct tab is removed.
-Check that the receptacle is oriented correctly.
-Retrace the wiring connections
II. Insert terminal ends of tester into “REMOTE” (RH) side of the outlet.
IT SHOULD LIGHT UP, DESIGNATING THE “HOT” SIDE.
WIRING TROUBLE SHOOTING
WHITE
BLACK
JUNCTION BOX THERMOSTAT
BLACK
BLACK BLACK
VARIABLE FAN
CONTROL
BLACK
GREEN
FAN OUTLETS
TAB HAS BEEN REMOVED
REMOTE OUTLET
FAN
WARNING: DISCONNECT THE ELECTRIC
POWER BEFORE SERVICING.
IF ANY OF THE ORIGINAL WIRE AS
SUPPLIED WITH THE APPLIANCE MUST
BE REPLACED, IT MUST BE REPLACED
WITH 105 DEGREE RATED WIRE.
WARNING!
DO NOT connect 110 - 120 VAC to the Gas
Control Valve or Control Wiring System of
this unit.
fire-parts.com

8/00 15 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
Wiring Diagram B
K. PRE-USE CHECK
Before operating this appliance, please review the
safety precautions given on page 2 as well as the
items listed below:
1. Check to make sure the logs and rock wool have all
been placed correctly. See page 11.
2. Check to see that all wiring is correct and enclosed
to prevent possible shock.
3. Check to ensure there are no gas leaks. This
may be done with a soap and water solution or a gas
detector.
4. Make sure the glass is sealed and in its proper
position. Never operate this heater with the glass
removed or not sealed.
5. Flex liners and terminal cap are properly installed.
6. Prints and smudges are wiped from gold trim.
7. Read and understand these Instructions thoroughly
before attempting to operate this appliance.
Rocker Switch / Wall Thermostat / Remote
Variable
Regulator
Pilot
Adjustment
Cap
Manifold Pressure
Inlet Pressure
Push Button
Ignitor
Thermopile
Ignitor
Pilot
Thermocouple
fire-parts.com

8/00 16 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.

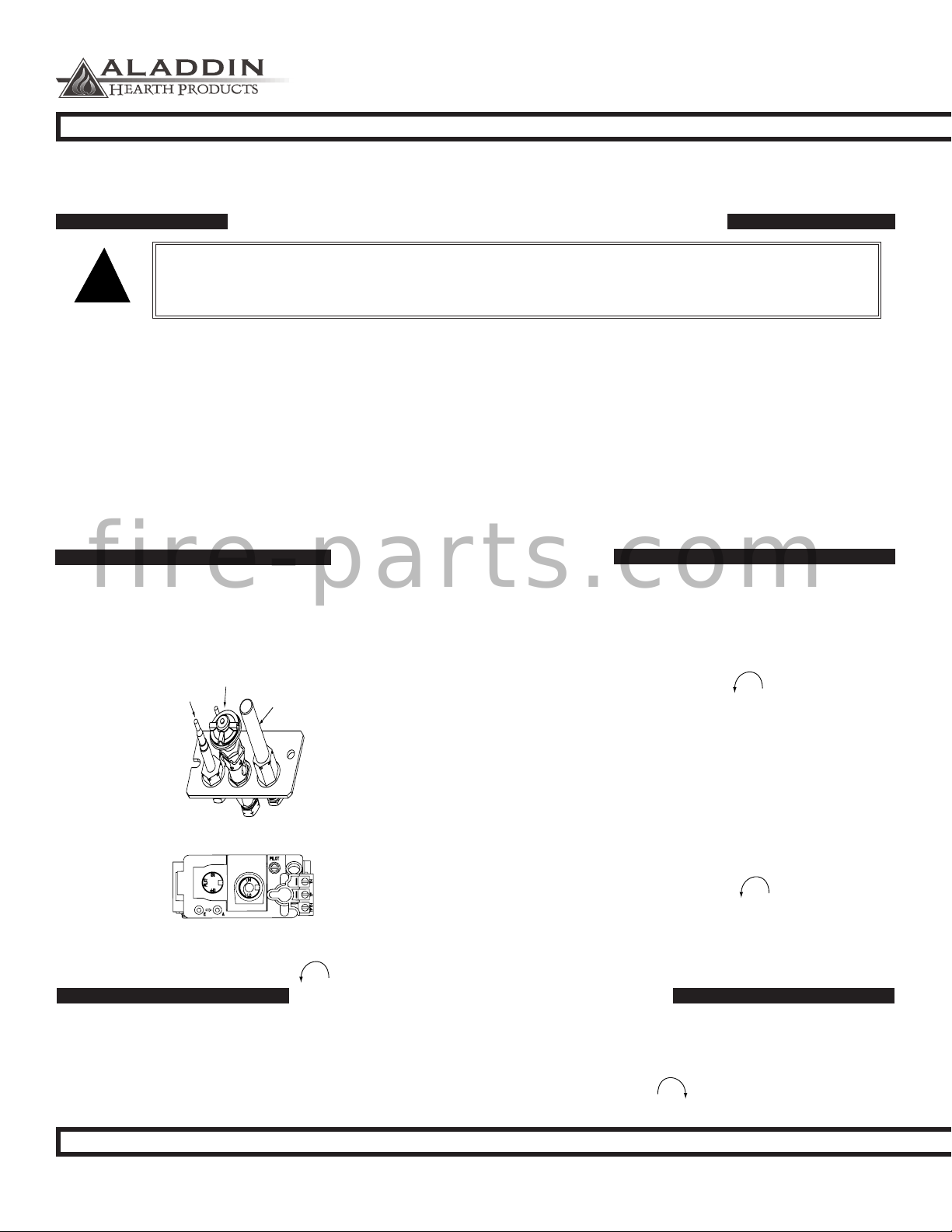

FOR YOUR SAFETY READ BEFORE LIGHTING
A. This gas appliance has a manual ignition device that lights the pilot.
When lighting the pilot, follow these instructions exactly.
B. STOP! BEFORE READING FURTHER, smell around the appliance
area for gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle to the floor.
WHAT TO DO IF YOU SMELL GAS:
*Do not try to light the appliance.
*Do not touch any electric switch; do not use any telephone
in your building.
*Immediately call your gas supplier from a neighbor’s tele-
phone. Follow the instructions of your utility.
*If you cannot reach your utility, call the fire department.
C. IF THE PILOT LIGHT AND BURNER WENT OUT DURING USE,
YOU MUST TAKE THE GLASS OFF THE APPLIANCE AND WAIT TO
CLEAR OUT ANY GAS. FOLLOW THE LIGHTING INSTRUCTIONS
BELOW.
D. Use only your hand to push in or turn the gas control knob to light
the pilot. Never use tools. If the knob will not push in or turn by hand,
do not try to repair it; call a qualified service technician. Using a tool
or attempting repairs may result in a fire or explosion.
E. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the appli-
ance and to replace any part of the control system and any gas
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
3. Open control access panel.
4. Turn gas control clockwise to “OFF”.
5. Close control access panel.
1. STOP! Read the safety information above.
2. Turn off all electric power to the appliance. If your appliance has a
thermostat, set to lowest setting.
3. Open control access panel.
4. Find the pilot. The pilot is inside the combustion chamber on the right
end of the main burner.
5. If the gas control knob is at the “OFF” position, go to step 7. If the gas
control knob is at the “ON” position, go to step 6.
6. If the pilot light went out during normal use with the gas control knob at
the “ON” position, turn the gas control knob to the “OFF” position. REMOVE
THE FIXED GLASS PANEL. Wait ten (10) minutes to clear out any gas.
9. Turn gas control knob counterclockwise to the “PILOT”
7. Smell for gas, including near the floor. If you don’t smell gas, go to
the next step. If you smell gas, wait another five (5) minutes or until
the gas odor is no longer present before continuing. If the odor of gas
does not disappear after fifteen (15) minutes, STOP! Follow “B” in the
safety information above.
8. Replace glass panel if it has been removed.
9. Turn gas control knob counterclockwise to the “PILOT”
position.
10. Push the gas control knob in all the way and hold. At the same time,
push in red ignition button repeatedly until the pilot lights. Never hold the
gas control knob in for more than ten (10) seconds if the pilot does not
light. Once the pilot lights, continue to hold the gas control knob in for 15
seconds. Release the gas control knob and it will pop back up. If pilot
does not remain lit, repeat steps 6 through 9.
*If gas control knob does not pop back up when released, turn the knob
to “OFF” and call your service technician or gas supplier.
*If the pilot will not stay on after two attempts, turn the gas control knob to
“OFF” and call your service technician or gas supplier.
11. Turn gas control knob counterclockwise to the “ON” position.
The knob can be turned to the “ON” position only if it is popped out.
12. Close the access panel.
13. Turn on electrical power to the appliance. If equipped with a
thermostat, set to the desired setting.
1. Turn rocker switch to OFF or the wall thermostat to lowest setting if
your unit is so equipped.
2. Turn off all electric power to the appliance if service is to be
performed.
VI. OPERATING INSTRUCTIONS
Thermopile
Thermocouple
(Pilot sensor)
Pilot Hood
WARNING! If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
!
fire-parts.com

8/00 17 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
Upon completing the gas line connection, a small amount of air
will be in the lines. When first lighting the pilot light, it will take
a few minutes for the lines to purge themselves of this air. Once
the purging is complete, the pilot and burner will light and operate
as indicated in the Instruction Manual.
Subsequent lightings of the appliance will not require such purg-
ing.
When lit for the first time, the appliance will emit a slight odor
for an hour or two. This is due to paint and lubricants used in
the manufacturing process. Additionally, for the first few minutes
after each lighting, vapor may condense and fog the glass and
the flames may be blue. After a few minutes, this moisture will
disappear and within 15-30 minutes the flames should become
yellow.
CAUTION: During the initial purging and
subsequent lightings, NEVER allow the gas
valve control knob to remain depressed in
the “pilot” position without pushing the red
ignitor button at least once every second.
CAUTION: The Logs can get very hot.
Only handle them when they are cool.
SEASONAL SHUTDOWN
When the burning season comes to an end, the entire system
should be shut down to prevent gas running to the appliance
while it is not in use.
OPERATION PROCEDURE DURING REGULAR USE
Simply turn the switch/thermostat to the ON position. This will
ignite the main burner.
SHUTDOWN DURING REGULAR USE
Simply turn the switch/thermostat to OFF. This will disengage the
burner and the flames will extinguish.
Keep the control compartment, logs, and burner area surround-
ing the logs clean by vacuuming or brushing at least twice a
year.
AIR SHUTTER AND AIR INLET BAFFLE
ADJUSTMENT
The shutter control bolt adjusts the amount of air that mixes with
the gas as it enters the burner pan. To adjust the air shutter,
locate the screw head just beneath the firebox opening on the
front of the unit. See Figure 1 below for "SHUTTER" bolt location
just above control panel.
Using a 7/16" end wrench, turn the adjustment screw
aproximately 1/4 turn counter clockwise to open fully, and 1/4
turn clockwise to close. The air shutter is used to fine-tune
the flame as necessary. The air shutter is shipped in the fully
closed position on natural gas units.
BAFFLE CONTROL:
The baffle bolt adjusts the amount of air that enters the
combustion chamber. The baffle is used to fine-tune the flame
as necessary for differences in altitude and vent configuration. To
adjust the baffle control, locate the bolt head just beneath the
firebox opening on the front of the unit. See Figure 1 below for
"BAFFLE" bolt location just above control panel.
Clockwise 1/4 turn closes the baffle for less air and taller
flames, and counter clockwise 1/4 turn opens the baffle for
more air and shorter flames.
Baffle bolt & Shutter bolt
Are located just above these markings on Control Panel
AIR SHUTTER CONTROL:
Allow the unit to operate 15-20 minutes. This will give the flame
time to reach its height and color before making adjustments to
the air shutter and air baffle.
FIGURE 1 - CONTROL PANEL
CAUTION!
The firebox bottom may become very hot
during this adjustment procedure. Take care
to not contact any hot components.
fire-parts.com

8/00 18 33072C
i30SE Direct Vent Gas-Fired Insert (Firebox Only)
A Division of Hearth Technologies Inc.
VII. MAINTENANCE INSTRUCTIONS
CLEANING THE BURNER AND THE
CONTROL COMPARTMENT:
Keep the burner and control compartment clean by
using a clean, dry paint brush and vacuum at least
once a year. Always turn off the gas valve and the
switch before cleaning.
CHECKING THE FLAME PATTERN:
Visually check the flame of the burner periodically,
making sure the flames are steady; not lifting or float-
ing. The flame color should be blue with yellow tips.
The thermopile tip should be covered with flame. See
Figure 20.
Thermopile
Thermocouple
(Pilot sensor)
Pilot Hood
Figure 20 - Standing Pilot
If the vent configuration is installed incorrectly, the vent
may cause the flames inside the appliance to lift or
“ghost” - a dangerous situation. Inspect the flames
after installation to ensure proper performance. If the
vent configuration is correct, yet the flames are lifting or
ghosting, shut off gas to the appliance and contact the
dealer for information on remedying the problem.
The Heater and venting system should be inspected
before use each season, and at least annually, by a
qualified field service person, to ensure that the flow of
combustion and ventilation air is not obstructed.
CLEANING THE GLASS:
It is recommended to wear gloves while handling or
removing the glass. DO NOT REMOVE THE GLASS
WHEN HOT.
To gain entry to the firebox for cleaning, follow
“Firebox Entry” on page 6.
To clean the glass, use a non-abrasive, mild cleaning
solution. (For example,a glass cleaner or for stub-
born film, an oven cleaner.) Simply apply an ade-
quate amount to the glass and wipe off with a damp
cloth. Please be sure all cleaner is thoroughly rinsed
from the glass.
Never operate this appliance without the glass prop-
erly secured in place or if the glass is broken.
In the event of glass breakage, follow glass removal
instructions. This will allow the removal of all glass
fragments and sheet metal edge protection strips.
Vacuum all remaining glass pieces with a shop vac.
DO NOT VACUUM IF PIECES ARE HOT. Replace
glass only with Aladdin Hearth Products part number
ordered direct or through your local distributor. Never
use substitute material. Only ceramic glass may be
used on this appliance.
LOG CLEANING:
DO NOT REMOVE ANY OF THE LOGS WHEN THE
APPLIANCE IS HOT. The logs are shipped in their
own packaging and must be assembled in position
(see pages 10 -11) Remove individual logs to clean
by using a clean, dry, soft paintbrush and vacuum the
unit at least once a year. Handle with care, as they
can be chipped or broken if dropped. Always turn off
the gas valve and the switch before beginning this
procedure.
Caution: Label all wires prior to discon-
nection when servicing controls. Wiring
errors can cause improper and dangerous
operation. Verify proper operation after
servicing.
WARNING!
Do not use this heater if any part has been
under water. Immediately call a qualified
service technician to inspect the heater and
to replace any part of the control system and
any gas control which has been under water.
fire-parts.com

8/00 19 33072C
i30SE Direct Vent Gas-Fired Fireplace Insert (Firebox Only)
A Division of Hearth Technologies Inc.
VIII. TROUBLE SHOOTING
1. Pilot will not ignite.
2. Pilot will not stay
lit.
3. Main burner will
not light.
4. Glass Fogs up.
5. Blue flames.
6. Flames too short.
7. Glass soots.
Problem Cause Corrective Action
Turn knob to PILOT and push in on the valve (see lighting
instructions on page 16).
Check the shutoff valve.
Check the shutoff valve.
Check wiring between piezo button and ignitor.
Check for cracked ceramic on the electrode.
Check spacing of ignitor tip and pilot hood. Spark should be
extending approximately 1/8” to the bottom of the pilot hood.
Adjust gap as necessary to give proper spark.
Check pilot flame. See Figure 17, page 18.
Adjust flame if necessary. Be sure thermocouple is constantly
in contact with pilot flame.
Be sure thermocouple line is attached to valve.
Relight pilot (see page 16).
Turn valve to “ON”.
Turn switch to “ON”.
Check wiring connections at the valve and switch.
Set thermostat to a lower temperature.
Check wiring connections and wiring diagram.
Not heated up enough (takes about a minute to get up to
correct temperature).
No action is necessary. After the heater has warmed up, the
glass will clear.
No action is necessary. Flames will begin to turn more
yellowish after about 20 minutes of burning.
Turn variable head to “HI”.
Close down air shutter; it is not recommended to close it unless
absolutely necessary.
Adjust the log set so that the flame does not excessively
A.Gas control knob
isn’t turned to
“PILOT”.
B.Gas control knob
isn’t pushed in.
C.Gas is not turned
on.
D.Ignitor isn’t working.
A.Defective thermo-
couple.
A.Pilot has gone out.
B.Gas control knob
isn’t turned to
“ON”.
C.ON/OFF switch.
D.Thermostat is set
too high or is dis-
connected.
E.Bad Thermopile.
A. A normal result of
gas combustion.
A. A normal result
during the first 20
minutes of burning.
Valve on low.
Air shutter too wide.
Flame impingement
on logs.
fire-parts.com
