Archgard Optima 32-1 Owner's manual

Installer: Please leave this manual with the appliance owner for future reference
200-0165
Feb 2007
7116 Beatty Dr
Mission, BC V2V 6B4
Canada
WARNING: If the information in this manual is not
followed exactly, fire or explosion may result
causing property damage, personal injury or loss
of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
∗ Do not try to light any appliance.
∗ Do not touch any electrical switch; do not use
any phone in your building.
∗ Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
∗ If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
*Conversion kit required for Propane use
Optima 32
Optima 32 - -1 1
Gas Fired Vented Room
Heater (Direct Vent)
(SERIAL #3940 AND UP)
For use with Natural Gas or Propane*
USERS’ INSTALLATION
OPERATION AND
MAINTENANCE MANUAL

INTRODUCTION
Congratulations on choosing an Archgard Gas Fireplace!
The Optima 32-1 Direct Vent Insert is one of the most advanced Direct Vent Insert heater
available today. It is solidly designed using the latest technology and manufactured to the
highest quality. It is our aim to provide you with an appliance for many trouble-free years of
reliable service.
Some of the many features of your Optima 32-1 Direct Vent Insert are:
Heater Classification The Optima 32-1 is classified as a heating appliance. Therefore, it
uses Direct Vent safety technology and it is suitable for continuously
operated zone heating.
High Efficiency The Optima 32-1 has one of the highest efficiencies of any Direct
Vent gas insert, which means that it is less expensive to operate.
Adjustable Fan Speed Each Optima 32-1 insert comes complete with a heat activated
circulation fan with a fully adjustable speed control.
Adjustable Flame The flame aesthetics and heat output can be adjusted to suit the
owner’s liking and heating needs.
Solid Construction The Optima 32-1 is mainly constructed of 16 and 18 gauge
galvanized and aluminized coated steel for long life and durability.
Optional Accessories Check with your Authorized Archgard Dealer for a full complement of
decorative accessories to suit your home’s décor and your tastes.
Some of the accessories available are: 24K Gold Overlay (for the flat
window), a variety of surrounds (faceplates) with gold, black or
pewter trims and an overlay bay window that simply attaches to the
front of your fireplace while leaving the flat glass door in place.
Millivolt Control System. The Optima 32-1 uses a gas control valve that is ready for an
optional wall thermostat, or a hand-held “wireless” remote control.
Please read this manual carefully prior to installation and operation of the appliance.
Proper installation, operation and maintenance of the appliance will provide you with
many years of enjoyment.
We recommend you record the following information:
Fireplace Model Number: OPTIMA 32-1 Serial Number:
Date of Installation:
Type of Gas Used by the Fireplace: Natural Gas Propane
Dealer’s Name & Address:
Dealer’s Phone Number:

CONTENTS
CONTENTS PAGE #
Caution and Safety Instructions 5
Appliance Certification, Installation Codes and Specifications 6
Appliance Dimensions and Minimum Requirements for Fireplace Dimensions 7
Clearance to Combustibles 8
Gas Connections 9

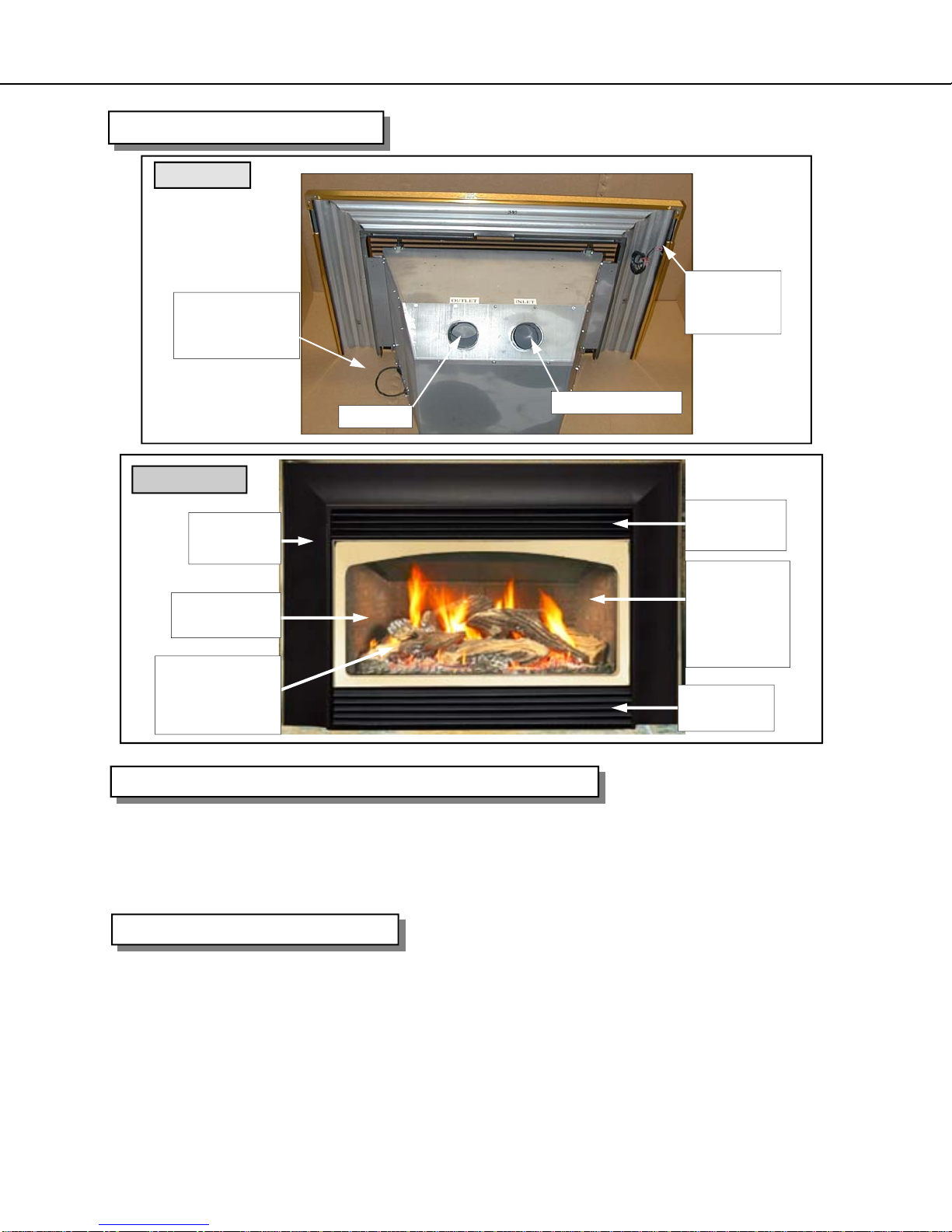

Appliance Description, Leveling the Appliance and Electrical Requirements 10

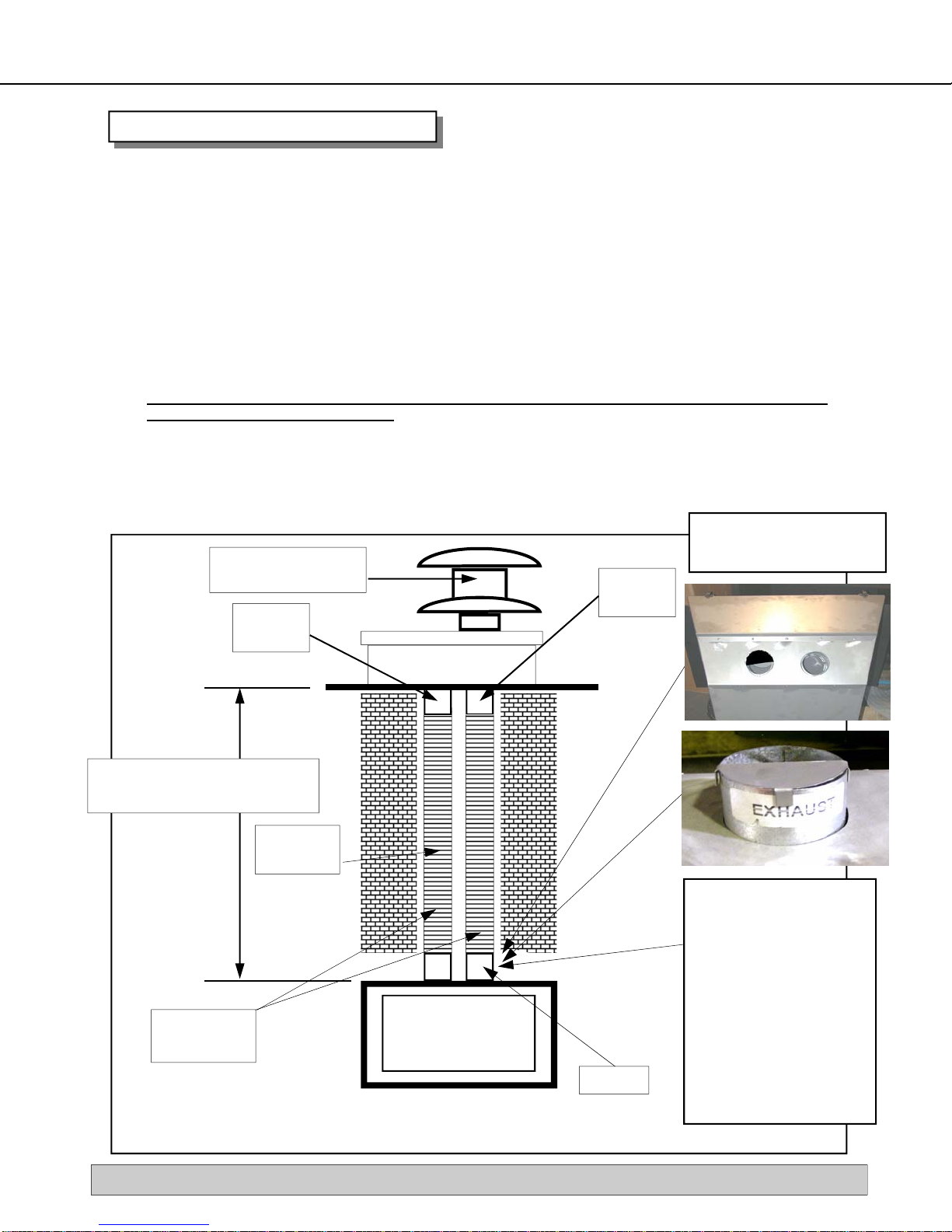

Venting Instructions 11 - 12
Surround Installation and Rocker Switch Wiring 13
Optional Wall Switch, Thermostat or Remote Control. Suggested wiring. 14

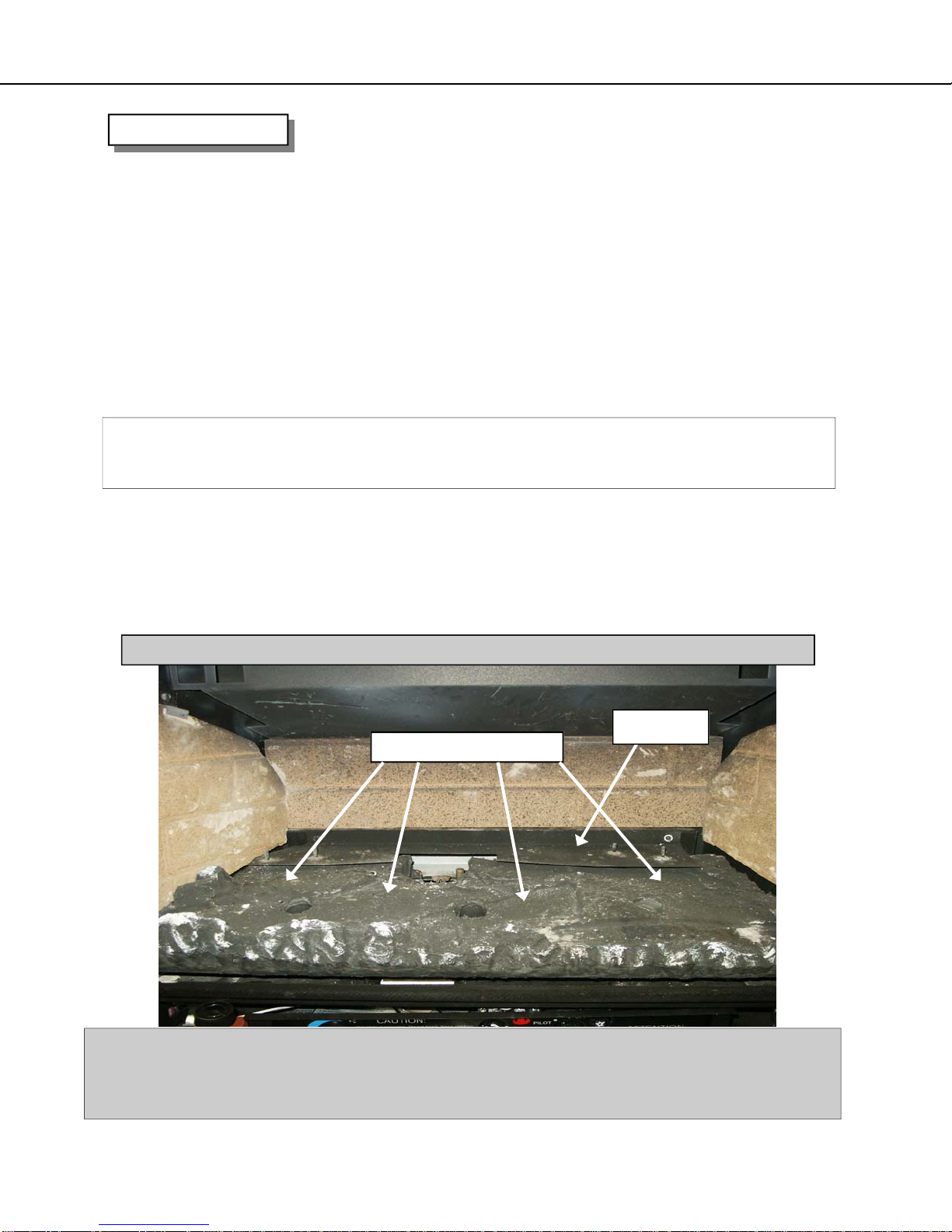

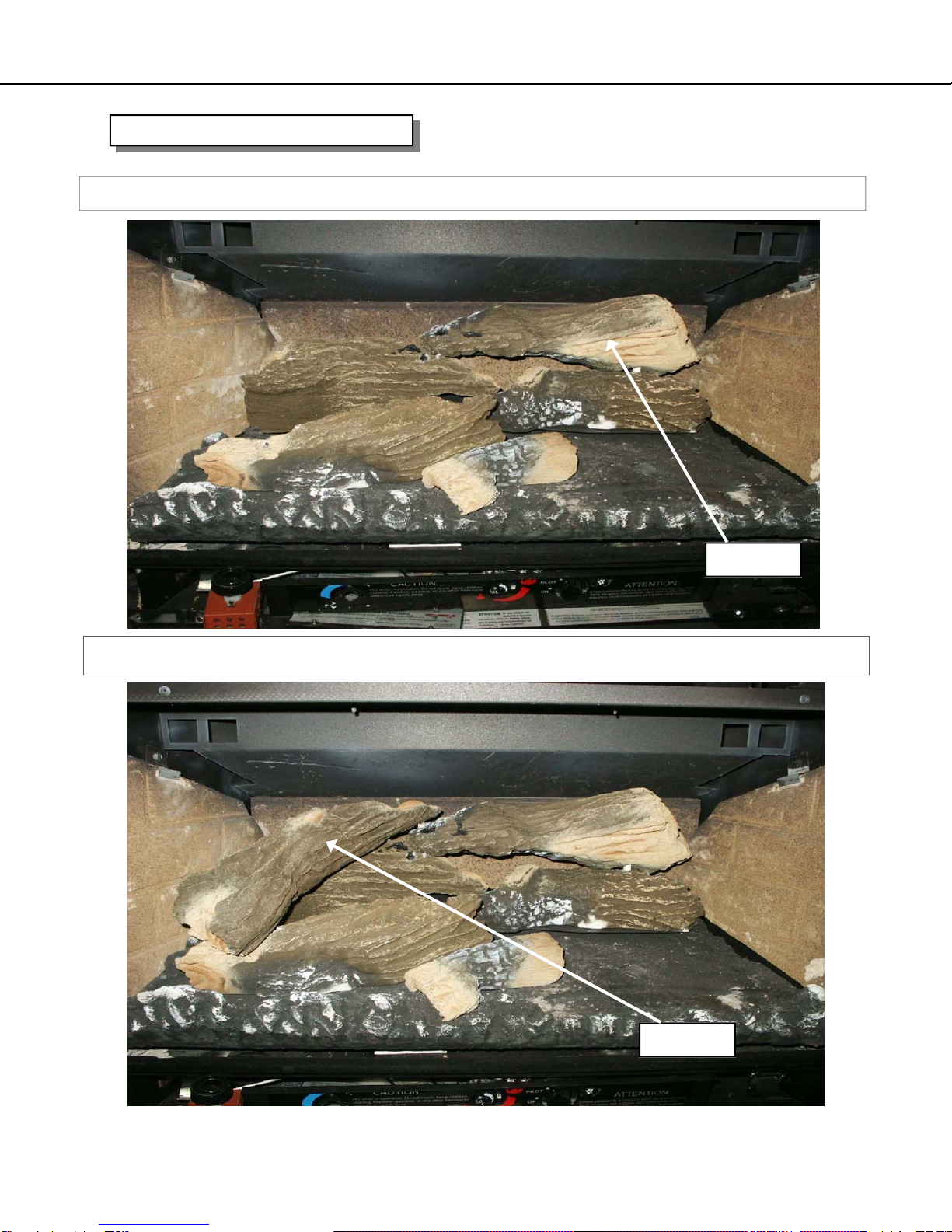

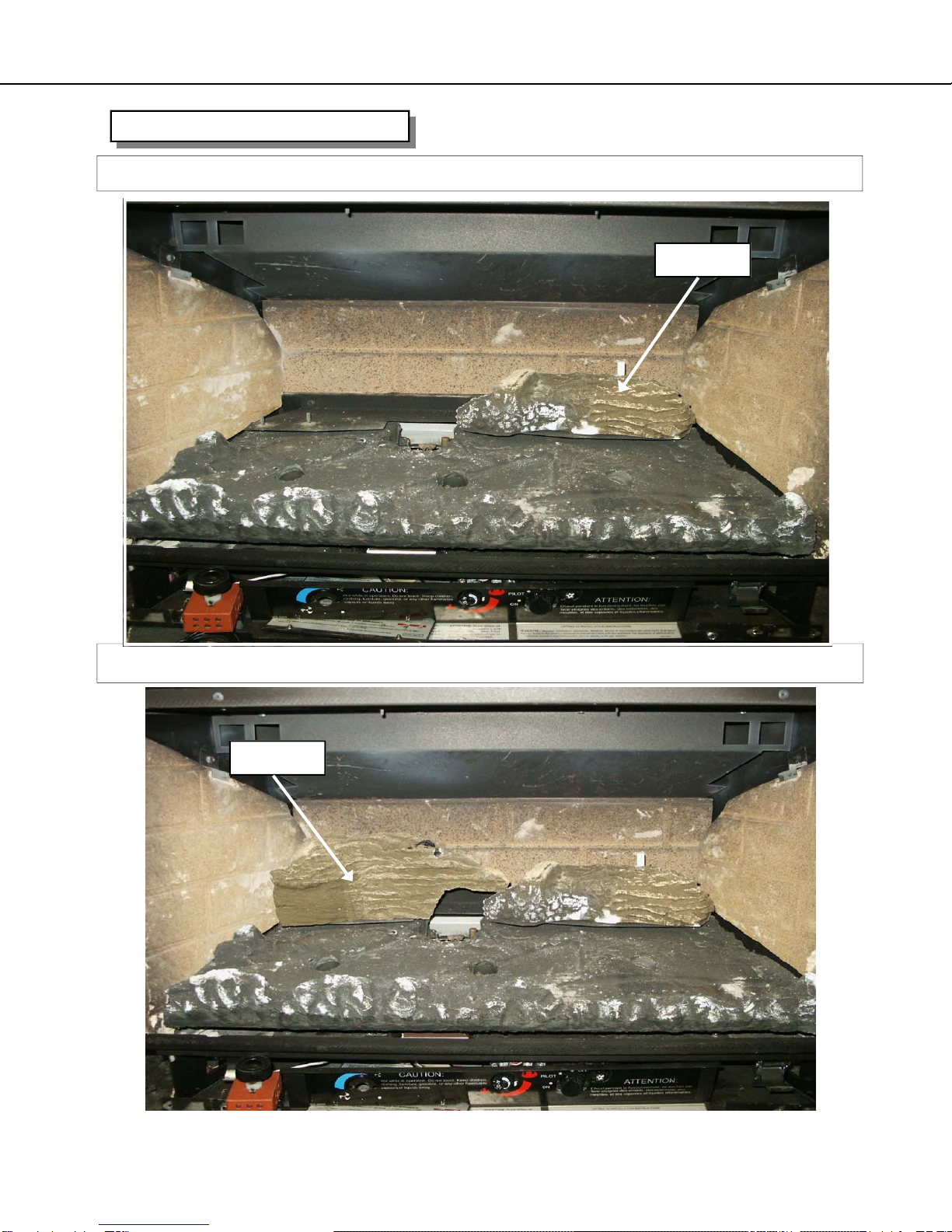

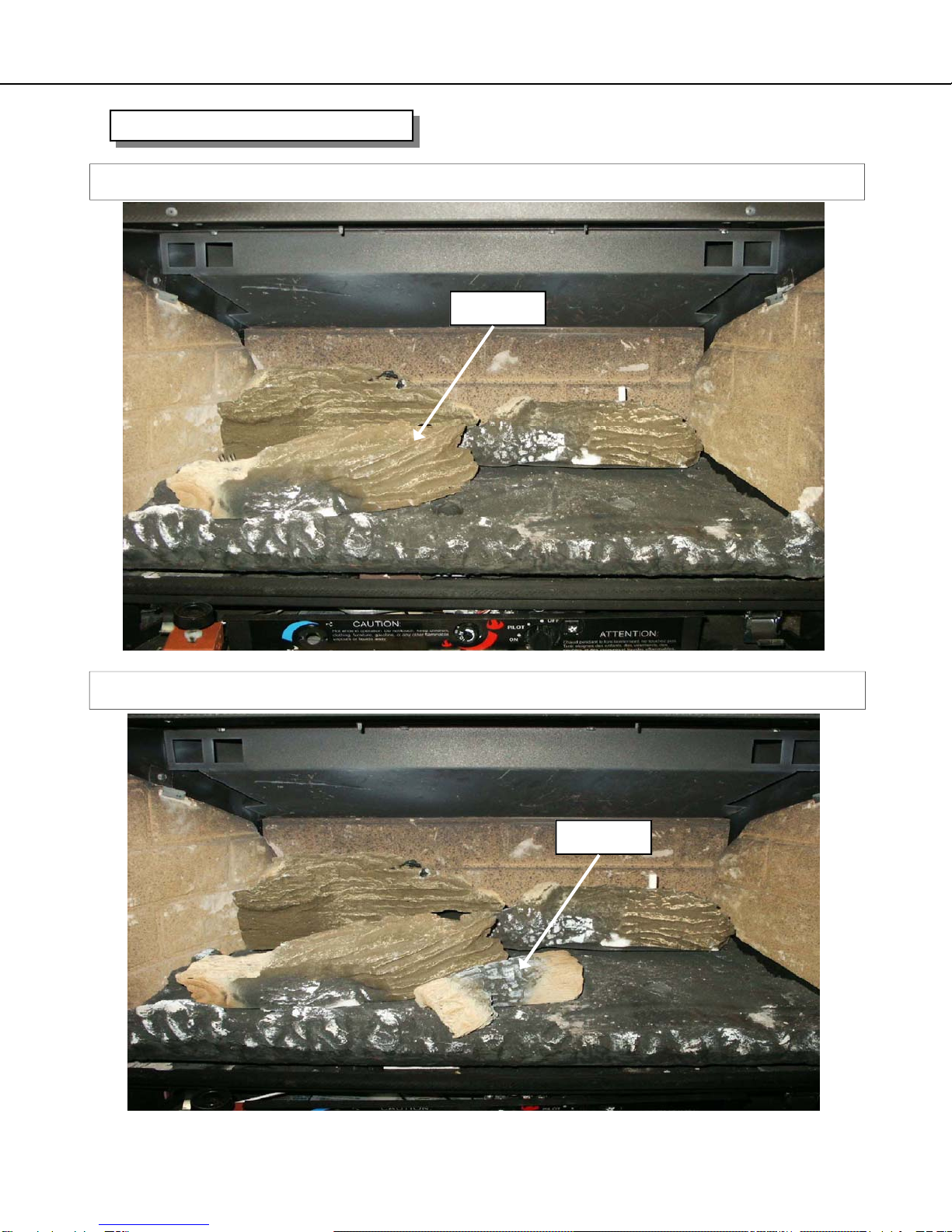

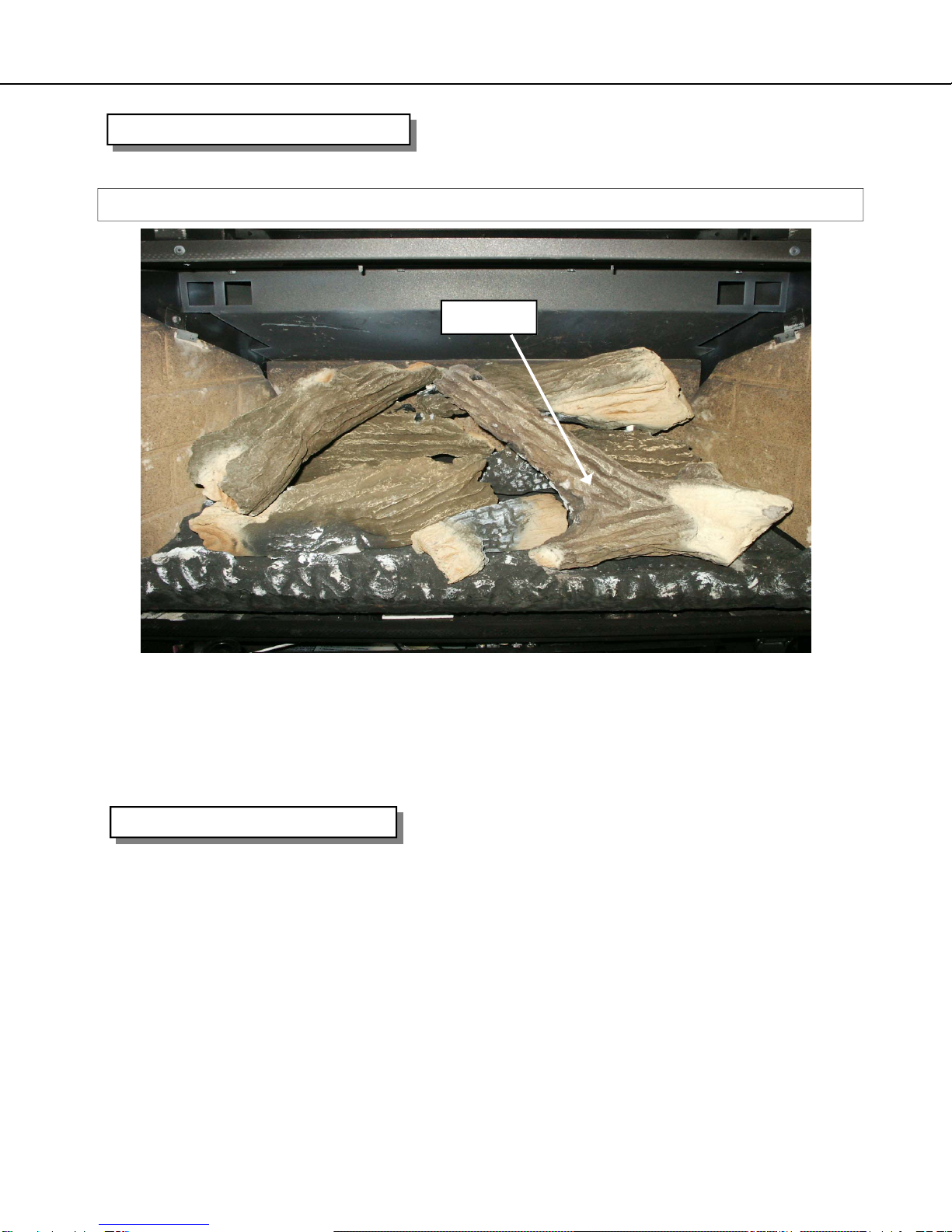

Log Placement (FiberFlame Log Set) and Ceramic Brick Panels (Liner) 15 - 19
Final Installation Check and Initial Operation 20
First Fire and Lighting Instructions (CAUTION) 21
Lighting Instruction on Rating Plate 22
Glass Door Removal / If Your Glass Should Break 23
Optional Bay Door Installation Instructions 24
Troubleshooting Guide 25 - 26
Maintenance and Cleaning the Appliance 27
Servicing Under Warranty and Adjusting Primary Air 28
Adjusting Primary Air (Continued) and Changing Main Burner Orifice 29

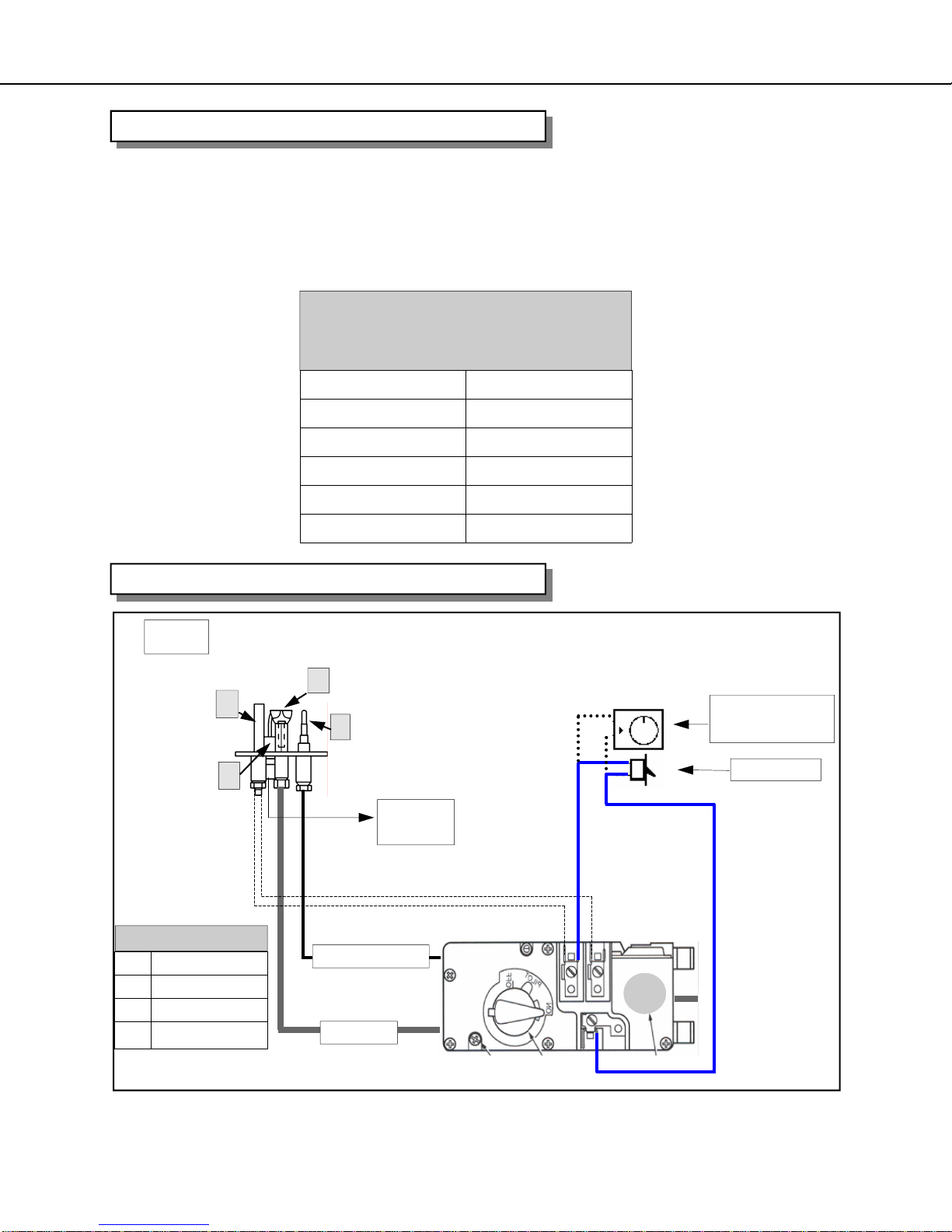

Checking Inlet/Outlet gas pressures, Adjusting Pilot and Convertible Pilot Orifice 30
Replacing Convection Blower & Wiring Diagram 31
Valve Tray Assembly and Parts List 32
FiberFlame Logs & Burner Bed Assembly and Parts List 33
Replacement Parts List - General Parts 34 - 35
Warranty 36
Frequently Asked Questions 37
Notes 38
Warranty Registration Card 40
• Optima 32-1 pictured on the front cover is shown with Optional Gold Overlay
(Part # GO-32/35) and Contoured Surround (Part # ESK-32R)

Optima 32 - 1 5
Due to high temperatures, the appliance should be located out of traffic and away from furniture
and draperies.
Children and adults should be alerted to the hazards of high surface temperature and stay
away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Do not operate with cracked or broken glass. Be careful not to strike or slam the glass.
Any safety screen or guard removed for servicing an appliance must be replaced prior to
operating.
Installation and Repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent
cleaning may be required due to excessive lint from carpeting, bedding materials, et cetera. It is
imperative that the control compartments, burners and circulating air passageways of the
appliance are kept clean.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
CAUTION
FOR YOUR SAFETY - Do not install or operate your Archgard Optima 32-1 Direct Vent Gas
Insert without reading and understanding this manual. Any installation or operational deviation
from this instruction manual voids the Archgard Industries Warranty and may prove hazardous.
This appliance must be installed by a qualified gas installer and the installation must conform to
the installation codes.
Provide adequate clearance around air openings of the appliance.
Never obstruct front openings.
Provide adequate clearances for proper operation and servicing of the appliance.
This appliance must be properly connected to an approved venting system and must not be
connected to a chimney flue serving a separate solid fuel burning appliance.
SAFETY

Optima 32 - 1 6
This appliance is tested and certified to the following USA and Canadian gas appliance
standards.
- ANSI Z21.88b-2003 / CSA 2.33b-2003, Vented Gas Fireplace Heaters,
- CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes
Please contact Archgard Industries Ltd., if you have any questions regarding the certification of
this appliance.
APPLIANCE CERTIFICATION
INSTALLATION CODES
This appliance must be installed by a qualified gas appliance installer.
The installation must conform with the local codes or, in the absence of local codes, with the
current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code, CAN/
CGA-B149, in Canada. Electrical connections and grounding must conform with local code, or
current National Electrical code, ANSI/NFPA No. 70-1987, in the US and in Canada, the
current Canadian Electrical Code, CSA C22.1.
SPECIFICATIONS
Natural Gas (NG) Propane (LP)
Manifold Pressure 1.6 - 3.5 in. w.c. (0.4 - 0.9 kPa) 6.3 - 10.0 in. w.c. (1.6 - 2.5 kPa)
Min. Supply Pressure
Max. Supply Pressure 4.5 in. w.c. (1.2 kPa)
14.0 in. w.c. (3.5 kPa)
11.0 in. w.c. (2.8 kPa)
14.0 in. w.c. (3.5 kPa)
Orifice Size #35 DMS (2.8 mm dia) #51 DMS (1.72 mm dia)
Nominal Input Rating 23,000 - 34,000 BTU/hr
(6.7 - 9.8kW)
26,000 - 34,000 BTU/hr
(7.7 -9.8kW)
Electrical Rating 120 volt (a/c), 2.0 amp, 60 Hz. 120 volt (a/c), 2.0 amp, 60 Hz.
Gas Control Milli-Volt (Quick Drop-out), Hi/Lo Milli-Volt (Quick Drop-out), Hi/Lo
Altitude 0 - 4,500 ft. (0 - 1372 M) 0 - 4,500 ft. (0 - 1372 M)
Primary Air Opening 50% OPEN FULLY OPEN
HIGH ALTITUDE INSTALLATION
When installing this appliance beyond 4500 ft. (1372 M) above sea level, the appliance must
be properly de-rated and installed according to local codes, in the absence of local codes, with
the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code,
CAN/CGA-B149, in Canada.

Optima 32 - 1 7

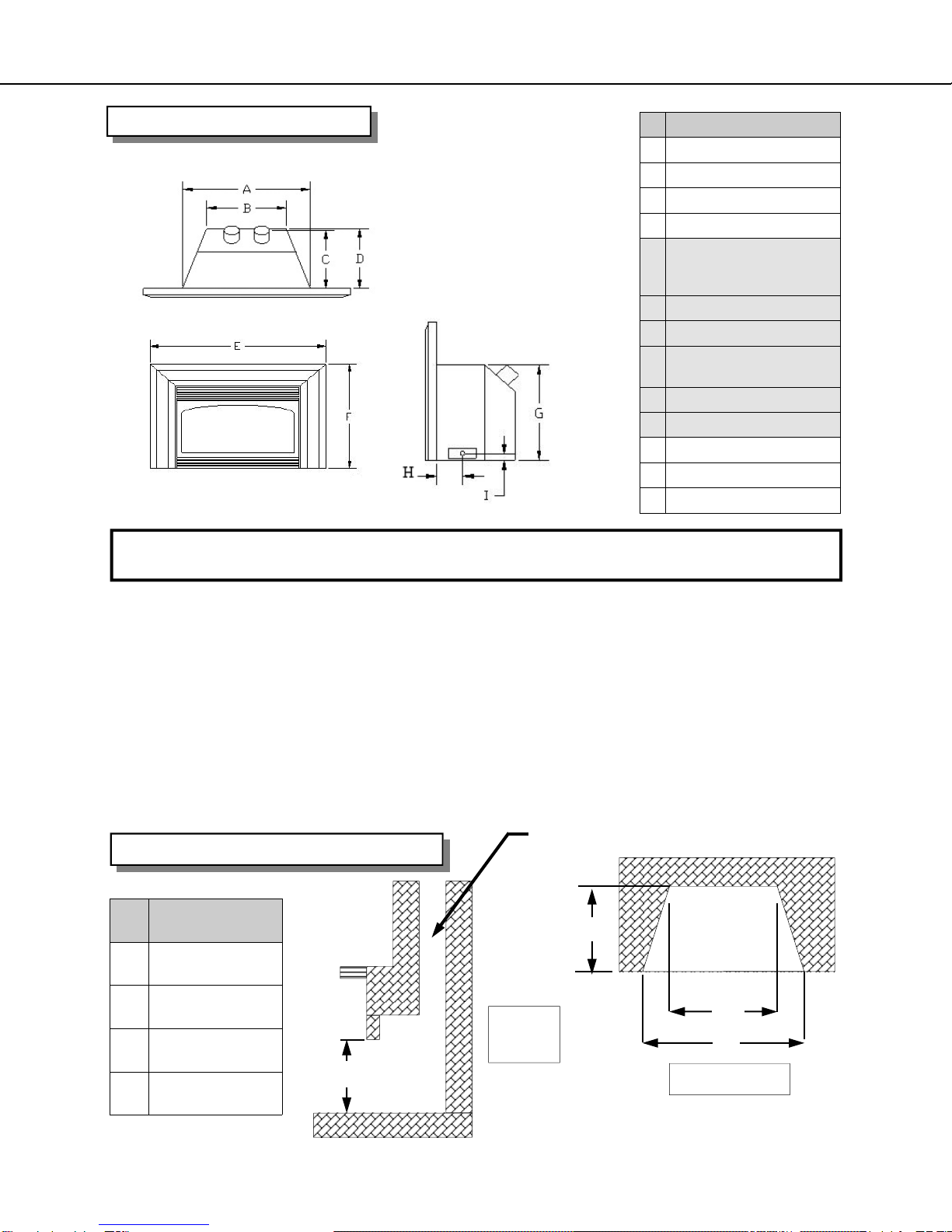

MINIMUM FIREPLACE DIMENSIONS
J
SIDE
VIEW
TOP VIEW
L
M
K
APPLIANCE DIMENSIONS DIMENSIONS
A 25-5/8” (651 mm)
B 16” (406 mm)
C 14” (356 mm)
D 14-1/8” (359 mm)
DSK-32 or ESK-32
(STANDARD SUR-
ROUND)
E 41-1/2” (1054 mm)
F 27-3/4” (705 mm)
LSK-32 (LARGE FLAT
SURROUND)
E 47-1/2” (1207 mm)
F 30-3/4” (7457 mm)
G 19-7/8” (505 mm)
H 3-3/4” (93 mm)
I 1-1/4” (32 mm)
DIMENSIONS
J 20” (508 mm)
K 15-3/4” (400 mm)
L 16-1/2” (419 mm)
M 27” (685 mm)
Warning: Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
The installer must mechanically attach the marking supplied with the gas fireplace insert to the inside of the firebox of
the fireplace into which the gas fireplace insert is installed.
Cutting of any sheet-metal parts of the fireplace, in which the gas fireplace insert is to be installed, is prohibited.
If the factory-built fireplace has no gas access hole (s) provided, an access hole of 1 1/2” (37.5 mm) or less may be
drilled through the lower sides or bottom of the firebox in a proper workmanship-like manner. This access hole must
be plugged with non-combustible insulation after the gas supply line has been installed.
The fireplace flue damper can be fully blocked open or removed for installation of the gas fireplace insert.
The fireplace and fireplace chimney must be clean and in good working order and constructed of non-combustible
materials. The chimney cleanouts must fit properly.
Refractory, glass doors, screen rails, screen mesh and log grates can be removed from the fireplace before installing
the gas fireplace insert.
Smoke shelves and baffles may be removed if attached by mechanical fasteners. Trim panels shall not seal ventila-
tion openings in the fireplace.
Min flue size required 4” (102) x 7” (178)

Optima 32 - 1 8

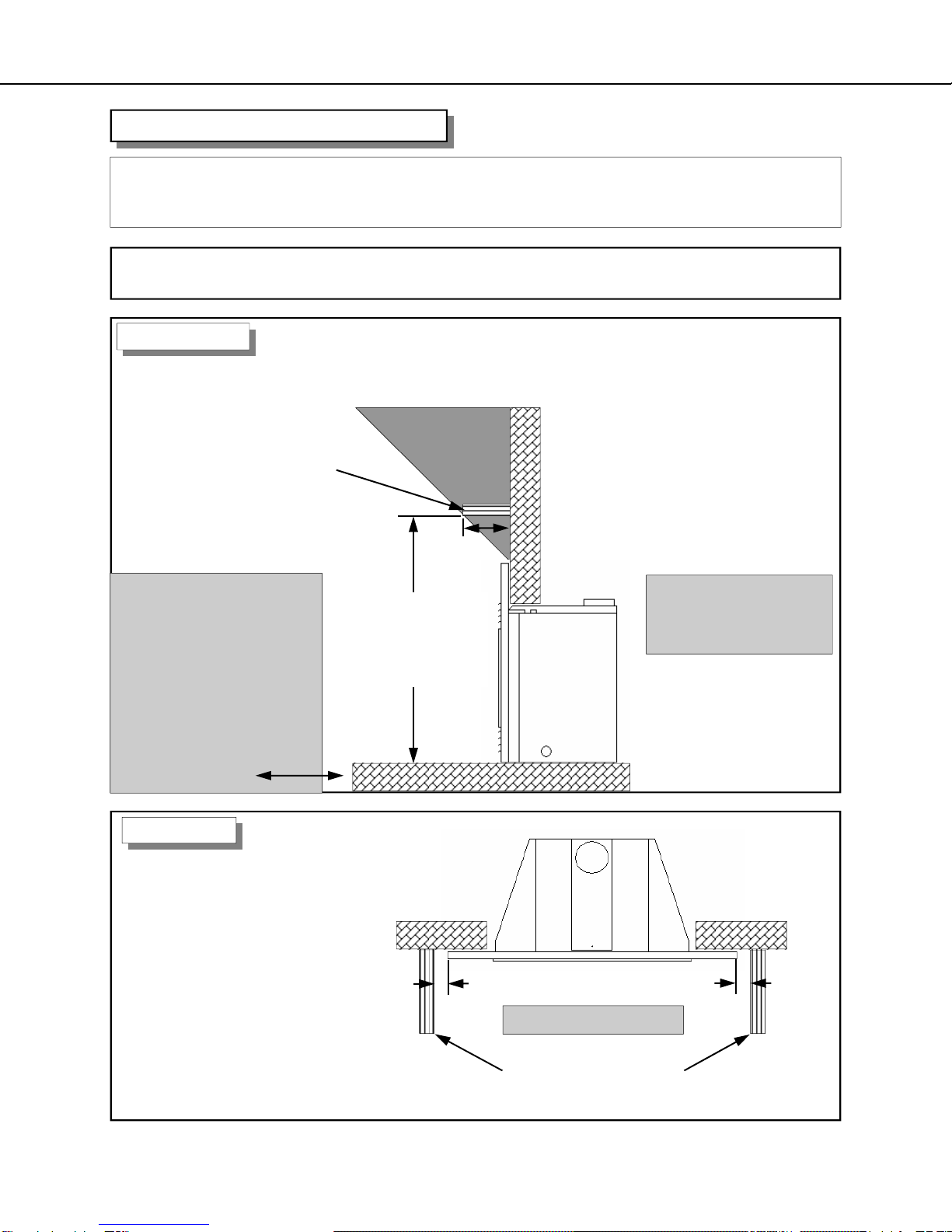

CLEARANCES TO COMBUSTIBLES
TOP VIEW
SIDE VIEW
Clearances to Faceplate
1” (25 mm) 1” (25 mm)
Sidewalls or Mantle Supports
CAUTION: This appliance is designed for used in any masonry or factory built wood burning
fireplace. It cannot be enclosed by combustible material and used as a built-in gas fireplace.
WARNING: Failure to position the parts in accordance with these diagrams or failure to use
only parts specifically approved with this appliance may result in property damage or personal
injury or loss of life.
Combustible mantle allow in
shaded area. Mantle extension
maybe increased 1” (25 mm) for
each additional 1” (25 mm)
increase in clearance height.
Example: If using a 5” (127 mm)
reduce minimum height to
36” (914 mm).
If using a 4” (100 mm) reduce
minimum height to 35” (889 mm)
Note: With bay window
attached clearances
remain the same.
6” (152 mm)
Minimum Height
From Bottom of
Appliance: 37”
(940 mm) with a
6” (152 mm) mantel.
Note:
If existing wood fireplace
hearth protection is
removed it must be
replaced by a non
combustible hearth
protection extending
16” (406 mm) from the
front of the
fireplace insert.
Minimum 1” (25 mm)
clearance is required from the
faceplate (fireplace surround)
to a sidewall or mantle
support. See APPLIANCE
DIMENSIONS for surround
sizes.

Optima 32 - 1 9
Before connecting the appliance to the gas supply line, double check that the appliance you
have purchased is designed for the gas type you are using. The gas type markings are located
on the certification label and also on the appliance’s gas valve.
Adequate clearance for proper installation and checking of the gas connections must be
provided. All gas connections must be checked for gas leaks.
GAS CONNECTIONS
Have your gas supplier or a qualified gas fitter run a gas supply line into the fireplace.
The line must be properly sized and fitted according to the installation codes. Immediately up
stream of the supply connection, the fitter shall provide an accessible manual shut-off valve
and a 1/8 (3 mm) NPT plugged tapping accessible for connection to a test gauge. When
connecting the supply line to the gas valve, the installer shall brace the gas valve to ensure that
gas valve is not moved from its bracket. If the valve is not braced when the supply line is
connected, the valve may be moved and cause a “break” in the main burner supply line. Such
damage is not covered by the manufacturer’s warranty.
CAUTION: The appliance and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure-testing of that system at test pressures in excess of
1/2 psig (3.5 kPa). The appliance must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure-testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig (3.5 kPa). Failure to do so will damage
the appliance’s gas valve. Such damage is not covered by the manufacturer’s warranty.
Natural Gas Pressure Settings:
The inlet supply or line pressure must be a minimum of 4.5” wc (1.1 kPa) and a maximum of 8”
wc (2 kPa). The orifice is a #35 DMS (2.79 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft (0-1372 M) 34,000 BTU/hr (9.8 kW)
4500 ft (1372 M) and above. 34,000 BTU/hr (9.8 kW) less 4% per 1000 ft. (305 M)
Please contact your local utility or distributor for the appropriate orifice size you require.
Propane Pressure Settings:
The inlet supply or line pressure must be a minimum of 11” wc (2.8 kPa) and a maximum of 14”
wc (3.5 kPa). The orifice is a #50 DMS (1.79 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft. (0-1372 M) 34,000 BTU/hr (9.8 kW)
4500 ft. (1372 M) and above. 34,000 BTU/hr (9.8 kW) less 4% per 1000 ft. (305 M)
Please contact your local utility or distributor for the appropriate orifice size you require
NOTE: THE INPUT RATING SHOULD ALWAYS BE CHECKED WHEN FIRST RUNNING
THIS APPLIANCE. To do this, reduce the background flow rate, time the meter, light the
fireplace and take another reading after 15 minutes of operation. Check with your gas supplier
for the gas BTU content at your elevation. Input is the rate of flow multiplied by the heating
value of the gas (cubic feet/hour x BTU per cubic feet). Adjust the manifold pressure so that
the unit does not operate above the rated input.

Optima 32 - 1 10
LEVELING THE OPTIMA 32-1 DIRECT VENT INSERT
Before placing the appliance into the fireplace, check the hearth of the fireplace to see if it is
level with the front of the fireplace. If it is not, measure the depth of the hearth. Loosen the
three screws of the leveling “L” bracket at the back of the appliance. Lower it to the
measurement obtained and tighten the screws.
APPLIANCE DESCRIPTION
ELECTRICAL CONNECTIONS
The Optima 32-1 comes complete with a temperature activated fan and rheostat installed and
wired to a three-prong (grounding) plug for your protection against shock hazard and should be
plugged in directly into a properly grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug.
NOTE: This appliance, when installed, must be electrically grounded in accordance with local
codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or
the Canadian Electrical code, CSA C22.1.
FRONT VIEW
Bottom
“grill” louver
Ceramic
Glass with
standard
black arch
door frame
Top “grill”
louver
Surround
“Faceplate”
Ceramic Brick
“panel” liner
FiberFlame Log
Set & Burner
System
TOP VIEW
On/Off
Rocker
Switch
Gas Inlet side
and power cord
outlet
Exhaust Fresh Air Intake

Optima 32 - 1 11
The Optima 32
Requires two
Flexible gas flue
liners
Flue Collar (inlet) -
3” (76 mm) diameter
Flue Collar (outlet) -
3” (76 mm) diameter
Caution: Only two 3” (76 mm) “FLEX-MASTER” Model GA gas flex vent liners (or approved equivalent)
and a vent terminal is approved for use with this appliance.
Approved vent terminals are:
Archgard terminal. Part # TK-40/32.
Simpsons Dura-Vent terminal. Part #980, 923GK (adaptor with flashing) or 991 (high wind cap)
NO OTHER VENTING SYSTEM OR COMPONENTS MAY BE USED. If you are using “Dura-Vent” verti-
cal termination cap, follow the instructions provided with the “Dura-Vent” cap.
This appliance is designed to attach to two 3” (76 mm) co-linear aluminum flex gas liners running the full
length of the chimney. The flue length must be a minimum of 8’ (2.44 M) and a maximum of 35’ (10.6 M)
(The exhaust vent restrictor provided with this appliance must only be used by installing it in the
exhaust collar, before attaching the flex liner, on Natural gas units with vent heights to 20’ (6.1 M)
restrictor #1 20’ and above restrictor #2). Also refer to the following page for details. The minimum flue
size is 4” x7” (100 mm X 178 mm).
Masonry chimneys may take various contours which the flexible liner will accommodate, however, keep
the flexible liner as straight as possible, avoiding unnecessary bending but at all times keep a minimum of
3” (76 mm) inside bend radius.
The Air Intake Flex Liner must be connected to the inlet air collars of the termination cap and the appli-
ance. The Exhaust Flex Liner must be connected to the exhaust collars of the termination cap and the
appliance. (DO NOT MIX-UP THESE CONNECTIONS).
The Air intake and Exhaust connections are marked on the gas appliance. See Fig. 1.
CAUTION: To ensure that the venting path is not accidentally obstructed or punctured, the
damper of the host fireplace must be permanently disabled by either complete removal of the
damper, or welding it in its “open” position. Temporarily disabling the damper with braces,
wedges, brackets, etc., is not allowed.
VENTING INSTRUCTIONS
WARNING: Operation of this heater when not connected to a properly installed and main-
tained venting system can result in carbon monoxide (CO) poisoning and possible death.
The appliance must not be connected to a chimney flue serving a separate solid fuel
burning appliance.

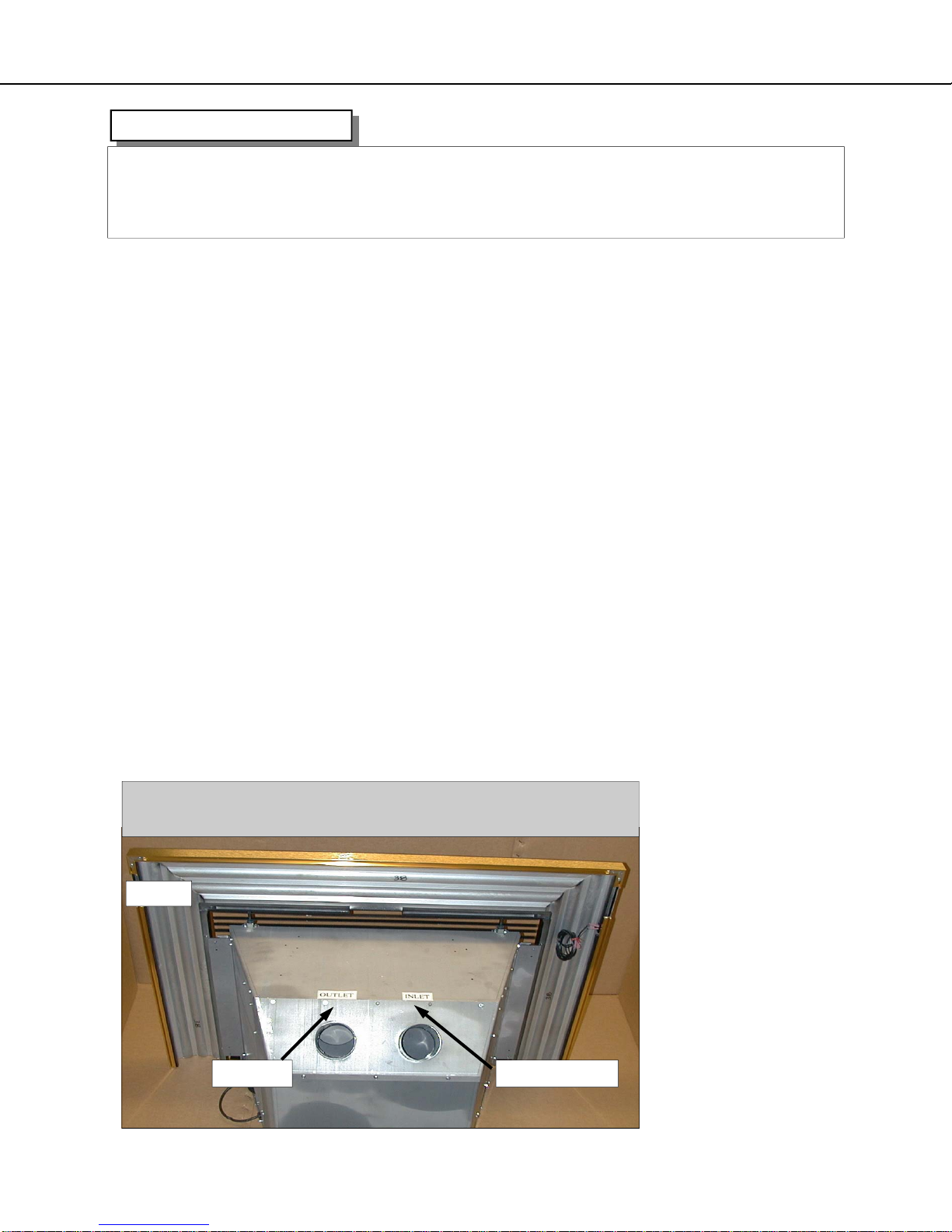

Fresh Air IntakeExhaust
The Optima 32 showing the Exhaust and Fresh Air Intake locations.
These connections are labeled for you.
Fig 1.

Optima 32 - 1 12
Instructions for use with Archgard vertical termination cap. Part # TK-40/32.
Install the termination cap being sure to provided sufficient space (around and on top) so as not
to impede the flow of air, both into and out of the cap. This cap is only to be used for non com-
bustible installations. Do not recess into the top of the chimney.
1. Mark each end of one liner with “Air Intake”.
2. Mark each end of the second liner with “Exhaust”.
3. Pull the liner through the chimney.
4. Install the flashing. Do Not bend or cut the flashing in any way.
5. Seal and attach the liner marked “Air Intake” to the vent terminal pipe marked “Air Intake” with the collar
clamp provided.
6. Seal and attach the liner marked “Exhaust” to the vent terminal pipe marked “Exhaust” with the collar clamp
provided.
7. Seal and attach the end of the flex marked “Air Intake” to the collar marked “Air Intake” on the appliance
with the collar clamp provided with the unit.
8. Install the exhaust vent restrictor provided with the unit on Natural Gas appliances with 20’ (6.1 M) and
above vent height installations ONLY Seal and attach the end of the flex marked “Exhaust” to the collar
marked “Exhaust” on the appliance with the collar clamp provided with the unit..
10. Caulk all joints as usual.
NOTE: The vertical termination cap must be sealed to the liner with suitable high temperature sealant and with the
hose clamps fasteners provided. The liners must form a complete connection from the appliance flue collars to the
vertical termination cap.
VENTING INSTRUCTIONS TK-40/32
The minimum flue (chimney) size required to run the two 3” (76 mm) is 4” x 7” (100 mm X 178 mm)
Front view of
DV Insert
Air Intake
Collar
Exhaust
Exhaust
Collar
3” (76 mm)
Flex Liner
Fresh Air
Intake
Min. vent height 8’ (2.44 M)
Max. vent height 35’ (10.6 M)
Vertical Termination
cap Part # TK-40/32
Place Vent Restrictor
in the position shown
(on the exhaust collar
before attaching the
Flex Liner) ONLY
when operating with
NATURAL GAS with a
VENT OF up to
20’ (6.1 m) restrictor
#1 AND 20’ (6.1 m)
ABOVE restrictor #2
Note Vent restrictor # 1 is the
item with the notch (restrictor #
2 shown in picture

Optima 32 - 1 13
SURROUND INSTALLATION
Make sure the gas and electrical lines are properly connected to the appliance. Slide the unit
into the fireplace and slide the excess flue liner material back onto the chimney. Before the ap-
pliance is fully recessed into the fireplace, attach the surround onto the appliance. The return
flange on the side of the surround fits on the inside of the mounting rails on the appliance.
Attach the surround to the appliance at the locations shown with the four (4) screws
provided. Then finish with the wiring connection to the on/off switch on the side of the trim.
Now fully “seat” the unit into its final position.
SCREW
LOCATIONS
CAUTION:
Only Trim kit (s) supplied by
the manufacturer shall be
used in the installation of this
appliance.
1. Using the trim clips provided, join the left side trim (which has a notch cut for rocker switch)
to the top trim as shown in (Fig.1). Repeat with the right side trim.
2. Peel the backing from the sticky tape, then slip the assembled trim over the surround.
3. Locate the rocker (on/off) switch (with the ON side up) and push it in the notch located on the
left side.
4. Remove the coiled wires from the left side of the firebox and connect it to the rocker switch
tabs.
5. The switch wires have crimped connections that are factory installed. Simply connect the
crimped connections to the on/off (rocker) switch located on the surround.
Trim Instructions for the Surround
for the DSK, ESK & LSK Surround
Fig. 1
Fig. 2
Fresh Air Intake
On/Off
Rocker
Switch
Exhaust
Gas Inlet side
and power cord
outlet

Optima 32 - 1 14
If a wall-mounted switch or a wall-mounted thermostat is desired, Archgard recommends that
the device be wired as shown in Fig 1. This will allow the original on/off rocker switch to be
used in case the device that is mounted to the wall becomes inoperable.
Note: Archgard Industries does not manufacture or sell any wall switch or wall thermostat, and
will not extend warranty to them.
OPTIONAL WALL SWITCH OR THERMOSTAT
Thermostat / wall switch wire table
Recommended Maximum Lead Length
for two wires.
Wire Size Max. Length
14 GA. 50 Ft. (15.24 M)
16 GA. 32 Ft. (9.75 M)
18 GA. 20 Ft. (6.9 M)
20 GA. 12 Ft. (3.65 M)
22 GA. 9 Ft. (2.74 M)
Fig. 1
B
A
C
D
SUPPLY TUBE
THERMOCOUPLE LEAD
WIRE TO
PIEZO
(SPARKER)
ON/OFF SWITCH
OPTIONAL REMOTE,
WALL SWITCH, OR WALL
THERMOSTAT
A ELECTRODE
B THERMOPILE
C PILOT CAP
D THERMOCOUPLE
PILOT ASSEMBLY
VALVE CONNECTION for MILLIVOLT VALVE

Optima 32 - 1 15
LOG PLACEMENT
NOTE:
Installing the “FiberFlame” Ceramic logs in any other position other than shown will result in flame
impingement causing sooting of the logs, brick liner and ceramic glass viewing area.
WARNING:
Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
The Archgard “FiberFlame Technology Burner System” of ceramic logs is designed to give a
realistic fire package, and created to look the same as the day they were originally installed.
Care must be given when first installing the logs, and if removed for servicing, as they can be
damaged or broken if not handled properly.
After opening the log set package, inspect the logs to ensure that no damage has occurred in-
side the package. Please report any damage immediately to your Authorized Archgard Dealer.
Gas and vent connection must be made before installing the logs on the “FiberFlame” bed.
NOTE: Improper placement of logs may cause sooting on the internal parts and glass, and will
not be covered under warranty. Do not use broken or damaged logs.
The ember bed is pre-formed to accept the first four “base” logs. Locate the first four base logs, and place
them on their perspective locations. Refer to the pictured instructions on the following pages that will show
how to place all seven (7) logs. The bottom of each log has a 2 digit code that can be used as a reference
to help locate the correct log.
IMPORTANT: DO NOT PLACE ANY LOGS OVERTOP OF THE BURNER “PORTS”.
Pre-formed log locations
FiberFlame Burner Bed and Rear Log Rest
Rear log rest

Optima 32 - 1 16
LOG PLACEMENT... Continued
Step 1. Locate Log with 12 stamped on the bottom and place it on the log rest as shown.
Step 2. Locate Log with 80 stamped on the bottom and place it on the log rest as shown.
LOG 12
LOG 80

Optima 32 - 1 17
LOG PLACEMENT... Continued
Step 3. Locate Log with 74 stamped on the bottom and place it on the ember bed as shown.
Step 4. Locate Log with 69 stamped on the bottom and place it on the ember bed as shown.
LOG 74
LOG 69

Optima 32 - 1 18
Step 5. Locate Log with 82 stamped on the bottom and place as shown.
Step 6. Locate Log with 83 stamped on the bottom and place as shown.
LOG PLACEMENT... Continued
LOG 82
LOG 83

Optima 32 - 1 19
The Optima 32-1 comes with a set of Ceramic Brick Panels. They are factory installed for your
convenience, therefore no adjustments should be made. If you find any damage to the Ce-
ramic Brick Panels please contact your Authorized Archgard Dealer who sold you this appli-
ance to order replacements.
CERAMIC BRICK PANELS
LOG PLACEMENT... Continued
Step 7. Locate Log 13 and place it as shown.
LOG 13

Optima 32 - 1 20
INITIAL OPERATION
1. Check that the appliance is properly vented and connected to the gas supply.
2. Check that the logs and branches are properly placed.
3. Check that all external parts, such as grills, door and faceplate are properly attached and
fastened.
4. Do not operate this appliance with broken, cracked glass doors or without the door (s) in its
correct (and latched) position. Do not abuse the glass by either striking or slamming shut.
5. Check that there are no finger prints left on gold surfaces or glass panels as high
temperature can bake these prints permanently.
FINAL INSTALLATION CHECK
Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and
shipped to our dealers, and finally installed in your home. Archgard recommends that before
leaving this unit with the customer, the installer must ensure that the appliance is firing
correctly and that the electrical system is in working order. This will include:
1. Pre-form Leak tests of supply line, gas control valve, supply line from gas control valve and
pilot assembly.
2. Clocking the appliance to ensure the correct firing rate (see page 9 of this manual).
3. If required, adjusting the primary air to burner to ensure that the flame does not carbon or
soot. (see page 28 of this manual) .
4. Check for proper operation including correct drafting.
5. The FAN system should be turned ON for a minimum of 10-15 minutes to ensure that the
fan, rheostat and fan sensor are all working correctly. After the system has been checked,
and confirmed that the fan components are in working order, turn the fan system OFF and
refer to the instructions for FIRST FIRE located in this manual.

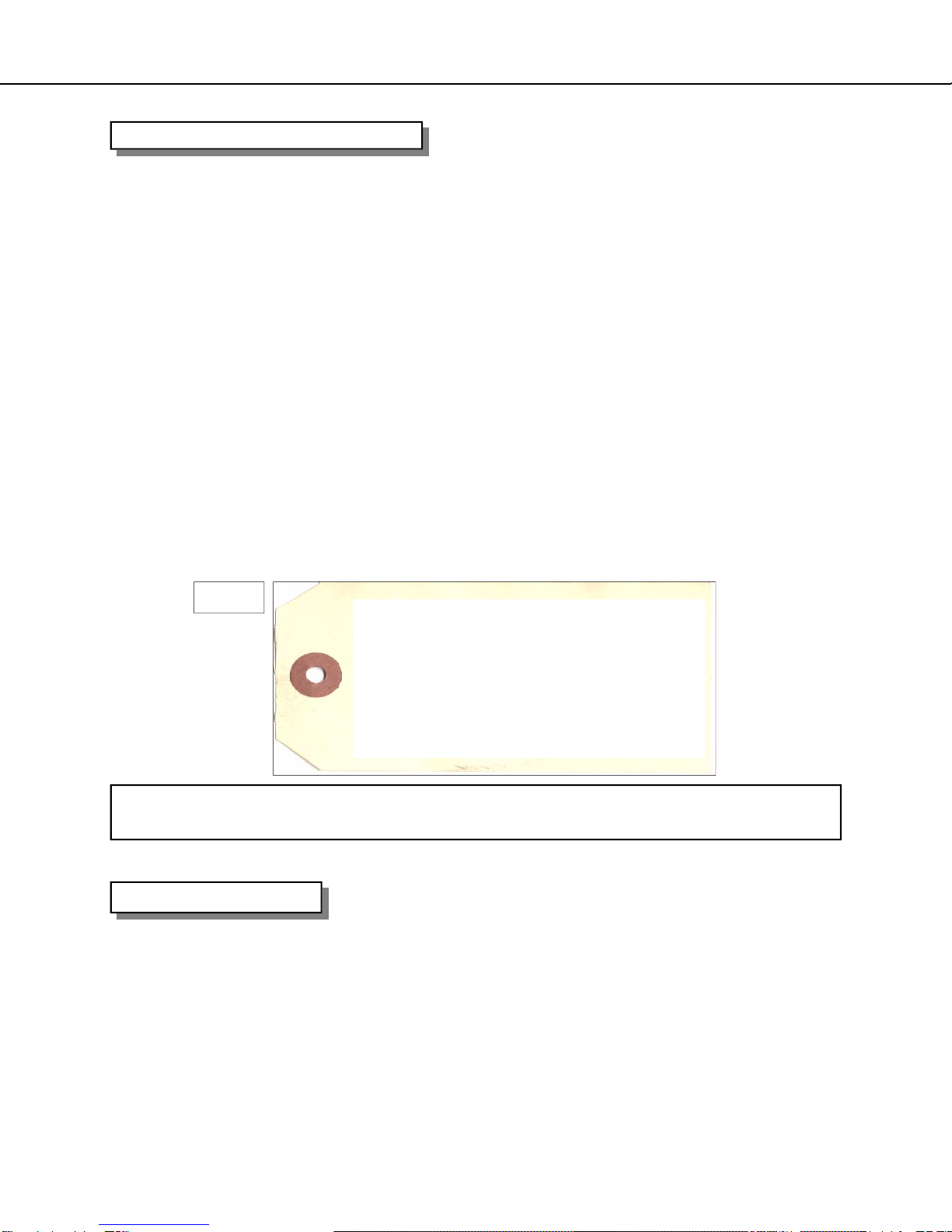

As a reminder, a TAG is attached to all of our gas fireplaces. This TAG is located at the gas
control valve. See Fig 1.
Any alteration to the product that causes carboning or sooting that results in any
damage or requires cleaning is not the responsibility of the manufacturer.
ARCHGARD INDUSTRIES LTD.
*** INSTALLER ***
IMPORTANT NOTICE
ALL GAS AND ELECTRICAL CONNECTIONS
** MUST ** BE CHECKED AND TESTED AT
TIME OF INSTALLATION.
Fig 1.
