Alamo Schulte SRW 1400 User manual

Schulte Industries Ltd.
P.O.Box70
EnglefeldSaskatchewanCanadaS0K1N0
Tel.[phone]
Fax.[phone]
PartsFax.[phone]
Email: [email protected] © 2004Alamo Group Inc.
Published10/04 S/N range R20000381411 to R20000420411inclusive Part No. R200-010C
SRW1400
Pivoting Rock Windrower
OPERATOR'S MANUAL
This Operator's Manual is an integral part of the safe operation
of this machine and must be maintained with the unit at all
times. READ, UNDERSTAND, and FOLLOW the Safety and
Operation Instructions contained in this manual before
operating the equipment.
$0.00
73747 130TH ST
ZEARING IA 50276
641-487-7608
[email protected]
WWW.NESSAINC.COM

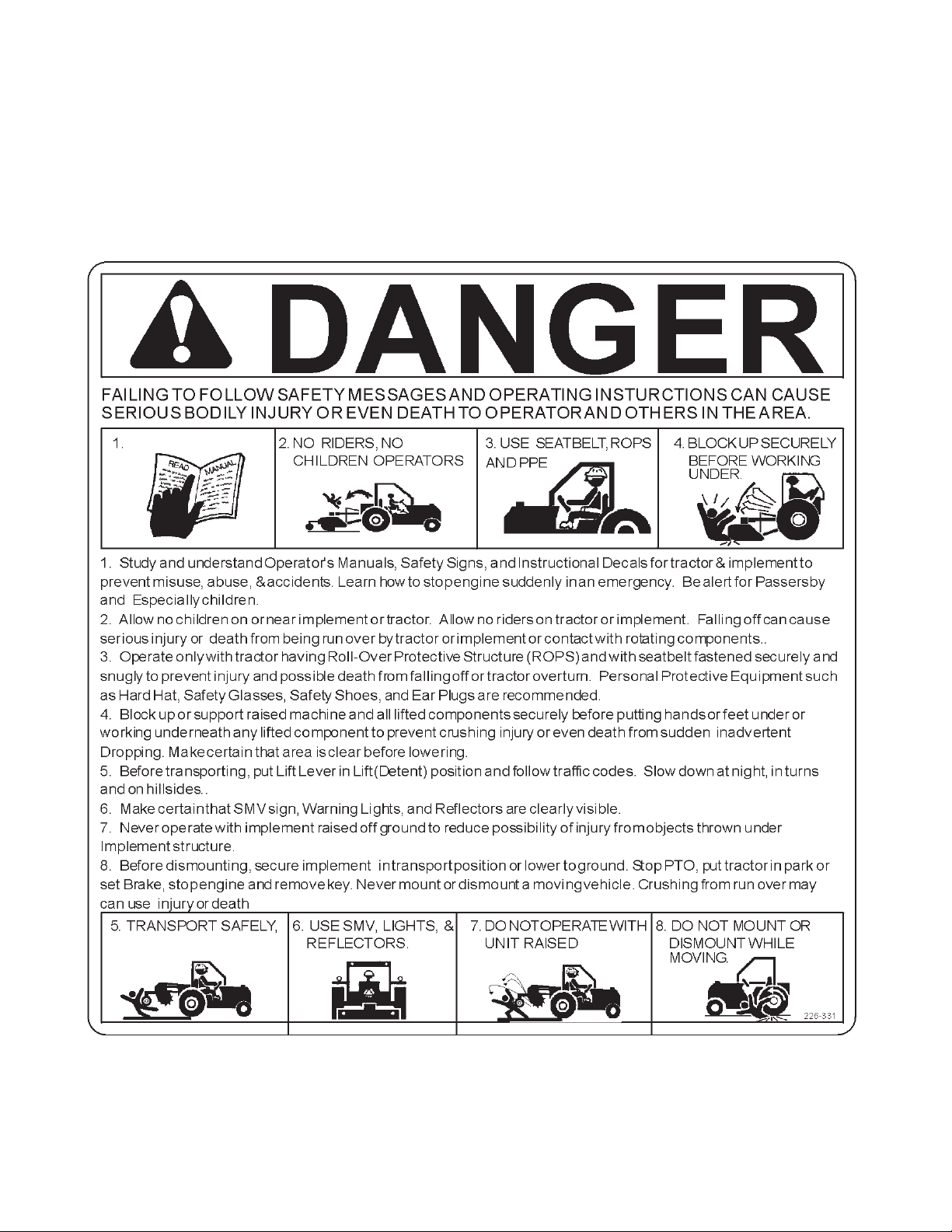

TOTHEOWNER/OPERATOR/DEALER
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded
operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has
designed this implement to be used with all its safety equipment properly attached to minimize the chance of
accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTYINFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration
Form in full and return it to Alamo within 30 Days. Make certain the Serial Number of the Machine is recorded on
the Warranty Card and on the Warranty Form that you retain.

DEALER’S PREDELIVERY SERVICE GUIDE
for the SCHULTE SRW1400
DETAILS OF ITEMS LISTED BELOWARE COVERED IN THIS OPERATOR’S MANUAL
____ Shipping damage corrected
____ Set up machine as outlined in the shipping instructions attached to these instructions.
____ Check that all safety decals are in good condition, replace if necessary.
____ Check that gearboxes have been filled with oil.
____ Check that all grease fittings have been lubricated.
DEALER’S DELIVERY GUIDE
for the SCHULTE SRW1400
____ Mounting and removal from tractor
____ Operation
____ Adjustments
____ Lubrication
____ Maintenance
____ Operator’s safety precautions
____ User’s responsibility and warranty
____ Operator’s manual delivered to owner
____ Operator instructed on contents of owner’s manual

© 2003 Alamo Group Inc.
TABLE OF CONTENTS
Schulte is registered trademark of Alamo Group Inc.
SAFETYSECTION
Safety Decals..................................................................................................................................1-2
Safety Decal Location ....................................................................................................................1-14
SafetyInformation...........................................................................................................................1-16
Federal Laws and Regulations .......................................................................................................1-20
INTRODUCTIONSECTION ................................................................................................................... 2-1
ASSEMBLYSECTION ..........................................................................................................................3-1
Before Operations ..................................................................................................................................3-2
Wheel Adjustments ...............................................................................................................................3-2
ConnectionToTractor ...........................................................................................................................3-2
LevelingTheWindrower.........................................................................................................................3-3
Wheel Lock Pins ...................................................................................................................................3-4
DrivelineShields ....................................................................................................................................3-4
Light Kit .................................................................................................................................................3-5
Pre Customer Delivery Checklist ..........................................................................................................3-6
OPERATIONSECTION ......................................................................................................................... 4-1
MAINTENANCESECTION ....................................................................................................................5-1
Nuts and Bolts .......................................................................................................................................5-2
Bolt Grade and Torque .......................................................................................................................... 5-2
DriveChain .............................................................................................................................................5-2
WindrowTeeth .......................................................................................................................................5-2
DrivelineShields ....................................................................................................................................5-2
Hub and Spindles ..................................................................................................................................5-3
Tightening Intructions For 511 & 517 Hubs........................................................................................... 5-4
Tires .......................................................................................................................................................5-4
Shear Bolts ............................................................................................................................................5-4
Hyrdaulics ..............................................................................................................................................5-5
Slipclutch ...............................................................................................................................................5-5
Lubrication .............................................................................................................................................5-6
LubricationGearbox ..............................................................................................................................5-6
GreaseSchedule ...................................................................................................................................5-7
WindrowerFrame ..................................................................................................................................5-7
DriveChain .............................................................................................................................................5-8
Storage...................................................................................................................................................5-8
Ramlock Disassembly Procedure ......................................................................................................... 5-8

SAFETY
SECTION
Safety Section 1-1
©2003AlamoGroupInc.

Safety Section 1-2
SRW1400 10/04
SAFETY
©2004AlamoGroupInc.
SAFETY
A safe and careful operator is the best operator. Safety is of primary importance to the
manufacturer and should be to the owner/operator. Most accidents can be avoided by being
aware of your equipment, your surroundings, and observing certain precautions. The first
section of this manual includes a list of Safety Messages that, if followed, will help protect the
operator and bystanders from injury or death. Read and understand these Safety Messages
beforeassembling, operatingorservicingthis implement. Thisequipmentshould onlybeoper-
ated by those persons who have read the Manual, who are responsible and trained, and who
knowhowto do so safelyandresponsibly.
TheSafetyAlertSymbolcombinedwitha Signal Word, as seen below, is used throughout this
manual and on decals which are attached to the equipment. The Safety Alert Symbol means:
“ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal
Word are intended to warn the owner/operator of impending hazards and the degree of
possible injury faced when operating this equipment..
CAUTION! The lowest level of Safety Message; warns of possible injury. Decals
located on the Equipment with this Signal Word are Black and Yellow.
WARNING! Serious injury or possible death! Decals are Black and Orange.
DANGER! Imminent death/critical injury. Decals are Red and White. (SG-1)
Practice all usual and customary safe working precautions and
above all---remember safety is up to YOU. Only YOU can prevent
serious injury or death from unsafe practices.
READ, UNDERSTAND, and FOLLOW the following Safety
Messages. Serious injury or death may occur unless care is
taken to follow the warnings and instructions stated in the Safety
Messages. Always use good common sense to avoid hazards.
(SG-2)

Safety Section 1-3
SAFETY
©2004AlamoGroupInc.
SAFETY
SRW1400 10/04
Si no lee Ingles, pida ayuda a alguien que si lo lea para que le
traduzca las medidas de seguridad. (SG-3)
PELIGRO!
!LEA EL INSTRUCTIVO!

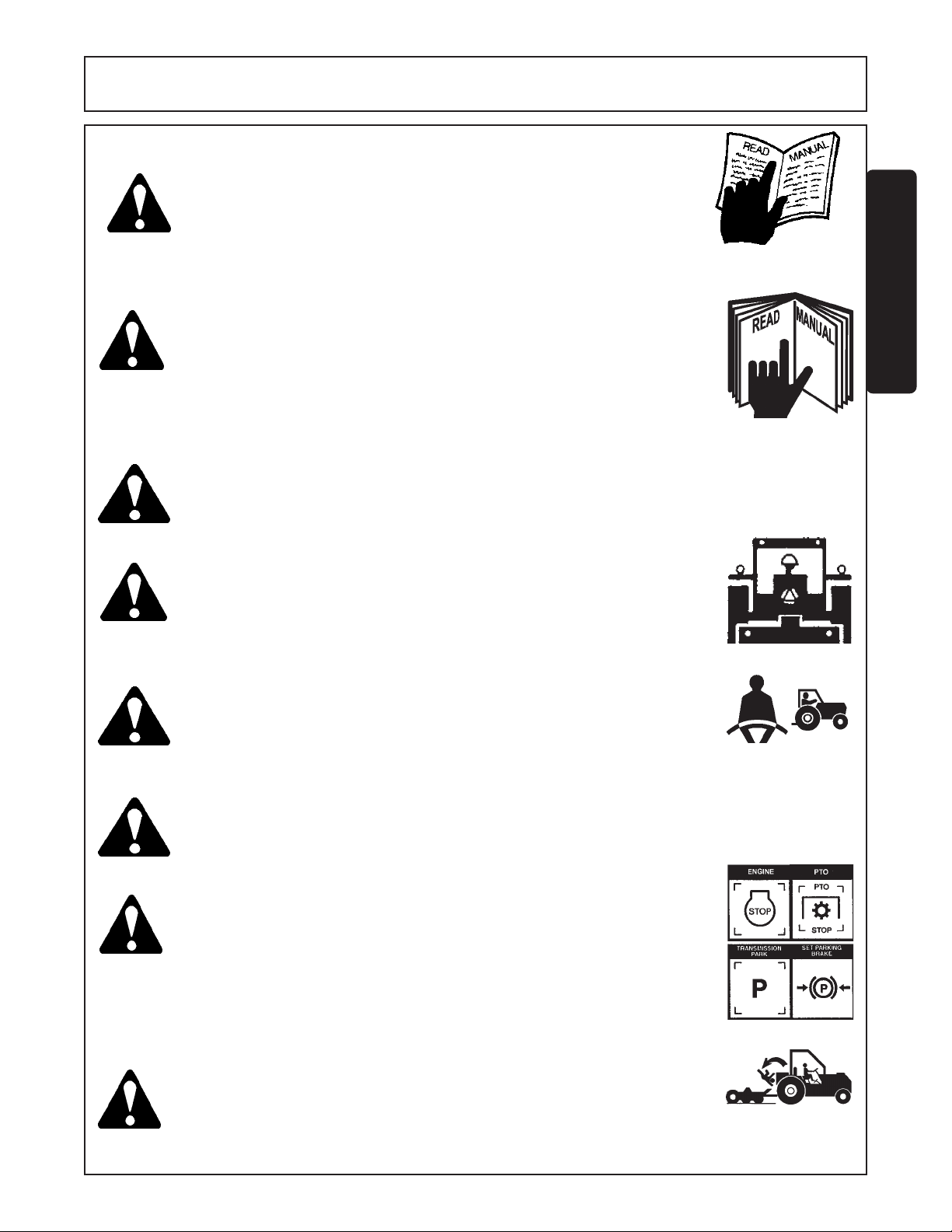

DANGER! Never operate the Tractor or Implement until you have read and
completelyunderstandthisManual,theTractorOperator’s Manual,
and each of the Safety Messages found in the Manual or on the
Tractor and Implement. Learn how to stop the tractor engine
suddenlyinanemergency. Neverallowinexperiencedoruntrained
personnel too operate the Tractor and Implement without supervi-
sion. Make sure the operator has fully read and understood the
manuals prior to operation. (SG-4)
WARNING! Always maintain the safety decals in good readable condition. If the
decalsaremissing,damaged,orunreadable,obtainandinstallreplace-
ment decals immediately. (SG-5)
WARNING! Operate this Equipment only with a Tractor equipped with an ap-
provedroll-over-protectivesystem(ROPS). Alwayswearseatbelts.
Serious injury or even death could result from falling off the tractor-
-particularly during a turnover when the operator could be pinned
under the ROPS. (SG-7)
WARNING! Do not modify or alter this Implement. Do not permit anyone to
modify or alter this Implement, any of its components or any Imple-
ment function. (SG-8)
DANGER! BEFORE leaving the tractor seat, always engage the brake and/or set
the tractor transmission in parking gear, disengage the PTO, stop the
engine,removethe key,andwait forallmoving partstostop. Placethe
tractor shift lever into a low range or parking gear to prevent the tractor
fromrolling. NeverdismountaTractorthatismovingorwhiletheengine
is running. Operate the Tractor controls from the tractor seat only.
(SG-9)
DANGER! NeverallowchildrenorotherpersonstorideontheTractororImplement.
Falling off can result in serious injury or death. (SG-10)
WARNING! Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in
such a way as to be clearly visible and legible. When transporting the
EquipmentusetheTractorflashingwarninglightsandfollowalllocaltraffic
regulations.(SG-6)

Safety Section 1-4
SRW1400 10/04
SAFETY
©2004AlamoGroupInc.

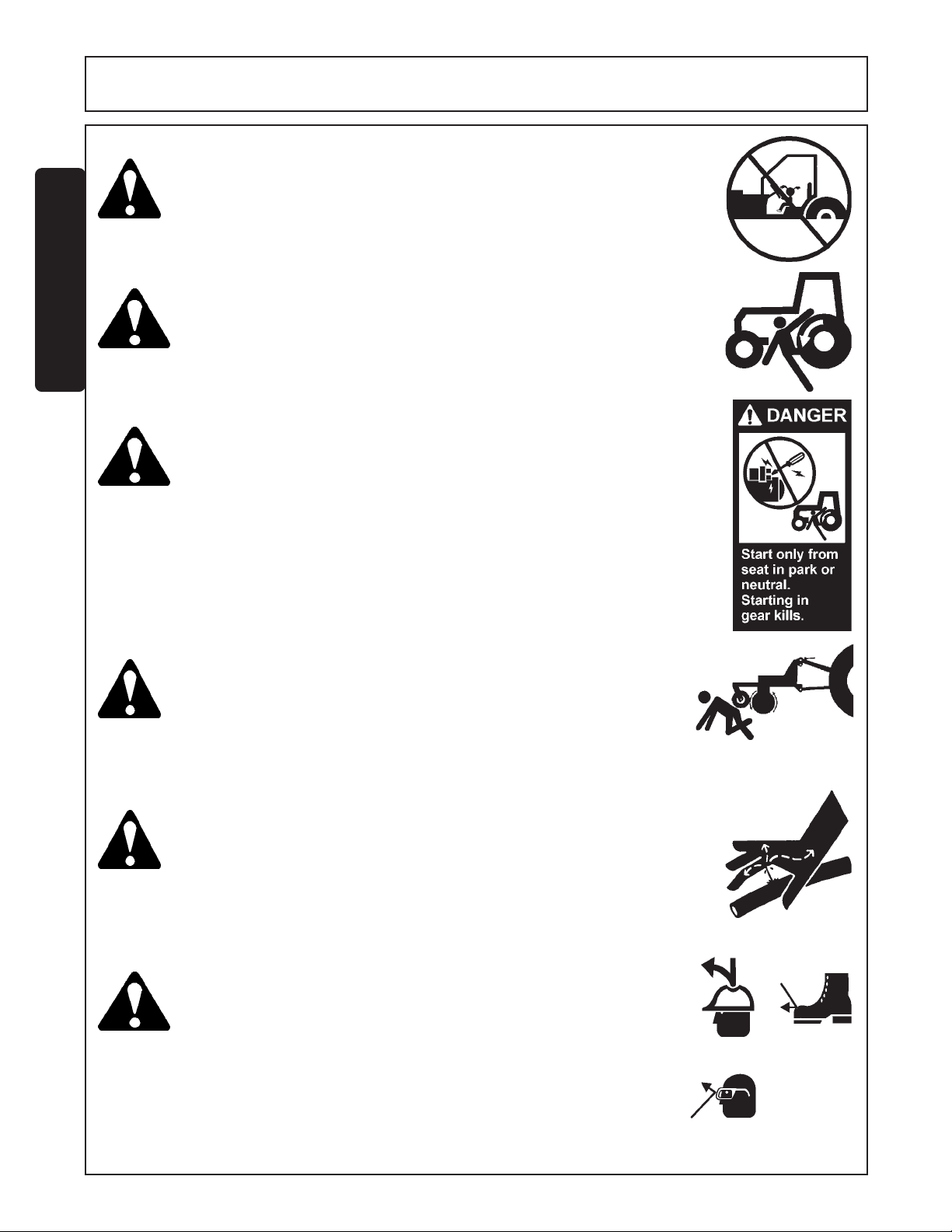

SAFETY
DANGER! Neverallowchildren tooperateorride ontheTractoror Implement.
(SG-11)
WARNING! Do not mount the Tractor while the tractor is moving. Mount the
Tractor only when the Tractor and all moving parts are completely
stopped. (SG-12)
DANGER! Start tractor only when properly seated in the Tractor seat. Starting a
tractor in gear can result in injury or death. Read the Tractor operators
manual for proper starting instructions. (SG-13)
DANGER! NeverworkundertheImplement,theframework,oranyliftedcomponent
unlesstheImplementissecurelysupportedorblockeduptoprevent
suddenorinadvertentfallingwhichcouldcauseseriousinjuryoreven
death. (SG-14)
DANGER! Do not operate this Equipment with hydraulic oil leaking. Oil is
expensiveanditspresencecouldpresentahazard. Donotcheckfor
leaks with your hand! Use a piece of heavy paper or cardboard.
High-pressureoilstreamsfrombreaksinthelinecouldpenetratethe
skin and cause tissue damage including gangrene. If oil does
penetratetheskin,havetheinjurytreatedimmediatelybyaphysician
knowledgeable and skilled in this procedure. (SG-15)
WARNING! Theoperatorandallsupportpersonnelshouldwearhardhats,safety
shoes, safety glasses, and proper hearing protection at all times for
protection from injury including injury from items thrown by the
equipment. (SG-16)

Safety Section 1-5
SAFETY
©2004AlamoGroupInc.
SAFETY
SRW1400 10/04
WARNING! Transportonlyat safe speeds. Seriousaccidentsand injuries canresult
fromoperatingthis equipmentatunsafe speeds. UnderstandtheTractor
and Implement and how it handles before transporting on streets and
highways. Makesurethe Tractorsteeringand brakesarein goodcondi-
tionandoperate properly.
Beforetransportingthe TractorandImplement,determine thesafe
transportspeedsforyou and theequipment. Makesureyouabideby
thefollowingrules:
Be aware of the operating conditions. Do not operate the Tractor with
weakorfaultybrakes. When operatingdownahill or onwetorrain slick
roads,thebraking distanceincreases:useextremecare andreduceyour
speed. Whenoperatingin traffic alwaysusethe Tractor’sflashingwarn-
ing lights and reduce your speed. Be aware of traffic around you and
watch out for the other guy. (SG-19)
Test the equipment at a slow speed in turns. Increase the speed
through the turn only after you determine that it is safe to operate
at a higher speed. Use extreme care and reduce your speed when
turning sharply to prevent the tractor and implement from turning
over. Determine the maximum safe turning speed for you and this
equipmentbeforeoperatingonroadsoruneven ground.
Only transport the Tractor and Implement at the speeds that you
have determined are safe and which allow you to properly control the
equipment.
Test the tractor at a slow speed and increase the speed slowly.
Apply the Brakes smoothly to determine the stopping
characteristicsoftheTractor and Implement.
As you increase the speed of the Tractor the stopping distance
increases. Determine the maximum safe transport speed for
you and this Equipment.
2.
1.
3.
WARNING! Never attempt to lubricate, adjust, or remove material from the
Implementwhileitisinmotionorwhiletractorengineisrunning. Make
sure the tractor engine is off before working on the Implement.
(SG-20)
CAUTION! PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE
PERMANENT HEARING LOSS! Tractors with or without an
Implement attached can often be noisy enough to cause permanent
hearing loss. We recommend that you always wear hearing
protection if the noise in the Operator’s position exceeds 80db.
Noise over 85db over an extended period of time will cause severe
hearing loss. Noise over 90db adjacent to the Operator over an
extended period of time will cause permanent or total hearing loss.
Note: Hearing loss from loud noise [from tractors, chain saws,
radios, and other such sources close to the ear] is cumulative over a
lifetime without hope of natural recovery. (SG-I7)
WARNING! Alwaysreadcarefullyandcomplyfullywiththemanufacturersinstructions
when handling oil, solvents, cleansers, and any other chemical agent.
(SG-22)

Safety Section 1-6
SRW1400 10/04
SAFETY
©2004AlamoGroupInc.
SAFETY
WARNING! Periodicallyinspectallmovingparts for wear and replacewhenneces-
sary with authorized service parts. Look for loose fasteners, worn or
brokenparts,andleakyorloosefittings. Make sureall pinshavecotter
pins and washers. Serious injury may occur from not maintaining this
machine in good working order. (SG-21)
DANGER! KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement
and possible serious injury or death. (SG-24)
DANGER! Never run the tractor engine in a closed building or without adequate
ventilation. The exhaust fumes can be hazardous to your health.
(SG-23)
DANGER! Neverallowchildrentoplay on or aroundTractororImplement. Children
can slip or fall off the Equipment and be injured or killed. Children can
cause the Implement to shift or fall crushing themselves or others. (SG-25)
WARNING! Do not exceed the rated PTO speed for the Implement. Excessive PTO
speeds can cause Implement driveline or component failures resulting in
serious injury or death. (SG-26)
DANGER! NEVER use drugs or alcohol immediately before or while operating the
Tractor and Implement. Drugs and alcohol will affect an operator’s
alertness and coordination and therefore affect the operator’s ability to
operate the equipment safely. Before operating the Tractor or
Implement,anoperatoronprescriptionor over-the-counter medication
must consult a medical professional regarding any side effects of the
medication that would hinder their ability to operate the Equipment
safely. NEVER knowingly allow anyone to operate this equipment
when their alertness or coordination is impaired. Serious injury or
death to the operator or others could result if the operator is under the
influence of drugs or alcohol. (SG-27)
DANGER! OperatetheTractorand/orImplementcontrolsonlywhileproperlyseatedin
theTractorseatwiththeseatbeltsecurelyfastenedaroundyou. Inadvertent
movementoftheTractororImplementmaycauseseriousinjuryordeath. (SG-
29)

Safety Section 1-7
SAFETY
©2004AlamoGroupInc.
SAFETY
SRW1400 10/04
WARNING! EngineExhaust, some of itsconstituents,and certain vehicle
componentscontainoremit chemicals known tothestateof
Californiatocausecancerand birth defects orother
reproductiveharm. (SG-30)
WARNING! Batteryposts, terminals andrelated accessoriescontain lead
andleadcompounds,chemicalsknowntothe state of Califor-
niatocausecancer and birth defectsorotherreproductive
harm.Wash Hands afterhandling. (SG-31)
WARNING! Prolonged operation may cause operator boredom and fatigue affecting safe
operation. Take scheduled work breaks to help prevent these potentially
impaired operating conditions. Never operate the Implement and Tractor in a
fatigued or bored mental state which impairs proper and safe operation. (SG-32)
WARNING! Use extreme caution when getting onto the Implement to perform repairs,
maintenanceandwhenremovingaccumulatedmaterial. Onlystandonsolid
flatsurfaces toensuregoodfooting. Usealadderorraisedstandtoaccess
highspotswhichcannotbereachedfromgoundlevel. Slippingandfallingcan
cause serious injury or death. (SG-33)
WARNING! Avoidcontactwithhotsurfacesincludinghydraulicoiltanks,pumps,motors,
valvesandhoseconnections. Relievehydraulicpressurebeforeperforming
maintenance or repairs. Use gloves and eye protection when servicing hot
components. Contactwithahotsurfaceorfluidcancauseseriousinjuryfrom
burns or scalding. (SG-34)
WARNING! Perform service, repairs and lubrication according to the maintenance
section. Ensuretheunitisproperlylubricatedasspecifiedinthelubrication
schedule and all bolts and nuts are properly torqued. Failure to properly
service,repairandmaintainthisImplementingoodoperatingconditioncould
cause component failure and possible serious injury or even death. (SG-35)
DANGER! DONOToperatethisImplementonaTractorthatisnotproperlymaintained.
Should a mechanical or Tractor control failure occur while operating,
immediately shut down the Tractor and perform repairs before resuming
operation. Seriousinjuryandpossibledeathcouldoccurfromnotmaintaining
this Implement and Tractor in good operating condition. (SG-36)

Safety Section 1-8
SRW1400 10/04
SAFETY
©2004AlamoGroupInc.
SAFETY
WARNING! Do not operate with two machines in the same area except with Cab
tractors with the windows closed. (SGM-11)
WARNING! DO NOT weld or repair rotating implement components. Welds and
other repairs may cause severe vibration and/or component failure
resulting in parts being thrown from the implement causing serious
bodily injury. See your Authorized Dealer for proper repairs. (SGM-13)
WARNING! Operateatthespeedthatyoucansafelyoperateandcontrolthetractorand
implement. Safe operation speed depends on terrain condition and soil
type,density,andheightofoperation. Normalgroundspeedrangeisfrom
0to5mph. Use slow operation speeds whenoperatingon or near steep
slopes, ditches, drop-offs, overhead obstructions, power lines, or when
debris and foreign objects are to be avoided. (SGM-7)
WARNING! Avoid operating in reverse direction when possible. Check to make sure
there are no persons behind the implement and use extreme care when
operatinginreverse. Operateonlyataslowgroundspeedwhereyoucan
safelyoperateandcontrolthetractorandimplement. Neveroperateonan
area that you have not inspected and removed debris or foreign material.
(SGM-8)
WARNING! Many varied objects, such as wire, cable, rope, or chains, can become
entangled in the rotating parts of the Implement. These objects could
then swing outside the housing at greater velocities than the blades.
Suchasituationisextremely hazardousandcould resultinseriousinjury
orevendeath. Inspect theworkingareafor suchobjectsbefore working
in the area. Remove any such objects from the site. Never allow the
blades to contact such objects. (STL-6)
DANGER! Do not put hands or feet under implement. Blade Contact can result in
seriousinjuryorevendeath. Stayawayuntilallmotionhas stoppedand
the frame is securely blocked up. (STL-3)
WARNING! Operate only in conditions where you have clear visibility in daylight or with
adequateartificiallighting. Neveroperateindarknessorfoggyconditionswhere
you cannot clearly see at least 100 yards in front and to the sides of the tractor
andimplement. Makesurethatyoucanclearlyseeandidentifypassersby,steep
slopes,ditches,drop-offs,overheadobstructions,powerlines,debrisandforeign
objects. Ifyouareunabletoclearlyseethistypeofitemsdiscontinueoperation.
(SGM-1)

Safety Section 1-9
SAFETY
©2004AlamoGroupInc.
SAFETY
SRW1400 10/04
DANGER! Always disconnect the main PTO Driveline from the Tractor before
performing service on the implement. Never work on the implement with
the tractor PTO driveline connected and running. Blades or Drivelines
could turn without warning and cause immediate entanglement, injury or
death. (SRM-3)
DANGER! Do not turn so sharp or lift implement so high to produce a severe
"knocking" of the Driveline which will cause accelerated wear and
breakage of drive train components and could result inpossible injury
from the separated Driveline sections. (SRM-4)
WARNING! Do not let the drum teeth turn when the implement is raised
for any reason. Raising the implement exposes the drum teeth
which creates a potentially serious hazard and could cause
serious injury or even death from objects thrown from the
drum teeth.
WARNING! Never unhitch without using the Hitch Jack stand. The Tongue
is very heavy. Attempting to lift the hitch without using the Hitch
Jack stand could cause strains or other injury. Allowing the
tongue to fall suddenly and unexpectedly could result in crushing
injury. Use the Hitch Jack stand for lifting the Implement only.
Overloading the Hitch Jack stand can cause failure with possible
serious bodily injury or even death. (STI-4)
DANGER! Be particularly careful when transporting the Implement using the tractor.
Turn curves or go up or down hills only at a low speed and at a gradual
steering angle. Make certain that at least 20% of the tractor’s weight is
on the front wheels to maintain safe steerage. Slow down on rough or
uneven surfaces. (STI-1)
DANGER! Do not operate the implement while wearing loose fitting clothing.
Entanglement of the clothing with the rotating elements can result in
serious injury or even death. Stay clear of all rotating elements at all
times. (SSP-3)
DANGER! NevercrawlunderaraisedImplementsupportedsolely bytheTractor3-
Pointhitch. Releaseofthecontrol leverormechanicalfailurewill result
in the Implement falling and possible injury or death. Always securely
blockuptheImplementbeforecrawlingunderneathtoperformrepairsand
service. (S3PT-19)
DANGER! Make sure the PTO shield, integral driveline shields, and input shields are
is installed when using PTO-driven equipment. Always replace any
shield if it is damaged or missing. (S3PT-8)

Safety Section 1-10
SRW1400 10/04
SAFETY
©2004AlamoGroupInc.
SAFETY
WARNING! Relieve hydraulic pressure prior to doing any maintenance or repair work
on the Implement. Place the Implement on the ground or securely
blocked up, disengage the PTO, and turn off the tractor engine. Push
and pull the Remote Cylinder lever in and out several times prior to
starting any maintenance or repair work. (S3PT-9)
DANGER! Always disconnect the main PTO Driveline from the Tractor before
performing service on the Implement. Never work on the Implement with
the tractor PTO driveline connected and running. Rotating Parts like
drivelines could turn without warning and cause immediate entanglement,
injury or death. (S3PT-11)
DANGER! ThisImplementiswiderthantheTractor. Becarefulwhenoperating
ortransportingthisequipmenttopreventtheImplementfromrunning
into or striking sign posts, guard rails, concrete abutments or other
solidobjects. SuchanimpactcouldcausetheImplementandTractor
topivotviolentlyresultinginlossofsteeringcontrol,seriousinjury,or
evendeath. NeverallowtheImplementtocontactobstacles. (S3PT-12)
WARNING! BeforeoperatingtheImplement,checktomakesuretheImplementinput
drivelinewillnotbottomoutorbecomedisengaged. Bottomingoutoccurs
when the inner shaft penetrates the outer housing until the assembly
becomessolid-itcanshortennomore. Bottomingoutcancauseserious
damage to the Tractor PTO by pushing the PTO into the Tractor and
throughthesupportbearingsordownwardontothePTOshaft,breaking
it off. A broken drive line can cause personal injury. (S3PT-18)
WARNING! DONOTuseaPTOadaptertoattachanon-matchingImplementdriveline
toaTractorPTO. Useofanadaptercandoubletheoperatingspeedofthe
implement resulting in excessive vibration and thrown objects. Adapter
usewillalsochangetheworkinglengthofthedrivelineexposingunshielded
drivelineareas. Seriousbodilyinjuryand/orequipmentfailurecanresult
from usingaPTO adapter. Consultanauthorized dealerforassistance
iftheImplementdriveline does not match theTractorPTO. (S3PT-14)
WARNING! Allow sufficient clearance for the Implement to swing outward while
turning. ImplementscarriedbehindtheTractorwillswingoutsidethe
tire path when making turns. Contacting a solid object while turning
will cause equipment damage and possible injury. (S3PT-20)

Safety Section 1-11
SAFETY
©2004AlamoGroupInc.
SAFETY
SRW1400 10/04
WARNING! Relieve hydraulic pressure prior to doing any maintenance or repair
work on the Implement. Place the implement on the ground or
securelysupportedonblocksorstands,disengagethePTO,andturn
off the engine. Push and pull the control Levers or Joystick several
times to relieve pressure prior to starting any maintenance or repair
work. (SBM-6)
WARNING! WhenattachingtheImplementinputdrivelinetotheTractorPTO,itis
important that the connecting yoke spring activated locking collar
slidesfreelyandthelockingballsareseatedsecurelyinthegrooveon
theTractorPTOshaft. AdrivelinenotattachedcorrectlytotheTractor
PTOshaftcouldcomelooseandresultinpersonalinjuryanddamage
to the Implement. (S3PT-17)
DANGER! Always shut the Tractor completely down, place the transmission in
park,andsettheparkingbrakebeforeyouoranyoneelseattemptsto
connect or disconnect the Implement and Tractor hitches. (S3PT-15)
DANGER! Thereareobviousandhiddenpotentialhazardsintheoperationofthis
Implementasinallpower-drivenorpulledequipment. REMEMBER!
Thismachineisoftenoperatedinroughterrainconditionsthatincludetall
grass, weeds, gullies, holes, slopes, hidden obstructions and the like.
Seriousinjuryorevendeathmayoccurunlesscareistakentoassurethe
safetyoftheoperator and bystandersinthe area. Do not operate this
machine with anyone in the immediate area. (S3PT-7)
WARNING! Never operate the Tractor and unit if the Implement input driveline is
directlyconnectedtotheTractortransmission. Tractorbrakingdistances
canbesubstantiallyincreasedbythemomentumoftherotatingimplement
drivingtheTractortransmissioneventhoughtheTractorclutchhasbeen
disengaged. InstallanoverrunningclutchbetweentheTractorPTOand
the Implement driveline to prevent this potentially dangerous situation.
(S3PT-16)
PARTSINFORMATION
Schulte Products use balanced and matched system components for blade carriers, blades, cuttershafts,
knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to
SchulteIndustryspecifications. Non-genuine"willfit"partsdonotconsistentlymeetthesespecifications. The
useof“willfit”partsmayreducetheperformance,voidSchultewarranties,andpresentasafetyhazard. Use
genuine Schulte parts for economy and safety.
(SPSI-1)
SEEYOURSCHULTEDEALER
Inaddition tothedesign andconfigurationofthisImplement, includingSafetySigns andSafetyEquipment, hazard
control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of
personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety
Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals.
Pay close attention to the Safety Signs affixed to the Tractor and Equipment. (SG-18)

Safety Section 1-12
SRW1400 10/04
SAFETY
©2004AlamoGroupInc.
SAFETY
35
37
38
36

Safety Section 1-13
SAFETY
©2004AlamoGroupInc.
SAFETY
SRW1400 10/04
ITEM PARTNO. QTY. DESCRIPTION
1 226-013 1 SMV Sign
2 226-117 2 Decal'SCHULTE'
3 226-154 5 DecalAmberReflector
4 226-178 2 Decal,'SRW1400'
5 226-032 2 Decal,DangerRotatingDriveline
6 226-148 1 Decal,Warning HighPressure
7 226-073 1 Decal, Patent #
8 1 Decal, Serial # Plate
9 226-084 1 Decal,MadeInNorthAmerica
10 226-340 1 Decal,MultiWarning
11 226-081 1 Decal,Check OilLevel
12 226-179 1 Decal,WindrowerTransportInstructions
13 226-118 2 Decal,SCHULTE
14 226-151 2 Decal,DangerThrownRock
15 226-037 1 Decal, Warning 540 RPM Only
16 226-153 2 Decal,RedDeflector
17 226-044 3 Decal,GreaseNippleonUnderside
18 226-181 9 Decal,8HourGreaseInterval
19 226-182 14 Decal,50hrGreaseInterval
20 226-183 1 Decal,8 hrOil Interval
21 226-180 3 Decal,4hrGreaseInterval
22 226-192 1 Decal,DangerMovingPartHazard
23 226-193 1 Decal,DangerGuardMissing
24 226-191 1 Decal,Peligro
26 226-323 1 Decal,ImportantTractorDrawbarAdjustment
27 226-004 1 Decal,Fema Decal
28 226-049 1 Decal,Genuine Parts
29 226-048 1 Decal,DonotTransport
30 226-070 1 Decal,Shear BoltBreakage
31 226-314 1 Decal.PeligroDrivelineManual
32 226-317 1 Decal,DrivelineInstallation
33 226-318 1 Decal,NoticeToOwner
34 226-319 1 Decal, Attention Slip Clutches
35 280-201 1 Canister,Manual
36 250-002 3 Bolt 1/4"
37 255-025 3 Locknut
38 256-018 3 Flatwasher1/4"
NOTE: Schulte supplies safety decals on this product to promote safe operation. Damage to the decals may
occur while in shipping, use, or reconditioning. Schulte cares about the safety of its customers, operators, and
bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and
handlingchargesmayapply).ContactyourSchulte dealer to order replacement decals.

Safety Section 1-14
SRW1400 10/04
SAFETY
©2004AlamoGroupInc.
SAFETY

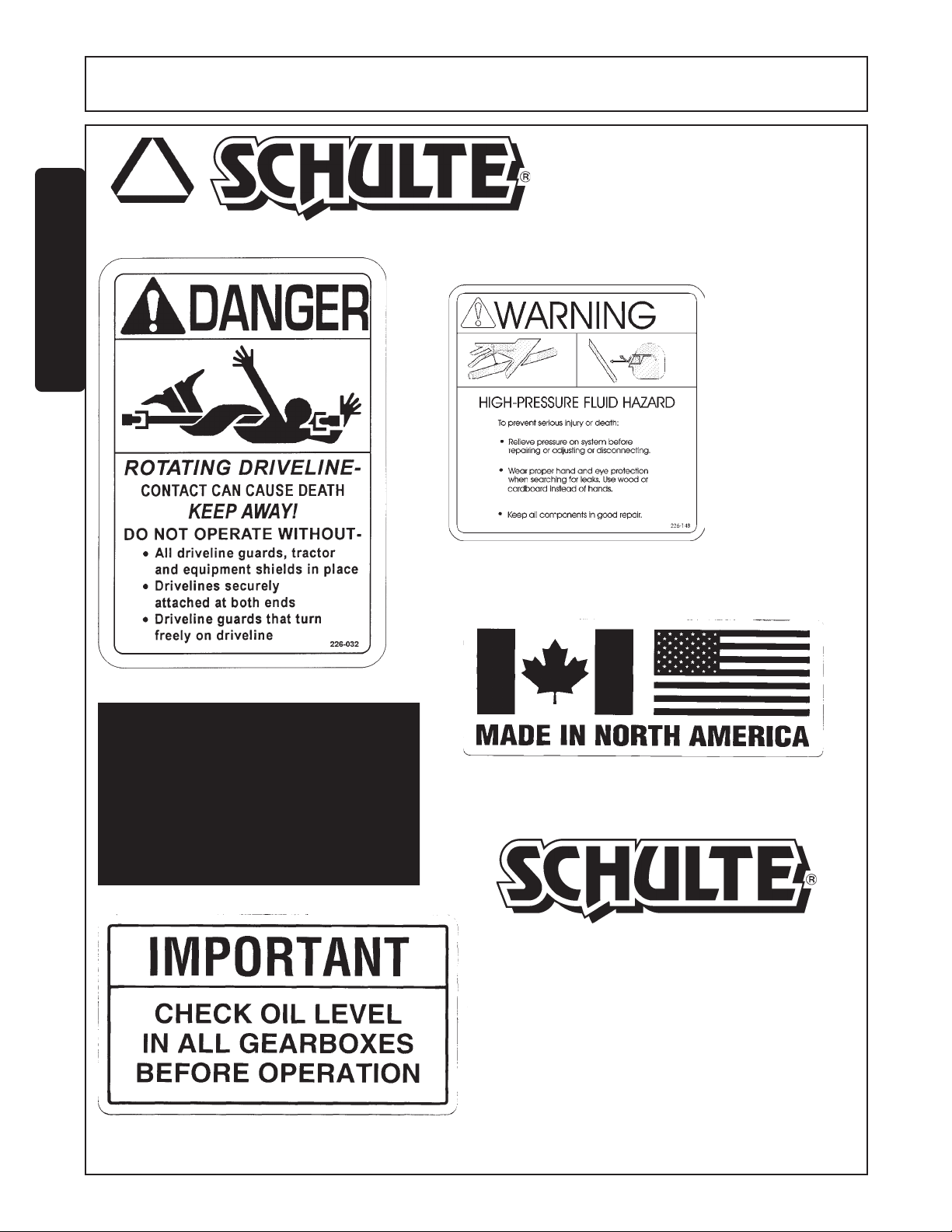

1-- 226-013 2- 226-117
SRW 1400
6--226-148
5-- 226-032
4- 226-178
9-- 226-084
7--226-148
11 - - 226-081
13- 226-118
3--226-154AMBERREFLECTOR
8 - - SERIAL PLATE
16--226-153REDREFLECTOR

Safety Section 1-15
SAFETY
©2004AlamoGroupInc.
SAFETY
SRW1400 10/04
14-226-151
15-226-037
18-226-181 19- 226-182
17-226-044
20-226-183 21-226-180
22-226-192

Safety Section 1-16
SRW1400 10/04
SAFETY
©2004AlamoGroupInc.
SAFETY
23-226-193
24--226-191
26--226-323 27 --226-004
