Alan HP446 User manual

English

In this book... 1
English
IN THIS BOOK…
Introduction.................................................................................................2
This manual ................................................................................................2
Cautions......................................................................................................2
CONTROLS AND INDICATORS
Top/Front ....................................................................................................3
Side (left and right) .....................................................................................3
Display indications......................................................................................4
SETUP
Battery installation/removal .......................................................................4
Installing/removing the belt clip .................................................................5
Charging the battery pack..........................................................................5
Autonomy ...................................................................................................5
AND NOW, LET'S COMMUNICATE
Switching the radio on/off..........................................................................6
Adjusting volume........................................................................................6
Channel selection.......................................................................................6
Calling another party..................................................................................6
CTCSS / DCS.............................................................................................6
How to set a CTCSS / DCS code..............................................................7
Reset CTCSS codes...................................................................................7
Monitor function .........................................................................................7
Busy CH function ......................................................................................7
Time-out-timer............................................................................................7
Scanning channels .....................................................................................8
Radio lock...................................................................................................8
ADVANCED OPERATIONS
Handsfree transmission (VOX)....................................................................8
Paging call..................................................................................................9
Roger beep.................................................................................................9
Key beep ....................................................................................................9
CARE AND MAINTENANCE
Battery packs .............................................................................................9
Information on rechargeable batteries...................................................9
Memory effect........................................................................................9
Erasing memory effect ...........................................................................9
general precautions .............................................................................10
Radio maintenance...................................................................................10
Cleaning battery packs.........................................................................10
Cleaning the radio................................................................................10
Connectors...........................................................................................10
OPTIONAL ACCESSORIES
Microphone connector .............................................................................10
QUICK REFERENCE
Operation .................................................................................................11
MAIN SPECIFICATIONS..............................................................................11
TECHNICAL SPECIFICATIONS
Test Methods............................................................................................12
General .....................................................................................................12
Transmitter................................................................................................12
Receiver....................................................................................................12
AF&Mechanical Specs..............................................................................12
INDEX...........................................................................................................13
APPENDIX A
Preset CTCSS Codes
APPENDIX B
Accessory table
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 1

Do not service the radio or the batteries by yourself (other than
the routine maintenance described in this handbook).
2Introduction
Introduction
Congratulations on your purchase of the ALAN HP 446 extrá, an advanced
PMR446 professional radio allowing you to cover a range of up to 5-6 km.
You may use your Alan HP 446 extrá in any country where the PMR446
frequencies are authorized. Contact your dealer for further information.
Your ALAN HP 446 extrá, thanks to its rugged design will be your friendly part-
ner, even during the hardest working day, while the liquid crystal display (LCD)
and user friendly controls make it easy to use by all.
This manual
Read the instructions of this manual as well as the instruction labels on your
ALAN HP 446 extrá carefully.
Every effort has been made to ensure that the information in this document is
complete, accurate and up-to-date. CTE International accepts no responsibility
for actions resulting from errors beyond its control.
Changes made to the equipment by non-authorized personnel MAY affect the
applicability of the information contained in this document.
Cautions
Do not carry the transceiver by the antenna. This may damage
the antenna or its terminal.
While transmitting, do not hold the antenna very close to you
or allow it to touch exposed parts of the body.
Do not operate the radio near unshielded electrical blasting caps
or in an explosive atmosphere.
The radio is designed to operate in harsh environmental condi-
tions. However, avoid exposing it to extreme hot or cold tempera-
tures (beyond the range -30° C to +60° C).
English
Do not expose your ALAN HP 446 extrá to excessive vibration,
dust or moisture (rain).
-30°C/+60°C
To avoid damages on your ALAN HP 446 extrá use only ALAN
genuine accessories.
Do not use your radio near water or spill liquid of any descrip-
tion into it. If the transceiver gets wet, dry immediately with a
clean, soft cloth.
Switch the radio off before you clean it.
Be certain that your AC power source is suitable for the charger
supplied.
To avoid damaging the power cable of the battery charger, do not
put anything on it.
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 2

Controls and indicators 3
English
CONTROLS AND INDICATORS
SAT
LOW
VOX
P
1
5
6
2
3
4
8
7
12
14
13
11
9
10
TOP/FRONT
[1] Stubby Antenna
[2] ON/OFF and volume knob
[3] Status LED
[4] Speaker
[5] LCD display
[6] and buttons.
[7] Function button
[8] Microphone
SIDE (LEFT AND RIGHT)
[9] 2 pin accessory connector. Protected
by a plastic cap.
[10] 1300 mA/h NiMh Battery pack.
[11] Battery pack release button.
[12] Monitor (MON) button. Defeats squelch
operation but also switches CTCSS/DCS
(SAT) on and off.
[13] CALL button. Sends a paging call (if
enabled).
[14] Push to talk (PTT) button. Press and
hold to transmit (speak), release to
receive (listen).
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 3

English
4Setup
SETUP
Accessories supplied as standard in the box:
a. Transceiver main body (with stubby antenna).
b. High capacity 1300mA/h NiMH battery pack.
c. Slow desk top battery charger
d. Belt clip
e. User guide (this booklet)
BATTERY INSTALLATION/REMOVAL
1. Place the battery pack
into the bottom of the radio.
2. Push the battery pack towards the back
edge of the transceiver until you hear a
click indicating that the battery pack
has snapped into place and is now fully
locked.
To remove the battery pack:
1. Press the battery release button [11] and
hold .
2. Pull the battery pack away from the
transceiver back edge.
A. Channel number
B. SAT CTCSS/DCS Tone indicator
C. Battery level indicator (blinking when the battery is low)
D. P Priority channel indicator
E. VOX Light to indicate Vox is on
F. • Light to indicate the CH is on Scan list
G. Light to indicate key lock
H. LOW Light to indicate RF Power is low
Display indications
A
E
G
D
F
B
C
H
1
2
1
2
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 4

INSTALLING/REMOVING THE BELT CLIP
1. Gently slide the clip from top to bottom into the appropriate guides locat-
ed on the back of the transceiver until it locks.
To remove the belt clip:
1. Press the small plastic lever located on the top of the belt clip.
2. Gently slide the belt clip towards the antenna until it comes away from the
transceiver.
Charging the battery pack
The new 1300 mA NiMh battery
pack will not hold a full charge.
It will need to be cycled at least 3
times. To cycle a battery it is neces-
sary to fully discharge it and then
charge it. Battery life may be
extended by cycling every month.
1. Connect the cable mounted jack
from the AC adaptor to the
Setup 5
English
socket located on the charger base.Plug the AC adaptor into an AC
power outlet.
2. Switch the transceiver off.
3. Insert the radio, with the keypad towards you, into the charger-base.
4. The status led of the charger turns red indicating that the charging
process is on.
5. Leave the radio in the charger until the battery is fully charged (this may
take up to 10 hours with the slow charger; to 2 hours with the rapid charg-
er).
Do not overcharge the battery.
If possible only charge the battery when it is fully discharged or has been
used for a considerable period of time, re-charging partially discharged
batteries will result in memory effect.
The charger of your ALAN HP 446 extrá allows also the charge of the
battery pack on its own.
Autonomy
Up to 26 hours with the standard duty cycle (10% conversation, 90%
standby). Such values have been obtained during testing. The effective
autonomy is influenced by : use of the radio, enabled functions such as
Time Out Timer. The power save function may be enabled by your system
administrator only.
blinking when the battery charge is low.
1
1
2
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 5

English
6And now, let’s communicate!
And now, let’s communicate!
SWITCHING THE RADIO ON/OFF
1. Rotate the VOL knob clockwise. The radio will run a rapid autotest at the
end of which an audible “tone” will indicate that the radio is operational.
2. The display will show the current operating mode.
3. The current operating mode will be saved automatically within 0.5
seconds of any change made by the user.
4. Note: The following icons will be displayed depending on the operating
mode.
• “Low” refers to output power/nothing stays for high.
•“•” indicates that the channel is in the scan list.
•“P” is displayed when the channel has priority in the scan list.
•“SAT” indicates that the channel has been programmed for CTCSS/DCS
•“”indicates battery level (blinking when the battery is low).
•“VOX” is displayed when the VOX facility has been selected.
•“”is displayed when the keypad is locked.Only the PTT button is
operational.
• To switch the radio off rotate the VOL knob counter-clockwise until a click
is heard.
ADJUSTING VOLUME
Turn the knob clockwise to increase the volume, counter-clockwise to reduce
the volume.
CHANNEL SELECTION
To select a channel:
• Press the key to increase the channel number or the key to
decrease the channel number.
CALLING ANOTHER PARTY
1. Check that the channel is not busy (status LED is not glowing). Do not
press the PTT button if someone else is speaking as both messages will
be lost.
2. Press the PTT button, the status LED will now glow red.
3. Hold the radio about 5-10cm away from your face and speak at a normal
volume across the front of the radio.
Keep the PTT button pressed for the duration of your speech.
4. Release the PTT button when you have finished speaking.
Note: Shouting into the microphone will not increase your range but will
cause an increase in distortion.
Note: Releasing the PTT button before you have finished speaking will result
in your message being lost.
CTCSS/DCS
Your ALAN HP 446 extrá can operate in two modalities:
• OPEN CHANNEL : all signals transmitted on the selected channel will be
heard. The status LED will glow green.
• GROUP MODALITY CTCSS/DCS: CTCSS and DCS tones are “access
tones” that allow you to receive only calls from parties using same chan-
nel and code.
The status LED will glow green when signals with the correct
CTCSS/DCS code are received, it will glow amber if signals with the
incorrect CTCSS/DCS code are received.
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 6

And now, let’s communicate! 7
English
Advantages with the Use of CTCSS/DCS
1. PRIVACY
Your ALAN HP 446 extrá with its 50 CTCSS tone sets and 104 DCS tones,
provides privacy between users co-existing on the same frequency
but using different CTCSS/DCS tones.
2. GROUP CALL
CTCSS and DCS may be used also to address “group call” to users with
the same CTCSS/DCS code.
However interference will be caused if more than one user transmits at
the same time, it is therefore recommended not to transmit if the status
LED is glowing (either green or amber).
HOW TO SET A CTCSS/DCS CODE
To set CTCSS/DCS codes:
Turn the radio off.
a. Press and hold the and buttons while turning the radio on.
b. Release the and buttons.
c. Press the or key to select the channel.
d. Press the function button, the display will now show the tone code.
e. Press the or button to select the code required.
Note: the number is shown in hexadecimal format, refer to
Appendix ∑for information on this numbering system.
f. Press the function button and switch the radio off to store the
setting.
PRESET CTCSS CODES
To facilitate CTCSS/DCS setting, your ALAN HP 446 extrá has been
programmed by the factory with a range of preset CTCSS codes (pls refer to
APPENDIX A ).
ENABLING/DISABLING CTCSS/DCS codes:
To enable pre-setted CTCSS/DCS press (MON) button once or twice until the
SAT icon appears on the LCD display. When the CTCSS/DS is enabled, the
speaker will be muted unless the correct CTCSS/DCS code is received.
MONITOR FUNCTION
The monitor function is used to check the activity on the selected channel
before transmitting.
The squelch (noise reduction device) is defeated by pressing and holding
the MON button for 3”. In this mode a continuous noise will be heard from
the loudspeaker.
Pressing once the MON button will result in defeating the SAT mode.
Note: Defeating the squelch and leaving the radio in this mode will result in
reducing battery life.
BUSY CH FUNCTION
Once programmed the BUSY CHANNEL LOCK OUT function, disables
transmission if the PTT button is pressed while the channel is busy.
TIME OUT TIMER
Your administrator/dealer may have programmed a “time out timer” to set the
maximum duration of conversation.
Timeout-timer, automatically switches the radio from transmit to receive if
your speech exceeds the pre-set time.
To defeat TOT simply release the PTT button and wait for a few seconds
before pressing the PTT button again (don't forget to check if the channel is
busy!).
TOT Helps extend your battery life!
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 7

English
8Advanced operations
Advanced operations
HANDSFREE TRANSMISSION WITH VOX
VOX (Voice Operated Transmission) is an automated system which allows
hands-free conversation with your ALAN HP 446 extrá.
The sound of your voice activates transmission once you connect the prop-
er headset (see the optional accessory table).
When you stop talking the radio will revert to receive mode.
To enable VOX function:
a. Turn the radio off.
b. Press and hold the and buttons while turning the radio on,
the VOX icon will be displayed on the LCD.
c. Connect the external headset to the radio through the dedicated connec-
tor [9].
Your ALAN HP 446 extrá VOX has two sensitivity levels to suit to different
background noise.
Press the and buttons to adjust VOX sensitivity;(the status LED
should glow red continuously while you are talking).
• A flashing VOX icon indicates low sensitivity
• A constant VOX icon indicates high sensitivity
SCANNING CHANNELS
Channels may be incorporated into a scan list and scanned.
To add or delete channels from the scan list:
1. Select the channel.
Press CALL and MON buttons simultaneously, the "•" icon will appear or
disappear.
2. To start scan hold CALL button and press the button, the channel
numbers will now cycle continuously.
3. To stop scan hold CALL button and press the button.
4. To review the scan list scroll through the channels using the and
buttons, channels included in the scan list will show a "•" in the
display.
Priority channel:
1. A channel may be assigned as the priority channel, it will then be scanned
more frequently than the others.
2. To assign or remove the priority channel:
• Select the chosen channel.
• Press CALL and buttons simultaneously, the "P" icon will appear
or disappear.
Note: At least two channels must be added to the scan list for the radio
to scan.
A low frequency beep will be heard if scan is selected but no channels
have been added to the scan list.
Note: Scan will stop if a signal with the correct CTCSS/DCS code (if
programmed) is received on a channel, scan will resume when activity on
the channel stops.
Note: The PTT button should not be pressed while the radio is scanning.
RADIO LOCK
This protects against accidental button pushes.
• Press and buttons simultaneously.
• To unlock the radio press and buttons simultaneously.
Note: When the radio is locked only the PTT and MON buttons are enabled.
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 8

Care and maintenance 9
English
In high noise environmental conditions set the VOX sensitivity to low level,
otherwise spurious transmissions may occur due to extraneous noise.
Note: The PTT button is disabled when VOX is selected.
To disable VOX function follow the same procedure.
PAGING CALL
Other users on the same frequency with the same CTCSS/DCS code may be
alerted by pressing the CALL button, a ringing beep will be heard by the
other users.
To send a paging call:
• Press and hold the CALL button
ROGER BEEP (END CONVERSATION BEEP)
A roger beep will be heard by all users on the same frequency with the same
CTCSS/DCS code whenever the PTT button is released, indicating that the
conversation is finished.
To enable/disable the roger beep facility:
• Press the and CALL buttons simultaneously
KEY BEEP
A beep will be heard whenever any button (except PTT) is pressed.
To enable/disable the key beep facility:
• Press the and MON buttons simultaneously
Care and maintenance
BATTERY PACKS
Information on rechargeable batteries
• A correctly maintained battery pack will be good for at least 400
charge/discharge cycles.
• All batteries are prone to self-discharge while not being used, a nickel
metal hydride (NiMH) battery may lose up to 20% of the stored charge
within a few days.
Memory effect
The NiMH battery pack supplied with your ALAN HP 446 extrá are virtually
free of memory effect typical od the NI-CD elements. Although continuous
misuse, will eventually lead to a reduction in capacity.
Observing the following procedures will reduce memory effect and prolong
the life of the battery:
• Charge battery packs only when they are fully discharged, ie when
is blinking.
• Do not partially charge the battery.
• Cycle the battery at least once a month ( full discharge followed by a
charge).
• Having a spare battery means that you will always have a fully charged
battery and that both batteries will be in peak condition.
Erasing memory effect
Memory effect may be cured by applying 3-4 deep charge/discharge cycles:
a. Install the battery pack to be cycled on the radio, switch radio on and
leave until the radio switches off automatically, switch the radio off using
the VOL knob.
b. Wait for at least one hour and switch the radio on, leave until the radio
switches off automatically, switch the radio off using the VOL knob.
Repeat this at least three times.
c. Turn the radio off, insert into the base unit of the charger and charge the battery.
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 9

English
10 Optional accessories
d. Check the life of the battery the next time it is used, repeat steps a. to c.
if memory effect is still present.
Note: If the problem persists then the battery pack is probably faulty, in
which case contact your dealer to arrange for purchase of a replacement
battery.
General Precautions
Please follow these precautions to avoid damage to the battery pack or the
transceiver.
• Do not short-circuit the battery terminals, this may cause a fire or an
explosion.
• Always un-plug the AC adaptor from the AC power source before
attempting to clean the charger or the radio.
• Do not store batteries to temperatures below -20°C or above +35°C
during normal use and do not charge batteries at temperatures below
+5°C or above +55°C.
RADIO MAINTENANCE
Cleaning battery packs
The battery contacts may be wiped with a clean, lint free cloth to remove any
grease or dirt which may prevent a good electrical contact. A soft pencil eras-
er (not an abrasive ink eraser) may be used if the contacts are very dirty.
Cleaning the radio
The radio may be wiped with a clean, lint free cloth to remove any grease or
dirt, stubborn marks may be removed by the use of a damp cloth.
Note: If your radio is to be used in harsh or dusty environments it is recom-
mended to use the carry cases available for this model.
Connectors
When not in use the accessory connectors should be fitted with the protec-
tive covers supplied.
•Do not use any liquid alcohol or inadequate cleaners.
Optional accessories
A full range of optional accessories is available.
Please refer to table “B”.
• Spare battery pack. Extends the talk time of the radio and may reduce
the likelihood of memory effect.
• Carry case. Protects the radio against knocks and guards against
scratches, ideal for use in harsh environments.
MICROPHONE CONNECTOR
The microphone connector is designed for the use of external audio acces-
sories:
• External speaker/microphone. Allows use of the radio while being firm-
ly secured to a belt or tucked inside a protective coat.
• External headset with built-in VOX microphone. Allows use of the
radio in hands-free mode.

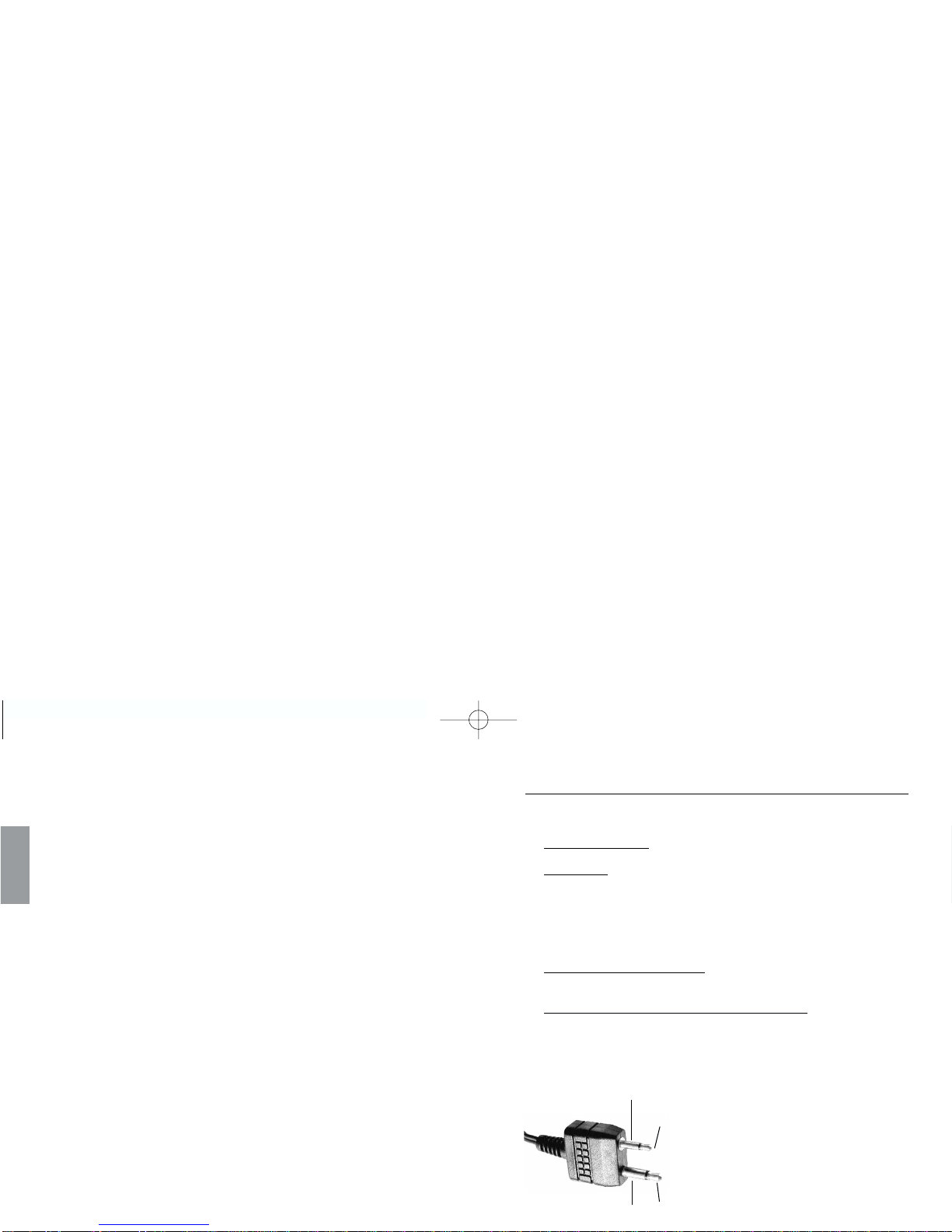

Connection specifications are:
• Jack connectors for speaker (SPK) and microphone (MIC) must be stan-
dard 3.5mm and 2.5mm types respectively and be connected as follows:
• The suggested speaker impedance
is 8Ω.
• The microphone should be a low-
impedance condenser type.
Note: Do not connect any accessory
which you are unsure of, if in doubt
contact your dealer.
Mic GN
MIC
SPKSpk
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 10

Quik reference/Main specifications 11
English
Quick reference
Operation
a. Press the MON button to enable/disable CTCSS/DCS (group mode). SAT
icon is displayed when CTCSS/DCS is enabled.
b. Press and hold the MON button to enable/disable the squelch.
c. Press the CALL and buttons to select scan.
d. Press the CALL and MON buttons to change the scan list. “•” icon is
displayed if the channel is included in the scan list.
e. Press the CALL and buttons to select the priority channel. "P" icon
is displayed.
f. Press the and buttons to lock/unlock the radio. Only the PTT
and MON buttons are enabled when the radio is locked.
g. Turn off the radio, press and hold the and buttons while turn-
ing the radio on to enable/disable VOX. VOX icon is displayed, PTT
button is disabled.
h. When VOX is enabled press the and buttons to set VOX sensi-
tivity. Flashing VOX icon indicates low sensitivity.
i. Press the CALL button to send a paging call to other users using the
same channel and CTCSS/DCS code.
j. Press the and CALL buttons to enable/disable the roger beep.
k. Press the and MON buttons to enable/disable key beeps.
Main specifications
ALAN HP 446 extrá meets the requirements of ETS 300 296, the robust
mechanical design is compliant with IEC529 (level IP54).
CTE International has a policy of continuous quality improvement, for this
reason specifications may vary without prior notice.
• Do not service the radio or the batteries by yourself (other than the
routine maintenance described in this handbook). It will immediately void
the warranty and may cause irreparable damage. Always contact your
local dealer for assistance.
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 11

English
12 Technical specifications
Technical Specifications
TEST METHODS
ETS 300-296 - IEC 529 IP54
GENERAL
Frequencies ......................................................446.00625 - 446.09375 MHz
Number of Channels ....................................................................................99
Frequency Control ..................................................................PLL Synthetiser
Channel spacing ..............................................................................12,5 KHz
Temperature Range operative ..................................................-30 °/ +60 °C,
Power Supply ..................................................7.2 Vdc batt. NiMH 1300mA/h
Frequency Stability ..........................................................................±2.5ppm
TRANSMITTER
RF Output Power ................................................................0.5W ERP ± 1dB
Modulation System ..........................................................................F3E (FM)
Maximum Deviation ..........................................................................±2.5 KHz
Adjacent Channel Power ..................................................................< -60dBc
Spurious Emissions........................................................................-70dB min.
Audio distortion ..................................................................................5% max
RECEIVER
Circuit Type........................................................................Double Conversion
Intermediate Frequencies ..............................................45.1 MHz, II 455 KHz
Sensitivity ..............................................................< 0.35µV @ 12 dB SINAD
Squelch sensitivity ....................................................................10 dB SINAD
Current drain
Squelched (with Power saver) ............................................18mA, typical
Squelched (w/o Power saver)................................................55mA, max.
Rated Audio ........................................................................160 mA, max
Co-channel Rejection ..........................................................within legal terms
Adjacent Channel Selectivity................................................within legal terms
Spurious Rejection ..............................................................within legal terms
Intermodulation Resp. Rejection..........................................within legal terms
Blocking................................................................................within legal terms
Hum and Noise Ratio ....................................................................-40dB min.
Rated audio output ............................................400mW at 5% T.H.D. (1KHz)
AF & signalling
Audio power......................................................................................> 500mW
CTCSS decode sensitivity ..........................................................> 8 dB Sinad
CTCSS decode selectivity ................accept tones ±0,5%, reject tones ±3%
Mechanical Specs
Dimensions ..........................................133 x 40 x 62 mm (with battery pack)
Weight......................................................................362 gr (with battery pack)
Battery ................................................................................Back slide battery
Accessory/programming connector ..............................................mono Jack
Water & dust ................................................................................IEC529 IP54
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 12

Index 13
English
A
Accessory
optional..................................................................................................11
optional-table..................................................................See Appendix B
Adjusting
Volume ....................................................................................................6
Autonomy ......................................................................................................5
B
Battery charger
standard ..................................................................................................5
Battery installation ........................................................................................4
Battery pack
Charging..................................................................................................5
Cleaning ..............................................................................................10
Erasing memory effect............................................................................9
General precautions..............................................................................10
Information on rechargeable batteries ....................................................9
Memory effect ........................................................................................9
Belt clip ..........................................................................................................5
Busy ch ..........................................................................................................7
C
Care and Maintenance ..................................................................................9
Calling another party ......................................................................................6
Cautions ........................................................................................................2
Channel selection ..........................................................................................6
Charger ............................................................................see Battery charger
Cleaning the radio ........................................................................................10
Connectors ..................................................................................................10
Controls and Indicators..................................................................................3
CTCSS / DCS ................................................................................................6
D
Display indications..........................................................................................4
G
Group call ......................................................................................................7
H
Handsfree transmission (VOX)......................................................................16
hexadecimal CTCSS/DCS codes ..........................................See Appendix ∑
I
Installation (battery) ........................................................................................5
installation (belt clip) ......................................................................................5
K
Key Beep........................................................................................................9
Index
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 13

English
14 Index
M
Main specifications ......................................................................................11
Memory effect ................................................................................................9
Microphone connector ................................................................................10
Monitor ..........................................................................................................7
O
Optional
Optional accessories ............................................................................11
Table optional accessories..............................................See Appendix B
Carrying case ........................................................................................10
Spare battery pack................................................................................10
P
Paging Call......................................................................................................9
Power
Button ON-OFF/VOL ..............................................................................3
Priority channel ..............................................................................................8
Preset CTCSS codes......................................................................................7
Preset CTCSS codes-table....................................................See Appendix A
Privacy............................................................................................................7
Q
Quick reference ............................................................................................11
Operation ....................................................................................................11
R
Radio lock ......................................................................................................8
Radio maintenance
Cleaning battery packs ........................................................................10
Cleaning the radio ................................................................................10
Connectors ..........................................................................................10
Roger Beep ....................................................................................................9
S
Scanning channels ........................................................................................8
Setup
Accessories supplied as standard..........................................................4
Battery pack............................................................................................4
Belt clip....................................................................................................5
Charging the battery pack ......................................................................5
Switching the radio ON/OFF..........................................................................6
T
Time out timer ................................................................................................7
V
VOX ................................................................................................................8
Istr. HP446 rev.1 - UK 20-07-2001 16:35 Pagina 14
