Alarm.com Water Dragon™
Installation Guide
ADC-SHM-100-A
* The Water Dragon must be used with the Add Device wizard to complete
calibration. See ‘8. Using the Add Device wizard’ section in this guide.

Table of content
1. Service package requirements
2. Installation precautions
3. In the box
4. Additional hardware
5. Component labelling
6. LEDs
7. Buttons
8. Using the Add Device wizard
9. Adding the Water Dragon to the Z-Wave network
10. Installation Guide
11. Troubleshooting
12. Deleting the Water Dragon from the Z-Wave network
13. Resetting the Water Dragon to factory default settings
14. Calibration issues

1. Service package requirements
The Water Dragon (ADC-SHM-100-A) requires both the Water Management and Water Management
Plus service package add-ons.
For information about how to update the service package on an account, see Update the service
package on a customer account.
2. Installation precautions
•Adhere to all relevant local codes and ordinances as they pertain to the Water Dragon.
•Water shutoff valves and leak detection devices should never be installed on a fire suppression
system. If a fire suppression system is present, ensure that the Water Dragon is installed
downstream of the branch leading to the fire suppression system.
•The Water Dragon (ADC-SHM-100-A) is AC-powered. Ensure the area around the power outlet is
dry before plugging in the device.
•Do not apply power to the Water Dragon until the unit is fully assembled.
The Water Dragon should only be powered using the supplied power adapter (supports mains voltage:
100-240 VAC ~50/60 Hz).
3. In the box
•Water Dragon (with DSK label)
•Magnalube packet
•Allen wrench
•Pipe clips with 3M VHB tape (3/4’’ & 1’’) and zip ties
•Power supply
•Abrasive cloth strip
•Spare transducer set screw
•Spare zip ties
•Spare pipe clip foam tape
4. Additional required hardware
•Phillips screwdriver
•Zip tie cutters
•At least 7 inches of exposed water pipe (acceptable types: 3/4‘’ or 1’’ rigid copper, CPVC, or PEX)
•Alarm.com compatible Z-Wave™controller

5. Component Labelling
1. Status LED
2. Network LED
3. Alert LED
4. Network button
5. Power plug
6. Holes for Allen wrench (attaches the unit to clamps that clamp onto the pipe)

6. LEDs
Name
Color
Description
Network
Green
•On: Added to a Z-Wave network
•Blinking: In Add mode
•Off: Not added to a Z-Wave network
Alert
Red
•Blinking: Flow/Temperature event active; log in to the
customer account for more details
•Off: No active events
Status
Yellow
•On: System calibrated and monitoring
•Blinking
•1 blink: Not calibrated
•2 blinks: Calibration in progress
•3 blinks: Hardware error detected
LEDs can be on or blinking independently of each other.
If all LEDs are off, the device has no power.
If the device is in Device Identification Mode, indicating there are multiple Water Dragon devices within
range, all three LEDs will be blinking.
All three LEDs will also blink if the Network button is pressed for greater than 15 seconds, indicating that
the button can be released, and a factory reset will occur. See Resetting the Water Dragon to factory
default settings for more information.
7. Network Button
The Network button is used for Z-Wave Add/Delete mode as well as to factory reset the device.
8. Using the Add Device wizard
Customers can access the Add Device wizard from the Customer Website or app > Settings > Managed
Devices > Add Device > Water Valves or Meters > Water Dragon.
Installation technicians can access the Add Device wizard from Partner Portal > Customer Account >
Equipment > Z-Wave Devices > Start Add Device Wizard > Water Valves and Meters > Water Dragon
Installation technicians can also access the Add Device wizard from MobileTech > Customer Account >
Quick Actions > Add Device > Water > Add Device Wizard > Log In as User to Mobile App > Water Valves
and Meters > Water Dragon

9. Adding the Water Dragon to a Z-Wave network
After bringing the Water Dragon to the installation site,
1. Put the Z-Wave controller in Add mode. Refer to the controller’s documentation for more
information.
2. Press the Network button on the side of the Water Dragon to begin the Add process. The
Network LED on the unit will begin blinking.
After the Water Dragon is successfully added to the Z-Wave network, the Network LED on the control
unit will turn solid green. If the Network LED is not illuminated after the Add process, repeat steps 1 and
2.
SmartStart enabled products can be added to a Z-Wave network by scanning the Z-Wave QR Code
present on the product if the controller is SmartStart enabled. No further action is required, and the
SmartStart product will be added automatically within 10 minutes of being in the network’s vicinity.
Please find the DSK as part of the product label on the side of the Water Dragon unit.

10. Installation location
First identify the type of system you have. Schematics are provided to show an example of each type.
Pressure regulator
1. Installation location
2. Pressure regulator
3. Shutoff valve
Locate at least 7 inches of pipe downstream from the pressure regulator, which is where you will
install the Water Dragon.

Well system
1. Installation location
2. Pump output
Check whether the pump connects to the pressure tank and then to the house supply, in that order.
If yes, locate 7 inches of pipe downstream from the pressure tank, which is where you will install the
device.
If no, locate 7 inches of pipe on the line that feeds the house, which is where you will install the device.
Do not install the device on pipe that feeds into the tank.

Radon mitigation system
1. Installation location
2. Water tank
3. Radon unit
4. Secondary unit
5. Bypass valve
Locate at least 7 inches of pipe downstream from the radon mitigation system, which is where you will
install the device.
Pipe type
The Water Dragon is compatible with the following diameter and material of pipes:
•¾” Copper M
•1” Copper M
•¾” Copper L
•1” Copper L

•¾” PEX
•1” PEX
•¾” CPVC
•1” CPVC
Pipe type identification
•PEX: Comes in red, blue, and white
•CPVC: Typically, a yellowish, cream color
•Copper M: Labeled “Type M” or has red print
•Copper L: Labeled “Type L” or has blue print

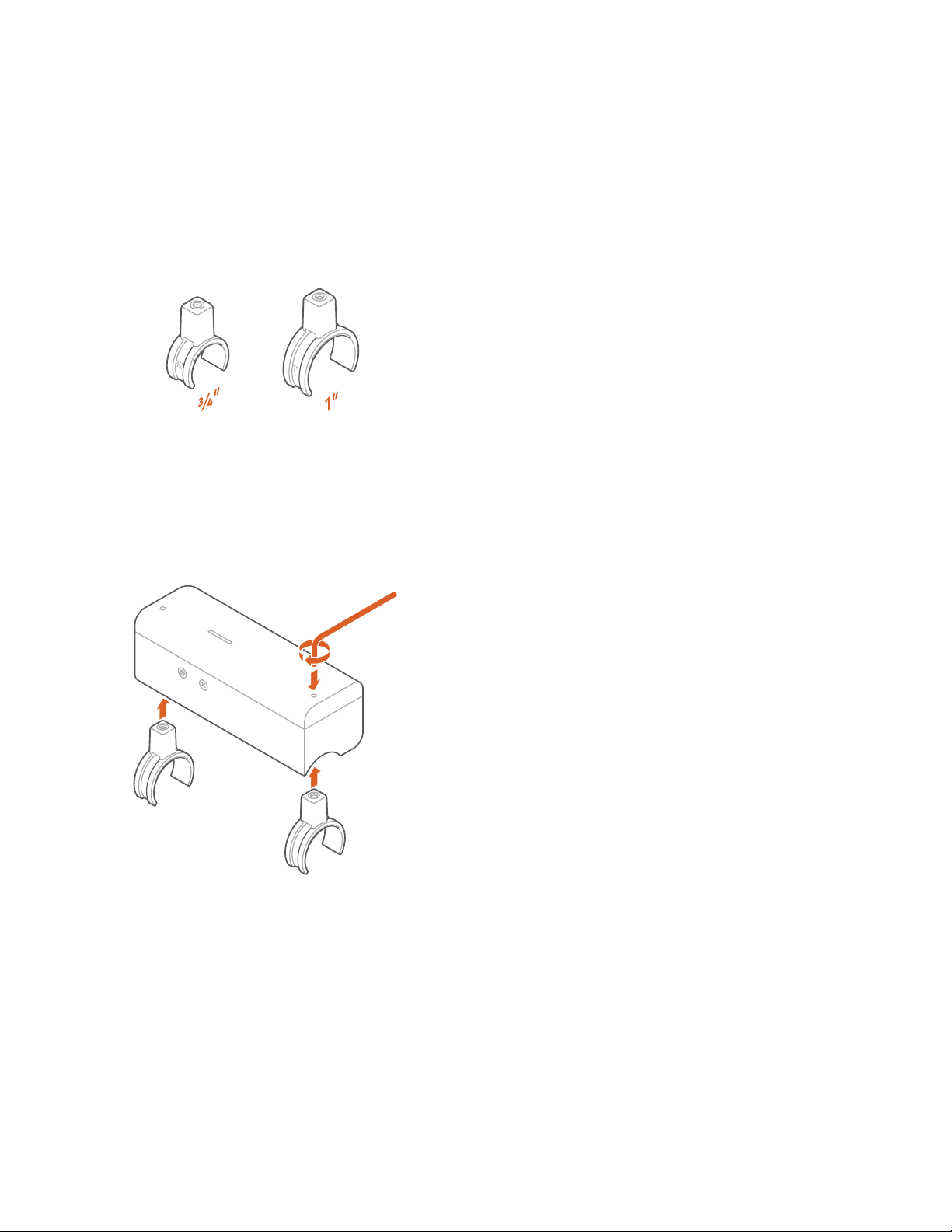

An easy way to determine the pipe diameter is to try the clips on for size. The smaller clip is ¾’’ diameter
and the larger clip is 1’’ diameter. The correctly sized clip should snap on and hold onto the pipe.
Set transducer spacing
Depending on the pipe material and diameter, the transducer spacing may need to be adjusted.

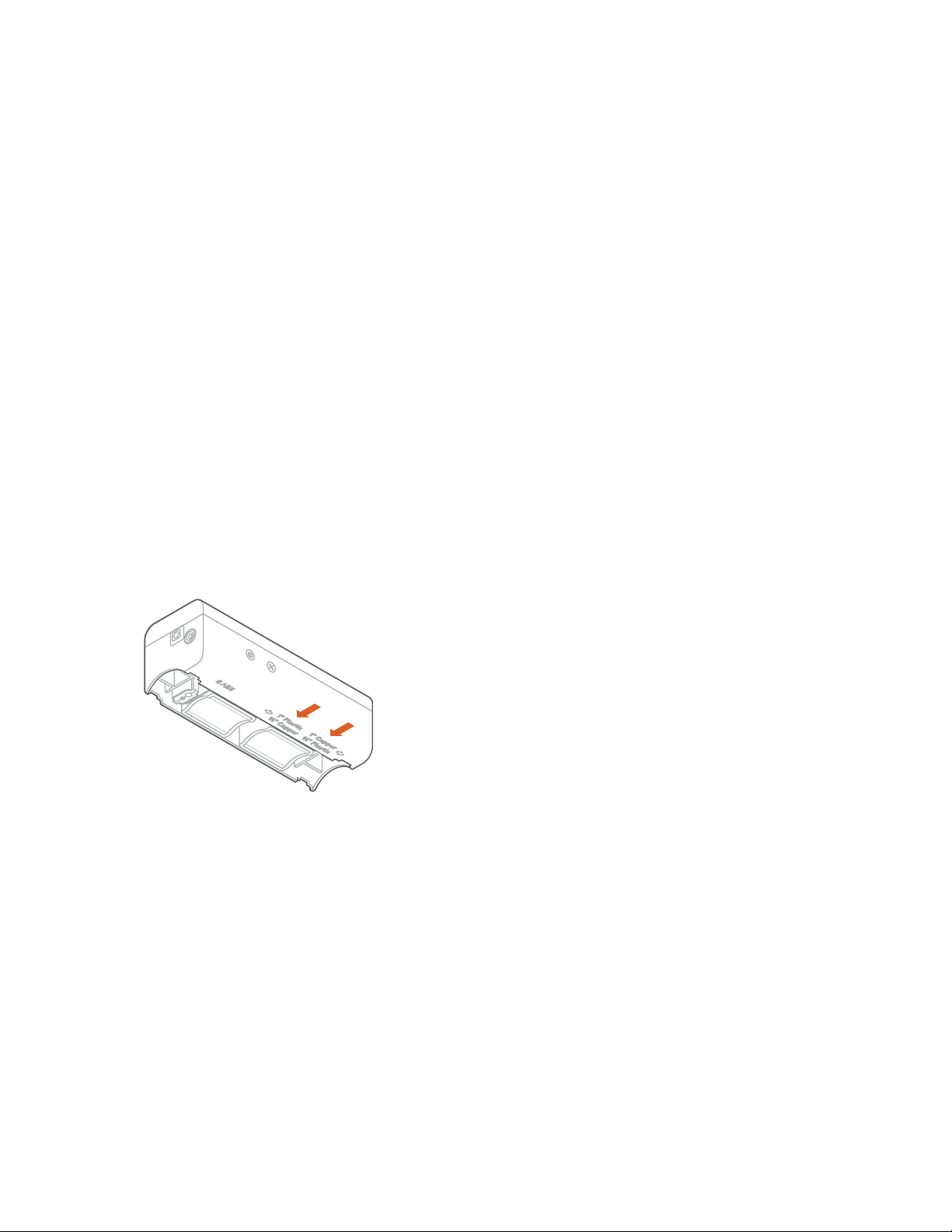

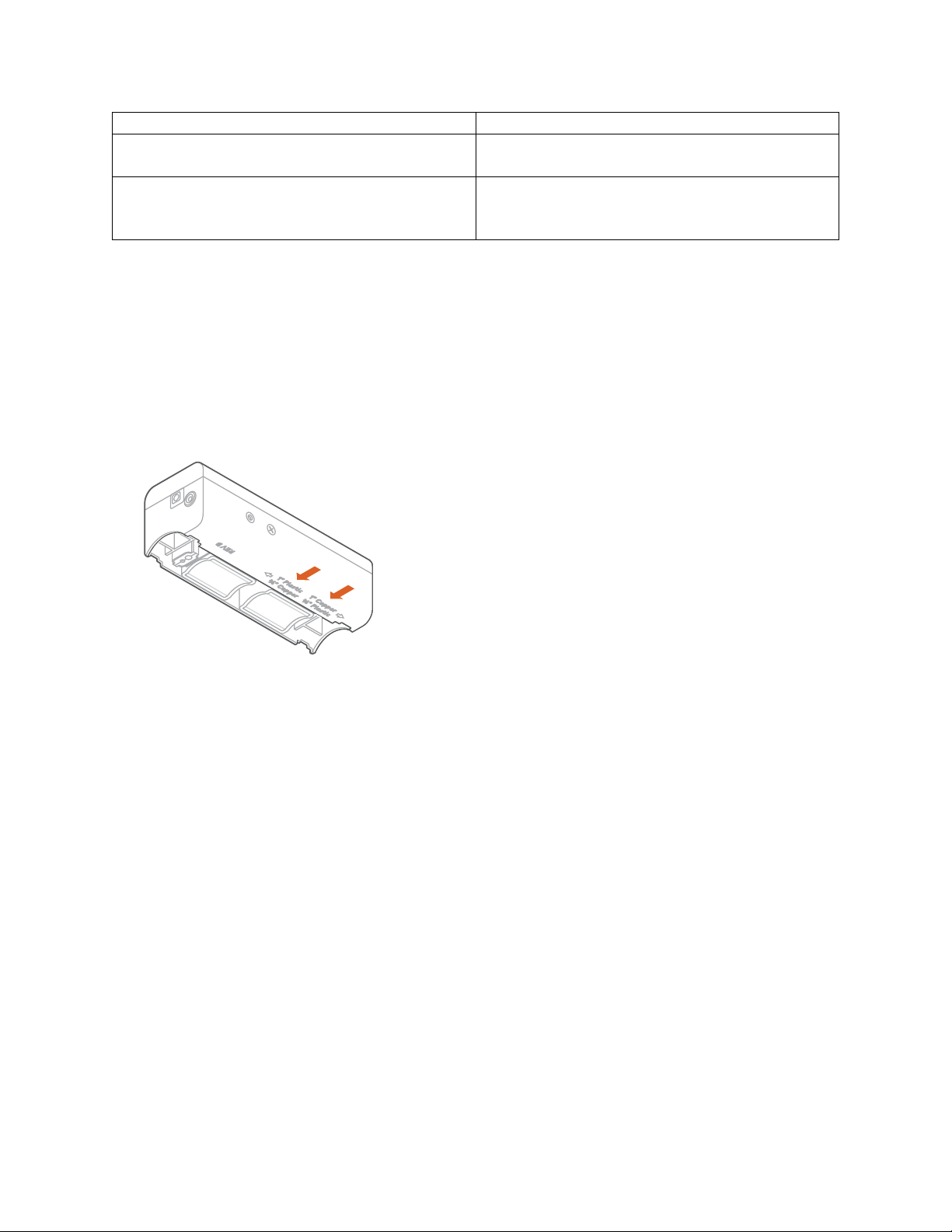

Examine the module and the engraved labels as shown in the illustration to see whether adjustment is
needed.
If adjustment is needed, locate the side screw. A singular side screw should be in either of the two holes.

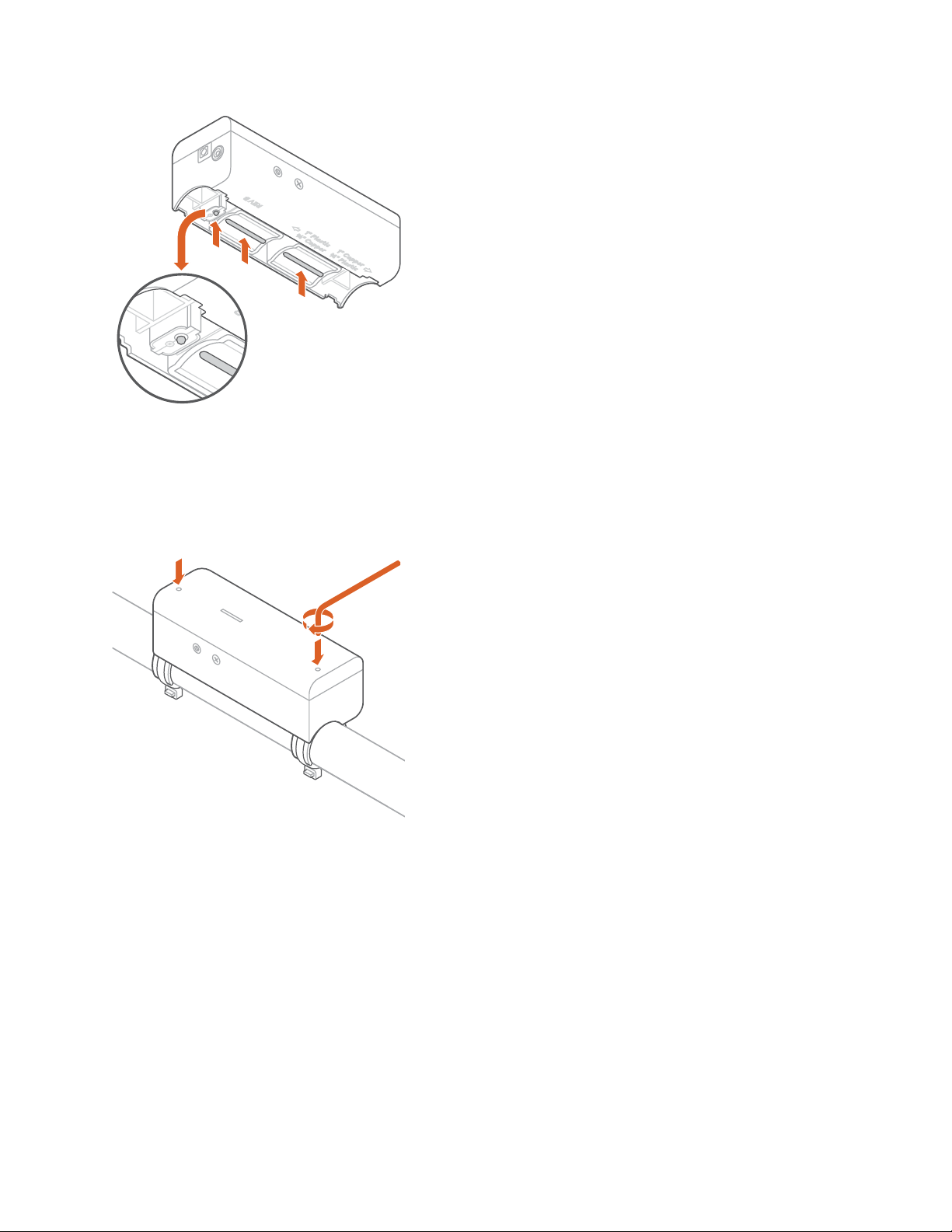

To adjust transducer spacing, remove the screw with a Phillips screwdriver and carefully slide the
module into position. Retighten the side screw in the new position. Do not overtighten.
Prepare surface
Wipe down the selected pipe section with a towel or rag. Ensure there is a clean and smooth surface for
installation.
If you have a copper pipe, use the provided abrasive cloth to lightly buff the surface until the exposed
metal is smooth and shiny. Wipe down the surface of the pipe again with a towel or rag.
