Alba MPK4065BUK User manual

MPK4065BUK

Your Pocket Guide
Portable Media Player
Install Software
Get Connected
Transfer Media
Plug Your Ears & Enjoy

1
What’s in the blister?
Know Your Player Well
System Requirement
Software Installation
Connect & Charge
Transfer
Software Operation
Language Selection
Music Playback
Edit Lyrics
Repeat Mode
EQ Mode
Video Playback
Photo Browse
E-Book
Records
Game
Technical Data
Trouble Shooting
2
3
4
5
6
7 - 8
9 - 12
13
14
15
16
17
18
19
20
21
22
23
24

2
What’s in the blister?
Portable Media Player
Earphone USB Cable
What’s in the blister?
CD-ROM containing:
Media player driver for
Windows® 98/98SE
Software for converting
.act files into .wav files.
Software for formatting
internal memory.
Your Pocket Guide
Your Pocket Guide
Portable Media Player
Install Software
Get Connected
Transfer Media
Plug Your Ears & Enjoy

Windows® 98/98SE/ME/2000/XP/Vista
Pentium Class or faster Processor
CD-ROM Drive
64MB RAM
30MB free hard disk space
USB Port
You’ll need a computer with:
System Requirement
4

Insert the CD into the CD ROM drive of your PC.
Click to start driver installation.
Follow the on-screen-menu to complete the installation.
Setup.exe
Click once you reach the
screen.
Close Installation
Complete
For Windows® 98/98SE users, please install the driver in the CD-ROM before downloading any files to your player.
Software Utilities Installation
Software Installation
5

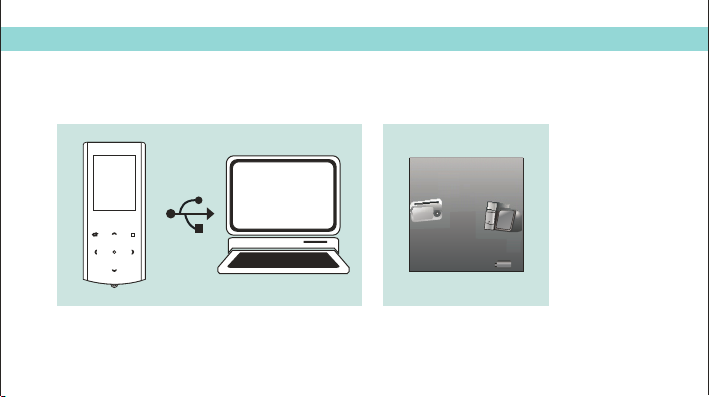

Connect & Charge
Connect
Your player will be charged while being connected to PC through the USB cable.
! You will see the charging animation in the bottom right hand corner of the display.
The player is fully charged when the charging animation stops.
Z
Z
Z
Z
Z
Z
Z
Z
6

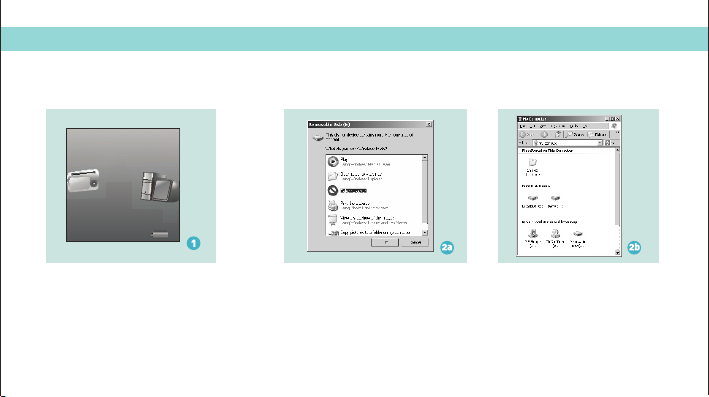

Step 1:
Set the Online Device of the player as USB Disk
(Refer to Page 6), then connect it to your PC
by USB cable. Once the connection is successfully
made, the above screen display (1) would be
shown. Try re-connecting the player if the above
screen doesn't appear.
Step 2:
The above screen (2a) would appear.
(Apply only to Windows® XP)
Choose and click
to close the window.
Take no action OK
Double click on your
desktop and the above window (2b)
would appear. Look for the
icon.
My Computer
Removable Disk
Get Your Player Connected
Transfer
Z
Z
Z
Z
Z
Z
Z
Z
7

3
Step 3:
Double click the icon.
Note: Do not disconnect the USB cable
once you click into the removable disk
window. Such action may cause data loss
or problems to the player.
Removable Disk
Drag and drop your media files into the
removable disk.
You can create any folder or directory
in the removable disk.
Close the removable disk window and
disconnect the player from your PC
after the data transfer.
Transfer Music, lmage & Movie
8

Software Operation
You can convert your favorite video file in any other format into the .AMV format with the
help of the ().
The converting progress is shown as below.
AMV converter Programs\MP3 Player Utilities 4.13\AMV Converter
Software Operation
2
9

Software Operation

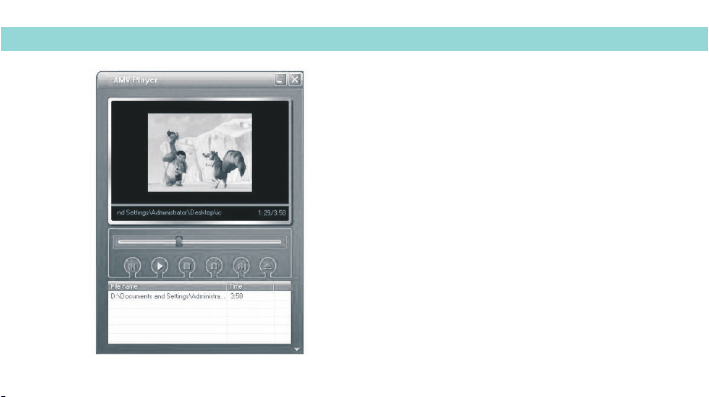

To enjoy the converted movie on your PC, you can
play it thru the (
).
AMV player Programs\MP3 Player
Utilities 4.13\AMV Player
Enjoy Your AMV Movie
10

Your can enjoy songs from both PC and your player thru
the (
).
Media Manager Programs\MP3 Player Utilities 4.13\
Media Manager
Software Operation
You can also convert your recorded .ACT voice
into .WAV format thru the .Media Manager
Software Operation
11

Software Operation

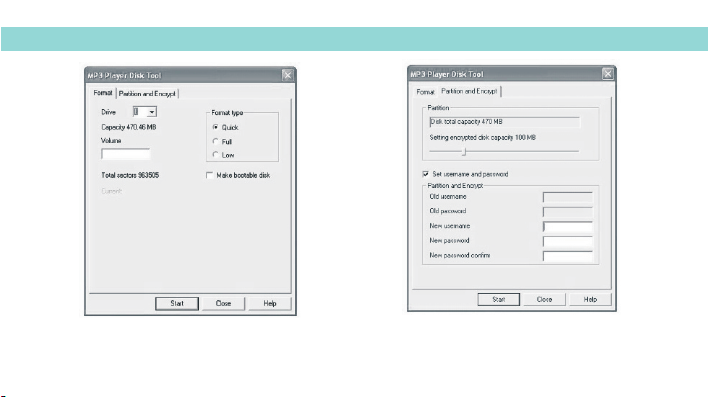

You are also allowed to format the memory of your player,
or divide it into two partitions in
.
Programs\
MP3 Player Utilities 4.13\MP3 Player Disk Manager
If the updated version is available, please use
to upgrade it.
MP3 Player Firmware Upgrade Tool
12

System on the main menu,
13
Record type
Record type

Music Playback
Music Playback
Select on the main menu and press
to enter the music mode, then you can select
different songs by pressing / , and you can
easily play the song you’ve chosen by a simple
press of .
Music
Display Lyrics
A-B repeat
14
While enjoying music, you can press to pause
While playing music, you can press to enter sub-menu.
or continue the music; press / to move back
Press / to select Replay Mode and then press again
to the previous song or jump to the next song;
to select Replay. The mark A is flashing on the display and
Hold / long to move your song forward or
wait for the setting. Press / to set mark A. Mark A is set if
rewind it. If you want to adjust the volume,
flashing stopped. Press / to set mark B. Mark B is set if
please press to volumn up and press to
flashing stopped. The music between mark A and mark B will be
volumn down.
repeated until you press button to disable the function.
The edited lyrics will be displayed synchronously
if you hold while playing music.
And you can press once to quit the lyrics display scene.
26 001 - 003
00:05:10
ROOT
my heart will go
0:02:00 ROCK
MP3
128
K
And spaces between
us
You have come to
show you go on
Near, far, wherever
you are
Near, far, wherever
you are
My heart will go on

Edit Lyrics
Edit Lyrics

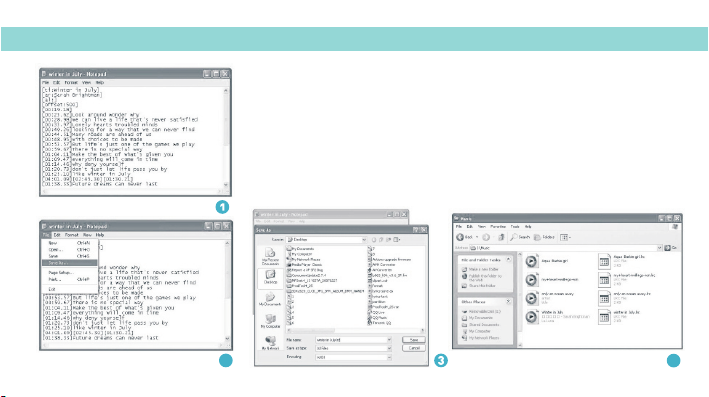

You can copy the synchronous lyrics from
internet, and create a new
on your PC, paste them, and then select to
save this document in the extension of
shown as below.
Text Document
.LRC
Then put both .LRC and .MP3 (or .WMA)
files of the same song into the same folder
in the removable disk. Your lyrics would be
shown when you play that song.
24
15

Procedure:
In PLAYING mode (1), press while playing music to enter
the selection menu screen (2). Choose and press
to enter the menu screen (3).
Repeat
Repeat
Repeat Mode
Repeat Mode
8 Repeat Modes are available:
Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro,
Normal
All music files will be played one by one
and stopped at the last music until you
disable this function.
Repeat One
The currently played song will be played
repeatedly until this function is disabled.
Folder
All music in the selected folder would be
played once until this function is disabled.
Repeat Folder
All music in the selected folder would be
played from the beginning to the last one
repeatedly until this function is disabled.
Repeat All
All music would be played from the
beginning to the last one repeatedly until
this function is disabled.
Random
All music would be played randomly until
this function is disabled.
Intro
All music would be played for 10 seconds
from the beginning until this function is
disabled.
16
A-B Repeat
All music would be played from the desired
place to the target place until this function is
disabled.
A-B Repeat.
26 001 - 003
00:05:10
ROOT
my heart will go
0:02:00 ROCK
MP3
128
K
SRS WOW mode
Replay mode
List mode

Procedure:
In PLAYING mode (1), press while playing music to enter the
selection menu screen (2). Press to select and press
to enter the menu screen (3).
Equalizer
Equalizer
7 EQ Modes are available: Natural, Rock, Pop, Classic, Soft, Jazz, DBB.
EQ mode
Listen to your music at its best
17
26 001 - 003
00:05:10
ROOT
my heart will go
0:02:00 ROCK
MP3
128
K
