Alcatel-Lucent OmniStack 6200
Stackable LAN Switches

ALCATEL-LUCENT OMNISTACK 6200
STACKABLE LAN SWITCHES
The Alcatel-Lucent
OmniStack 6200
switches deliver network
intelligence, improving
security for your users
while simultaneously
reducing operating
expenses, capital
expenditures, training,
and day-to-day
management costs
To stay competitive, 21st century businesses must take advantage of new
networking technologies that deliver quick and secure access to vital information
from any location. Customers expect and demand that customizable user-centric
services be securely provided over an always available environment, and
they want to be able to access it from anywhere such as over the Internet.
Most enterprise networks have Ethernet-based infrastructures where
workgroup switches supply the bulk of switch ports needed, making them
an ideal target for performance improvements at attractive prices. With the
latest workgroup switch technologies from Alcatel-Lucent, it’s possible to
provide power-over-Ethernet across your campus for true plug-and-play
connectivity for wireless LAN access points, IP phones, and other network devices.
Alcatel-Lucent’s switches also take advantage of and exploit network
intelligence improving user security while reducing operating expenses,
capital expenditures, training and day-to-day management costs.
Alcatel-Lucent has designed the OmniStack 6200 (OmniStack 6200) family of
stackable Ethernet switches to address enterprise and residential networking
needs. They are fixed configuration, 10/100 copper or 100BaseX fiber layer-2
switches that deliver the advanced features and services demanded by users.
These 12-, 24- or 48-port Fast Ethernet switches provide the same advanced
capabilities previously available only in Gigabit-class switches, making them
an excellent, inexpensive edge device.
The OmniStack 6200s provide wire rate layer-2 forwarding and advanced
layer 2-4 services. They also securely support advanced quality of service
with advanced user and traffic classification capabilities for exceptional
video, voice, and data performance.
Every OmniStack 6200 switch comes with two 10/100/1000 copper ports that
can be used with standard Ethernet cabling for fault-tolerant dedicated
stacking links or as Gigabit ports in a standalone configuration. They also
come with two additional Gigabit combo ports that provide ports for
upstream connectivity to the network or to high-speed servers. Combo ports
provide the user the ability to attach via standard copper Ethernet cabling or
fiber using industry standard optical transceivers.
A compact, one unit (1U) high form factor, all in one stackable design and a
comprehensive set of features makes the OmniStack 6200 perfect for:
• Enterprise workgroups / LAN wiring closets
• Edge deployments, small-/medium-sized businesses and branch offices
• Power-over-Ethernet
• Residential and business Ethernet access distribution devices
(per floor or per building MDU) for triple play services delivery.
2 Alcatel-Lucent | Alcatel-Lucent OmniStack 6200

Alcatel-Lucent
OmniStack 6200
Alcatel-Lucent OmniStack 6224U
Alcatel-Lucent OmniStack 6248
Alcatel-Lucent OmniStack 6224P
Alcatel-Lucent OmniStack 6212P
3Alcatel-Lucent | Alcatel-Lucent OmniStack 6200
A compact, one unit (1U) high form factor, all in one stackable design and a
comprehensive set of features makes the Alcatel-Lucent OmniStack 6200 perfect for:
IEnterprise workgroups / LAN wiring closets
IEdge deployments, small-/medium-sized businesses and branch offices
IPower-over-Ethernet
IResidential Ethernet access distribution devices (MDU) for triple play services delivery.
The currently available Alcatel-Lucent OmniStack 6200 switches are:
OS-LS-6212, OS-LS-6224, OS-LS-6248 which are Fast Ethernet L2+ stackable fixed
configuration chassis in a 1U form factor consisting respectively of 12, 24 or 48
10/100 RJ-45 ports, two 10/100/1000 RJ-45 ports and two combo ports.
Combo ports consist of two additional 10/100/1000 RJ-45 and two mini-GBIC ports.
Mini-GBIC ports support Gigabit or 100FX Ethernet mini-GBIC (SFP) optical
transceivers. Stacking capability uses the two 10/100/1000 RJ-45 ports and standard
Ethernet cabling.
OS-LS-6212P, OS-LS-6224P, OS-LS-6248P, which are Fast Ethernet L2+ stackable
fixed configuration chassis in a 1U form factor consisting respectively of 12, 24 or
48 10/100 RJ-45 ports with power over Ethernet, two 10/100/1000 RJ-45 ports and
two combo ports.
OS-LS-6224U, which is a Fast Ethernet L2+ stackable fixed configuration chassis
in a 1U form factor consisting of 24 100BaseX SFP ports, two 10/100/1000 RJ-45
ports and two combo ports. The 24 SFP ports accept industry standard 100Base-X
optical transceivers.
The OmniStack 6200 family uses a modular external backup power solution that
provides redundant chassis and PoE power on a 1:1 basis.
The OmniStack 6200 family complements the existing portfolio of Alcatel-Lucent
enterprise fixed-configuration workgroup switches which includes:
IOmniSwitch 6602 family switches: stackable layer-3 10/100 with Gig uplinks
IOmniSwitch 6800 and 6850 family switches: stackable layer-3 10/100/1000 capable of
10Gig uplinks.
OmniStack 6200 are supported by the Alcatel-Lucent OmniVista Network
Management System and facilitates management of a converged, multi-vendor
equipped network by supporting 802.1ab (LLDP link layer discovery protocol) and
the media-endpoint discover (LLDP-MED) extensions.

Alcatel-Lucent
OmniStack 6200
DEDICATED RESILIENT
STACKING RING
DEDICATED RESILIENT
STACKING RING
Alcatel-Lucent
OmniStack 6200
4 Alcatel-Lucent | Alcatel-Lucent OmniStack 6200
Alcatel-Lucent’s fixed configuration switches are part of Alcatel-Lucent’s enterprise
portfolio that includes the OmniSwitch 7000 and 9000 series of modular
aggregation and core switches. This portfolio offers a complete edge-to-core
solution with high availability, intelligent performance, and enhanced security in
an easy-to-manage, flexible and scalable package.
Alcatel-Lucent understands the need to offer investment protection and provides
a limited lifetime hardware warranty on OmniStack 6200, OmniSwitch 6602, 6800
and 6850 families of switches.
Cost effective, enterprise workgroup switch
The OmniStack 6200 family offers small, medium or large enterprise networks a
cost-effective and secure means of deploying PoE on every port, providing users
mobility across the campus. By providing wire-speed QoS and security to the edge,
Alcatel-Lucent is able to ensure a highly available network for important
applications such as IP voice communications.
The OmniStack 6200s support industry-standard CLI, and provide simplified stack
management using standard Ethernet cabling. This reduces the complexity and
costs associated with training, installation, configuration, and maintenance.
Superior architecture
This switch family also provides a superior architecture with four useable Gigabit
Ethernet ports that support stacking and multi-Gigabit uplink connectivity without
sacrificing user ports. Since the OS-LS-6212 and OS-LS-6224 are fan-less designs,
they are a perfect fit for environments with severe noise restrictions.
In addition, the advanced VLAN classification offered by the OmniStack 6200
family improves partitioning of users and applications, greatly improving
security and enabling better performance for network applications including
voice and video.

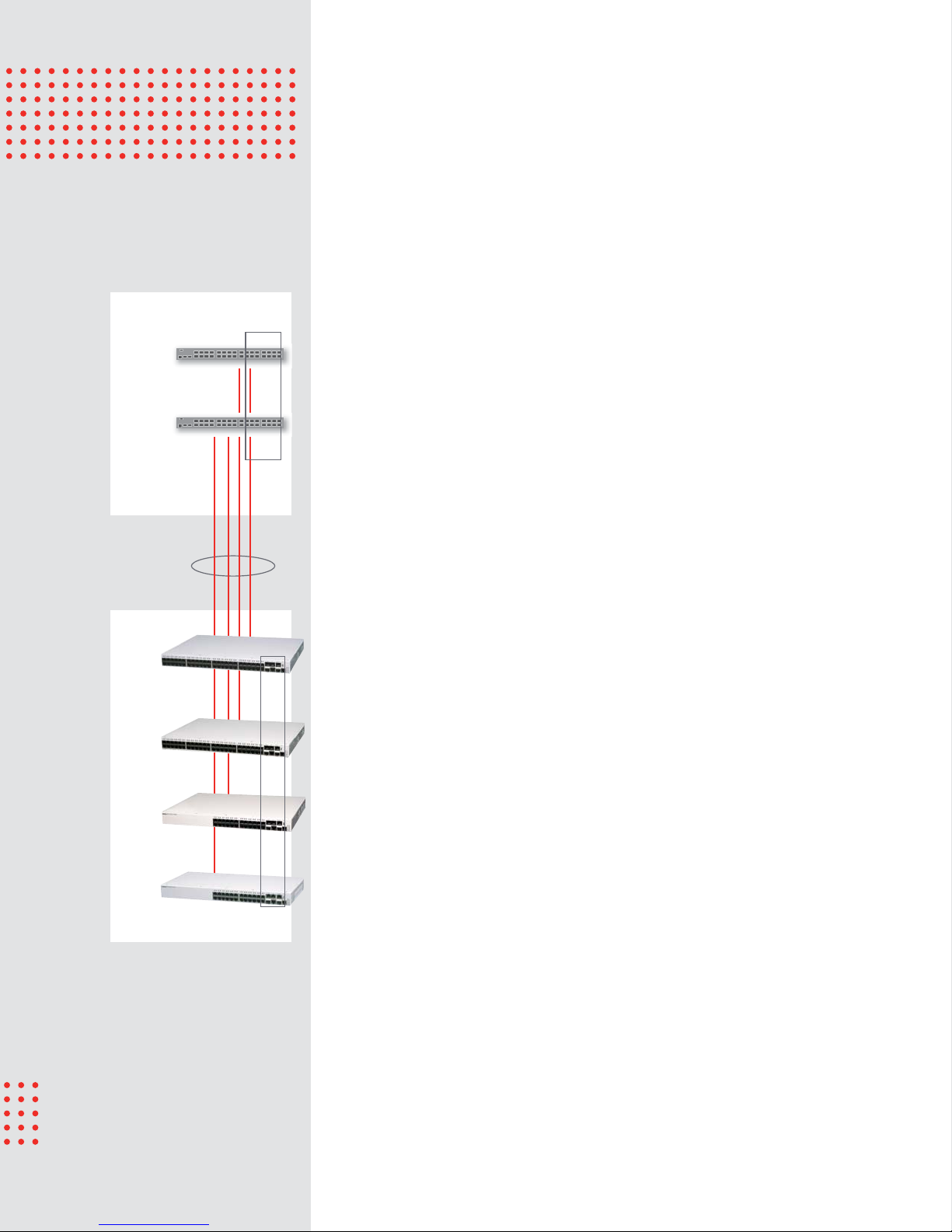

Multilink 1 Gig
aggregation
OmniStack 6248P
OmniStack 6248P
OmniStack 6224P
OmniStack 6224
OmniSwitch 6850
OmniSwitch 6850

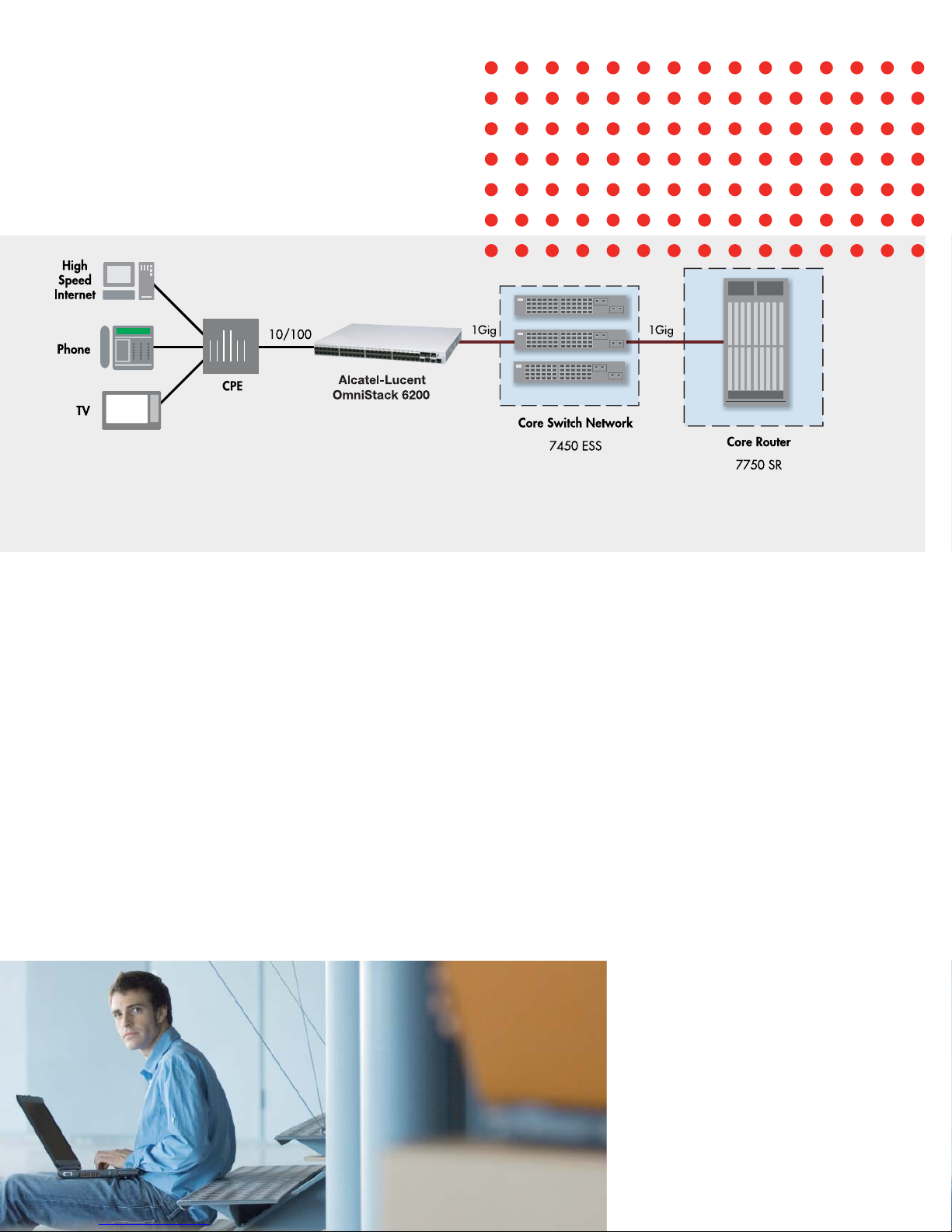

Alcatel-Lucent offers a comprehensive networking portfolio that provides a secure, feature rich, and cost effective end-to-end
triple play Ethernet solution. It supports subscriber centric content increasing user satisfaction and opportunities for additional
operator services and revenue.
5Alcatel-Lucent | Alcatel-Lucent OmniStack 6200
Multi-service operator
The OmniStack 6200 family supports
service operators at the network’s
edge with:
IPer service VLAN stacking (Q-in-Q)
capability providing scalability for user
service differentiation
IA reduced number of VLANs in
aggregation
IInteroperability with MPLS/VPLS core
network architecture
Through the use of multicast TV VLANs
the OmniStack 6200s provide extremely
efficient bandwidth usage by
preventing duplication of TV streams
sent between the core and the edge of
the network. In addition, it enables
multiple TV providers per subscriber.
Port mapping (private VLAN edge)
segments and privatizes user traffic,
preventing direct layer-2
communication between users,
thereby giving better operator control
and security.
Another advantage of the OmniStack
6200’s advanced VLAN and multicast
classification is that it separates
services into dedicated domains while
granular traffic controls provide
excellent control of bandwidth usage
and consumption.
Summary
Alcatel-Lucent’s OmniStack 6200 family
provides the performance and advanced
services required to support 21st
century applications at a tremendous
value. The OmniStack 6200 is a great
alternative when L3 routing or Gigabit
speed is not needed on every port.

FEATURES
6 Alcatel-Lucent | Alcatel-Lucent OmniStack 6200
Simplified manageability
IDual image and multiple configuration file storage provides backup
IIndustry standard CLI with a familiar interface reduces training costs
IEasy-to-use point-and-click web based element manager with built-in help for easy
configuration of new technology features
IRemote telnet management or secure shell
IPort based, port mirroring for troubleshooting
IHuman readable ASCII-based config files for offline editing and bulk configuration
IIGMPv1/v2/v3 snooping to optimize multicast traffic
IIGMP querier for non-routed multicast network configuration
IBootP/DHCP client allows auto-config of switch IP information to simplify deployment
IAuto-negotiating 10/100/1000 ports automatically configure port speed and duplex setting
IAuto MDI/MDIX automatically configures transmit and receive signals to support straight thru
and crossover cabling
ISNMPv1/v2/v3
ISupports RFC 2819 RMON group (1-Statistics, 2-History, 3-Alarm & 9-Events)
ISimple Network Time Protocol (SNTP) for network wide time synchronization
IAlcatel-Lucent Mapping Adjacency Protocol (AMAP) for building topology maps
within OmniVista
IIEEE 802.1ab (LLDP) and LLDP-MED extensions for network discovery, topology and easier
VoIP deployment
IVirtual cable tester provides switch-based integrity testing on copper Ethernet cabling
IEvent logging and remote SYSLOG support
VLAN support
I255 VLANs
I4,094 VLAN tag value support
IPer port, 802.1Q, MAC, IP subnet and protocol VLAN
IPer service VLAN stacking (Q-in-Q) with per port and inner VLAN classification
IMulticast TV VLAN registration per port for maximum bandwidth efficiency between edge
and core.
High availability
I802.1w rapid recovery spanning tree allows sub-second failover to redundant link
I802.1d spanning tree for loop free topology and link redundancy
I802.1s multiple spanning tree
IFast forwarding mode on user ports to bypass 30-second delay for spanning tree
IStatic and 802.3ad dynamic link aggregation that supports automatic configuration of link
aggregates with other switches.
IBroadcast storm control
IRedundant 1:1 power
IFault tolerant loop stack topology
Quality of service
I802.1p, TOS, DSCP marking
IQoS mapping: 802.1p to TOS/DSCP, TOS to 802.1p/DSCP, DSCP to 802.1p/TOS
IClassification per port, 802.1p(COS) value, MAC SA/DA, Ethertype, TOS precedence, DSCP
value, ICMP code and type, IP SA/DA, IP protocol, TCP/UDP port
IClassification per inner VLAN for VLAN stacking configuration
IFour egress queues per port that support strict and WRR queuing algorithms
IIngress bandwidth rate limiting per port/flow
IEgress bandwidth rate limiting per port/queue

Indicators
ILEDs per port
10/100: link/activity, PoE power
Combo: Link/activity
10/100/1000: Link/activity
ISystem LEDs
OK (diagnostics)
PWR (internal power supply status)
FAN (fan status)
TEMP (overtemp)
RPU (backup power status)
Stack (status)
Alcatel-Lucent
OmniStack 6200
*Future Availability
7Alcatel-Lucent | Alcatel-Lucent OmniStack 6200
Advanced security
I802.1x port based user authentication
with multiple host mode
I802.1x multi-client, multi-VLAN*
support for per-client authentication
and VLAN assignment
IMAC-based authentication for non-
802.1x capable devices
ITransparent 802.1x BPDU forwarding
when 802.1x control is done by a different
device or equipment in the network
IPrivate VLAN edge or port mapping
IGuest VLAN provides limited network
access for unauthorized clients
IMAC address lockdown allows only
known devices to have network access
preventing unauthorized network device
access includes lockdown after a user-
configured number of MAC addresses
have been learned
IDHCP Option 82 and DHCP snooping for
IP address allocation control and protection
IIP source guard and dynamic ARP inspection
using DHCP snooping binding table
IRADIUS and TACACS+ admin
authentication prevents unauthorized
switch management
ISecure Shell (SSL), Secure Socket Layer
(SSL) and SNMPv3 for encrypted remote
management communication
IAccess control lists to filter out unwanted
traffic including denial of service attacks
IAccess control lists (ACLs) are per port,
MAC SA/DA, IP SA/DA, ICMP type and
code, Ethertype, TCP/ UDP port
ISTP root guard prevents an unauthorized
device from becoming the root of a
spanning tree.
Performance
ISwitching capacity:
12.8 Gbps OS-LS-6212/12P/24/24P/24U,
17.6 Gbps OS-LS-6248/48P
IStacking capacity: 1 Gbps full-duplex
per stack port, 4 Gbps aggregate
capacity with optimized unicast and
multicast forwarding
IWire rate forwarding for 10/100/1000
port speeds, 7.74 Mpps OS-LS-6212/12P,
9.52 Mpps OS-LS-6224/24P, 13.1Mpps
OS-LS-6248/48P
I8 K MAC addresses
User ports
IOS-LS-6200: 12 or 24 or 48 10/100BaseT
RJ-45 ports on the front panel. Each
copper port is capable of auto-MDI/MDI-
X sensing.
IOS-LS-6224U: 24 100BaseX fiber ports on
the front panel. Each fiber port support
external SFP optical transceivers for
100MB fiber connectivity.
Stacking ports
IAlcatel-Lucent OmniStack 6200: Two
10/100/1000 copper RJ-45 ports. Alcatel-
Lucent OmniStack 6200 supports a fault
tolerant looped stacking configuration.
In a standalone configuration, these ports
can be used as normal network ports.
Combo ports
IOS-LS-6200: Two Gigabit Ethernet SFP
(mini-GBIC) plus two 10/100/1000 RJ-45
combo ports are located on the front
panel. Users determine whether the
mini-GBIC or 10/100/1000 ports will
operate. The mini-GBIC ports support full
duplex mode only.
ISFP (mini-GBIC) ports support
100BaseX fiber optic transceivers for
100mb fiber connectivity

Alcatel-Lucent
OmniStack 6200
8 Alcatel-Lucent | Alcatel-Lucent OmniStack 6200
Physical dimensions
IOS-LS-6212/6212P/6224/6224U: 17.32 x 9.05 x 1.73 in., 44 x 23 x 4.4 cm (W x D x H)
IOS-LS-6224P/48/48P: 17.32 x 12.99 x 1.73 in., 44 x 33 x 4.4 cm, (W x D x H)
Weight
IOS 6212: 2.65 kg, 5.84 lbs IOS 6212P: 3.0 kg, 6.61 lbs
IOS 6224U: 3.5 kg, 7.7 lbs IOS 6248: 4.1 kg, 9.01 lbs
IOS 6248P: 5.5 kg, 12.13 lbs
Connectors/cabling
IManagement: one RJ-45 console interface configured as DTE for operation, diagnostics, status, and configuration information. Ship kit
includes RJ-45 to DB-9 connector adapter
IAC power connector and BPS connector on rear of chassis
Operating environment
I0 to 50 degrees C (Standard operating) I-40 to 70 degree C (Non-operation)
IHumidity: 5% to 95% (Non-condensing) IVibration: IEC 68-2-36, IEC 68-2-6
IShock: IEC 68-2-29 IDrop: IEC 68-2-32
Maximum power consumption
IOS-LS-6212: 26.2W
IOS-LS-6212P: 135W max
IOS-LS-6224: 33.1W
IOS-LS-6224P: 225W max
OS-LS-6224U: 54W max
IOS-LS-6248: 51.5W
IOS-LS-6248P: 465W max
Acoustic
I<30 db for OS-LS-6212 and OS-LS-6224
I<50 db for other models
MTBF
I50K Hours at 25 degrees and 25K hours at 50 degrees
IEEE standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.1x, IEEE 802.1w, IEEE
802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, LLDP-MED extensions
EMC
IEN50081-1 IEN50082-1 IEN60555-2 Class A
EN55022 Class A IEC 1000-4-2/3/4/6 IEN60555-3
IFCC Class A, VCCI Class A
Safety
ICSA/NRTL (UL60950, CSA 22.2.No 60950-00) ITUV/GS(EN60950)
ICB ICE Mark

9Alcatel-Lucent | Alcatel-Lucent OmniStack 6200
Environment compliancy
IRoHS - Restriction on Hazardous Substances in Electrical and Electronic Equipment
IWEEE - Waste Electrical and Electronic Equipment
Number of power supplies
OmniStack 6200 family supports one internal AC power supply for chassis power and an external connector on rear of chassis for use with the
backup power supply solution
Input voltage & current ratings
OS-LS-6212: Input, AC 100~240V 50Hz~60Hz. Output DC 12V/2.5A
OS-LS-6224/6248/6224U: Input, AC 100~240V 50Hz~60Hz. Output DC 12V/4.5A
OS-LS-6212P: Input, AC 100~240V 50Hz~60Hz. Output, DC 12V/2.5A, 50V/3.0A
OS-LS-6224P: Input, AC 100~240V 50Hz~60Hz. Output, DC 12V/3.7A, 50V/3.6A
OS-LS-6248P: Input, AC 100~240V 50Hz~60Hz. Output, DC 12V/7A 50V/7.6A
PoE power
802.3af standards supported with maximum 15.4w PoE power per port
OS-LS-6212P: Maximum 75w of PoE power
OS-LS-6224P: Maximum 180w of PoE power
OS-LS-6248P: Maximum 345w of PoE power
Warranty
Chassis and power supplies are protected with a limited lifetime hardware warranty. Warranty is limited to the original owner, and will be
provided for up to five years after the product’s End-of-Sales announcement. Faulty parts will be replaced via a five-business day AVR (Advance
Replacement) RMA.

PART NUMBER PRODUCT DESCRIPTION
IOS-LS-6212 Fast Ethernet L2+ stackable fixed configuration chassis in a 1U form factor consisting
of 12, 24 or 48 10/100 RJ-45 ports, two 10/100/1000 RJ-45 ports and two combo ports.
Combo ports consist of two additional 10/100/1000 RJ-45 and two mini-GBIC ports.
MiniGBIC ports support Gigabit Ethernet MiniGBIC (SFP) optical transceivers, which can
be ordered separately. Stacking capability utilizes the two 10/100/1000 RJ-45 ports and
standard Ethernet cabling. Optional backup power supported. Optional items can be
purchased/ordered separately. Comes with user manuals on CD-ROM, 19" rack mounts,
RJ-45 to DB-9 adapter, and country specific power cord.
IOS-LS-6212P Fast Ethernet L2+ stackable fixed configuration chassis in a 1U form factor consisting
of 12, 24 or 48 10/100 RJ-45 ports with Power over Ethernet, two 10/100/1000 RJ-45
ports and two combo ports. Combo ports consist of two additional 10/100/1000 RJ-45
and two mini-GBIC ports. Mini-GBIC ports support Gigabit Ethernet mini-GBIC (SFP)
optical transceivers, which can be ordered separately. Stacking capability utilizes the
two 10/100/1000 RJ-45 ports and standard Ethernet cabling. Optional backup power
supported. Optional items can be purchased/ordered separately. Comes with user manuals
on CD-ROM, 19" rack mounts, RJ-45 to DB-9 adapter, and country specific power cord.
IOS-LS-6224U Fast Ethernet L2+ stackable fixed configuration chassis in a 1U form factor consisting
of 24 ports 100BaseX SFP, two 10/100/1000 RJ-45 ports and two combo ports. Combo
ports consist of two additional 10/100/1000 RJ-45 and two mini-GBIC ports. The 24 SFP
ports accepts industry standard 100BaseX optical transceivers which are sold separately.
MiniGBIC ports support Gigabit Ethernet MiniGBIC (SFP) optical transceivers, which can
be ordered separately. Stacking capability utilizes the two 10/100/1000 RJ-45 ports and
standard Ethernet cabling. Optional backup power supported. Optional items can be
purchased/ordered separately. Comes with 19" rack mounts, RJ-45 to DB-9 adaptor,
and country specific power cord.
IOS-LS-62BP OS-LS-6200 modular AC backup power supply. Provides backup power to one non-PoE
switch. Ships with chassis connection cable and country specific power cord.
IOS-LS-62BP-P OS-LS-6200 modular AC backup power supply. Provides backup power to one OS-LS-6200
PoE capable switch. Ships with chassis connection cable and country specific power cord.
IOS-LS-62BP-DC OS LS-6200 modular DC backup power supply. Provides backup power to one non-PoE
OmniStack 6200 switch.
ORDERING INFO
IOS-LS-6224
IOS-LS-6248
IOS-LS-6224P
IOS-LS-6248P
10 Alcatel-Lucent | Alcatel-Lucent OmniStack 6200

ORDERING INFO
PART NUMBER PRODUCT DESCRIPTION
100FX SFP Transceivers
ISFP-100-LC-MM 100BaseFX SFP transceiver with an LC type interface. This transceiver is designed for use over
multimode fiber optic cable.
ISFP-100-LC-15 100BaseFX SFP transceiver with an LC type interface. This transceiver is designed for use over
single mode fiber optic cable up to 15km.
ISFP-100-LC-SM40 100BaseFX SFP transceiver with an SC type interface. This transceiver is designed for use over
single mode fiber optic cable up to 40km.
ISFP-100-BX20LT 100BaseBX SFP transceiver with an LC type interface. This bi-directional transceiver is
designed for use over single mode fiber optic cable on a single strand link up to 20km point-to-point.
This transceiver is normally used in the central office (OLT), transmits 1550nm and receives
1310nm optical signal.
ISFP-100-BX20NU 100BaseBX SFP transceiver with an LC type interface. This bi-directional transceiver is
designed for use over single mode fiber optic cable on a single strand link up to 20km
point-to-point. This transceiver is normally used in the client (ONU), transmits 1310nm
and receives 1550nm optical signal.
MiniGBIC SFP (MSA)
ISFP-GIG-LH70 1000BaseLH Gigabit Ethernet Optical Transceiver (SFP MSA) Supports single mode fiber over
1550nm wavelength with an LC connector. Typical reach of 70km on 9/125 micron SMF.
ISFP-GIG-LH40 1000BaseLH Gigabit Ethernet Optical Transceiver (SFP MSA). Supports single mode fiber over
1310nm wavelength with an LC connector. Typical reach of 40km on 9/125 micron SMF.
ISFP-GIG-LX 1000BaseLX Gigabit Ethernet optical Transceiver (SFP MSA). Supports single mode fiber over
1310nm wavelength with an LC connector. Typical reach of 10km on 9/125 micron SMF.
ISFP-GIG-SX 1000BaseSX Gigabit Ethernet optical Transceiver (SFP MSA). Supports multimode fiber over
850nm wavelength with an LC connector. Typical reach of 300m on 62.5/125 micron MMF
or 550m on 50/125 micron MMF..
Alcatel-Lucent OmniStack 6200 Service and Support
SupportBasic
One year 7x24 phone support, includes eService web access and free software releases
SupportPlus
One year 7x24 phone support, includes eService web access, free software releases and next business day arrival of replacement hardware
SupportTotal (Available only in N. America)
One year 7x24 phone support, software releases, eService Web access, same day 4-hour on site hardware replacement (labor and parts) 7 days
a week, 24 hours a day. Excludes NMS and Authentication Services software.
PLEASE CONTACT YOUR LOCAL ALCATEL-LUCENT SALES REPRESENTATIVE FOR
ADDITIONAL SERVICE AND SUPPORT INFORMATION.

IP Networking Infrastructure
Alcatel, Lucent, Alcatel-Lucent and Alcatel-Lucent logo are trademarks of Alcatel-Lucent.
All other trademarks are the property of their respective owners. The information present-
ed is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccu-
racies contained herein.
© 2007 Alcatel-Lucent. All rights reserved. P/N 031773-00 Rev E 6/07
www.alcatel-lucent.com
