Alcatel One Touch Y200 User manual

3G BRANDBAND ROUTER USER GUIDE
Trade Name: Alcatel
Model Name: One Touch Y200

3G ROUTER USER GUIDE
I
Notice
The information in this manual is subject to change without notice. Every effort has been made in the preparation
of this manual to ensure accuracy of the contents. But all statements, information, and recommendations in this
manual do not constitute the warranty of any kind, expressed or implied.
SafetyPrecautions
Read the safety precautions carefully to ensure the correct and safe use of your wireless device.
Do not switch on your device when the device use is prohibited or when the device use may
cause interference or danger.
Follow the rules or regulations in hospitals and health care facilities. Switch off your device
near medical apparatus.
Switch off your device in an aircraft. The device may cause interference to control signals of
the aircraft.
Switch off your device near high-precision electronic devices. The device may affect the
performance of these devices.
Do not attempt to disassemble your device or its accessories. Only qualified personnel are
allowed to service or repair the device.
Do not place your device or its accessories in containers with strong electromagnetic field.
Do not place magnetic storage media near your device. Radiation from the device may erase
the information stored on them.
Do not put your device in a high-temperature place or use it in a place with flammable gas
such as a gas station.
Keep your device and its accessories away from children. Do not allow children to use your
device without guidance.
Use approved batteries and chargers only to avoid explosion.
Observe the laws or regulations on device use. Respect others’ privacy and legal rights when
using your device.
It is recommended that the equipment only be used in the environment where temperature is between 0℃and
50 and humidity is between 10% to 90%.℃Keep the equipment in the environment where temperature is between
-10℃and 70℃or humidity is between 10% to 90%.

3G ROUTER USER GUIDE
II
Contents
Notice..................................................................................................................................................................I
Safety Precautions ............................................................................................................................................I
1. OVERVIEW................................................................................................................... 1
Appearance.......................................................................................................................................................1
PC Configuration Requirement.......................................................................................................................2
2. QUICK START .............................................................................................................. 3
Router Mode...................................................................................................................................................... 3
Making a Call..................................................................................................................................................... 4
Logging in to the Configuration Page............................................................................................................5
Describing the Configuration Page ................................................................................................................5
3. QUICKLY SETUP 3G ROUTER.................................................................................... 8
Quick Setup Page.............................................................................................................................................8
Configuring the WLAN.....................................................................................................................................8
Configuring the Manager Setting....................................................................................................................8
Configuring Connection Settings...................................................................................................................8
4. CONNECTING TO THE INTERNET ........................................................................... 10
Connecting to the Internet.............................................................................................................................10
5. SMS AND CONTACTS APPLICATION....................................................................... 12
SMS Service ....................................................................................................................................................12
Contacts Service.............................................................................................................................................13
6. BASIC SETTING......................................................................................................... 15
System Settings..............................................................................................................................................15
LAN Settings...................................................................................................................................................17
7. ADVANCED SETTINGS.............................................................................................. 19
Wireless Settings............................................................................................................................................19
Firewall Settings.............................................................................................................................................21
Port Forwarding Settings...............................................................................................................................22
Routing ............................................................................................................................................................24

3G ROUTER USER GUIDE
III
Network Settings ............................................................................................................................................ 24
8. USB DEVICE APPLICATIONS ................................................................................... 27
9. TYPICAL NETWORKING EXAMPLE......................................................................... 33
10. WARNING AND PRECAUTIONS ............................................................................ 34
Electronic Device............................................................................................................................................34
Hospital............................................................................................................................................................34
Traffic Safety ................................................................................................................................................... 34
Storage Environment .....................................................................................................................................34
Children Safety ...............................................................................................................................................35
Operating Environment..................................................................................................................................35
Cleaning and Maintenance ............................................................................................................................35

3G ROUTER USER GUIDE
1
1.Overview
3G ROUTER wireless voice / data router, a top-performance Fixed Mobile Convergence device, offers a high
speed wireless data connectivity on public HSPA networks. It is not only ideal for workgroups working in
temporary locations, but also the easiest solution to complement or replace a fixed line access at home. Moreover,
3G ROUTER also offers traditional circuit-switched telephony service by simply plugging any plain telephone set
to its analog RJ11 connector
Appearance

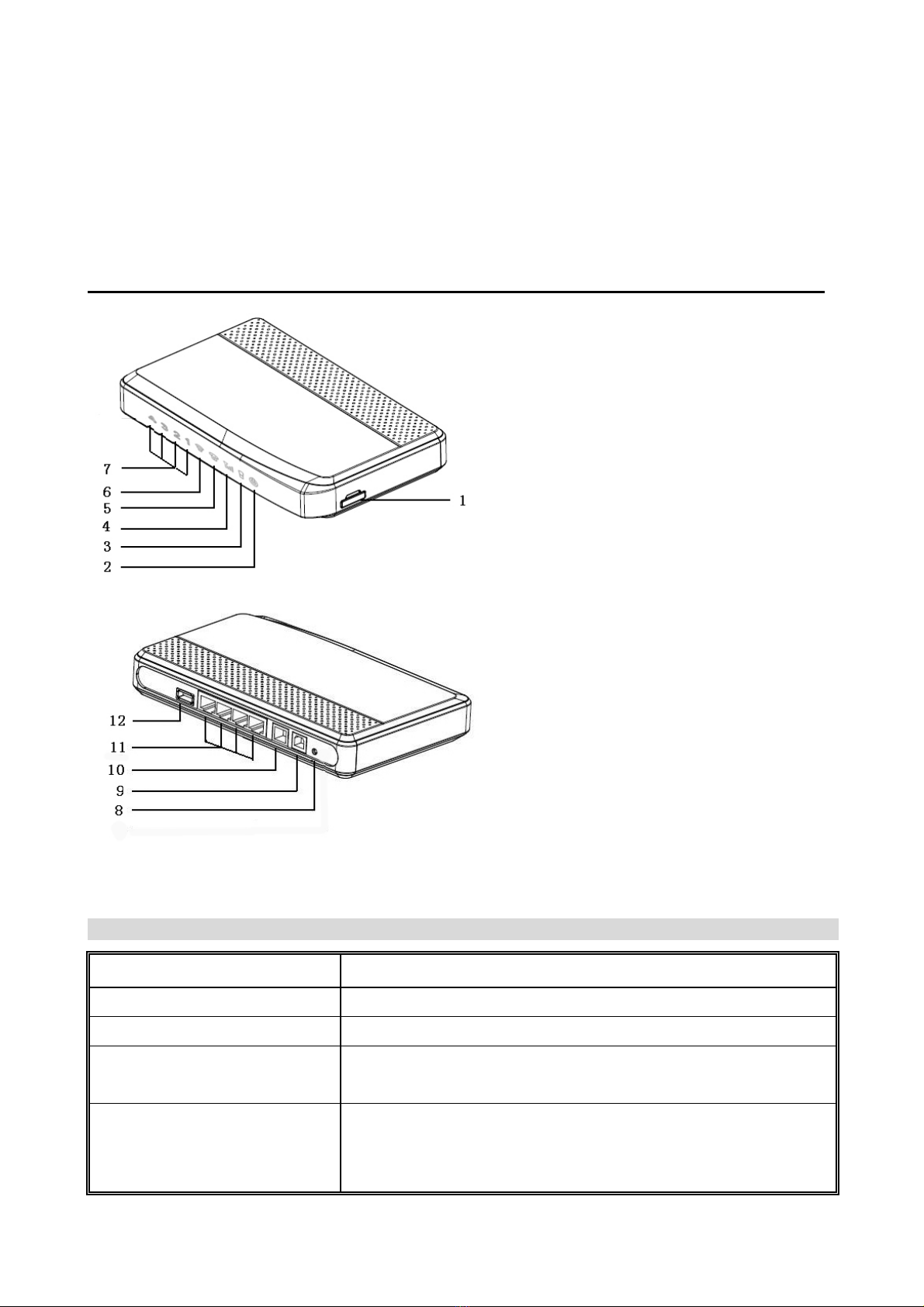

1. SIM Card Socket
2. Power Indicator
3. Diagnosis Indicator
4. 2G/3G Indicator
5.ComingCallIndicator
6. WLAN Indicator
7. Ethernet LAN Indicator
8. Reset Key
9. Power Port
10. Phone Port
11. Ethernet Port
12. USB Host Port
Introduction
ITEM INTRODUCTION
SIM Card Socket Insert the SIM card.
Power Indicator It is light when the router is powered on.
Diagnosis Indicator It is light during the start-up process, and winks after start-up finished.
The indicator will be flickering when system error occurs.
2G/3G Indicator zBlinking in Green：Network searching
zBlinking slowly in Green: Having registered in 3G network
zDouble blinking in Green: Working in 3G network

3G ROUTER USER GUIDE
2
zBlinking slowly in Yellow: Having registered in 2G network
zDouble blinking in Yellow: Working in 2G network
zLighting in Red: Error. For example: No SIM card or network
registering failed
Coming Call Indicator It is flickering when having coming call.
WLAN Indicator It is light when the Wi-Fi WLAN is ready.
Ethernet LAN Indicator It is flickering when the LAN is being used.
Reset Key Resume the factory setting and reboot the router
Power Port Connect with a power adapter
Phone Port Insert a phone cable to connect with phone set.
Ethernet Port Insert an Ethernet cable to connect with PC or laptop.
USB Host Port Insert USB cable to connect with a mass storage device or a USB printer.
Note: 3G ROUTER does not support the hot plug of the SIM card. Do not pull out the SIM card during the
connection.
Note: USB host port only supports the unit storage device such as U disc in the format of FAT 32. Do not
connect the power adapter or bulk USB device to the USB host port.
PC Configuration Requirement
zCPU: Pentium 500MHz or above
zMemory: 128MB RAM or above
zHard Disk: 50MB available space
zOperating System: Windows 2000/XP/VISTA
zDisplay Resolving Power: 800 × 600 pels or above（1024 × 768 is recommended）
zInterface: Standard USB 2.0 interface
zInternet Browser: IE 6.0 or above edition / Firefox 1.5 above edition

3G ROUTER USER GUIDE
3
2.Quick Start
RouterMode
In the router mode, 3G ROUTER offers all the functions such as wireless accessing the internet, SMS, phone book
and circuit-switched telephony service.
User can build the LAN either by the Ethernet interface or by WLAN.
Please follow these steps to start using:

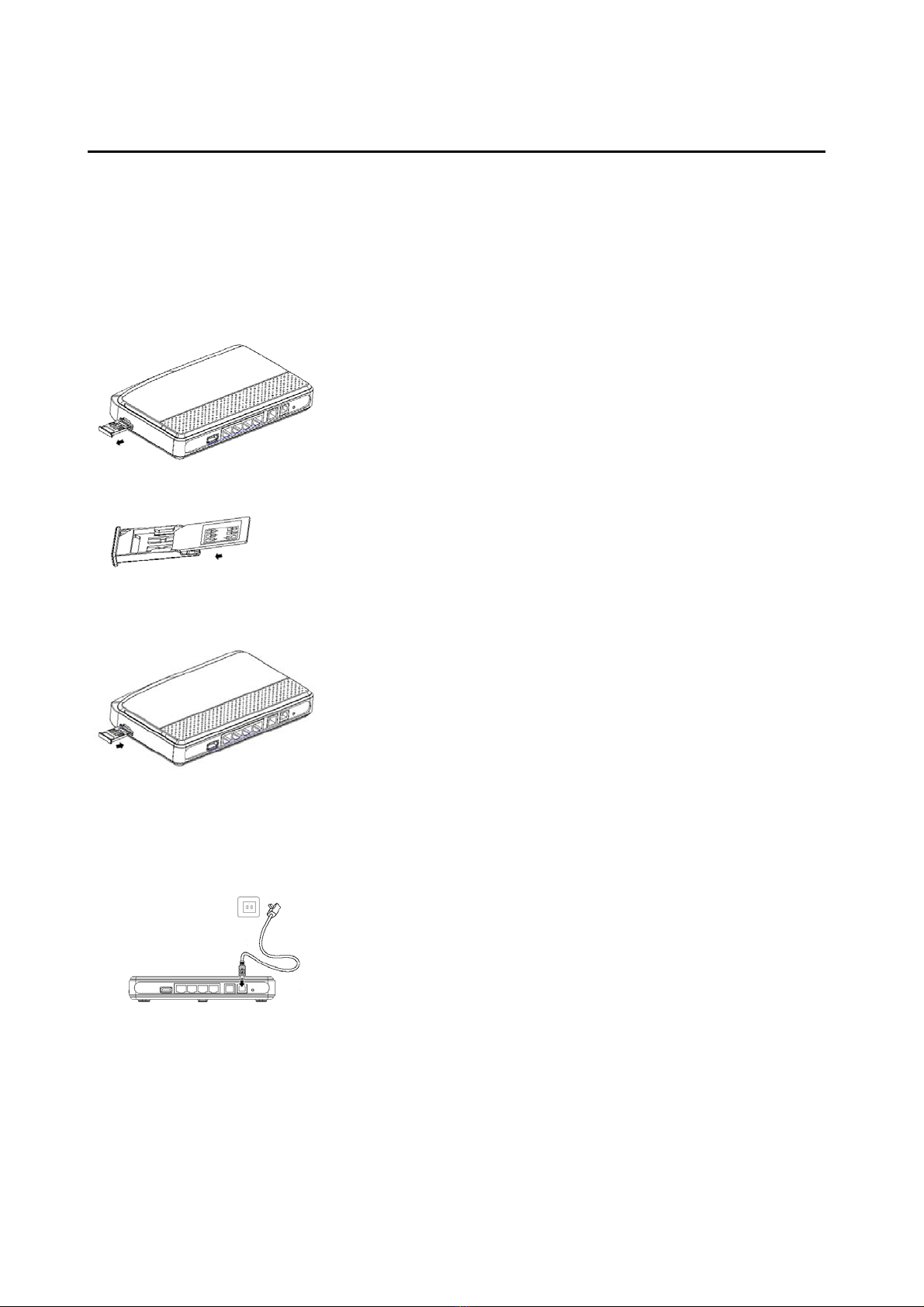

Step 1: Insert the SIM Card
1. Take out the card socket.
2. Insert the SIM card into the socket with the golden contact facing upward.
3. Insert the card socket into 3G ROUTER.
Note:Please make sure 3G ROUTER is powered off before inserting or removing the SIM card.
Step 2: Connect the PowerAdapter
Please use the compatible power adapter keeping 3G ROUTER from damage.

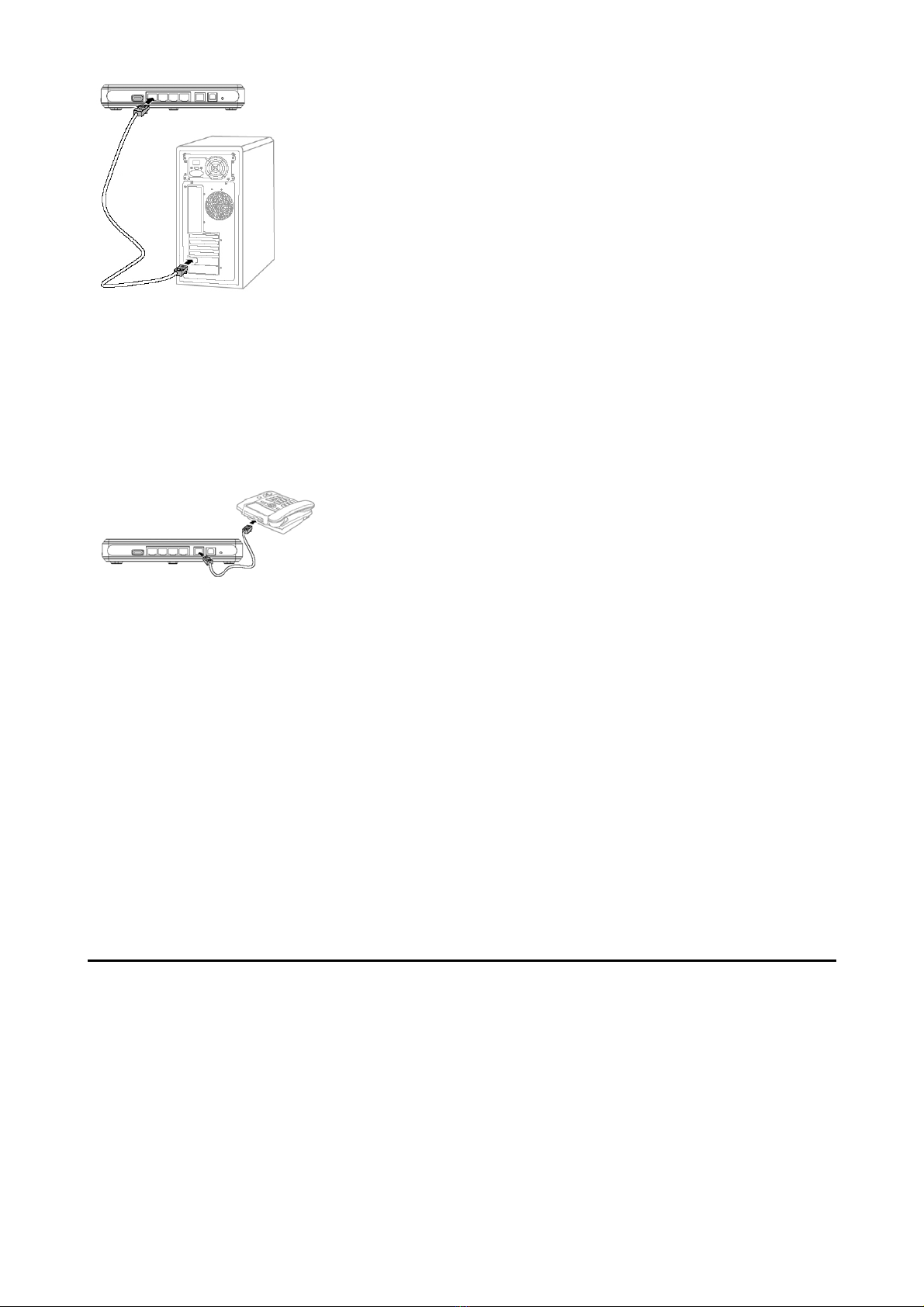

Step 3: Connect to a PC

3G ROUTER USER GUIDE
4
The indicator of the connection is on when the connection with Ethernet LAN interface is successful. The length
of the Ethernet cable must be less than 100 meters (328 feet). If you want the better effect, please use the shielded
cable.
Step 4: Connect to a Telephone
To avoid the coming call effect from interfering by the wireless signal, place the phone set one meter or more
away from 3G ROUTER.
Step5:Place3GROUTER
Place 3G ROUTER on a higher place or near the window for the better signal strength. To avoid electrical device
from interfering by the wireless signal, place the electrical devices one meter or more away from 3G ROUTER
Step6:Use3GROUTER
3G ROUTER works immediately when it is powered on. Then user can log in the configuration WEB UI page for
operation. For the more detail information, see the following chapters.
MakingaCall
3G ROUTER offers traditional circuit-switched telephony service. So user can make a call just by simply plugging
any plain telephone set to 3G ROUTER’s analog RJ11 connector after powered on.

3G ROUTER USER GUIDE
5
Using the Configuration Page
Logging in to the ConfigurationPage

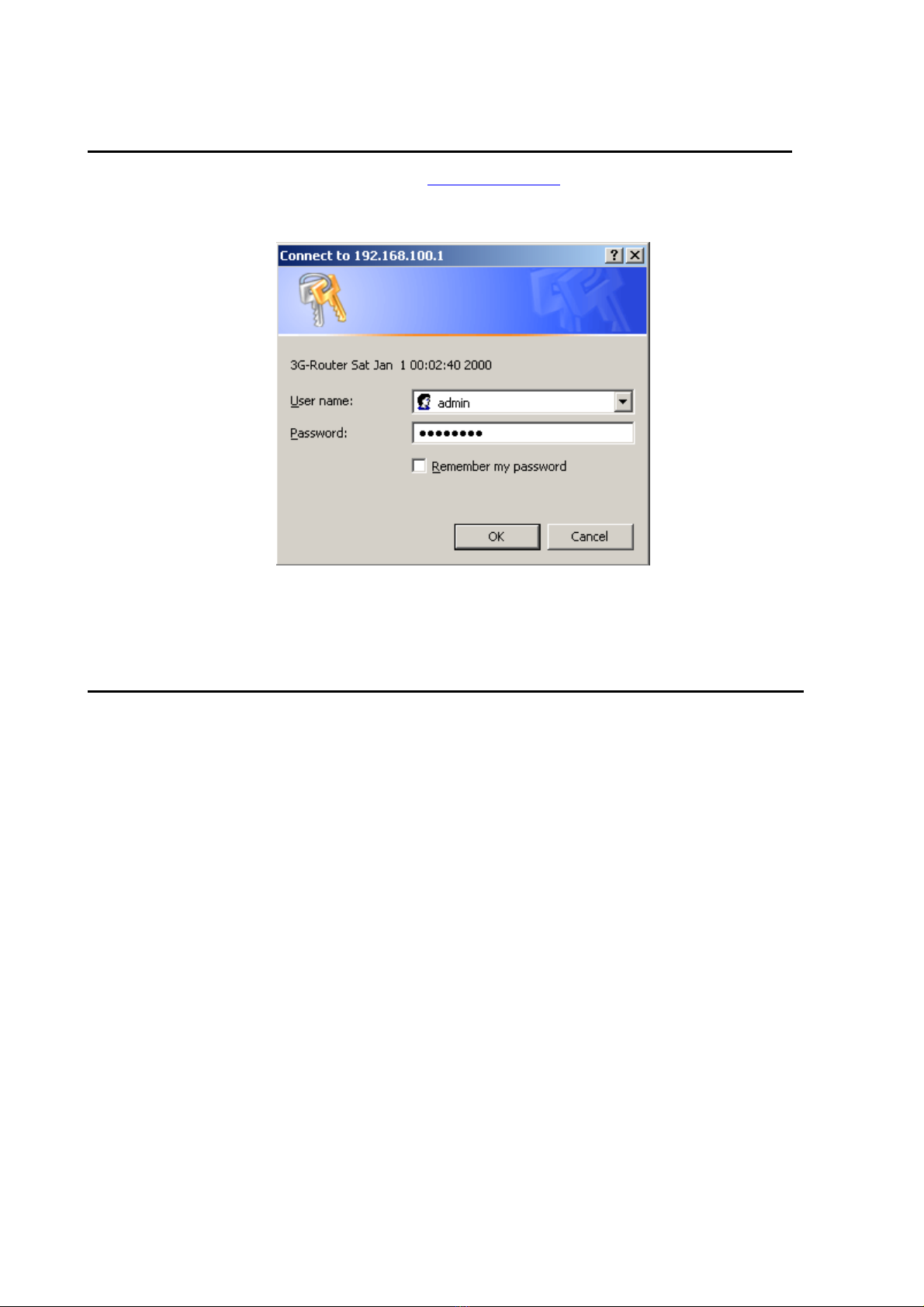

1. Start the IE browser, and then enter the address http://192.168.100.1 in the address bar.
2. Enter the User name and the Password. And then click ‘OK’.
3. The default user name is “admin” and the default password is “password”.

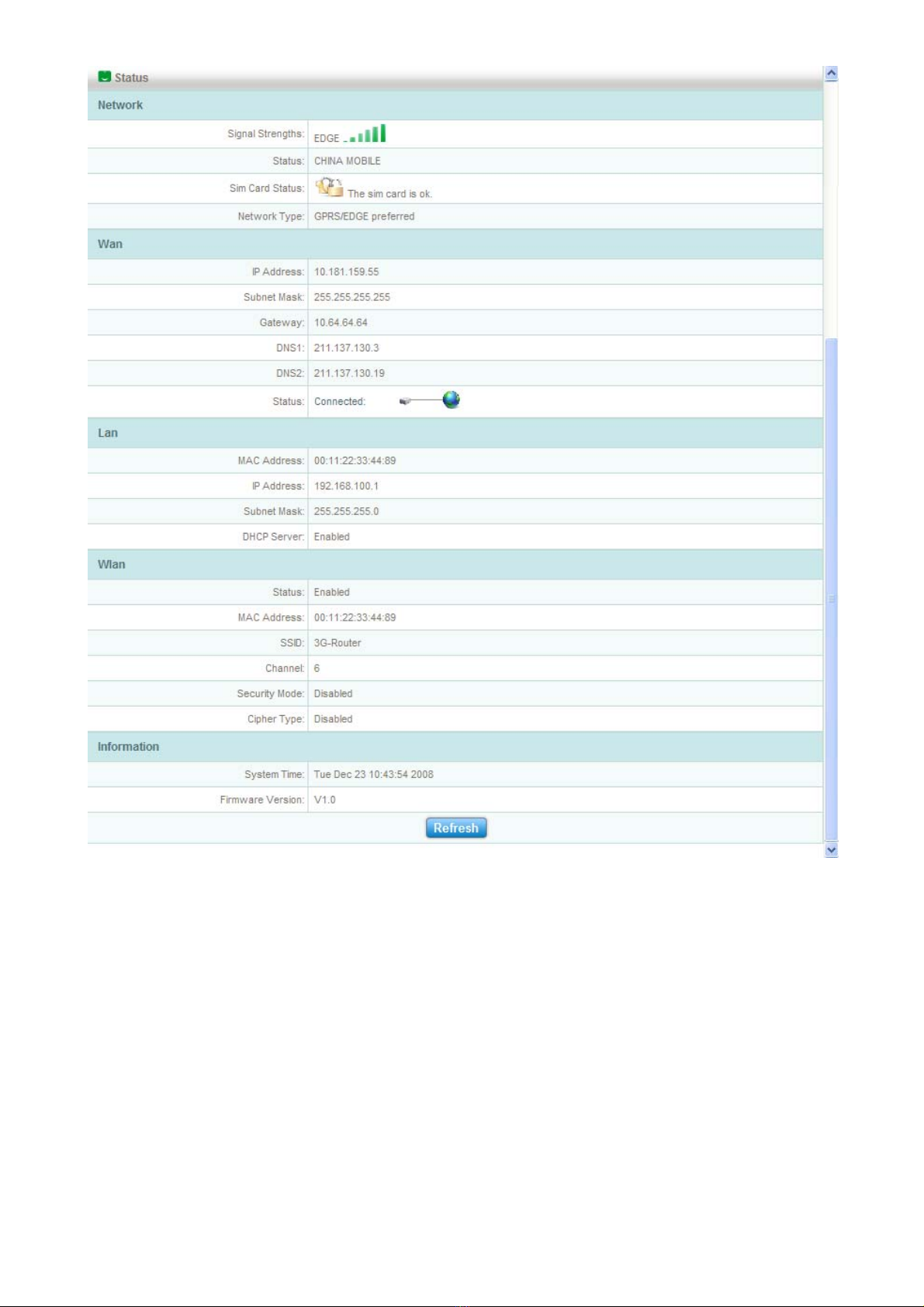

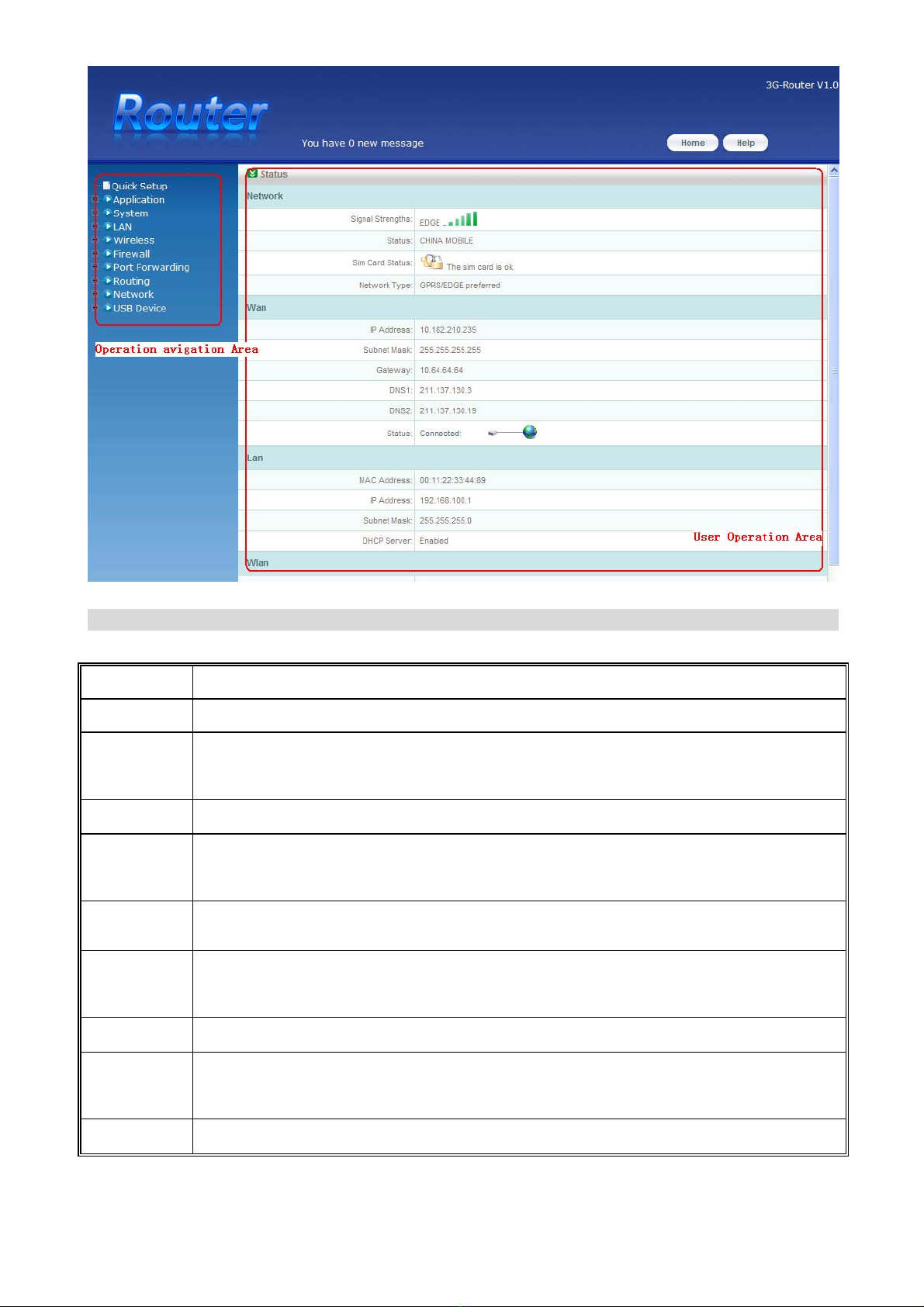

Describing the Configuration Page
zOperation Navigation Area: Shows the main functions of the configuration console.
zUser Operation Area: Shows detail configuration information, data information and help information.
The user operation area varies with different function operations.

3G ROUTER USER GUIDE
6
OperationFunctions
ITEM DESCRIPTION
Application Offers SMS and Contacts services.
System Configures system setting, which includes system time, administrator settings, firmware upgrade,
configuration tools, system log and restart.
LAN Configures LAN, which includes LAN settings and DHCP client list.
Wireless Configures wireless LAN, which includes basic settings, advanced settings, security settings,
access control, and wireless status.
Firewall Configures firewall, which includes client filtering, MAC control and URL filter.
Port
Forwarding
Configures the functions correlative with port forwarding such as virtual server, triggered and
DMZ.
Routing Configures the static routing function.
Network Configures the network parameters, which includes network settings, connection settings, volume
statistic and security.
USB Device Displays the USB devices connecting with 3G ROUTER. Configure the FTP server function.
