Alchemi Supercharger SC35 User manual

Alchemi Supercharger®
User Manual 1.1 –SC35/SC70
The world’s most efficient, powerful,
and compact battery charger.
Keep this manual in a safe place for quick
reference at all times. This manual contains
important safety and operation instructions for
correct use of the charger.
Read through the manual and pay special
attention to the markings and labels of the
charger, battery and equipment connected to the
battery system.
WARNING : FAILURE TO HEED THIS WARNING MAY
CAUSE INJURY TO PERSONS AND EQUIPMENT DAMAGE
CAUTION : FAILURE TO OBSERVE WARNINGS MAY
RESULT IN EQUIPMENT DAMAGE AND MALFUNCTION

Page | 2
Alchemi Supercharger™ User Manual
WARNINGS :
●THE CHARGER IS DESIGNED FOR IN-DOOR USE. PROTECT
THE CHARGER FROM INGRESS OF WATER AND DUST.
●THIS CHARGER IS MADE TO CHARGE ONLY PROPERLY SIZED
BATTERIES LARGER THAN 10AH.
●INSTALL THE CHARGER IN ACCORDANCE WITH ALL
COMPLIANCE AND REGULATIONS.
●DO NOT USE THE CHARGER IF IT HAS BEEN DAMAGED.
●DO NOT REMOVE CASING OF THE CHARGER, RISK OF
ELECTRIC SHOCK, WARRANTY VOIDED, AND DESTRUCTION
OF UNIT.
●NEVER ATTEMPT TO CHARGE A DAMAGED BATTERY
●WEAR PROTECTIVE GOGGLES AND TURN YOUR FACE AWAY
WHEN CONNECTING OR DISCONNECTING THE BATTERY.
●NEVER PLACE THE CHARGER ON TOP OF A BATTERY.
●NEVER SMOKE, USE AN OPEN FLAME, OR CREATE SPARKS
NEAR BATTERY OR CHARGER DURING NORMAL CHARGING
●PAY SPECIAL ATTENTION TO THE ENCLOSURE OF
BATTERIES FOR GASSING OR OTHER SIDE-EFFECTS OF
CHARGING.
●DISCONNECT THE MAINS SUPPLY BEFORE CONNECTING OR
DISCONNECTING THE CABLE TO THE BATTERY.
●IF THE CHARGER DOES NOT WORK PROPERLY OR IF IT HAS
BEEN DAMAGED, UNPLUG ITS AC AND DC CONNECTION.
CAUTIONS :
●REFER TO BATTERY MANUFACTURER’S SPECIFIC
RECOMMENDED VALUES FOR CHARGER SETTINGS.
●FIX THE CHARGER TO A STABLE SURFACE USING THE
MOUNTING KIT OR SCREW HOLES.
●ENSURE ALL VENTILATION PORTS ARE NOT OBSTRUCTED
FOR EFFICIENT FAN COOLING, ALWAYS ENSURE 10CM
SPACING BETWEEN OBJECTS IN A WELL-VENTILATED AREA.
●IF USING DIFFERENT AC CABLES, ENSURE THE CABLE
RATING IS APPROPRIATE FOR THE CHARGER.
●IT IS RECOMMENDED TO UNPLUG THE CHARGER IF UNUSED
FOR MORE THAN 10 HOURS.

Page | 3
Alchemi Supercharger™ User Manual
1. Charger Diagram
Box contents
1. 1x Incredibly power Supercharger
2. 1x Thermistor (temperature sensor)
3. 2x Mounting brackets
4. 4x Mounting screws
5. 1x AC cable
6. 1x DC output cable
7. 1x User manual

Page | 4
Alchemi Supercharger™ User Manual
2. Charger Installation and Operation
This is one of the most powerful battery chargers in the
world. Please observe the warnings & safety precautions
before rushing to install and operate the charger.
Normal Start (Recommended)
1) Clean battery poles for the DC cable and secure the
battery charger in a well ventilated area, make sure
the mounting surface is flat and without soft
covering material or loose paper sheet. Any
ventilation holes must be uncovered.
2) Connect the DC cables to the battery, carefully
noting the polarity of the battery and cables. Ensure
the AC cable is not yet plugged in, and connect the
DC plug to the DC output port and make sure it is
fully pushed in. Double check the battery connection
is well-connected. Connect the thermistor to the
Multiport.
3) The charger will start initialization. If set, turn off the
Autostart feature by holding the pushbutton knob.
4) While the unit is at the “select profile” screen,
connect the AC mains cable to the C20 socket.
5) The unit is ready to be configured and operated
safely.
Battery-less Start
Start from step 1) in the previous procedure and follow the
following steps
2) Connect the AC mains cable to the C20 socket. Press
and hold the pushbutton knob for at least 5 seconds.
3) The unit will startup in batteryless mode and can be
configured normally. Do not attempt to connect a
battery while the unit is operating in this mode, this
can cause damage to the battery and charger.
4) To turn off the unit, unplug the AC cable and start as
per the Normal Start procedure.

Page | 5
Alchemi Supercharger™ User Manual
Shutdown
1) The charger will enter sleep mode if inactive for 4
hours. The red status LED will flash periodically. Press
the pushbutton knob for 2 seconds to wake the unit.
2) To disconnect the unit, first ensure the unit is not
charging by pressing and holding the pushbutton
knob. Ensure that the green Charging LED is off.
3) Disconnect the AC mains cable and the DC cable in
this order. The unit will turn off.
3. Battery Profile Selection
Incorrect battery charging is the largest
preventable cause of premature battery failure.
Please see the Alchemi website for list of standard
charge algorithms and for more information.
The Alchemi A.I. charge algorithm is divided into
up to 5 phase sequences to put energy into the
battery correctly. Each phase can be terminated
by 1) voltage,2) current, or 3) a fixed duration. Every
phase has a variable timer to prevent “stuck”
phases where the charger does not shutdown.

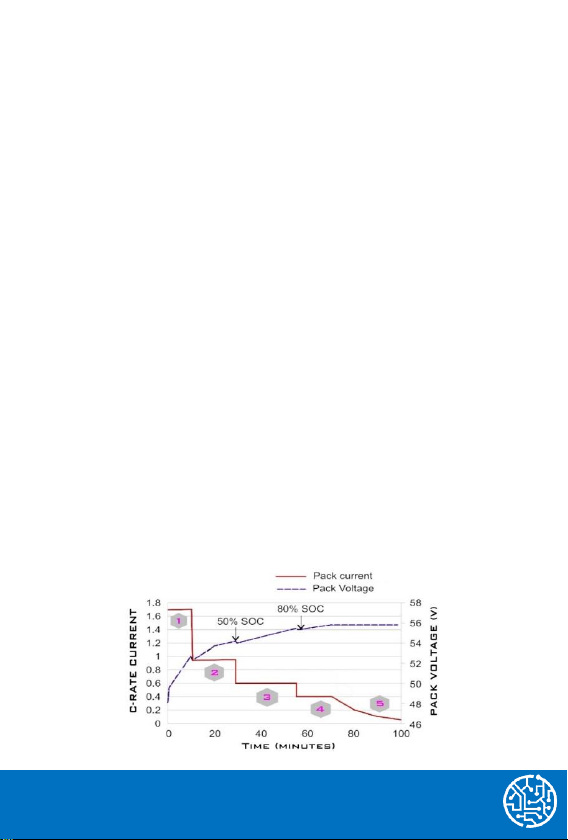

An example 5-step rapid-charge Lithium profile is
demonstrated below using the Alchemi A.I. charge
algorithm.

Page | 6
Alchemi Supercharger™ User Manual
4. Monitoring Webapp
1) Turn on the charger using normal start
procedure.
2) Search for WiFi hotspot “SuperchargerAI” and
use password “alchemitechnologies” to
connect. Open your browser and enter
“192.168.4.1” in the address bar.
3) Turn off any data connections on your device
otherwise the “This site cannot be reached”
error will appear.
4) The WIFI-connected Supercharger dashboard
will load. Have ideas for more features?
Send an email to engineerin[email protected]ech!
5. Specifications
MODEL:
SC35
SC60
OUTPUT
CURRENT
OUTPUT
(240VAC)
35A/35A/35A
(24V/36V/48V)
35A/55A/60A
(24V/36V/48V)
INPUT
VAC RANGE
85-300VAC
FREQ.
45-65Hz Rated: 50/60Hz
P.F.
≥0.990/230VAC at full load
EFFICIENCY
Up to 96.1%
Up to 98.1%
CURRENT
<17A
ENVIRON
MENT
NOM. TEMP
-40°C to +75°C (with derating)
HUMIDITY
0-95% RH (non-condensing)
OTHER
MTBF
≥100,000 hours
WEIGHT
2.7kg
3.0kg
COOLING
Thermostatically controlled fan +
heatsink enclosure
DC CABLE
1.2m with M8 ring connectors
NOISE
≤53dB at full load
DIMENSION
317x125x52 mm

Page | 7
Alchemi Supercharger™ User Manual
6. Troubleshooting
Problem
Solution
OLED screen does not
turn on.
Follow the recommended startup
procedure and double check the
cabling.
A bug on the OLED or
webapp.
Please contact
[e-mail]
Unit turns on but does
not charge.
Ensure that AC power is plugged in.
Check for tripped AC breakers.
Unit skips through
charging phases.
Check phase programming is correct.
Unit is very loud.
The supercharger requires increased
cooling at low voltages, this is normal.
Sparks when
connecting DC cables.
Incorrect connection procedure! First
connect battery, then DC port, then AC.
No startup when AC
connected
The pushbutton must be held for 5
seconds to start batteryless AC startup.
Who to contact for
technical issues?
Contact engineerin[email protected]ch
with a detailed explanation.
7. Storage, Handling, and Maintenance
Transport the supercharger in original packaging
and store in a cool, dry place. See the Alchemi SC
Packing Details for more info.
Maintenance
CAUTION –MAKE SURE CHARGER IS UNPLUGGED
FROM ELECTRICAL OUTLET BEFORE PERFORMING
ANY MAINTENANCE.

Page | 8
Alchemi Supercharger™ User Manual
• Clean the clamps after each use. Wipe off any
battery fluid that may have come in contact with
the clamps to prevent corrosion.
• Once a year, apply some grease to the exposed
wires on the ends of the cables to prevent
corrosion.
• If needed, the case may be wiped clean with a
soft cloth. There are no user-serviceable
components inside the charger.
