Purkeys Select P1020-K User manual

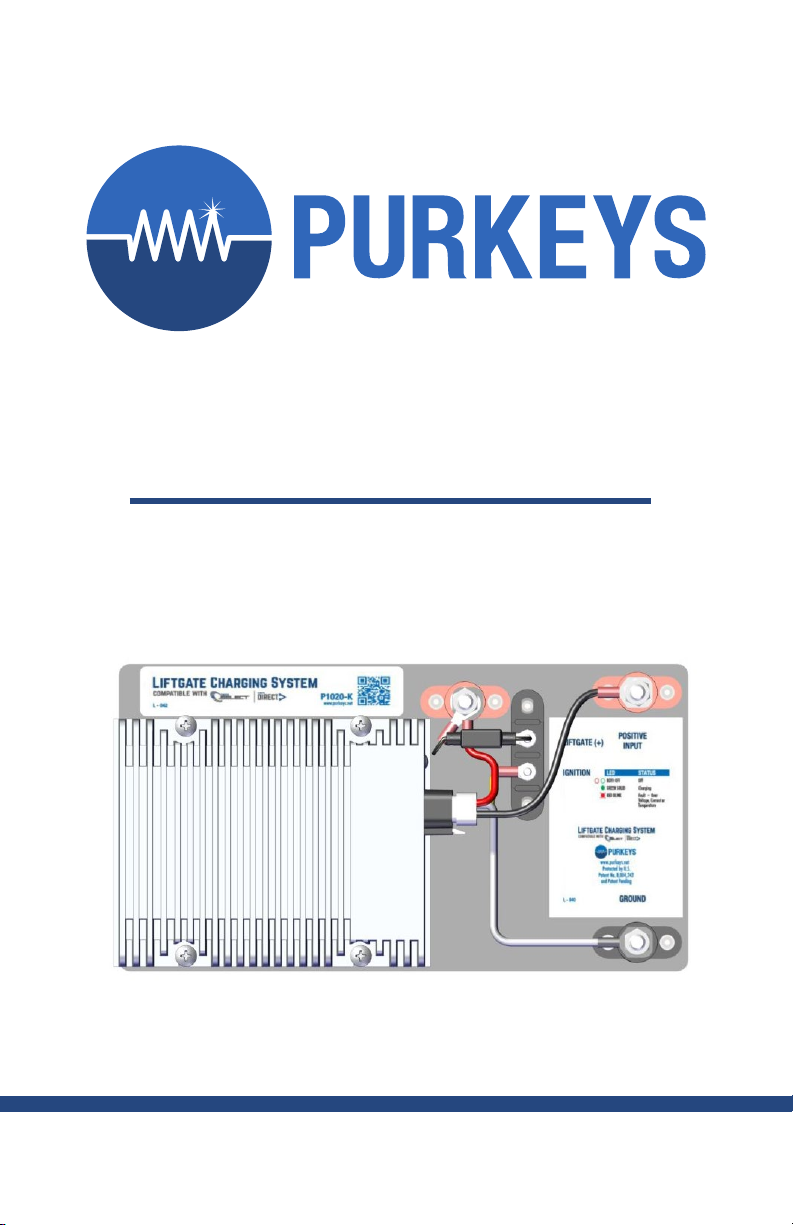

P1020-K
INSTALLATION GUIDE
INST025 Doc 2.01

1
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
CONTENTS
General Information ..........................................................................................2
Installation Instructions ....................................................................................4
Part List................................................................................................................7
Limited Commercial Warranty Policy.............................................................9

2
e Purkeys’ Select™ ligate charging system allows charging from multiple
sources and improves the charging of ligate batteries by utilizing a DC/
DC converter to boost the voltage for optimal charging. e boost in
voltage overcomes the normal voltage drop caused by the extended distance
between the ligate batteries and the vehicle charging system. Also, in cold
temperatures batteries require increased charging voltages to maintain a high
state of charge. e DC/DC converter in the Select system compensates for
temperature by providing higher charging voltages in cold weather. e result
is well-charged ligate batteries that will last longer and have ample power for
ligate operation.
e Select system is automatic and has easy-to-interpret LED indicators
to assure drivers and technicians of proper system function. e Select
Controller increases the time that the DC/DC converter can charge the
ligate batteries by automatically choosing the best available source of power
(tractor or reefer) and by monitoring the source power and “extending” the
ligate battery charge time to take full advantage of the available power,
without compromising the source batteries’ ability to crank the engine.
e Select system provides opportunity charging for ligate batteries that is
essential in low mileage, high frequency ligate operation applications. e
LED indicators clearly show the status of the source as well as the status of
the ligate batteries. A quick glance at the Select Controller assures the driver
that the ligate batteries are ready to go, or alerts the driver that the batteries
need maintenance.
e Purkeys Direct™ ligate charging system improves the charging of ligate
batteries by utilizing a DC/DC Converter to boost the voltage for optimal
charging. e boost in voltage overcomes the normal voltage drop caused by
the extended distance between the ligate batteries and the vehicle charging
system. Also, in cold temperatures batteries require increased charging
voltages to maintain a high state of charge. e DC/DC Converter in the
Direct system compensates for temperature as well as for voltage drop and
provides the best voltage to the remotely located ligate batteries. e result
is well-charged ligate batteries that will last longer and have ample power for
ligate operation.
GENERAL INFORMATION

3
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
P1020-K INSTALLATION GUIDE
e Direct system is automatic and has easy to interpret LED indicators
to assure drivers and technicians of proper system function. e Direct
Controller increases the time that the DC/DC Converter can charge the
ligate batteries by monitoring the source power and “extending” the ligate
battery charge time to take full advantage of the available power, without
compromising the source batteries’ ability to crank the engine. Simply put, the
Direct system provides opportunity charging for the ligate batteries that is
essential in low mileage, high frequency ligate operation applications. e
LED indicators clearly show the status of the source as well as the status of the
ligate batteries. A quick glance at the Direct Controller assures the driver
that the ligate batteries are ready to go, or alerts the driver that the batteries
need maintenance.

4
INSTALLATION INSTRUCTIONS

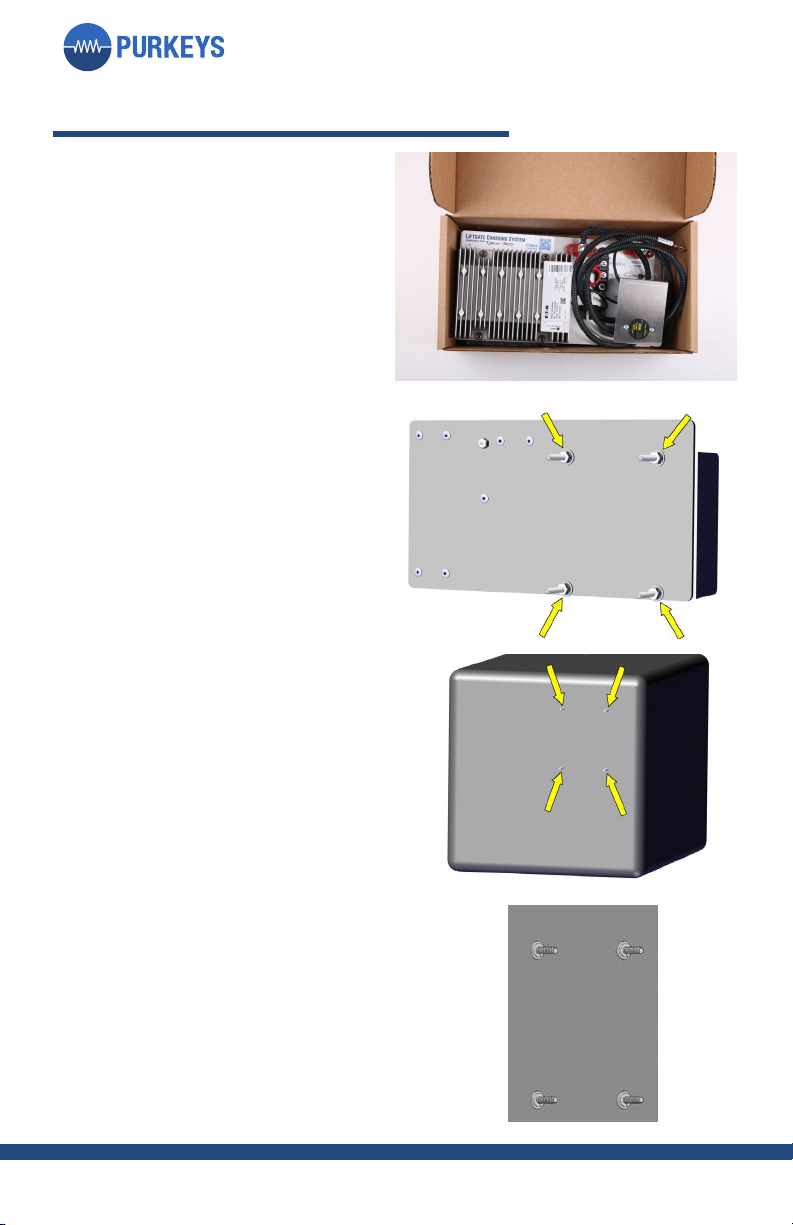

Step 1: Remove the plate assembly
from the box.
Step 2: Place at washers on each of
the four long bolts.
Step 3: Mount plate to the backside
of battery box by passing the bolts
through the pre-drilled holes in
the battery box.
Step 4: Add the at washers and
lock washers to the bolts on the
backside of the battery box.

5
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
P1020-K INSTALLATION GUIDE
Step 5: Add nuts to bolts, and
tighten.
Step 6: Using the supplied hardware,
mount the 30 amp circuit breaker
and bracket to the inside roof of
the battery box.
Step 7: Install the batteries. Positive
posts should be toward the door of
the battery box.
Step 8: Install and tighten the nuts
on the battery hold downs.

6
Step 9: Connect inter-cell connectors
(positive to positive and negative
to negative).
Step 10: Connect the 3/8 eyelet on
the 10-gauge wire coming from
the 30 amp circuit breaker to the
battery positive post on the le
side. Install nut and tighten.
Step 11: Connect the 10-gauge white
wire marked “ligate battery
negative” to the right negative
battery post. Install nut and
tighten.
Step 12: Install the nuts on the rest
of the battery posts, and tighten.

7
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
P1020-K INSTALLATION GUIDE
PART LIST
PART# 11020C00
20 AMP DC/DC CONVERTER
PART# H-00276
T/C 4 PIN DEUTSCH HARNESS
PART# CB00025
30A CIRCUIT BREAKER &
BRACKET
PART# BK-1008
HARDWARE KIT FOR T/C PLATE

8
PART# PL00066
PLATE ASSEMBLY W/OUT
CHARGER
PART# H-00263
10 GA WHITE GROUND WIRE
PART# H-00282
HARNESS, FUSED LG POSITIVE
WIRE FROM RED JUNCTION
STUD TO TERMINAL STRIP
PART# P1020-K
SEL/DIR LG CHARGING PLATE
PART# INST025
P1020-K INSTALLATION GUIDE

9
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
P1020-K INSTALLATION GUIDE
