Camelion LBC-318 User manual

Model: LBC-318 Version:1.0 Updated: 2018-12-10 Page 1 of 5
This data sheet is for customer reference purposes only and to help customers choose the appropriate product. Contents do not constitute a warranty.
For information on specific Camelion products please visit our website at www.camelionbattery.com or contact us directly at [e-mail].
Camelion is a registered trademark of Camelion Battery Co., Ltd. All other brand names are trademarks or registered trademarks of the respective companies.
Copyright ©2018 Camelion Battery Co., Ltd. All rights reserved.
Product : Battery Charger
Model No. : LBC-318
Brand : Camelion
Version No. : V1.0
Issue Date : 2018-12-10
Prepared : Jeff Liu
Reviewed : Dobby Wang
Approved : Rex Liu
Revision History
Revision Date by Description of change
V1.0 2018.12.10 Jeff Liu First issue

Model: LBC-318 Version:1.0 Updated: 2018-12-10 Page 2 of 5
This data sheet is for customer reference purposes only and to help customers choose the appropriate product. Contents do not constitute a warranty.
For information on specific Camelion products please visit our website at www.camelionbattery.com or contact us directly at [e-mail].
Camelion is a registered trademark of Camelion Battery Co., Ltd. All other brand names are trademarks or registered trademarks of the respective companies.
Copyright ©2018 Camelion Battery Co., Ltd. All rights reserved.

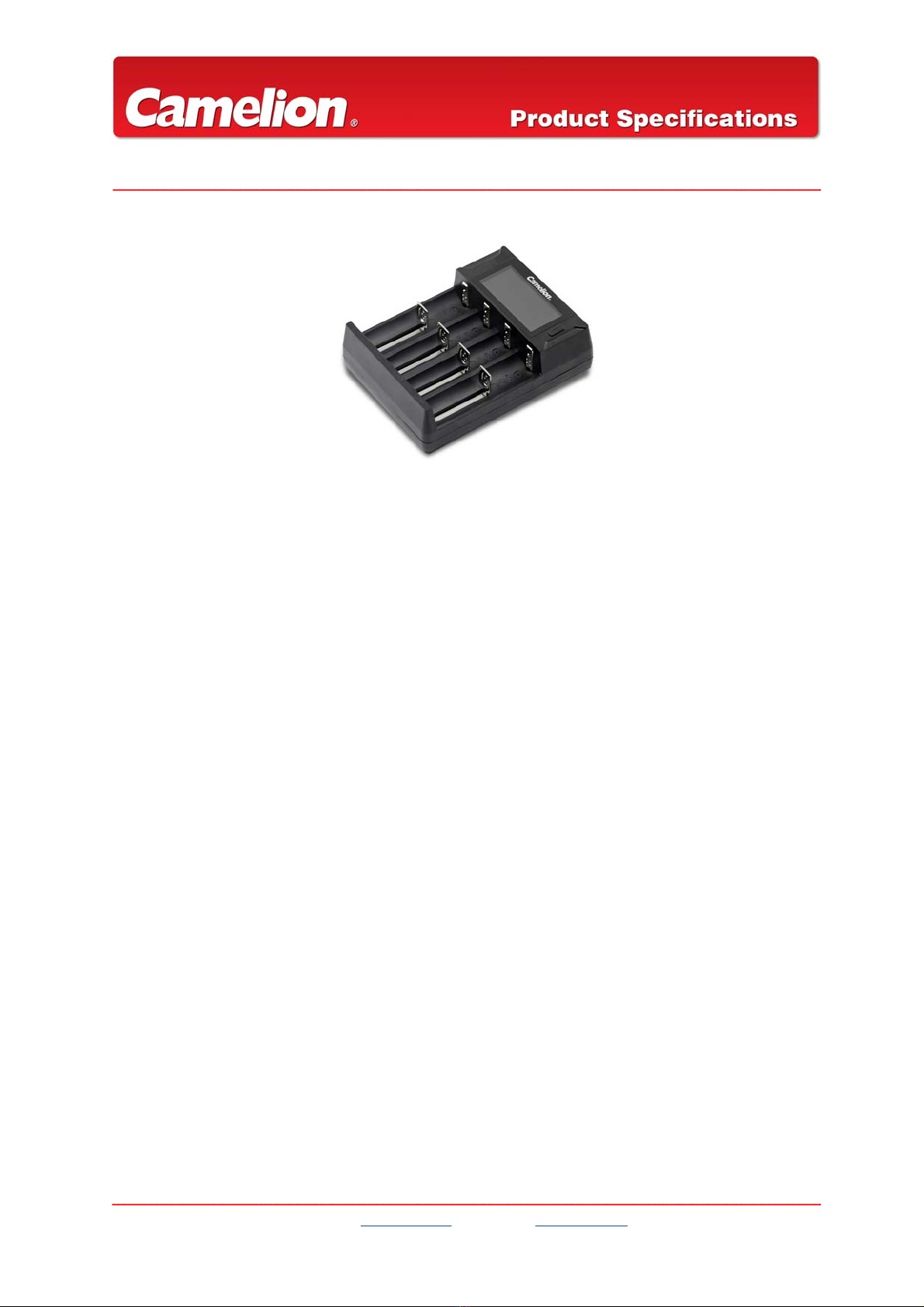

Schematic
General Description
This intelligent USB Charger is designed for recharging cylindrical 1.2V Ni-MH/Ni-Cd and
3.6/3.7V Li-ion batteries (10440--32650 etc) . It has four independent charging channels so that
you can charge 1-4pcs batteries simultaneously. Automatically select the charging current and
multiple charging protections ensure fast and safety charging. It's a wonderful, universal smart
battery charger for different types and sizes cylindrical batteries which used in toys, shavers,
flashlights, electronic cigarettes and so on.
1 Product Features
1.1 MCU controls four independent charging channels and automatically identifies battery
types and selects the appropriate charging mode.
1.2 LCD screen displays the charging channel information, include charging status, battery
types (Ni-MH or Li-ion), charging current, the present voltage of battery and recharged
capacity.
1.3 Automatic selects charging currents 500mA/1000mA (1000mA charging current base on
charging 1-2 Li-ion batteries and fixed on outer channels).
1.4 Over-charging, short circuit ,reverse polarity and over charging time protections.
1.5 The charger can activate 0V rechargeable batteries.

Model: LBC-318 Version:1.0 Updated: 2018-12-10 Page 3 of 5
This data sheet is for customer reference purposes only and to help customers choose the appropriate product. Contents do not constitute a warranty.
For information on specific Camelion products please visit our website at www.camelionbattery.com or contact us directly at [e-mail].
Camelion is a registered trademark of Camelion Battery Co., Ltd. All other brand names are trademarks or registered trademarks of the respective companies.
Copyright ©2018 Camelion Battery Co., Ltd. All rights reserved.
2 Electrical Performance and Tests
2.1 Input: DC 5V/2A
2.2 Charging Voltage: 1.48V, 4.2V
2.3 Charging Current :1000mA /500mA
2.4 Cut-off current (at CV mode) : less than 100mA
2.5 Standby current: less than 25mA
3 Mechanical Tests and Requirements
3.1 Drop test
Drop from a height of 3 feet onto a concrete floor covered with 1/8 inch vinyl tile. Drop 3 times
total, each time on a different product surface. After that, test again the appearance, the
insulation function, indicator function and electrical performance.
3.2 Surface
Smooth surface, no scratch, flashes, blot and crack. Hardware gets no rust, flashes and
scratch.
3.3 Vibration Test
The frequency sweep for each item on different surface is 10 times under the condition of the
frequency 10～55HZ and the amplitude 0.35mm. After that, test again the appearance, the
insulation function, indicator function and electrical performance.
3.4 Salt Spray Test
Put the unit under temperature 35 with 5% Na℃-CI salt spray for 8 hours. Then take out to
dry for 16 hours. After that, test again the appearance, the insulation function, indicator
function and electrical performance.
4 Environmental Conditions

Model: LBC-318 Version:1.0 Updated: 2018-12-10 Page 4 of 5
This data sheet is for customer reference purposes only and to help customers choose the appropriate product. Contents do not constitute a warranty.
For information on specific Camelion products please visit our website at www.camelionbattery.com or contact us directly at [e-mail].
Camelion is a registered trademark of Camelion Battery Co., Ltd. All other brand names are trademarks or registered trademarks of the respective companies.
Copyright ©2018 Camelion Battery Co., Ltd. All rights reserved.
4.1 Operating Temperature
0 to 40℃℃
4.2 Storage Temperature
-20 to 65℃℃
4.3 Package Packing
Color box
4.4 Housing Texture
ABS
4.5 Net weight
172 ± 5g
4.6 Transportation
The unit should be protected against raining, watering and strong vibration
5 Safety Standards
EN60335-1
EN 60335-2-29
6 Drawings

Model: LBC-318 Version:1.0 Updated: 2018-12-10 Page 5 of 5
This data sheet is for customer reference purposes only and to help customers choose the appropriate product. Contents do not constitute a warranty.
For information on specific Camelion products please visit our website at www.camelionbattery.com or contact us directly at [e-mail].
Camelion is a registered trademark of Camelion Battery Co., Ltd. All other brand names are trademarks or registered trademarks of the respective companies.
Copyright ©2018 Camelion Battery Co., Ltd. All rights reserved.
Cautions
This charge is only for charging cylindrical batteries, including1.2V Ni-MH/ Ni-Cd and
3.6V/3.7VLi-on batteries. Do not charge non-rechargeable batteries (e.g. zinc-carbon, alkaline,
lithium).
When charge with 5V USB AC adapter, 2A-current AC adapter is recommended.
The charger may get hot during working a long time, handle with care.
Please cut off the electricity and remove the battery from the charger when charging complete.
This product is for indoor use only, the maximum operating temperature is 40℃.
Do not expose the product to fire. Keep this product at a dry place and avoid exposure to
moisture and sunlight.
Do not disassemble or reassemble this product.
This appliance is not intended for use by any person (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
