alchemy Stiga User manual

Stiga
Issue 1: June 2021
SitStand Desk
Product Manual
with specifiers guide & O & M information

Contents
Product Overview
Specification
Standard Extent of range
Standard Finishes
Cable Management
Product Performance Standards
Environmental Statement
Well Statement
Installation
Relocation
Maintenance
Warranty
Contact Details
01
02
03
05
07
10
11
12
13
16
17
19
20

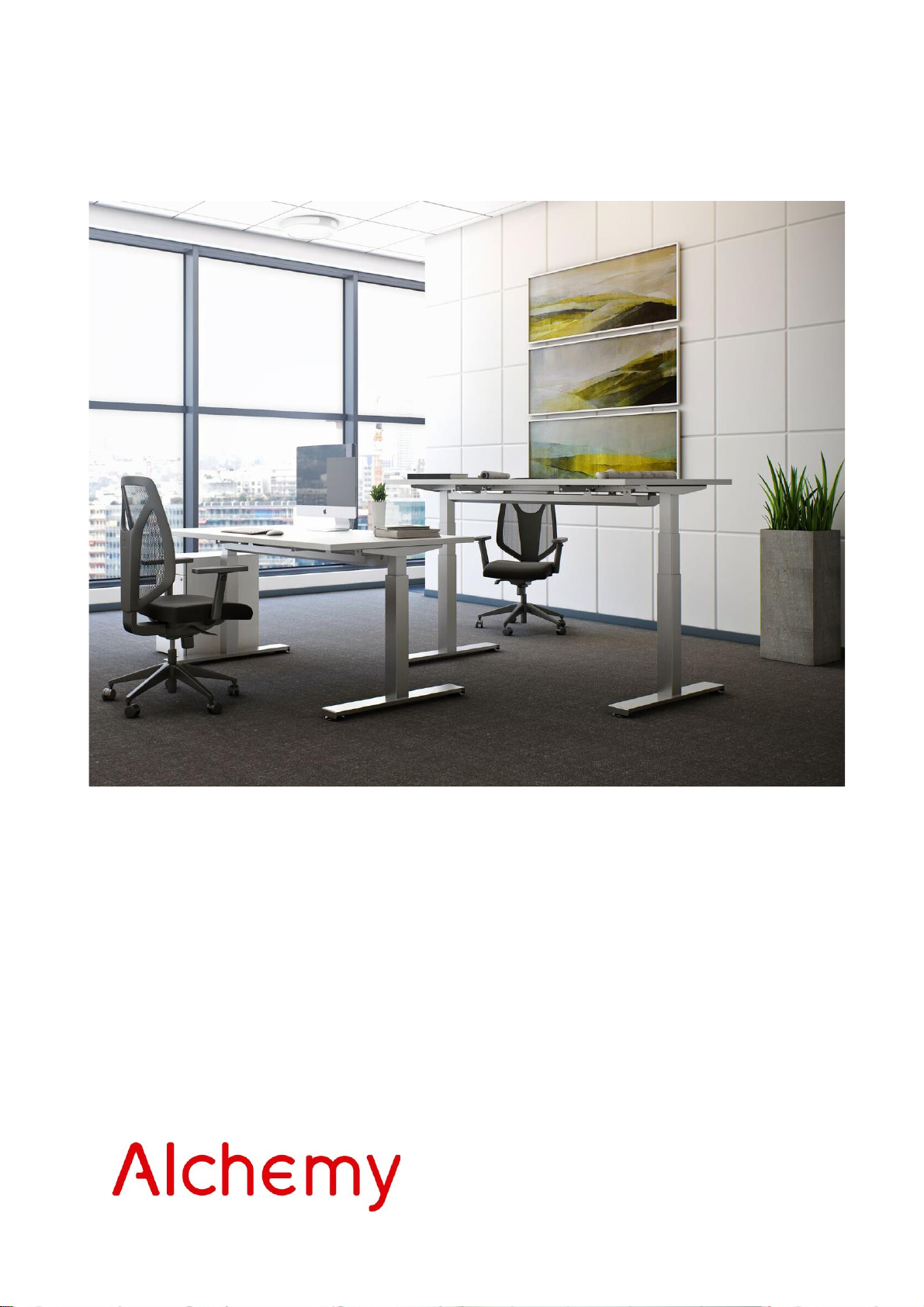

Product Overview
Research shows that the cumulative impact of sitting all day is associated with a range of health problems,
from obesity to diabetes to cancer. The average office worker spends 5 hours 41 minutes sitting each day
at a desk.
The Stiga desk contributes to increased focus, alertness & activity levels. When standing you are able to
release restless energy & combined with improved blood circulation, stable blood sugar levels & an active
metabolism, focus is improved to complete the task ahead.
But don’t take our word for it, we are happy to forward the article published in the British Medical Journal
along with other research reports. There is also a handy guide on ‘How to Use Your Sit Stand Desk’
published by the Smart Work & Life organisation.
Alchemy’s Stiga desk, offers easy to use electric powered height adjustable workstations. The products
incorporate collision detection technology as standard. The solution is based on an integrated giro within
the control box. The giro reacts to any obstruction when raising or lowering the work surface & halts, then
reverses at the point of collision. The desk adjusts from 650mm to 1300mm high.

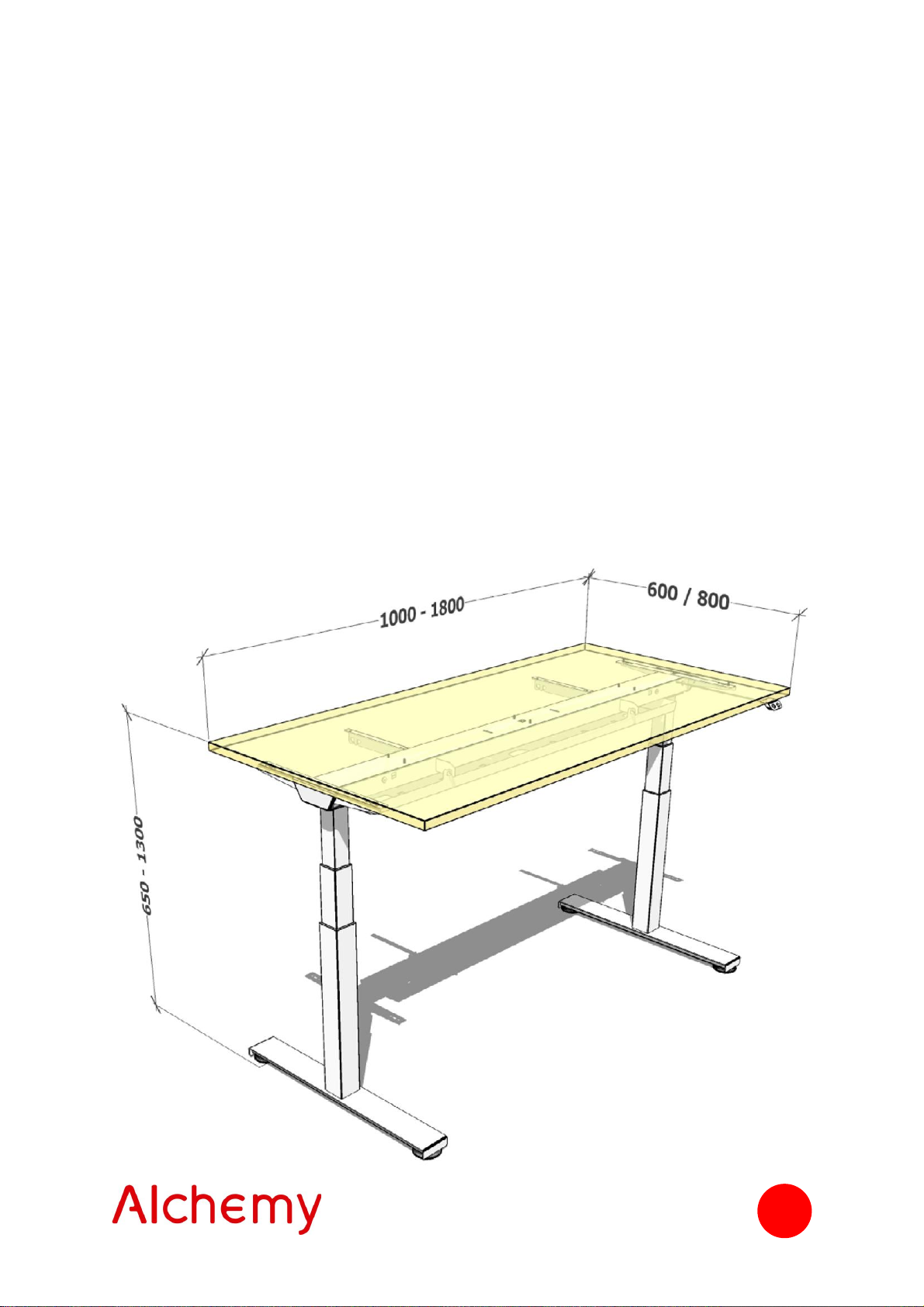

Dimensional limits
01

Specification
Stiga SitStand desk is designed and manufactured for use within the most demanding of environments
(including the education sector).
Stiga offers easy to use electric powered height adjustable workstations that can be mixed with fixed
height options –2 solutions with a common aesthetic.
Frame –constructed from medium to heavy gauge steel tube with cross bars of varying lengths,
powder coat finish –black, white, grey. There is an option for a chrome wrap to the foot.
Tops - Square edge table tops are fabricated from 25mm thick MFC (melamine faced chipboard) with
2mm ABS edging with 2mm radiused edges & corners. All tops are pre drilled & are inserted with M6
inserts.
Tops are machined with apertures if power, data & charging modules are required & machined for M6
inserts to take cable tray brackets. Maximum single piece top size is 2400mm x 1400mm. Single piece
tops have the grain running the length, multiple piece tops have the grain running the width. There are
a wide range of table top finish options.
Cable Management –steel flip down cable tray suspended from the upper frame.
Screens –a wide range of screen options are available. Please see the screens product manual for
options, specification & finishes.
Height Actuators & Control Gear –the Stiga desk incorporates collision detection technology as
standard. The solution is based on an integrated giro within the control box. The giro reacts to any
obstruction when raising or lowering the work surface & halts, then reverses at the point of collision.
Height adjustment 650 to 1300.
02

Standard Extent of Range
03
L D H
Stiga Desk Programme
Desk –7 Options
1200 x 800 x 650/1300
1200 x 700 x 650/1300
1200 x 600 x 650/1300
1400 x 800 x 650/1300
1400 x 700 x 650/1300
1400 x 600 x 650/1300
1600 x 800 x 650/1300
1600 x 700 x 650/1300
1600 x 600 x 650/1300
1800 x 800 x 650/1300
1800 x 700 x 650/1300
1800 x 600 x 650/1300
Electric height adjustable rectangular desk Electric height adjustable rectangular desk
1600 x 800 x 650/1300
1800 x 800 x 650/1300
2000 x 800 x 650/1300
1600, 1800, 2000
1600
1400 x 900 x 650/1300
1600 x 900 x 650/1300
1800 x 900 x 650/1300
1400 x 800 x 650/1300
1600 x 800 x 650/1300
1800 x 800 x 650/1300
Electric height adjustable plectrum desk Electric height adjustable kidney desk
L D H L D H

Standard Extent of Range
04
Memory function switchChrome foot wrap Modesty panel
1000 x 800 x 650/1300
1200 x 800 x 650/1300
1400 x 800 x 650/1300
1600 X 800 X 650/1300
1800 X 800 X 650/1300
1400 x 1000 x 650/1300
1600 x 1000 x 650/1300
1800 x 1000 x 650/1300
2000 X 1000 X 650/1300
2200 X 1000 X 650/1300
Electric height adjustable rectangular desk
Electric height adjustable oval desk/meeting table
L D H L D H
Additions

25mm top chamfer edge detail
Rye Oak
Verade Oak Portofino
Cherry
White Light Grey
For required finish, please suffix code with
WH –White, GR –Grey. VO –Verade
Oak, RO –Rye Oak, PC –Portofino
Cherry, TW –Tiepolo Walnut.
Maple Alchemy Oak Beech
Rye Oak Walnut
White Light Grey
For required finish, please suffix code with WH –
White, GR –Grey. MA –Maple, AO –Alchemy Oak,
RO –Rye Oak, BE –Beech, WL –Walnut. Standard
specification will match the edge finish with the top
finish. Contrast edge & ply effect edge are available
at standard cost.
25mm top square edge detail
Square Edge Ply Edge
Tiepolo |Walnut
Band A Finishes
Standard Finishes
05

Leg & Underframe Finishes
Black
White Silver Clear Lacquer
Chrome foot wrap
Standard Finishes
06
25mm top square edge detail
Square Edge Ply Edge
Band B Finishes
Washed Oak Mid Oak Vintage Oak
Please note:
Each Band B finish has a three
dimensional textured surface
accentuating the natural worn
timber grain effect.

Cable Management
07

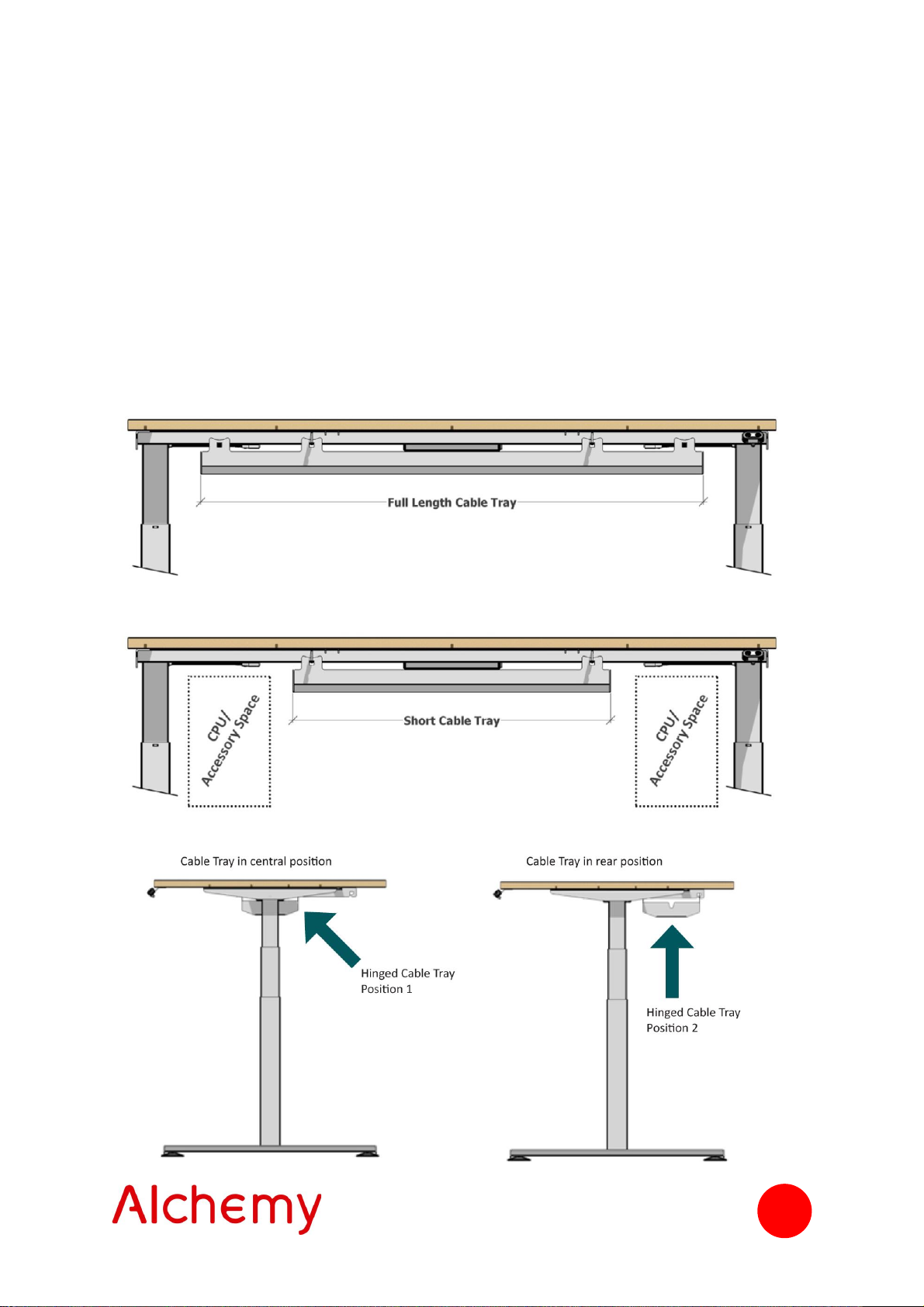

Horizontal cable management is achieved by specifying the optional drop down cable tray, which can
be hinged down from either sides of the desk for access to cables & power/data provision.
Cable trays can be specified full length or short. The short cable tray leaves space to the left or right
for a under desk mounted CPU cradle or personal storage drawer.
Cable trays can be mounted centrally or towards the rear of the desk if more knee space is required.
Cables are transmitted from floor to cable tray via an expanding vertical cable spiral with weighted
base.

Cable Management
08
Upper cable tray 1200
1400
1600
1800
Vertical cable spiral
Grey, Black or White
Cable Port –white, black, light grey
Below Desk - 2 gang power socket, master
switched and individually fused (3.15A)
Below Desk - 4 gang power socket, master
switched and individually fused (3.15A)

Cable Management
In Table, 1 power & 1 twin USB fast charger,
inc. 3M lead & 500mm drop lead to GST type
connector.
Aircharge wireless surface charger for use with
various work-surfaces and QI compatible devices.
09
Above Desk - silver & grey desk top unit, 2
power, inc. 800mm lead & desk clamp
Black, White & Silver
Above Desk - silver & grey desk top unit,
2 power & 1 twin USB fast charger, inc.
800mm lead & desk clamp
Black, White & Silver
Power feed lead - 2000mm with 3 pin plug
Interconnecting lead - 2000mm

Performance Standards
10
All furniture has been designed to conform to the dimensional, strength & stability requirements
of British & European performance standards.
BS EN 527 –1: 2011
BS EN 527 –2: 2002
BS EN 527 –3: 2003
BS 4875
BS 5459 –2: 2000
BS EN ISO 9241 –5: 1999
BS 6396: 2008
Dimensions
Mechanical Safety Requirements
Strength & Stability
Strength & Stability
Strength & Stability
Ergonomic Requirements
Electrical Systems in Office Furniture

Environmental Statement
Qualifications:
Metalwork
Steel inherently is a 100% recyclable material. It can be recycled at any point during its existence and can be
re-used again and again without weakening the material.
However, both of the largest UK steel manufacturers only guarantee up to a maximum content of 55%
recycled steel as part of any new batch produced. Our steel is sourced from either of these two companies.
MFC
We use 18 & 25mm Melamine Faced Chipboard, with the industry standard 2mm pvc edge detail. This board
is sourced from responsible UK suppliers, who use the leading European board manufacturers; Kronospan
and Egger. 30% of the woodchips used in the creation of the board is from recycled material, with a further
35% from sawmill waste such as sawdust, shavings & bark. Wood that is not suitable for MFC is transformed
into environmentally-friendly electricity and heat in biomass power plants, eliminating 1,487,001 tonnes of
CO₂from the environment, as compared to energy generation using natural gas. Our UK suppliers as
standard, supply 70% of all boards from FSC compliant source and are fully FSC and PEFC chain of custody
certified. However, we can on request, offer 100% FSC compliancy on the boards supplied.
MFC based on 65% manufactured with recycled content & 95% potential recyclability after deconstruction.
Includes generation of electricity & heat via industrial biomass power plants.
Steel based on 55% manufactured with recycled content & 95% potential recyclability after deconstruction.
Manufactured with
recycled content -
% by mass
Designed for
assembly on site
& deconstruction.
Components that can be
recycled after
deconstruction - % by mass
Product
Stiga 47% 95%
Calculations:
1x 1600 x 800 x 25 MFC top –Weight = 13.65 Kg. 65% recycled content by weight = 8.87 Kg.
Steel underframe –Weight = 34.5Kg. 55% recycled content by weight = 18.98 Kg.
Total product weight = 48.15 Kg.
Total recycled content = 13.65 + 8.87 = 22.52 Kg.
22.52 divide by 48.15 x 100 = 46.8%
11

Well Statement
The WELL Building Standard is a performance based system for measuring, certifying & monitoring features
of the built environment that impact human health & wellbeing, through air, water, nourishment, light, fitness,
comfort & mind.
WELL was originated in the U.S.A & is now being adopted throughout the world.
This statement outlines the furniture related features relating to the Involve product range & where it can
help towards gaining WELL credits.
12

Installation
13
Stiga Desk –Electric Height Adjustment
Assembly

Installation
14
Stiga Desk –Fixed Height Assembly

Installation
Modesty Panel
Modesty panel brackets
attach to underside of desk
with M6 allan head bolts
into M6 inserts.
Modesty panel attaches to
bracket with M6 allan head
bolts into M6 inserts in
modesty panel.
15

Relocation
All furniture should be picked up & NOT dragged. Linked items should be separated
before relocating.
All fixings are reusable.
Assembly instructions form part of this document.
16

Maintenance
17
Alchemy underframes are considered to be maintenance free, however the following should
be observed during the products lifetime:-
Frames - Where cleaning of the frame is required a mild detergent solution should be used.
The use of harsh abrasives, acids, alkalis or bleaching products is not recommended.
Tops –Dust regularly. Clean hard surfaces with a damp cloth & then polish with a soft dry
cloth, microfibre cloths are ideal for both purposes. On wood grain effect MFC wipe & polish
in the direction of the grain. DO NOT use spray polishes/cleaners or waxes which may
damage the finish & result in an undesirable sheen & a sticky build-up which can be difficult to
remove.
For heavier general soiling & marks on hard surfaces soak a cloth in a mild solution of soapy
water, wring until damp, not dripping wet, & wipe the surface concerned. Then wipe with a
clean, not soapy, damp cloth & finish by drying with a soft cloth.
To remove tape/sticker residue, grease, chewing gum, make-up & adhesives, try ‘De-solv-it
Sticky Stuff Remover’, available on line & in some hardware stores. Other stubborn marks
can sometimes be removed with Isopropyl Alcohol, available from Chemist. Use both these
sparingly & with care.
Remember to clean the underside of computer mice & keyboards. A build up of grease & grit
under these & similar components can cause abrasion & scratching of the surface, We
recommend the use of mouse mats to prevent scratching & premature wear to work surfaces.
General - Following these simple maintenance procedures will enable trouble free use.
Should any components appear to be loose the cause should be investigated without delay &
the appropriate fixing tightened where possible. If this does not provide a solution please
contact Alchemy Furniture.
