alchemy Astia planters User manual

Astia
Issue 1: May 2021
planters
Product Manual
with specifiers guide & O & M information

Contents
Product Overview
Specification
Standard Extent of range
Standard Finishes
Product Performance Standards
Environmental Statement
Well Statement
Installation
Relocation
Maintenance
Warranty
Contact Details
01
03
04
06
07
08
09
11
19
20
24
25

Product Overview

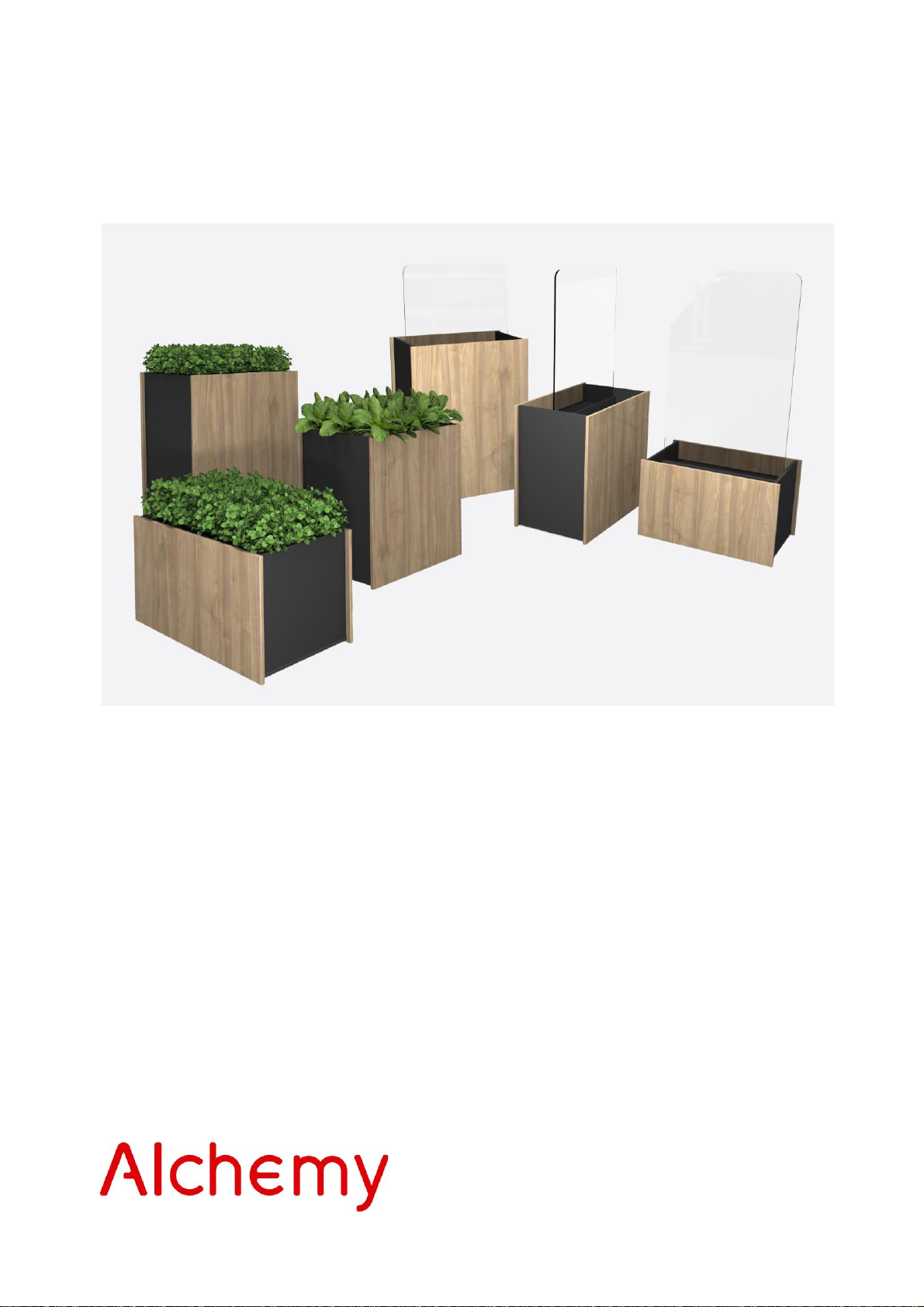

Asia is a comprehensive range of planters that include freestanding planters (fixed or mobile),
storage top planters, planters that fit the Alchemy Fence & Fence4 shelf systems along with
freestanding planters on leg frames.
The freestanding fixed & mobile planters can be specified with a central glass panel to create a physical
barrier & to perform as a glass dry wipe board.
Freestanding planters are supplied assembled with fixed height adjustable feet. The freestanding
levelling feet are removed & replaced with castors when the mobile module is required. This operation
is carried out after delivery.
Whilst here we state the dimensions of standard modules 75% of our production are non standard
sizes.
Dimensional limits
01
450mm
500mm
800mm
1100mm
1600mm
For storage top planters & Fence
planter sizes see extent of range.
800mm
A plastic liner is available for the
planters shown. Not available with
central glass dividing panel.

Specification
02
1.0 Carcass Construction –the product to be constructed consists of the carcass
fabricated from 18mm furniture grade melamine faced chipboard with 2mmABS edge,
finish. Carcass components are held together with proprietary cam and dowel fixings.
1.1 The carcass should be height adjustable on 4 x levelling feet and these should be
accessed for adjustment from the underside the unit.
1.2 If a mobile option is required separate castors are supplied.
2.0 Plastic liner –the freestanding & mobile planters can be specified with an internal tray
to accommodate living plants. All other planters do not have the tray option & are designed
primarily for artificial planting.
3.0 Glass divider –a glass panel can be specified to sit centrally in the planter.
Constructed from 10mm toughened glass with a flat polished ground edge all round &
50mm rads at the corners.
3.1 The glass divider feeds down into a central slot & is held in place with 2x turned
aluminium bolts with nylon sleeve & washers.
4.0 Health & Safety –Alchemy Astia planters are designed to conform to all recognised
office furniture industry safety standards. Alchemy Furniture recommend that the product is
installed by qualified installation teams.
5.0 Finishes. Alchemy planters are available in a wide range of finishes along with the
ability to apply graphics to glass dividing panels. When selecting colours & graphic
treatments the needs of partially sighted users should be considered.

Standard Extent of Range
03
L D H

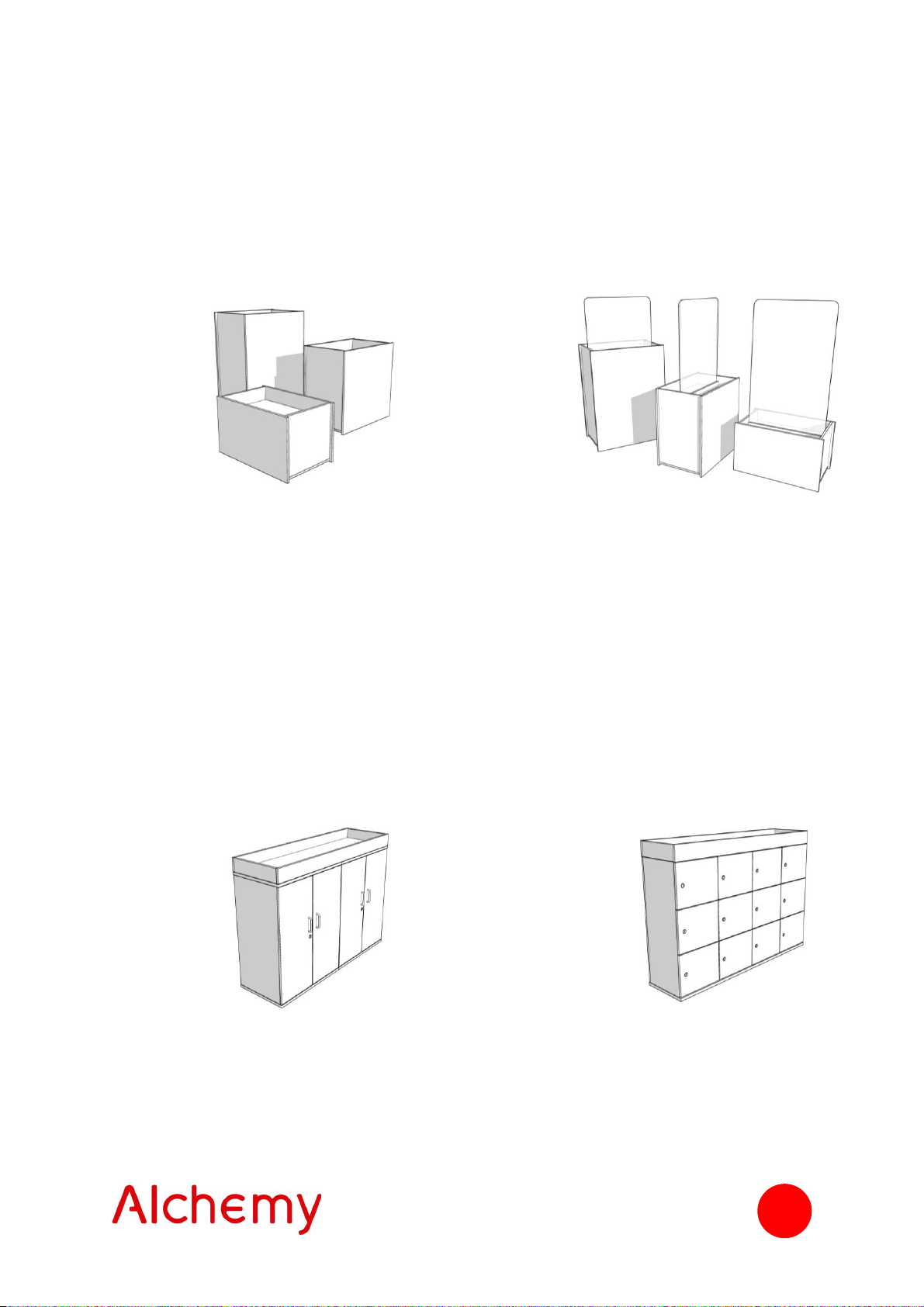

Astia Floor Standing Planter Programme
Planter –3 Options
800 x 450 x 1100
800 x 450 x 800
800 x 450 x 500
Storage Top Planters –4 Options
L D H
800 x 500 x 120
1000 x 500 x 120
1600 x 500 x 120
2000 x 500 x 120
L D H
800 x 400 x 120
1200 x 400 x 120
1600 x 400 x 120
2000 x 400 x 120
800 x 800 x 120
1200 x 800 x 120
1600 x 800 x 120
2000 x 800 x 120
Locker Top Planters –8 Options
L D H
800 x 450 x 1100
800 x 450 x 800
800 x 450 x 500
Planter with Glass Screen –3 Options
For back
to back
runs of
lockers
1600mm high to top
of glass panel.

Standard Extent of Range
04

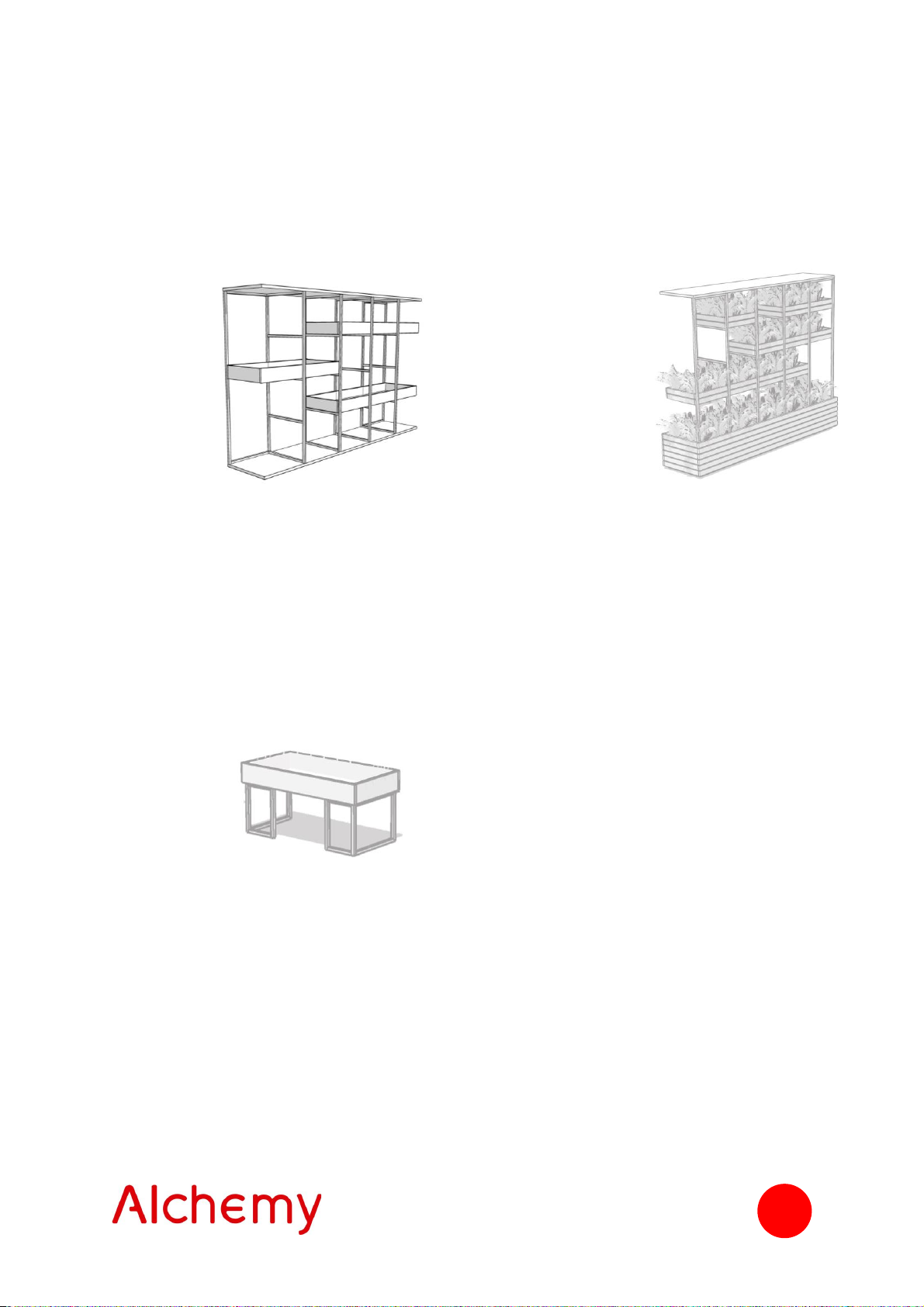

Fence Planters –3 Options Fence Base Cladding –4 Options
Fence Planters –2 Options
L D H
1000 x 450 x 120
1500 x 450 x 120
2000 x 450 x 120
L D H
1000 x 450 x 420
1500 x 450 x 420
2000 x 450 x 420
2500 x 450 x 420
Available plain or
grooved. Available plain or
grooved.
L D H
800 x 500 x 490
1000 x 500 x 490
Actual planter
depth 120mm.

Standard Finishes
05
Maple Alchemy Oak Beech
Rye Oak Walnut
White Light Grey
Band A MFC Finishes:
Square Edge Ply Edge Option
25mm edge detail:
We have experience of supplying alternative MFC finishes, laminates such as Fenix, compact laminate, birch ply, birch ply with
laminate face, birch ply with lino face & Veneers. Please contact our sales team to discuss your requirements. Non standard
finishes may be subject to availability, minimum quantities & extended lead times.
For required finish, please suffix code with MA –Maple, AO –Alchemy Oak, RO –Rye Oak, BE –Beech, WL –Walnut,
WH –White, GR –Grey, WO –Washed Oak, MD –Mid Oak, VO –Vintage Oak. Standard specification will match the edge finish
with the top finish. Contrast edge & ply effect edge are available at standard cost.
Washed Oak Mid Oak Vintage Oak
Band B MFC Finishes:

Performance Standards
06
All furniture has been designed to conform to the dimensional, strength & stability requirements
of British & European performance standards.
BS EN 527 –1: 2011
BS EN 527 –2: 2002
BS EN 527 –3: 2003
BS 4875
BS 5459 –2: 2000
BS EN ISO 9241 –5: 1999
BS 6396: 2008
Dimensions
Mechanical Safety Requirements
Strength & Stability
Strength & Stability
Strength & Stability
Ergonomic Requirements
Electrical Systems in Office Furniture

Environmental Statement
Qualifications:
MFC
We use 18 & 25mm Melamine Faced Chipboard, with the industry standard 2mm pvc edge detail. This board
is sourced from responsible UK suppliers, who use the leading European board manufacturers; Kronospan
and Egger. 30% of the woodchips used in the creation of the board is from recycled material, with a further
35% from sawmill waste such as sawdust, shavings & bark. Wood that is not suitable for MFC is transformed
into environmentally-friendly electricity and heat in biomass power plants, eliminating 1,487,001 tonnes of
CO₂from the environment, as compared to energy generation using natural gas. Our UK suppliers as
standard, supply 70% of all boards from FSC compliant source and are fully FSC and PEFC chain of custody
certified. However, we can on request, offer 100% FSC compliancy on the boards supplied.
MFC based on 65% manufactured with recycled content & 95% potential recyclability after deconstruction.
Includes generation of electricity & heat via industrial biomass power plants.
Manufactured with
recycled content -
% by mass
Designed for
assembly on site
& deconstruction.
Components that can be
recycled after
deconstruction - % by mass
Product
Astia 65% 95%
Calculations:
1100 high x 800 wide x 450 wide module –Weight = 37.52 Kg. 65% recycled content by weight
= 24.39 Kg.
Total product weight = 37.52 Kg.
Total recycled content = 24.39 Kg.
24.39 divide by 37.52 x 100 = 65%
07

Well Statement
The WELL Building Standard is a performance based system for measuring, certifying & monitoring features
of the built environment that impact human health & wellbeing, through air, water, nourishment, light, fitness,
comfort & mind.
WELL was originated in the U.S.A & is now being adopted throughout the world.
This statement outlines the furniture related features relating to the Involve product range & where it can
help towards gaining WELL credits.
09

10

Installation
11
Astia planters are constructed as pre assembled free standing modules. Modules are
simply lifted into position.
Astia planters are supplied with levelling feet accessed by tilting the carcass. Castors are
supplied separately if mobile units are specified. The levelling feet should be removed &
castors fitted using the screws supplied aligning with the pilot holes in the underside of the
carcass.
The plastic liner is simply placed in position in the top of the planter.
Static planter levelling feet. Mobile planter lockable castors
Liner shown clear, other
finishes may be supplied –
black & grey.
Liner with central glass
panel Liner with central glass
panel –liner one side, dry
wipe accessories the
other.

upstand
nylon washer
nylon washer
nylon sleeve
aluminium bolt
glass panel
Installation
11

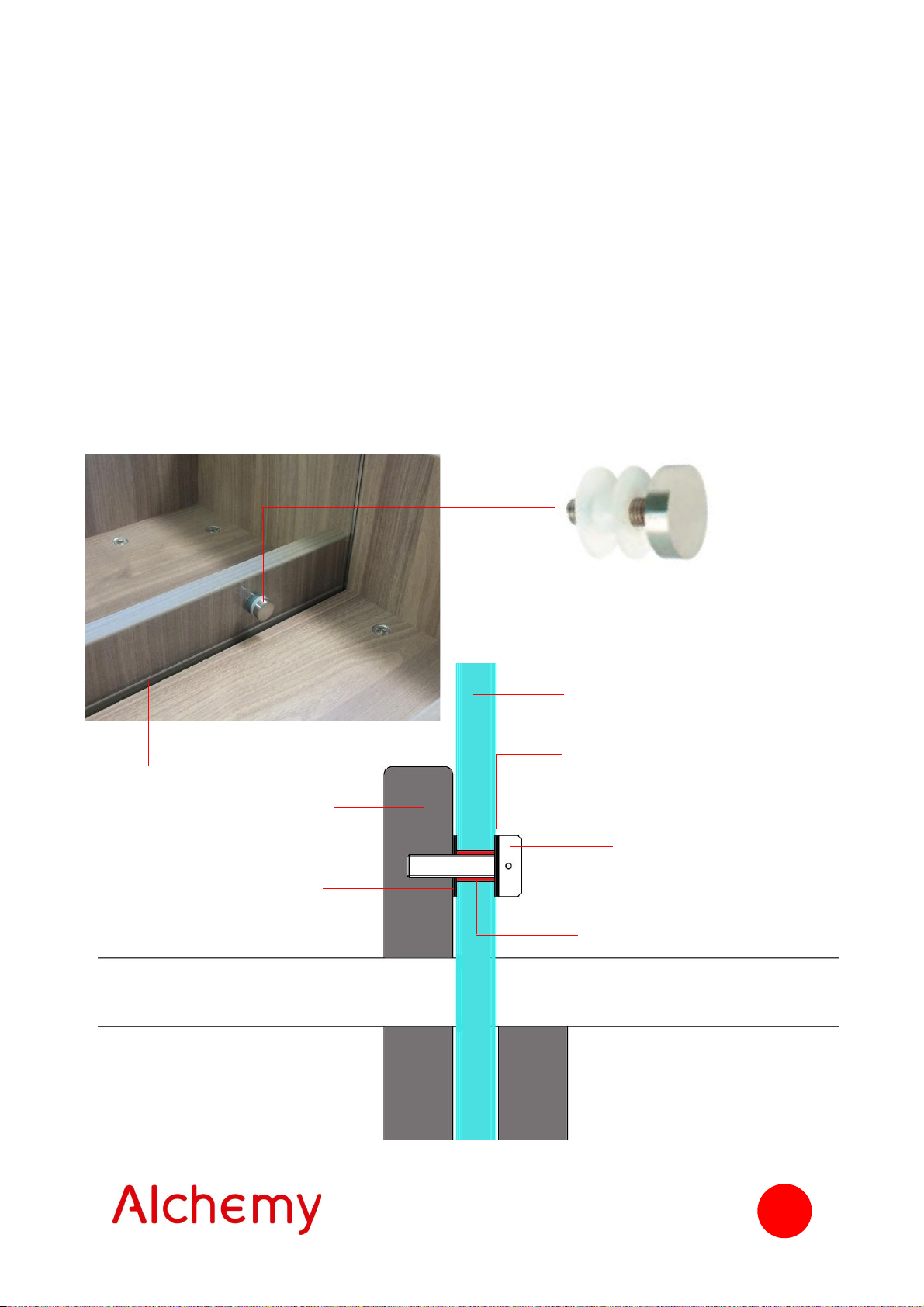

Where the glass dividing panel has been specified the planter will include a central slot with
back upstand. The back upstand includes 2x M6 inserts.
Lift the glass panel into position & align with the slot, lower the panel into the slot until the
panel bottoms out on the carcass floor. Adjust the position of the panel horizontally so that
the 2 holes in the glass panel align with the M6 inserts in the upstand panel.
Take the 2x nylon sleeves & locate in the glass through holes. Take the 2x aluminium
turned bolts, slide over the nylon washers & tighten in the M6 inserts. Continue to tighten
the bolts until the glass is clamped into position.
central slot
Aluminium
bolt with nylon
sleeve &
washers

Relocation
All furniture should be picked up & NOT dragged. Linked items should be separated
before relocating.
All fixings are reusable.
Assembly instructions form part of this document.
19

Maintenance
Astia planters are considered to be maintenance free, however the following should be observed
during the products lifetime:-
Carcass –Dust regularly. Clean hard surfaces with a damp cloth & then polish with a soft dry cloth,
microfibre cloths are ideal for both purposes. On wood grain effect MFC wipe & polish in the direction
of the grain. DO NOT use spray polishes/cleaners or waxes which may damage the finish & result in
an undesirable sheen & a sticky build-up which can be difficult to remove.
For heavier general soiling & marks on hard surfaces soak a cloth in a mild solution of soapy water,
wring until damp, not dripping wet, & wipe the surface concerned. Then wipe with a clean, not soapy,
damp cloth & finish by drying with a soft cloth.
To remove tape/sticker residue, grease, chewing gum, make-up & adhesives, try ‘De-solv-it Sticky Stuff
Remover’, available on line & in some hardware stores. Other stubborn marks can sometimes be
removed with Isopropyl Alcohol, available from Chemist. Use both these sparingly & with care.
General - Following these simple maintenance procedures will enable trouble free use. Should any
components appear to be loose the cause should be investigated without delay & the appropriate fixing
tightened where possible. If this does not provide a solution please contact Alchemy Furniture.
20

Maintenance
23

Warranty
Alchemy offer a five year guarantee for furniture unless stated.
This applies only if the furniture & other supplied goods have been used within and by
standard office conditions & installed correctly as per Alchemy installation & relocation
instructions.
Alchemy reserve the right to refuse replacement or repair if we feel that the product has
been abused or has been accidently damaged by another party.
Alchemy also reserves the right to attempt to repair any damaged or faulty products before a
decision is made to replace them. In this case, we shall not be liable for any loss occurred by
the distributor, customer or 3rd party during this period.
Alchemy will not be liable whatsoever for any consequential damages, loss or other
expenses whether arising out of contact, negligence or otherwise.
Any alterations to our products in any manner will automatically nullify any guarantees
offered by Alchemy.
24

Contact Details
Alchemy Furniture Limited
The Office
Rye Wharf, Harbour Road
Rye, East Sussex, TN31 7TE
Showroom:
61 –63 Church Street
Caversham, Reading
Berkshire, RG4 8AX
Tel: [phone]
Fax: [phone]
Web: www.alchemyfurniture.co.uk
E-mail: [email protected]
