Alcoa HK-150 Series User manual

10-28-2010
HK1058
INSTRUCTION MANUAL
HK-150 S
HK-150 SERIES
ERIES
INSTALLATION TOOLS

2

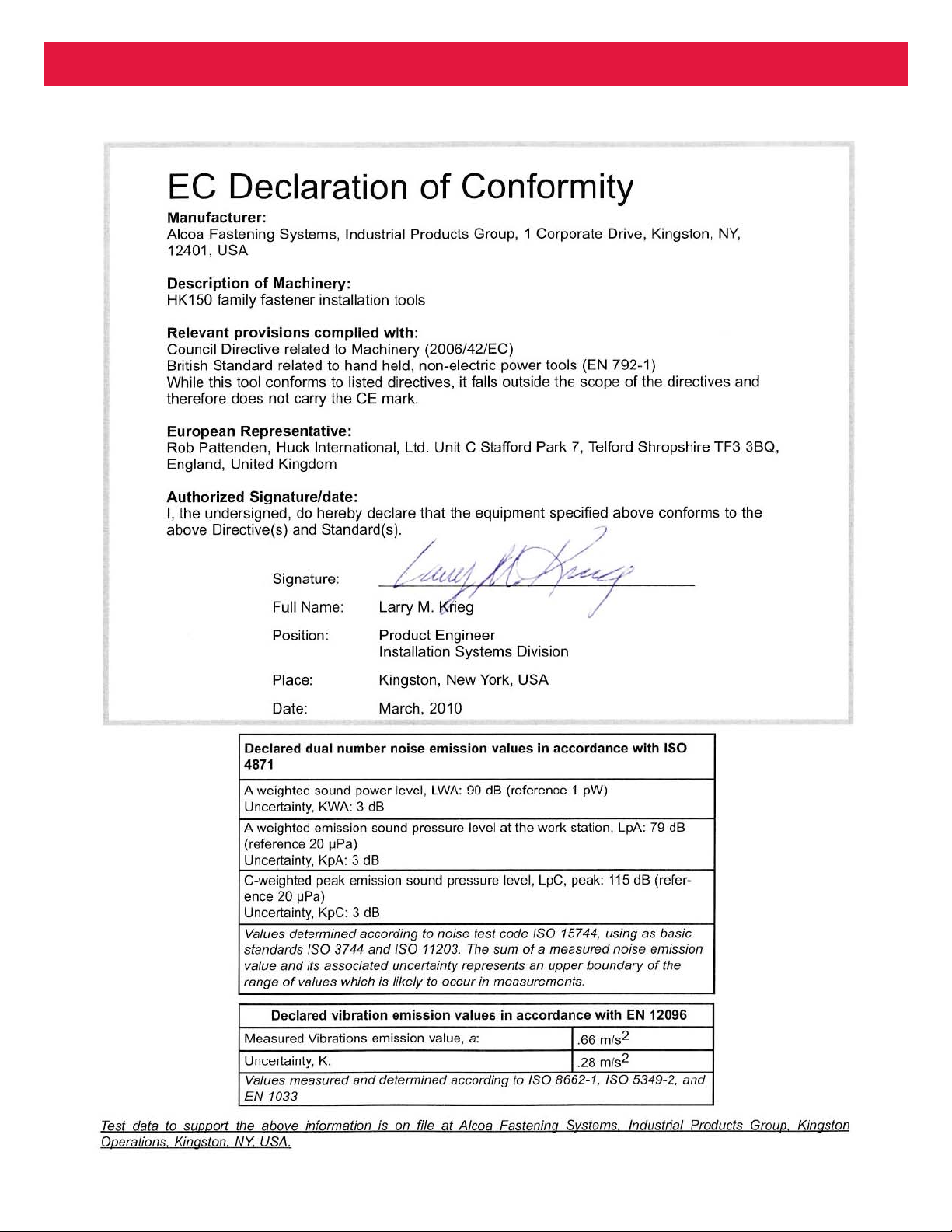

HK-150 Series Tooling Alcoa Fastening Systems

3
HK-150 Series Tooling Alcoa Fastening Systems
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PRINCIPLE OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
TOOL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 7
RIVET PINTAIL REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
JAW INSTALLATION AND REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 9
TOOL MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
RIVETER TO NUTSETTER CONVERSION INSTRUCTIONS . . . . . . . . . . . .13
90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
AUTHORIZED TOOL SERVICE CENTER . . . . . . . . . . . . . . . . . . . . . . . . . .14
C
CONTENTS
ONTENTS

4
HK-150 Series Tooling Alcoa Fastening Systems
S
SAFETY
AFETY
This instruction manual must be read,
with particular attention to the following
safety guidelines, by any person servicing
or operating this tool.
1. Glossary
Notes - are reminders of required procedures.
Bold, Italic type and underlining - empha-
sizes a specific instruction.
2. A half hour long hands-on training session with
qualified personnel is recommended before using
Huck equipment.
3. Huck equipment must be maintained in a safe
working condition at all times. Tools and hoses
should be inspected at the beginning of each
shift/day for damage or wear. Any repair should be
done by a qualified repairman trained on Huck pro-
cedures.
4. Repairman and Operator must read manual prior to
using equipment. Warning and Caution stick-
ers/labels supplied with equipment must be under-
stood before connecting equipment to any primary
power supply. As applicable, each of the sections
in this manual have specific safety and other infor-
mation.
5. Read MSDS Specifications before servicing the
tool. MSDS Specifications are available from the
product manufacturer or your Huck representative.
6. When repairing or operating Huck installation
equipment, always wear approved eye protection.
Where applicable, refer to ANSI Z87.1 - 2003
7. Disconnect primary power source before perform-
ing maintenance on Huck equipment or changing
Nose Assembly.
8. Tools and hoses should be inspected for leaks at
the beginning of each shift/day. If any equipment
shows signs of damage, wear, or leakage, do not
connect it to the primary power supply.
9. Mounting hardware should be checked at the
beginning of each shift/day.
10. Make sure proper power source is used at all times.
11. Release tool trigger if power supply is interrupted.
12. Tools are not to be used in an explosive environ-
ment unless specifically designed to do so.
13. Never remove any safety guards or pintail deflec-
tors.
14. Ensure deflector or pintail collector is installed and
operating prior to use.
15. Never install a fastener in free air. Personal injury
from fastener ejecting may occur.
16. Always clear spent pintail out of nose assembly
before installing the next fastener.
17. There is possibility of forcible ejection of pintails or
spent mandrels from front of tool.
18. If there is a pinch point between trigger and work
piece, use remote trigger. (Remote triggers are
available for all tooling).
19. Unsuitable postures may not allow counteracting of
normal expected movement of tool.
20. Do not abuse tool by dropping or using it as a ham-
mer. Never use hydraulic or air lines as a handle or
to bend or pry the tool. Reasonable care of instal-
lation tools by operators is an important factor in
maintaining tool efficiency, eliminating downtime,
and in preventing an accident which may cause
severe personal injury.
21. Never place hands between nose assembly and
work piece. Keep hands clear from front of tool.
22. There is a risk of crushing if tool is cycled without
Nose Assembly installed.
23. Tools with ejector rods should never be cycled with
out nose assembly installed.
24. When two piece lock bolts are being used always
make sure the collar orientation is correct. See fas-
tener data sheet of correct positioning.
25. There is a risk of whipping compressed air hose if
tool is pneudraulic or pneumatic.
26. Tool is only to be used as stated in this manual. Any
other use is prohibited.
Product complies with requirements
set forth by the relevant European
directives.
Read manual prior to using
equipment.
Eye protection required while
using this equipment.
Hearing protection required while
using this equipment.
WARNINGS - Must be understood to
avoid severe personal injury.
CAUTIONS - show conditions that will
damage equipment and or structure.

5
HK-150 Series Tooling Alcoa Fastening Systems
READ INSTRUCTIONS THOROUGHLY PRIOR TO OPERATING THE RIVETER. THIS
RIVETER IS DESIGNED FOR INTERMITTENT DUTY AND MAINTENANCE WORK ONLY.
The HK-150 is a hydraulic tool designed to set from 1/8 inch up to and including 1/4 inch diameter steel, stainless steel, alu-
minum and plastic rivets by changing only the nose piece. The HK-150 has a rated pull pressure of over 3,500 lbs and one
handed operation gives access to tight areas.
The hydraulic system is sealed, oil cannot be added. If the HK-150 should become damaged and leaks oil from the tool, it
should be returned to an authorized service center.

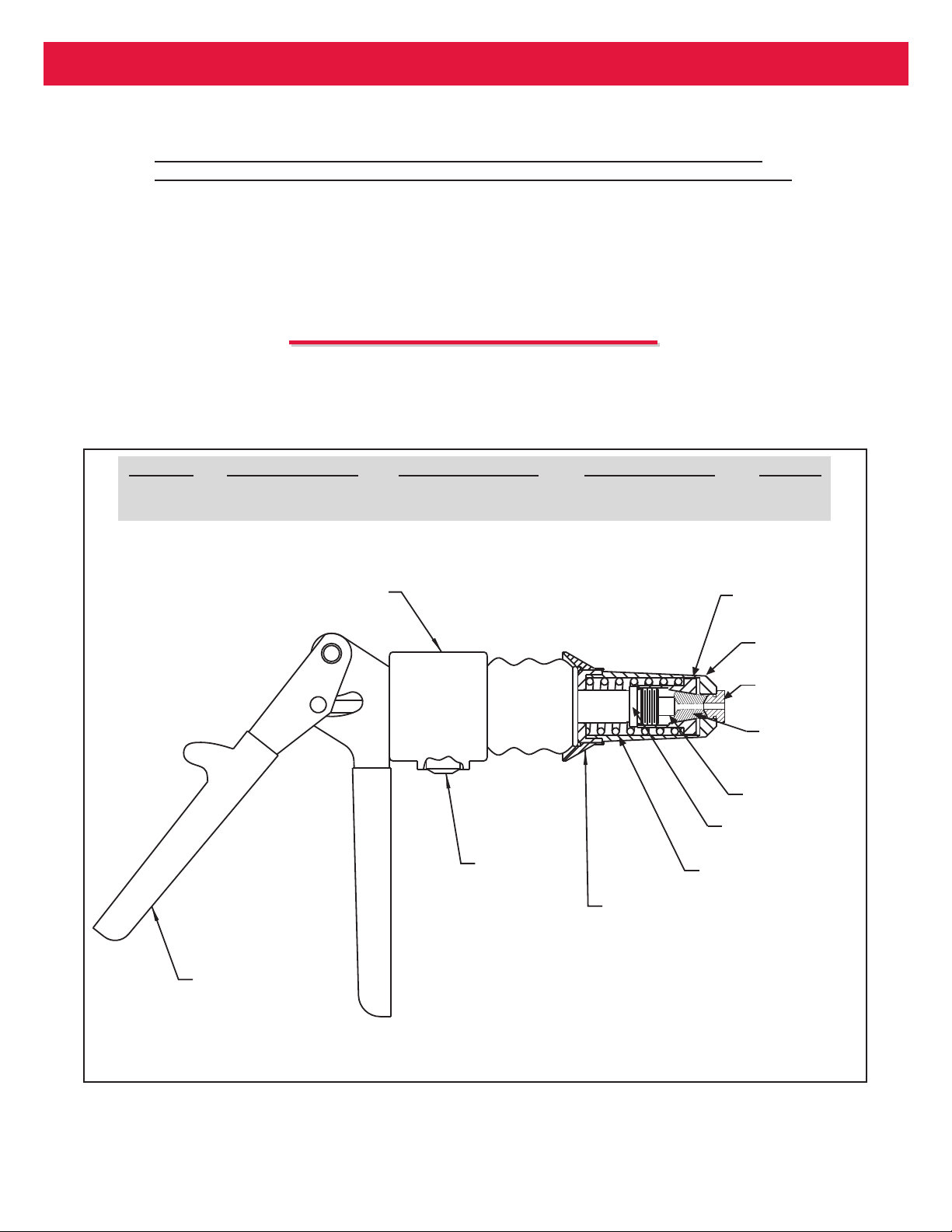

Figure 1
(3 PC.)-202929
(2 PC.)-202122
SEE PG. 5
201061
NOSE TUBE
202312
RESERVOIR SHIELD
202124
RETURN SPRING
PULLER SHA T
JAW PUSHER
JAWS
201050
JAW HOLDER
NOSE PIECE
FULL EXTENSION
RELEASING
BUTTON
PUMP HANDLE
TOOL BODY
P
PRINCIPLE
RINCIPLE OF OF O
OPERATION
PERATION
T
TOOL
OOL S
SPECIFICATIONS
PECIFICATIONS
Operating Temperature Range: 32 ° - 125 ° F ( 0° - 51.7 °C )
Maximum Operating Temperature: 125 ° F ( 51.7 ° C )
STROKE RIVET DIAMETER RIVET MATERIALS PULL PRESSURE WEIGHT
5/8” 1/8”-1/4” Stainless Steel, 3,500 lbs 28 oz
(1.58 cm) (.32-.63 cm) Aluminum, Plastic (15.6 kN) (.79 kg)

6
HK-150 Series Tooling Alcoa Fastening Systems
O
OPERATING
PERATING I
INSTRUCTIONS
NSTRUCTIONS

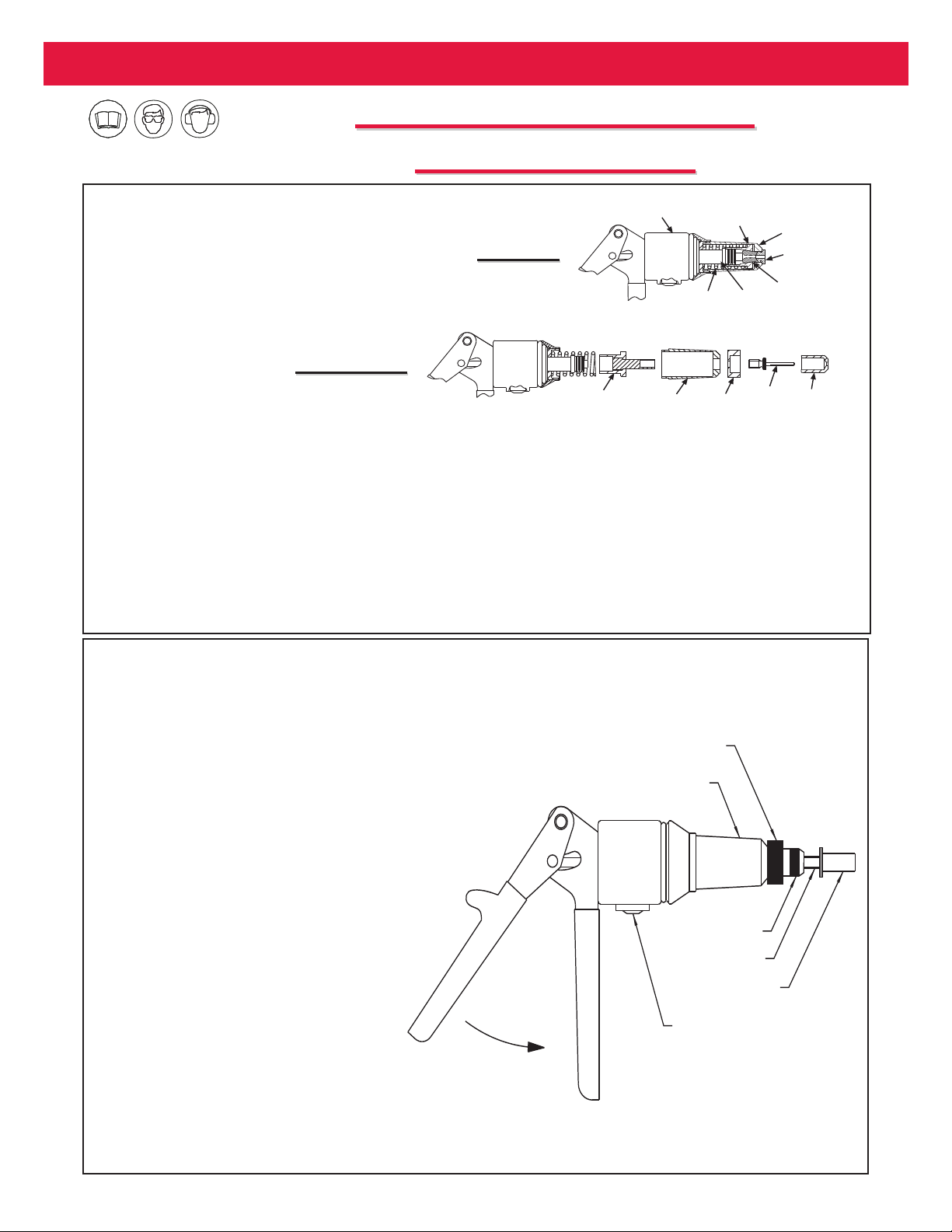

The HK-150 hydraulic riveter installs fasteners by a pull and release system. Placing lever in “PULL” position,
and pumping the handles (see figure 2 on the next page) will actuate the tool. After installing the fastener, the
tool must be returned to its original position, which releases the pintail. To do this, point the tool downward,
place lever in “RELEASE” position, and squeeze handles (see figure 3). The pintail should drop out.
(Typical Rivet)
BODY
PINTAIL
*The HK-150 has a .625 inch work travel and will set most rivets in one cycle. If the tool reaches the end of
its travel before the rivet breaks, DO NOT continue pumping the handles on the tool. Release the tool by
pressing RELEASE Button and then squeezing the handles. Next, regrip the rivet, and pump the HANDLES
and finish the installation.
Nose Piece Installation:
1. Select the proper Nose Piece for the correct
installation of fastener and function of tool.
2. Remove the Nose Piece in the tool by
unscrewing it in a counterclockwise direction.
3. Hand tighten the Nose Piece into the Nose
Tube.
Fastener Installation:
Install correct nose piece on tool (see Nose Piece
installation section).
1. Insert pintail of rivet in to the Nose Piece.
2. Position the Rivet Body in to Work Piece to
be fastened.
3. Hold the tool steady against the work piece
and pump Handles until rivet is set and pintail
is broken*. See figure 2
CAUTIONS:
●Before operating tool, make
sure that all Nose parts have
been screwed in HAND TIGHT.
●Frequently check that nose
components do not vibrate
loose during operation.
READ INSTRUCTIONS THOROUGHLY PRIOR TO OPERATING THE RIVETER. THIS
RIVETER IS DESIGNED FOR INTERMITTENT DUTY AND MAINTENANCE WORK ONLY.
WARNINGS:
●Read full manual before using tool.
●A half-hour training session with qualified personnel is recommended before
using Huck equipment.
●To avoid severe personal injury: Wear approved eye and ear protection.
●Be sure of adequate clearance for Operator’s hands before proceeding with
fastener installation.
●Tool shall not be operated if directed toward the operator or any person.
●Beware of ejection of fastener; turn head in each operation to avoid exposure.

7
HK-150 Series Tooling Alcoa Fastening Systems
RIVET PINTAIL
(INSIDE NOSE PIECE) RIVET BODY
WORK PIECE
PUMP
HANDLE
Figure 2
vet Pintail Removal:
Figure 4
HANDLES
(SQUEEZE)
RELEASING
BUTTON
(PRESS)
RIVET
PINTAIL
Figure 3
O
OPERATING
PERATING I
INSTRUCTIONS
NSTRUCTIONS (continued)
CAUTION: It is necessary to
remove Pintail before attempting
to install another Rivet.
Rivet Pintail Removal
Once Rivet is installed, Pintail must be
removed.
1. Point tool downward.
2. Squeeze the Handle while pressing
the Releasing Button.
R
RIVET
IVET P
PINTAIL
INTAIL R
REMOVAL
EMOVAL

8
HK-150 Series Tooling Alcoa Fastening Systems
J
JAW
AW I
INSTALLATION
NSTALLATION
AND
AND R
REMOVAL
EMOVAL:
:
TWO PIECE JAW SYSTEM THREE PIECE JAW SYSTEM
3. 3.
1.
2.
2. TWO PIECE JAW SYSTEM THREE PIECE JAW SYSTEM
Remove the JAW HOLDER by unscrewing it in a
counterclockwise direction. Drop JAWS out from SPRING side.
Actuate tool by squeezing the ACTUATING TRIGGER (see fig
3 above) until the jaw pusher is fully extended. Stop as soon as
the JAW PUSHER is in the extended position.
PULLER
SHA T
JAW
PUSHER
Remove the JAW HOLDER by unscrewing it in a
counterclockwise direction. Drop JAWS out from
SPRING side. Push JAW PUSHER flush with PULLER
SHA T while squeezing the RELEASING TRIGGER
(See igure 3 above).
PULLER
SHA T
JAW
PUSHER
To replace JAWS, hold JAW HOLDER large end down and at a
slight angle. Place jaws in one at a time. Add a small amount of
jaw lubricant to jaws and jaw holder prior to assembly.
To replace JAWS, hold JAW HOLDER large end down and at a slight
angle. Hold finger over small opening and place jaws in one at a time.
Add a small amount of jaw lubricant to jaws and jaw holder prior to
assembly.
The jaws are installed at the factory and should only need to be removed for periodic inspection and cleaning. To
remove the jaws unscrew the NOSE TUBE from the tool in a counterclockwise direction

9
HK-150 Series Tooling Alcoa Fastening Systems
TWO JAW SYSTEM
4.
5.
6.
THREE JAW SYSTEM
5.
When jaws are in place, insert jaw holder into spring, being sure to keep large end of jaw holder pointing downward.
Replace the NOSE TUBE and NOSE PIECE, HAND TIGHTEN ONLY. The tool is now ready to use.
SPRING
JAW HOLDER
Hold tool with the PULLER SHA T pointing down and screw the
jaw holder on to the PULLER SHA T. HAND TIGHTEN ONLY. Hold tool with the PULLER SHA T pointing down and the JAW
PUSHER fully extended. Screw the jaw holder on to the PULLER
SHA T. HAND TIGHTEN ONLY.
TOOL
BODY
PULLER
SHA T
TOOL
BODY
PULLER
SHA T
JAW
PUSHER
J
JAW
AW I
INSTALLATION
NSTALLATION
AND
AND
R
REMOVAL
EMOVAL (
(CONT
CONT.):
.):

10
HK-150 Series Tooling Alcoa Fastening Systems

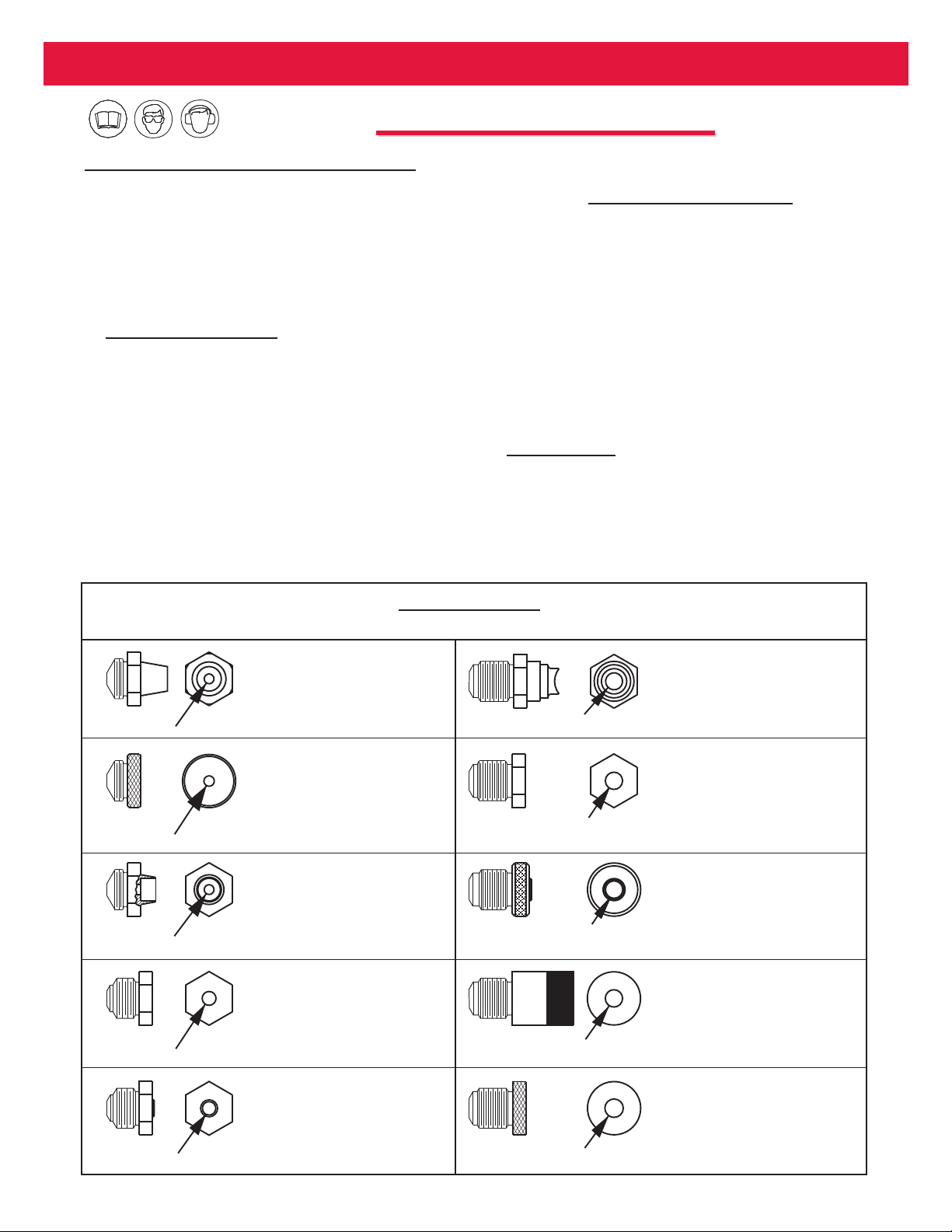

Ø.093
Ø.098
Ø.093
Ø.130
Ø.125 Ø.172
Ø.160
Ø.160
Ø.160
Ø.160
Part No. Description
1/4" Magna Lok
Spec. GM Glass Stop
Travel, Pop Rivets
1/4" Monobolts
1/4" Pop & Plastic
Rivets
1/4" Auto Split "T"
Rivets
3/16" Monobolts
5/32" & 3/16" Pop
& Plastic Rivets
1/8" Stand Off
Pop Rivets
'3/32" & 1/8"
Pop Rivets
1/8" for Trim Molding
Pop Rivets
202142
202193
202169
202157
202155
202168
202158
202190
202159
202156
Nose Pieces
Part No. Description
Steps for Proper Tool Maintenance and Operation
1. Disassemble and clean Nose components periodically or
if the pintails do not drop out freely. Use a pick to clean
the jaw grooves. Wash components in mineral spirits or
isopropyl alcohol. Apply a small amount of lubricant to
the Jaws and inside of Jaw Holder prior to assembly.
2. To ease Nose Tube and Nose Piece installation, extend
tool by pumping Handles.
3. Do not use tool as a lever if rivet pintail is jammed
while regripping. Instead, squeeze Handles and press
the Releasing Button while pushing tool nose against
work piece for the jaws to get a deeper grip.
4. If rivet pintail is stuck in tool after breaking, lightly tap
nose against a hard surface while squeezing Handles
and pressing the Releasing Button with tool pointing
downward. Pintail should then fall out.
5. Before operating tool, make sure that all Nose Parts
have been screwed in hand tight.
6. The tool has a 5/8" work travel, the completion of which
is indicated by a solid stop after approximately 12 pumps
(one cycle). Do not force beyond this point to insure
long life of tool.
7. The HK-150 should not be used at temperatures below
35°F unless it is first brought to room temperature and
cycled several times. Normal use of the tool after warm-
ing should keep it warm enough for proper operation.
8. If tool will not reverse, remove Nose Tube and inspect for
any foreign matter that might have caused jamming
between Jaw Holder and inside of Nose Tube.
9. Frequently check that nose components do not vibrate
loose during operation.
10.Do not rock tool when pumping it. This may cause riv-
ets to prematurely break.
11. Large fasteners can be set one handed in tight areas by
using short pump strokes.
T
TOOL
OOL M
MAINTENANCE
AINTENANCE

11
HK-150 Series Tooling Alcoa Fastening Systems
T
TROUBLESHOOTING
ROUBLESHOOTING
Problem Solution
1.) Rivet pintail is stuck in tool First Step:
Lightly tap nose against a hard surface while after breaking
squeezing HANDLES and pressing down the RELEASING BUT-
TON with tool pointing downward Pintail should then fall out,
see fig. 4. If that does not work try Second Step.
Second Step: (Use this only if first step does not work)
Remove NOSE TUBE and JAW HOLDER (for help see figure 5)
take out pintail and reassemble.
2.) Tool will not reverse Push on the handles until you feel a slight give, then press the
RELEASING BUTTON and continue pushing on the handles,
the tool should then reverse. If this does not work Remove
NOSE TUBE and inspect for any foreign matter that may have
cause the jamming between JAW HOLDER and the inside of
NOSE TUBE.
3.) Fastener does not pull rivet The JAW HOLDER is loose. Remove the NOSE TUBE and
tighten the JAW HOLDER by turning it counterclockwise (see
(See Three Piece Jaw Installation and Removal)).
4.) The rivet does not fit into the tool The rivet is to large, or the wrong NOSE PIECE is on the tool.
To find the correct NOSE PIECE (see chart on page 11). If you
do not have the needed NOSE PIECE, See next page for how
to order the correct one.
5.) Premature breaking See solution for problem 4. Also verify the grip of the fastener
and make sure you are not rocking the tool during installation.
6.) Jamming of tool See solution for problem 4. Also verify that you have the proper
jaw engagement and that all parts are hand tight and that the
jaws are cleaned and properly assembled in jaw pusher (See
Three Piece Jaw Installation and Removal)
7.) Rivet not installed properly See solution for problem 4. Also verify jaw grip and that the
appropriate fastener is being used.
8.) Jaws breaking See solution for problem 4. Check to see all parts are properly
assembled and hand tight.
9.) Damaged jaw pusher See solution for problem 4. Check to see if all parts are properly
assembled.

12
HK-150 Series Tooling Alcoa Fastening Systems
O
OPTIONAL
PTIONAL A
ACCESSORIES
CCESSORIES
Service Notes:
NOSE PIECES
202156 1/8” for Trim Molding Pop Rivets
202159 3/32” & 1/8” Pop Rivets
202190 1/8” Stand Off Pop Rivets
202158 5/32” & 3/16” Pop and Plastic Rivets
202168 3/16” Monobolts
202155 1/4” Auto Split “T” Rivets
202157 1/4” Pop and Plastic Rivets
202169 1/4” Monobolts
202193 Spec. GM Glass Stop Travel, Pop Rivets
202142 1/4” Magna Lok
JAWS
202122 Two Piece Jaws
202929 Three Piece Jaws
KITS
205490 Nose Extension Kit
205400 Nut Setter Kit
205401 Metric Nut Setter Kit
205403 Rivnut Nut Setter Kit
126016 Rivet Stem Removal Tool “Punch Assy”

13
HK-150 Series Tooling Alcoa Fastening Systems
TURN NUT
NOSE TUBE
THREADED INSERT
PULL-UP STUD
ANVIL
RELEASING BUTTON
figure 4
HK-150 Nutsetter
The HK-150 NUTSETTER sets 3mm
through 3/8-24 threaded aluminum inserts
and up to 1/4-20 steel inserts. Size
changes are accomplished by changing
the PULL-UP STUD and ANVIL. No tools
required.
Installing threaded Inserts:
1. Make sure proper Pull-up Stud and
are Anvil in place.
2. Thread the insert on the Pull-up Stud
until all threads on the insert are
engaged.
3. Position the Insert into workpiece with
the appropriate size hole and pump
the Handles until the Insert is set.
(You will feel the tool come to a definite
stop when the insert is properly set. STOP
PUMPING HANDLES)
Releasing the Tool: (After Insert has been
set in the workpiece)
1. Press the Releasing Button while
squeezing Handles.
2. Rotate the Turn Nut in a counterclock-
wise direction until the Pull-up Stud is
released from the Threaded Insert.
N
NUTSETTER
UTSETTER
C
CONVERTING
ONVERTING
A
AR
RIVETER
IVETER
TO
TO
A
AN
NUTSETTER
UTSETTER
Master Shaft
Assembly Nose
Tube Turn
Nut
Pull-Up
Stud Anvil
Tool Body
Nose
Piece
Jaw Holder
Jaws
Puller
Shaft
Return
Spring
Nose Tube
1. Completely retract the tool by squeezing HANDLES
and pressing the RELEASING BUTTON. (Figure 3)
2. Remove NOSE PIECE from NOSE TUBE. Remove NOSE
TUBE, JAWS and JAW HOLDER.
The parts that were removed should be stored for
future use as a riveter. The tool is ready to start adding
NUTSETTER accessories as follows:
3. Screw MASTER SHAFT assembly on PULLER SHAFT
and replace NOSE TUBE as shown.
4. Slide TURN NUT over the extended section of the
MASTER PULLER SHAFT. Screw the appropriate
PULL-UP STUD into MASTER SHAFT ASSEMBLY.
(NOTE: this is a left hand thread and must be
screwed in counterclockwise.)
5. Push appropriate ANVIL over PULL-UP STUD into
TURN-NUT.
The HK-150 can be converted from a
riveter to a nutsetter by changing
several of the nose components. No
tools required as parts require hand
tightening only.
R
RIVETER
IVETER

14
HK-150 Series Tooling Alcoa Fastening Systems
All Alcoa Fastening Systems tools and parts have been carefully tested and checked at the factory and
are guaranteed to be free from defects in material and workmanship, subject to the following conditions.
A.) The tools manufactured by Alcoa Fastening Systems will be repaired free of charge or replaced at our
discretion within 90 days of sale to the first user if, upon examination at our service center, we find a
defect in material or workmanship in the hydraulic system.
B.) The tool must be returned intact and prepaid to one of our service centers. Proof of date of sale must
accompany any tool returned. This warranty will be void if repairs have been made or attempted by
others, or if the tool has been subject to abuse, neglect, accident or improper application.
C.) The foregoing obligation is Alcoa Fastening Systems’ sole liability under this or any implied warranty,
and no one is authorized to vary its terms or conditions.
D.) If you have any problems please contact Customer Service at the factory: [phone].
Before returning tools to the service center, please use the operation and
maintenance tips on page 9 of this manual. If the tool continues to mal-
function call the Customer Technical Support at Alcoa Fastening Systems
[phone] for additional assistance.
A
AUTHORIZED
UTHORIZED T
TOOL
OOL S
SERVICE
ERVICE C
CENTER
ENTER:
:
90 D
90 DAY
AY W
WARRANTY
ARRANTY
ON
ON HK-150 R
HK-150 RIVETER
IVETER
Central Fastening Systems
801 McCann Road
Rogers, AR 72758
479 936 7577
888 370 1894 (Toll Free)
479 636 2119 (Fax)
Professional Tool Center
2236 S.116th Street
West Allis, WI 53227
414 321 1234
414 321 2524 (Fax)
FSI
1206 East Mac Arthur St
Sonoma, CA 95476
707 935 1170
800 344 2394 (Toll Free)
707 935 1828 (Fax)
Universal Repair Shop
1611 Boylston Avenue
Seattle, WA 98122
206 322 2726
206 322 2126 (Fax)
J.O. King
1265 Alpharetta Road
Alpharetta, GA 30201
770 751 1875
800 241 2681 (Toll Free)
770 442 0950 (Fax)
Alcoa Fastening Systems
5436 W 78th Street
Indianapolis, IN 46268
800 343 3633 (Toll Free)

HK-150 Series Tooling Alcoa Fastening Systems
LIMITED WARRANTIES
Tooling Warranty: Huck warrants that tooling and other
items (excluding fasteners, and hereinafter referred as
"other items") manufactured by Huck shall be free from
defects in workmanship and materials for a period of nine-
ty (90) days from the date of original purchase.
Warranty on "non standard or custom manufactured
products": With regard to non-standard products or cus-
tom manufactured products to customer's specifications,
Huck warrants for a period of ninety (90) days from the
date of purchase that such products shall meet Buyer's
specifications, be free of defects in workmanship and
materials. Such warranty shall not be effective with
respect to non-standard or custom products manufactured
using buyer-supplied molds, material, tooling and fixtures
that are not in good condition or repair and suitable for
their intended purpose.
THERE ARE NO WARRANTIES WHICH EXTEND
BEYOND THE DESCRIPTION ON THE FACE HEREOF.
HUCK MAKES NO OTHER WARRANTIES AND
EXPRESSLY DISCLAIMS ANY OTHER WARRANTIES,
INCLUDING IMPLIED WARRANTIES AS TO MER-
CHANTABILITY OR AS TO THE FITNESS OF THE
TOOLING, OTHER ITEMS, NONSTANDARD OR CUS-
TOM MANUFACTURED PRODUCTS FOR ANY PARTIC-
ULAR PURPOSE AND HUCK SHALL NOT BE LIABLE
FOR ANY LOSS OR DAMAGE, DIRECTLY OR INDI-
RECTLY, ARISING FROM THE USE OF SUCH TOOL-
ING, OTHER ITEMS, NONSTANDARD OR CUSTOM
MANUFACTURED PRODUCTS OR BREACH OF WAR-
RANTY OR FOR ANY CLAIM FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
Huck's sole liability and Buyer's exclusive remedy for any
breach of warranty shall be limited, at Huck's option, to
replacement or repair, at FOB Huck's plant, of Huck man-
ufactured tooling, other items, nonstandard or custom
products found to be defective in specifications, workman-
ship and materials not otherwise the direct or indirect
cause of Buyer supplied molds, material, tooling or fix-
tures. Buyer shall give Huck written notice of claims for
defects within the ninety (90) day warranty period for tool-
ing, other items, nonstandard or custom products
described above and Huck shall inspect products for which
such claim is made.
Tooling, Part(s) and Other Items not manufactured by
Huck.
HUCK MAKES NO WARRANTY WITH RESPECT TO
THE TOOLING, PART(S) OR OTHER ITEMS MANUFAC-
TURED BY THIRD PARTIES. HUCK EXPRESSLY DIS-
CLAIMS ANY WARRANTY EXPRESSED OR IMPLIED,
AS TO THE CONDITION, DESIGN, OPERATION, MER-
CHANTABILITY OR FITNESS FOR USE OF ANY TOOL,
PART(S), OR OTHER ITEMS THEREOF NOT MANU-
FACTURED BY HUCK. HUCK SHALL NOT BE LIABLE
FOR ANY LOSS OR DAMAGE, DIRECTLY OR INDI-
RECTLY, ARISING FROM THE USE OF SUCH TOOL-
ING, PART(S) OR OTHER ITEMS OR BREACH OF
WARRANTY OR FOR ANY CLAIM FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES.
The only warranties made with respect to such tool, part(s)
or other items thereof are those made by the manufactur-
er thereof and Huck agrees to cooperate with Buyer in
enforcing such warranties when such action is necessary.
Huck shall not be liable for any loss or damage resulting
from delays or nonfulfillment of orders owing to strikes,
fires, accidents, transportation companies or for any rea-
son or reasons beyond the control of the Huck or its sup-
pliers.
Huck Installation Equipment
Huck International, Inc. reserves the right to make
changes in specifications and design and to discontinue
models without notice.
Huck Installation Equipment should be serviced by trained
service technicians only.
Always give the Serial Number of the equipment when cor-
responding or ordering service parts.
Complete repair facilities are maintained by Huck
International, Inc.
Authorized Tool Service Centers (ATSC's) offer repair
services, spare parts and nose inserts and acceserories.

Americas
Alcoa Fastening Systems
Aerospace Products
Tucson Operations
3724 East Columbia
Tucson, AZ 85714
800-234-4825
520-747-9898
FAX: [phone]
Alcoa Fastening Systems
Aerospace Products
Carson Operations
PO Box 5268
900 Watson Center Rd.
Carson, CA 90749
800-421-1459
310-830-8200
FAX: [phone]
Alcoa Fastening Systems
Industrial Products
Waco Operations
PO Box 8117
8001 Imperial Drive
Waco, TX 76714-8117
800-388-4825
254-776-2000
FAX: [phone]
Alcoa Fastening Systems
Industrial Products
Kingston Operations
1 Corporate Drive
Kingston, NY 12401
800-278-4825
845-331-7300
FAX: [phone]
Alcoa Fastening Systems
Industrial Products
Latin America Operations
Avenida Parque Lira. 79-402
Tacubaya Mexico, D.F.
C.P. 11850
FAX: [phone]
TELEX: 1173530 LUKSME
Far East
Alcoa Fastening Systems
Industrial Products
Australia Operations
14 Viewtech Place
Rowville, Victoria
Australia 3178
03-764-5500
Toll Free: 008-335-030
FAX: [phone]
Europe
Alcoa Fastening Systems
Industrial Products
United Kingdom Operations
Unit C, Stafford Park 7
Telford, Shropshire
England TF3 3BQ
01952-290011
FAX: [phone]
Alcoa Fastening Systems
Aerospace Products
France Operations
Clos D’Asseville
BP4
95450 Us Par Vigny
France
33-1-30-27-9500
FAX: [phone]
A Global Organization
Alcoa Fastening Systems (AFS) maintains
company offices throughout the United States
and Canada, with subsidiary offices in many
other countries. Authorized AFS distributors
are also located in many of the world’s
Industrial and Aerospace centers, where they
provide a ready source of AFS fasteners,
installation tools, tool parts, and application
assistance.
For The Long Haul, The Future of Fastening
Technology, The Future of Assembly Technology,
The Future of Tooling Technology, and Tools of
Productivity are service marks of Huck
International. Huck provides technical assistance
regarding the use and application of Huck fasten-
ers and tooling.
NOTICE: The information contained in this publi-
cation is only for general guidance with regard to
properties of the products shown and/or the
means for selecting such products, and is not
intended to create any warranty, express,
implied, or statutory; all warranties are contained
only in Huck’s written quotations, acknowledge-
ments, and/or purchase orders. It is recommend-
ed that the user secure specific, up-to-date data
and information regarding each application
and/or use of such products.
HWB898 1003-5M
© 2003 Alcoa Fastening Systems
1 Corporate Drive, Kingston, NY 12401 • Tel: [phone] • Fax: [phone] • www.alcoafasteningsystems.com
Certified to
ISO 14001:2004
ndustrial
Products
Certified to
ISO 9001:2008
ndustrial
Products
One Great ConnectionSM
Alcoa Fastening Systems world-wide locations:
For the Long Haul™
