ALDEN HOTBIRD 13E How to use

[email protected] • www.alden-deutschland.com
HOTBIRD 13E
Adjust Transponder Settings
state 06 / 2020
SHORT MANUAL
SATELLITE
Transp. No: 1
Sat: Hotbird 13

Adjust Transponder Settings
Step 1
Use key to switch on the S.S.C.®, so that the green status LED lights up
Step 2
Press key , the menu is displayed
Step 3
Conrm with button position 1 „Transp. mod“
Step 4
Conrm with button for example „Transp. No. 1“
„frequency“ is displayed
Step 5
Press button AND button once at the same time
first digit of the frequency will be flashing
Change the marked digit up with button 
Jump to the next digit with button 
Set the value with button / button to „11900“ Mhz.
1. Transp. mod
2. Ext. boot
1. Transp. mod
2. Ext. boot
SATELLITE
Freq: 11355
Sat: Hotbird 13E
SATELLITE
Freq: 11355
Sat: Hotbird 13E
   

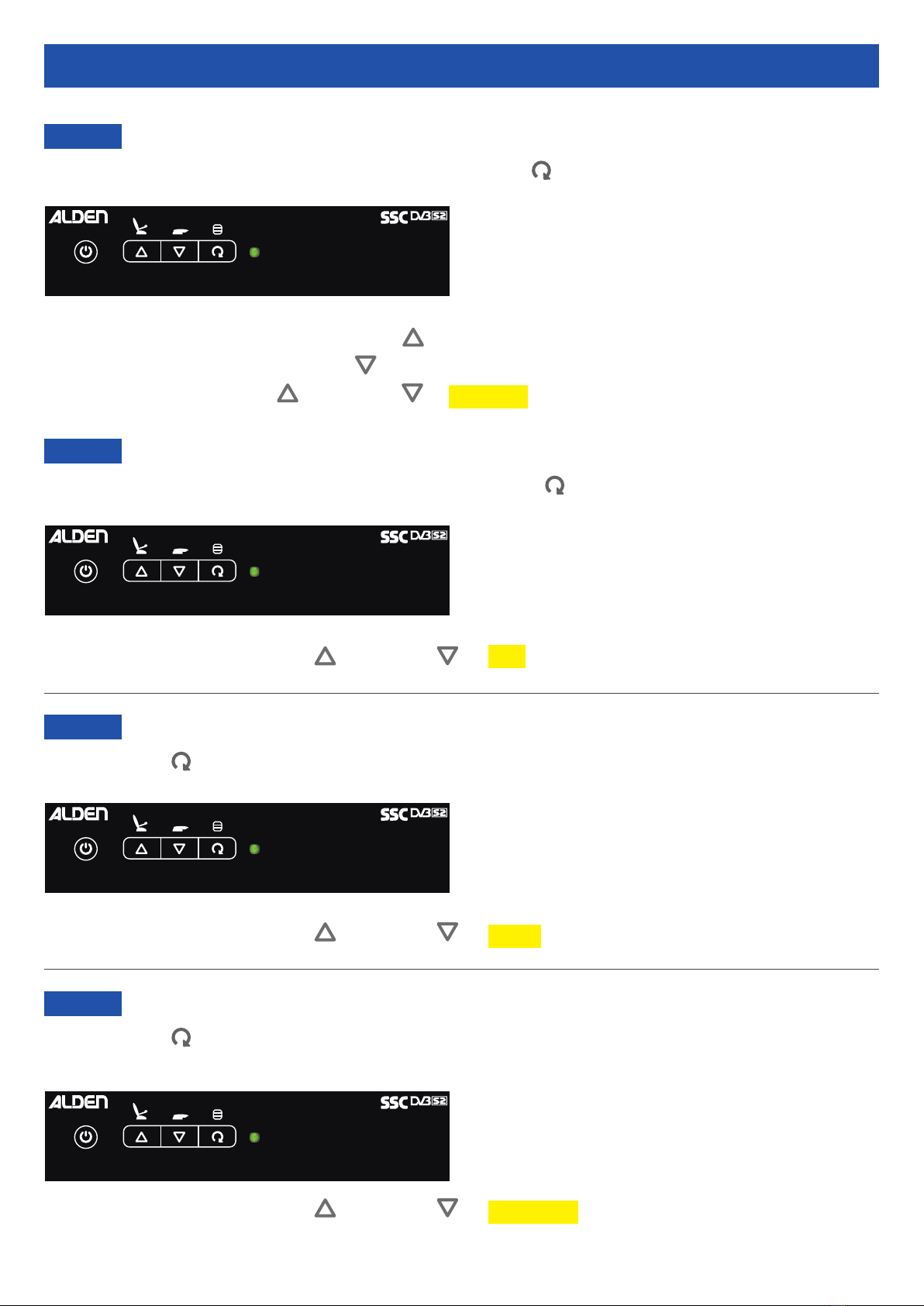

Adjust Transponder Settings
Step 6
As the frequency is set right, conrm by pressing button 
for example„S/R: 29900 KS/s“ is displayed
Change the marked digit up with button 
Jump to the next digit with button 
Set the value with button / button to „29900“ KS/s.
Step 7
As the symbol rate is set right, conrm by pressing button 
for example„Pol: V“ is displayed
Change the value with button / button to „H“
Step 8
Press button to conrm
for example„Fec: 5/6“ is displayed
Change the value with button / button to „3/4“ .
Step 9
Press button to conrm
for example„Mod: DVB-S1“ is displayed
Change the value with button / button to „DVB-S2“ .
SATELLITE
S/R: 29900KS/s
Sat: Hotbird 13E
SATELLITE
Pol: V
Sat: Hotbird 13E
SATELLITE
Fec: 5/6
Sat: Hotbird 13E
SATELLITE
Mod.: DVB-S1
Sat: Hotbird 13E

www.alden-deutschland.com
ALDEN Deutschland GmbH • Fehrenkamp 12 • 49434 Neuenkirchen-Vörden
Telefon 05493 - 913660 • Telefax 05493 - 913663 • inf[email protected]
Step 10
Press button to conrm
display will switch o
Step 11
Press button 
The green LED will switch o
Step 12
Start the antenna as usual
Adjust Transponder Settings
Info:
Please note that after the adjustmend the antenna can take more time to nd the satellite as
usual. Depending on the age and model of antenna it can take up to 15 minutes.
Attention:
While the antenna is searching, do not cancel the searchmode!
If the antenna will not get„Hotbird 13E“, the antenna will close by her own!
