Dish TV DVB-S6800PLUS User manual

DEAR CONSUMER
GREAT APPRECIATION FOR PURCHASING OUR PRODUCT
TO ENSURE THE BEST PERFORMANCE AND THE HIGHEST SAFETY, PLEASE
READ THE FOLLOWING EXPLANATION CAREFULLY
PLEASE READ THIS MANUAL WITH SUFFICIENT CAREFULNESS AND
PATIENCE PRECEDE THE CONNECTION AND INSTALLATION 
DVB-S6800PLUS

CONTENT
Safety instruction ..................................................................................................................1
Front panel............................................................................................................................2
Rear panel ............................................................................................................................2
Remote control .....................................................................................................................3
Useful prompting ..................................................................................................................5
System connection ...............................................................................................................6
Power on ..............................................................................................................................6
Menu tree..............................................................................................................................7
Installation.............................................................................................................................8
Configuration ........................................................................................................................11
Games.......................................................................................................................13

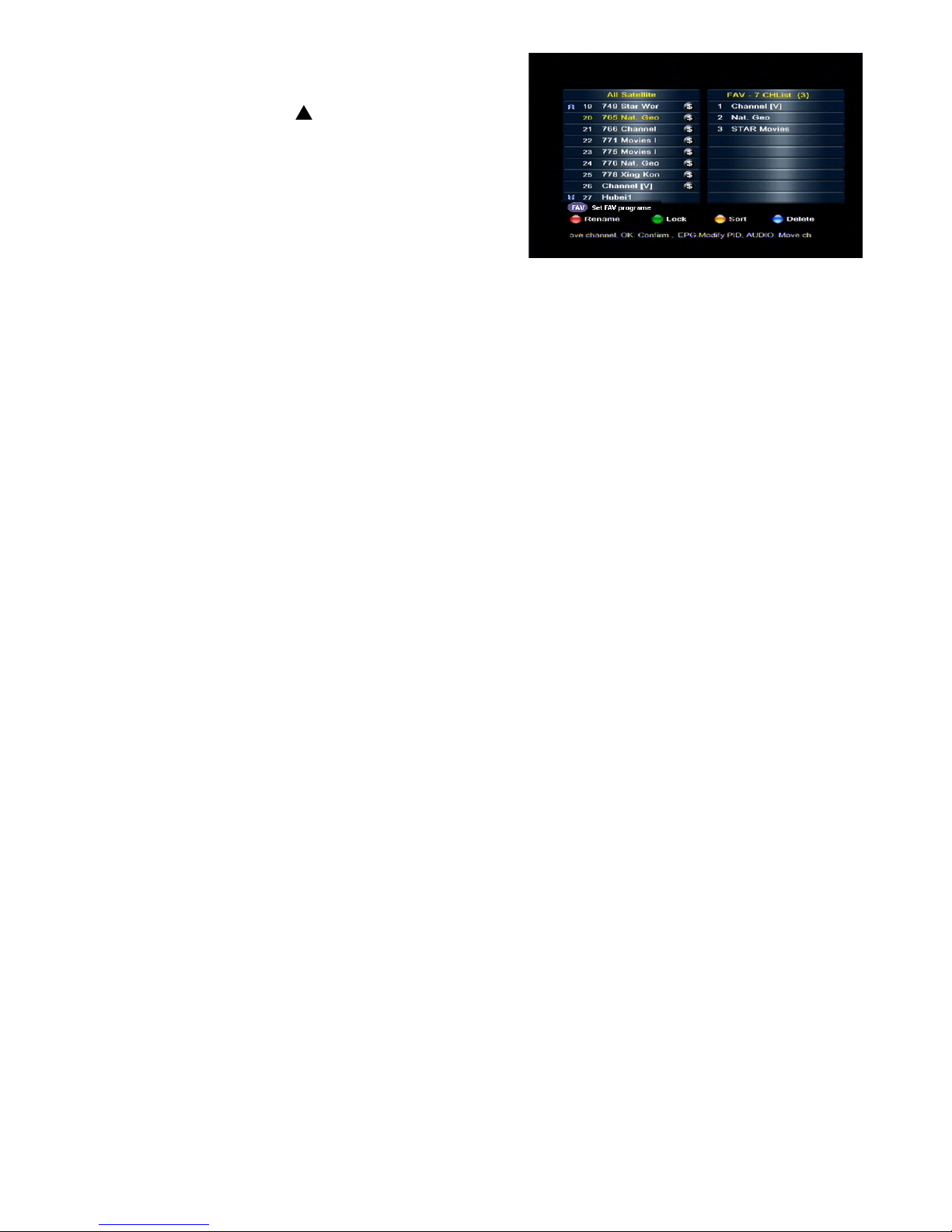

Edit channels ....................................................................................................................14
Specification .........................................................................................................................16
Terms .........................................................................................................................17

SAFETY INSTRUCTION
 Please read the following instructions carefully
 Do not overload the following wall outlets, extension cords or integral convenience receptacles as this can
resultin a risk of fire or an electrical shock
 Never allow liquids, spraysor other materialto be exposed with theinside of the STB

Unplug the STBfrom thewalloutlet before cleaning and use the soft cloth to clean the exterior
of the STB
 The LNB cable must be earthed to the system that earthing for the satellite antenna
 The parameter of using power source should be squared with which indicating on its rear panel, otherwise,
the machine will work improperly and even be ruined
 To maintain the suitable antenna installation position, the proper antenna installation angle, the adequate
antenna earthing, the normal antenna anti-interference measure; Keep the earthing of the outdoor
antenna separating with the indoor equipment’s

Do not place the STBwhere it is exposed to sunlight directly or near a heater

Never stack other electronic equipment on top of the STB
 Place the STBindoor properly to prevent lightening, raining and direct sunlight

Thelocation where connecting withthe connectorplug of this machineshouldbe served as the
disconnect device, and should be maintained on the state of power-supplying always
 Protect thepower line frombeing walked on or being squeezed particularly on plugs,convenience
receptacles (jack),and the spot where they exitfrom the apparatus

Unplug this apparatus during lightning storms or when unused for long periods
 Referallservicing toqualifiedservice personnel.Service isrequired when the machine has been
damaged in any case,such as power-supplycord or plug is damaged,liquidhas been dropped into or
objects have fallen into the interior,the machine has been exposed to rain or moisture, does not
perform malfunctioning,or has been droppedon the ground,or othersituationsabnormally etc

Warning:This unitshould only be maintainedby the authorized and the regular trained technician; Opening
the cover or other attempts by the userto service this unitcan lead serious injury or person-death from
electrical shock,and can increase the possibility of risk of fire
 The naked flame sources, such as the lighting candles, shouldn't be placed on the apparatus
 Donot use any attachment that are not recommendedasthese may cause hazards or damage the
equipment
Note: All the OSD and illustrations in this manual may be somewhat different from the actual situation
Please take the actual digital receiver as the standard
1

FRONT PANEL
REAR PANEL
1. audio channel selection
2. operation confirmation/ channel listing
3.5. volume adjustment/ cursor movement
4.6. channel changement/ cursor movement
7. menu entry/ exit
8. LED displaying board/ status indicator/ remote sensor
9. CARD SLOT
1. plughole, power cord
2. power switch
3. terminal, satellite signal output
4. terminal, satellite signal input. to link with the terminal comes from the satellite antenna
5. terminal, RF signal output. to link with a TV set without the video component
6. terminal, RF signal input
7. terminal, video signal output
8. interface, audio signal output
9. interface, TV Scart
10. interface, serial data. to exchange data with the outer
2

REMOTE CONTROLLER KEYS
It's recommended to operate each function of the STBusing the button on the remote. Please read this
section to lend itself to advance your understanding of the function to the STB
Non-menu: to return to the program-enjoying status
Toenter the Main Menuinterface or return to the previous menu
Non-menu: to choose the channel
Non-menu: to reveal the dialog box Program Information
Non-menu: punch the key to appear one rectangle, use</>,Ʒ/,OK key to
am
p
lif
y
the selectin
g
area and re
p
ress the ke
y
to recover to the normal status
Non-menu: to show the channel’s EPG data sending from the service provider
Menu mode: to move cursor downwards / upwards
Non-menu: to turn over the channel backwards / forwards
Non-menu: to switch the channel between the present and the last
Menu mode: to select or adjust the parameter
Non-menu: volume ad
j
ustment decrease/ increase
Non-menu: toreveal the stored satellite list
Non-menu: to reveal the favorite channel in the
Favorite-n
(
if existin
g)
To instruct the unit to enter the standby mode
Non-menu: to mute the audio output
3





PRECAUTIONS ABOUT BATTERIES

Improper use of batteries may cause corrosion or fluid leakage. Please observe the following
instructions for the safe use of batteries
1. Do not mistake the polarities of batteries
2. Never leave dead batteries in the remote control
3. Remove batteries from the remote controller it is not going to be used for a certain time
4. Do not attempt to disassemble, short-circuit, heat, recharge or throw the batteries into the fire source
5. Do not use new batteries and old one together, or which is different type
6. Wipe away any electrolyte fluid inside the remote controller, and insert new batteries
Non-menu: to enter the multi-scene surveying status
Non-menu: to show the stored channel list, menu mode: to confirm the operation
Non-menu: to select the audio channel
Non-menu: to instruct the scene between the active and the inactive (only on the
TV status is effective)
Non-menu: to enter the status of graphics context (optional)
4
The key bwteen [POWER] and [MUTE]. Non-menu: to switch video style

PREPARATION OF REMOTE CONTROLLER
OPERATION SCOPE OF THE REMOTE CONTROLLER









USEFUL PROMPTING
 To prolong the useful life of this machine, the interval of the continuous switch action must be above one
minute
 The parameter of the using power source should be accordance with which indicating on the rear panel,
otherwise the machine will work improperly and even be ruined
 When the picture that the unexpected non-respondency happening, please turn on the machine again
 To maintain the suitable antenna installation position, the proper antenna installation angle, the adequate
antenna earthing, the normal antenna anti-interference measure. Keep the earthing of the outdoor
antenna separating with the indoor equipment’s
Load the batteries to the groove of the remote controller
and then enable you to operate the native 
1. Open the lid

2. Load the batteries (AAA type) and attend whether
the anode and cathode of battery are corresponding
to the polarity indicated on the remote controller
3. Close the lid
Make the controller toward the inductive window of native
and then press the keys
 Distance: about seven meters in front of the
inductive window
 Angle: about 30 degree right or left refer to the
frontispiece of the native’s front panel
INDUCTIVE WINDOW OF FRONT PANEL
5

SYSTEM CONNECTION
 Adjust the direction of the antenna according to the antenna signal level displaying on the screen.
 Connect the F terminal to both ends of the cable, one end to the terminal of LNB of the using satellite
antenna and the other end to inputting terminal “SAT IN” of this unit.
 Connect the F terminal to both ends of the cable; connect one end to the terminal “SAT OUT” of this
machine and the other end to the satellite signal-inputting terminal of the other machine to realize the loop
connection function.
 The serial data interface is used to upgrade the software version or to enrich the data bank via the
manner of box-to-box or pc-to-box (optional).
 Please make sure that the F terminals are connected fastened.
 Do not bundle the antenna cable with the power line together in case affecting the reception.
POWER ON
 Plug the machine and punch its power switch to keep the “ON” status, the unit enters its normal mode
 Press the standby key on the remote controller to the remote receiving window of the machine , which
enters its standby mode. Re-press the key the unit recovers to its normal
 If the satellite signal has been locked, the lock indicator lights up
 Connect the AUDIO, VIDEO or other terminals of this machine with the corresponding terminals of the TV
set.
6

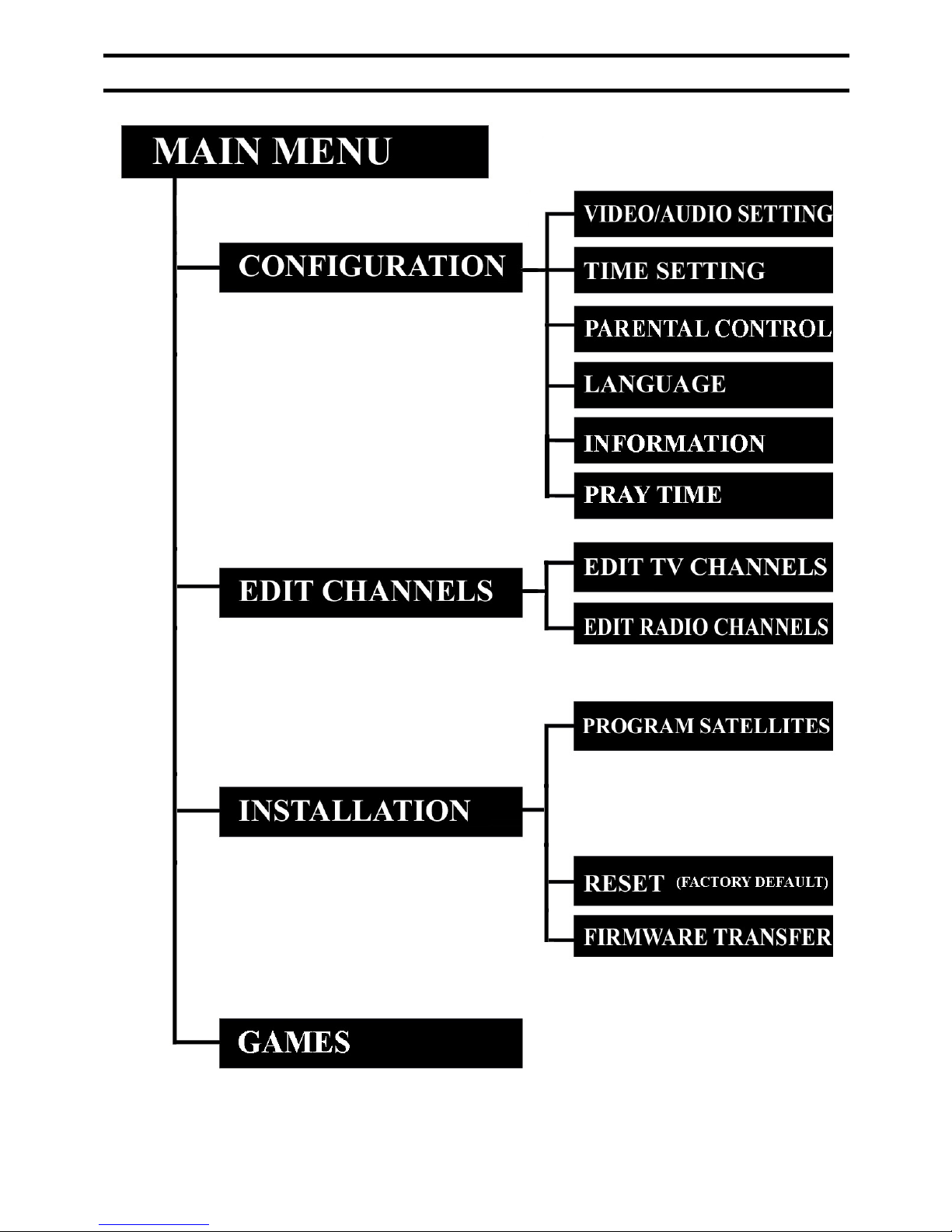

MENU TREE
7

INSTALLATION
On the Main Menu, drive the cursor onto the third
instruction
OK key to enter its submenu
, </> key to
OK
Put the cursor onto the second instruction
digit-keys directly to modify
Respectively, highlight the instructions of LNB Freq1
and LNB Freq2, punch the
the parameter or, punch the digit-keys to input the
value directly. The accurate values of LNB Freq1 and
LNB Freq2 refer to the values indicating on the LNB
of the using antenna
Highlight the instruction LNB Power, punch the </> key
to switch the state, normally, keep the state of it on the
Auto, however,
 On the picture that the single machine is being
used, keep the status of the LNB Power on the
Auto
 On the other picture that the loop connection is
Press theOK key to enter its submenu.
Drive the cursor onto the first instruction; press the
Put the cursor onto the first instruction Satellite Name,
press the </> key to alternate the satellite or, press the
OK key to show the table including all the preinstalled
satellite on the right side, punch the
highlight one item, punch thekey to opt
, </> key to alternate
Longitude(x10), input the digit by pressing the
E.g, if the parameter value of Local Oscillation (i.e.,
L.O.) on the LNB is indicating as 5.15GHz, then [LNB
Freq1] and [LNB Freq2] should be both set as 5150; if
the parameter value of Local Oscillation (i.e.,L.O.) on
the LNB is indicating as 11.3GHz, then [LNB Freq1]
and [LNB Freq2] should be both set as 11300.
8

being used, keep the status of the LNB Power of
the machine that connecting with the using
satellite on the Auto; while keep the status of the
LNB Power of the other machine on the Off

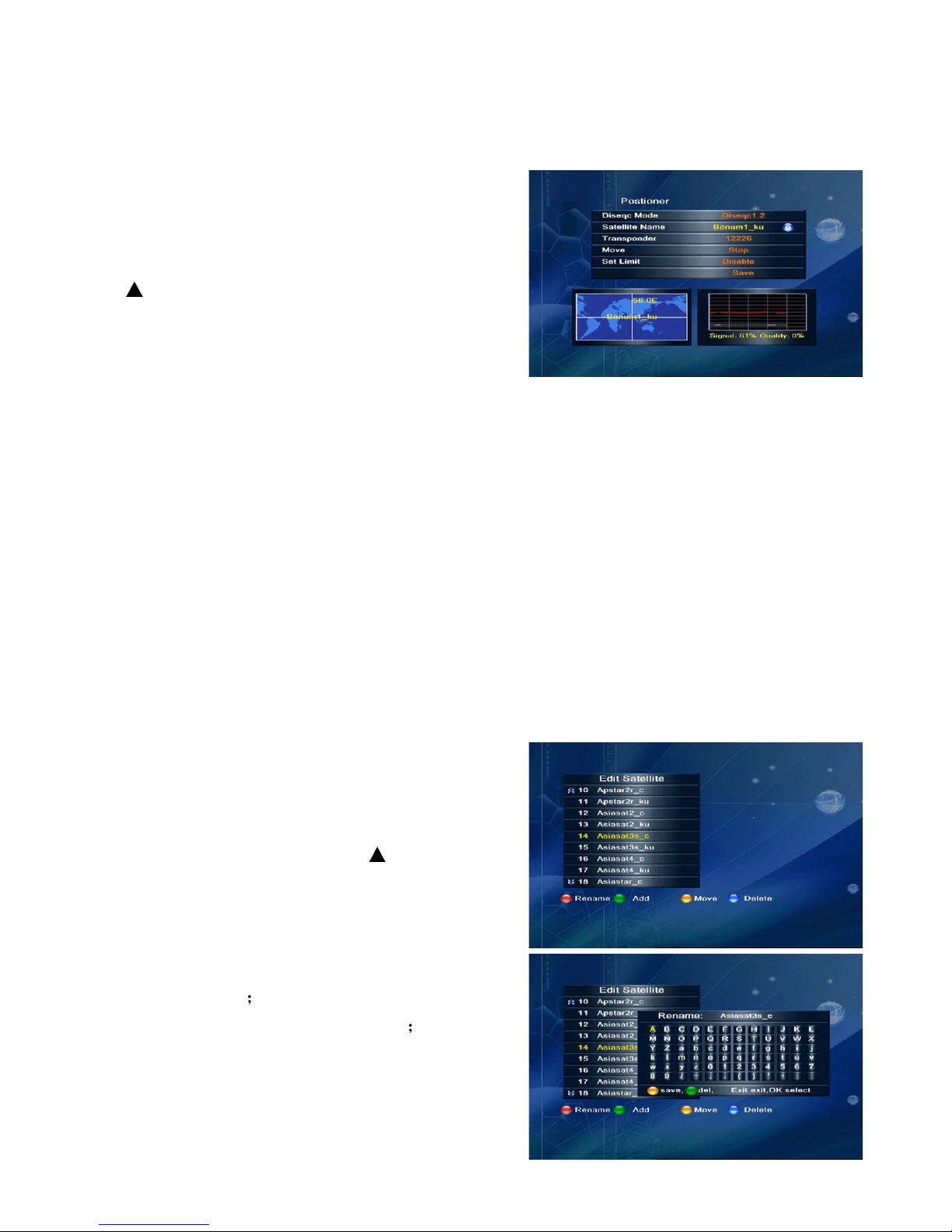

Highlight the instruction Positioner, punch the</> key
to switch the state between Disabled and DiSEqC 1.2,
when the DiSEqC 1.2 is being chosen, punch the OK
key on it to deploy the interface Postioner: press
the , </> key to choose the item
Satellite Name: press the </> key to opt one
satellite, correspondingly, the position indicator
indicates its largely location
Transponder:press the </> key to alter the transpon-
der belonging to the chosen satellite
Move:East, to instruct the dish eastwards; West, to
to instruct the dish westwards; Stop, to pause the motion
Save: to save the position or situation whereyou've set
Return to the interface CH Search Menu
Highlight the instruction Program Type, punch the </>
key to switch the mode between Free-To-Air (free,
without charge) and ALL
Highlight theinstruction Transponder, punch the </>
key to alternate the item of parameter, to pitch on one
the item that enable both the indicatingtapes(Sig-
nal and Quality) show their maximum
On the interface CH Search Menu, punch the red key
to reveal the interface: punch the red key to reveal the
soft-keyboard (usage: punch the , </> key to
move the cursor, punch the OK key to input the
character and instead the green key to eliminate,
punch the EXIT key to exit without modification,
the name of satellite Punch the green key to generate
satellite (the default name is New SAT)Punch the
blue key toremove
Punch the yellow key toalter satellite order
the standard of motion is both the values of Signal and Qu
-a lity show their maximum
punch the yellow key to exit with modification) to define
9

Punch the green key to
reveal the interface Organize Bouquet:
Punch the red key to enter the interface Manual
Search: respectively, highlight the instruction
Frequency or Symbol Rate, punch the digit-keys to
modify the value of parameter. In turn, highlight the
instruction Polarization,FEC or Program Type,
punch the </> key to adjust the state; Punch the blue
key to save the modification; Punch the green key to
add the new one transponder. Return to the interface
Organize Bouquet
Punch the green key to add the new one transponder;
and the
CH Search Menu
, to scan the channel (service) on
the present transponder by punching the OK key on the
Transponder status; Advanced
After scanning, the system will inquire you whether to
save the scanned channel, punch the OK key to save.
Return the interface to the Installation
punch the yellow key to move the highlighting
transponder; punch the blue key
key to remove. Return the interface to the
Transponder
Put the cursoronto the instruction Search, punchthe </>
key tochoose one theinstruction: Blind Scan,i.e. the
blind-scanningor themindless-scanning, to commence
the action by punching theOK key on the Blind Scan
status (whichever the satellite you are using, as long as
the satellite is effective, the channel (service) in the
satellite can be scanned and stored); Network, to start
the action by punching the OK key on the Network
status;
punch the OK key to begin the scanning. The AUTO
, to scan the channel
by the more particular manner, enter the interface
Advanced Search by punching the OK key on the
Advanced status (details: respectively, highlight the
instructionPolarization or FEC, punch the </> key to
choose the item; in turn, highlight the instruction
Frequency,Symbol Rate,VideoPID,AudioPID),
is to scan the satellite automaticly based on the preset.
10

Drive the cursor onto the second instruction; punchthe
OK key to reveal the tape of inquiry, punch the EXIT
key to exit without modification, punch the OK key to
initialize the machine to its primary
Return the interface to the Main Menu
CONFIGURATION
Highlight the first instruction Configuration, and
punch the OK key to enter its submenu
Drive the cursor onto the first instruction Video/Audio
Setting; punch the OK key to enter
Highlight the first instruction Audio Output, punch
the </> key toswitch the channels of audio among
Stereo,Right,Left and Mono (The different channel
of audio perhaps owns the diverse service, the result
subject to the service-backing)
Highlight the second instruction Screen Ratio, punch
the </> key toswitch the style of video between 16:9
and 4:3, which one should be chosen according to your
actual ratioof the TV’sscreen
Highlight the third instruction Video Standard, punch
the </> key to switch thesystemof theoutput video
among PAL, NTSC and AUTO to fit your TV
On the menu Installation , light the fifth
instruction, punch the OK key to enter:
the manner of transmission has two, we
recommend you using the second one.
precondition: the master machine and the slave
machine, connecting them with the serial cable
on each serial data interface of the both
machineswell.
light the instruction Transfer Program+Data
of the master machine, punch the OK key to
unfold the interface as right side, the master
machine will detect the slave one and complete
the process of transference automatically.
Note: never shutting the power source in the
process of transmiss ion
11

Highlight the fourth instruction Video Format, punch
the </> keyto alternate the format of video between
CVBS+Y/C and CVBS+RGB to fit your TV set.
CVBS=Composite Video Broadcast Signal
Highlight the seventh instruction Audio Beep, punch the
</> key toswitch the state between ON and OFF. When
the state isset on ON, when punchingkey of theremote
or of the local, the machine will buzz
Return the interface to the Configuration
Enter the submenu of the second instruction Time
Setting,
Highlight thefirst instruction Display, punch the </>
key tochoose the itemamong Off, 12H and 24H to
decide whether the information tape of time displaying
on the top right corner of the screen
Highlight the second instruction GMT Offset, punch
the </> key to adjust the timezone that accordance
with your inhabiting location
Highlight the third instruction Summer Time, punch
the </> key to choose the itemto decide whether to use
the daylight saving time or not
Highlight the sixth instruction Power Off Time, punch
the </> keyto choose theitem between Disable and
00:00, if the 00:00 instruction is being adopted, punch
the digit-keys to input the executive time to instruct the
machine when to get into the standby mode
Highlight the fifth instruction Power On Time, punch
the </> keyto choose theitem between Disable and
00:00, if the 00:00 instruction is being adopted, punch
the digit-keys to input the executive time to instruct
the machine when to get into the power-on mode.
Return the interface to the Configuration
Highlight the fourth instruction Language,
punchthe OK key to enter its
submenu Language: punch the , </> key to
choose the items. Hereinto, what the type of Main
Audio is being adopted, which, owns the strongest
priority in broadcasting; as for the Subtitle, of course,
which type is being chosen, it will be displayed in it.
12

Expressly, the latter three instructions need the support
coming from the service-provider. Now, back to the
interface Configuration
Highlight Information, punch the
OK key to unfold the dialog box including Model, HW
Ver and SW Ver etc.
Highlight the third instruction; punchthe OK key to
enter its submenu Parental Control
Unless you've inputted the code correctly, the cursor can
move onto the second instruction automatically, punch
Highlight the fourth instruction New Password, after
inputting one code as the new one, the cursor will
move onto the fifth instruction automatically; after
inputting the code to verify, the new code is
empowered. Now, return the interface to the Main
Menu
the </> keyto switch state between On and Off;
This machine offers two kinds of game: Tetris and Push
Box. Return the interface to the Main Menu
GAMES
13

EDIT CHANNELS
Highlight the second instruction; punch the OK key to
enter its submenu Edit Channels.
Enter the submenu of Edit TV Channels
Highlight one channel; press the redkey to reveal the
window soft-keyboard to define the name of channel.
As for the usage of the soft-keyboard, refer the former
relative segment
Highlight one channel; punch the green key to add one
icon “lock” on the hind of the channel and repress the
key to cancel the icon. When you move the cursor on
the channel with this icon, the dialog box PIN Code
appearing to demand the entry of code, unless you pass
the access, the locked channel can be watched
Highlight one thechannel; punch the yellow key to
reveal the dialog box to classify the channel. punch the
key to choose the category of sorting, punch the
OK key to sort by which
Highlight one channel; punch the blue key to remove
the channel
Press the FAVkey to reveal the table including
FAV-1-8, punch the FAV key repeatedly to alternate
the FAV kind, punch the key to choose the
channel and punch the OK key to add the highlighting
channel into the present kindof FAV,meanwhile,press
the </> key
to make the color of channel in the table of FAV-1-8
from yellow to white, now, punch the OK key to
eliminate
On the program-enjoying status, punch the FAV key to
Press SAT key, to opt one satellite's channel
14

reveal the interface Favorite-n, punch thekey
once more to show the window including All Satellite,
Favorite-1-8, punch the , </> key and the OK
key to determine. E.g. on this menu, the Favorite-1
is being chosen, then the submenu ofEdit TV Cha
-nnels only show the channel in the kind of Favorite-1
Enter the submenu of EditRadio Channels.
In terms of the operation, refer to the
above-mentioned.
15

SPECIFICATION
Tuner
Input Frequency 950-2,150 MHz
Signal Level -25dBm to -65dBm (75:)
LNB Control DiSEqC1.0/1.2 22KHz
LNB Power & Polarization 13V/18V (Max. 400mA)
Channel Decode
Demodulation QPSK (SCPC, MCPC)
Input Symbol Rate 2-40MSPS
Video
Profile Level MPEG-II MP@ ML
Output System NTSC/ PAL
Output Terminal RCA/ TV Scart
Output Level 1Vp-p (75:) (RCA)
Audio
Audio Decoding MPEG-II layer I & II
Sampling Rate32/44.1/ 48KHz
Freqresponse 20Hz-20KHz
Output Level Adjustable (600unbalance)
Working condition
Power supply voltage 220-240V 50/60Hz
Power consumption About 15W
Temperature 0–40
Humidity 10% - 90%
Weight Approx. 2.2Kg
16

15
TERMS(reference)
DiSEqC (Digital Satellite Equipment Control)
A standard through which it is possible to let a DiSEqC compatible receiver send a signal via the
RF cable to a switching device to switch between different LNBs or dishes. The DiSEqC uses the
22KHz signal to control the switching device.
EPG (Electronic Programme Guide)
A electronic program guide (EPG) that comes with the broadcast to a particular satellite, note that
every station fills the EPG differently or not, so differences in the EPG are not necessarily receiv-
er errors.
Frequency
The number of cycles or events per one second, which is expressed in the unit of Hertz
FTA (Free-To-Air)
An unscrambled broadcast, which you can view without additional payments to a service provid-
er.
Hi-Fi (High Fidelity)
The characteristics of audio devices that can perform all the audio frequencies to the human,
whose range is from 16Hz to 20KHz, uniformly from the low frequency to high frequency. Some-
times it is used to indicate high quality of an audio device such as CD player, etc.
LNB (Low Noise Block)
An electronic unit mounted on the satellite antenna. It receives the signal reflected by the dish
and converts them to signal that can be used by this product.
OSD (On Screen Display)
The function that displays the information about the monitor that the user needs or has to know
on the screen directly. OSD information probably includes brightness, contrast, tuning, RGB
adjustment, screen size,positions or other instructions else, etc.
OTA (Over The Air)
Means that software downloads where the manufacturer reserves the right to decide when and
where to release them through satellite system.
RF (Radio Frequency)
Frequencies occupied by radio waves of the total frequency range of electromagnetic waves.
Transponder
In communications, a device that receives and retransmits signals. In satellite communications
FEC
Error correction forwards.
the received signals are amplified and retransmitted at a different frequency
17

PACKING LIST
ITEMS Qty. REMARK
DIGITAL SATELLITE RECEIVER 1
INSTRUCTION MANUAL 1
REMOTE CONTROL 1
AV CABLE 1
NOTE: Any modification will not be noticed in advance. Our company reserves
all the rights of the explanation to the difference
CELL 2
