Aleko ARVAW010 User manual

Installation
& Instructions
Multi-functional RV/PatioAwning
ARVAW010
ALEKO
www.AlekoProducts.com
W20190918EN

CONTENTS
Package Components.......................P.4
Preparation.....................................P.5
Installation.......................................P.6-P.11

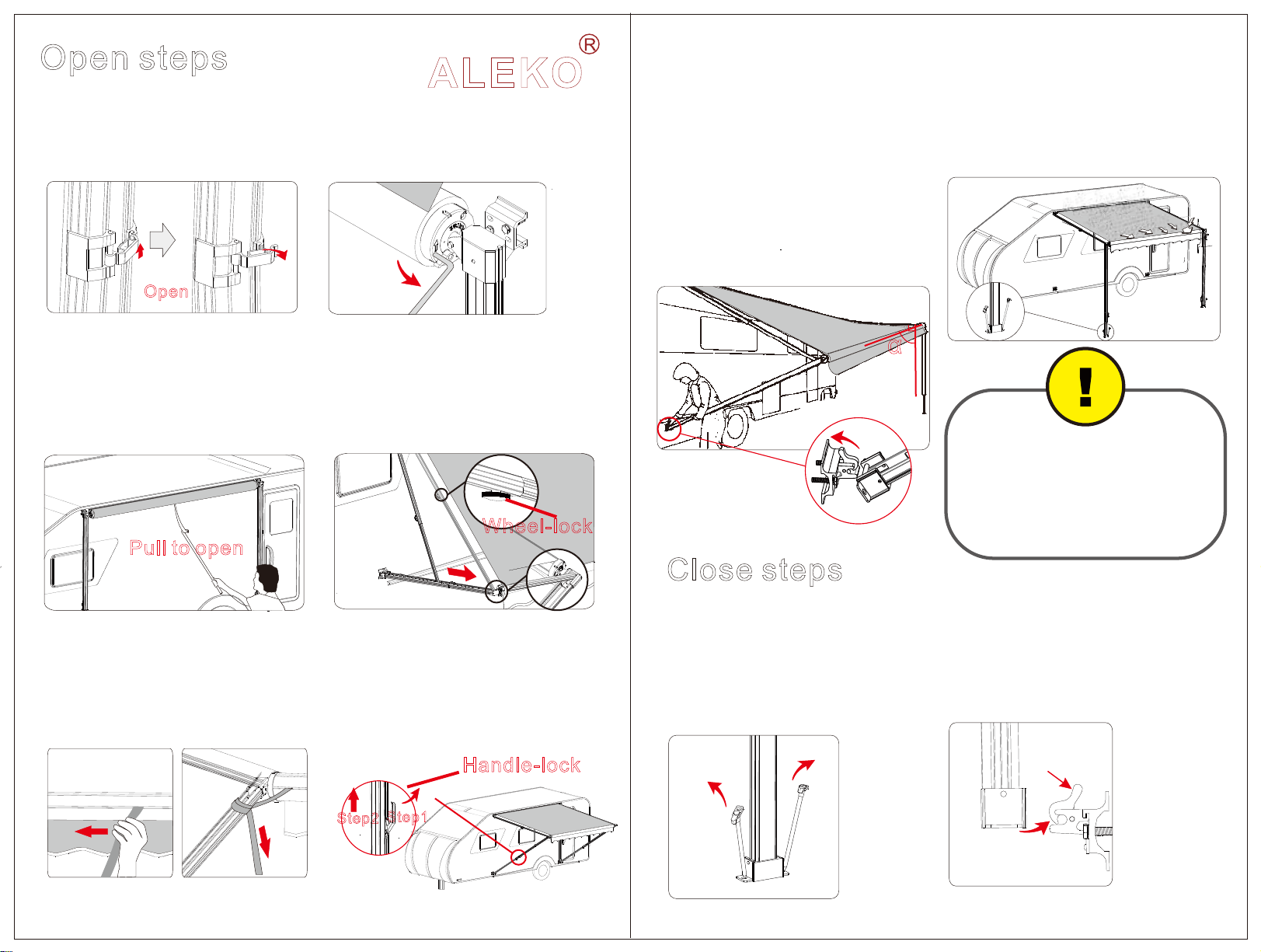

Open steps.............................................P.12

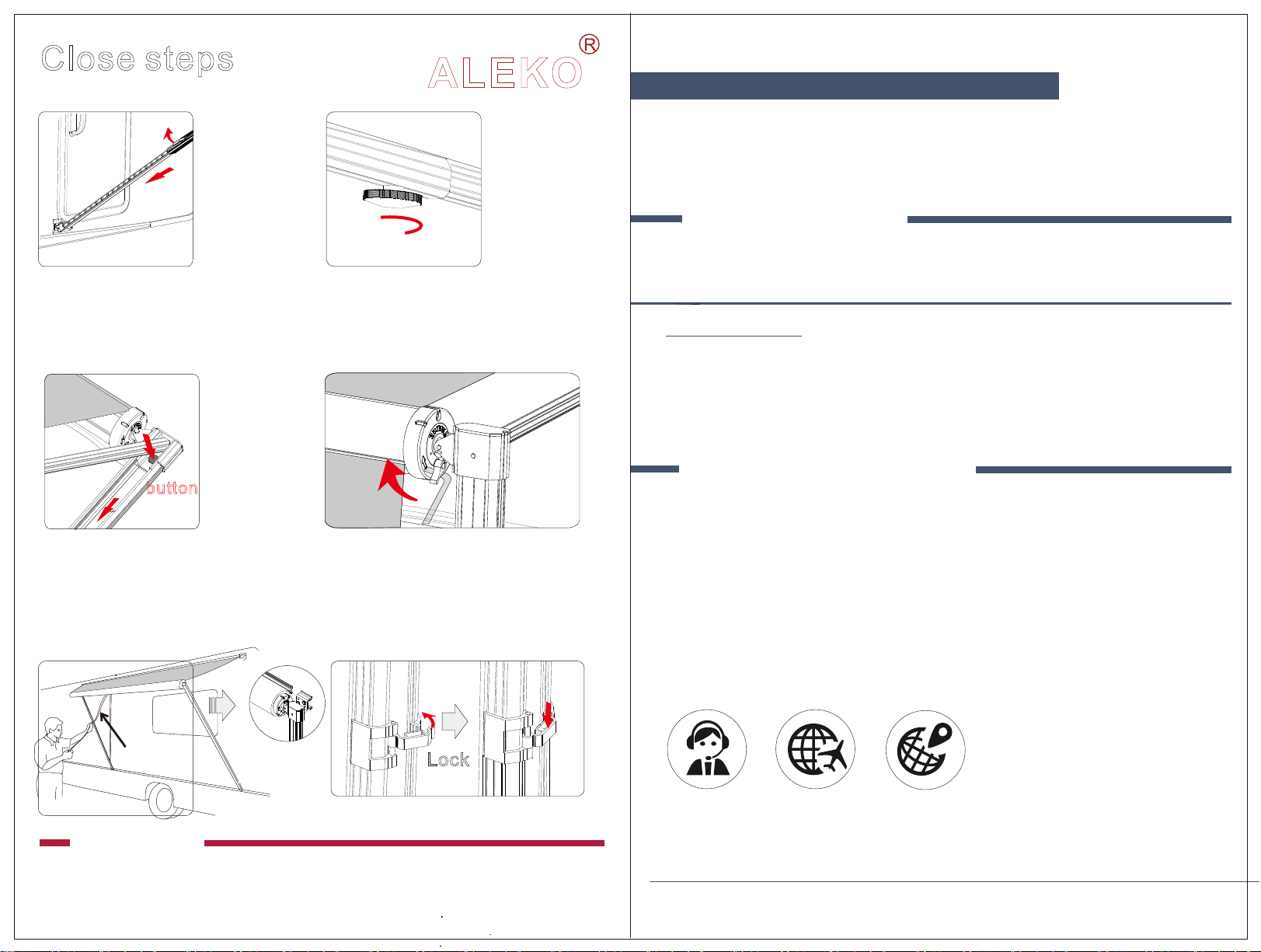

Close steps....................................P.13-P.14
Maintenance...........................................P.15
WARNING
Please read and insure you understood this
manual before install,adjust,service and,
mainten the awnings.This awning must be
installed and serviced by a qualified person.
Please be sure to take good care of this
manual for daily maintenance!
3

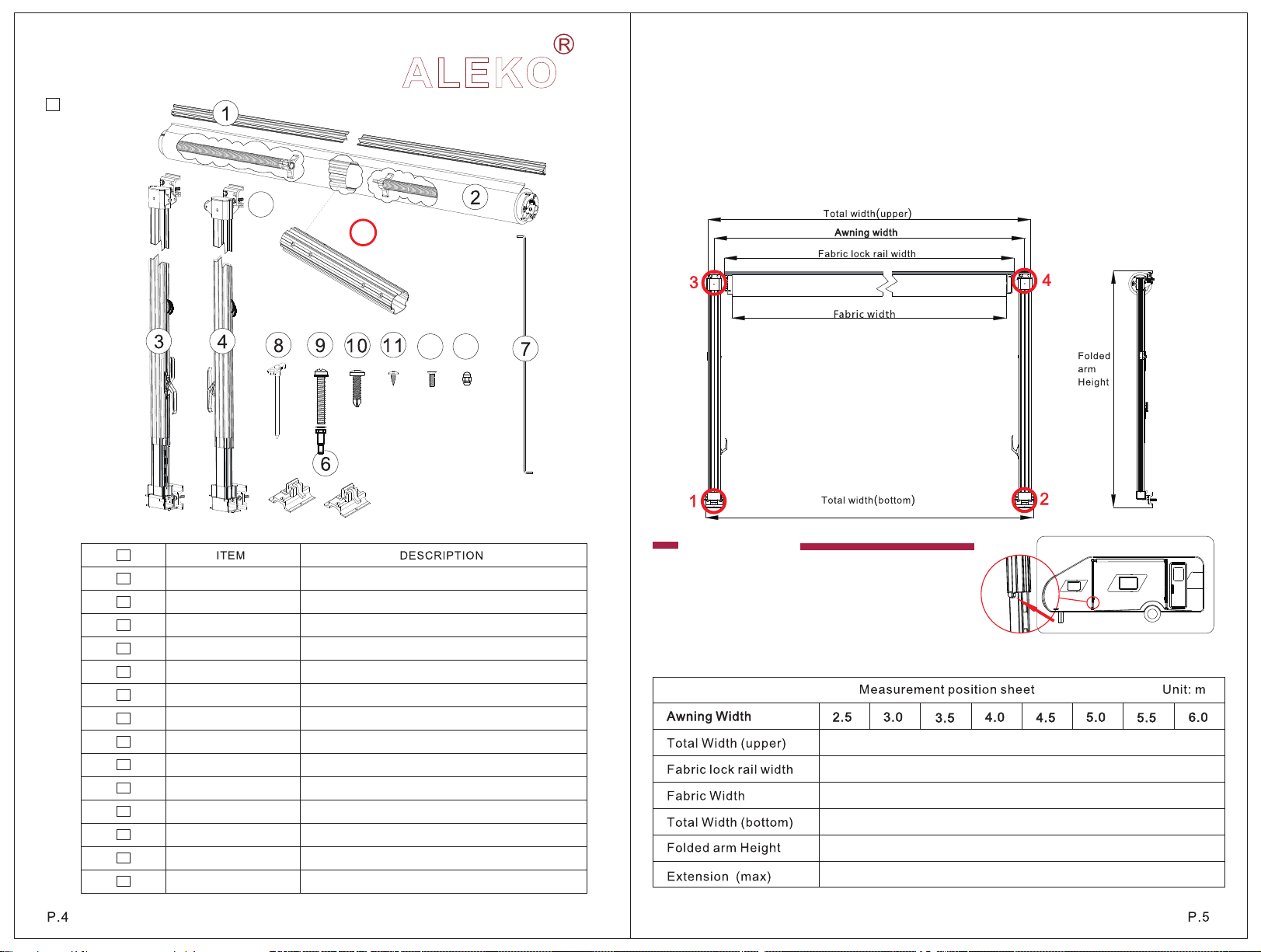

Package Components
( A )
1.75m
1. Open the package and check all parts and accessories on the package
components. Insure nothing is missing in the package box.
2. Prepare the installation tools, like electric hand drill, hand plier, measuring tape,
screwdriver, an erasable color pen ect.
3. Please take a look bellow drawing, there are 4 points need to be fixed on your c
aravan, those 4 points defer in distance (height and width of each type are
different) Please find it in the bellow measurement sheet of the type you bought.
Then calculate and measure right installation points, Mark it with erasable color
pen.
Preparation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Fabric lock rail
Fabric tube
Left arm
Right arm
Upper bracket
Bottom bracket
Pull rod
Peg
M6x50 hex head screw
Φ4.1x35 Self-tapping screw
Φ4.1x13.5 Self-tapping screw
M6x16 screw
Set screw
Fabric tube connector
5
14
ATTENTION
Our awning min.folded arm height is 1.75m. if your
caravan is high, please extend the arm to suit for your
caravan. Then lock the position with our set screw.
Metric measurement
A+0.08
A-0.13
A-0.254
A+0.105
1.75
2.5
( A )
12
set screw
Min.
13
ALEKO

Please insure the arms are vertical to the
ground and parallel to each other !
Fix the upper
brackets with M10
screws.
Fix the bottom
brackets with M10
screws.
Please insure all brackets positions are free stable and DO NOT overlap with other
parts of the caravan side wall (Eg.Windows, doors or others).
Led strip groove
Fabric lock rail
69.90
65mm
5.12

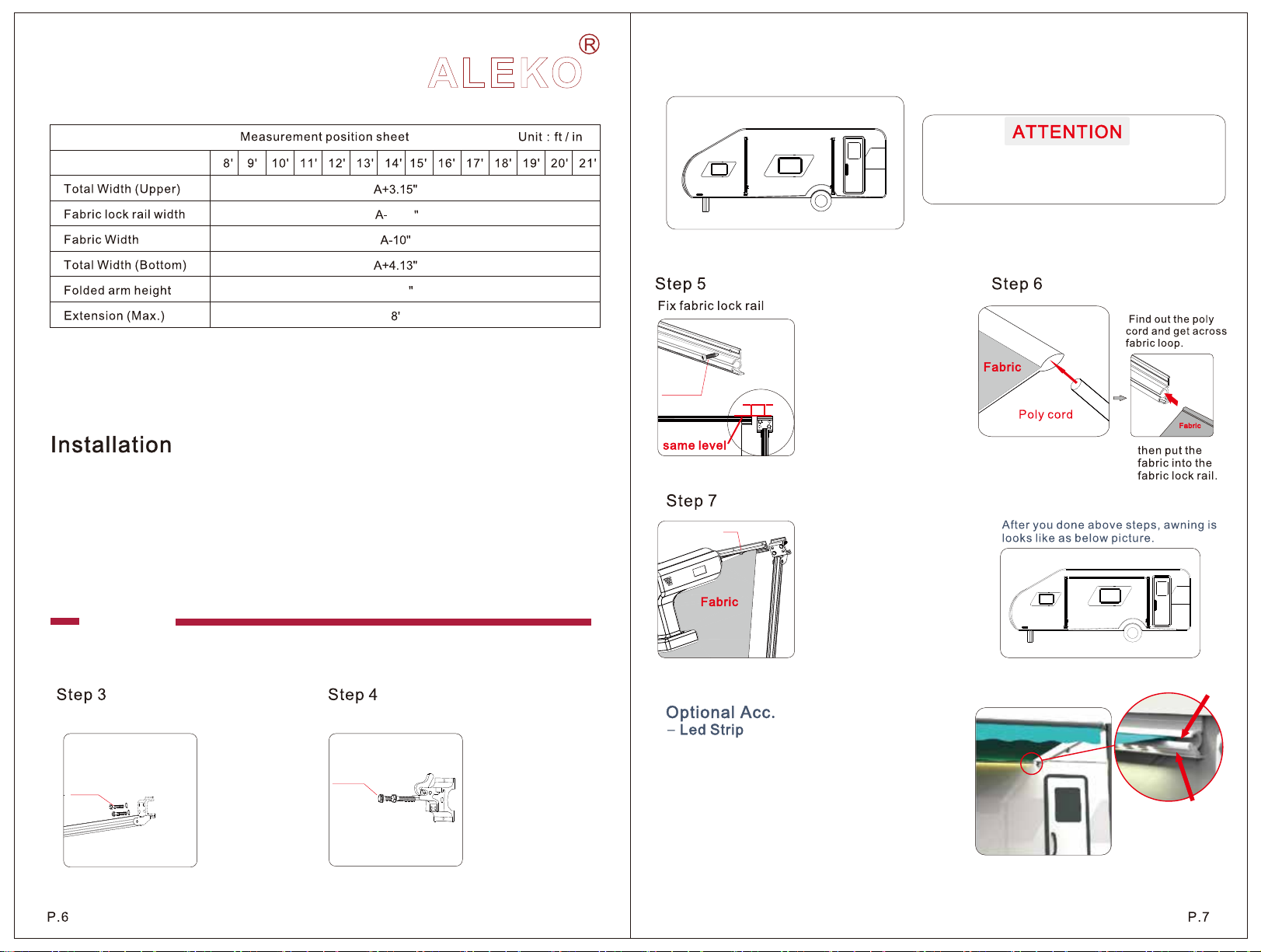

Imperial system measurement
Awning width(A)
REMAKE:
A,represent awning width.
Please check above measurement sheet carefully, and calculate the correct installation
position accordingly.
Find the self tapping
screws then fix the
fabric on each side of
fabric lock rail, in case
of fabric slide out when
operating the awning.
The fabric lock rail is
between two upper
brackets,but keep
them in the same
height position.
step 1
Find out the awning brackets(2pcs bottom brackets + 2pcs upper brackets which
already fixed on the arm) and two arms. see package components pic. 5 and 6.
Drill the holes according to your marked positions.
(You may check again the right distance of the upper and bottom brackets)
step 2
ATTENTION
Install the LED strip
There is a groove for Led Strip which is under
the fabric groove on the fabric lock rail. See
pic You can slid your LED strip into it if you
have.
(But the Led strip is not our standard
accessories.if you need,please kindly contact
with our salesman to order it)
Φ4.2x35
M6x50
M6x50
Φ4.2x13.5
ALEKO

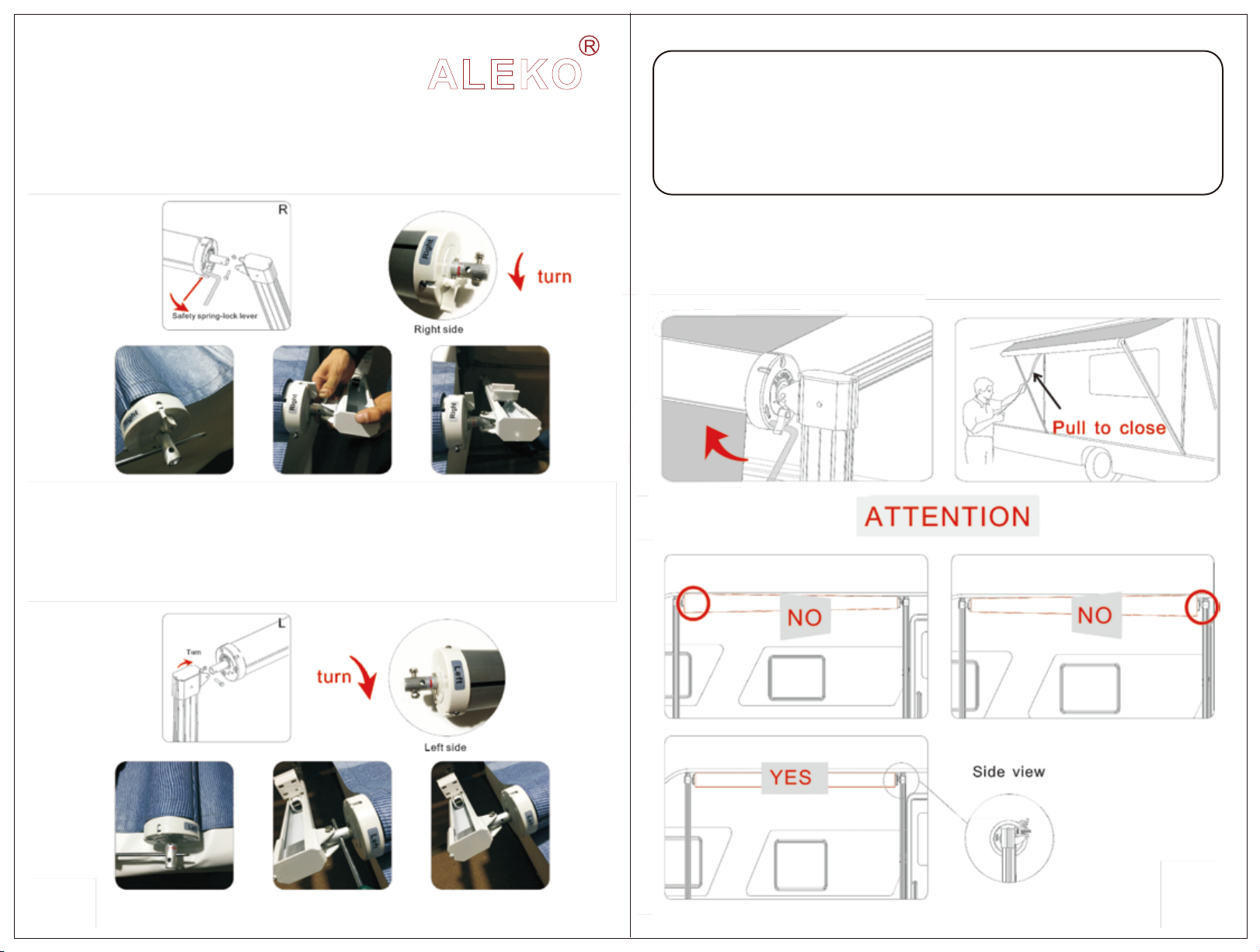

When reset the side cover components, Make sure the
triangle block at the right position Or, the spring is very
easy to waggle, and can't work stable !
Please kindly remove the right side end cap from fabric tube and then take out the springs.
Then put the fabric into fabric tube according to below steps.
1) Find the poly cord and get across
fabric loop.
2) Put the fabric into the fabric tube
groove.
3) Put the fabric into second fabric
tube groove, then get the poly
cord across.
4) Put the pull strap on the last tube.
Poly cord
Poly cord Pull strap

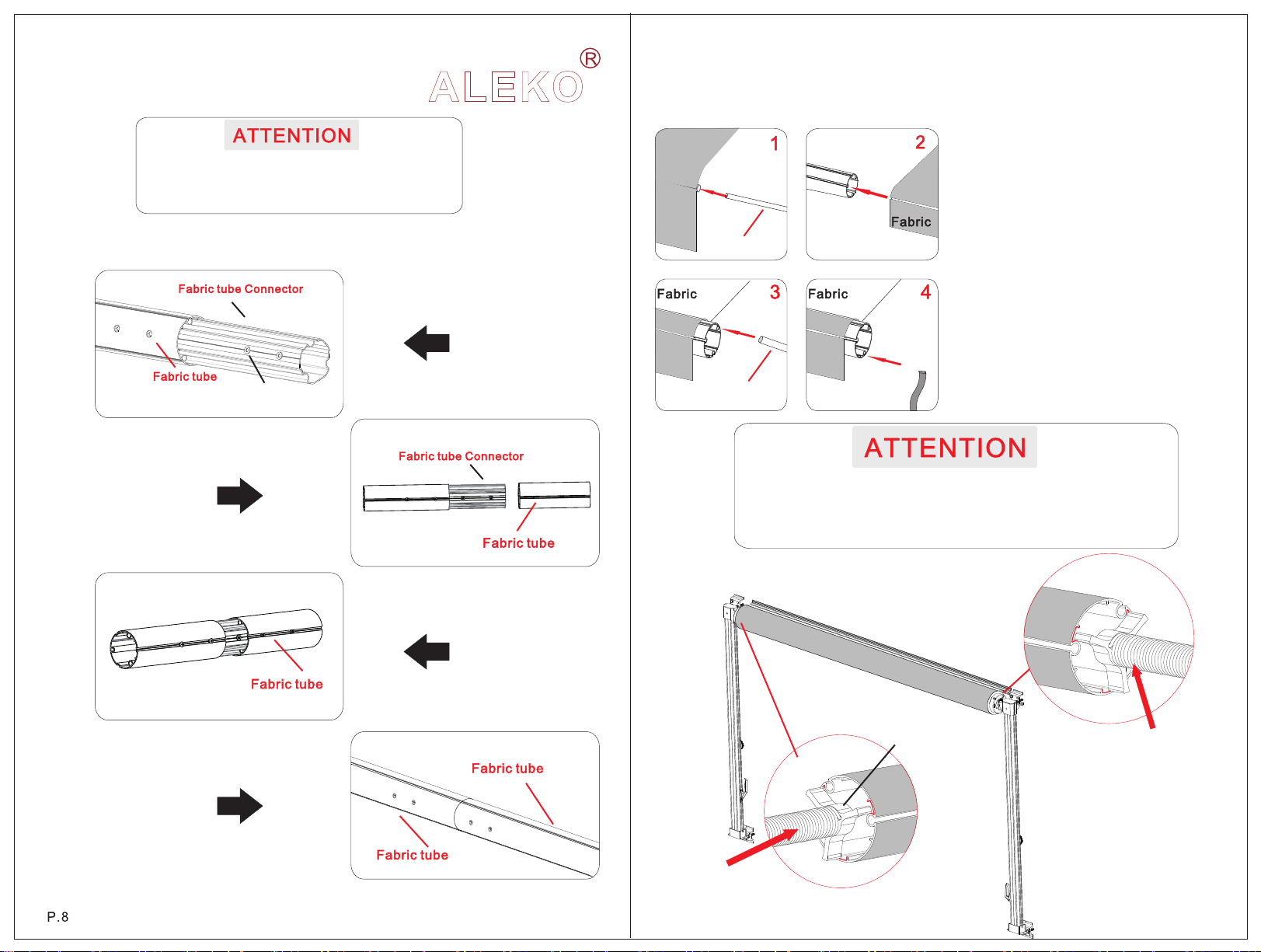

Connect the fabric tube
If you choose a modular type ,
please connect the fabric tube first.
AB
Step 8
B
B
A
B
A
B
A
P.9
Right
Left
Triangle block
Put the triangle block
into Red marked
groove !
M6x16 screw
ALEKO
Put the triangle block into
Red marked groove !
