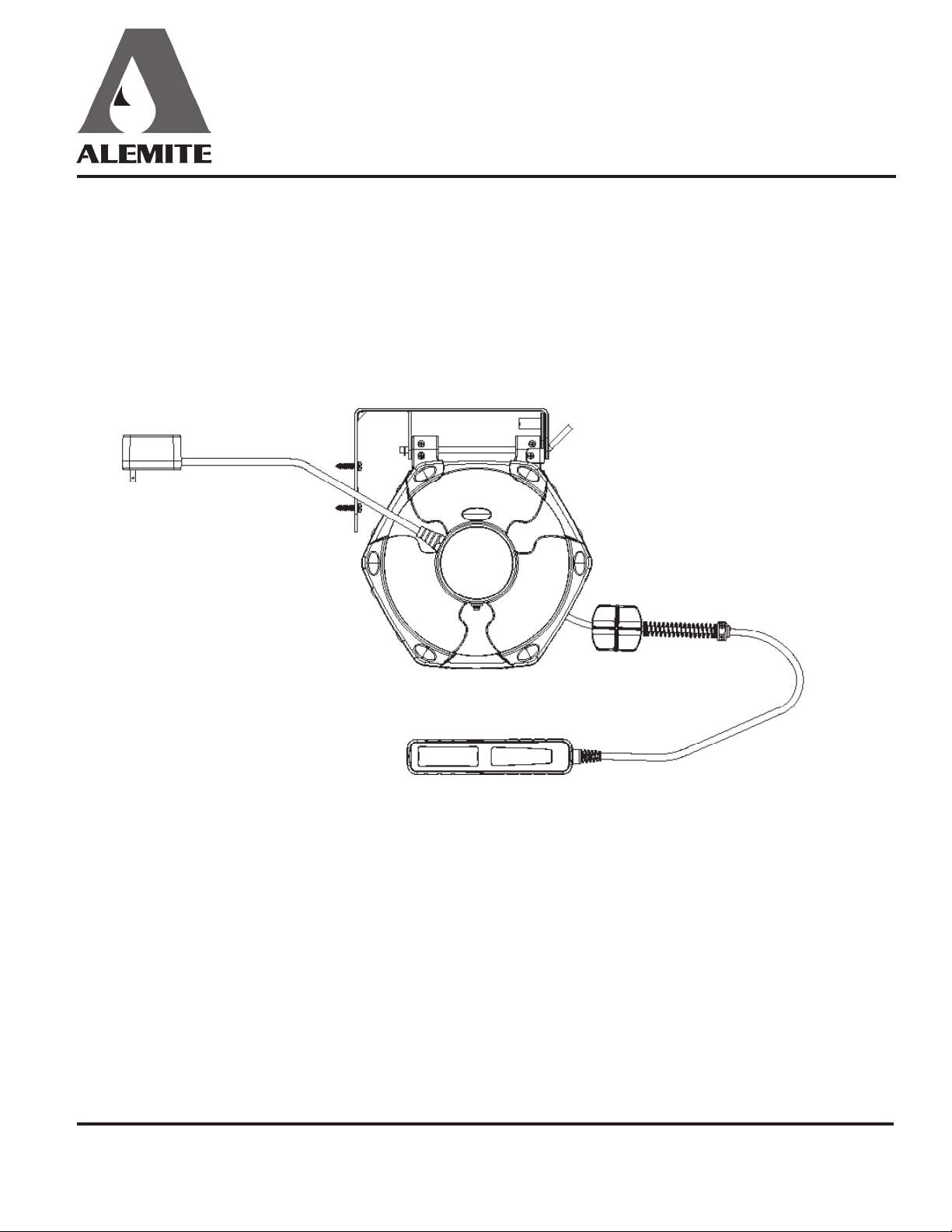

Alemite 8082-A User manual

Model No. 8082 -A
Light Reel
Alemite, LLC
167 Roweland Drive, Johnson City, Tennessee, 37601
www.alemite.com
SER 343447
Initial release (11-15)Form 671091

2Initial Release 11-15 Alemite, LLC
COB LED Light SER 393816
Table or bench mount
installation
1 Select a dry location within two feet
(609,8 mm) of a 120 V AC electrical outlet.
2 Mount bracket ( fig. 1) directly onto
table or bench.
3 Line up mounting bracket with holes on
reel light unit and insert 8 in. (203 mm)
pin ( fig. 2).
4 Secure 8 in. (203 mm) pin with cotter
pin ( fig. 2).
5 Adjust ball stop ( fig. 3) so light head
hangs at desired length.
6 Plug power cord into standard 120 V AC
electrical outlet.
Wall mount installation
7 Select a dry location within two feet
(609,8 mm) of a 120 V AC electrical outlet.
8 Mount bracket to nearest available wood
stud or sturdy wall material using appro-
priate screw fasteners (fig. 1), leaving at
least 24 in. (609.8 mm) between reel and
edge of any wall or door frame.
9 Line up mounting bracket with holes on
reel light unit and insert 8 in. (203 mm)
pin ( fig. 2).
Ceiling mount
installation
1 Select a dry location within two feet
(609,8 mm) of a 120 V AC electrical outlet.
2 Mount bracket directly into closest
ceiling joist or beam reinforced ceiling
beam. ( fig. 1).
Fig. 1
Fig. 2
Fig. 3
!Notice
Do not mount reel to drywall or
any unsupported ceiling material that
cannot support significant torsion or
drag.
3 Insert reel into bracket, use care to line up
the mounting holes (fig. 2).
4 Secure 8 in. (203 mm) pin with cotter
pin ( fig. 2).
5 Adjust ball stop ( fig. 3) so light head
hangs at desired length.
6 Plug power cord into standard 120 V AC
electrical outlet.
!Notice
Do not mount reel to any wall
material (including drywall and paneling)
that cannot support significant torsion or
drag.
10 Secure 8 in. (203 mm) pin with cotter
pin ( fig. 2).
11 Adjust ball stop ( fig. 3) so light head
hangs at desired length.
12 Plug power cord into standard
120 V AC electrical outlet.

Initial Release 11-15Alemite, LLC
COB LED Light
SER 393816
3
Operating instructions
1 Fully extend and lock cord in place
before using.
2 To lock, pull cord to desired length.
Slowly let the cord retract back into the reel
until a click is heard.
3 To retract cord, pull cord out until the reel
begins resisting. Guide the cord into reel
while it is retracting. Hold onto cord until it
retracts completely into the reel.
4 To lock multi-angle bracket into place,
pull looped spring loaded pin out.
CAUTION
CAUTION
5 Set reel to desired angle and release looped
spring pin.
• Do not overload circuit. Check the amper-
age rating before connecting anything to the
outlet(s) on this product to be sure that the
circuit will not be overloaded. The amper-
age rating of this reel can be found on the la-
bel on the reel. If the circuit breaker trips,
unplug all devices and reset the circuit
breaker and double check the
amperage rating of device before plugging it
back in.
• Do not service this reel light while it is
plugged in. Electrical shock could occur.
• Opening reel may cause injury, as the reel
houses a clock spring under high pressure.
Do not release cord while it is retracting
back into reel. Failure to do so may
result in personal injury and/or damage to
the reel.

4Initial Release 11-15 Alemite, LLC
COB LED Light SER 393816
Failure to comply with the instructions
and safety information could result in
malfunction of the unit, fire hazard, or
electrical shock.
WARNING
To avoid serious injury or death from
electrical shock or fire:
• Do not handle unit or plug it in with
hands that are wet or damp, while
standing on a wet or damp surface, or
in water.
• This fixture must always be used in ac-
cordance with all electrical and safety
codes and ordinances, including Na-
tional Electric Code (NEC) and
Occupational Safety and Health Act
(OSHA) codes on general industry
standards and interpretations.
• Always ensure that the power source
conforms to the requirements listed on
the unit.
• Always disconnect unit from its
power source before servicing
or disassembling.
• This unit is only for use with 110 to
125 V AC-rated products, and is
equipped with an approved
3-conductor cord with a 3-prong
grounded plug.
• To reduce the risk of electrical shock,
unit should only be plugged into a
properly grounded 3-prong outlet.
• Unit is not waterproof and is not
intended for use in showers, saunas, or
potentially wet locations. Keep unit
away from sinks, tubs, showers, etc.
Do not attempt to retrieve unit if it falls
into water if it is still plugged into a
power source. Fatal electrocution
could result.
• Do not remove the 3rd prong or
modify the plug in any way.
• Improper connection of the grounding
conductor can result in elec-
trical shock.
• Do not plug the unit into a non-ground-
ed outlet or extension cord.
If an extension cord is used, ensure the
cord is in good electrical condition and
is a minimum of 16 gauge,
3 conductor.
• Do not use in potentially dangerous lo-
cations, such as flammable or explo-
sive surroundings
This fixture is intended for use as a
general indoor power source.
WARNING

Initial Release 11-15Alemite, LLC
COB LED Light
SER 393816
5
Electrical rating
Do not overload. Check the amperages of
the tools or appliances to be used
before proceeding with the use of the fix-
ture. Listed below is the maximum am-
perage rating for this unit.
WARNING
Electrical rating
Part no. Length Cable type/gauge Maximum rating Lux Lumen
8082-A 50 ft (15,244 m) SJTOW 18/2 125 V AC >200 >600
This product is protected by a circuit breaker:
that will cut off current if overloaded. In the
event of an overload, disconnect unit from
source of overload, wait for two minutes, and
press the circuit breaker reset button located
on the side of the unit.
If circuit breaker continues to trip, unplug
unit and discontinue use.
Do not allow the cord to fly unrestricted
back into reel.
CAUTION

6Initial Release 11-15 Alemite, LLC
COB LED Light SER 393816
Maintenance
To keep light reel operating smoothly:
1 Remove dirt and grime from reel case
using a soft, damp cloth. A mild soap may
be used if needed. Do not get the electrical
plug wet, and never immerse any part of the
unit in any solution to clean. Do not use any
types of solvents to clean unit.
2 To insure smooth retraction, keep cord clean
by pulling cord to its full length and then al-
low it to slowly retract through a dampened
rag. Then pull cord out again to full length
again and allow to retract through a clean
rag sprinkled with talcum powder.
Service parts
Part no. Description
Alemite 393816 Replacement COB light for 8082-A
