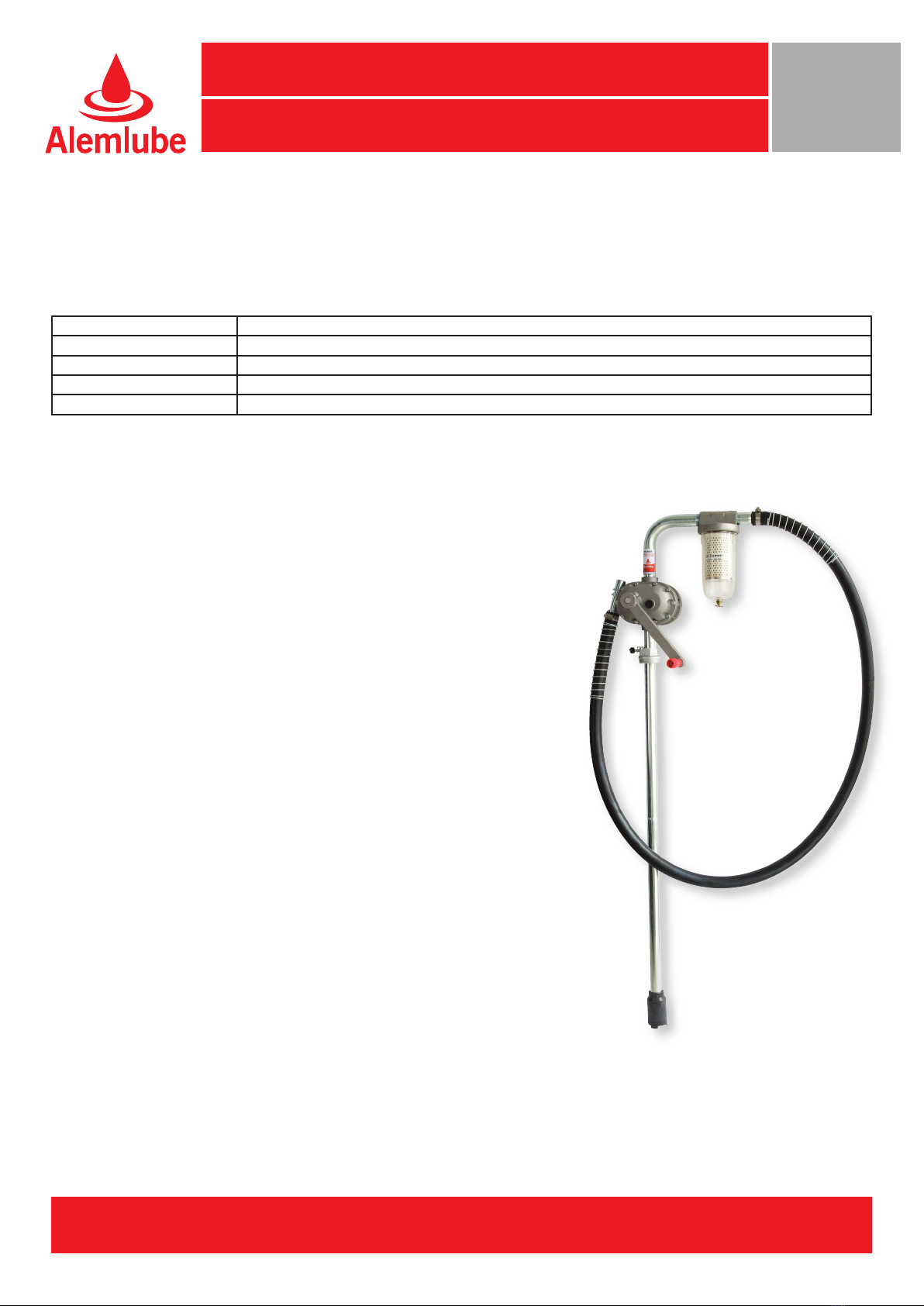

Alemlube 5080A User manual

Descrip ion
Model 5080A is a high volume, manually operated rotary action drum pump that delivers up to 100 litres per minute. It is
designed for refuelling of both on and off road vehicles and large machinery. The simple design of the 5080A allows
easy servicing if required. The pump comes complete with delivery hose and includes a replaceable filter.
*PLEASE OTE, OIL GEARS BEFORE USE. (SAE 30 oil is recommended for this purpose).
Specifica ions
Visit our website at www.alemlube.com.au Email - inf[email protected]
Uses Diesel fuel, petrol, kerosene and low viscosity oils up to SAE 30
Discharge Quantity 1 litre per rotation / 100 litres per minute
Materials Cast Aluminium, Buna Seals
Weight 7.0kgs
Size Suction pipe: 32mm ID x 1m Delivery hose: 25mmID x 2.2m
Opera ing Ins ruc ions
1Oil Gears Before Use
Before using model 5080A high volume rotary refuelling pump, make
sure that you fill the gear cover with oil. Fill with SAE 30 oil or equivalent
to the reference line through the lubrication bolt hole (as indicated on the
diagram). Inspect & top up periodically as required.
2Revolu ion Direc ion
The handle turns in a clockwise direction and the pump discharges one
litre per one revolution of the handle.
3Fil er
A filter of #60 mesh polyethylene net is standard on the pump and it is
located at the bottom of the suction pipe. Rotating the handle and
therefore operating the pump may become harder if the filter is clogged
with other similar impurities that have been filtered out of the fuel or low
viscosity oil. Remove the filter periodically and clean with kerosene.
4Cau ions
Suitable liquids include most low viscosity liquids such as unleaded
petrol, kerosene and low viscosity oils. Although the pump can be used to
pump other liquids of high viscosity, the pump becomes harder to operate
and doing so will shorten the life of the pump & may void warranty.
Do not use this pump for any solvent or chemical transfer as these fluids
will dissolve the Buna gaskets, etc. ( Use the 301-A, 401-A, 733, or 933
for stronger solvents).
Please note when pumping fuels like kerosene, petrol or diesel, these
products tend to “dry out” the internals of the pump causing parts “to
stick” and the pump not to prime and dispense. To stop this from
happening and to increase the working life of your pump, we recommend
you lubricate the vanes of the pump by dropping a few drops of oil into
the pump body by taking off downtube (2000-42) & lubricating at this
opening. Rotate the handle a few times.
Do not pump fluids containing dirt or particles such as waste oil.
Contaminated fluids may block the filter, preventing discharge, & may
damage the pump interior or cause other problems.
Refuelling Drum Pump with Filter 5080A
NSW
TEL: [phone]
FAX: [phone]
QLD/PNG
TEL: [phone]
FAX: [phone]
VIC/TAS
TEL: [phone]
FAX: [phone]
WA
TEL: [phone]
FAX: [phone]
SA/NT
TEL: [phone]
FAX: [phone]
NZ
TEL: [phone]
FAX: [phone]
OWNER’S MANUAL

Par s and Drawing Breakdown For The 5080A
2
22 2000-22 Nozzle Bracket 1
ITEM PARTS NO DESCRIPTION QTY ITEM PARTS NO DESCRIPTION QTY
1 2000-1-2-34-35 Handle Asby 126 2000-26 TaperPin 2
2 2000-2 Oil Seal 1 27 2000-27 Timing Gear 2
3 2000-3 Hexagon Bolt 128 2000-28 Pin 2
4 2000-4 Stop Ring 129 2000-29 Pinion Gear 1
5 2000-5 Bearing 231 2000-31 Screw 1
34 2000-34 Handle Pin 11tloB6-00026
7 2000-7 O’Ring 135 2000-35 Handle 1
8 2000-8 Collar 138 2000-36/2 Special Spout 1
10 2000-9-10 GearShaft 139 2000-39 (52983) Bung Screw 1
11 2000-11 Screw 10 41 2000-41 Bung Adaptor 1
12 2000-12 GearCover 242 2000-42 DownTube 1
13 2000-13 InsideCover 10 43 2000-43 Filter Body 1
14 2000-14 Roots shaft 4 43 2000-43-44-46 Filter Assembly 1
15 2000-15 Housing 244 2000-44 Strainer 1
16 2000-16 Outsidecover 246 2000-46 Filter Stopper 1
17 2000-17 Screw 3 50 2000-50 Spring (Nozzle) 1
19 2000-19 Oil Seal 6 51 2000-51 Fuel Hose Asby 1
20 2000-20 Bearing 452 2000-52 Nozzle 1
21 2000-21 Oil Seal 2 55 FA2 Fuel Filter 1
23 2000-23 Impeller 2
3laeS42-000242
25 2000-25 TaperPin 3
Note: 2000-43, 2000-44, 2000-46 is only available in kit form 2000-43-44-46 Note: 2000-25 & 2000-28 is one complete part.
Visit our website at www.alemlube.com.au Email - inf[email protected]
Ordering Spare Par s
Parts List – Part o. 5080A
YDEMERELBUORT
Handle fails to turn Gears broken - Return for repair. Dirt, etc clogging up the pump - Overhaul & clean.
Handle is hard to turn Dirt, etc clogging up the pump - Overhaul & clean. Filter blocked - Cleanthe filter
Not Priming / Pumping Impeller dry - lubricate at down tube/body point, turn handle a few times.
Handle turns but no discharge Gears broken / Shaft or pin broken - Return for repair
