Alemlube EL SERIES User manual

Uses Diesel and low viscosity oils up to SAE 30
Discharge Quantity 1L per rotation / 100 L/min
Materials Cast Aluminium, Buna N Seals
Weight 7.0kg
Size Suction pipe: 32mm ID x 1m
Delivery hose: 25mm ID x 2.2m
Operating instructions
1 Oil Gears Before Use
Before using the F20060 high volume rotary refuelling pump,
make sure that you fill the gear cover with oil. Fill with SAE 30 oil
or equivalent to the reference line through the lubrication bolt hole
(as indicated on the diagram). Inspect periodically.
2 Revolution Direction
The handle turns in a clockwise direction and the pump discharges
one litre per one revolution of the handle.
3 Filter
A filter of #80 mesh polyethylene net is supplied as standard on the
pump and is located at the bottom of the suction pipe. Rotating the
handle and therefore operating the pump may become harder if
the filter is clogged with impurities that may have been filtered
out of the fuel or low viscosity oil. It is recommended that you
remove the filter periodically and clean it with kerosene.
4 Cautions
Suitable liquids include most low viscosity liquids such as diesel,
unleaded petrol, kerosene and low viscosity oils. Although the pump
can be used to pump other liquids of high viscosity, the pump becomes
harder to operate and doing so will shorten the life of the pump & may
void the warranty.
Do not use this pump for any solvent or chemical transfer as these liquids will
dissolve the Buna N seals and gaskets, etc. (Use the 301-A, 401-A, 733 or 933
for solvents).
Please note when pumping fuels like kerosene, petrol or diesel, these products
tend to “dry out” the internals of the pump causing parts “to stick” and the
pump not to prime and dispense. To stop this from happening and to
increase the working life of your pump, we recommend that you lubricate the
gears of the pump by dropping a few drops of oil into the pump body by
taking off suction pipe F20060-35 & lubricating at this opening. After
undertaking lubrication of the pump in such a manner, please rotate the
handle a few times.
Do not pump liquids containing dirt or particles such as waste oil. Strained liquids
may block the filter, preventing discharge, which can damage the pump interior or
cause other problems.
NOTE: We recommend that the pump is inspected for any damaged twice a
year and that the oil inside the pump head is replaced every 12 months.
Description

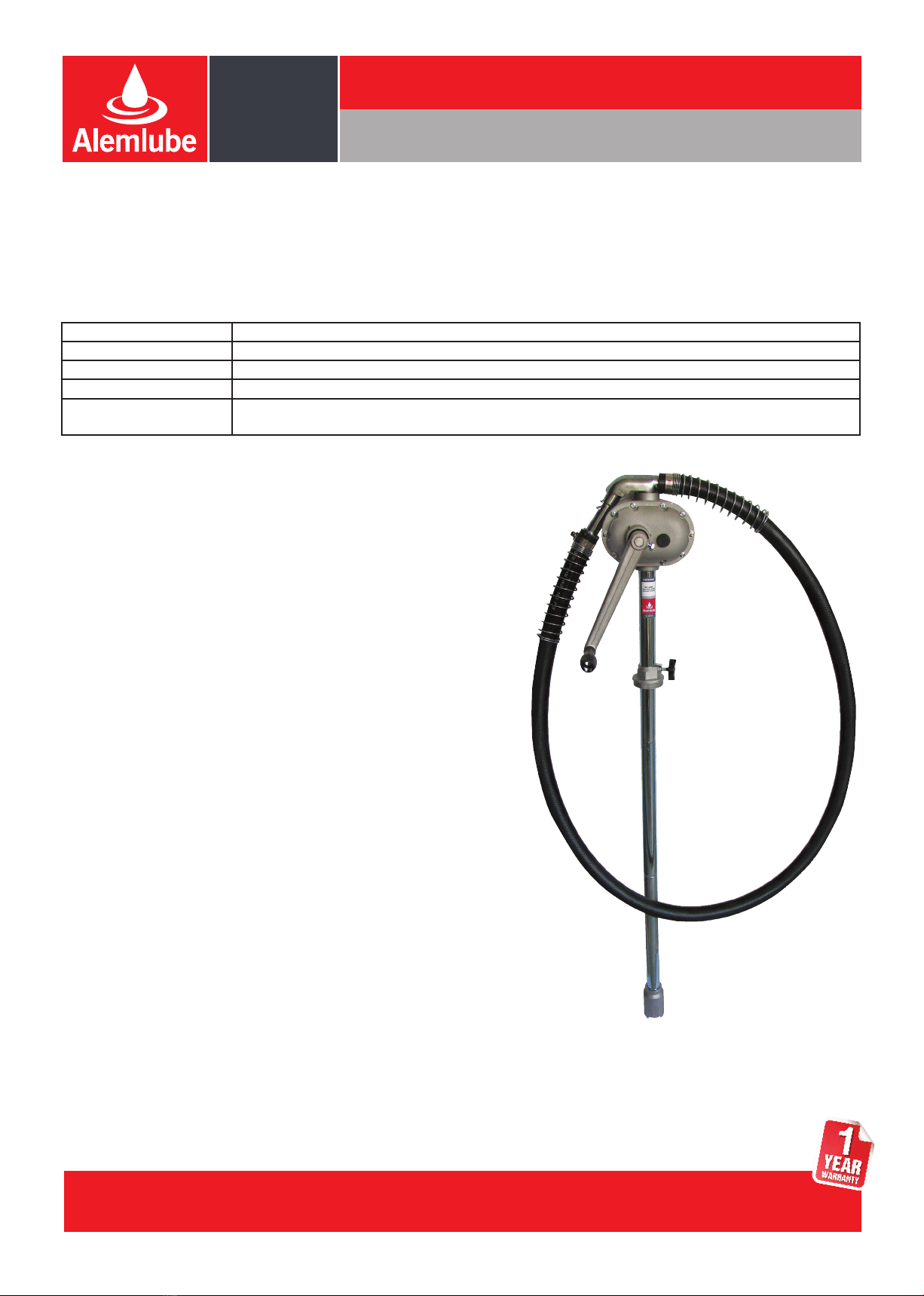

The F20060 is a high volume, manually operated, rotary action drum pump that delivers up to 100 L/min. It is designed for the
refuelling of both on and off road vehicles and large machinery. The simple design of the F20060 allows easy servicing if required.
The pump comes complete with delivery hose and includes a replaceable foot filter. * PLEASE NOTE: OIL GEARS BEFORE USE
(SAE 30 oil is recommended for this purpose).
Specifications
EL SERIES
OWNER’S TECHNICAL MANUAL
F20060 Bi-lobe Refuelling Drum Pump
Visit our website at www.alemlube.com.au or www.alemlube.co.nz
NSW/ACT
TEL: [phone]
FAX: [phone]
QLD/PNG
TEL: [phone]
FAX: [phone]
VIC/TAS
TEL: [phone]
FAX: [phone]
WA
TEL: [phone]
FAX: [phone]
SA/NT
TEL: [phone]
FAX: [phone]
NZ
TEL: [phone]
FAX: [phone]

Parts and Drawing Breakdown For F20060
Ordering Spare Parts. Parts List – Part No. F20060
ITEM PARTS No. DESCRIPTION QTY ITEM PARTS No. DESCRIPTION QTY
1 F20060 - 1 Handle rivet 1 22 F20060 - 22 Pinion gear 1
2 F20060 - 2 Handle 1 23 F20060 - 23 Inside Cover 1
3 F20060 - 3 Hexagon bolt 1 24 F20060 - 24 Roots 2
4 F20060 - 4 Crank Arm 1 25 F20060 - 25 Roots shaft 1
5 F20060 - 5 Oil Seal 1 26 F20060 - 26 Roots shaft 1
6 F20060 - 6 Stop ring 1 27 F20060 - 27 Housing 1
7 F20060 - 7 Bearing 2 28 F20060 - 28 Outside cover 1
8 F20060 - 8 Bearing Collar 1 29 F20060 - 29 Screw 10
9 F20060 - 9 Screw 10 30 F20060 - 30 Bearing cap 2
10 F20060 - 10 Gear Cover 1 31 F20060 - 31 Spout 1
11 F20060 - 11 Rhombic bolt 1 32 F20060 - 32 Hose band 2
12 F20060 - 12 O-ring 1 33 F20060 - 33 Red ring Spring 2
13 F20060 - 13 Reinforcement shaft 1 34 F20060 - 34 Delivery hose 1
14 F20060 - 14 Reinforcement gear 1 35 F20060 - 35 Suction pipe 1
15 F20060 - 15 Timing gear 2 36 F20060 - 36 Thumb screw 1
16 F20060 - 16 Pin 4 37 F20060 - 37 Larger screw 1
17 F20060 - 17 Oil seal 4 38 F20060 - 38 Filter boby 1
18 F20060 - 18 Bearing 4 39 F20060 - 39 Strainer 1
19 F20060 - 19 Cover packing 3 40 F20060 - 40 Filter stopper 1
20 F20060 - 20 Pin 4 41 F20060 - 41 Strainer 1
21 F20060 - 21 Screw 1
Trouble Shooting
TROUBLE REMEDY
Handle fails to turn Gears broken - Return for repair. Dirt, etc clogging up the pump - Overhaul & clean.
Not Priming / Pumping Impellar dry - lubricate at down tube / body point, turn handle a few times.
Handle is hard to turn Dirt, etc clogging up the pump - Overhaul & clean. Filter blocked - Clean the filter
Handle turns but no discharge Gears broken / Shaft or pin broken - Return for repair
