Alesis DM8 User manual

SPECIFICATION
FEATURES
1. Professional drum module with over 750 multi-sampled, DynamicArticulation™sounds
2. Compact design is easy to fit into any setup, and mounts on stands or racks with built-in
mount zone
3. Works with 3-zone ride, continuous hi-hat control, and cymbals with choke capability
4. Premium instrument library multi-sampled from real drums and cymbals
5. Dynamic Articulation™changes sounds character along with dynamics for realism
6. Main pad and trigger inputs via single-connection cable snake, plus two dual-zone
expansion inputs
7. Stereo 1/8" mix input for practicing with CD and MP3 players
8. Play along with tracks and record yourself with the sequencer and advanced metronome
9. USB MIDI for interface with software on Mac and PC; MIDI in for performance with
external controllers
SERVICE MANUAL
MODEL: DM8

DM8 MP DIAGNOSTIC TEST PROCEDURE
Revisions:
1.0 - Taken from DM8 MP Diagnostic Test Procedures v1.2
- Removed PREVIEW velocity sensitivity in switch test, just a simple button now
- Removed AUX OUT audio testing
- Replaced AUX IN RCA jacks with reference to 1/8” TRS jack
- Removed MIDI test (will be replaced with MIDI IN test at a later date)
- Removed Fader Test
- Reduced SNR requirement of DAC->Main by 1dB based on Rev1 PCB measurements
- Relaxed AUX IN -> MAIN SNR and THD requirements based on Rev1 PCB measurements
- Relaxed AUX IN -> PHONES SNR requirement based on Rev1 PCB measurements
- Put note to SKIP Trigger and Hihat Control Input Test for now.
1.1 - Revised trigger testing for DM8 specifics, reinstated hihat control testing
1.2 - Relaxed AP test results based on PP test results
1.3 - Further relaxed AP test results.
- Added MIDI IN test
1. Testing the power supply
Plug the external power supply into the AC line voltage source, but do not plug the power supply into the
DM8 yet.
Use an AC volt meter and measure the AC voltage on the power supply output plug. It should be 9VAC to
12VAC.
If the voltage is too high, it may damage the DM8 unit. Do not plug it into the DM8.Locate and correct the
problem with the power supply or the AC Line voltage before continuing with the test.
After verifying the AC power supply voltage is correct, plug it into the DM8 and continue with Step #2.
2. Entering Diagnostics Mode
While holding down [STOP] and [REC], turn on power. The unit will enter diagnostic mode. Note that a
restart is required to exit diagnostic mode.
After start-up is complete the LCD will display the first test. On the test selection page,
these buttons can be used to do the following:
[CURSOR UP] select previous test
[CURSOR DOWN] select next test [PLAY] run test
After a test finishes and displays either a pass or fail, the [STOP] button will exit the test to return to the test
selection page.

DM8 MP DIAGNOSTIC TEST PROCEDURE
3. Serial #
Diags
Serial #
a) This is an informational display, not a test. If the unit has a valid serial number, pressing [PLAY] will
display it on the LCD.
4. Ram Test
Diags
RAM
a) Press [PLAY] to begin test, at which point the LCD should display the following:
RAM Test
Wait..
b) When the test has completed, the LCD will display the following if it passes:
RAM Test
Passed
Or the following if it fails:
RAM Test
Failed
5. Trigger Micro Self Test
Diags
Microcontroller
a) Verify that none of the trigger cables are plugged into any drums. Also verify nothing is plugged into the
PERC1 or PERC2 TRS jacks. Otherwise, the test will fail.
b) Press [PLAY] to begin the trigger micro self test. If it passes, the trigger micro responds with “passed”
message to the DSP, and the LCD will display the following:
Microcontroller
Passed
c) If there is no response from the trigger micro within a reasonable time window, the LCD will display
Microcontroller
Failed: Timeout

DM8 MP DIAGNOSTIC TEST PROCEDURE
d) If the trigger micro responds with an error code, the LCD will display a message like this:
Microcontroller
CD12 stuck high
See Appendix A for a chart of SW_MODE or TRIGGER number vs. actual signal name
and rear panel jacks. (DISREGARD – Will add Appendix A in revised test document)
6. LCD Test
Diags
LCD
a) Press [PLAY] to turn on all pixels. Verify that there are no dead pixels.
7. LED Test
Diags
LED
a) Press [PLAY] to begin the test. First, all LEDs will turn on and the LCD will display the following:
LED
All On
Verify that all the LEDs have turned on.
b) Use [CURSOR UP] and [CURSOR DOWN] to cycle through the individual LEDs.
For each LED, verify that the LED name displayed on the LCD matches the LED that is actually lit.
c) Press [STOP] after cycling through all LEDs to end the test.
8. Switch Test
Diags
Switch
a) Press [PLAY] and the LCD will display the following:
SWITCH
b) Press the switches on the top panel, one switch at a time. The name of the switch will be displayed as
shown below:
SWITCH
Play
Verify that the name of the switch displayed on the LCD matches the switch actually pressed.

DM8 MP DIAGNOSTIC TEST PROCEDURE
c) Once all switches are pressed and have been detected, the test will pass. If a switch is not working, press
[STOP] twice to abort the test. The LCD will display the following:
SWITCH
Abort
d) Press [STOP] one more time to return to the test selection menu.
Note that if multiple switches are detected, the test will fail, so it is important to make sure only one switch is
pressed at anytime.
9. Jog Test
Diag
Jog
a) Press [PLAY] to begin the test and the LCD will display the current count:
JOG
0
b) Verify that as the jog wheel is turned clockwise, the count increases, and if turned counterclockwise, the
count decreases.
c) In addition, verify that a single jog click produces only one count increase or decrease, according to the
direction the jog wheel was turned.
10. Audio Tests
Diags
Audio
Additional equipment:
Audio Precision System 1 (or better), and necessary cabling
Headphones
Before starting the test, turn down Main level. Then press [PLAY] to start the audio test.
The LCD will display the following:
AUDIO
All
The unit is now generating a 1378Hz tone and sending it to all outputs. Pressing [CURSOR UP] and
[CURSOR DOWN] will cycle through the available output options, including “Off.” Pressing the [UP] or
[DOWN] button will cycle through the available test tone frequencies. Leave this at 1378Hz for OTS testing.
Note that at any time during the audio testing, pressing [STOP] will exit the audio test and jump back to the
test selection page.

DM8 MP DIAGNOSTIC TEST PROCEDURE
DAC to Main Outputs
a) Connect both Main left and right outputs to the AP analyzer inputs. Because the Main left and right outputs
are cross-wired to support mono mix from either jack, both the left and right channels must have something
plugged in. Otherwise, the left and right signals ill simply be summed onto the output that is used, and this
will produce invalid AP measurements.
b) Turn Main level to maximum. Verify that the output level is approximately between 14.6Vpp to 17.8Vpp
(16.5dBu to 18.2dBu). Measure THD+N and verify that it is less than 0.007% (bandwidth set to 22-22KHz).
c) Press [CURSOR UP] to change output to “MainL” and verify that there is only signal from the Main left
jack. Press [CURSOR UP] once more to change the output to “MainR” and verify that only the Main right
jack is generating the tone.
d) Press [CURSOR UP] one more time to select “Off,” and verify that the SNR is at least 90dB, 95dB
A-weighted (22-22KHz bandwidth).
DAC to Headphones
a) Turn down the main level to minimum, then plug in a pair of headphones into the headphone jack.
b) Press [CURSOR DOWN] several times to select “All” again. Then slowly turn up the Main level to a
comfortable volume. Verify that the tone can be heard on both the left and right earpieces.
c) Press [CURSOR UP] once to select “MainL” and confirm that the tone is only audible from the left
earpiece. Press [CURSOR UP] once more to select “MainR” and confirm that the tone is only present on the
right earpiece.
Aux In to Main Outputs
a) Press [CURSOR UP] several times to select “Off.” Then turn Main level to minimum.
b) Connect the AP analyzer inputs back to the Main left and right outputs (again making sure that both Main
left and right outputs are connected).
c) Connect the AP generator outputs to the AUX IN 1/8” TRS jack. Set the AP generator to 8.1Vpp
(11.4dBu), 1KHz. Verify that the level from the Main left and right jacks is approximately 14.4Vpp to
17.8Vpp (16.5dBu to 18.2dBu), and that THD+N is less than 0.025% (22-22KHz BW).
d) Turn off the signal to Aux right input and verify that only the Main left output has a tone. Turn on the
signal to Aux right input on.
e) Turn off the signal to Aux left input and verify that only the Main right output has a tone.
f) Turn off the signal to both the Aux left and right input and verify that the SNR is at least 95dB,
100dBA-weighted (22-22KHz)

DM8 MP DIAGNOSTIC TEST PROCEDURE
Aux In to Headphone Outputs
a) Turn the Main level to minimum, and connect the Headphone output to the AP analyzer inputs. Set the AP
analyzer input impedance to 600 Ohms.
b) Connect the AP generator output to the AUX IN 1/8” TRS jack. Set the AP output to 2Vpp (-0.8dBu),
1KHz. Verify that the headphone left and right output levels are approximately between (14dBu to 16.8dBu).
THD+N should be less than 0.010% (22-22KHz BW).
c) Turn off the signal to Aux right input and verify that only the Headphone left output has a signal. Turn on
the signal to Aux right input.
d) Turn off the signal to Aux left input and verify that only the Headphone right output has a tone.
e) Turn off the signal to both the Aux left and right input and verify that the SNR for both Headphone left and
right outputs is at least 90dB, 95dB A-weighted (22-22KHz BW).
11. Flash Test
Diags
Flash
a) Press [PLAY] to begin the test. It will take about 15 seconds to complete. During this time, the LCD will
display the various stages of the test:
FLASH
Write..
FLASH
100%
FLASH
RW PASS
FLASH
CRC
b) If everything passes, the LCD displays the following:
FLASH
Passed
12. Serial EEPROM Test
Diags
EEPROM
a) Press [PLAY] to run the test. Note that the test is very short, so it may seem like the unit is not doing
anything. The LCD will display either a pass or fail almost immediately after pressing the [PLAY] button.

DM8 MP DIAGNOSTIC TEST PROCEDURE
13. USB Test
Diags
USB
Additional equipment:
Windows XP computer with a free USB port
USB cable
a) Connect the USB cable between the unit and the computer, then press [PLAY]. If everything is working,
the test will finish in less than 1 second, then the LCD will display the following:
USB
Passed
14. Triggers Test
Diags
Triggers
Additional equipment required:
Trigger tester (see Appendix C)
Sinewave generator (capable of at least 5Vpeak output)
a) Press [PLAY]. The screen will display:
KICK CABLE
b) Set to the sine wave generator output to 5V peak at 100Hz, and connect the generator to the trigger tester.
c) Plug the KICK cable into the trigger tester. The LCD will display the following:
KICK CABLE
And after about half a second, it will inform the user to test the TIP:
KICK CABLE
Test TIP
Verify that the cable name shown on the LCD matches the label on the DB25 cable.
d) Press S1 on the trigger tester to test the TIP. If the correct signal level is detected, the
LCD will display the following briefly:
KICK CABLE
Test TIP
Level OK
Trig 0 = 305

DM8 MP DIAGNOSTIC TEST PROCEDURE
Note that the trigger level shown (displayed after “Trig 0 =”) will vary. There is no need to note the actual
level unless it fails.
All cables will have their TIPS tested. However, some cables will have additional tests the RING and/or
SWITCH inputs.
e) If the TIP passes and the cable being tested has a RING input, a screen similar to this will be shown:
PERC1 JACK
Test RING
Press S2 on the trigger tester to test the RING. As before, if the correct signal level is detected, the LCD will
display the following briefly:
PERC1 JACK
Test RING
Level OK
Trig 1 = 298
f) If the TIP or RING passes and the cable being tested has a SWITCH input, a screen similar to this will be
shown:
PERC1 JACK
Test SWITCH
Press S3 on the trigger tester to test the SWITCH. If a switch closure is detected, the LCD will display the
following briefly:
PERC1 JACK
Test SWITCH
Level OK
Trig 1 = 16383
g) At this point, if all the previous tests pass (TIP, and/or RING, and/or SWITCH), the LCD will display the
following.
PERC1 JACK
Jack OK
h) Plug a different DB25 cable into the trigger tester and repeat from step c until all 10 trigger inputs have
been tested (including PERC1 and PERC2 jacks). When all the cables/jacks have been tested (and all
passed) the LCD will display the following:
TRIGGERS
Passed

DM8 MP DIAGNOSTIC TEST PROCEDURE
ADDITIONAL NOTES:
1) During the tests, if the detected level is too high or too low, the LCD will display the
one of the following:
KICK CABLE
Test TIP
Level too high
Trig 1 = 405
OR
KICK CABLE
Test TIP
Level too low
Trig 1 = 120
The firmware also checks if the signal that is being detected is coming from the jack that
is currently being displayed on the LCD (in the example below, Jack 1). If a signal is detected
coming from a different input, the LCD will display the following:
KICK CABLE
Test TIP
Incorrect input
Trig 5 = 299
Pressing [STOP] will allow the user to skip the current test if it is not passing in order
to continue.
2) For any jack that fails, the LCD will display the following:
PERC1 JACK
Failed:TIP RING SW
Retry or test
another jack.
Only the item(s) that failed will be displayed. For example if the TIP and SWITCH failed,
the LCD will display the following:
PERC1 JACK
Failed:TIP SW
Retry or test
Another jack.
3) Because the input circuitry of the HIHAT cable has different hardware gain than all the
other inputs, the trigger level required to pass the test is different (~430 for HIHAT vs
~300 for all others).

DM8 MP DIAGNOSTIC TEST PROCEDURE
15. Hihat Control Input test
Additional equipment:
Hihat Control input tester (see Appendix B)
Diags
HiHat
a) Plug cable marked “hihat control” into the hihat tester and press [PLAY] (note that it must be done in this
order).
After starting the test, the LCD will display the following:
HIHAT
Press S1 on tester
b) Press S1 on the tester. If that portion of the test passes, then the LCD will display
HIHAT
Press S2 on tester
c) Press S2 on the tester. The LCD will display the following if the test passes:
HIHAT
Passed
Note that the test will time out and fail if no activity is detected on the Hihat Control input jack for 5 seconds.
16. Version Diags
Version
This is an informational display, not a test. Press [PLAY] to display the boot loader on the LCD:
BootVers
1.00g
17. Trigger Debug (do not use)
Pressing [PLAY] will start this special debug mode and a restart is required to stop it.
18. Hihat Debug (do not use)
Pressing [PLAY] will continuously display the raw hihat pedal input level. Press [STOP] to return to the test
selection page.

DM8 MP DIAGNOSTIC TEST PROCEDURE
19. TESTING MIDI IN JACK
zPower-cycle the unit and enter normal operating mode
zConnect a MIDI cable from a MIDI keyboard (like MPK25) MIDI out jack to DM8 MIDI IN jack.
zPlay keys on the keyboard. You should hear sounds come out of the Main TRS and Headphone audio
outputs.
Appendix B: Hihat Control Input Tester
1 ¼” TS Plug
2 Normally-open momentary push-button switches (S1, S2)
1 100K 1% resistor (R1, any wattage)
Appendix C: Trigger Tester
1 ¼” TRS Plug
3 Normally-open momentary push-buttons switches (S1-S3)
1 100 Ohm 5% resistor (1/4W)

DM8 MP SERIAL NUMBER RESET PROCEDURE
Rev 1.2 – 4Nov10 – TM, SDM
THIS PROCEDURE SHOULD ONLY BE RUN ON A UNIT THAT HAS THE INCORRECT SERIAL
NUMBER PROGRAMMED TO FLASH. (Check for this by rebooting while holding [REC]+[STOP] and
pressing [PLAY]. Compare the displayed number to the serial number sticker on the bottom of the unit.)
Materials Needed
• 1- DM8
• 1- OLD serial number barcode sticker
• 1- NEW serial number barcode sticker
• 1- DM8 Power Supply
• 1- USB cable
• 1- PC running Windows XP
• DM8 Serializer application
• 1- barcode scanner (such as Unitek MS210-1BG- must use USB keyboard driver)
Procedure
1. Connect barcode scanner to PC
2. Connect DM8 to PC using USB cable.
3. Power on DM8 module while holding the [REC] button. You must release the [REC] button after the
display backlight comes on but before graphics appear on the display.
4. Hit Cancel if a “Found New Hardware Wizard” appears on the computer screen.
5. Open the DM8 Serializer Application
6. Select the DM8 MIDI port under the “MIDI Interface” dropdown menu. This port should be called
“USB Audio Device”.
7. Hold the [PREVIEW] button and scan the OLD serial number sticker
8. Look at the DM8 screen and make sure that it displays the serial number from the OLD barcode
sticker.
9. Press the following buttons in this order:
[REC], [F1], [F1], [F4], [METRO], [METRO], [F3], [F2]
10. Hold the [SEQ] button and scan the NEW serial number sticker
11. Look at the DM8 screen and make sure that it displays the serial number from the NEW barcode
sticker.
12. Disconnect USB from the DM8
13. Reboot the DM8 while holding [REC]+[STOP]
14. Press [PLAY]
15. Look at the last 5 digits of the number displayed on the screen and make sure that they match the last
5 digits of the NEW sticker on the unit. At this point, only the NEW barcode sticker should be
attached to the unit.
If you did any of these steps incorrectly the reset will not work. You must reboot the unit and repeat this
procedure exactly.

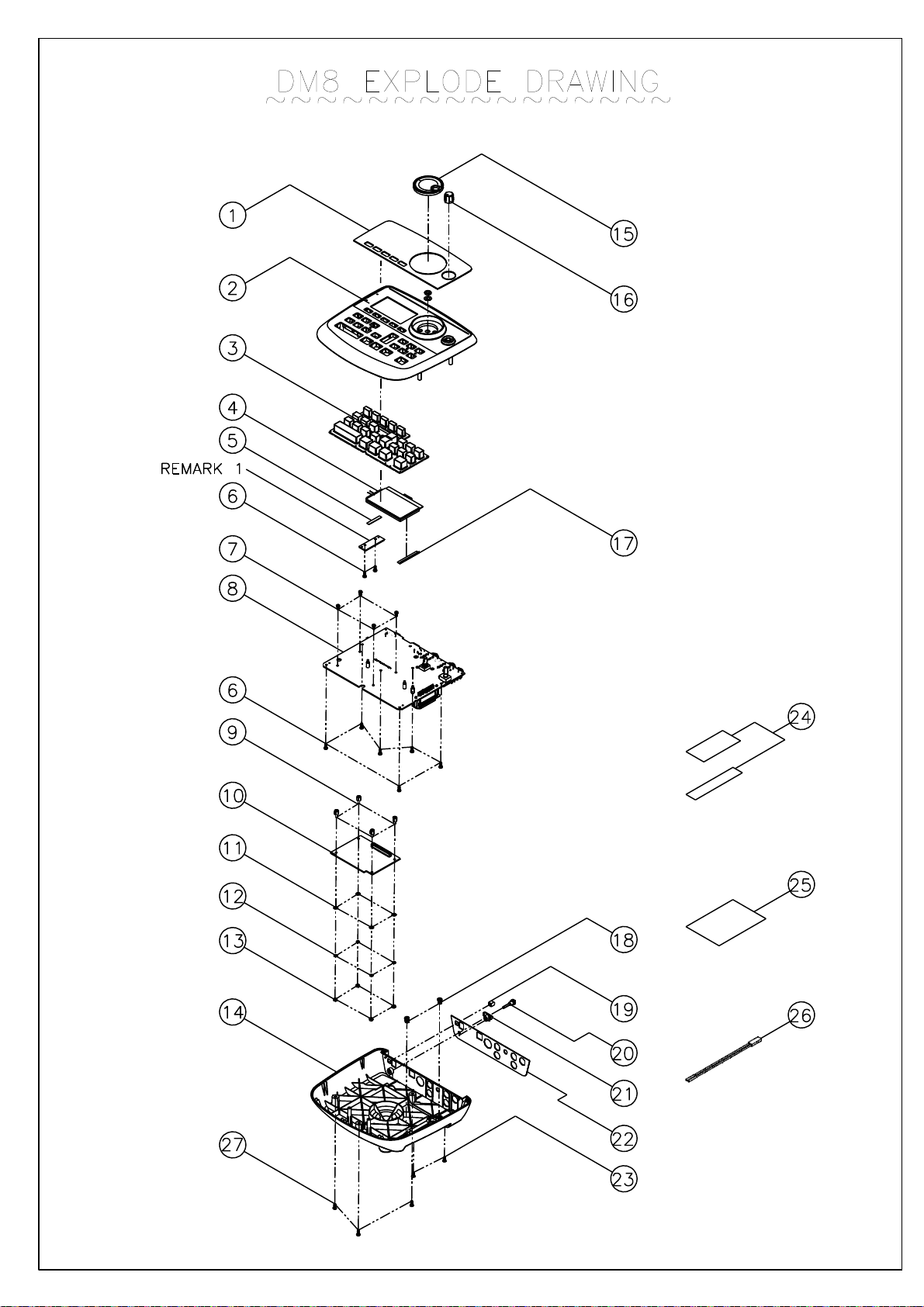

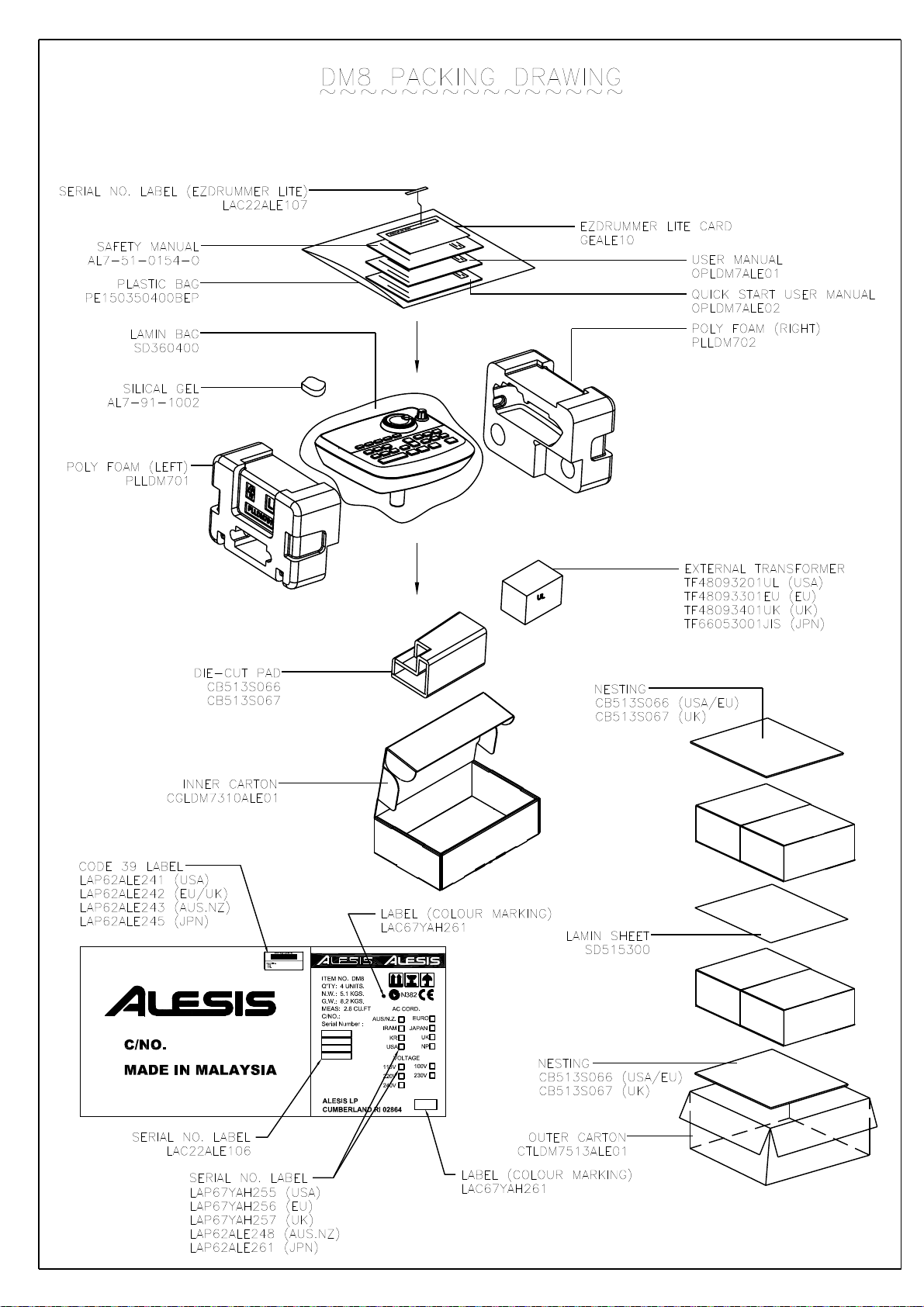

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE KNOB AND ROTATE WHEEL FROM TOP PANEL.
(a)REMOVE ROTATE WHEEL, NUT AND WASHER FROM THE TOP PANEL.
(b)REMOVE PLASTIC KNOB FROM THE TOP PANEL.
(Fig1)
2. DISASSEMBLE THE BOTTOM PLATE.
(a)REMOVE 5 PCS OF NUTS FROM THE BOTTOM PLATE.
(b)REMOVE 5 PCS OF SCREWS FROM THE BOTTOM PLATE.
(Fig2)

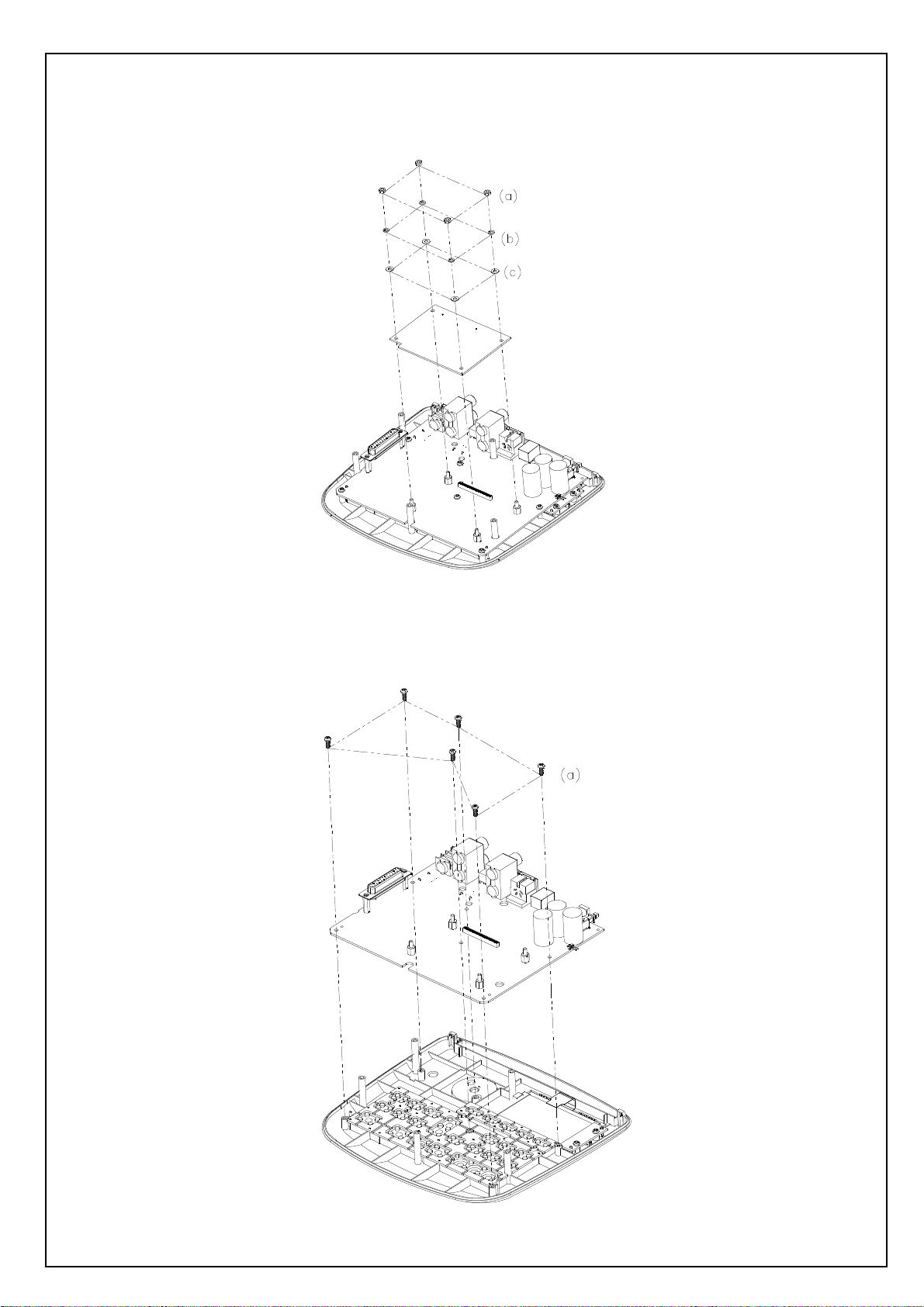

3. DISASSEMBLE THE CPU PCB ASS’Y.
(a)REMOVE 4 PCS OF NUTS FROM THE CPU PCB ASS’Y
(b)REMOVE 4 PCS OF SPRING WASHERS FROM THE CPU PCB ASS’Y
(c)REMOVE 4 PCS OF WASHERS FROM THE CPU PCB ASS’Y
(Fig3)
4. DISASSEMBLE THE MAIN PCB ASS’Y.
(a)REMOVE 6 PCS OF SCREWS FROM THE MAIN PCB ASS’Y
(Fig4)

5. DISASSEMBLE THE LCD PCB ASS’Y.
(a)REMOVE 2 PCS OF SCREWS AND COVER (LCM) AT LCD.
(Fig5)

DM8 (BOM)
Lvl Materials SPECS Qty Part Location
.1 AL9-79-050903 CPU PCB Ass'y 1 10
..2 AA821786X CRYSTAL 11.289MHZ 1 U1
..2 AL0-17-2470 RES C.ARRAY 4X47 OHM 1/16W 5% ISOLATED C-C=0.5MM 14 R10~23
..2 AL2-51-0140 DIODE POWER SCHOTTKY MBRS140LT3 40V 1A 1D2
..2 AL2-61-0431 REG ADJ-SHUNT LM431 2.5V-37V 100MA 2% SOT-23 1D1
..2 AL9-40-0509 CPU PCB 6 LAYER FR-4 91X69 MM 1
..2 CS103K5003X7R C.CAP 0.010UF 50V X7R,±10% SMD 0603 21 C13, 14, 18, 19, 21, 27, 29, 31~33, 38,
C40, C41, 43, 47, 48, 52, 54, 55, 57, 60
..2 CS104K5003X7R CHIP CAP 0.1UF/50V,X7R,+/-10%, SMD 0603 42
C4~8, 11, 12, 15~17, 20, 22, 23, 28, 30,
C35~37, 39, 44~46, 51, 53, 56, 58, 59,
C61~75
..2 CS105K1603X5R CHIP CAP 1UF/16V,X5R,+/-10%,SMD 0603 1C34
..2 CS180J5003NPO CHIP CAP. SMD 18PF/50V 0603 NPO 2 C3, 9
..2 ECS68606D TANT CAPACITOR LOW-ESR68UF/6.3V D SMD-ROHS 1C1
..2 ICBF525KBCZ6A-1 IC DSP ADSP-BF525 BGA-208 1 U4
..2 ICK4S281632I IC K4S281632I-ROHS 1 U8
..2 ICM25PE80 IC M25PE80-VMW6TG VFQFPN8 1 U7
..2 ICMIC809SU RESET IC(2.93V)-ROHS 1 U3
..2 ICYH99M09 IC(ICS29GL01GP11T+PROGRAM) TSOP56 LDM7 SMD 1U5
...3 ICS29GL01GP11T1 IC S29GL01GP11TFIR1 TSOP56 1
..2 ICYHFRM04 IC(ICLC4032V) 1 U6
...3 ICLC4032V IC CPLD 32 MACROCELL 3.3V W/5V TOLERANT I/O 1
..2 RS000010J03 CHIP RES. 0 Ω5% SMD 0603 1 R27
..2 RS004710F03 CHIP RESISTOR 47 OHM 1% 0603 SMD 1 R2
..2 RS010K10F03 CHIP RES. 10K Ω1% SMD 0603 4 R24, 25, 35, 37
..2 RS015010F03 CHIP RES. 150 Ω1% SMD 0603 1 R7
..2 RS022010F03 CHIP RES. 220 Ω1% SMD 0603 1 R31
..2 RS027010F03 CHIP RES 270 OHM 1% 1/10W 0603 1 R1
..2 RS04K710F03 CHIP RES. 4.7K Ω1% SMD 0603 2 R28, 29
..2 RSN0180164J02 A.RESISTOR 4X180 OHM 1/16W 5% ISOLATED C-C=0.5MM 3R4~6
..2 TCS106K100A TANT. CAP 10UF/10V-ROHS 6 C10, 24, 25, 42, 49, 50
..2 TCS107M040B TANT CAP 100UF B-CASE LOW-ESR-ROHS 1C2
..2 TE522540802 CONNECTOR 8PIN 2.54MM DIP 1 J2
..2 TE591276001 1.27MM 2 BLOCK MALE CONNECTOR 60P 180DEG SMD 1J1
..2 TRFDS9431A TRANSISTOR FDS9431A 20V 3.5A SOIC-8-ROHS 1Q1
..2 UHPIH6D28-100M INDUCTOR 10UH 1.7A 20% 6.7X6.7MM SMD-ROHS 1L1
..2 XTM24000X6 CRYSTAL 24MHZ(SMD) 1 X1
.1 AL9-79-0569 MAIN PCB ASSEMBLY 1 8
..2 AA822757X TRANSISTOR 2SC3326 4 Q2~5
..2 AL0-17-0221 CHIP RES ARRAY 4X220 OHM1/16W 2 R125, 136
..2 AL0-17-8103 ARRAY RESISTOR 8 X 10K 1/16 W 5% 1 R116
..2 AL1-60-2222 CAP 22UF ELEC 16V SMD-B 9 C7, 8, 45, 46, 50, 51, 102, 124, 167
..2 AL2-50-0028 DIODE BAS28 75V 0.5A(SOT-143) SMD 5 D5, 16, 32, 39, 43
..2 AL2-51-0140 DIODE POWER SCHOTTKY MBRS140LT3 40V 1A 4D1, 3, 4, 11
..2 AL2-51-4401 TRANS NPN 2N4401 40V 1A SOT-23 10 Q1, 7, 18~25
..2 AL2-51-4403 TRANSISTOR PNP 2N4403 40V 800MA SOT-23 10 Q6, 8~12, 14~17
..2 AL2-54-0138 TRANSISTOR BSS138 1 Q13
..2 AL2-62-1541 IC 74AHC541PW 1 U10
..2 AL2-71-4580 IC (NJM4580E) 1 U6
..2 AL2-74-0181 IC OPTO ISOLATOR TLP181 TRANS-OUT (SMD) 1U1
..2 AL2-75-4345 IC CONVERTER D/A CS4345 24BIT 192KHZ (LJ) TSSOP-10 1U14
..2 AL4-00-0002 JACK DIN 5 PIN MIDI PCB MOUNT 180°W/SHIELD SOCKET 1J6
..2 AL4-02-0007 7P STEREO JACK 1 J3
..2 AL4-08-0402 CON USB SOCKET 4 PIN FEMALE PC-MNT HORIZONTAL 1J2
..2 AL6-02-0001 SWITCH DPDT 1 SW1
..2 AL7-20-0071 BEAD SMD 1806 2 L8, 9
..2 AL9-40-0569 PCB FR-4 179.5?48.9mm 1
..2 CS068D5003NPO CHIP CAP SMD 6.8PF/50V ±0.5PF 0603 NPO 4C67, 68, 74, 76
..2 CS101J5003NPO CHIP CAPACITOR SMD 100P/50V ±5% 0603 NPO-ROHS 6C52, 53, 55, 56, 58, 59
..2 CS102J5003NPO C. CAP. SMD 1000 pF 50V 5% 0805 NPO 7 C9, 12, 17~20, 73
