Alessi Plisse MDL06 User manual

MDL06
“Plissé”
design Michele De Lucchi, 2018
MDL06 Bollitore_MicheleDeLucchi_14.indd 1 22/08/18 17:50

30
ATTENTION!
• Read and carefully follow the
instructions before using the
kettle. Store the instructions in
a safe place for future reference.
• Check that all parts of the kettle
are in perfect condition.
• Dispose of the packaging in a
proper manner and keep the
plastic bags out of reach of
children.
• Use this kettle only for its
intended use. Alessi will not be
liable for any damage caused by
improper use.
• Check that the voltage in your
electrical system matches the
voltage indicated on the bottom
of the kettle and/or on the
power supply base. Do not use
a voltage other than the one
indicated on the kettle.
• Do not use adapters or
extension cords that do not
comply with safety rules or that
exceed current capacity limits.
• Do not immerse the kettle, the
power supply base or the power
cable in water or in any other
liquid.
English
DesignedbyMicheleDeLucchiin2018,
this cordless kettle has been tested and
certified to guarantee the user’s safety.
The product is made of thermoplastic
resin. The capacity is 1 qt 26 1/2 oz.
(MDL06 B - MDL06 B/CH - MDL06
B/ UK - MDL06 G - MDL06 G/CH -
MDL06 G/UK - MDL06 R -
MDL06R /CH - MDL06 R/UK -
MDL06 W - MDL06 W/CH -
MDL06 W/UK).
• Donotusethekettleinbathrooms
or near other sources of water.
• Do not touch the kettle when
your hands are wet.
• Do not place the kettle under
running water.
• Just like any other electrical
appliance, the kettle should not
be used outdoors.
• The kettle works only when
connected to the electrical
system. Never use it on gas
burners, on cooking surfaces, or
near any source of heat.
• Keep inflammable materials
away from the kettle when it is
in operation.
• Remove the kettle from the
power supply base before filling
it with water.
• Protect your hands during use:
some parts of the kettle become
very hot. Always use a pot
holder to protect your hand.
• The heating element surface is
subject to residual heat after use.
• DO NOT OPEN THE LID
WHILE THE KETTLE IS ON.
• BE CAREFUL THAT THE
JET OF STEAM FROM THE
SPOUT IS DIRECTED AWAY
FROM YOU.
• Keep the kettle away from the
edge of the work surface to
avoid risk of it being knocked
over.
• KEEP THE KETTLE OUT OF
REACH OF CHILDREN.
• DO NOT MOVE THE
KETTLE WHILE IT IS
WORKING.
• BE CAREFUL WHEN THE
KETTLE CONTAINS HOT
WATER.
• AVOID SPILLAGE ON THE
CONNECTOR.
• Always pull the plug from the
socket when the kettle is not
beingusedand beforeyou cleanit.
MDL06 Bollitore_MicheleDeLucchi_14.indd 30 22/08/18 17:50

31
Description of the electric kettle (fig. 1)
AThermoplastic resin kettle
BThermoplastic resin lid
CON/OFF lever
DOpening button
EHandle
FLime filter
GPower supply base
B
G
F
E
A
Fig. 1
C
D
BEFORE USING FOR
THE FIRST TIME
• Remove all packing parts from the
kettle and the power supply base.
• Raise the lid by using the opening
button (fig. 2).
• Do not pull on the cable to
remove the plug from the socket.
• Remove the kettle from the
power supply base and let it
cool off before cleaning it.
• In case of malfunction of or
damage to the kettle or power
cable, do not use the kettle.
Take it to your dealer.
• Never open the unit. All
electrical repairs must be done
by qualified personnel only.
• Do not use the kettle for any
other purpose than heating
water. It is strongly inadvisable
to make tea or any other drinks
directly inside the kettle.
• Do not put any object in the
kettle while it is in operation.
• Use the kettle only with its
power supply base.
• Replace any worn parts with
original replacement parts.
• Attention: every kettle is
tested during the production
cycle. Therefore, any traces of
humidity are normal and do not
compromise operation of the kettle.
• At the end of its life cycle,
the kettle must be disposed
of separately from other
household waste. Deliver it to a
differentiated collection centre
for electrical and electronic waste,
or take it to your Alessi dealer,
or to any retailer of electrical
and electronic devices when
buyinganewunitofthesametype.
• THIS PRODUCT IS
INTENDED FOR
HOUSEHOLD USE ONLY.
• This appliance is intended to be
used in household and similar
applications such as:
- staff kitchen areas in shops,
offices and other working
environments;
- farm houses;
- by clients in hotels, motels
and other residential type
environments
- bed and breakfast type
environments.
• This kettle is not to be used
by anyone (including children)
with reduced physical, sensory,
or mental abilities or with lack
of experience and knowledge,
unless they have been given
supervision or instruction
concerning use of the appliance
by a person responsible for their
safety.
• DO NOT LET CHILDREN
PLAY WITH THE ELECTRIC
KETTLE.
• POTENTIAL INJURY FROM
MISUSE
MDL06 Bollitore_MicheleDeLucchi_14.indd 31 22/08/18 17:50

32

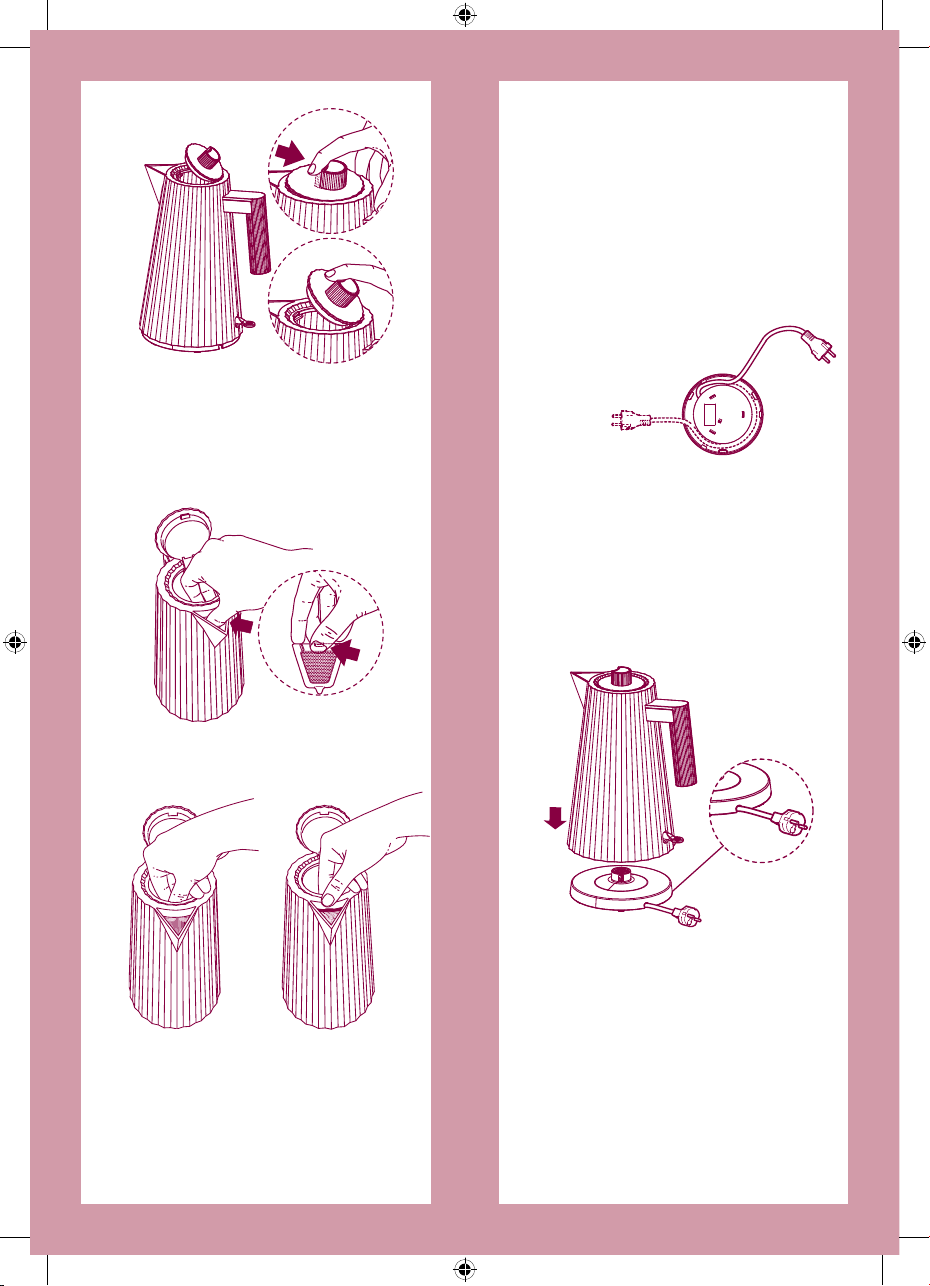

Fig. 2
• Remove the lime filter by extracting
it from its slot (fig. 3). Carefully
wash the filter under running
water. (see paragraph: Lime filter
maintenance).
Fig. 3
• Re-insert the filter in its slot.
(fig. 4).
• Fill the kettle with water up to (but
not beyond) the MAX level mark.
Add two tablespoons of bicarbo-
nate and bring to boil (see next
paragraph: How to use the electric
kettle).
Repeat the procedure twice to
make certain that the kettle is clean
and to remove any odours that
might affect the taste of the water.
HOW TO USE THE ELECTRIC
KETTLE
Power supply base
• To extend the cable, flip
over the power supply
base and unroll the
cable from the
winder.
Adjust
the cable to the
length needed to reach the electrical
outlet by using the feeds in the base
(fig. 5).
• Place the kettle correctly on the
power supply base so that the cable
extends from the slot on the kettle
(fig. 6).
Fig. 6
Attention: The power supply base
must always be placed on a flat and
stable surface.
• Insert the plug from the power sup-
ply base into the electrical outlet.
Attention: Do not let the cable hang
over the work surface (fig. 7).
Fig. 4
Fig. 5
MDL06 Bollitore_MicheleDeLucchi_14.indd 32 22/08/18 17:51

33
Fig. 7
Filling
Attention: Always remove the kettle
from the power supply base before
filling.
• Raise the lid and position the kettle
under the tap. Turn on the water
and fill the kettle with water to the
required level.
• Fill the kettle with the amount of
water you intend to use: this will
reduce boiling time.
Remember that shorter boiling
times reduce the formation of lime.
Always fill the kettle with at least
one cup of water to prevent the
kettle from running when dry; such
improper use may damage the kettle.
Warning: Never exceed the maximum
level indicated by the MAX symbol
inside the kettle (Fig. 8).
MAX
Fig. 8
ATTENTION!
If you fill the kettle beyond the
maximum level, you risk having
boiling water come out, with
consequent danger of scalding and
damage to the kettle.
• Close the kettle by completely lowe-
ring the lid until you hear a “click”
(fig. 9).
CLICK
Fig. 9
Switching on/off
•
Press the ON/OFF lever
(fig. 10).
Fig. 10
The ON/OFF lever lights up : the
water heating cycle begins.
• The kettle switches off automatically
a few seconds after the water
reaches the boiling point: the
switch lever ON/OFF automatically
returns to position OFF (fig. 11)
and the lamp switches off .
MDL06 Bollitore_MicheleDeLucchi_14.indd 33 22/08/18 17:51

34
Fig. 11
• lift the kettle off the power supply
base: the heating process is inter-
rupted and and the switch lever
ON/OFF returns to initial position
(OFF).
Pouring
• Lift the kettle off the power supply
base and carefully pour the water,
keeping the lid closed (fig. 12).
Fig. 12
• Do not tilt the kettle excessively
and avoid sudden movements
when carrying it.
• During use, the bottom of the kettle
does not become very hot. It is insu-
lated: after pouring the water, you
can place the kettle on any surface.
SAFETY!
Switch lever on/off
• The kettle has an ON/OFF
switch that automatically shuts
off the kettle when the water
reaches the boiling point.
• In order to boil more water,
you have to wait about one
minute before moving the
switch to position e ON .
Safety device
• If the kettle is switched on
with or no water, a safety
device cuts electrical power
to protect the kettle against
damage.
In such case, disconnect the
kettle from the electrical
outlet and let it cool before
filling it again with cold water.
HOW TO CARE FOR YOUR
ELECTRIC KETTLE
Cleaning of the kettle
• Attention: Wait until the kettle
has completely cooled and discon-
nect the unit before cleaning it.
• Do not place the kettle under
running water and do not immerse it
in water (fig. 13).
• Do not wash the kettle
in the dishwasher.
• Rinse the inside under
running water and dry it.
• Clean the outside of
Fig. 13
MDL06 Bollitore_MicheleDeLucchi_14.indd 34 22/08/18 17:51

35
the kettle with a damp cloth and
normal soap. Dry it with a soft, dry
cloth.
• Do not use sponges or soaps
containing abrasive substances that
could damage the surface finish of
the kettle.
• When finished with cleaning,
check that the connectors, plugs,
and sockets are all perfectly dry.
• Always wait until the kettle is
completely dry before storing it.
• To rewind the power cable,
manually replace it in its housing
without stretching excessively:
it is normal for the cable
not to enter the slot
completely
(fig. 14).
Cleaning the power supply base
• Do not place the power supply
base under running water and do
not immerse it in water (fig. 15).
• Clean the power supply base
with a damp cloth and normal
soap. Dry it with a soft, dry cloth.
• Do not use sponges or soaps
containing abrasive substances
that could damage the surface
finish of the base.
Fig. 14
Fig. 15
MDL06 Bollitore_MicheleDeLucchi_14.indd 35 22/08/18 17:51

36
ATTENTION!
Lime deposits may cause the kettle
to overheat and shorten its life.
It may also cause the automatic
ON/OFF switch to trip, shutting
off the kettle before the water has
reached the boiling point.
Lime deposits
• Lime (calcium carbonate) is a harmless, natural mineral found in water, and may form a
thin deposit on the inner walls of the kettle, on the lime filter, and on the surface of the
water. Lime is not harmful to your health, but may give beverages an unpleasant taste.
To extend the life of the kettle, remove the lime regularly by cleaning the kettle with a
solution of water and vinegar. Pour the solution (50% water, 50% white vinegar) into the
kettle, bring to boil, switch off the kettle and remove it from the power supply base.
Let the solution work for a few hours (all night is better).
After the time has elapsed, pour out the solution and eliminate any remaining lime by
rinsing several times (fig. 16). Then boil water a few times (using fresh water each time)
to remove any aftertaste of the solution.
You can also use specific lime-removal products. In this case, follow the instructions on
the package.
60 sec. 12 h
Fig. 16
Lime filter maintenance
• The kettle has a lime filter
that prevents lime particles
formed in the kettle from
being poured into beverages.
• The filter can be removed (see
paragraph: Before using for the
first time) and washed in three
ways:
- Gently clean the filter under
running water with a soft nylon
brush.
- Leave the filter in the kettle when
you remove lime with the solution.
- Wash the filter in the dishwasher.
MDL06 Bollitore_MicheleDeLucchi_14.indd 36 22/08/18 17:51

37
TROUBLESHOOTING
• Problem
The kettle does not work correctly.
• Probable cause
- The voltage in your electrical
system does not match the voltage
specified on the bottom of the kettle
and/or on the power supply base.
- The kettle is not correctly placed
on the power supply base.
- The switch lever ON/OFF is not
in position ON.
- The kettle was switched on
without water.
- The kettle was switched on with
the lid open.
• Solution
- Check that the voltage in your
electrical system matches the voltage
specified on the bottom of the
kettle and/or on the power supply
base.
- Position the kettle correctly on
the power supply base so that
the power cable extends from the
slot on the kettle.
- Press the switch lever ON/OFF and
bring it to position ON.
- Pour cold water into the kettle,
wait about one minute, and then
start the heating cycle.
- Keep the lid closed during use.
• Problem
The kettle works erratically and
switches off before reaching the boi-
ling point.
• Probable cause
Lime has formed inside the kettle.
• Solution
Remove the lime (see paragraph:
Lime deposits).
Attention!: If the kettle continues to
malfunction, take it to your Alessi
dealer.
Spare parts
In case of wear, loss, or damage, you can
purchase the following replacement
parts at your Alessi dealer:
FLime filter
GPower supply base
MDL06 Bollitore_MicheleDeLucchi_14.indd 37 22/08/18 17:51
