ALFAtron B20K User manual

HDMI Extender over Cat5e/6
1
User Manual
ALFAtron B20K
HDMI 2.0 Booster
All Rights Reserved

HDMI Extender over Cat5e/6
2
Statement
Thanks for purchasing this product, please read this user manual carefully
before use. We reserve the right to make function or parameters changes
without notice or obligation.
Safety Precaution
▪Do not dismantle the housing or modify the module to avoid electrical
shock or burn.
▪Using supplies not meeting the products' specifications may cause damage,
deterioration or malfunction.
▪Do not expose the unit to rain, moisture or install this product near water.
▪Install the device in a place with fine ventilation.
▪Do not twist or pull by force ends of the optical cable. It can cause
malfunction.
▪Do not use liquid or aerosol cleaners to clean this unit.
▪Always unplug the power to the device before cleaning.
▪Unplug the power when not used for a long period of time.
▪Refer all servicing to qualified service personnel.
After-Sales Service
We provide limited warranty for the product within 7 years

HDMI Extender over Cat5e/6
3
Introduction
B20K is an HDMI 2.0 booster designed to extend 4k×2k@60Hz 4:4:4 signal up
to 20m, and 4k×2k@30Hz signal up to 35m over HDMI2.0 cables, being
powered by HDMI source, and the HDMI cables should support 18Gbps.
Feature
▪Supports HDMI2.0, HDCP2.2 compliant.
▪The total transmission distance of 4k@60Hz 4:4:4 signal is up to 20m, and
the maximum distance from HDMI output to display supports 10m.
▪The total transmission distance of 4k@30Hz signal is up to 35m, and the
maximum distance from HDMI output to display supports 15m.
▪The total transmission distance of 1080p signal is up to 50m, and the
maximum distance from HDMI output to display supports 30m.
▪▪No need of any external power supply, simplifying the installation and
operation.
Package Content
▪1 x B20K
▪1 x Velcro Tape
▪1 x User Manual

HDMI Extender over Cat5e/6
4

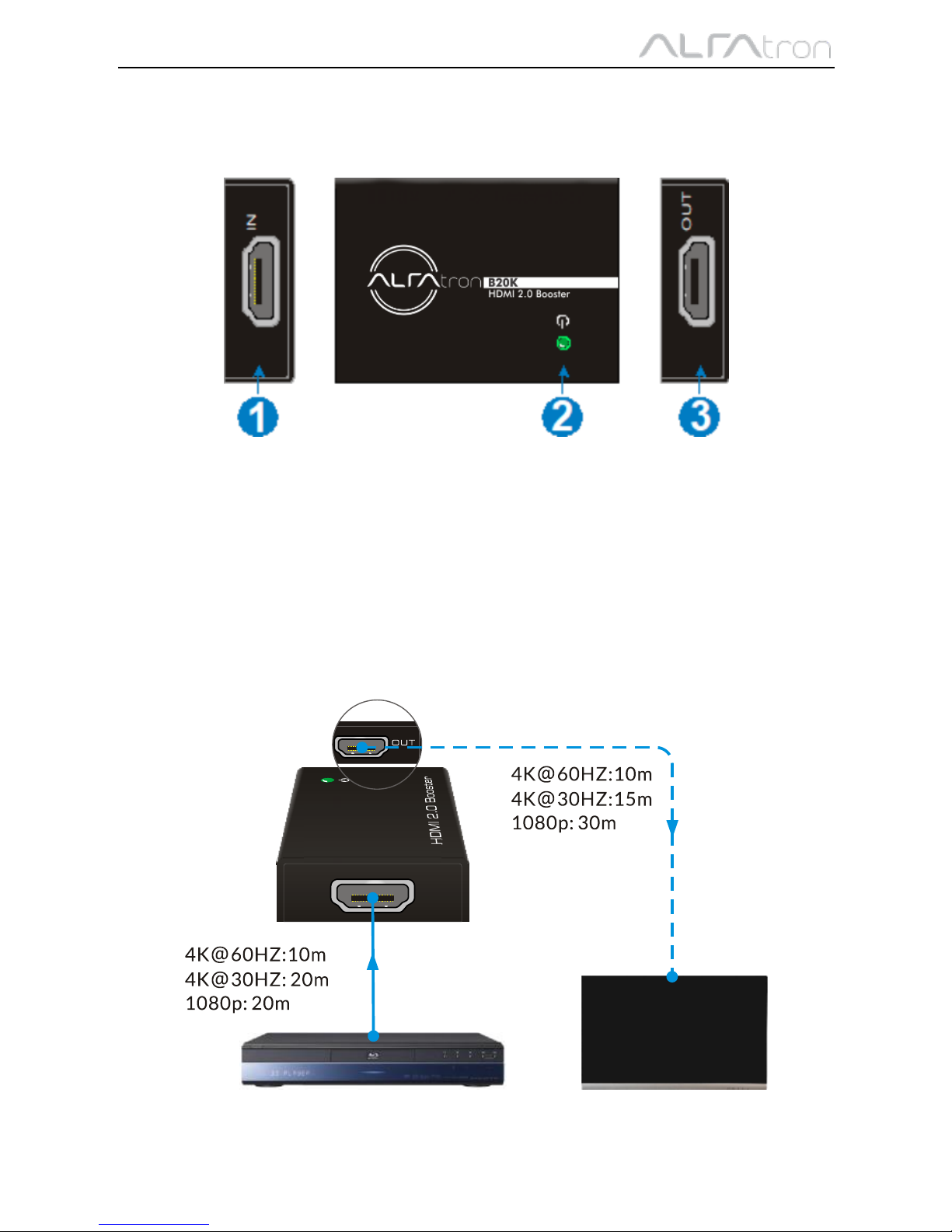

Panel Description
①INPUT: Connect with HDMI source
②Power LED: GREEN when powered on
③OUTPUT: Connect with HDMI display
System Diagram
IN
TVDVD

HDMI Extender over Cat5e/6
5
Specifications
Input & Output
Input
(1) HDMI
Input Connector
(1) 19-pin type-A female HDMI
Output
(1) HDMI
Output Connector
(1) 19-pin type-A female HDMI
General
Transmission Distance
4Kx2K@60Hz 4:4:4≤20m;
4Kx2K@30Hz 4:4:4≤ 35m;
1080p≤50m
HDMI Standard
HDMI2.0
HDCP Standard
Input supports HDCP2.2
Bandwidth
18Gbps
Work Temperature
0~40℃
Storage Temperature
-10~55℃
Relative Humility
10%-90%
Dimensions (W*H*D)
35.5mm x 12 mm x 49 mm
Weight
52g
