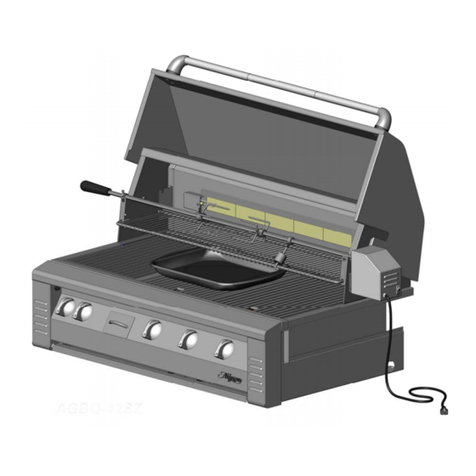

Alfresco AGBQ-42 User manual

ADRIAN CRISCI

LAST SAVED BY: »» adrian «« September 24, 2007 10:14:47 AM
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
7039 EAST SLAUSON AVENUE
SUPERIOR EQUIPMENT SOLUTIONS 42" BBQ - GAS MANIFOLD - TRIPLE BURNER

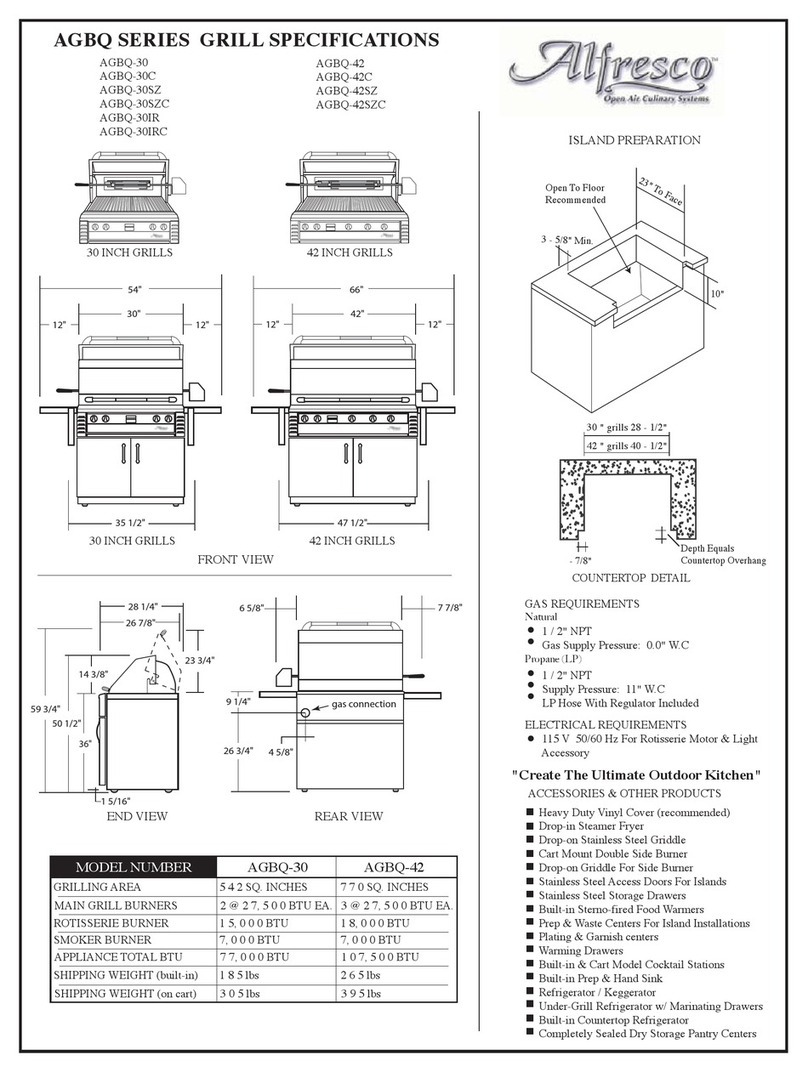

42" BBQ ALFRESCO UNIT
CREATED:
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0032
March 16, 2005 11:13:00 AM SHEET 1 OF 1
\\Engnas\ses-engineering\DWGS\Alfresco\BBQ'S\42 IN\
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
DRAWN BY:
SHOWN ASSEMBLED
BILL OF MATERIAL
NO. PART NUMBER DESCRIPTION QTY.
1 100-0914 ROTISSERIE GAS LINE (42"L x 3/8" Ø - SS. FLEX TUBE) 1
2 100-0933 SMOKER GAS LINE - 3/16" Ø AL TUBING 1
3 200-0274 ELBOW 90°- CAST IRON - 1/2" FPT x 1/2" MPT 2
4 220-0272 COUPLING 3/16" COMP x 1/4" FPT 1
5 220-0273 ELBOW 90° - 1/8" FPT x 3/16" COMP 1
6 220-0276 ELBOW 3/8" MPT x 1/8" FPT x 3/8" COMP 1
7 220-0277 NIPPLE 1/8"MPT x 1/16"MPT 1
8 220-0280 REGULATOR GAS - MAXITROL RV48CL440002 1
9 220-0294 MANIFOLD - GAS - FOR 42" BBQ 1
10 290-0041 GAS VALVE - STRAIGHT - WITHOUT ORIFICES 1
11 290-0066 GAS VALVE - ANGLED - ORIFICE: INT= 0.95 mm /
EXT=NONE 1
12 SEE NOTE ORIFICE - SMOKER UNIT >>> SEE NOTE 1
13 SEE NOTE ORIFICE - IR ROTISSERIE UNIT >>> SEE NOTE 1
14 SEE NOTE GAS VALVE - ANGLED WITH ORIFICE >>> SEE NOTE 3
5
13
6
1
10 14
9
11
38
3
12
4
2
7
NOTE: THE FOLLOWING ITEMS WILL
CHANGE PART NUMBERS DEPENDING
UPON THE GAS SUPPLY, NATURAL GAS
(NG) OR LIQUID PROPANE (LP)
NG LP
PART N° PART N°
12 220-0287 220-0288
13 220-0285 220-0286
14 290-0064 290-0065
ITEM N°
