Alibaba Cloud SAG-100WM User manual

Alibaba Cloud
Smart Access Gateway
sag-100wm Configuration Guide
Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / Legal disclaimer
Legal disclaimer
Alibaba Cloud reminds you to carefully read and fully understand the terms and
conditions of this legal disclaimer before you read or use this document. If you have
read or used this document, it shall be deemed as your total acceptance of this legal
disclaimer.
1. You shall download and obtain this document from the Alibaba Cloud website
or other Alibaba Cloud-authorized channels, and use this document for your
own legal business activities only. The content of this document is considered
confidential information of Alibaba Cloud. You shall strictly abide by the
confidentiality obligations. No part of this document shall be disclosed or provided
to any third party for use without the prior written consent of Alibaba Cloud.
2. No part of this document shall be excerpted, translated, reproduced, transmitted,
or disseminated by any organization, company, or individual in any form or by any
means without the prior written consent of Alibaba Cloud.
3. The content of this document may be changed due to product version upgrades
, adjustments, or other reasons. Alibaba Cloud reserves the right to modify
the content of this document without notice and the updated versions of this
document will be occasionally released through Alibaba Cloud-authorized
channels. You shall pay attention to the version changes of this document as they
occur and download and obtain the most up-to-date version of this document from
Alibaba Cloud-authorized channels.
4. This document serves only as a reference guide for your use of Alibaba Cloud
products and services. Alibaba Cloud provides the document in the context that
Alibaba Cloud products and services are provided on an "as is", "with all faults
" and "as available" basis. Alibaba Cloud makes every effort to provide relevant
operational guidance based on existing technologies. However, Alibaba Cloud
hereby makes a clear statement that it in no way guarantees the accuracy, integrity
, applicability, and reliability of the content of this document, either explicitly
or implicitly. Alibaba Cloud shall not bear any liability for any errors or financial
losses incurred by any organizations, companies, or individuals arising from
their download, use, or trust in this document. Alibaba Cloud shall not, under any
circumstances, bear responsibility for any indirect, consequential, exemplary,
incidental, special, or punitive damages, including lost profits arising from the use
Issue: 20190425 I

Smart Access Gateway sag-100wm Configuration Guide / Legal disclaimer
or trust in this document, even if Alibaba Cloud has been notified of the possibility
of such a loss.
5. By law, all the content of the Alibaba Cloud website, including but not limited to
works, products, images, archives, information, materials, website architecture,
website graphic layout, and webpage design, are intellectual property of Alibaba
Cloud and/or its affiliates. This intellectual property includes, but is not limited
to, trademark rights, patent rights, copyrights, and trade secrets. No part of the
Alibaba Cloud website, product programs, or content shall be used, modified
, reproduced, publicly transmitted, changed, disseminated, distributed, or
published without the prior written consent of Alibaba Cloud and/or its affiliates
. The names owned by Alibaba Cloud shall not be used, published, or reproduced
for marketing, advertising, promotion, or other purposes without the prior written
consent of Alibaba Cloud. The names owned by Alibaba Cloud include, but are
not limited to, "Alibaba Cloud", "Aliyun", "HiChina", and other brands of Alibaba
Cloud and/or its affiliates, which appear separately or in combination, as well as
the auxiliary signs and patterns of the preceding brands, or anything similar to
the company names, trade names, trademarks, product or service names, domain
names, patterns, logos, marks, signs, or special descriptions that third parties
identify as Alibaba Cloud and/or its affiliates).
6. Please contact Alibaba Cloud directly if you discover any errors in this document.
II Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / Legal disclaimer
Issue: 20190425 III

Smart Access Gateway sag-100wm Configuration Guide / Generic conventions
Generic conventions
Table -1: Style conventions
Style Description Example
This warning information
indicates a situation that will
cause major system changes,
faults, physical injuries, and other
adverse results.
Danger:
Resetting will result in the loss of
user configuration data.
This warning information
indicates a situation that may
cause major system changes,
faults, physical injuries, and other
adverse results.
Warning:
Restarting will cause business
interruption. About 10 minutes are
required to restore business.
This indicates warning informatio
n, supplementary instructions,
and other content that the user
must understand.
Notice:
Take the necessary precautions
to save exported data containing
sensitive information.
This indicates supplemental
instructions, best practices, tips,
and other content that is good to
know for the user.
Note:
You can use Ctrl + A to select all
files.
> Multi-level menu cascade. Settings > Network > Set network
type
Bold It is used for buttons, menus
, page names, and other UI
elements.
Click OK.
Courier
font
It is used for commands. Run the cd / d C :/ windows
command to enter the Windows
system folder.
Italics It is used for parameters and
variables.
bae log list --
instanceid Instance_ID
[] or [a|b] It indicates that it is a optional
value, and only one item can be
selected.
ipconfig [-all|-t]
Issue: 20190425 I

Smart Access Gateway sag-100wm Configuration Guide / Generic conventions
Style Description Example
{} or {a|b} It indicates that it is a required
value, and only one item can be
selected.
swich {stand | slave}
II Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / Generic conventions
Issue: 20190425 III

Smart Access Gateway sag-100wm Configuration Guide / Contents
Contents
Legal disclaimer...................................................................... I
Generic conventions................................................................ I
1 SAG-100WM overview........................................................... 1
2 Configuration guide..............................................................5
3 Web configuration................................................................ 6
3.1 Step 1: Configure the local client................................................................6
3.2 Step 2: Set the password upon your first logon............................................6
3.3 Step 3: Configure the WAN port.................................................................8
3.4 Step 4: Configure the LAN ports................................................................. 8
4 Activate the device..............................................................12
5 Configure the network connection...................................... 13
6 Step 5: Configure an ACL rule..............................................15
7 View the connection status of the device............................. 16
IV Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / 1 SAG-100WM
overview
1 SAG-100WM overview
The SAG-100WM device is suitable for connecting small branches and outlets to
Alibaba Cloud. This device does not require a pre-existing web configuration.
Specifications
Property SAG-100WM
Operating environment Indoor environment (no fan provided)
Operating temperature 0℃‒45℃
Storage temperature -40℃‒70℃
Power 12 V DC
Power consumption 12 W
Two GE/FE RJ45 WAN portsNetwork interface
Three GE/FE RJ45 LAN ports
Wi-Fi IEEE 802.11 b/g/n, 2.4 G 150 Mbps, 20
terminals, 100m2 coverage
LTE FDD: B1, B3, B5, B8
LTE TDD: B38, B39, B40, B41
WCDMA: B1, B5, B8
TD SCDMA: B34, B39
GSM: B3, B8
4G LTE (Mainland China)
CDMA EVDO/1X: 800M
LTE FDD: B1, B3, B5, B8
WCDMA: B1, B5, B8
4G LTE (Outside China)
GSM: B3, B8
USB USB 2.0, 500ma
Accessories
After receiving the Smart Access Gateway device, check that the following items are
provided:
• A Smart Access Gateway device
• A power cable
Issue: 20190425 1

Smart Access Gateway sag-100wm Configuration Guide / 1 SAG-100WM
overview
Note:
If any item is missing or damaged, contact Alibaba Cloud after-sales personnel.
Front panel
There are five LEDs on the front panel of the SAG-100WM Smart Access Gateway
device:
LED indicator Description
LTE Indicates whether the device communication is normal:
• Flickering: Data transmission is normal.
• Off: No card is inserted.
WAN Indicates the Ethernet status of the device:
• On: The device is connected to the Ethernet.
• Flickering: Data transmission is normal.
• Off: The device is not connected to the Ethernet.
WIFI Indicates the WIFI connection status of the device:
• On: The WLAN is enabled.
• Flickering: Data transmission is normal.
• Off: The WLAN is not enabled.
RUN Indicates the status of the Smart Access Gateway device:
• On: The device is powered on.
• Flickering: Data transmission is normal.
• Off: The device is not powered on.
CLOUD Indicates whether the device is connected to Alibaba Cloud:
• On: The device is connected to the CEN.
• Off: The device is not connected to the CEN.
Rear panel
There is one reset button, one SIM slot, one USB port, two WAN ports, three LAN
ports, and a power interface on the rear panel of Smart Access Gateway:
2 Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / 1 SAG-100WM
overview
• RESET key
To restore the Smart Access Gateway to its default configurations, press and hold
the reset button for five seconds while the device is powered on.
The default administration IP address of the Smart Access Gateway device is 192.
168.0.1.
• SIM slot
Insert a SIM card into the slot.
• USB port
Currently, you cannot use a 4G USB to access the Internet.
• WAN port
The WAN port is used for accessing the Internet. It supports SNAT forwarding,
dynamic IP, static IP, and PPoE.
• LAN port
LAN ports are used for connecting local clients and can be connected to the switch
through configured routes.
• DC power socket
The power interface is on the far right side of the panel. The power supply must be
12-V DC power supply.
Note:
We recommend that you use the original power cable.
Networking mode
The SAG-100WM device connects local clients to Alibaba Cloud through inline mode.
The network topology is unchanged for this device.
Issue: 20190425 3

Smart Access Gateway sag-100wm Configuration Guide / 1 SAG-100WM
overview
4 Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / 2 Configuration guide
2 Configuration guide
Before you can use your gateway device, you need to power it on and complete the
Web and network configurations.

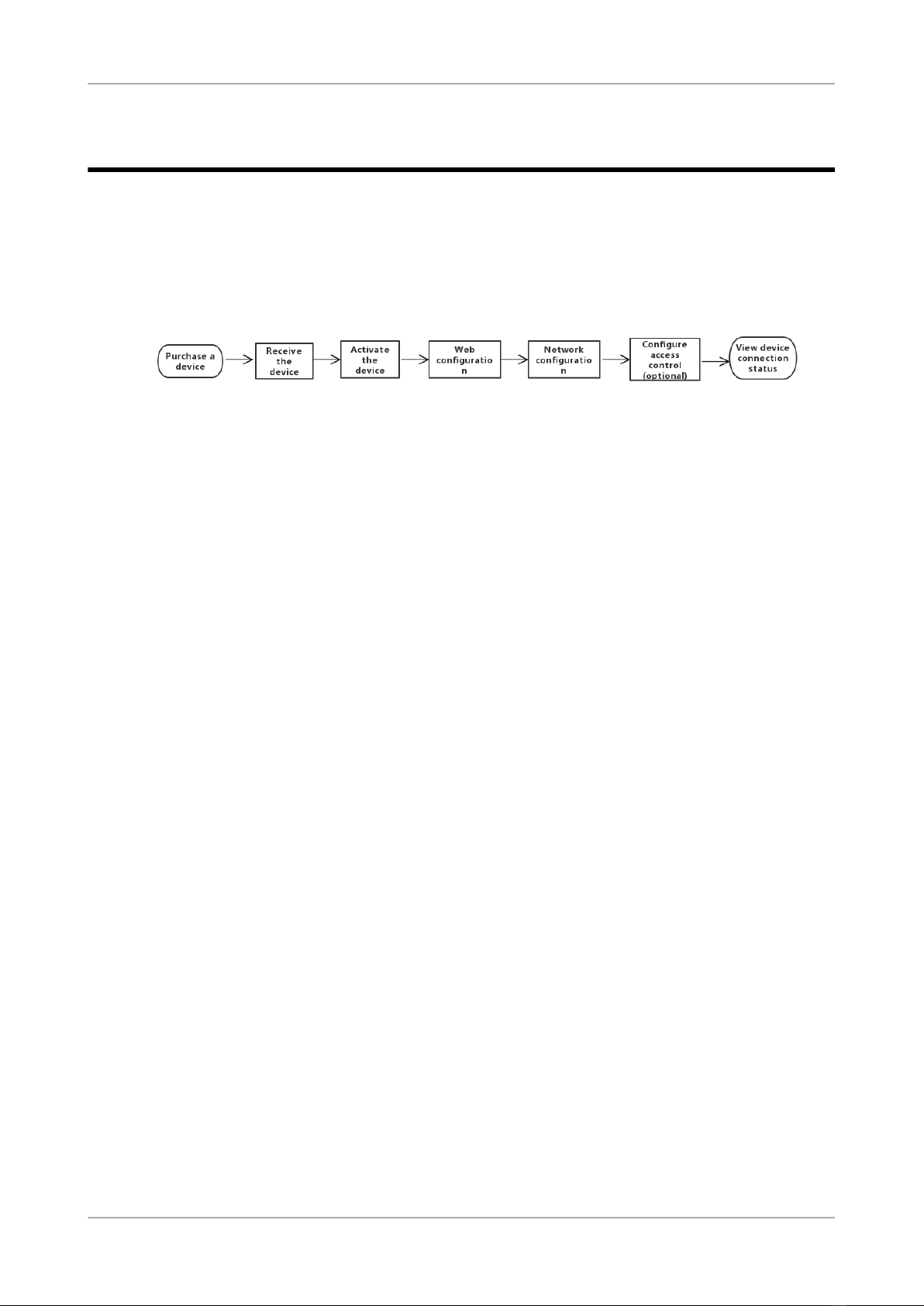

If you use an SAG-100WM device to access Alibaba Cloud, the process is as follows:
When you receive the device after you Buy a Smart Access Gateway, follow these steps to
access Alibaba Cloud through the SAG-100WM device:
1. Configure the local client
2. Activate the device
3. Configure the network connection
4. Configure access control (optional)
5. View the connection status of the device
Issue: 20190425 5

Smart Access Gateway sag-100wm Configuration Guide / 3 Web configuration
3 Web configuration
3.1 Step 1: Configure the local client
Before performing the Web configuration for the SAG-100WM gateway device, you
must enable DHCP on local clients so that the clients can connect to the device.
Windows client configuration
To configure a static IP address for a Windows client, follow these steps:
1. In the lower right corner, right-click the network connection icon, and then click
Open the Network and Sharing Center.
2. In the left-side panel, click Change Adapter Configurations.
3. Right-click the connected network, and then click Properties.
4. Double-click the Internet Protocol Version 4 (TCP/IPv4) option.
5. Select Automatically Obtain the IP Address and Automatically Obtain the DNS
Server Address.
6. Click OK.
Mac client configuration
To configure a static IP address for a Mac client, follow these steps:
1. On the desktop, click the System Preferences icon, then click Network in the
Internet and Wi-Fi option.
2. Click the connected network and then click Advanced.
3. On the Ethernet configuration page, click the TCP/IP tab page.
4. In the Configure IPv4 option, select Use DHCP.
3.2 Step 2: Set the password upon your first logon
After you power on the Smart Access Gateway device for the first time, you need to go
to the Web configuration page and set the logon password before you can continue
using the device.
Prerequisites
Before logging on to the Web configuration page, make sure that:
• The Smart Access Gateway is powered on.
6 Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / 3 Web configuration
• The LAN port of the Smart Access Gateway is connected to the local client.
• The local client has DHCP enabled to automatically obtain an IP address.
Procedure
1. Enter the default Web configuration address 192 . 168 . 0 . 1 of the gateway
device in your browser.
Note:
• If the LAN port uses a static IP address that you configured, log on by using that
IP address.
• If the LAN port uses a dynamic IP address (that is, you have configured CIDR
blocks on the console, the WAN port has DHCP enabled, and the cloud status
LED turns on when the network cable is connected), log on by using the first IP
address in the first CIDR block configured on the console.
For example, if the first CIDR block specified by you is 192.168.0.0/16, the Web
configuration address is 192.168.0.1.
• If neither the LAN port nor the console is configured, the default address is
192 . 168 . 0 . 1 .
2. Set the logon password.
3. Click OK.
Keep your logon password confidential. If you forget your password, press and
hold the reset button on your device for two seconds and then log on to the Web
console to reset the password.
• To clear all configurations of the gateway device, power the device on and press
and hold the reset button for five seconds or until the cloud status LED starts to
flicker.
• To restore the gateway device to its default configurations, first power off the
device, and then press and hold the reset key while powering the device back on
until the cloud status LED is on, which means the device is restoring.
The default configurations are fully restored when the cloud LED status goes off.
Issue: 20190425 7

Smart Access Gateway sag-100wm Configuration Guide / 3 Web configuration
3.3 Step 3: Configure the WAN port
The WAN port of Smart Access Gateway is used for configuring Internet access and
supports dynamic IP addresses, static IP addresses, and PPPoE connections.
Procedure
1. Log on to the web configuration page of the Smart Access Gateway device.
2. Enter the logon password and click OK.
3. Click WAN Port Management. On the WAN Configuration page, configure the WAN
port.
4. Select whether to enable SNAT forwarding. If SNAT forwarding is enabled, packets
sent to the WAN from the LAN are forwarded by using NAT by default.
Select a connection mode:
• Dynamic IP address:
Select this mode to allow access to the Internet by using an IP address allocated
by a DHCP server from a router.
• Static IP address:
Select this mode to allow access to the Internet by using a specified IP address
. If this mode is selected, you must configure the subnet mask and gateway in
addition to the Static IP address.
Note:
The specified static IP address and the uplink router device must be in the same
CIDR block.
• PPPoE connection: Select this mode if you want to access the Internet by using
dial-up. Afterwards, enter the PPPoE account and password given by the service
provider.
5. Click OK.
3.4 Step 4: Configure the LAN ports
This topic describes how to configure the LAN ports. The LAN ports are used for
connecting the local clients.
Procedure
8 Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / 3 Web configuration
1. Log on to the web configuration page of the Smart Access Gateway device.
2. After the WAN port is configured, click LAN Port Management.
3. On the LAN Port Management page, configure the LAN ports.
• Wi-Fi function
The LAN ports are used for connecting local clients. If you enable the Wi-Fi
function, configure the LAN ports according to the following information.
Configuration Description
SSID The name of the LAN. It is used for differentiating
networks and can be customized.
SSID broadcast Wi-Fi devices can search out the Wi-Fi signal of the SSID
only after SSID broadcast is enabled.
Wi-Fi Security If you enable Wi-Fi security, you can set a password.
If you disable Wi-Fi security, no password is set and the Wi
-Fi can be accessed by any one.
Authentication
type
WPA-PSK and WPA2-PSK authentication are supported. Of
the two, WPA2-PSK authentication features a higher level
of security.
Encryption
algorithm
- TKIP is a temporal key integrity protocol and is insecure
. We do not recommend using it.
- AES is an efficient encryption standard for Wi-Fi
authorization.
Issue: 20190425 9

Smart Access Gateway sag-100wm Configuration Guide / 3 Web configuration
Configuration Description
Password Set the Wi-Fi password.
• Wired mode
The LAN ports are used for connecting local clients. If you use network cables to
connect the LAN ports, select a connection mode:
- Dynamic IP address:
The IP addresses used by the LAN ports are allocated from the first CIDR
block in the network configuration of the console.
If your local clients directly access Alibaba Cloud by using Smart Access
Gateway as shown in the following figure, use the default configuration.
- Static IP address:
If the IP address of the local client has been configured by using the switch as
shown in the following figure, use a static IP address.
10 Issue: 20190425

Smart Access Gateway sag-100wm Configuration Guide / 3 Web configuration
To use a static IP address, you must configure the static IP address and the
route:
■ Static IP address: The IP address of the gateway device.
Note:
Make sure the static IP address does not conflict with any network
connected to the gateway device.
■ If the LAN ports are connected through static IP, you need to add a route to
the Smart Access Gateway and the switch separately.
■ Route configuration of Smart Access Gateway
On the LAN configuration page, click Route configuration. Add a route.
The destination CIDR block of the route is the IP address of the client
and the next hop of the route is the IP address of the switch.
If you have multiple clients, you must configure a route for each client.
■ Route configuration of the switch
■ To connect the switch to VPC, you must add a route in the switch. The
destination CIDR block of the route is the CIDR block of the VPC and
the next hop is the static IP address of the LAN port.
■ If local branches want to connect with each other by using Smart
Access Gateway, add routes to the switch. The destination CIDR block
of each route is the IP address of each local branch and the next hop
of each route is the static IP address of each LAN port.
Issue: 20190425 11

Smart Access Gateway sag-100wm Configuration Guide / 4 Activate the device
4 Activate the device
After receiving the gateway device, you must activate it.
Procedure
1. Log on to the Smart Access Gateway console.
2. On the SAG page, find the target gateway instance.
3. Click Activate in the Actions column.
12 Issue: 20190425
