Smart Access Gateway SAG-1000 Configuration Guide / 1 SAG-1000 overview
1 SAG-1000 overview
The SAG-1000 Smart Access Gateway is suitable for connecting large branches and
headquarters to Alibaba Cloud through one-arm mode.
Specifications
Property SAG-1000
Casing Metal, matte black, mountable
Size 1 U, halfwidth
Operating environment Indoors
Operating temperature 0℃‒45℃
Storage temperature -40℃‒70℃
Power supply 12 V DC (Power adapter and power cable
included)
Power consumption <60 W
Two SFP optical portsInterface
The number of electric ports varies by
manufacturer. Generally, four or six GE/
FE RJ45 electric ports are provided.
Accessories
After receiving the Smart Access Gateway device, check that the following items are
provided:
• A Smart Access Gateway device
• A power cable
Note:
If any item is missing or damaged, contact Alibaba Cloud after-sales personnel.
SAG-1000 are delivered from three manufacturers randomly.
Issue: 20190228 1

Smart Access Gateway SAG-1000 Configuration Guide / 1 SAG-1000 overview

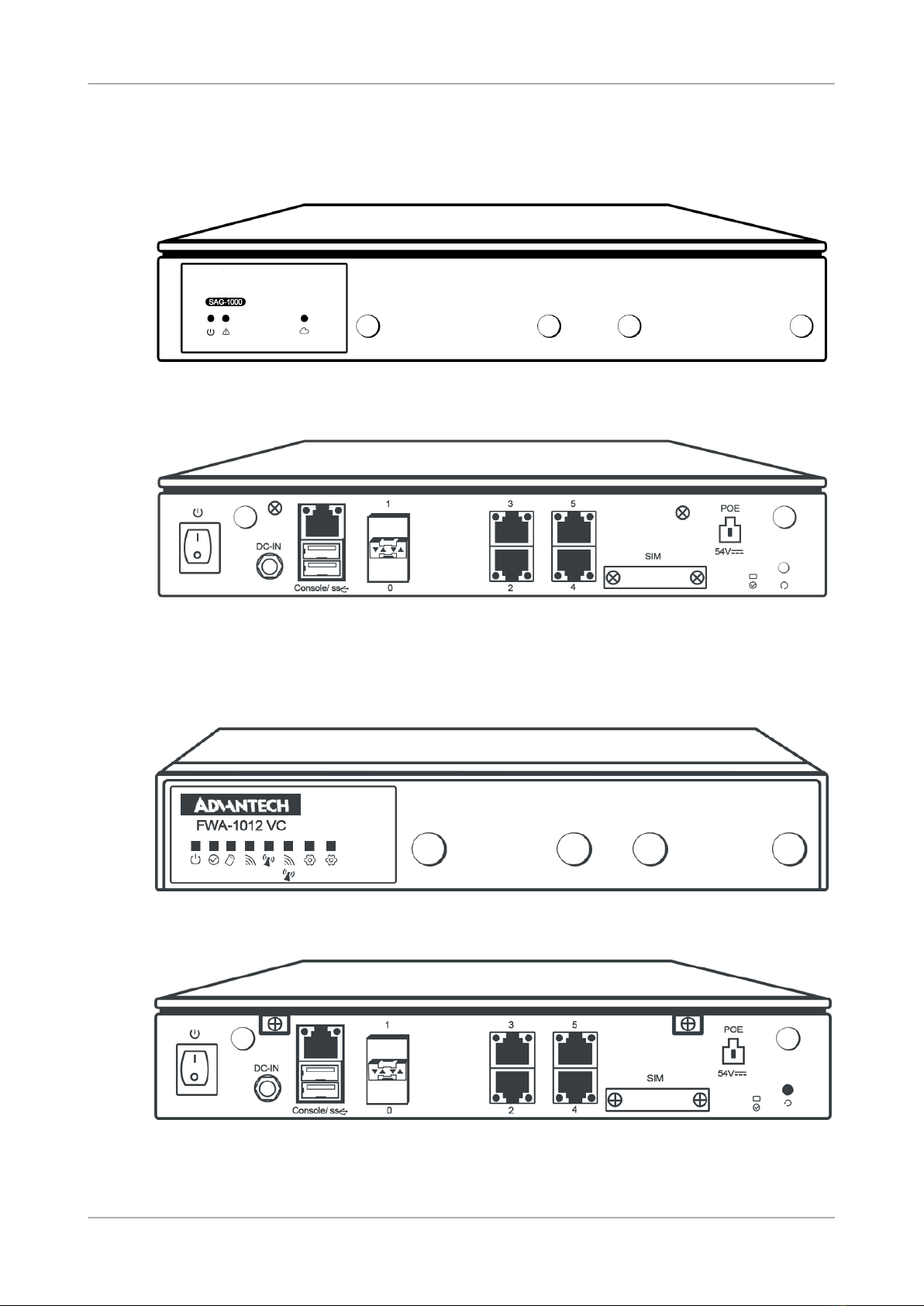

Type 1
• Front panel
• Rear panel
Type 2
• Front panel
• Rear panel
2 Issue: 20190228

Smart Access Gateway SAG-1000 Configuration Guide / 1 SAG-1000 overview

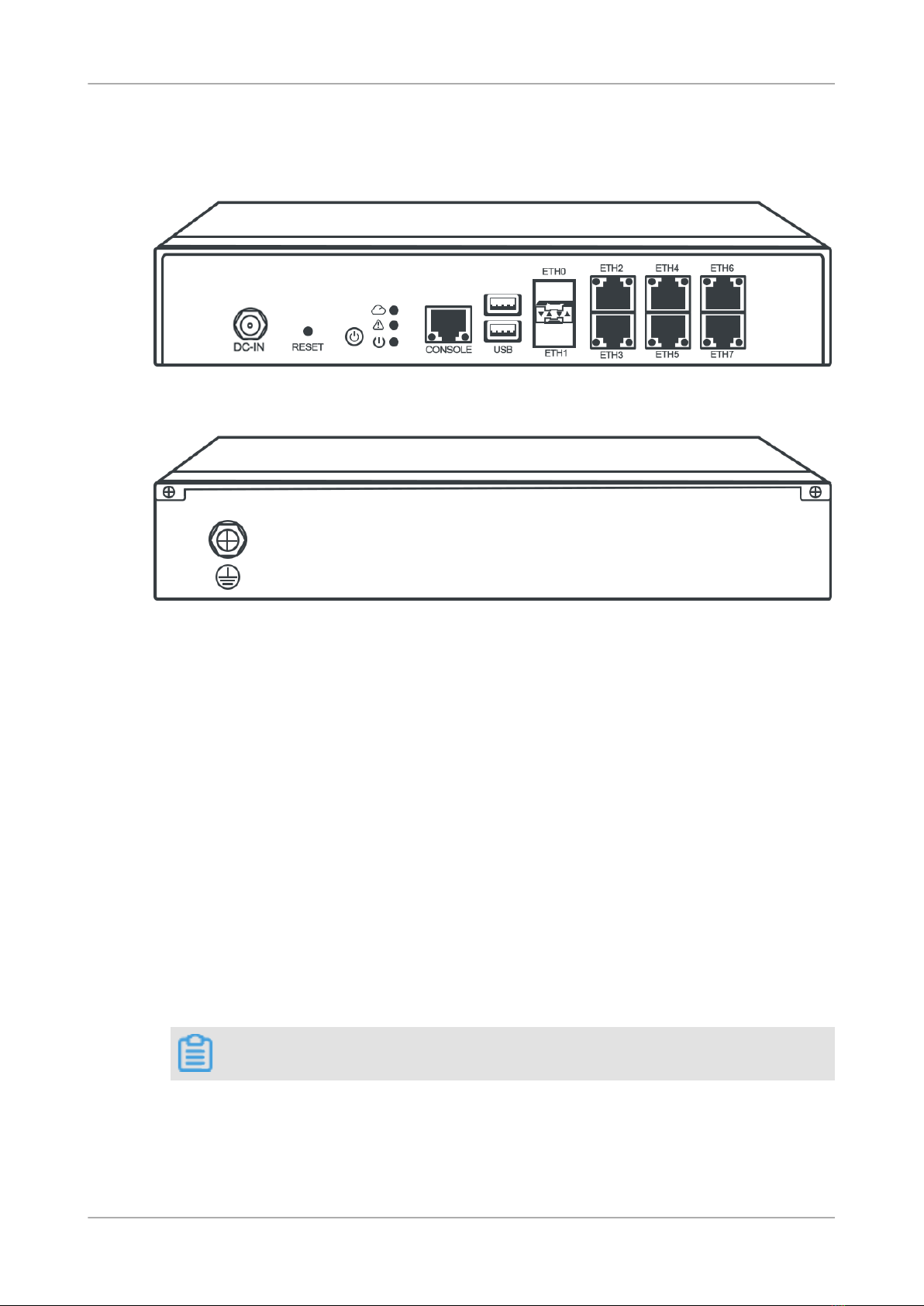

Type 3
• Front panel
• Rear panel
The following is an overview about a Smart Access Gateway device of the Type 1
category. (Types 2 and 3 devices, although different in appearance, possess the same
functions as Type 1 devices.)
• Front panel
- LED indicators
Three LED indicators designated for power, alarms, and the cloud connection
status.
• Rear panel
- Ports
Two SFP optical ports and four electric ports. Port 2 is the default administra
tion port. Port 2 is the default administration port.
Note:
Issue: 20190228 3

Smart Access Gateway SAG-1000 Configuration Guide / 1 SAG-1000 overview
The default administration IP address of the Smart Access Gateway device is
192.168.0.1.
- Reset button
You can reset the Smart Access Gateway to its default configurations by pressing
the reset button three times within 10 seconds while the device is powered on.
- USB port
You can use a 4G USB drive to access the Internet.
- Power socket
Located on the left-hand side of the front panel. The power supply must be 12 V
DC.
Note:
We recommend that you use the original power cable.

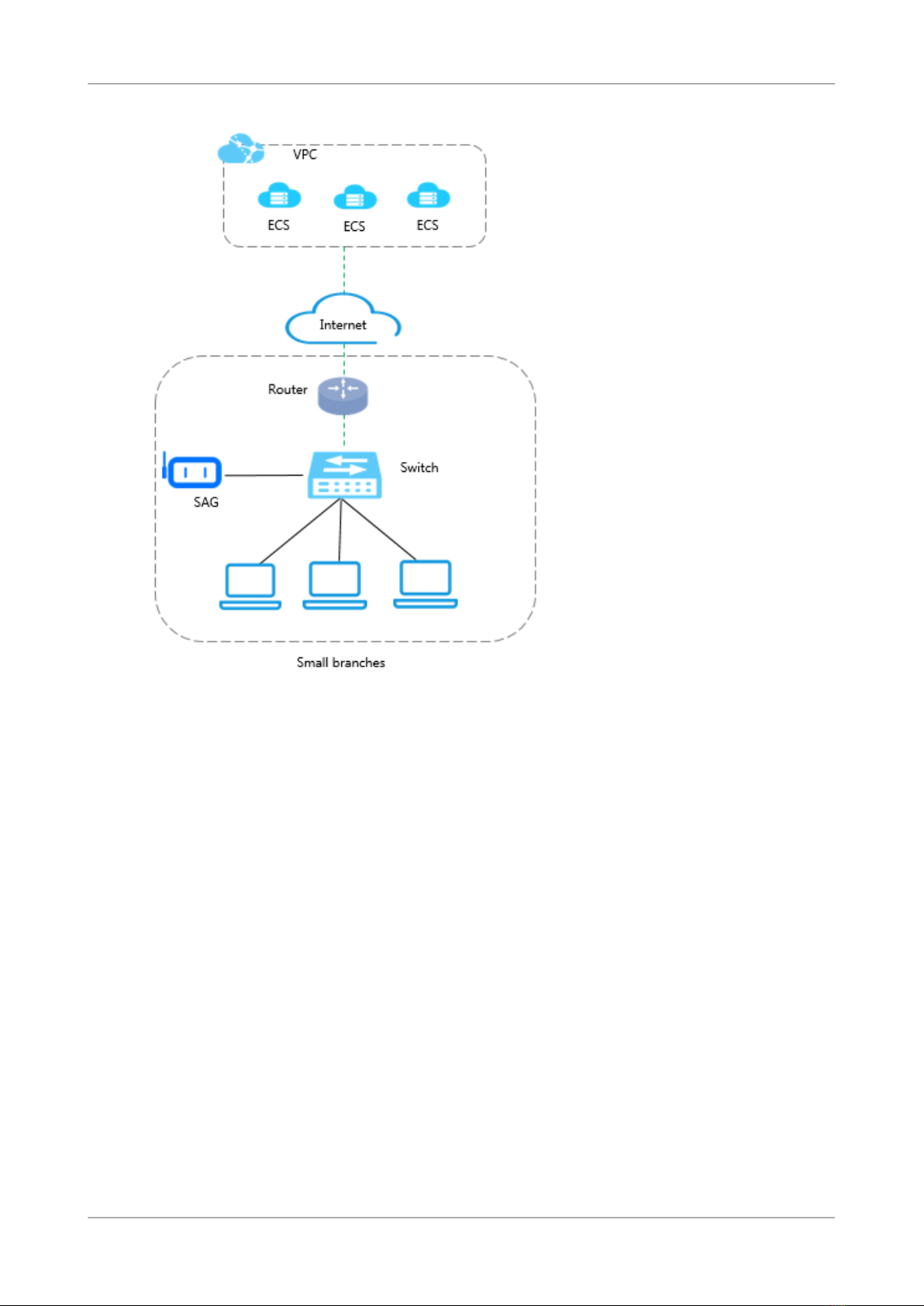

Networking mode
The SAG-1000 Smart Access Gateway device is connected to the switch through one-
arm mode. This means it can connect local clients to Alibaba Cloud without changing
the current network topology.
4 Issue: 20190228

Smart Access Gateway SAG-1000 Configuration Guide / 1 SAG-1000 overview
Issue: 20190228 5

Smart Access Gateway SAG-1000 Configuration Guide / 2 Configuration guide
2 Configuration guide
After you receive your new gateway device, power on the gateway device to complete
the web configurations so that you can start using it.

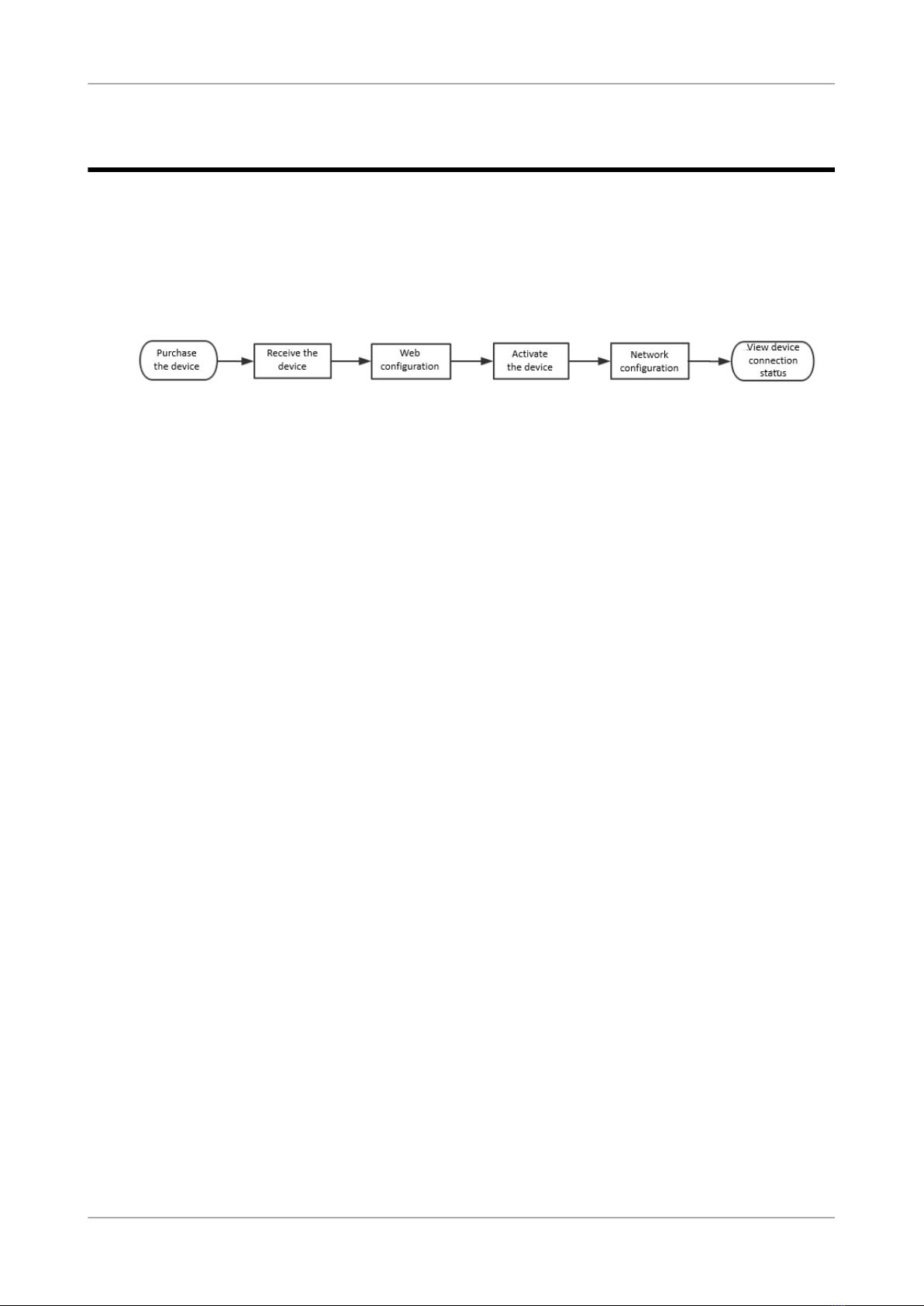

If you use the SAG-100 device to access Alibaba Cloud, the process is as follows:
When you receive the device after you Buy a Smart Access Gateway device, follow these
steps to access Alibaba Cloud through the SAG-100.
•Step 1: Configure the local client
•Step 2: Set the password when you log on for the first time
•Step 3: Configure the service IP and the administration IP
•Step 4: Configure the ports and routes
6 Issue: 20190228

Smart Access Gateway SAG-1000 Configuration Guide / 3 Web configuration
3 Web configuration
3.1 Step 1: Configure the local client
Before performing web configurations on the SAG-100, you must configure the static
IP address of the local client to access the web configurations.
Windows client configuration
To configure a static IP for a Windows client, follow these steps:
1. Right-click the network connection icon in the lower right corner, then click Open
the Network and Sharing Center.
2. In the left-side panel, click Change Adapter Configurations.
3. Right-click the connected network and then click Properties.
4. Double-click the Internet Protocol Version 4 (TCP/IPv4) option.
5. Select the Use the following IP addresses option and enter the static IP address and
subnet mask to use.
Notice:
Ensure that the IP address is in the administration CIDR block of the gateway
device (the default administration CIDR block is 192.168.0.0/24) and does not
conflict with other IP addresses. For example, 192.168.0.99. You do not need to
configure the gateway and DNS.
6. Click OK.
Mac client configuration
To configure a static IP for a Mac client, follow these steps:
1. On the desktop, click the System Preferences icon, and then click Network in the
Internet and Wi-Fi option. Open Network and Sharing Center.
2. Click the connected network and then click Advanced.
3. On the Ethernet configuration page, click the TCP/IP tab page.
4. In the Configure IPv4 option, select Manual, and enter the static IP and subnet
mask to use.
Notice:
Issue: 20190228 7

Smart Access Gateway SAG-1000 Configuration Guide / 3 Web configuration
Ensure that the IP address is in the administrator CIDR block of the gateway
device (the default administrator CIDR block is 192.168.0.0/24) and does not
conflict with other IP addresses. For example, 192.168.0.99. You do not need to
configure the router and DNS.
3.2 Step 2: Set the password when you log on for the first time
When you log on to the Web console for the first time after powering on the Smart
Access Gateway, you must set the logon password of the Web console.
Prerequisites
Before logging on to the web configuration page, make sure that:
• The Smart Access Gateway has been started.
• The local client is already configured with a static IP. For more information, see
Step 1: Configure the local client.
• The local PC is connected to Port 2 of the Smart Access Gateway through a network
cable.
Procedure
1. Enter 192 . 168 . 0 . 1 in your browser.
192 . 168 . 0 . 1 is the default web configuration address of the gateway
device.
2. Enter a logon password.
Keep your logon password securely. If you forget the password, press the reset
button once within 10 seconds to reset the password.
Notice:
If you press the reset button at least three times within 10 seconds, all
configurations will be cleared.
3. Log on to the web configuration page.
8 Issue: 20190228

Smart Access Gateway SAG-1000 Configuration Guide / 3 Web configuration
3.3 Step 3: Configure the service IP and the administration IP
After you configure the user name and password and log on to the web configuration
page, you can configure the service IP and administration IP of the gateway device.
Port 2 is the administration port by default.
Procedure
1. On the web configuration page, click Service IP Configuration.
2. Configure the service IP and administration IP according to the following
information, and then click OK.
Configuration Description
Service IP The service IP is used to establish the VPN tunnel.
Notice:
Make sure that the specified service IP can access the
Internet. For one-arm mode, you must enable NAT mapping
at the Internet egress.
Administration
port
The administration port is used for local web access. Port 2 is
the administration port by default.
Administration IP The administration IP is used for web access of the local
client.
Whether to isolate Select whether to isolate the service port from the
administration port:
• Yes: This port can only be used as a local web
administration port and cannot be used as a service port.
In the isolation mode, the service traffic and the
administration traffic do not affect each other, so higher
security is achieved.
• No: This port is used as both the local web administration
port and the service port.
Next hop If you choose to isolate the service port from the administra
tion port, specify the next hop of the administration port.
Issue: 20190228 9

Smart Access Gateway SAG-1000 Configuration Guide / 3 Web configuration
3.4 Step 4: Configure the ports and routes
There are six ports on the SAG-1000 device. Port 0 and Port 1 are SFP optical ports,
and Ports 2-5 are RJ45 electrical ports. You can configure a static route or OSPF routes
for port connection.
Procedure
1. On the Web configuration page, click Port Settings.
2. Configure the ports of the gateway device according to the following information,
and then click OK.
Configuration Description
Connection
method
Choose to access the switch using static or dynamic routing.
Notice:
When dual-device one-arm mode is used, only dynamic
routing is supported.
Port Click the Edit option in the Configuration Information area,
enter the IP of the port used for communication and select
whether to enable OSPF.
Port 2 is the default administrator port.
OSPF routing configuration
Area ID The ID of the area.
Make sure that area IDs of Smart Access Gateway 1 and
Smart Access Gateway 2 are different.
Hello_time The interval at which hello packets are sent, in seconds.
Default value: 3 seconds.
dead_time The dead interval of OSPF neighbor, in seconds. The
neighbor relation stops if no hello packet is received during
the dead time.
Default value: 10 seconds.
Authentication
method
Select an authentication method.
• Do not authenticate: Do not perform authentication.
• Clear Text Authentication: Enter a clear text password.
• MD5 Authentication: Use the MD5 method to perform
authentication. Enter the MD5 key ID and the MD5 key.
Routerid The ID of the OSPF router. We recommend that you directly
use the service IP.
10 Issue: 20190228

Smart Access Gateway SAG-1000 Configuration Guide / 3 Web configuration
Configuration Description
Area Type The area type is NSSA by default.
3.5 Step 5: Configure ACL (optional)
You can add security group rules to manage the intranet traffic of local branches.
Procedure
1. Log on to the web configuration page of the Smart Access Gateway device.
2. After the WAN port is configured, click Next to configure ACL.
3. Select a rule direction, and then click Add Rule to configure security rules.
Configuration Description
Rule direction • Outbound: Traffic sent from the local branch connected to
Smart Access Gateway.
• Inbound: Traffic sent to the local branch connected to
Smart Access Gateway.
Source address • Outbound: The private CIDR block of the local branch that
initiates the access.
• Inbound: The private CIDR block that accesses the local
branch.
Destination
address
• Outbound: The external destination CIDR block to be
accessed.
• Inbound: The destination CIDR block of the local branch
to access.
Source port The source port range of the transport layer. 0/65535
represents all ports.
Protocol type The transport layer protocol.
Destination port The destination port range of the transport layer. 0/65535
represents all ports.
Authorization
policy
Select Allow or Deny.
Priority Valid range: 1 ~ 100. The smaller the number, the higher
the priority. If the priority of two rules is the same, the rule
added earlier takes effect.
Issue: 20190228 11

Smart Access Gateway SAG-1000 Configuration Guide / 4 Activate the device
4 Activate the device
After receiving the gateway device, you must activate it.
Procedure
1. Log on to the Smart Access Gateway console.
2. On the SAG page, find the target gateway instance.
3. Click Activate in the Actions column.
12 Issue: 20190228
