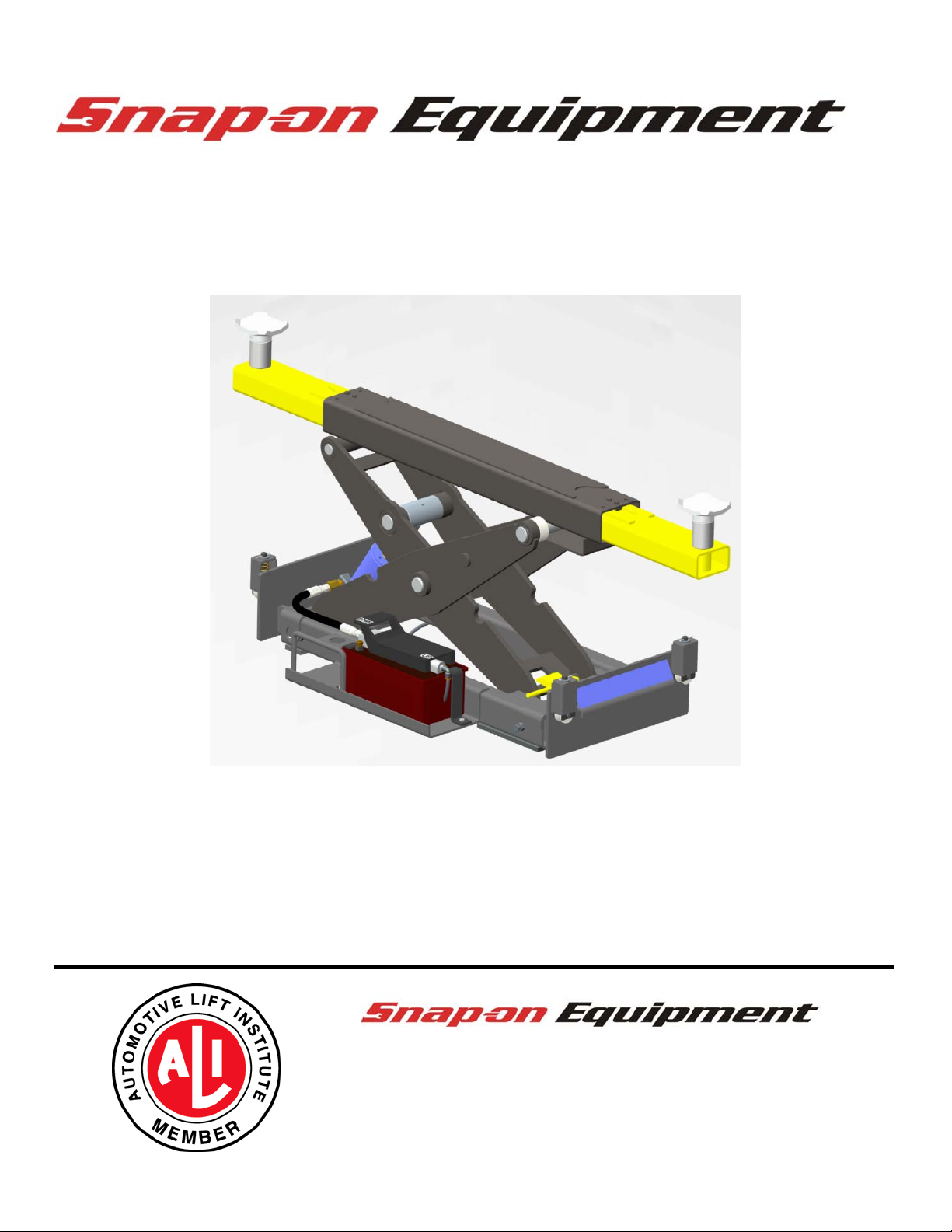

Alico Snap-on Equipment EELR571A User manual

AIR-HYDRAULIC ROLLING JACKBEAM
CAPACITY: 9000 LBS.
MODELS: EELR571A
6500 Millcreek Drive, Mississauga, Ontario, L5N 2W6
Customer Service 1-800-268-7959
OCT 2016 REV. -
6-4350
INSTALLATION AND OPERATION MANUAL
READ ALL INSTRUCTIONS THOROUGHLY BEFORE INSTALLING,
OPERATING, SERVICING, OR MAINTAINING THE LIFT.

2 of 19
OWNER / EMPLOYER OBLIGATIONS
1. The Owner/Employer shall ensure that lift operators are qualified and that they are trained in the
safe use and operation of the lift using the manufacturer’s operating instructions; ALI/SM 93-1,
ALI Lifting it Right safety manual; ALI/ST-90 ALI Safety Tips card; ANSI/ALI ALOIM-2008,
American National Standard for Automotive Lifts - Safety Requirements for Operation,
Inspection and Maintenance; ALI/WL Series, ALI Uniform Warning Label Decals/Placards;
and in the case of frame engaging lifts, ALI/LP-GUIDE, Vehicle Lifting Points/Quick Reference
Guide for Frame Engaging Lifts.
2. The Owner/Employer shall establish procedures to periodically inspect the lift in accordance with
the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008, American National Standard for
Automotive Lifts - Safety Requirements for Operation, Inspection and Maintenance; and the
Employer shall ensure that the lift inspectors are qualified and that they are adequately trained in
the inspection of the lift.
3. The Owner/Employer shall establish procedures to periodically maintain the lift in accordance with
the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008, American National Standard for
Automotive Lifts - Safety Requirements for Operation, Inspection and Maintenance; and the
Employer shall ensure that the lift maintenance personnel are qualified and that they are
adequately trained in the maintenance of the lift.
4. The Owner/Employer shall maintain the periodic inspection and maintenance records
recommended by the lift manufacturer’s instructions or ANSI/ALI ALOIM-2008, American
National Standard for Automotive Lifts - Safety Requirements for Operation, Inspection and
Maintenance.
5. The Owner/Employer shall display the lift manufacturer’s operating instructions; ALI/SM 93-1, ALI
Lifting it Right safety manual; ALI/ST-90 ALI Safety Tips card; ANSI/ALI ALOIM-2008,
American National Standard for Automotive Lifts - Safety Requirements for Operation,
Inspection and Maintenance; ALI/WL Series, ALI Uniform Warning Label Decals/Placards;
and in the case of frame engaging lifts, ALI/LP-GUIDE, Vehicle Lifting Points/Quick Reference
Guide for Frame Engaging Lifts in a conspicuous location in the lift area convenient to the
operator.
6. The Owner/Operator shall provide necessary lockout/tagout means for energy sources per ANSI
Z244.1-1982 (R1993), Safety Requirements for the Lockout/Tagout of Energy Sources,
before beginning any lift repairs and maintenance.
7. The Owner/Employer shall not modify the lift in any manner without the prior written consent of the
manufacturer.

3 of 19
JACKBEAM INSTALLATION AND OPERATION MANUAL
The Jackbeam should only be used with lifts installed on level concrete floors conforming to the
installation instructions for the lift. Consult lift installation instructions for concrete thickness and
strength requirements. Ensure clearance around and above lift conforms to installation instructions
for the lift.
ATTENTION! This lift is intended for indoor installation only. It is prohibited
to install this product outdoors. Operating environment temperature range
should be 41 – 104 °F (5 – 40 °C). Failure to adhere will result in
decertification, loss of warranty, and possible damage to the equipment.
Installation of lifts shall be performed in accordance with ANSO/ALI ALIS, Safety Requirements for
Installation and Service of Automotive Lifts
For additional safety instructions regarding lifting, lift types, warning labels, preparing to lift, vehicle
spotting, vehicle lifting, maintaining load stability, emergency procedures, vehicle lowering, lift
limitations, lift maintenance, good shop practices, installation, operator training and owner/employer
responsibilities, please refer to “Lifting It Right” (ALI/SM) and “Safety Tips” (ALI/ST).
For additional instruction on general requirements for lift operation, please refer to “Automotive Lift-
Safety Requirements For Operation, Inspection and Maintenance” (ANSI/ALI ALOIM).
NOTE: Air supply must be lubricated and include water separator. Failure to do so will
damage the air /hydraulic motor and void the manufacturer’s warranty.

4 of 19
Table of Contents
1.0Specifications.............................................................................................................. 5
2.0Shipping Contents....................................................................................................... 6
3.0Safety Instructions ...................................................................................................... 6
4.0Position the Jackbeam on Lift..................................................................................... 7
5.0Operating Instructions................................................................................................. 9
6.0Storage Position of Jackbeam................................................................................... 11
7.0Positioning of Vehicle on Jackbeam......................................................................... 11
8.0Recommended Maintenance..................................................................................... 12
9.0Trouble Shooting ...................................................................................................... 14

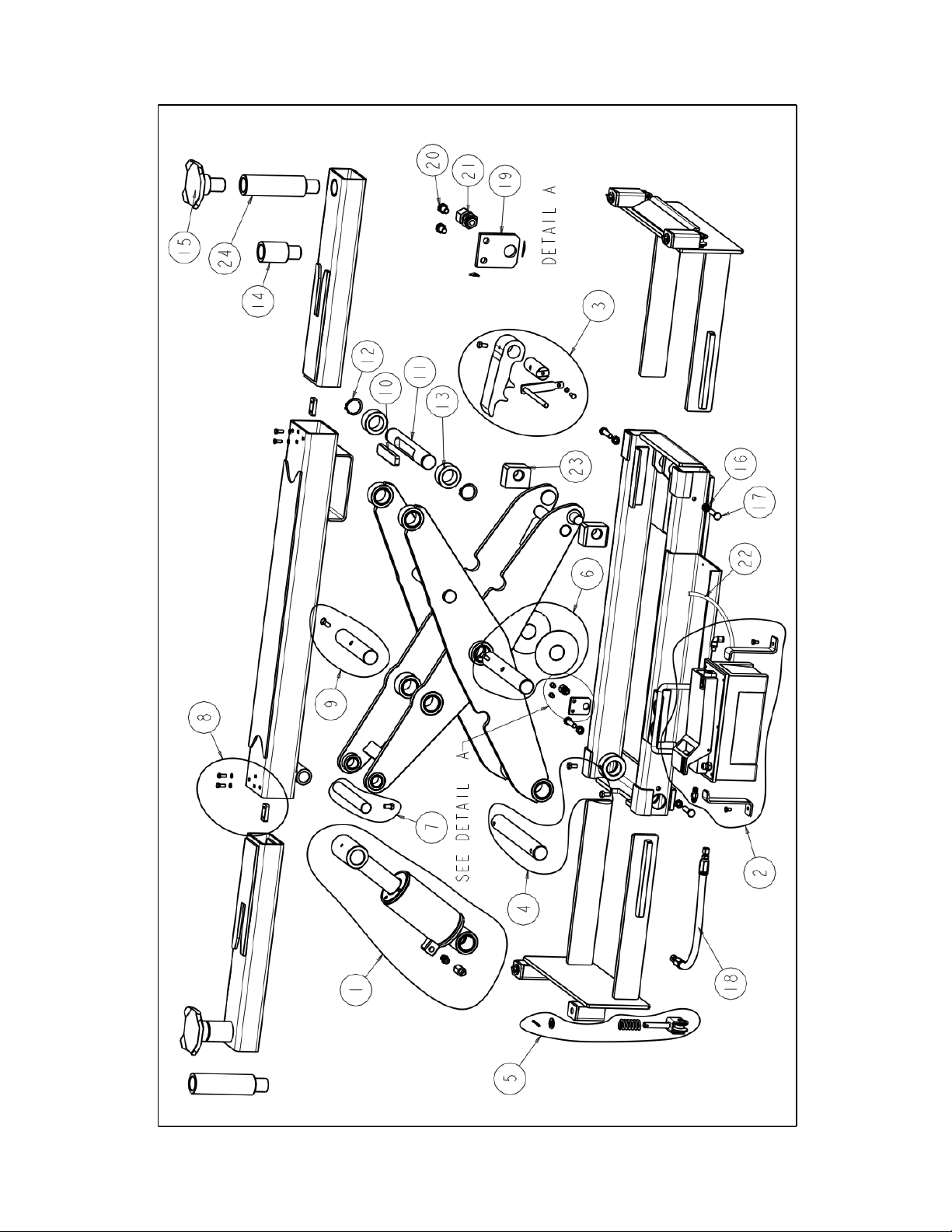

10.0Parts List: Exploded View........................................................................................ 15
11.0Jackbeam Parts List................................................................................................... 16
12.0Maintenance Schedule.............................................................................................. 18

5 of 19
1.0 Specifications
Maximum Capacity: 9000 lbs 4082 kg
Max. Width Rail to Rail: 45-1/2” 1156 mm
Min. Width Rail to Rail: 35-1/2” 900 mm
Arms Fully Extended: 56-1/8” 1426 mm
Arms Fully Retracted: 37” 940 mm
Min Drive Over Height (w/ Pad): 5-5/16" 143 mm
Max. Raised Height (no extensions): 16-13/16" 427 mm
Pad Adapter Heights (short / tall): 2-7/16" / 6" 62 mm / 152 mm
Air Supply Requirements: 90 – 140 psi @5-10CFM
Max Operating Hydraulic Pressure: 3842 psi
Hydraulic Oil Type: ISO 32 (10 weight) hydraulic oil
Hydraulic Pump Reservoir Capacity: 1/2 gal (1.89 L)
Figure 1- Jack Beam Specifications

6 of 19
2.0 Shipping Contents
The Jackbeam is fully assembled and packaged to protect it during shipping.
Included are the following components:
o(1) Jackbeam Assembly, including:
- Jackbeam Body
- Lifting Arms with Lifting Pads
- Air/Hydraulic Pump
o(4) Lifting Pad Extension Adapter
- (2) 3" Adapters
- (2) 6" Adapters
o(1) Jackbeam accessory kit (2ft-1/4" polytube, 1/4" NPT elbows, Terminals, recoil
hoses, mounting brackets and hardware)
o(1) Installation and Operation Manual
oWherever LOCTITE symbol is shown, apply LOCTITE #242 on required
fasteners. If fasteners are removed reapply LOCTITE before re-installing.
3.0 Safety Instructions
Never allow unauthorized or untrained persons to operate the Jackbeam.
Thoroughly train all employees in the use and care of the Jackbeam.
Be aware of the clearance between the vehicle and the nearest overhead obstruction.
To avoid personal injury and/or property damage, the Jackbeam must only be operated by
trained personnel.
Never overload the Jackbeam. Capacity of Jackbeam is stated on nameplate, DO NOT
exceed.
Observe and avoid any pinch point areas of the Jackbeam.
Never operate a Jackbeam that is not in proper working order or in a manner not
recommended by the vehicle or Jackbeam manufacturer.
Always ensure that the mechanical safety is engaged whenever a vehicle is supported by the
Jackbeam.
Load evenly; do not place weight on one side of the Jackbeam.

7 of 19
4.0 Position the Jackbeam on Lift
Lock out and tag out the compressed air supply to the lift. Release the stored air within
the unit by draining it by depressing the water drain at the FRL.
DO NOT USE YOUR FINGER TO DEPRESS THE DRAIN. COMPRESSED AIR
COULD ENTER YOUR BLOODSTREAM AND CAUSE SERIOUS INJURY OR
DEATH.
Note: The Jackbeam must be positioned on the lift correctly prior to usage. The pump side of the
Jackbeam should face the direction included in Figure 2.
1. Following the manufacturer's instructions in the lift manual, lower the lift to the ground or lock
the lift on the first safety lock depending on the lifting device used to place the Jackbeam on
the rails.
2. Check the rail width between the two runways and ensure that the distance between the
railways is equal along the entire length of the lift, then check if the Jackbeam rollers can be
adjusted to the desired railway width.
3. Using a shop crane, forklift or other lifting device raise the Jackbeam and place it in between
the runways, orient the Jackbeam with air/hydraulic pump towards inwards (front and rear).
See Figure 2. Lower the Jackbeam to just above the rail on the inside of the Runway.
4. Extend each roller adapter from the base of the Jackbeam
and place on lift with the rollers centered on the deck rails.
see Figure 3.

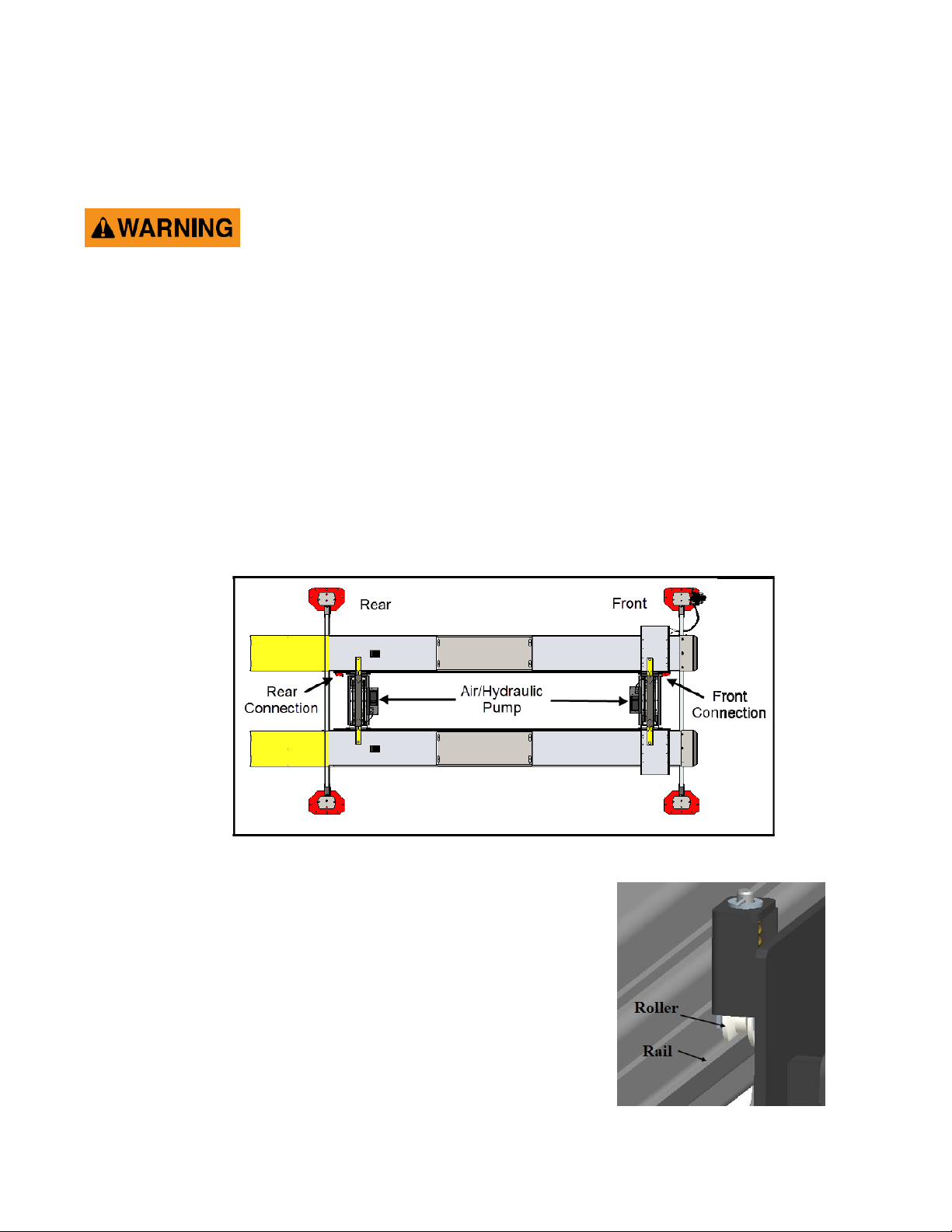

Figure 2-Jackbeam Orientation
Figure 3-Roller Seat on Rail

8 of 19
5. Raise the lift to a comfortable working height. Check the clearance and movement of the
Jackbeam by sliding the Jackbeam forward and backward on the rails. Check that the rollers
are centered on the rails at all points along the rail's length. Adjustment of the base arms may
be necessary to assure proper operation.
6. Tighten the bolts and nuts to retain the roller adapters. See Figure 6.
7. Bolt the mounting bracket to the location on the base frames of Jackbeams that are closer to
the connection terminal on the DS runway, using the supplied hardware in the accessory kit.
Mount the terminal fitting onto the bracket. See Figure 2 & 4.
8. Remove the thread protector from the air inlet of the pump, and install the 1/4" NPT 90° elbow
from accessory kit on to the air/hydraulic pump. Then route the polytube underneath Jackbeam
from the elbow to the terminal on bracket. See Figure 5.
9. Remove 1/4" plugs from terminal at front and rear lift. Attach one end of the recoil hose to the
terminal on Jackbeam base frame, than attach the other end of the recoil hose to the terminal
fitting on the side of the lift runway. See Figure 6.
Figure 4-Bracket and Terminal Figure 5-Air Hose Routing
Figure 6-Recoil Hose Connection (Front)

9 of 19
10. Remove the plug with vent breather on top of reservoir to check the hydraulic oil level and fill
as need, then replace the plug.
11.Loosen metal knob on the pump by turning counterclockwise before use. See Figure 7.

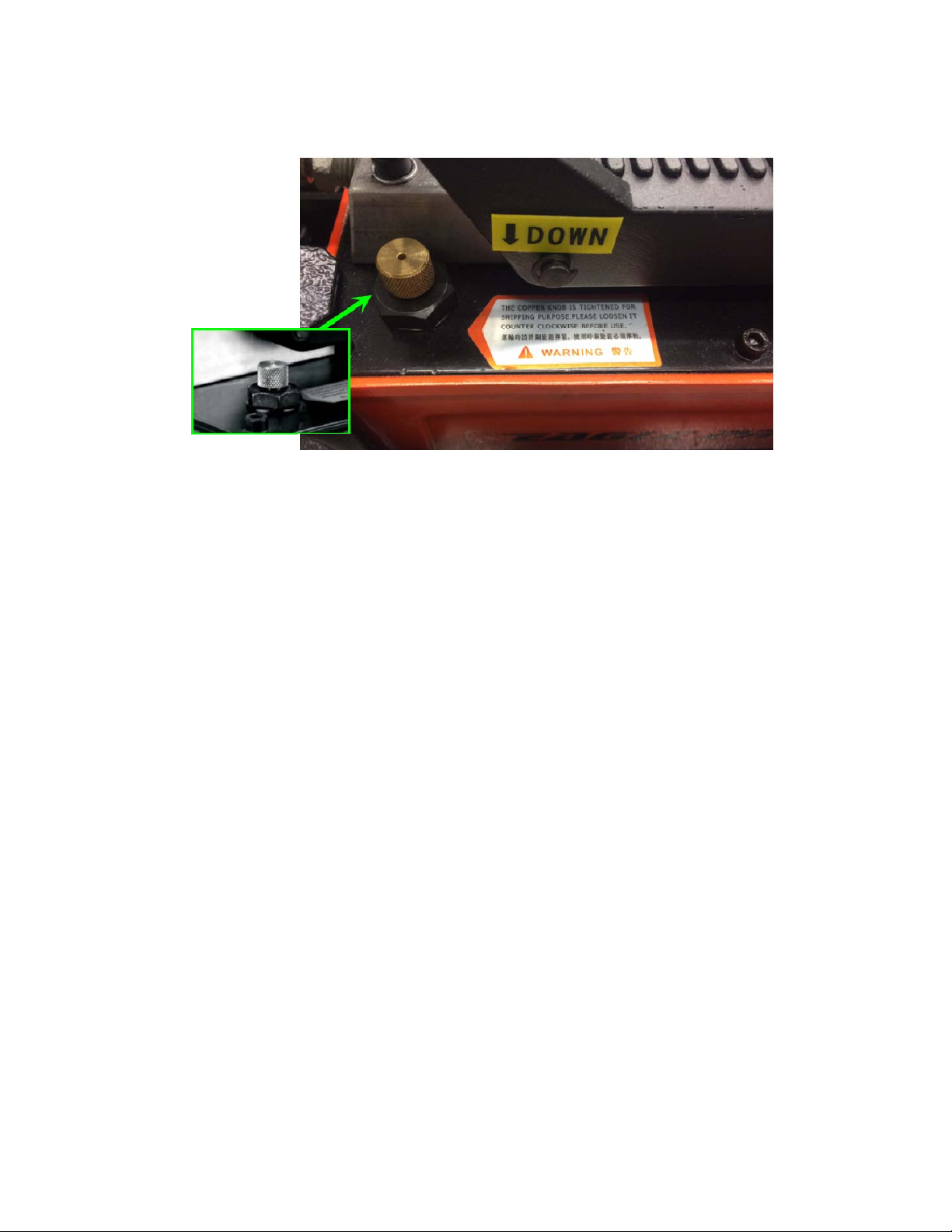

Figure 7- Copper knob on pump
12. Repeat the above process for other Jackbeam.
13. Restore compressed air supply to the lift and check for leaks.
14.Prior to placing vehicle on lift, raise and lower the Jackbeam multiple times without any load
and Do following final checks. See sections “5.0 Operation Instructions”
Final Check the followings:
Check proper function of mechanical safety locks
Check for air and hydraulic leaks
Check hydraulic oil level
Lubrication of moving components
All screws, bolts, and pins secured
Surrounding area clean
Operation, maintenance and Safety Manual on site.
AN APPROPRIATE AIR LINE REGULATOR, WATER SEPARATOR AND LUBRICATOR
SHOULD BE INSTALLED ON THE AIR SUPPLY LINE. THE ABSENCE OF THESE ITEMS
WILL VOID THE WARRANTY ON PNEUMATIC COMPONENTS.
5.0 Operating Instructions
Raising the Jackbeam
1. Position the vehicle on the lift and raise the lift to the desired working height following the
operating instructions noted in the lift operating manual. Always ensure that the lift is securely
positioned on the mechanical safety locks prior to raising the vehicle off the runways.

10 of 19
2. Position the Jackbeam at the correct lifting points for the vehicle. Refer to the vehicle
manufacturer’s literature or, "lifting it right guide" or "vehicle recommend lift points guide" for
correct lifting locations.
3. Choose the appropriate pad adapter and ensure it is properly seated into the lifting arm.
Extended the lifting arms into position under the vehicle lift points as necessary.
4. Press and hold the Raise end of the pedal
of Air/Hydraulic pump until the vehicle
wheels have sufficient clearance from the
runway surface for the type of service being
performed. Ensure that the Jackbeam can
be lowered onto a mechanical safety lock.
See Figure 8.
5. Press the Lower end of the pedal of
Air/Hydraulic pump to lower the Jackbeam
until it is secured on the mechanical lock.
Lowering the Jackbeam
1. Raise the Jackbeam off the mechanical safety lock. Then release the safety lock by pushing
and holding the Safety Release Handle. See Figure 9.
2. Press the Lower end of the pedal of Air/Hydraulic pump to release pressure allowing the
Jackbeam to lower to its full down position.
3. Once Jackbeam is completely collapsed, release the safety lock.
NOTE: The Safety Release handle is gravity returned to “reset” the safety.
NOTE: After reading these instructions, get familiar with the controls by running the
Jackbeam through a few cycles before loading vehicle on lift.
Figure 8-Pump Operation
Figure 9-Release Safety Lock

11 of 19
6.0 Storage Position of Jackbeam
In order to allow for adequate vehicle drive-on clearance,
1. When not in use, store Jackbeams towards the center of the lift.
2. Ensure lift is fully collapsed.
3. Remove lifting pads if additional clearance is required.
7.0 Positioning of Vehicle on Jackbeam
1. The vehicle must be positioned correctly on the lift prior to raising the vehicle with the
Jackbeam. With the vehicle’s center of gravity equally spaced between the runways, the
Jackbeam can be used to lift the vehicle. Then raise the runways to desired working height.
NOTE: Make sure to set parking brake and use wheel chocks to secure vehicle in
position before raising the vehicle.
ATTENTION: Lifting an improperly positioned vehicle with Jackbeam
increases the possibility of one deck leading or lagging the other deck.
2. Raise the lift to the desired working height, move the Jackbeam to the desired pickup area.
Refer to the "Lifting points guide" for vehicle lifting information.
3. NOTE: Lift vehicle at vehicle manufacturer’s recommended pickup points only. Please refer to
ALI/LP-GUIDE, Vehicle Lifting Points/Quick Reference Guide for Frame Engaging Lifts.
4. Select lifting points that are the same distance from the centerline of the vehicle, i.e. position
the lifting pads so that they make contact at the same point on each side of the vehicle.
5. With the Jackbeam positioned at the desired location, select the proper lifting pads to insert
into the arms. If required, add a 2-7/16" extension adapter below vehicle.
ATTENTION: Use the same size pad extension adapter on each lifting arm.
Failure to adhere may cause vehicle damage and/or personal injury.
6. Extend the arms to the desired pickup point. If required, raise the Jackbeam so the arms can
be extended above the runways.
ATTENTION: Lifting arms should be extended equally as to avoid any off-
load the vehicle that may cause vehicle damage and/or personal injury.

12 of 19
7. As the Jackbeam raises the vehicle, the load on the Jackbeam is transferred from the rollers to
the lift. The roller assemblies on the Jackbeam are spring loaded and are meant to carry the
weight of the Jackbeam only. When load is applied, the structure cannot be moved.
8. When the vehicle is raised to the desired working height, lower the Jackbeam onto the nearest
safety lock before servicing the vehicle, refer back to section “5.0 Operation Instructions”.
9. To lower the vehicle, refer back to section “5.0 Operation Instructions”.
ATTENTION! Do not raise lift while vehicle is supported by the Jackbeams.
Failure to adhere may cause vehicle damage and/or personal injury.
8.0 Recommended Maintenance
Daily:
1. Inspect that the Jackbeam is in proper working condition.
2. Make certain that the automatic engaging safety drops into place when the Jackbeam is raised
and that it will release when held in the up position during lowering.
3. Inspect air/hydraulic system for leaks.
4. Inspect for loose bolts, broken/damaged components. Replace as required.
5. Keep the entire Jackbeam as clean as possible at all times.
6. Ensure that the lifting arm stops are working correctly. Fully extend each arm until the stop
engages.
7. Inspect condition and stack ability of lifting pads. Replace any broken or damaged
components.
8. Check filter lubricator oil level and fill if needed. Hydraulic oil: ISO 32 (10 weight).
Monthly:
1. Keep the air source clean and make certain that an air filter is used to keep dirt out of the air
motor. To maintain a clean shop air supply, an FRL (Filter/Regulator/Lubricator) should always
be in good working order in conjunction with the use of an oiler/separator.
NOTE: It is the user(s) responsibility to supply an air filter/lubricator to ensure a clean dry air
source is provided to the air/hydraulic pump. Failure to provide clean dry air may void
manufacturers’ warranty. Please contact customer service regarding Optional Kit # 0100.
2. Check functionality of the rollers, keep clean.

13 of 19
3. Grease upper and lower slider block areas. Use multipurpose, extreme pressure grease such as
Megaplex XD%, NGLI grade 2 or other equivalent.
4. Add grease to center hinge nipple, see Figure 10.
ATTENTION! Discontinue the use of the Jackbeam immediately if any
component(s) are damaged, defective, worn or broken. Please contact
Customer Service 1-800-225-5786.

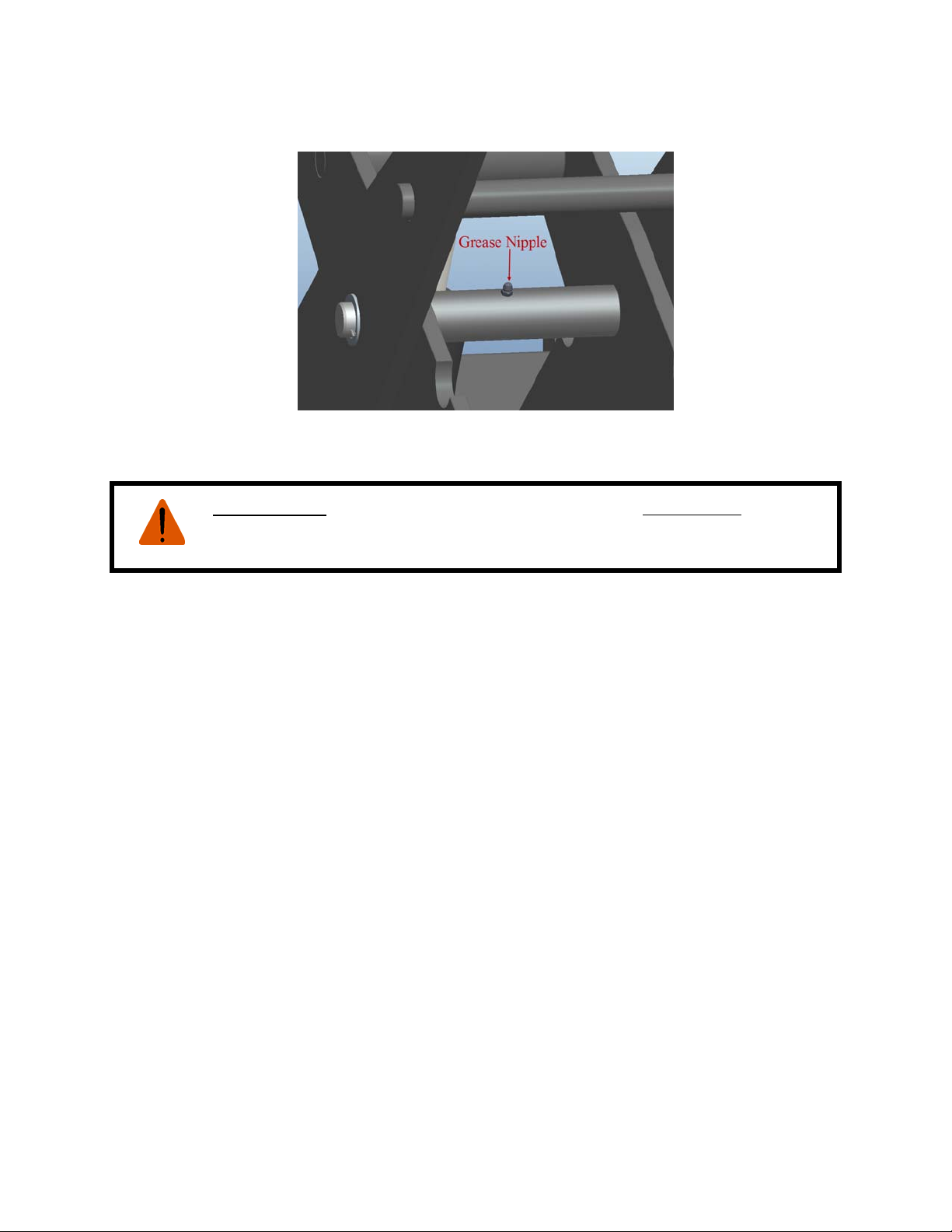

Figure 10 -Center Hinge Nipple

14 of 19
9.0 Trouble Shooting
Trouble Cause Remedy
Pump runs but lift will
not rise after contacting
load.
Lift loaded beyond capacity.
Fluid leak at pump, hose or
cylinder.
Wrong pump installed on lift.
Pump malfunction.
Pump low on fluid.
Do not exceed capacity of lift list
on tag.
Repair leak, refill reservoir.
Verify pressure rating of pump
on label.
Contact customer service to
have pump serviced.
Lower Jackbeam and check
fluid level. Replenish if required.
Pump will not start when
Raise Lever is pushed. Insufficient air supply at pump.
Leak in air supply line.
Restriction in air line (i.e. Kink)
Malfunctioning air motor.
Pump requires 90 – 140 psi of
shop air @5-10CFM
Locate and correct leak.
Locate and correct restriction.
Contact customer service to
have pump serviced.
Pump runs but will not
lift to full height Pump low on fluid. Lower Jackbeam and check fluid level. Replenish if required.
Lift does not hold
pressure and will slowly
descend.
Fluid leak at pump, hose or
cylinder.
Lowering valve damaged.
Pump malfunction.
Repair leak, refill reservoir.
Replace damaged or missing
parts.
Contact customer service to
have pump serviced.
Lift lowers slowly or not
at all. Mechanical Safety is engaged.
Restriction in hydraulic system.
Lack of grease
Release mechanical safety.
Contact customer service to
have lift serviced.
Apply grease to top and bottom
slide block areas
If Jackbeam is in the raised position and will not come down,
ensure that the mechanical safety is engaged prior to
servicing the lift. Failure to do so can cause vehicle damage
and/or personal injury.

15 of 19
10.0 Parts List: Exploded View

16 of 19
11.0 Jackbeam Parts List
ITEM# PART# DESCRIPTION QTY.
1 EAK0338T20A HYDRAULIC CYLINDER KIT 1
EAA0417T05A HYDRAULIC CYLINDER -JACK BEAM 1
9-0592 COUPLER 3/8 NPT MALE 1
9-0561 FLOW CONTROL F.NPT/JIC-06 1
2 EAK0338T21A HYDRAULIC PUMP KIT 1
1-07789 AIR/HYDRALIC PUMP 1
9-0666 BRACKET - HYDRAULIC PUMP MOUNTING 2
9-0667 HEX BOLT M6X1 X16L 2
9-0558 STRAIGHT UNION 3/8NPT/JIC-06 1
9-0675 SWIVEL ELBOW EPL 0602 1/4" NPT-Ø6 PLOY 1
3 EAK0338T23A MECHANICAL SAFETY LOCK KIT 1
EAM0112T16A MECHANICAL LOCK 1
EAM0112T17A PIN - MECHANICAL LOCK 1
9-0513 SAFETY RELEASE HANDLE 1
9-0553 SPRING WASHER DIA 7 1
9-0554 HEX BOLT M6X1 16L 1
9-2251 HEX BOLT F/T M8X16 1
4 EAK0338T24A BOTTOM FIX END PIN KIT 1
EAM0112T31A PIN, BOTTOM HINGE 1
9-2251 HEX BOLT F/T M8X16 2
5 EAK0338T25A JACK ROLLER KIT 4
9-0488 ROLLER ASM 1
9-0550 COMPRESSION SPRING 1
6-0625 FLAT WASHER 3/8 ID 1
6-0267 COTTER PIN 1/8 X 1 1
6 EAK0338T22A SCISSOR CENTER PIN KIT 1
EAM0112T19A SCISSOR CENTER PIN 1
EAM0112T09A SHIM, CENTER PIN 2
9-2251 HEX BOLT F/T M8X16 1

17 of 19
ITEM# PART# DESCRIPTION QTY.
7 EAK0338T28A TOP FIX END PIN KIT 1
EAM0112T30A PIN - FIXED END TOP FRAME 1
9-2251 HEX BOLT F/T M8X16 1
8 EAK0338T27A ARM STOPPER KIT 2
EAM0112T11A STOPPER - TOP FRAME 1
9-0553 SPRING WASHER DIA 7 2
9-0554 HEX BOLT M6X1 16L 2
9 EAK0338T26A UPPER CYLINDER PIN KIT 1
EAM0112T03A UPPER CYLINDER PIN 1
9-2251 HEX BOLT F/T M8X16 1
10 9-0468 NYLON BLOCK 2
11 EAM0112T29A PIN, SLINDING END TOP FRAME 1
12 9-2241 EXTERNAL CIRCLIP D35 2
13 EAM0112T32A GUIDE SPACER SLIDING END TOP FRAME 2
14 9-0461 STACK PAD ADAPTER, 3" 2
15 9-0462 RESTING PAD WELDMENT 2
16 9-0568 M10 NUT 4
17 9-0569 HEXT BOLT M10 X 40L 4
18 9-0559 HYDRAULIC HOSE -JACKBEAM 1
19 9-0674 TERMINAL MOUNTING PLATE 1
20 9-0667 HEX BOLT M6X1 X16L 2
21 9-0673 TERMINAL FITTING EPMF 0602 M14x1 -Ø6 POLY 1
22 9-0622 Ø6 POLYTUBE PU6*4, 0.9m (35") 1
23 EAM0112T10A NYLON BLOCK 2
24 9-2242 STACK PAD ADAPTER, 6" 2
---- OTHER ACCESSORY
9-0626 RECOIL HOSE Ø8 PU8*4, 1/4" NPT-M, 12FT 2/LIFT

18 of 19
12.0 Maintenance Schedule
Records of all lift maintenance and operator training should be recorded in the following table.
Serial Number of lift is located on rear of base.
Maintenance and Training
Performed Date By Notes

19 of 19
Maintenance and Training
Performed Date By Notes
* Make copies of this form as required.
