Alirac HE115-125/950 User manual

ΓΩΝΙΑΚΟΣ ΤΡΟΧΟΣ
ΓΩΝΙΑΚΟΣ
ΤΡΟΧΟΣ
HE115-125/950

www.makute.com
-1-
Angle Grinder
HE115-125/950
Rated Voltage 220-240V~50/60HZ
Input Power 950W
No-load speed 11500r/min
Disc Dia 125mm
SAVE THESE INSTRUCTIONS
Work Area
1.keep you work area clean . Cluttered
benches and dark areas invite accidents.
2.Do not operate power tools in
explosive atmospheres, such as in the
presence of flammable liquids,gases, or dust
or fumes.
3.Keep bystanders,children and
visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
4.Power tools plugs must match the
outlet. Never modify the plugs in any way.
Do not use any adapter plugs with earthed
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock. Do
not change the plug in any way. Double
insulation eliminates the need for the three
wire grounded power cord and grounded
power supply system.
5.Avoid body contact with grounded
surface such as pipes, radiators, ranges and
refrigerators. This is an increased risk of
electric shock if your body is grounded.
6.Do not expose power tools to rain or
wet conditions. Water entering a power tool
will increase the risk of electric shock.
7.Do not abuse the cord. Never use
the cord to carry the tools or pull the plug
from an outlet. Keep cord away from heat,
oil, sharp edges or moving parts. Replace
damaged cords immediately. Damaged cord
increase the risk of electric shock.
8.When operating a power tool outside,
use an outdoor extension cord marked “W-
A” or “W”. These cords are rated for outdoor
use and reduce the risk of electric shock.
PERSONAL SAFETY
9.Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use tool while tired or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
10.Dress properly. Do not wear loose
clothing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from
moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
11.Avoid accidental starting. Be sure
switch is off before plugging in. Carrying
tools with your finger on the switch or
plugging in tools that have the switch on
invites accidents.
12.Remove adjusting keys or wrenches
before turning the tool on. A wrench or key
that is left attached to a rotating part of the
tool in unexpected situations.
13.Do not overreach. Keep proper
footing and balance at all times. Proper
footing and balance enables better control of
the tool in unexpected situations.
14.Use safety equipment. Always wear
eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must
be used for appropriate conditions. Ordinary
eye or sun glasses are NOT eye protection.
TOOL USE AND CARE
15. Use clamps or other practical ways
to secure and support the workpiece to a
stable platform. Holding the work by hand

www.makute.com
-2-
or against your body is unstable and may
lead to loss of control.
16.Do not force tool. Use the correct
tool for your application. The correct tool
will do the job better and more safely at the
rate for which it is designed.
17.Do not use tool if switch does not
turn on or off. Any tool that cannot be
controlled with the switch is dangerous and
must be repaired.
18.Disconnect the plug from the power
source before making any adjustments,
changing accessories, or storing the tool.
Such preventing safety measures reduce the
risk of starting the tool accidentally.
19.Store idle tools out of reach of
children and other untrained persons. Tools
are dangerous in the hands of untrained
users.
20.Maintain tools with care. Keep
cutting tools sharp and clean. Properly
maintained tools with sharp cutting edges are
less likely to bind and are easier to control.
21.Check for misalignment or binding
of moving parts, breakage of parts, and
any other conditions that may affect the
tools operation. If damaged, have the tool
serviced before using. Many accidents are
caused by poorly maintained tools.
22.Use only accessories that are
recommended by the manufacturer for your
model. Accessories that may be suitable for
one tool, may become hazardous when used
on other tools.
SERVICE
23.Tool service must be performed
only by qualified repair personnel. Service
or maintenance performed by unqualified
personnel can result in a risk of injury.
24.When serving a tool, use only
identical replacement parts. Follow
instructions in the Maintenance section of
the manual. Use of unauthorized parts of
failure to follow Maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
DO NOT let comfort or familiarity with
product (gained from repeated use) replace
strict adherence to grinder safety rules. If
you use this tool unsafely or incorrectly, you
can suffer serious personal injury.
1.Always use proper guard with
grinding wheel. A guard protects operator
from broken wheel fragments.
2.Accessories must be rated for at least
the speed recommended on the tool warning
label. Wheels and other accessories running
over rated speed can fly apart and cause
injury.
3.Hold tool by insulated gripping
surface when performing and operating
where the cutting tool may contact hidden
wiring or its own cord. Contact with a “live”
make exposed metal parts of the tool “live”
and shock the operator.
4.When using depressed center grinding
wheels, be sure to use only fiberglass
reinforced wheels.
5.Always use safety glasses or goggles.
Ordinary eye or sun glasses are NOT safety
glasses.
6.Check the wheel carefully for cracks or
damaged before operation. Replace cracked
or damaged wheel immediately. Run the tool
(with guard) a no load for about a minute,
holding tool away from others. If wheel is
flawed, it will likely separate during this test.
7.Use only flanges specified for this tool.
8.Be careful not to damage the spindle,

www.makute.com
-3-
the flange (especially the installing surface)
or the lock nut. Damage to these parts could
result in wheel breakage.
9.NEVER use tool with wood cutting
blades or other saw blades. Such blades when
used on a grinder frequently kick and cause
loss of control leading to personal injury.
10.Hold the tool firmly.
11.Keep hands away from rotating parts.
12.Make sure cord is clean . Do not
wrap cord around your arm or wrist. If tool
is out of control, cord may become wrapped
around you and cause personal injury.
13.Make sure the wheel is not contacting
the workpiece before the switch is turned on.
14.Before using the tool on an actual
workpiece, let it run for a while. Watch for
vibration or wobbling that could indicate
poor installation or a poorly balanced wheel.
15.Use the specified surface of the wheel
to perform the grinding.
16.Watch out for flying spark. Hold the
tool to let the spark fly away from you and
other persons for flammable materials.
17.Do not leave the tool running.
Operate the tool only when hand-held.
18.Do not touch the workpiece
immediately after operation; it may be
extremely hot and can burn your skin.
19.Always wear proper apparel
including long sleeve shirts. Leather gloves
and shop aprons to protect skin from contact
with not grinding.
20.Use of this tool to grind or cut some
products. Paints and wood could expose user
to dust containing hazardous substance. Use
appropriate respiratory protection.
SAVE THESE INSTRUCTIONS
WARNING:
MISUSE or failure to follow the safety rules stated in this instruction manual may
cause serious personal injury.
SYMBOLS
The following show the symbols used for the tool.
V-----voltage n-------no load speed
A-----ampere --/min -----revolutions or reciprocation per minute
Hz---hertz
Fig1
Operation instructions:
Installing or removing grinding wheel.

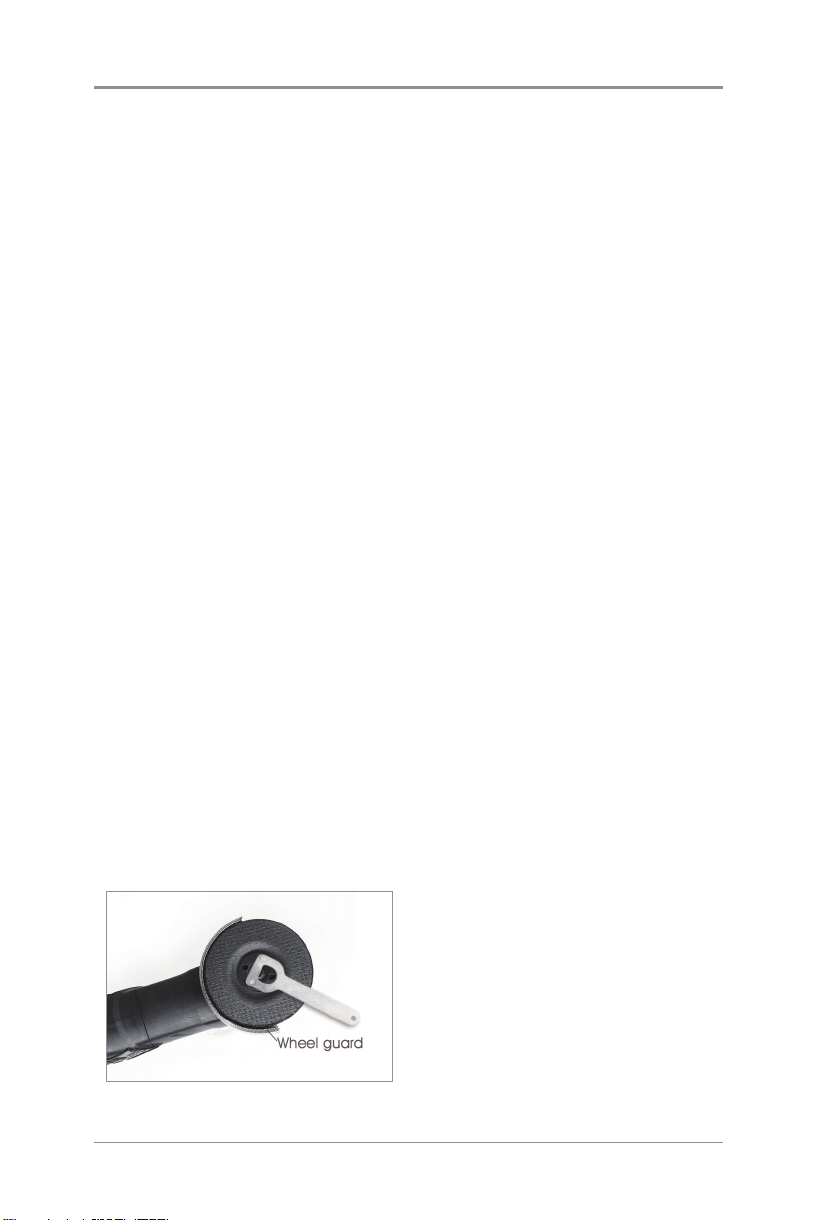

To install the wheel guard and retaining
plate on the front cover, then align the three
holes of retaining plate with front cover
screw holes, finally use the three screws to
tighten it.
Installing or removing grinding wheel
Caution:
When using an abrasive cut-off wheel,
be sure to use only the supplied wheel guard,

www.makute.com
-4-
inner flange, look nut designed for use with
cut-off wheels. (Fig 1)

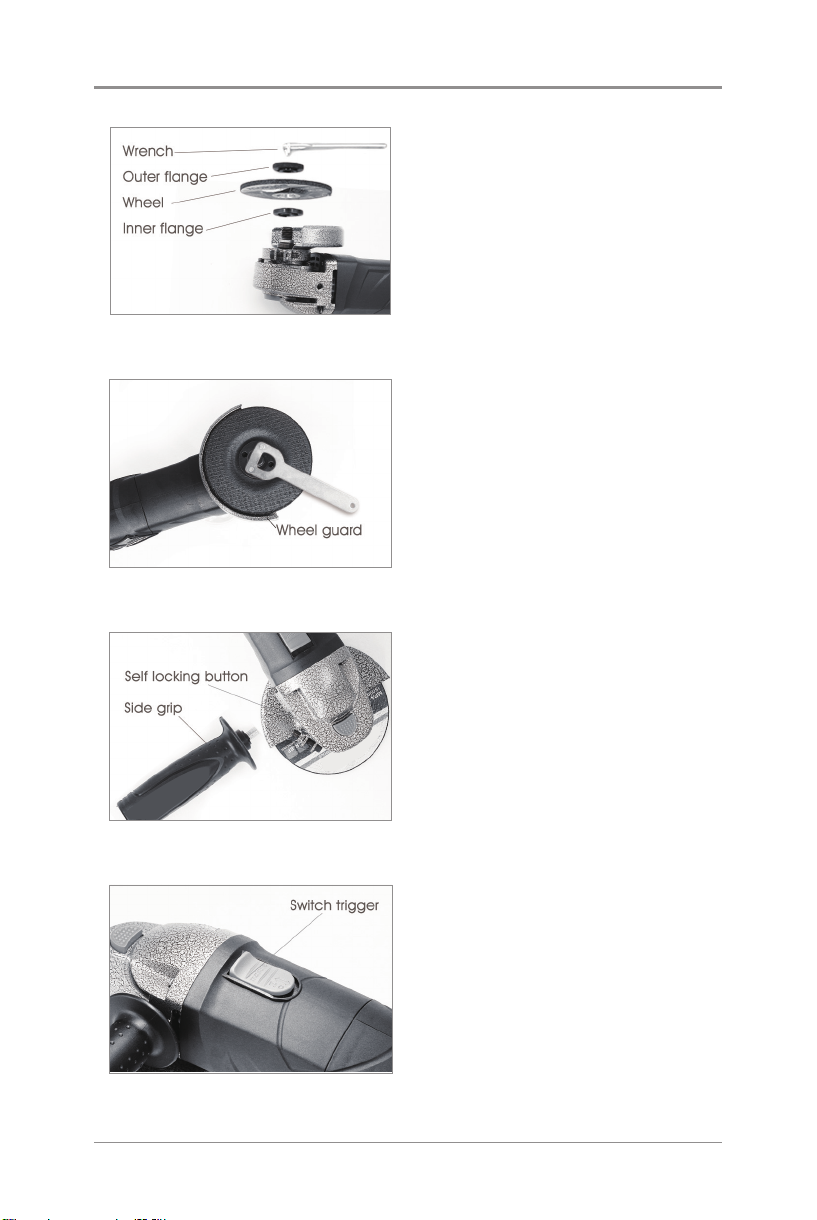

1.Mount the inner flange onto the
spindle. Fit the wheel/disc on the inner
flange and screw the outer flange onto the
spindle (Fig 2).
2.To tighten the outer flange. Press the
shaft lock firmly so that the spindle cannot
revolve, then use the lock nut wrench and
securely tighten clockwise. (Fig 3).
3.To remove the wheel, follow the
installation procedure in reverse.
Notice:
The groove of INNER FLANGE must
align the flatness of spindle when you install
the wheel and tighten enough.
Side grip
Caution:
Always be sure that the side grip is
installed securely before operation.
The both sides of tool’s head are
designed with two screw holes to assemble
the grip side.
Screw the side grip securely on the
position of the tools as shown in the Fig 4.
Hold the side grip firmly by hand and
you will control the tool better.
Switch action
Caution:
Before plugging in the tool, always
Check the shaft lock in the “off ” position
twice.Switch can locked in “ON” position
for ease of operator comfort during extended
use. Apply caution when locking tool in
“ON” position and maintain firm grasp on
tool.
To start the tool, simply only press the
switch trigger. For continuous running press
the switch trigger and then depress the self
lock button.
Fig5
Fig4
Fig2
Fig3

www.makute.com
-5-
To stop the tool, release the switch
trigger to freely. (Fig5)
Maintenance and Daily care
CAUTION:
Always be sure that the tool is switch
off and unplugging before attempting to
perform inspection and maintenance.
1.The tool and its air vents have to be
kept clean, regularly clean the tool’s air
vents or whenever the vents start to become
obstructed.
2.Usually check the all screws if
loosened or not.
3.Usually check the cord insulation if
broken or not.
CAUTION:
Be sure to reinstall the knob after
inserting new carbon brushes.
After replacing brushes, plug in the tool
and break in brushes by running tools with
no load for about 10 minutes. Then check
the tool while running, when releasing the
switch trigger. If the tool is not working well
ask your local MAKUTE service center for
repair.
To maintain product SAFETY
and RELIABILITY, repairs, any other
maintenance or adjustment should be
performed by MAKUTE Authorized
or Factory service centers, always using
MAKUTE replacement parts.

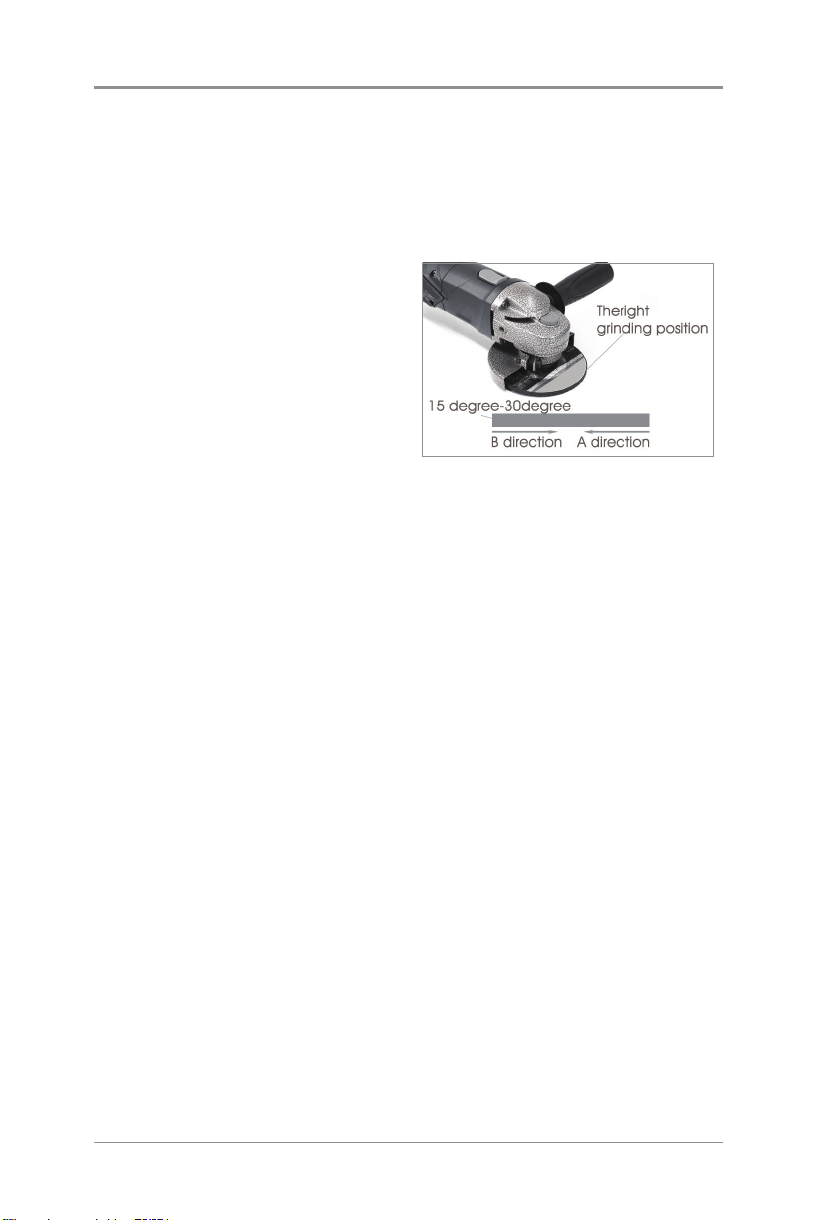

Effective and safe operation for Grinding
and sanding
Always hold the tool firmly with one
hand on housing and the other on the side
handle, turn the tool on and then apply the
wheel or disc to the workpiece.
1.The users can get satisfied effects if the
users give 1/2 strength compared with the
own weight of the tool. Over strength is easy
to make the tool engine an abrasive wheel
damaged because of overload.
2.Generally speaking, please keep the
grinding and cutting part of the wheel and
disc in the scope of 15 to 30 degree with the
surface of processing object. (Fig 6)
3.In general operation, you should start
first then work. In reverse you should leave
workpiece then stop.
Replacing carbon brushes
1.Remove and check the carbon brushes
regularly. Replace when the tool occurs
obvious sparks or wear down to the limit
mark.
2.Both carbon brushes should be
replaced at the same time.
3.Use a screwdriver to remove the
handle cover and take out the worn carbon
brushes, insert the new ones and secure the
brush holder assembly.
Fig6

www.makute.com
-6-

www.makute.com
-7-

www.makute.com
-8-
