Alizeti 300C Assembly instructions

READ THIS MANUAL CAREFULLY!
It contains important safety information.
REV 0719
Alizeti 300C
ALIZETI
9245 LANGELIER
MONTREAL, QUEBEC
CANADA, H1P 3K9
TECHSUPPORTALIZETIBIKES.COM
WWW.ALIZETIBIKES.COM
18443604887 5143604887
Installation Guide &
User Manual
TM

PA GE : 2 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
Table Of Contents
Table Of Contents ...................................................................................................................................... 2
Welcome Message.................................................................................................................................... 6
How To Use This Guide........................................................................................................................... 7
Components Of Your New E-Bike System ............................................................................... 8
General Part List of Unit ........................................................................................................................ 9
Attachment Point Guide....................................................................................................................... 10
Battery Charger Safety Information.............................................................................................. 11
Battery Safety Information.................................................................................................................. 12
General Safety Precautions................................................................................................................. 13

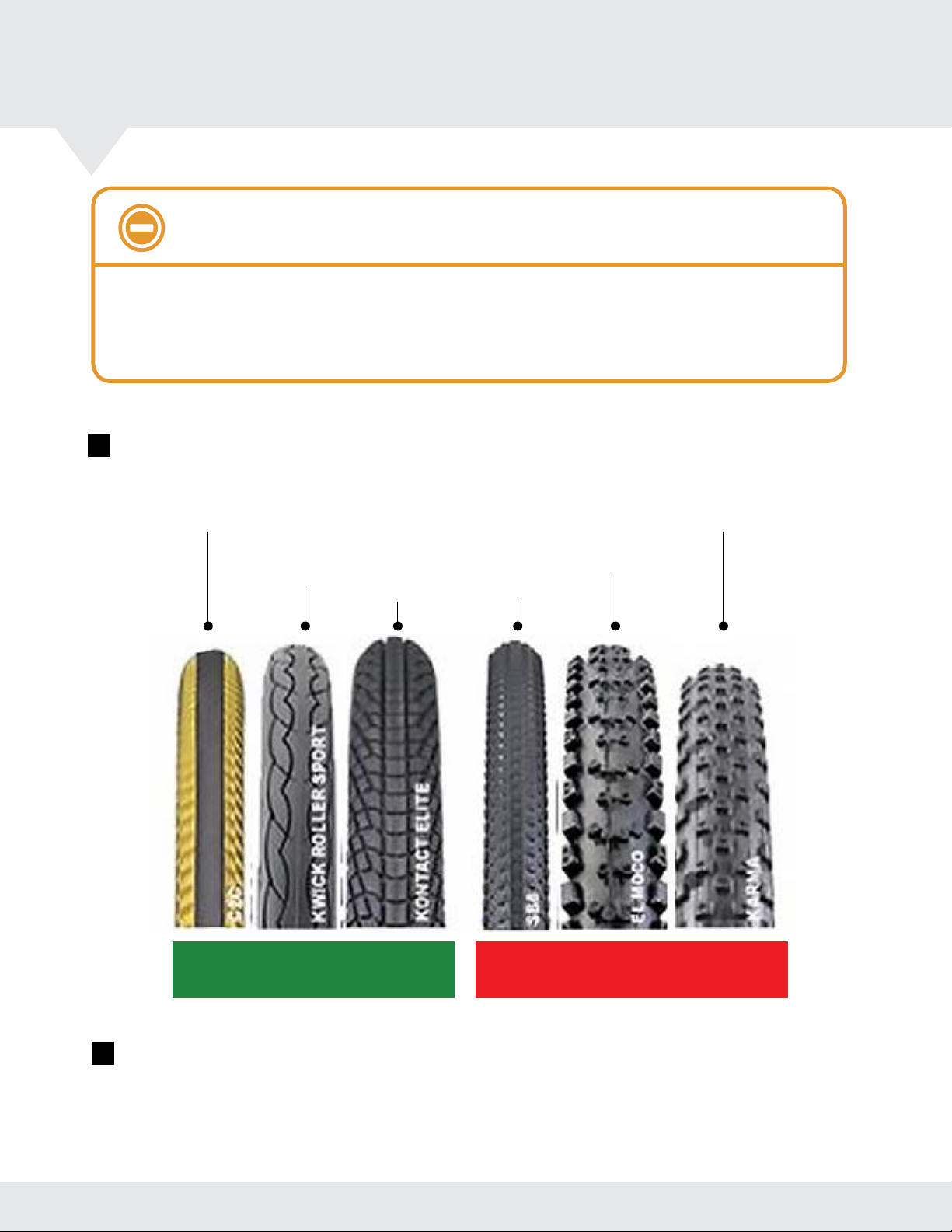

Tire Compatability Recommendations....................................................................................... 16
Pre-Installation Bicycle Inspection................................................................................................. 17
System Installation Instructions ..................................................................................................... 18
Pedal Sensor Installation Instructions ......................................................................................... 23
System Controller Installation............................................................................................................ 26
Safe Riding Guidelines............................................................................................................................ 28
System Controller Functions.............................................................................................................. 30
Bluetooth Module Replacement..................................................................................................... 32

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PA GE : 3
Table Of Contents
Continued
Bluetooth Module Installation ......................................................................................................... 34
Bluetooth Pairing Instructions For Audio.................................................................................. 36
Bluetooth Pairing Instructions For Data.................................................................................... 37
Performing Firmware Updates......................................................................................................... 38
Battery Charging Procedure .............................................................................................................. 39
Battery Charging Sequences............................................................................................................. 40
Alarm System Functions....................................................................................................................... 41
Replacing The Drive Wheel ................................................................................................................ 42
Replacing The Drive Belt ...................................................................................................................... 45
Recommended Maintenance ........................................................................................................... 46
Cleaning And Storage............................................................................................................................. 47
Extended Storage And Transport................................................................................................... 48
Troubleshooting Guide........................................................................................................................... 49
1. Test Procedures............................................................................................................................. 49
1.1 Battery Charger Test ................................................................................................................. 49
1.2 Power Cycling Test.................................................................................................................... 49
1.3 Battery Status Test.................................................................................................................... 49

PA GE : 4 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
1.4 Battery Contact Test................................................................................................................ 50
1.5 Battery Fuse Test........................................................................................................................ 50
1.8 Pedal Assist Sensor Test........................................................................................................ 50
1.9 Motor Assist Test ....................................................................................................................... 51
1.10 Roller Swing Arm Test........................................................................................................... 51
1.11 System Controller Test ........................................................................................................... 52
1.12 Audio Test....................................................................................................................................... 52
1.13 Alarm System Test ................................................................................................................... 53
1.14 UBmobil Mobile App Connection Test...................................................................... 53
2 Troubleshooting Symptoms.................................................................................................. 54
2.1 No Power Felt When Pedaling ......................................................................................... 54
2.2 Unit Will Not Power Up......................................................................................................... 54
2.3 Battery Will Not Charge ....................................................................................................... 54
2.5 Roller Wheel Will Not Raise Off Rear Bike Tire..................................................... 54
2.6 Roller Wheel Does Not Remain Centered On Rear Bike Tire..................... 54
2.7 No Sound Is Heard When Playing Music On Bluetooth Connection.... 55
2.8 Front Lights Do Not Turn On ............................................................................................ 55
2.9 Roller Wheel Slips When Riding Uphill On Wet Surface............................... 55
2.10 Battery Discharges Quickly.............................................................................................. 55
2.11 Battery Takes Very Long To Fully Charge................................................................. 55
2.12 Belt Gets Excessively Worn Very Quickly................................................................ 55
2.13 Fuse On Battery Blows Continually ............................................................................ 55
2.15 Rear Lights Are Not Working Properly ..................................................................... 55
2.16 Limited Range On A Full Battery Charge............................................................... 55
Table Of Contents
Continued

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PA GE : 5
2.17 System Controller Buttons Are Not Responding............................................... 56
2.20 Mobile Phone Application Will Not Pair With Mobile Device.................. 56
2.21 Volume Very Low When Playing Music................................................................... 56
2.22 Connection Cables Are Difficult To Disconnect................................................ 56
2.23 Roller Wheel Is Not Centered After Installation ................................................ 56
2.24 Roller Wheel Keeps Deviating From Center After Riding.......................... 56
System Specifications............................................................................................................................. 57
Technical Support...................................................................................................................................... 58
Table Of Contents
Continued

PA GE : 6 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
Welcome Message
Dear Customer,
Thank you for choosing the Alizeti 300C e-bike conversion system and welcome to the Alizeti family.
You should feel a sense of pride that you‘re riding an e-bike system like no other, an original in every
way!
You will soon discover that the features, flexibility, and innovative electronic control system of the
Alizeti 300C combine the best attributes of modern e-bike technology in an affordable, reliable
package.
Our commitment to excellence along with our outstanding customer service guarantees an
experience that will make you feel truly justified in your choice. From your first ride on your new
Alizeti 300C until many years after the initial investment has faded from memory, the Alizeti 300C
will continue to unveil its true worth and evoke a smile.
Should you ever need assistance or guidance at any time during the ownership of your Alizeti 300C,
our dedicated team is always available to help. Our hope is that the Alizeti 300C takes you to new
and unimaginable places throughout your many journeys to come.
Enjoy The Ride!
The Alizeti Team

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PA GE : 7
The instructions in this guide have been prepared for proper use of your new Alizeti 300C drive
unit, control unit, battery and battery charger. Please read all of the instructions carefully before
beginning the installation process.
How To Use This Guide
Warning
Prior to use, read and understand the product safety information. Failure to
follow the instructions may result in ELECTRICAL SHOCK, EXPLOSION, or FIRE
and may result in SERIOUS INJURY, DEATH, DAMAGE TO DEVICE or PROPERTY.
Do not discard this information.
Always install genuine Alizeti parts and accessories when servicing or repairing
the unit. Not doing so can cause damage to the system or cause it to
malfunction or void the warranty. If you feel that the installation process is
not clear or beyond your capabilities please contact your local bike shop for
help with the installation process. Improper installation of the Alizeti 300C
can damage the system and void the warranty.
Particularly important information is indicated in this manual by the following
graphic symbols:
A WARNING indicates a hazardous situation which, if not avoided, could
result in damage or serious injury or even death.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
A STOP indicates prohibited items that you must not do for safety
reasons.
A CHECK MARK indicates the correct method that must be used.

PA GE : 8 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
Components Of Your New E-Bike System
46
5
2
3
8
7
9
10
11
12
1
Before beginning the installation, check the contents of your e-bike system. Your package should
include all the following items:
1. Alizeti 300C rack mounted power drive system
2. Set of 2 seat stay brackets and accompanying
attachment screws
3. Set of 2 drop-out brackets and accompanying
attachment screws
4. One or two battery(ies)
5. Battery charger with charging cable
6. System controller
7. Pedal sensor & 2 magnets
8. One set of keys
9. Multi-tool with T20 and T25 bits
10. Attachment screws (see page 10)
11. Cable Ties x 15
12. Battery fuse
13. Spacer Tool
(For list of
screws see
page 10)
Do not discard the original product packaging, including
cardboard spacer. It should be kept in the event the system
needs to be returned for repair or servicing.
Stop
High Torque
Low Torque

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PA GE : 9
General Part List of Unit
Speaker Grill
Speaker Grill
Speaker Grill
Slot
Slot
Seatstay Brackets
Seatstay
Brackets
Attachment
Point
Seatstay Brackets
Motor Cover
Dropout Brackets
Pannier Support
Pannier Support
Roller Fender
Battery Compartment Door
Battery
Compartment
Door
Lock
Drive
Roller
Drive
Roller
Roller
Swing Arm
Drive
Belt Cover
Wheel Dust
Cap
Roller
Fender
Belt cover
Rubber Gasket
Drive
Roller
Roller

PA GE : 10 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
Attachment Point Guide
Part Type Bit Size Size Part Number Quantity
AM5 T25 10 mm 006-0004-00 4
BM5 T25 20 mm 006-0008-00 2
CM5 N/A 15 mm 006-0032-00 4
DM5 T25 12 mm 006-0077-00 4
E** M5 T25 16 mm 006-0078-00 4
FM5 N/A 10 mm 006-0079-00 12
Use same screws and washers for the both sides of the unit.
Longer length screws may be used as required where indicated by double asterisks. (**)
E
**
B
D
F
F
D
E
** F
CA

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PA GE : 11
1. Do not charge batteries at temperatures
above 50 degrees Celsius or 122 degrees
Fahrenheit.
2. Do not use any other charger or
charging method to recharge Alizeti
batteries other than the ones designed
by Alizeti. Using any other charger other
than the one supplied with your unit
could result in fire, explosion, or damage
the batteries and void warranty.
3. Never allow the battery charger to come
into contact with water or moisture. In
addition, never use the battery charger
if the terminals are wet or if the charger
cable is damaged.
4. Never handle the power plug, charge
plug or touch the charger contacts with
wet hands. This could result in electric
shock.
5. Do not touch battery charger contacts
with any metallic objects or allow
foreign material to cause a short circuit
of the contacts. This could result in
electric shock, fire, or damage the
battery charger.
6. Periodically clean the power plug with
a dry cloth. Dampness or other issues
could reduce the effectiveness of the
insulation. Make sure charger is not
plugged in before cleaning.
7. Never disassemble or modify the battery
charger. This will void the warranty and
could result in fire or electric shock.
Battery Charger Safety Information
Prior to use, read and understand the battery charger safety information. Failure
to follow the instructions may result in ELECTRICAL SHOCK, EXPLOSION, or FIRE
and may result in DAMAGE TO DEVICE or PROPERTY, SERIOUS INJURY, or even
DEATH. Do not discard this information.
Warning

PA GE : 12 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
1. Firmly insert the power plug and the charging plug into the socket. Failure to insert the power
plug and the charging plug properly can result in overheating, or failure to charge.
2. Do not use the battery charger near flammable material or gas. This could result in fire or
explosion.
3. Do not use battery if the battery enclosure is damaged, cracked, or if you smell any
unusual odors. Leaking battery fluid can cause serious injury.
4. Never leave battery unsupervised while charging for extended periods of time.
5. Do not short the contacts of the battery. Doing so could cause the battery to become hot or
catch fire, resulting in serious injury or property damage.
6. Do not attempt to disassemble or modify the battery. Doing so will void the warranty and
could cause the battery to become hot or catch fire, resulting in a malfunction, serious injury,
or property damage.
7. Do not drop the battery(ies) or subject to impact(s). Doing so could cause the battery(ies) to
malfunction, become hot or catch fire, or cause serious injury or property damage.
8. Do not dispose the battery in a fire or expose it to a heat source. Doing so could cause an
explosion, resulting in serious injury or property damage.
9. In the event that a battery needs to be replaced please contact a member of the Alizeti
technical support team to arrange a product return. (See page 57)
10. Do not use the e-bike system if you suspect any issues with the battery(ies) or e-bike system
itself. Doing so could lead to loss of control and potential injury.
11. Never use a battery without a fuse installed in the fuse slot. Battery(ies) will not operate when
a fuse is not installed.
12. Only use Alizeti fuses with Alizeti batery unit(s).
Battery Safety Information

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PAG E : 13
1. Please obey your local cycling laws and regulations before operating this class 1 e-bike system
on public roads or bike paths.
2. Tune up your bicycle and check your brakes before installing the system on your bike.
3. Always use a helmet when riding your bike.
4. Always keep fingers or other objects away from spinning wheel and drive motor when in motion.
5. Always keep full attention on surroundings while riding or using the system controller.
6. The Alizeti 300C is not intended to be used on children’s bikes.
7. The Alizeti 300C is not intended for off-road use.
8. After installing the Alizeti 300C system, practice using the controls in a safe area away from
traffic until you have become familiar with the system.
9. E-bikes provide more power and speed than normal bicycles and should be used with additional
caution when riding in heavily trafficked areas.
10. If any part of your bicycle begins to make an unfamiliar noise stop riding immediately and try to
determine the source of the noise and whether it poses a safety hazard. When in doubt, consult
a professional bicycle mechanic.
11. Do not allow the wheel, cranks, baggage or any other accessories to rub against the cable of the
pedal sensor or system controller. Do not compress or cut the wires.
12. Pay special attention when you install or remove accessories such as baggage, locks,
brackets, or handlebar accessories.
13. If you attach a bag to the Alizeti 300C, make sure that any straps are secured in such a way that
they cannot become entangled in the roller. Do not allow your baggage to block the visibility of
the lights and reflectors.
14. If the batteries become visibly damaged in any way, return them to Alizeti for inspection or
recycling.
General Safety Precautions

PA GE : 14 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
15. Do not paint the Alizeti 300C. Doing so may interfere with proper heat dissipation of the unit.
16. Do not operate the unit if the drive wheel has noticeable wear or damage, or if the drive wheel
has become loose.
17. Do not operate the unit if any of the attachment screws have come loose or are
missing. Inspect all attachment screws and blots before each ride.
18. Do not operate the unit if your rear bike tire has excessive wear or if the rear wheel of the bike
becomes loose or damaged.
19. If your bicycle falls over or you are involved in an accident, do not ride your bicycle
before performing a visual inspection of the system for damage.
20. Verify the bike manufacturers’ weight limit recommendations for both the bicycle frame and the
rear wheel. If the combined weight of rider, bicycle, baggage and the Alizeti 300C exceed the
recommended weight limit for the bicycle or the wheel, it may be necessary to replace the
bicycle wheel or frame with one that has a higher weight limit.
21. The Alizeti 300C has not been designed to carry a child seat. A child seat should never be
installed on the unit. Doing so can be dangerous and cause serious injury.
22. The weight of the system is 13lbs or 5.8 kg and can carry a maximum weight of 25lbs or 12
kilograms. Do not exceed this recommended weight limit.
23. Never use the rack as a seat for a passenger.
24. Never place any objects other than the battery(ies) into the battery compartment. Doing so can
damage to the system and void warranty.
25. Riding without an operating headlight or taillight can increase your risk of potential injury. Be
sure to check the battery charge level before riding at night.
26. Never use a battery without a fuse installed in the fuse slot. Battery(ies) will not operate when a
fuse is not installed.
General Safety Precautions
Continued

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PAG E: 15
27. Do not modify the system or battery(ies) in order to attempt to change its factory settings.
Doing this will void the warranty and may lead to potential injury or damage.
28. Always pay attention to your surroundings and oncoming traffic when using your e-bike
system or mobile application. Even brief distractions can be enough to cause serious accidents
and potential injury.
29. When using the Bluetooth audio feature of the Alizeti 300C e-bike system always pay attention
to traffic and your surroundings to avoid accidents or injury.
General Safety Precautions
Continued

PA GE : 16 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
Tire Compatability Recommendations
In order to benefit from optimal performance, traction and power from your Alizeti
300C e-bike system, your bike should be fitted with the proper tire type for the system.
Not using the proper tire type may cause loss of performance and increase vibration
and tire noise while riding.
The Alizeti 300C is designed to work on many bikes types. Most tire types will work but hybrid
or road tires with a smooth center or “slicks” work best. (See image below).
1
Tires should not be smaller than 26x1.5 inches and no larger than 29x2.0 inches.
2
Please Note
ACCEPTABLE NOT ACCEPTABLE
Road
Commuter
BMX Cyclocross
Downhill
Cross Country

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PAG E : 17
Safety Check
Before beginning installation, prepare and
inspect your bicycle:
1. We recommend a bike tune up prior to
installation of the Alizeti 300C on your bike.
2. Verify that the Alizeti e-bike conversion
system is compatible with your bike.
3. Make sure you have any optional adapters
that may be required for your bike.
4. Remove any existing accessories such as
rear rack, rear fender, carry bags from your
bike.
5. Before beginning installation remove
battery(ies) from e-bike system. Remove
any screws from the threaded rack-
attachment eyelets on the frame or seat
collar of your bike.
6. Check condition of the tires and inflate
according to the tire manufacturers
specifications
7. Check that the bike wheels are securely
attached and not loose
8. Check that the bike brakes and gears work
properly
9. Check that the seat is adjusted to a
comfortable position for your height
If your bike requires servicing please have it
done BEFORE installing the Alizeti 300C
e-bike system onto your bike to avoid any
potential accident or injury.
Pre-Installation Bicycle Inspection
Important Notice
The Alizeti 300C e-bike system is designed to be compatible with the
following bike types:
- Bikes with both rear and front breaks
- Urban / City bikes without a rear suspension system
- Bikes with tires no smaller then 26 x 1.5 inches and no larger then 29 x 2.0”
- Bikes with tires that have a smooth running centre tread
- Bikes with frame attachment points designed for a rack
If your bike does not have these characteristics the Alizeti 300C e-bike system may not be
compatible with your bike or may require special adapters for the installation. Before installing
on bikes with light weight or carbon fiber frames check with bike manufacture for any
special precautions or requirements.

PA GE : 18 ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL
System Installation Instructions
1
Fold cardboard along fold lines.
Carefully remove cutout from
insert.
Locate cardboard cutout on
bottom of box insert.
Make sure both sides of
cardboard are folded equally.
Locate the 8 folds in the cardboard
cutout removed from the box.
Use tape to hold cardboard
spacer in place.
A B C
D E F
Do not discard the original product packaging. including
a diecut spacer tool, required for installation. (Seeimages
below). Packaging should be kept in the event the system
needs to be returned for repair or servicing.
Stop

ALIZETI 300C INSTALL ATION GUIDE & USER MANUAL PAG E: 19
System Installation Instructions
Continued
Turn over the rack and locate
the slot on the underside
of the unit. You will see two
square captive nuts inside
the slot channel on both the
left and right side of the unit.
If the captive nuts are not
visible you may need to tilt
the unit to slide them in place.
4 A B
Locate the attachment points
on your bike frame where the
drop out attachment brackets
will be installed.
Make sure the screws do not
extend interfere with any
other moving part of the bike.
Loosely attach the drop-out
brackets to the frame of
your bike using the T25 bit
and the multi-tool included
with your system. Attach
bracket using (12mm M5
Screw Part D) and (10mm
Washer Part F) as shown
on (page 10) of the guide. If
the attachment points have
blind threaded holes, ensure
that the screws are able to
turn 5-10 full turns once the
threads are engaged.
If longer screws are required
for your bike frame (16mm M5
Screw Part E) can be used.
Do this for both left and right
brackets. Attachment brackets
should be easily movable. Do
not completely tighten screws
at this point.
1 2
A B C3
Make sure your bike is adequately supported and on a level surface before beginning the
installation process. Installing the system when the bike is not properly supported or on an
uneven surface may cause it to accidentally fall and become damaged.
Before Beginning Installation

PA G E : 2 0 ALIZETI 30 0C INSTALLATION GUIDE & USER MANUAL
System Installation Instructions
Continued

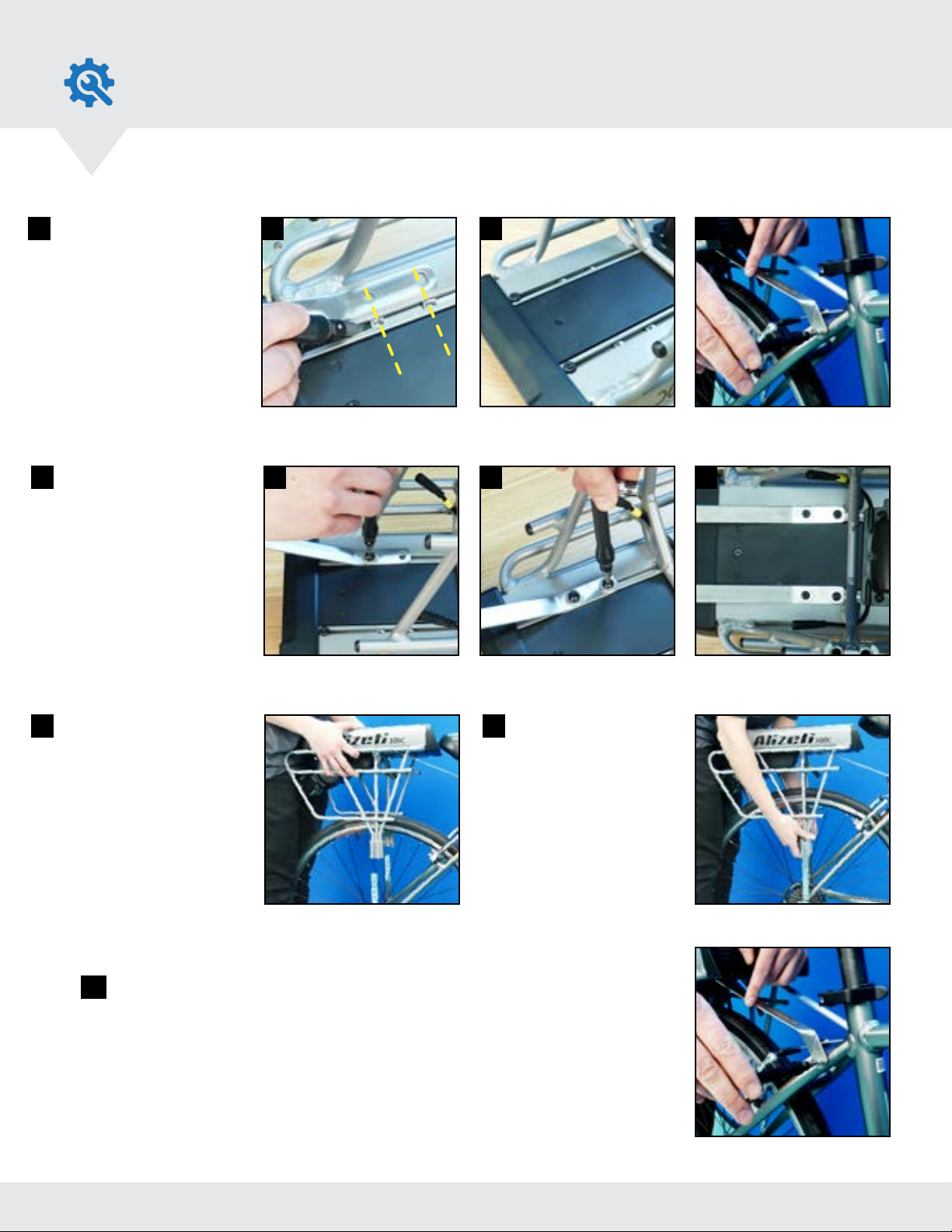

Hold the rack so it does not fall backward, then attach the seat stay bracket to
the seat stay attachment points on your bike frame with the (12 mm M5 Screw
Part D) and T25 bit provided. Do not completely tighten the screws at this time.
Be careful not to cross-thread the screws while screwing them in. If you do
not have the required seat stay attachment points on your bike frame you may
purchase optional rack attachment collars from Alizeti.
9
Move captive nuts along
the channel and space the
nuts out to be aligned with
the holes on the seat stay
attachment brackets. If the
spacing of the seat stay
brackets at the attachment
points is too wide or two
narrow, the left and right
seat stay brackets can be
reversed to accommodate
the required spacing.
Attach both left and right
seat stay brackets to the
captive nuts in the T-slot
channel using a T25 bit and
4X (10mm M5 Bolt Part A)
and 4X (15mm Washers
Type C) provided. Loosely
tighten the bolts so they can
still be adjusted forward and
backward if required, yet are
tight enough that the screws
will not fall out when the unit
is flipped right-side-up.
5
6
Stand behind your bike
and support the rear
wheel between your legs
for extra stability.
Slide both left and right
drop out brackets into the
rack drop out slots until
the drive wheel rests on
the rear wheel of your
bike.
7 8
A B C
A B C
Table of contents
