buratti meccanica Clorofilla Trail User manual

Revision 00_30.09.2020
Manual Code CLO_T_00_202009
ORIGINAL INSTRUCTIONS
English
EN
USE AND MAINTENANCE MANUAL
Bicyle Work Stand
Trail
Serial Number
Manufacturing Year

Pag. 2 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019

Pag. 3 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
1. INTRODUCT 4
1.1. THE MANUAL 4
1.2. COPYRIGHT 4
1.3. HOW TO READ THIS MANUAL 4
1.4. GENERAL WARNINGS 4
2. GENERAL INFORMATION 5
2.1. MANUFACTURER’S DATA 5
2.2. CLOROFILLA’S DATA 5
2.3. WARRANTY 5
2.4. GENERAL WARNINGS 5
3. GENERAL DESCRIPTION 6
3.1. MAIN CHARACTERISTICS AND FUNCTIONS 6
3.2. HOW TO USE CLOROFILLA 6
3.3. CLOROFILLA’S COMPONENTS 7
3.4. TOOLS 8
3.5. DIMENSION 8
4. UNPACKING AND INSTALLATION 9
4.1 RECOMMENDED INSTALLATION 9
4.2 ASSEMBLING AND START-UP 11
5. MAINTENANCE 13
5.1. MAINTENANCE OPERATIONS 14
5.2. CLOROFILLA’S DISPOSAL 14
6. ATTACHMENTS 15

Pag. 4 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
1. INTRODUCT
1.1. THE MANUAL
IMPORTANT: This manual must be carefully stored and replace in case of any deterioration or lack
of readability.
1.2. COPYRIGHT
This manual is under the ownership of BURATTI MECCANICA S.r.l. Every duplicate, even partial, is
strictly prohibited. The descriptions and the illustrations given in this manual are not binding.
BURATTI MECCANICA S.r.l. is the only one who can edit it.
©RESERVED RIGHTS: Every reproduction right in this manual is reserved to BURATTI MECCANICA S.r.l.
Reprint, duplication and translation are prohibited without a written authorization by BURATTI
MECCANICA S.r.l. even partially. The manual cannot be given to third parties without any written
authorization by BURATTI MECCANICA S.r.l.
1.3. HOW TO READ THIS MANUAL
In this manual have been used recurring graphic styles with the aim to make the comprehension easier.
Warnings and/or the instructions that are essential have been highlighted with the following symbols:
IMPORTANT: Means a very important information worthy of attention.
ATTENTION:means helpful hints that must be taken into consideration to avoid damaging CLOROFILLA
TRAIL or its parts.
1.4. GENERAL WARNINGS
This manual has been issued by the manufacturer and it is part of CLOROFILLA’s equipment. It contains
all the information needed to guarantee its usage and maintenance.
BURATTI MECCANICA S.r.l. cannot predict every single risk, hence all the warnings included in this
manual may not cover all security’s cautions. If you have any doubt regarding installation, use and
maintenance procedures, please refer to BURATTI MECCANICA S.r.l.
IMPORTANT: The person in charge of the installation of CLOROFILLA TRAIL must have read this manual
in all its parts before the start-up.
IMPORTANTE: BURATTI MECCANICA S.r.l. has the right to amend CLOROFILLA TRAIL and its technical
documentation without any requirement by third parties. Contents and warning of this manual are
valid starting from the issuing.
i
i
i
i

Pag. 5 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
2. GENERAL INFORMATION
2.1. MANUFACTURER’S DATA
Buratti Meccanica S.r.l.
Headquarter: via Archimede n. 535, 47521 Cesena (FC)
Tel. [phone]
Fax. [phone]
Web: http://www.burattimeccanica.com
Mail: [email protected]
2.2. CLOROFILLA’S DATA
CLOROFILLA’S work stand data, which are the object of this manual, are the followings
SERIAL NUMBER:
MANUFACTURING YEAR:
ATTENZIONE: Do not remove or damage the identification plate.
2.3. WARRANTY
CLOROFILLA’s warranty lasts 24 months. CLOROFILLA TRAIL has successfully passed in the factory all
the tests required by the manufacturer.
Warranty does not cover vandalism and tampering but only materials, manufacturing and assembly
defects.
2.4. GENERAL WARNINGS
The manufacturer waives any and all responsibility for damages caused by non-observance of the
instructions of this manual
ATTENTION: Before starting any operation, check the working area looking for possible endangered
condition for people or CLOROFILLA TRAIL.
ATTENTION: CLOROFILLA TRAIL must be only used with bicycles.
ATTENTION: Do not hang yourself on CLOROFILLA’s structure.
ATTENTION: Do not hang on CLOROFILLA’s supports any object which weight goes beyond 50kg.
ATTENTION: It’s strictly prohibited to hang yourself on CLOROFILLA’s supports.

Pag. 6 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
3. GENERAL DESCRIPTION
CLOROFILLA TRAIL is a bicycle work stand whose aim is to fix the main problems that may come up
using a normal or an electrical bicycle.
3.1. MAIN CHARACTERISTICS AND FUNCTIONS
3.2. HOW TO USE CLOROFILLA TRAIL
Hang the bicycle and place the extremity
of the saddle on one of the 2 support
pipes (ref.6).
Fix the problem using CLOROFILLA’s tools.
Tools are fastened tothe work stand
bymetal cables.
After the maintenance repair, lift
the bicycle up again and then place it
on the floor.
CLOROFILLA TRAIL comes with a
high-quality pump. The pump is
equipped with nozzles compatible with
many different valves’ type.
MAIN CHARACTERISTICS AND FUNCTIONS
INFLATION
BICYCLE SUPPORT
SUPPLY OF MAINTENANCE TOOLS
URBAN FURNITURE

Pag. 7 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019

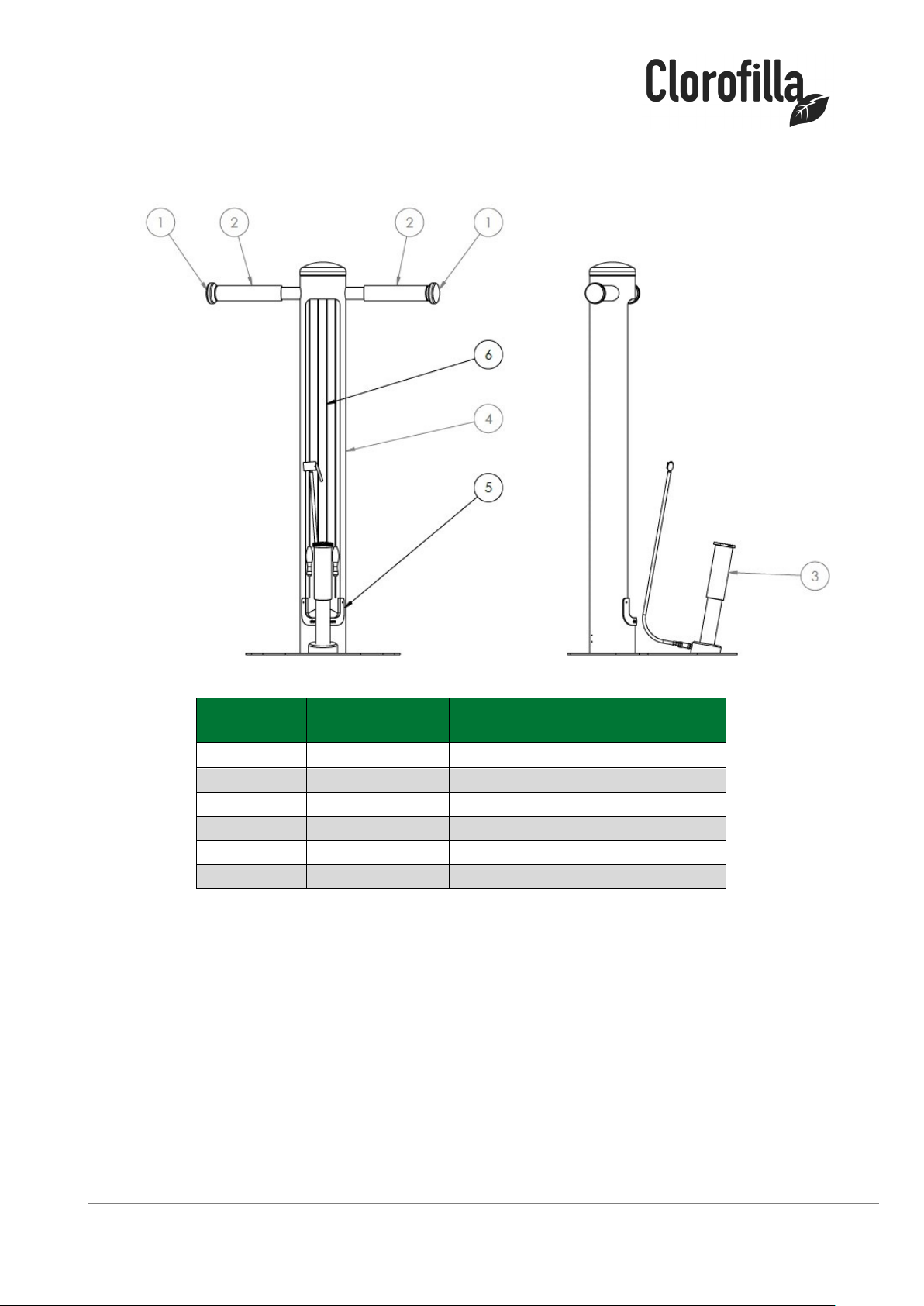

3.3. CLOROFILLA’S COMPONENTS
Ref. Qty DESCRIPTION
1 2 Protective cap ø 52
2 2 Protective sleeve
3 1 A set of pumps
4 1 “Clorofilla Trail” frame
5 1 Protection
6 6Generic tool

Pag. 8 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
3.4. TOOLS
CLOROFILLA TRAIL comes with standard tools that are suitable for every bicycle and e-bikes. In case
of any extraordinary and ordinary maintenance they will help to fix the main problems.
CLOROFILLA TRAIL comes with a high-quality pump. The pump is equipped with nozzles compatible
with many different valves’ type.
3.5. DIMENSION

Pag. 9 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
4. UNPACKING AND INSTALLATION
Unpack the machine and ensure that it has not been damaged during transport.
Packaging dimensions: 140 x 70 x 70 cm.
Packaging type: wood.
Packaging weight: 30 KG.
The installation is entirely borne by the buyer. For any technical information (installation specifics,
electrical connection, floor characteristics, electromagnetic compatibility) please refer to this use and
maintenance manual.
4.1 RECOMMENDED INSTALLATION
CLOROFILLA TRAIL must be fixed to a concrete base or any other compact and not slatted resistant
material. The recommended technical characteristics are the following.

Pag. 10 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
FISCHER ANCHOR CHARACTERISTICS

Pag. 11 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
4.2 UNBOXING PROCESS AND START-UP
COLOROFILLA TRAIL is shipped in the wooden BOX already assembled.
1) Cut the plastic straps (scissors).
2) Remove the screws on the lower side of the box (screwdriver or electric screwdriver).

Pag. 12 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
3) Remove the upper cover.
4) Lift and remove side walls of the box (2 people required).

Pag. 13 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
5) Unscrew the safety nuts (13mm wrench).
7) The installation is completed.
ATTENTION: Do not use CLOROFILLA until it hasn’t been fixed to the floor.

Pag. 14 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
5. MAINTENANCE
Maintenance operations are easy and they can be done by everyone.
Every tool used must have safe grips.
5.1. MAINTENANCE OPERATIONS
To guarantee a correct functioning of CLOROFILLA we recommend to do some easy maintenance
operations. The ordinary CLOROFILLA’s cleaning maintenance can be done using a wet cloth with a
non-aggressive cleaner. For any other maintenance or checks, refer to the chart 1.
Chart 1 – Maintenance
COMPONENT ACTION PERIOD
BASIC STRUCTURE Check the presence of cracks (visual
inspection)
12 months
CENTRAL PIPE Check the presence of corrosions 12 months
BICYCLE SUPPORTS Check the presence of corrosions 12 months
RUBBER TOPS They have to be replaced taking into
account the wear and tear
24 months
TOOLS SUPPORT Maintenance and regular wire cleaning 12 months
TOOLS SUPPORT Check the condition of the wire and that there
are not fraying
12 months
TOOLS SUPPORT Regular replacement 24 months
PAININTING Visual inspection 24 months
DOME Regular inspection 24 months
ALL THE STRUCTURE Regular inspection 24 months
PUMP Regular inspection and screw shut 24 months
PUMP Replacement 48 months
5.2. CLOROFILLA’S DISPOSAL
In any case of disposal, in order to preserve the environment, divide metallic parts from plastic ones
and hand everything out to the ecologic recycling depot.
ENVIRONMENT: Divide these components and dispose of them into recycling depots.

Pag. 15 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
6. ATTACHMENTS

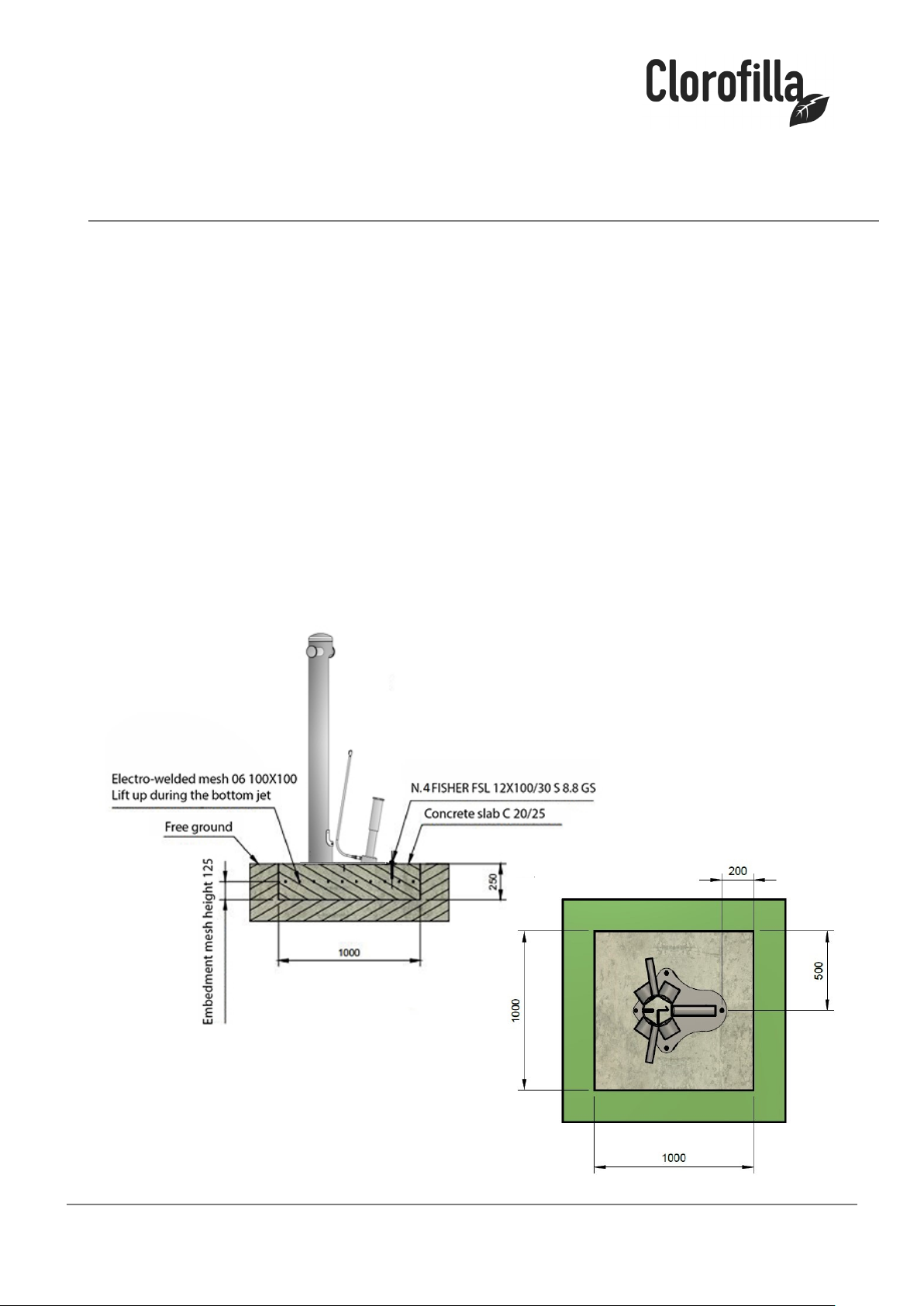

•ISTALLATION DRAWING

Pag. 16 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019

Pag. 17 di 17
00_30.09.2020
Buratti Meccanica Copyright ©2019
BURATTI MECCANICA Srl -
Via Archimede, 535 47521 Cesena (FC)
-
Tel. [phone]
[e-mail] www.clorofilla-italy.com
Trail
