Specialized Elite CylcoComputer User manual

The following functions are available on
your SpeedZone Elite bicycle computer:
• SPD - Current Speed
• AVS - Average speed
• MAX - Maximum Speed
• ATM - Automatic Start/Timer
• DST - Trip Distance
• ODO - Odometer (total distance)
• ASI - +/- Average Speed Indicator
• TM - Stopwatch
• INT - Interval Timer
• CAD - Cadence
• Digital 12/24 Hour Clock
1
SPEEDZONE ELITE CYCLOCOMPUTER
Congratulations on your purchase and welcome to the growing number of
cyclists who are discovering a powerful new generation of bicycle computers.
Your Specialized SpeedZone®Elite has been designed to provide the best combi-
nation of performance, features, durability and ease of use and installation.
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 1

MOUNTING
THE SPEEDZONE®ELITE
The SpeedZone®Elite wireless transmit-
ter can mount on the right or the left
side of the fork blade. The right side
should be used on large frames or
when a suspension fork is installed.
The optimal distance between the com-
puter and the transmitter is 24 inches
(610mm) The distance may need to be
less than 24 inches (610mm) if ambi-
ent temperatures are below 40°F (4°C).
To reduce signal loss in colder temper-
atures, the transmitter should be
mounted as close to the computer as
possible. (Maximum mounting distance
is 28 inches). Use the transmitter-
mounting bracket and tie-wraps pro-
vided to position the sensor. Do not
tighten the tie-wraps until final place-
ment of the magnet is correct.
(See figure 1).
Attach the magnet to a spoke across
from the transmitter with the magnet
screw. The clearance between the
magnet and the transmitter should be
approximately 1/32"-1/16" (1-2mm).
3
This computer also features:
• Second Wheel Option
• Easy Calibration Mode
• Wireless Mounting System
• Heavy-duty abrasion resistant
pick-up wire
• Water resistant housing
• 2 Year Warranty
• Backlit LCD display
What is included in your
SpeedZone Elite package:
1. SpeedZone®computer (1)
2. Mounting bracket wired for cadence (1)
3. Mounting bracket w/out cadence wiring (1)
4. Magnet with screw (1)
5. Cadence magnet (1)
6. Cable tie wraps (8)
7. Mounting bracket sizing straps (3)
8. Transmitter (1)
9. Transmitter mounting bracket (1)
2
1
2
3
4
6
5
7
8
9
500-700mm
20-28 in.

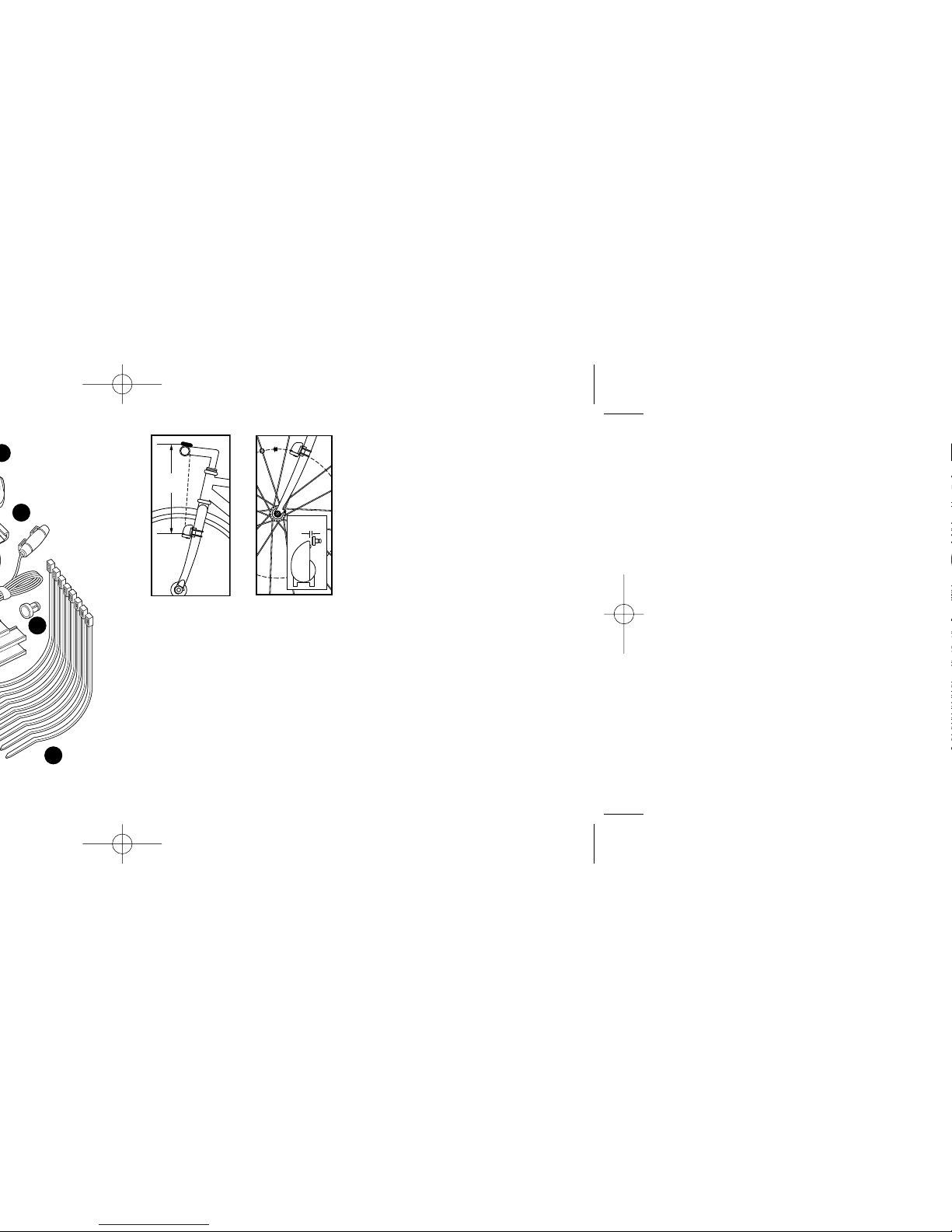

FIGURE 1:
SENSOR
PLACEMENT
FIGURE 2:
MAGNET
ATTACHMENT
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 2

sensor wire along the head tube, down
tube and chain stay of your bicycle
and secure it into place using the
provided tie-wraps. (See figure 4)
Next, attach the cadence magnet to
the inside of your crank arm directly
across from the sensor. Use a tie-wrap
to fasten the magnet to the crank arm.
(See figure 5).
Do not tighten the tie-wrap until final placement of the magnet is correct. The
clearance between the magnet and the
sensor should be approximately
1/32"-1/16" (1-2mm). (See figure 6)
Tighten the magnet and sensor.
5
Tighten the magnet and transmitter. Do
not over-tighten the magnet screw.
(See figure 2).
Attach the mount to the handlebar
using the bracket screw provided.
Tighten so that the bracket cannot
rotate on the handlebar. There are sev-
eral sizing straps provided to fit differ-
ent diameter bars. (See figure 3).
Slide the computer forward onto the
mount until it ‘snaps’ into place with an
audible click. To remove the computer,
push it backward until it releases from
the mount. To test for proper installa-
tion of the magnet, transmitter and
computer, activate the computer by
pushing the ‘MODE’ (right side) but-
ton. Pick up the front of the bicycle and
spin the front wheel. The "wheel
option" indicator will flash. If it does
not flash, check the sensor and magnet
alignment. Realign as necessary until
the "wheel option" indicator flashes
while spinning the wheel.
MOUNTING CADENCE HARDWARE
In order to use the cadence option you
must install the mounting bracket with
the wired sensor provided with your
SpeedZone®Elite. Run the cadence
4

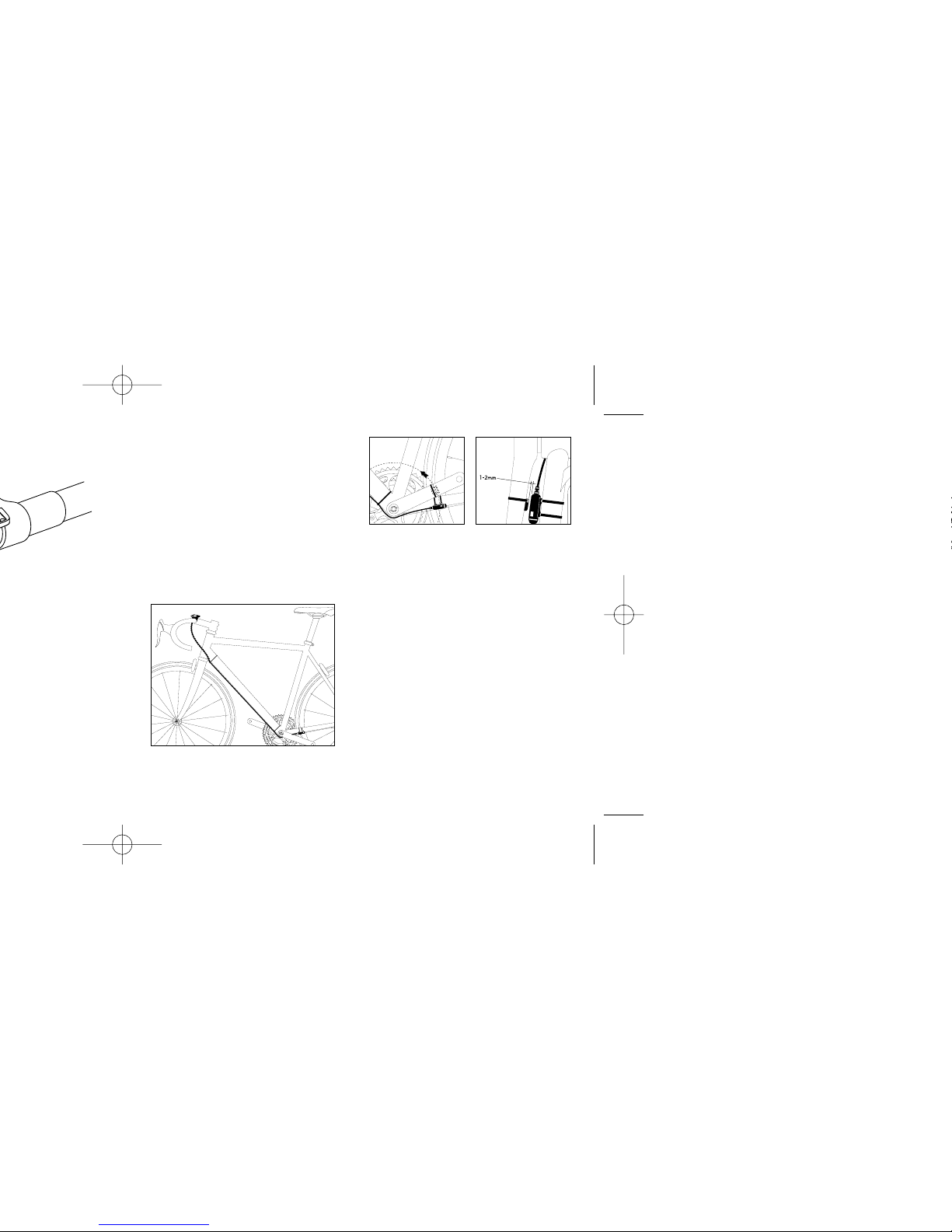

FIGURE 4:
CADENCE WIRE PLACMENT
FIGURE 5:
CADENCE SENSOR
PLACEMENT
FIGURE 6:
CADENCE MAGNET
ATTACHMENT
FIGURE 3: MOUNTING BRACKET
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 4

2. Setting the Programmable
Odometer
This mode is useful if you have
replaced the battery and would like to
retain the mileage you have already
ridden. To access the programmable
odometer mode, first advance the
"MODE" button until (ODO) appears
on the left-hand side of the screen.
Hold down the "FUNCTION" button
and ‘tap’ the "MODE" button once.
The Km/h indicator will flash. If the
Km/h setting is correct press the
"FUNCTION" button once and a five-
digit number will appear. You are now
in the programmable odometer mode.
To enter a mileage into the odometer,
press the "MODE" button until the
flashing digit is correct.
(Note: The "MODE" button may be
held to scroll to the correct digit.) Press
the "FUNCTION" button to select the
next digit to the right. Repeat this
process until all five digits are entered
as your existing mileage.
3. Wheel Circumference Selection
To set the circumference for the type of
tires you are using, you can use
Specialized’s "Easy Calibration Mode"
or measure your actual tire circumfer-
ence by the rollout method. Two dif-
ferent tire diameters may be entered
by using the computer’s "Second
Wheel Option."
7
PROGRAMMING
Programming the functions of your
SpeedZone®Elite requires it to be
placed in various "modes" (i.e.
odometer mode, distance mode). The
computer can be cycled through these
modes by pressing the "MODE" button
located on the right-hand side of the
housing. Once a specific mode has
been entered, its values can be reset
or adjusted by pressing either the
"FUNCTION" button located on the left
hand side of the housing or by using a
combination of the "MODE" and
"FUNCTION" buttons.
1. Miles or Kilometers selection
Your SpeedZone®Elite will record
speed and distance in either miles
(M/h) or kilometers (Km/h). To enter
your selection of miles or kilometers,
push the "MODE" button until ODO
(odometer) appears on the left side of
the display (This is called the odometer
mode). Hold down the "FUNCTION"
(left side) button and ‘tap’ the "MODE"
button once. The Km/h, m/h indicator
will begin blinking. You may now alter-
nate between miles and kilometers by
pressing the "MODE" button. When
the correct choice is flashing, select it
by pressing the "FUNCTION" button.
You will now enter the "Programmable
Odometer" mode. If the odometer set-
ting is correct push the "FUNCTION"
button five times to exit odometer
mode. (Otherwise, see "Setting the
programmable odometer" below).
6
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 6

Roll Out Method
The roll out method will provide the
most accurate computer calibration
and can take into account variables
such as inflation pressure, rim width
and rider weight.
1. Extend a tape measure out to
3000mm (120 inches) and lock
it in place.
2. With your tire inflated to its proper
pressure, place the valve at the 6:00
position (at the bottom) directly over
the start of the measuring tape.
3. Roll the wheel one complete revolu-
tion until the valve stem is again at
the 6:00 position. Read the tape
directly under the valve and note
the distance in millimeters.
(To convert inches to millimeters,
multiply inches by 25.4). Use this
number to replace the default
(default values are 2073 for wheel
one, and 2134 for wheel two)
when programming your computer.
(See figure 8)
9
Easy Calibration Mode:
Your SpeedZone®Elite has been
preprogrammed with the following
14 Specialized tire sizes:
26 X 1.0 26 X 2.2
26 X 1.25 650c X 20
26 X 1.5 700c X 20
26 X 1.95 700c X 23
26 X 1.9 700c X 26
26 X 2.0 700c X 32
26 X 2.1 700c X 38
When using Easy Calibration Mode,
the SpeedZone®Elite will display the
tire size on its LCD display screen. (See
figure 7) The Easy Calibration Mode
is accessed by entering the odometer
(ODO) mode and holding down the
"FUNCTION" button for three seconds.
The display will now show the currently
selected tire size for wheel option #1.
To scroll through the preprogrammed
tire sizes tap both the "MODE" and
"FUNCTION" buttons simultaneously.
When you reach the desired tire size
press the "FUNCTION" button once to
select it and enter Easy Calibration
Mode for wheel option #2. Follow the
same procedure to program the wheel
#2 tire size and tap the "FUNCTION"
button to exit Easy Calibration Mode.
8
Stem
Wheel
Circumference
Roll Forward

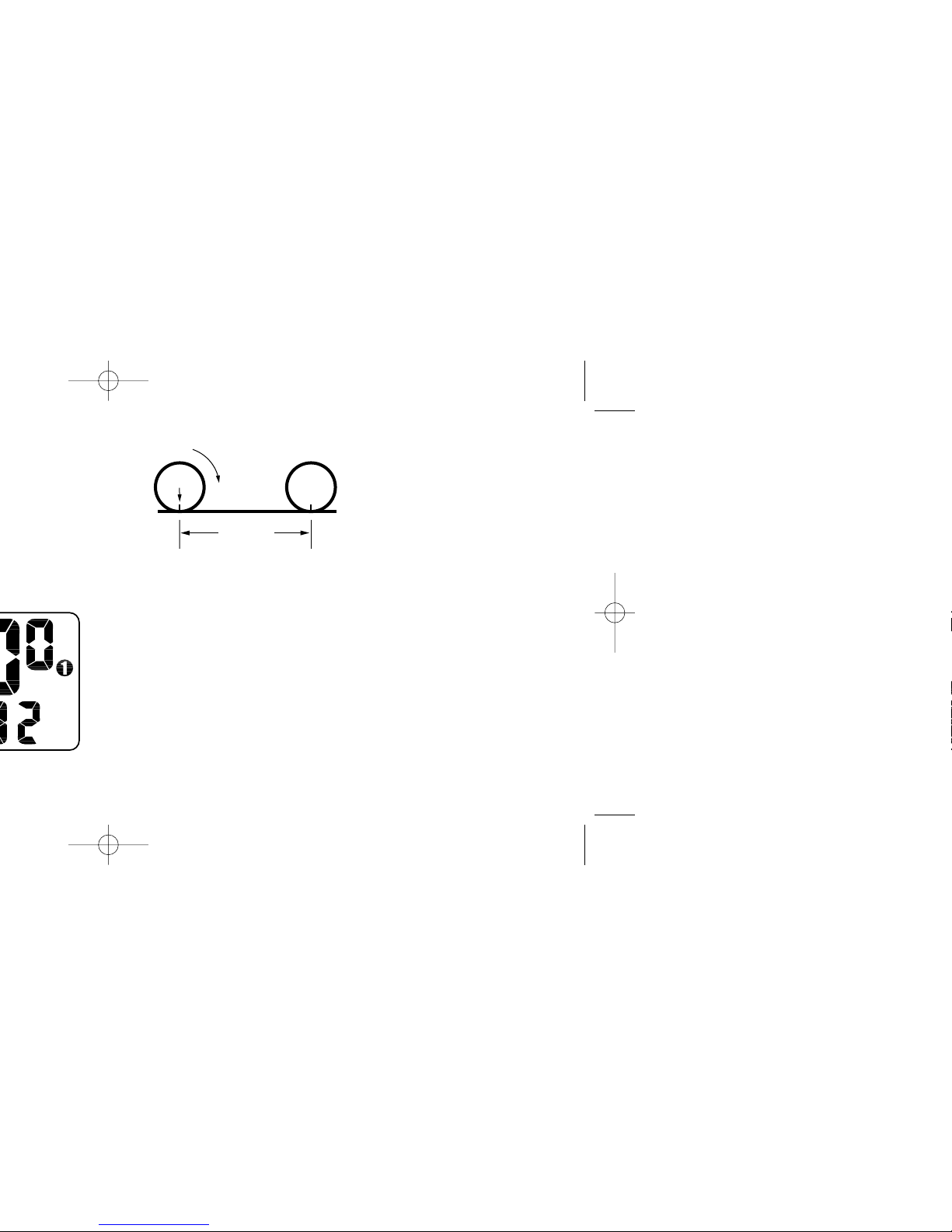

FIGURE 8: ROLL OUT METHOD
FIGURE 7: EASY CALIBRATION SCREEN
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 8

Repeat the process until all four digits
are entered as your tire circumference.
Press the "FUNCTION" button once to
select it and enter the circumference for
wheel option #2. Follow the same
procedure to program the wheel #2
tire size and tap the "FUNCTION"
button to exit circumference pro-
gramming mode.
4. Setting the Clock
To access the "clock mode" press and
hold the "MODE" button for three sec-
onds. To set the clock, press the
"FUNCTION" button for three seconds.
The display will flash either twelve
(12:) or twenty-four (24:). Select
between 12: or 24: mode by pressing
the "MODE" button. Press the
"FUNCTION" button to set the mode.
The hour digit will now begin flashing.
Press the "MODE" button to adjust the
hour digits and press the "FUNCTION"
button to set. The minutes will flash
and can be adjusted by pressing the
"MODE" button. (Hold the "MODE"
button to scroll through the digits
quickly) Press the "FUNCTION" button
to set the minutes and return to clock
mode. (See figure 10)
11
You may also use the following
quick-reference chart:
Generic Tire Size Chart
(This chart is for non-specialized tires)
26 X 1.75 2140
26 X 2.0 2074
26 X 2.1 2090
650C X 20 1945
700C X 26 2124
700C X 38 2170
Programming the circumference:
To enter the tire circumference number,
select the odometer (ODO) mode and
hold down the "FUNCTION" button for
three seconds. The display will now
show the currently selected tire size
for wheel option #1. (See figure 9)
If necessary scroll through the prepro-
grammed tire sizes by tapping both
the "MODE" and "FUNCTION" buttons
simultaneously until the display shows
a four-digit number. This number
represents your tire circumference in
millimeters. Press the "MODE" button
until the flashing digit is correct.
(Note: The "MODE" button may be
held to scroll to the correct digit.)
Press the "FUNCTION" button to
select the next digit to the right.
10

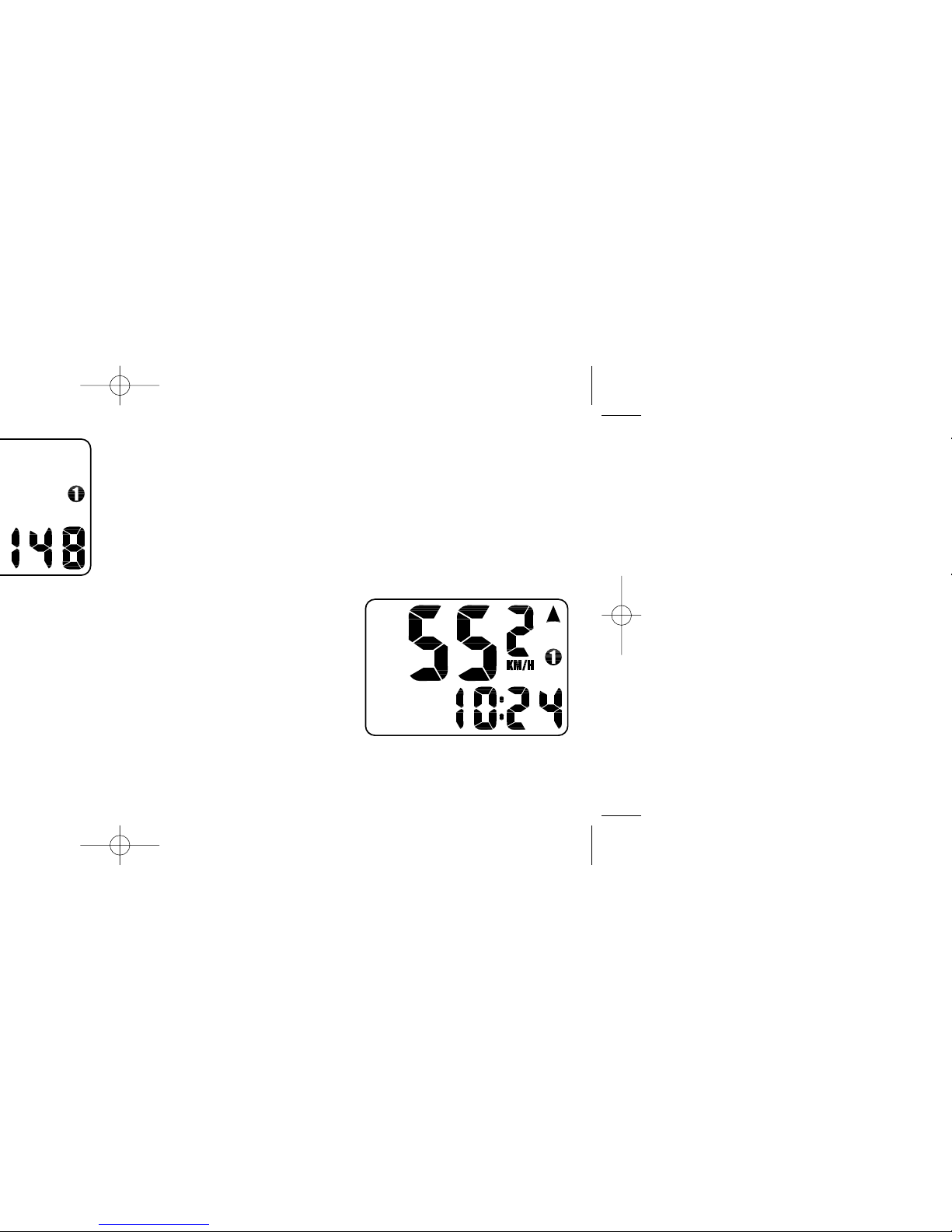

FIGURE 10: CLOCK SCREEN
FIGURE 9: CIRCUMFERENCE
PROGRAMMING SCREEN
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 10

mode has been selected, press the
"FUNCTION" button to advance to the
next operating mode.

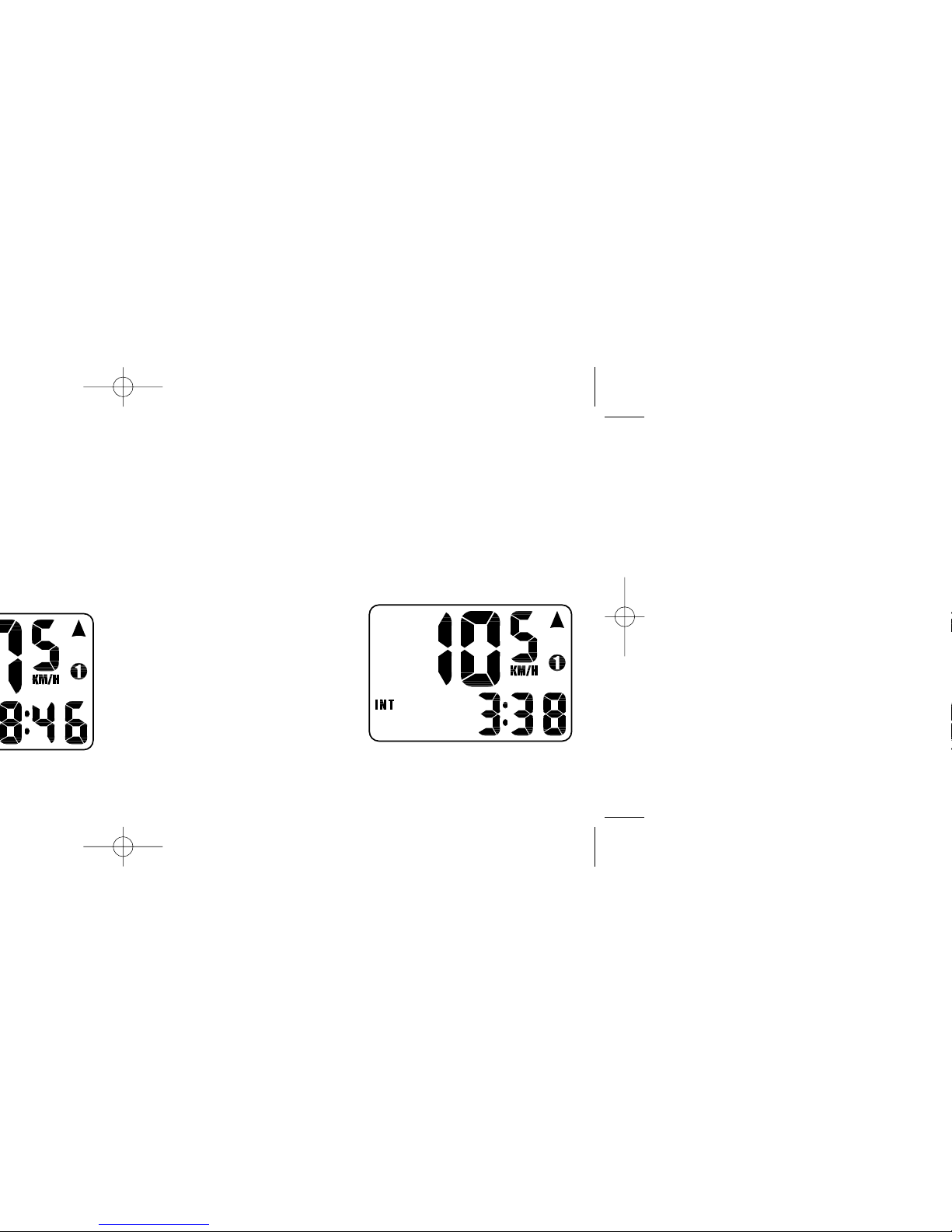

6. Interval Timer
Your Speedzone Elite is equipped with
an Interval Timer. This feature allows
you to customize your training by inte-
grating a programmable repeating
countdown timer into your workout. To
enter the interval timer mode, press the
"MODE" button until "INT" appears on
the left-hand side of the screen. You
are now in interval timer mode. To set
the interval timer, hold the "FUNC-
TION" button for three seconds. The
hour digit will begin flashing. Press
the "MODE" Button until the desired
number appears. (Hold down the
"Mode" button to scroll quickly) Press
the "FUNCTION" button once to set
this number and advance to minutes.
Repeat this process until minutes and
seconds are set to the desired settings.
Press the "FUNCTION" button to exit
programming mode. Once the interval
timer is programmed, press the
"FUNCTION" button to start/stop the
countdown. (See figure 12)
Note: The shortest interval that can
be set is 5 seconds.
13
5. Timer Selection
The timer can be selected for either
Automatic Timer Mode (ATM) or Timer
Mode (TM). The ATM selection allows
you to keep track of your actual riding
time. The timer only operates when the
wheel is rotating and cannot be turned
on or off manually.
The TM selection is just like a conven-
tional stopwatch. The timer is activated
manually and records the time whether
the wheel is rotating or not. Tapping
the "FUNCTION" button starts and
stops the stopwatch and holding the
"FUNCTION" button for three seconds
will reset the stopwatch.
Note: The average speed (AVS) will be
calculated differently based upon the
selection of ATM or TM. If ATM is
selected, the AVS is based upon only
riding time. If TM is selected the AVS is
based on the total time the stopwatch
is turned on or activated.
(See figure 11)
To select either TM or ATM, first
press the "MODE" button until either
"TM" or "ATM" appears on the left-
hand side of the screen. To alternate
between "TM" and "ATM" press the
"MODE" and "FUNCTION" buttons
simultaneously. Once the desired timer
12
FIGURE 12: INTERVAL TIMER SCREEN
FIGURE 11: ATM/TM SCREEN
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 12

speed is retained in memory and up-
dated when a higher speed is attained.
The maximum speed can be reset by
pressing the "FUNCTION" button for
three seconds. (See figure 14)
Auto Start/Stop Timer (ATM)
In ATM mode the stopwatch function
records the actual time spent riding. It
operates only when there is speed
input and is displayed on the lower
line of the screen.
Timer Mode (TM)
In TM mode the stopwatch function will
operate when the "FUNCTION" button
is pressed. The stopwatch will record
the total time after the button is pressed
regardless of whether there is speed
input or not. The average speed (AVS)
will be calculated based on the time
the timer mode is activated.
Interval Timer (INT)
The interval timer is displayed on the
lower line of the screen when (INT)
appears on the left. The timer indi-
cates the end of an interval with one
short beep per second for the last 4
15
COMPUTER FUNCTIONS
Speedometer
Speed is always indicated on the top
line of the screen. The speed is shown
continuously up to 99.9 M/h (99.9
Km/h) with a resolution of 0.1 M/h
(0.1 Km/h)
Average Speed (AVS)
The average speed is displayed on the
lower line of the screen when AVS is
shown on the left. The average speed
is based upon whether the ATM or the
TM mode has been selected, the reso-
lution of the average speed is shown in
0.1M/h or Km/h increments.
(See figure 13)
+/- Average Speed Indicator
An up or down arrow displayed in
the upper right side of the screen
shows whether the current speed is
above or below the average speed.
Maximum Speed (MAX)
The maximum speed is displayed on
the lower line of the screen when MAX
is shown on the left. The maximum
14

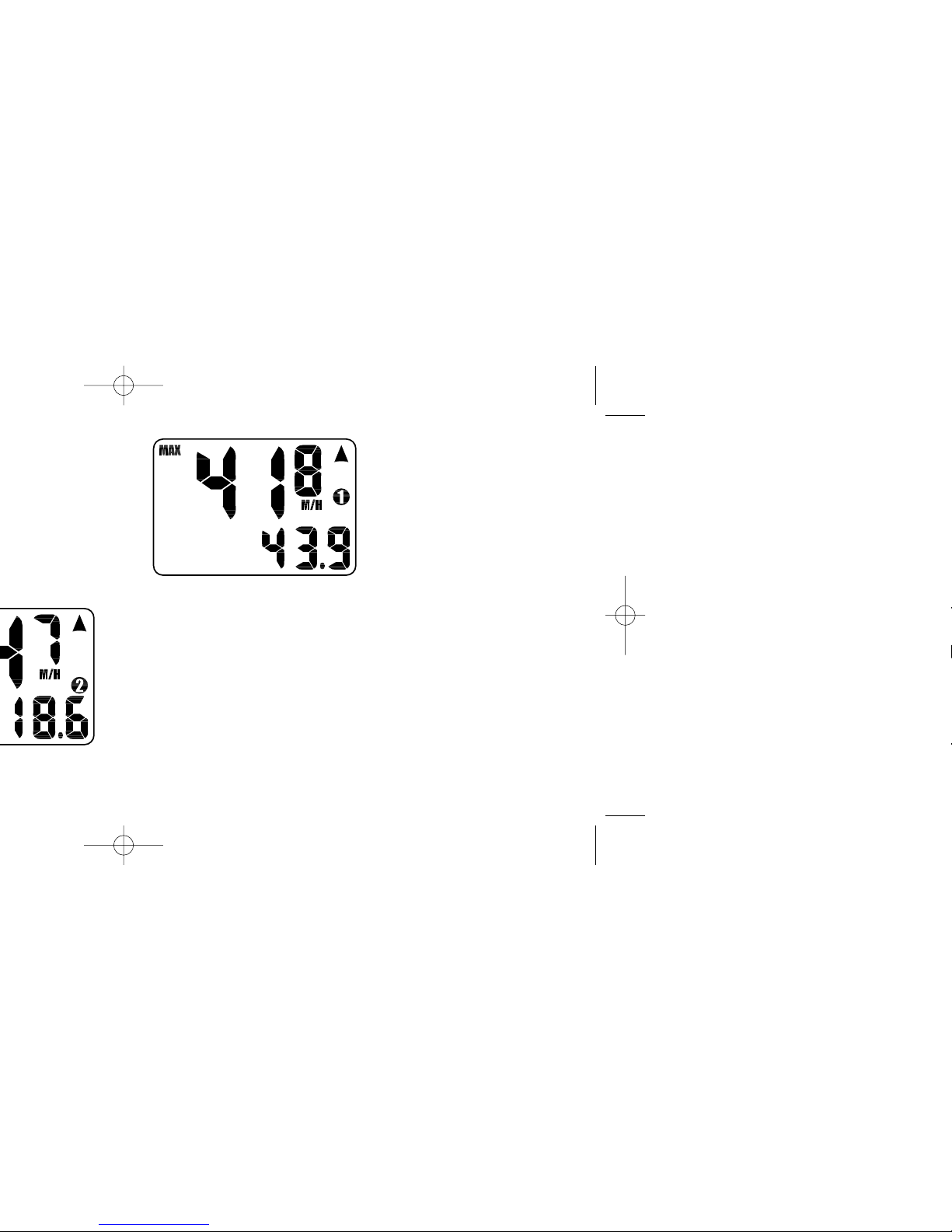

FIGURE 14: MAXIMUM SPEED SCREEN
FIGURE 13: AVERAGE SPEED SCREEN
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 14

Trip Distance (DST)
Trip distance mode will record up to
999.99 miles or kilometers and then roll
to zero. The trip distance function can
be reset by pressing the "FUNCTION"
button for three seconds. The resolution
is 0.01 miles (0.01 Kilometers). The
trip distance is shown on the lower line
if the screen. (See figure 16)
Odometer (ODO)
The odometer will record the total
distance traveled up to 99,999 miles
or kilometers and then roll to zero. The
odometer can be reset by pressing the
"FUNCTION" button for three seconds.
The total distance is shown on the
lower line if the screen. (See figure 17)
Programmable Odometer
The odometer digits are programmable.
This is convenient for transferring your
hard-earned mileage that is usually lost
when changing batteries or computers.
17
seconds of the interval. This is fol-
lowed by a long beep, indicating the
beginning of a new interval.
Cadence (CAD)
Cadence mode will display your pedal-
ing speed in RPM’s (revolutions per
minute) on the lower line of the screen.
Monitoring how fast you turn your ped-
als can be used as a tool to enhance
the efficiency with which you ride your
bicycle. Simply put, the best cadence is
a balance between leg speed and pedal
pressure. Beginning cyclists typically
prefer to pedal at a slower cadence,
around 60-rpm, while advanced cyclists
and racers are more efficient between
90 and 100 rpm. (See figure 15)
16
FIGURE 16: TRIP DISTANCE SCREEN
FIGURE 15: CADENCE SCREEN FIGURE 17: ODOMETER SCREEN
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 16

re-enter them when you restart the
computer. Turn the computer over so
the display is facing downward. Use a
coin to unthread the battery cap from
the computer. Install the battery (model
CR2302) with the positive pole (+)
facing upward. Carefully thread the
battery cap back onto the case with a
coin. (See Figure 18)
If the LCD display is blank or shows
incomplete digits, turn the computer
over and press the "AC" button on the
bottom of the case with the tip of a pen
or a paper clip. This will clear all the
data and re-start the computer. Reinstall
the computer by pushing it forward into
the mount until it snaps into place.
TROUBLESHOOTING
•Display is blank:
Change the battery or press the AC
button on the bottom of the case
•Display shows partial digits:
Press the AC button on the bottom
of the case.
•Speed/distance not recording:
Check sensor/magnet alignment.
Make sure that the sensor is no more
than 1/16" (2mm) from the magnet.
•Entire screen is dark:
Did you leave the bike parked in the
hot direct sun when it was parked?
If so, move the bike to the shade.
The data will be OK.
•Computer moves on handlebar:
Tighten mount or add sizing straps
to improve fit on handlebar.
19
Clock
Your SpeedZone®Elite is equipped
with a digital clock, which is accessed
by pressing the "MODE" button for
three seconds. The clock can be set to
operate in either 12 or 24-hour mode.
Second Wheel Mode
For riders who own more than one
bicycle or who frequently change tires,
the SpeedZone®Elite is capable of
storing two tire sizes. You can change
between the two sized by pressing
both the "MODE" and "FUNCTION"
buttons simultaneously for three
seconds. The second wheel mode
indicator will change from 1 to 2.
Mileage recorded will be cumulative
between the two sizes. (An accessory
handlebar mount is available from
your Specialized dealer)
18
INSTALLING THE BATTERY
Your SpeedZone®Elite Computer comes
with the battery installed at the factory.
Should you need to replace the battery,
push the computer backward to remove
it from the handlebar mount. Before
removing the battery make a note of
your odometer reading and wheel
circumference settings so that you can
FIGURE 18: BATTERY INSTALLATION
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 18

SPECIFICATIONS
Current Speed
0.0 to 99.9 MPH
0.0 to 99.9 Km/H
Average Speed (AVS)
0.0 to 199.9 MPH
0.0 to 199.9 Km/H
Maximum Speed (MXS)
0.0 to 199.9 MPH
0.0 to 199.9 Km/H
Stopwatch (TM)
0 to 9hrs, 59min, 59sec. recycling type
Automatic Timer (ATM)
0 to 9hrs, 59min, 59sec. recycling type
21
IMPORTANT!
• Pay attention to traffic and road
conditions at all times. Your first
obligation is to be attentive and
to ride safely.
• Keep your computer in good shape
and use it safely.
• Do not expose it to direct sunlight
except when you are riding.
• Do not disassemble it.
• Make sure the magnet and
the transmitter are well aligned.
Check them regularly.
• Keep the computer and all of its
components tightly attached, and
check them regularly. If any of the
components come loose, it could
become tangled in your spokes
and cause an accident.
• See your authorized Specialized
dealer if you have any trouble
installing or maintaining your
computer.
• Clean the unit with a mild detergent
and a soft dry cloth. Never use any
kind of solvent or alcohol.
• The SpeedZone®Elite Computer
computer is intended for use on
bicycles only and should not be
used on any motorized vehicle.
20
WARRANTY INFORMATION
Specialized cycling computers are
guaranteed to be free from defects
in materials and/or workmanship
(excluding battery) for a period of
two years from the date of purchase.
Specialized will at its option, repair
or replace your defective computer.
To receive warranty service send the
unit, a copy of the sales receipt and
a brief description of the problem to:
Specialized Bicycle Components Inc.
15130 Concord Circle
Morgan Hill, CA. 95037
Attn: Product Services/
Computer Warranty
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 20

Interval Timer (INT)
5 sec. to 9hrs, 59min, 59sec.
Trip Distance (DST)
0 to 999.99 miles or Km
Odometer (ODO)
0 to 99,999 miles or Km
Operating Temperature
40°F to 104°F (4°C to 40°C)
SpeedZone is a registered trademark
of Specialized Bicycle Components Inc.
© 2000 Specialized Bicycle Components Inc.
22
01_SDZN_ELITE_USA_1-22.qxd 4/18/01 8:32 PM Page 22
