Installation Instructions
Original Instructions
Microsoft Windows 10 IoT Enterprise LTSB
Operating System Upgrade Kit
Catalog Numbers 6177R, 6181P
The following items are included in the upgrade kit:
• Rockwell Automation® Windows 10 upgrade label
• Microsoft® Windows® 10 IoT Enterprise Certificate of Authenticity (COA) label
• Publication IC-IN001 (this document)
This publication provides instructions on where to install the two labels that are part of this kit,
and how to download and upgrade to the Microsoft Windows 10 IoT Enterprise Long Term
Service Branch (LTSB) operating system (OS).
Topic Page
Install the Two Labels 2
Download and Install the Windows 10 IoT Enterprise LTSB OS 5
Additional Resources 11
Rockwell Automation Support 12
Documentation Feedback 12
IMPORTANT This upgrade applies only to Rockwell Automation 6177R Series C and 6181P Series F
industrial computer models.
ATTENTION: If you upgrade your computer to the Windows 10 IoT Enterprise LTSB OS, then you
must affix both labels as specified in this publication to complete the upgrade.
Failure to do so is a violation of the Microsoft End User License Agreement.

2Rockwell Automation Publication IC-IN001A-EN-P - July 2017
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
Install the Two Labels
Each replacement label is shipped in its own envelope. The Microsoft Certificate of Authenticity
(COA) label is in a Microsoft labeled envelope.
To install the two replacement labels, perform the following steps.
Rockwell Automation Windows 10 Upgrade Label
For 6181P Series F Computers
1. Locate the barcode label on the side of the computer.
2. Place the Rockwell Automation Windows 10 upgrade label over the barcode label.
For 6177R Series C Computers (750R and 1450R models)
1. Locate the barcode label on the back of the computer.
2. Place the Rockwell Automation Windows 10 upgrade label over the barcode label.
750R Computer Shown

Rockwell Automation Publication IC-IN001A-EN-P - July 2017 3
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
Microsoft COA Label
For 6181P Series F Computers
1. Remove power from the computer.
2. Loosen the three captive screws that secure the back cover to the computer.
3. Open the cover and detach it from the chassis .
The existing COA label is on the back panel of the chassis.
IMPORTANT If an add-in card is installed, you might need to remove the card to access the COA
label.
Add-in cards are sensitive to electrostatic discharge and require careful handling. See
Appendix A of publication 6181P-UM004, Integrated Display Industrial Computers
User Manual, for instructions to remove and reinstall an add-in card, which is
available at
http://www.rockwellautomation.com/global/literature-library/overview.page

4Rockwell Automation Publication IC-IN001A-EN-P - July 2017
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
4. Place the new Windows 10 COA label near (but not over) the existing COA label.
5. If necessary, reinstall the add-in card.
6. Reattach the rear cover to the computer chassis.
7. Close the cover.
8. Tighten the three captive screws to secure the rear cover.
9. Restore power to the computer.
For 6177R Series C Computers (750R and 1450R models)
1. Remove power from the computer.
2. Unfasten the cover from the computer chassis.
• 750R computers: Remove the three screws on the rear edge of the side cover (A).
• 1450R computers: Remove the two screws on the rear edge of the top cover (A).
3. Slide the cover back about 1.5 cm (0.5 in.) to release the hinge tabs (B).
4. Tilt the cover up slightly to disengage the hinge tabs from their lock slots.
5. Pull the cover away from the chassis (C).
6. Locate the existing COA label.
• 750R computers: The label is underneath the top cover.
• 1450R computers: The label is on a side cover.
Existing
750R Computer
1450R Computer
A
A
A
C
B
C
B
A
B
C
B
C
A

Rockwell Automation Publication IC-IN001A-EN-P - July 2017 5
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
7. Place the new COA label near (but not over) the existing COA label.
8. Reinstall the cover in the reverse order of steps 2 through 5.
9. Restore power to the computer.
Download and Install the Windows 10 IoT Enterprise LTSB OS
To access, download, and install the 10 IoT Enterprise LTSB OS , perform the following steps.
1. Attach the following external peripherals to your computer:
• Display (for non-display models)
• Keyboard and mouse
• USB FAT32 storage drive (16 GB or larger)
2. Access the Rockwell Automation Product Compatibility and Download Center
(PCDC) site:
http://compatibility.rockwellautomation.com/Pages/home.aspx
3. On the PCDC home page, use either of these links to search for downloads.
4. On the Find Downloads page, use 6189V-WIN10UPG as your search criteria.
IMPORTANT The USB storage drive must be FAT32 formatted and must not contain any other
files. Otherwise, any downloaded files placed on the USB drive will not be
recognized.
Existing

6Rockwell Automation Publication IC-IN001A-EN-P - July 2017
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
5. When 6189V-WIN10UPG is visible, click Downloads.
6. On the Downloads page, click to see the available downloads.
7. Select the appropriate system image for your computer model. In nearly all instances, the
AMI Rescue file should be selected.
8. Click Downloads.
9. On the Download Cart dialog box, click Download Now.
10. Download the system image to the root of the attached USB storage drive.
TIP You must be registered with the Rockwell Automation PCDC website to download
files.
You must accept an End User License Agreement before files can be downloaded.
IMPORTANT If the system image files are not saved to the root of the USB storage drive, they will
not be recognized by AMI Rescue.

Rockwell Automation Publication IC-IN001A-EN-P - July 2017 7
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
There are two download methods available, Managed and Direct. If you do not have a
third-party software, then use the Managed Download method.
11. If you choose Managed Download:
a. Save the .EXE file to your computer.
b. Double-click the .EXE file to start the download.
c. As the download starts, click Change.
d. Browse to and select the attached USB drive as your download location.
If you choose Direct Download:
a. Download each file shown to the root of the attached USB drive.
12. After all files have downloaded, open the USB drive.
13. In the USB drive directory, double-click to launch the extraction process.
14. On the extraction dialog box, perform the following:
a. Verify that the USB drive is the destination folder. If not, click Browse to locate it.
b. After the destination folder is confirmed, click Extract to complete the extraction.
15. If not already done, attach the USB storage drive to the computer that is being upgraded
to Windows 10.
16. With the USB storage drive attached, restart the computer.
17. During the computer power-on self test (POST), press F2 to access the UEFI/BIOS
set-up utility.
18. Depending on your computer model, perform the following steps in the next sections to
restore an OS image from a USB storage drive.
TIP Use the arrow keys on a keyboard to navigate between the UEFI/BIOS menus and
menu selections.

8Rockwell Automation Publication IC-IN001A-EN-P - July 2017
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
For 6181P Series F Computers
1. Click the AMI Rescue menu to access the AMI Restore screen.
2. Click Restore from an Image.
3. In the Source of Image File field, click Browse to locate the image source.
4. From the List of Volumes menu, select the USB storage drive.
5. Click Exit.
6. In the Destination of Restore Data field, click Browse to locate the destination source.
7. Select the volume label for the Windows 10 upgrade that you want to restore.
8. Click Advanced.
IMPORTANT When you upgrade to a new OS image, all data on the target drive is replaced.
Verify that all data is backed up before you proceed with the following steps.
IMPORTANT Do not select Recovery; it is the OS image on the computer that you wish to restore.

Rockwell Automation Publication IC-IN001A-EN-P - July 2017 9
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
9. On the Select Partition screen, select all boxes for Disk 0 so the entire OS image is
restored.
10. Click OK.
11. Click Exit.
12. Click Restore Now to start the restoration process.
For 6177R Series C Computers (750R and 1450R models)
1. Click the AMI Rescue menu to access the AMI Restore screen.
2. Click AMI Restore.
3. Select the appropriate volume from the list.
‘Recovery’ is the volume name where the default backup of factory images is stored.
4. Click Next.
IMPORTANT If warning messages appear during the restoration process, answer Yes to all except
if you want to keep the current partition table; answer No to that message.
IMPORTANT When you upgrade to a new OS image, all data on the target drive is replaced.
Verify that all data is backed up before you proceed with the following steps.
IMPORTANT Computers with the Windows Embedded 8.1 Industry Pro operating system do not
contain a factory image backup in the Recovery partition.

10 Rockwell Automation Publication IC-IN001A-EN-P - July 2017
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit

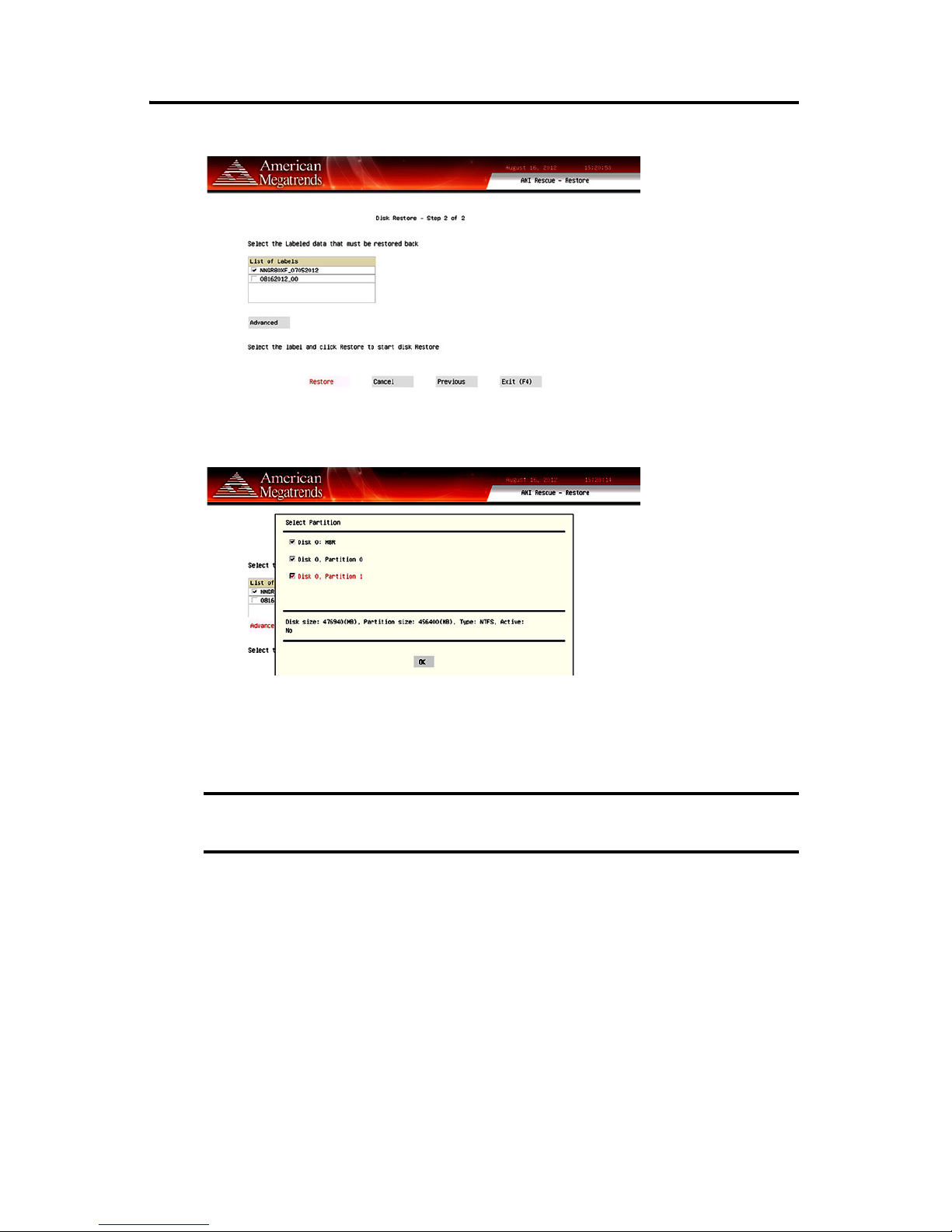

5. Select the volume label for the Windows 10 upgrade that you want to restore.
6. Click Advanced.
7. Select to which disk partition you want to restore.
8. Click OK.
9. Click Restore to start the restoration process.
The restoration process starts.
TIP All checkboxes must be selected for a complete restore of factory OS images.
IMPORTANT Three alert windows appear during the restoration process. Answer Yes to all except
if you want to keep the current partition table; answer No to that alert.

Rockwell Automation Publication IC-IN001A-EN-P - July 2017 11
Microsoft Windows 10 IoT Enterprise LTSB Operating System Upgrade Kit
Additional Resources
These documents contain more information to related products from Rockwell Automation.
You can view or download publications at http://www.rockwellautomation.com/global/
literature-library/overview.page. To order paper copies of technical documentation, contact your
local Allen-Bradley distributor or Rockwell Automation sales representative.
Resource Description
Rockwell Automation PCDC Quick Reference Guide,
publication PCDC-QR001
Provides an overview of the Rockwell Automation PCDC site, and how to
access downloads for your computer model.
Non-display Industrial Computers User Manual,
publication 6177R-UM002
Provides details on how to install, configure, and operate the 6177R non-
display industrial computers.
Integrated Display Industrial Computers User
Manual, publication 6181P-UM004
Provides details on how to install, configure, and operate the 6181P
integrated display industrial computers.

Allen-Bradley, Rockwell Automation, and Rockwell Software are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: [phone]
Rockwell Automation maintains current product environmental information on its website at
http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page.
Publication IC-IN001A-EN-P - July 2017 PN-419755 / DIR 10002944999_00
Supersedes Publication xxxx-INxxxx-EN-P - Month Year Copyright © 2017 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
*PN-419755*
PN-419755
Documentation Feedback
Your comments will help us serve your documentation needs better. If you have any suggestions
on how to improve this document, complete the How Are We Doing? form at http://
literature.rockwellautomation.com/idc/groups/literature/documents/du/ra-du002_-en-e.pdf.
Rockwell Automation Support
Use the following resources to access support information.
Technical Support
Center
Knowledgebase Articles,
How-to Videos, FAQs, Chat,
User Forums, and Product
Notification Updates.
https://rockwellautomation.custhelp.com/
Local Technical
Support Phone
Numbers
Locate the phone number
for your country.
http://www.rockwellautomation.com/global/support/get-support-
now.page
Direct Dial Codes Find the Direct Dial Code
for your product. Use the
code to route your call
directly to a technical
support engineer.
http://www.rockwellautomation.com/global/support/direct-dial.page
Literature Library Installation Instructions,
Manuals, Brochures, and
Technical Data.
http://www.rockwellautomation.com/global/literature-library/
overview.page
Product
Compatibility and
Download Center
(PCDC)
Get help determining how
products interact, check
features and capabilities,
and find associated
firmware.
http://www.rockwellautomation.com/global/support/pcdc.page
B
B
