Allen-Bradley 1761-NET-AIC User manual

AIC+ Advanced
Interface Converter
Catalog Number 1761-NET-AIC
User Manual
Allen-Bradley Spares

Important User Information
Solid state equipment has operational characteristics differing from those of
electromechanical equipment. Safety Guidelines for the Application,
Installation and Maintenance of Solid State Controls (publication SGI-1.1
available from your local Rockwell Automation sales office or online at
http://literature.rockwellautomation.com) describes some important
differences between solid state equipment and hard-wired electromechanical
devices. Because of this difference, and also because of the wide variety of
uses for solid state equipment, all persons responsible for applying this
equipment must satisfy themselves that each intended application of this
equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for
indirect or consequential damages resulting from the use or application of
this equipment.
The examples and diagrams in this manual are included solely for illustrative
purposes. Because of the many variables and requirements associated with
any particular installation, Rockwell Automation, Inc. cannot assume
responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to
use of information, circuits, equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without
written permission of Rockwell Automation, Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware
of safety considerations.
Allen-Bradley, PLC, SLC, MicroLogix, PanelView, DTAM, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
WARNING Identifies information about practices or circumstances that can cause
an explosion in a hazardous environment, which may lead to personal
injury or death, property damage, or economic loss.
IMPORTANT Identifies information that is critical for successful application and
understanding of the product.
ATTENTION Identifies information about practices or circumstances that can lead
to personal injury or death, property damage, or economic loss.
Attentions help you identify a hazard, avoid a hazard, and recognize
the consequence
SHOCK HAZARD Labels may be located on or inside the equipment, for example, a drive
or motor, to alert people that dangerous voltage may be present.
BURN HAZARD Labels may be located on or inside the equipment, for example, a drive
or motor, to alert people that surfaces may be at dangerous
temperatures.

3Publication 1761-UM004B-EN-P - June 2006
Summary of Changes
The information below summarizes the changes to this manual since
the last printing.
To help you find new and updated information in this release of the
manual, we have included change bars as shown to the right of this
paragraph.
Topic Page
Updated publication list 4
Ordering publications 4
Processor/cable compatibility 16...19
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
4Summary of Changes

iPublication 1761-UM004B-EN-P - June 2006
Table of Contents
Preface
Who Should Use This Manual . . . . . . . . . . . . . . . . . . . . . . . . 3
Purpose of This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Conventions Used in This Manual . . . . . . . . . . . . . . . . . . . . . 4
Chapter 1
Product Overview Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Device Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 2
Installation and Wiring Compliance to European Union Directives . . . . . . . . . . . . . . . 9
EMC Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Low Voltage Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mount the AIC+ Advanced Interface Converter. . . . . . . . . . . 11
Mount to a DIN Rail . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mount to a Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wire the AIC+ Advanced Interface Converter . . . . . . . . . . . . 13
Wire the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . 13
Wire to the Network Ports . . . . . . . . . . . . . . . . . . . . . . . 14
Cable Choices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Recommended User-supplied Components . . . . . . . . . . . . . 19
Chapter 3
Network Connections Network Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Point-to-point Isolator . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Components Replaced by the AIC+ Interface Converter . 22
DH-485 Network with SLC 5/03 and SLC 5/04 Processors
and a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
DH-485 Network with a MicroLogix 1000 Controller . . . . 24
Typical Three-node OEM Network . . . . . . . . . . . . . . . . 24
Networked Operator-interface Device and MicroLogix
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Networks Using Ganged Converters . . . . . . . . . . . . . . . 26
Network Extended to 2438 m (8000 ft) . . . . . . . . . . . . . 27
DF1 Master-slave Network with Modem . . . . . . . . . . . . . 28
Avoid Incorrect Connections . . . . . . . . . . . . . . . . . . . . . 29
Chapter 4
Interpret the LED Indicators Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
ii Table of Contents
Appendix A
Specifications and Dimensions General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Hardware Handshaking . . . . . . . . . . . . . . . . . . . . . . . . . 34
Auto Transmit Delay (turnaround time) per
Communication Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Mounting Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Index

3Publication 1761-UM004B-EN-P - June 2006
Preface
Read this preface to familiarize yourself with the rest of the manual.
This preface covers the following topics.
•Who should use this manual
•Purpose of this manual
•Conventions used in this manual
Who Should Use This
Manual
Use this manual if you are responsible for designing, installing,
programming, or troubleshooting control systems that use
Allen-Bradley Small Logic controllers.
You should have a basic understanding of SLC 500 and MicroLogix
products and be able to interpret the ladder-logic instructions required
to control your application. If you do not, contact your local
Allen-Bradley representative for information on available training
courses before using this product.
Purpose of This Manual
This manual is a reference guide for the Advanced Interface Converter
(AIC+). This manual:
•gives you an overview of the AIC+ interface converter operation.
•explains the procedures to install and wire the AIC+ interface
converter.
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
4Preface
Additional Resources
The following documents contain additional information regarding
Rockwell Automation products.
Related Documentation
If you would like a manual, you can:
•download a free electronic version from the Internet at
http://literature.rockwellautomation.com.
•purchase a printed manual by contacting your local distributor
or Rockwell Automation representative.
Conventions Used in This
Manual
The following conventions are used throughout this manual.
•Bulleted lists, such as this one, provide information, not
procedural steps.
•Numbered lists provide sequential steps or hierarchical
information.
•Bold type is used for emphasis
For Read This Document Document
Number
A guide to understanding and selecting SLC 500 products SLC 500 System Selection Guide 1747-SG001
A description on how to install and use your modular SLC 500
programmable controller
User Manual for Modular Hardware Style
Programmable Controllers
1747-UM011
A description on how to install and use your MicroLogix 1000
programmable controller
MicroLogix 1000 Programmable Controller User
Manual
1761-UM003
A description on how to install and use your MicroLogix 1200
programmable controller
MicroLogix 1200 Programmable Controller User
Manual
1762-UM001
A description on how to install and use your MicroLogix 1100
programmable controller
MicroLogix 1100 Programmable Controller User
Manual
1763-UM001
A description on how to install and use your MicroLogix 1500
programmable controller
MicroLogix 1500 Programmable Controller User
Manual
1764-UM001
A guide to DF1 protocol Data Highway/Data Highway Plus/Data Highway
II/Data Highway-485 Cable
1770-UM022
A guide to wiring and grounding guidelines Industrial Automation Wiring and Grounding
Guidelines
1770-IN041
A glossary of industrial automation terms and abbreviations Allen-Bradley Industrial Automation Glossary AG-7.1

5Publication 1761-UM004B-EN-P - June 2006
Chapter 1
Product Overview
Description
The AIC+ advanced interface converter provides a communication
link between various networked devices. The AIC+ interface converter
is compatible with a variety of SLC and MicroLogix controllers and
peripherals.
Communication Port and Switch Locations
MicroLogix 1000, 1200, and 1500 controllers provide power to the
AIC+ interface converter via the RS-232 8-pin mini-DIN port’s cable.
However, if a MicroLogix controller is not connected to this port, a
24V dc power supply connected to the converter’s external power
terminals is required. The dc power-source selector switch needs to
be set for your particular configuration.
See Network Diagrams starting on page 21 for more details on how to
wire and configure the AIC+ interface converter.

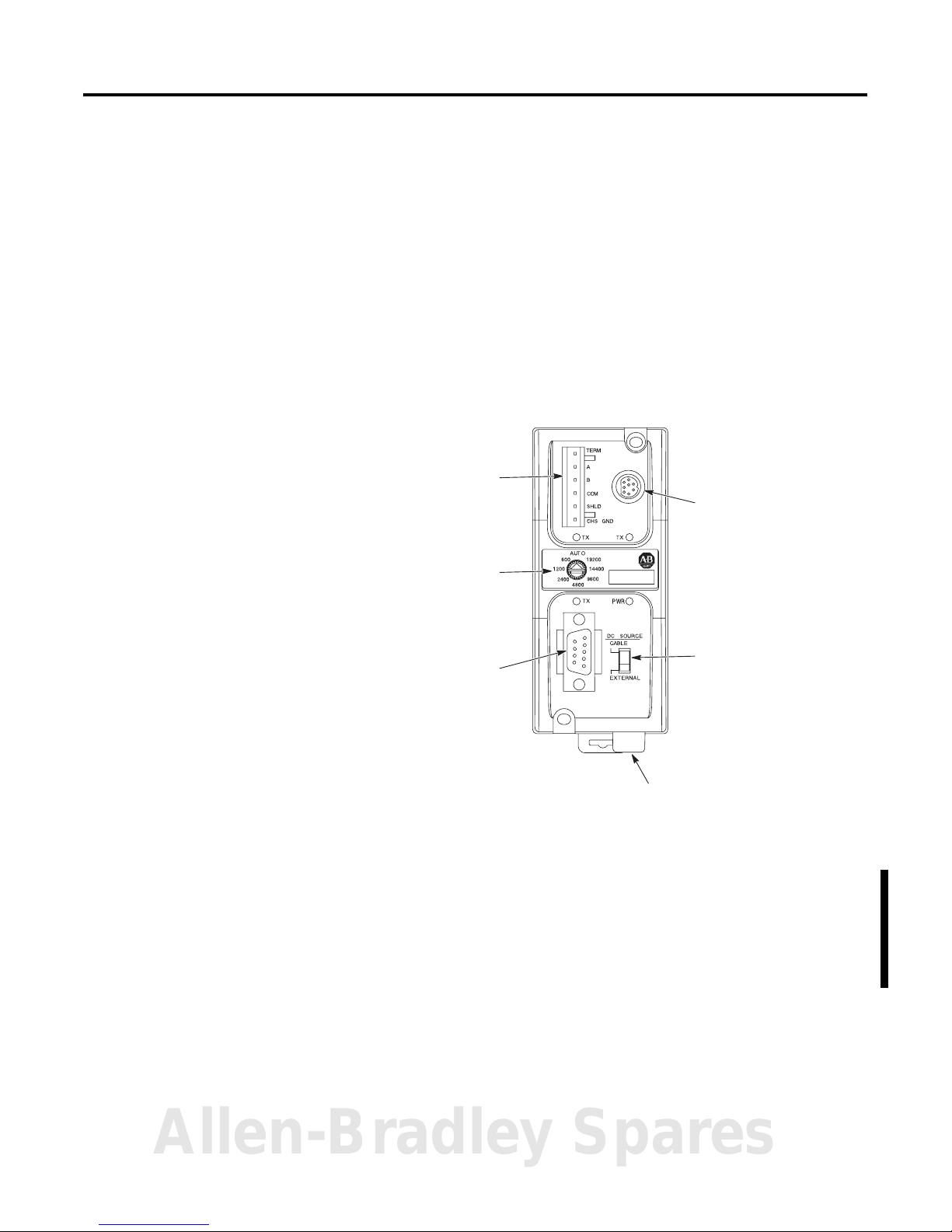

RS-485
Communication Port
(Phoenix Plug)
RS-232 (DB-9, DTE)
Communication Port
RS-232 (8-pin mini-DIN)
Communication Port
Communication-rate
Selector Switch
Terminals for external 24V dc power
supply and chassis ground.
DC Power-source
Selector Switch
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
6Product Overview
The communication-rate selector switch is used to match the
communication rate filter of the AIC+ interface converter to the
network communication rate. This switch does not change the
network communication rate and is normally left in the AUTO
position. In high noise environments, the communication-rate selector
switch should be taken out of the AUTO mode and set to the same
communication rate as the network.
See Auto Transmit Delay on page 35 for more information on
communication rates.
Operation Modes
The AIC+ interface converter can be used in the following modes.
•Point-to-point isolator
•RS-232 to RS-485 isolator
•RS-232 to half-duplex user mode ASCII isolator
Communication is established using hardware handshaking or auto
transmit signals.
Device Compatibility
The AIC+ interface converter can be used to interconnect the
following devices.
•SLC 500, 5/01, 5/02, and 5/03 processors (channel 1)
•SLC 5/03, 5/04, and 5/05 processors (channel 0)
•MicroLogix controllers
•Logix controllers
•1756-DH485 ControlLogix module
•Operator interface devices
•Personal computer serial ports (or any 9-pin DTE serial port)
•Modems
TIP You cannot connect the 1761-HHP-B30 Hand-held Programmer
to the AIC+ advanced interface converter.

Publication 1761-UM004B-EN-P - June 2006
Product Overview 7
Node Address Identification
There is no node
address associated
with the network
port.
The node address is
configured in the
device connected
with this port.
The node address is
configured in the
device connected
with this port.
Use this area to mark
the node address of
each connection.
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
8Product Overview

9Publication 1761-UM004B-EN-P - June 2006
Chapter 2
Installation and Wiring
Compliance to European
Union Directives
If this product has the CE mark it is approved for installation within
the European Union and EEA regions. It has been designed and tested
to meet the following directives.
EMC Directive
This product is tested to meet Council Directive 89/336/EEC
Electromagnetic Compatibility (EMC) and the following standards, in
whole or in part, documented in a technical construction file.
•EN 50081-2 EMC – Generic Emission Standard, Part 2 – Industrial
Environment
•EN 50082-2 EMC – Generic Immunity Standard, Part 2 –
Industrial Environment
This product is intended for use in an industrial environment.
Low Voltage Directive
This product is tested to meet Council Directive 73/23/EEC Low
Voltage, by applying the safety requirements of EN 61131–2
Programmable Controllers, Part 2 – Equipment Requirements and
Tests.
For specific information required by EN 61131-2, see the appropriate
sections in this publication, as well as the Industrial Automation
Wiring and Grounding Guidelines, publication 1770-IN041.
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
10 Installation and Wiring
Safety Considerations
This equipment is suitable for use in Class I, Division 2, Groups A, B,
C, D, or nonhazardous locations only.
Use only the following communication cables and replacement
connectors in Class I, Division 2, hazardous locations.
ATTENTION Explosion Hazard —
Substitution of components may impair suitability for Class I,
Division 2.
Do not replace components or disconnect equipment unless
power is switched off and the area is known to be
nonhazardous.
Do not connect or disconnect connectors or operate switches
while circuit is live unless the area is known to be
nonhazardous.
This product must be installed in an enclosure. All cables
connected to the product must remain in the enclosure or be
protected by conduit or other means.
AIC+ interface converter must be operated from an external
power source.
All wiring must comply with N.E.C. articles 501, 502, 503,
and/or C.E.C. Section 18-1J2, as appropriate.
Communication Cables for Class 1, Div Environments
Environment Classification Communication Cables
Class I, Division 2 Hazardous Environment 1761-CBL-PM02 (Series C or later)
1761-CBL-HM02 (Series C or later)
1761-CBL-AM00 (Series C or later)
1761-CBL-AP00 (Series C or later)
2707-NC8 (Series B)
2707-NC9 (Series B)
2707-NC10 (Series B)
2707-NC11 (Series B)
1746-RT30 AIC+ Connector

Publication 1761-UM004B-EN-P - June 2006
Installation and Wiring 11
Mount the AIC+ Advanced
Interface Converter
The AIC+ interface converter can be mounted in the vertical or
horizontal position. There are no spacing requirements except as
necessary for DIN-rail latch movement.
Mount to a DIN Rail

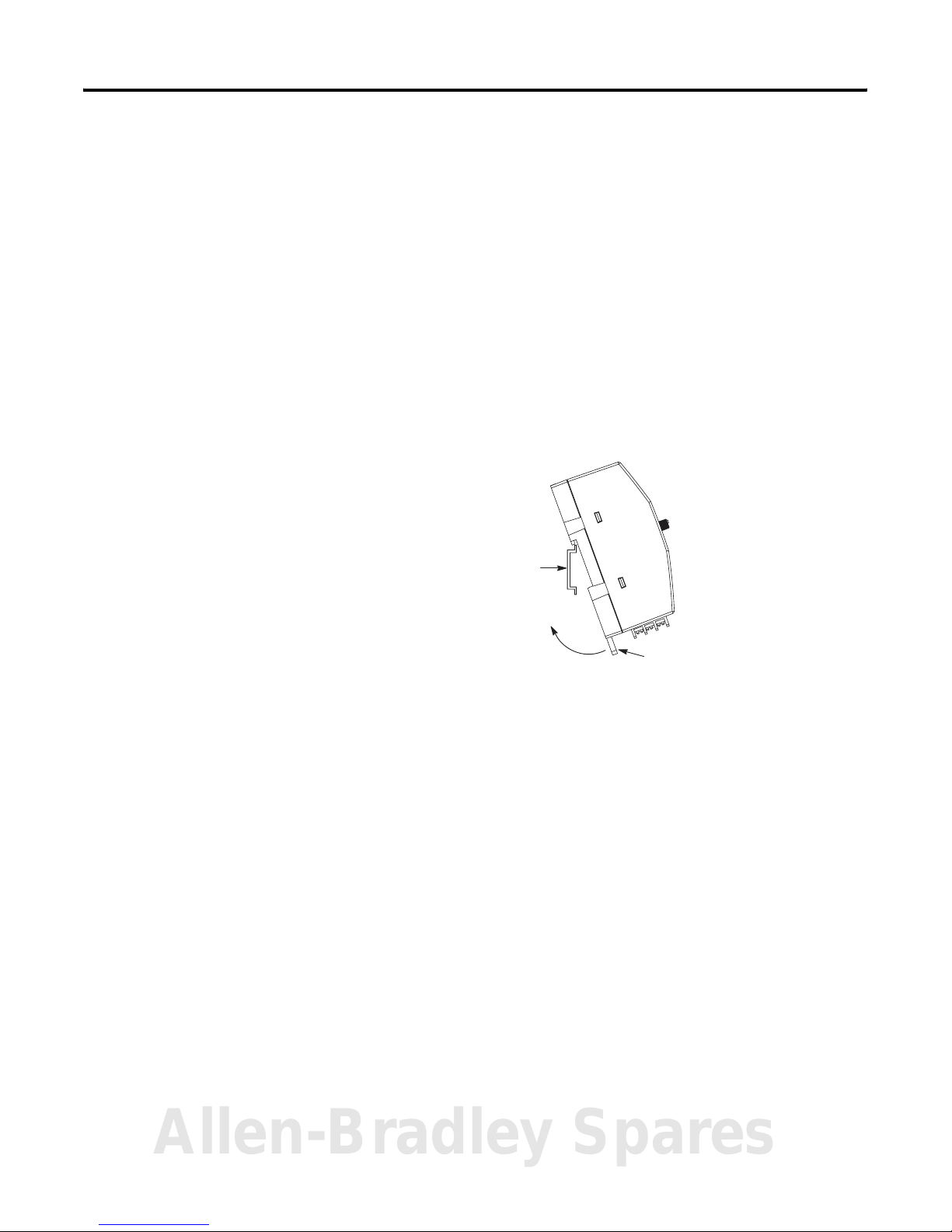

Follow these steps to install your interface converter.
1. Mount your DIN rail.
2. Snap the DIN-rail latch into the closed position.
3. Hook the top slot over the DIN rail.
4. While pressing the AIC+ interface converter against the rail, snap
the AIC+ interface converter into position.
Follow these steps to remove your interface converter.
1. Place a screwdriver in the DIN-rail latch at the bottom of the
AIC+ interface converter.
2. Holding the AIC+ interface converter, pry downward on the
latch until the AIC+ interface converter is released from the DIN
rail.
Side View
DIN Rail
Latch
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
12 Installation and Wiring
Mount to a Panel
Follow these instructions to mount your AIC+ interface converter to a
panel.
1. Remove the mounting template from this document.
2. Secure the template to the mounting surface.
3. Drill holes through the template.
4. Remove the mounting template.
5. Mount the AIC+ interface converter.
Side View
DIN Rail
Mounting
Template

Publication 1761-UM004B-EN-P - June 2006
Installation and Wiring 13
Wire the AIC+ Advanced
Interface Converter
This section provides power supply wiring and network port wiring
information.
Wire the Power Supply
Power Supply

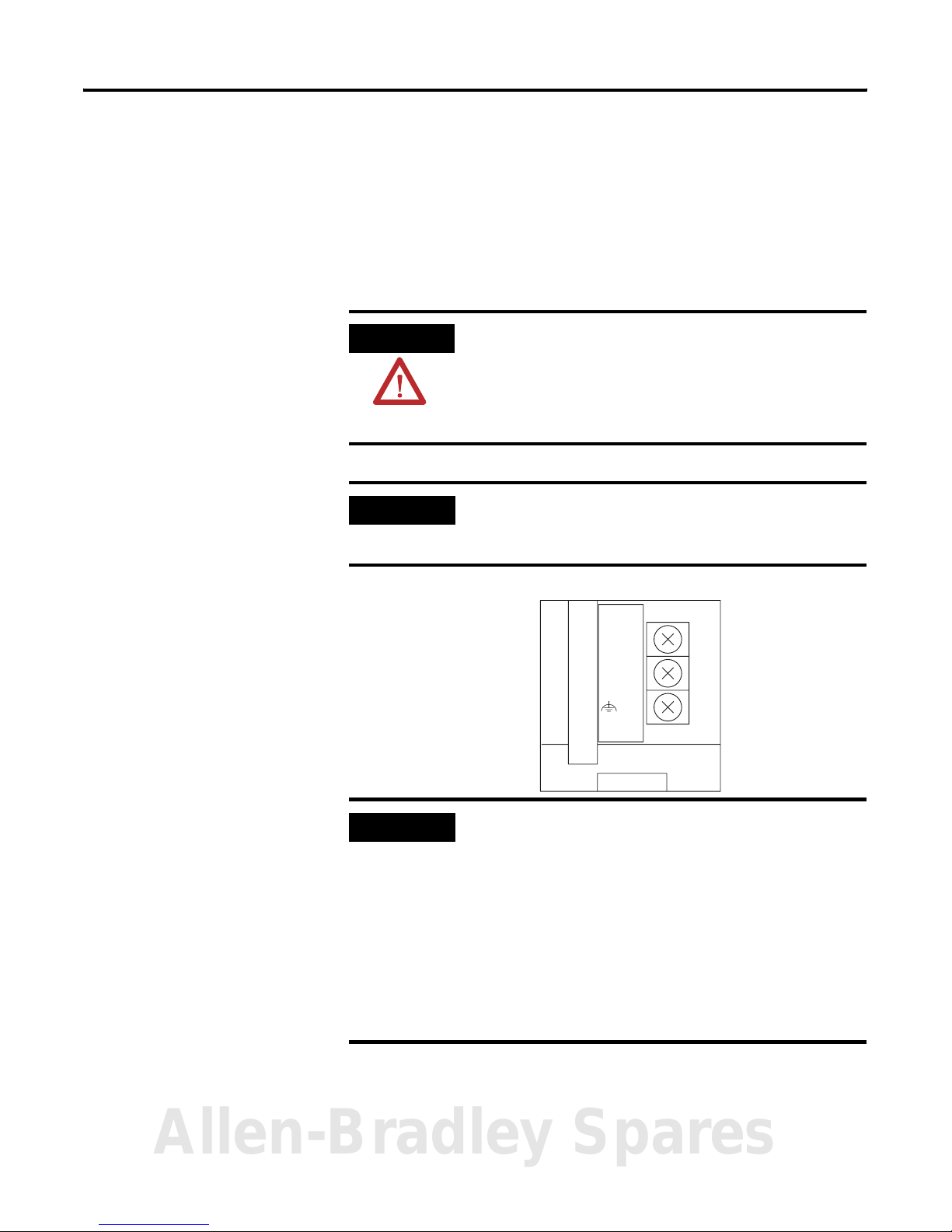

ATTENTION EXPLOSION HAZARD —
An external power supply must be used in Class I, Division 2
applications and the dc power-source selector switch must be
in the EXTERNAL position before connecting the power supply
to the AIC+ interface converter.
IMPORTANT In nonhazardous locations, external power is not required if the
AIC+ interface converter 8-pin mini-DIN com port is connected
to a MicroLogix controller.
IMPORTANT Some devices provide power to the AIC+ interface converter via
the 8-pin mini-DIN com port cable. The dc power-source
selector switch needs to be set for your particular
configuration.
If you are using a 1746-P1 or 1746-P2 power supply, the AIC+
interface converter is the only device that can be connected to
that power supply.
Always connect the CHS GND (chassis ground) terminal to the
nearest earth ground. This connection must be made whether
or not an external 24V dc supply is used.
24VDC
DC
NEUT
CHS
GND
Bottom
View
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
14 Installation and Wiring
Wire to the Network Ports
Use these instructions for wiring Belden cable.

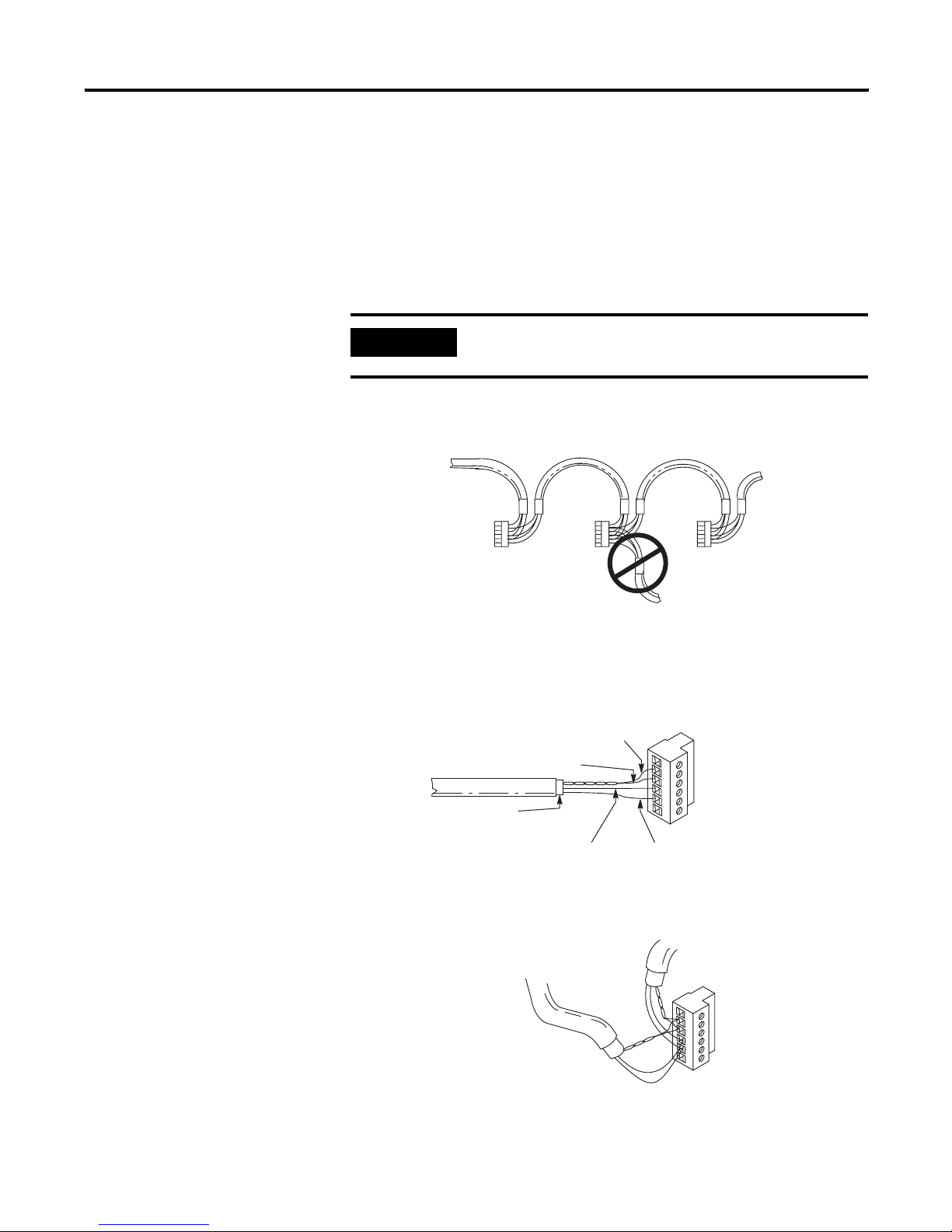

Attach the RS-485 Connector to the Communication Cable
Daisy-chain Network
Attach the connector to the Belden #3106A or #9842 cable as shown
below.
Single Cable Connection
Multiple Cable Connection
IMPORTANT A daisy-chained network is recommended. Other chained
networks are not recommended.
Connector
Connector
Connector
Belden
#3106A
or
#9842
Belden
#3106A or
#9842
Belden
#3106A or
#9842
Incorrect
6 Termination
5A
4B
3
Common
2 Shield
1 Chassis Ground
White with Orange Stripes
Orange with White Stripes
Blue (#3106A) or
Blue with White Stripes (#9842)
Drain Wire
Shrink Tubing
Recommended
to Successive Device
to Previous Device

Publication 1761-UM004B-EN-P - June 2006
Installation and Wiring 15

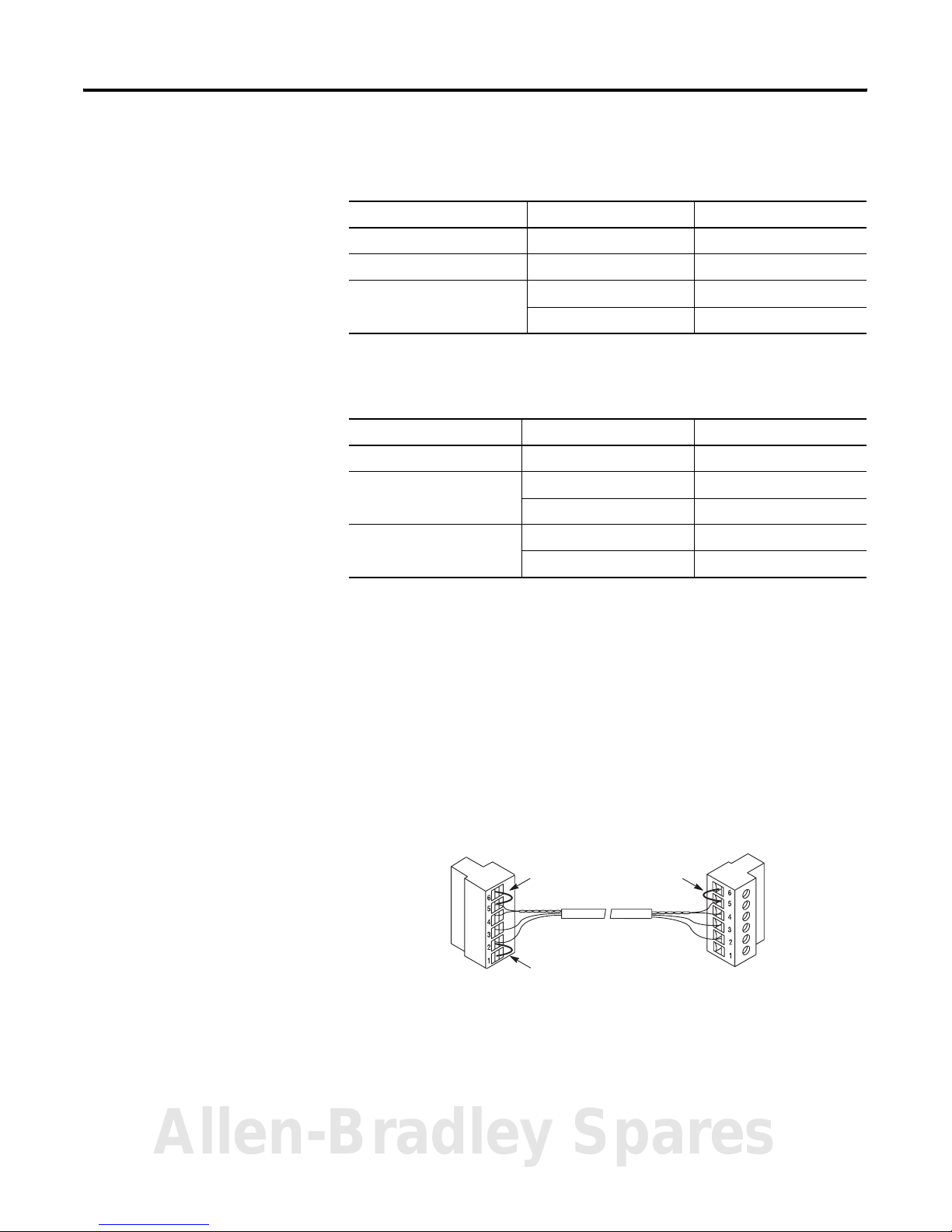

The table below shows connections for Belden #3106A.
The table below shows connections for Belden #9842.
Only one connector at the end of the link must have Terminals 1 and
2 jumpered together. This provides an earth-ground connection for
the shield of the communication cable.
Both ends of the network must have Terminals 5 and 6 jumpered
together. This connects the termination impedance (120 Ω) that is built
into each AIC and AIC+ interface converter as required by the RS-485
specification.
End of Line Termination
Belden #3106A Cable
For This Wire/Pair Connect This Wire To This Terminal
Shield/Drain Non-jacketed Terminal 2 – Shield
Blue Blue Terminal 3 – (Common)
White/Orange White with Orange Stripe Terminal 4 – (Data B)
Orange with White Stripe Terminal 5 – (Data A)
Belden #9842 Cable
For This Wire/Pair Connect This Wire To This Terminal
Shield/Drain Non-jacketed Terminal 2 – Shield
Blue/White White with Blue Stripe Cut back – no connection(1)
(1) To prevent confusion when installing the communication cable, trim the white and blue striped wire
immediately after the insulation jacket is removed. This wire is not used by DH-485.
Blue with White Stripe Terminal 3 – (Common)
White/Orange White with Orange Stripe Terminal 4 – (Data B)
Orange with White Stripe Terminal 5 – (Data A)
Belden #3106A or #9842 Cable
1219m (4000 ft) Maximum
Jumper
Jumper
Jumper
Allen-Bradley Spares

Publication 1761-UM004B-EN-P - June 2006
16 Installation and Wiring
Cable Choices
This section provides information that will help you determine the
appropriate cable for your application.

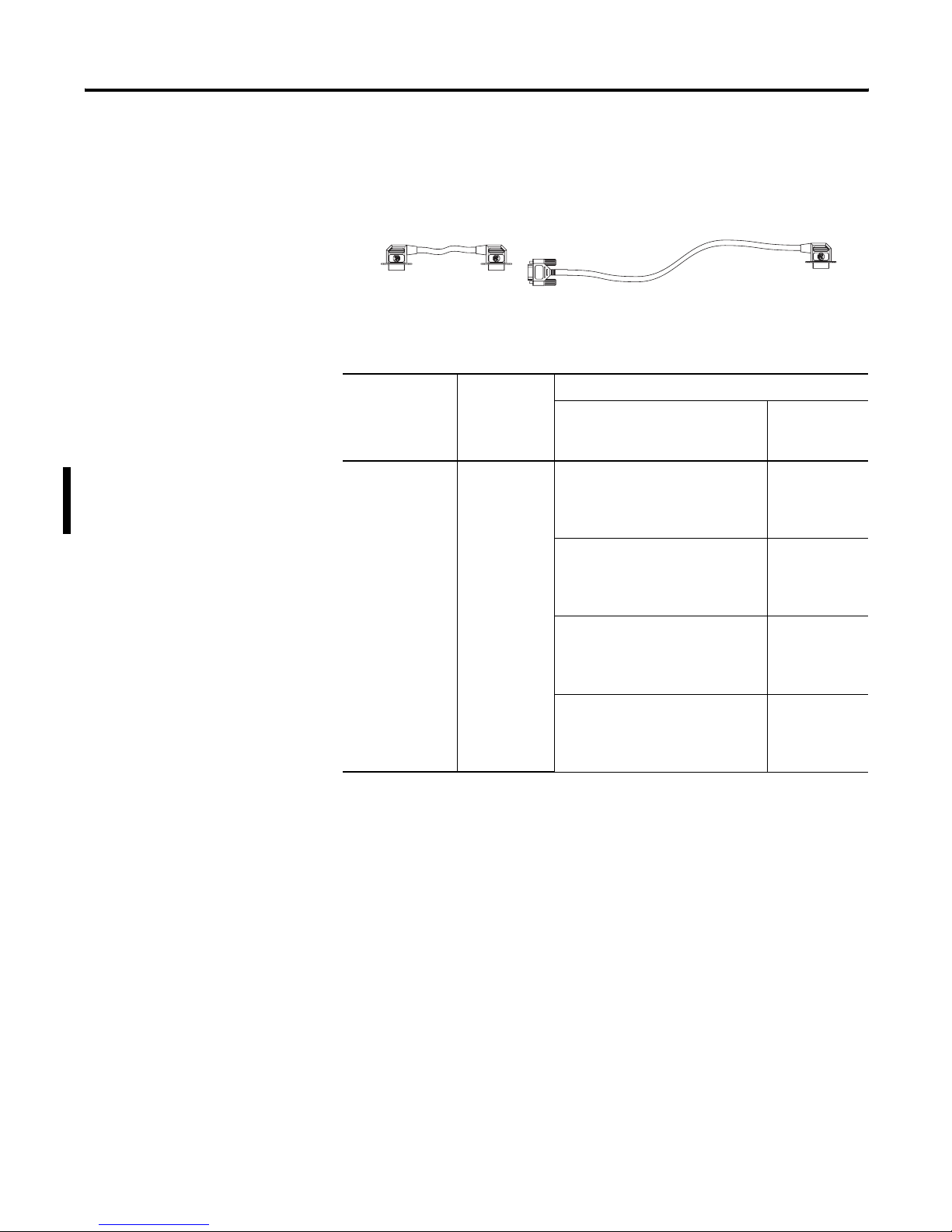

1761-CBL-AC00 and 1747-CP3 Cable
1761-CBL-AC00 and 1747-CP3 Cable
Cable Length Connects
from to AIC+
Interface
Converter
1747-CP3,
1761-CBL-AC00
3 m (9.8 ft),
45 cm (17.7 in.)
SLC 5/03, SLC 5/04, or SLC 5/05
processor, channel 0
RS-232 (DB-9,
DTE)
Communication
Port
PC com port RS-232 (DB-9,
DTE)
Communication
Port
PanelView through NULL modem
adapter
RS-232 (DB-9,
DTE)
Communication
Port
RS-232 (DB-9, DTE) Communication
Port on another AIC+ interface
converter
RS-232 (DB-9,
DTE)
Communication
Port
1747-CP3
1761-CBL-AC00
