Allen-Bradley 931S-F1C2D-DC User manual

Installation Instructions 1
Beipackinformation 15
Notice d’utilisation 28
de
en
fr
DIR 10000043403
(Version 00)
Frequency Converter, 3 Way
931S-F1C2D-DC
10000043403

1
1. General instructions
• Disconnect power prior to installation
• Installation only by Qualified personnel
• Follow all applicable local and national electrical codes
For applications with high isolation voltages, take measures to prevent
accidental contact and make sure that there is sufficient distance or
insulation between adjacent devices!
Appropriate safety measures against electrostatic discharge
(ESD) should be taken during assembly and adjustment work on
the 931S-F1C2D-DC.
2. Application
The 3 Way Frequency Converters 931S-F1C2D-DC are used for galvanic
isolation and conversion of frequency signals. Input and output signals
can be calibrated/switched via DIP switches. It is not necessary to adjust
the pre-settable measurement ranges. The output signal is linear to the
frequency.
WARNINGWARNINGWARNINGWARNING

2
3. Configuration
3.1 Equipment
A screwdriver with a width of 2.5 mm is required to adjust the unit and to
connect the wires to the terminals.

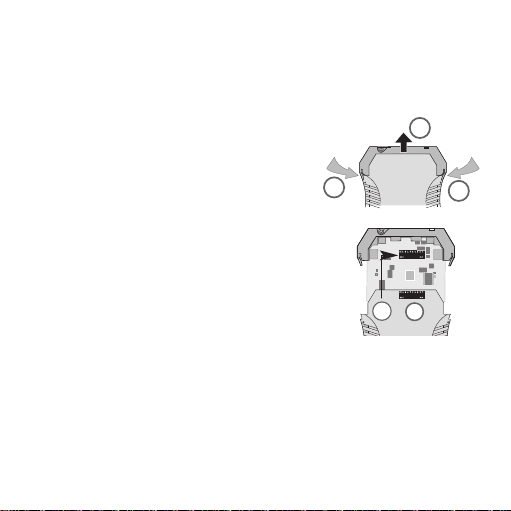

3.2 Opening the unit
Disconnect the plugs. Disengage the top part of
the housing by carefully pressing the latches on
both sides (1). Pull out the top part of the hou-
sing and the electronics section until they lock
(2).
3.3 Settings
Set input and output ranges, minimum input values
and measuring span via the DIP switches SW1 and
SW2.
Set the input range via the DIP switches
(no frequency generator required):
2 cases are to be distinguished:
1. below measurement frequency = 0 Hz
– Select operating mode "0...fmax". S2.3 = 0 and S2.4 = 0
– Set upper measurement frequency via the DIP switches
S1 and S2.1, S2.2 (see table).
– Ready!
2. Lower measurement frequency ≠ 0 Hz
– First, the lower measurement frequency has to be saved.
Select operating mode "save from fmin". S2.3 = 1 and S2.4 = 0
11
2
SW2 SW1

3
Set upper measurement frequency via the DIP switches S1 and S2.1, S2.2
(see table).
Connect the module to the power supply to save the frequency.
– Select operating mode "fmin...fmax". S2.3 = 0 and S2.4 = 1
– Set upper measurement frequency via the DIP switches S1
and S2.1, S2.2 (see table).
– Ready!
Setting the input range using a frequency generator:
– Select the switch setting for saving the min. frequency
S2.1=0; S2.2=1; S2.3=1 and S2.4=1
– Apply min. frequency to the module
– Connect the module to the power supply.
– The LED lights up when the input frequency is measured.
The frequency has been saved when the LED goes out;
the module can be disconnected from the power supply.
– Repeat the process with the max. frequency: S2.1=1;
S2.2=0; S2.3=1 and S2.4=1.
– Select special range: S2.1=1; S2.2=1; S2.3=1 and S2.4=1
– Ready!

4
Selecting the frequency
Switch 2
C12
X1 0 0
X10 0 1
X100 1 0
X1000 1 1
Selecting the frequency
Switch 1
B 5 678
0.0 0 0 0 0
0.1 0 0 0 1
0.2 0 0 1 0
0.3 0 0 1 1
0.4 0 1 0 0
0.5 0 1 0 1
0.6 0 1 1 0
0.7 0 1 1 1
0.8 1 0 0 0
0.9 1 0 0 1
Selecting the frequency
Switch 1
A 1234
0 0000
1 0001
2 0010
3 0011
4 0100
5 0101
6 0110
7 0111
8 1000
9 1001
10 1010
11 1011
12 1100
13 1101
14 1110
15 1111
Selecting the operating mode
Switch 2
Operating mode 3 4
0...fmax 0 0
fmin...fmax 0 1
save from fmin 1 0
f=(A+B)xC

55
Special range (frequency generator is required)
Switch 2
123 4
Save min. frequency 0 1 1 1
Save max. frequency 1 0 1 1
Select special range 1 1 1 1
Selecting the output Switch 2
Output 5 6 7 8
0...10 V 1 0 1 1
0...20 mA 0 0 0 0
4...20 mA 0 1 0 0
0...5 V 1 1 1 1

66
Selecting the frequency
Switch 1
B 5 678
0.5 0 101
Selecting the frequency
Switch 2
C12
x1000 1 1
Selecting the output
Switch 2
Output 5 6 7 8
0...10 V 1 0 1 1
ready
Selecting the frequency
Switch 1
A 1234
10 1010
Selecting the operating mode
Switch 2
Operating mode 34
0...fmax 0 0
3.4 Example 1
Input frequency: 0...10.5 kHz
Output: 0...10 V
Set max. frequency

77
Selecting the output
Switch 2
Output 5 6 7 8
0...20 mA 0 0 0 0
ready
Selecting the frequency
Switch 2
C12
x100 1 0
Selecting the frequency
Switch 1
B 5 678
0.1 0 001
Selecting the frequency
Switch 1
A1234
81000
Selecting the operating mode
Switch 2
Operating mode 34
fmin...fmax 0 1
Selecting the frequency
Switch 2
C12
x1 0 0
Selecting the frequency
Switch 1
B 5 678
0.6 0 110
Selecting the frequency
Switch 1
A 1234
3 0011
Selecting the operating mode
Switch 2
Operating mode 34
save from fmin 10
Set max. frequency
3.5 Example 2
Input frequency: 3,6...810 Hz
Output: 0...20 mA
Set min. frequency
The module must be briefly con-
nected to the power supply (5s) in
order to save the min. frequency.

88
Special range
(frequency generator is required)
Switch 2
Operating mode 1234
Special range 1111
Special range
(frequency generator is required)
Switch 2
Operating mode 1234
Save min.
frequency 0111
3.6 Example 3
Input frequency: 20 kHz...50 kHz
Output: 4...20mA
Special range min. frequency
Special range
(frequency generator is required)
Switch 2
Operating mode 1234
Save max.
frequency 1011
Special range max. frequency
Selecting the special range
Selecting the outputSwitch 2
Output 5678
4…20mA 0100
ready
• Apply min. frequency to the module.
• Connect the module to the power
supply.
• The LED lights up when the min.
input frequency is measured. The
frequency has been saved when the
LED blinks; the module can be
disconnected from the power
supply.
•
Apply max. frequency to the module.
• Connect the module to the power
supply.
• The LED lights up when the max.
input frequency is measured. The
frequency has been saved when the
LED blinks; the module can be
disconnected from the power
supply.

99
PLC
78
56
12
34
<= 1,2 mA
>= 2,1 mA
Power
N-
N+
Registering motor
revolutions using Namur
sensor
Namur
activated:
not activated:
0…20 mA
3.7 Application

1010
4. Mounting
The signal conditioners are mounted on standard TS 35 rails.
5. Electrical connection
5.1 Technical Data
Supply voltage 18 ... 30 Vdc/approx. 1 W
Operating temperature 0 °C ... +55 °C
Voltage supply via plug-in jumper. Operating carrying capacity of
cross-connection ^2 A
Terminal assignments
1 +15 V power supply for sensor
2 Input PNP
3 Input NPN / Namur
4 Input GND
5 Output (0...10 V; 0/4...20 mA)
6 Output GND
7 Supply voltage + 24 Vdc (cross-connected)
8 Power supply GND (cross-connected)
Wire cross-section max. 2.5 mm2
Multi-wire conncection max. 1 mm2
(two wires with same cross-section)
6
7
12
8
34
5

1111
Push-pull output stage
5.2 Wiring diagram
3-wire initiator with PNP output
2-wire inititiator
(residual current <1 mA)
N+
N-
Namur initiator
U= 24 V
U= 24 V
U= 24 V
3-wire initiator with NPN output
3-wire initiator with PNP output
and external power supply
(1) +15V
(2) PNP
(3) NPN / Namur
(4) GND
(1) +15V
(2) PNP
(3) NPN / Namur
(4) GND
3-wire initiator with NPN output
and external power supply
(1) +15V
(2) PNP
(3) NPN / Namur
(4) GND
(1) +15V
(2) PNP
(3) NPN / Namur
(4) GND
(1) +15V
(2) PNP
(3) NPN / Namur
(4) GND
(1) +15V
(2) PNP
(3) NPN / Namur
(4) GND
(1) +15V
(2) PNP
(3) NPN / Namur
(4) GND

1212
) P2PN
5,4 kΩ
+8,9
N
V
1kΩ
(
(3) NPN
5.3 Input circuitry 6. Dimensions in mm
92.4
90
111.4
73.4 38
Cross-connections
for
multiple devices
GND 24 Vdc
12.5
6
7
12
8
34
5

1313
7. Accessories
Designation Cat. No.
Plug-In Jumper, 2-pole, black 1492-CJLJ5-2-BL
Plug-In Jumper, 2-pole, red 1492-CJLJ5-2-R
Plug-In Jumper, 2-pole, blue 1492-CJLJ5-2-B
Plug-In Jumper, 2-pole, yellow 1492-CJLJ5-2
Marker Cat. No.
1492-M5X10
Power Supply
24 V DC Output
15 W 1606-XLP15E
30 W 1606-XLP30E
50 W 1606-XLP50E
100 W 1606-XLP100E
120 W (5 A) 1606-XLE120E

1414
8. UL Class 1, Division 2 Markings
for selected Signal Conditioners
A. “This equipment is suitable for use in Class I, Division 2, Groups A, B,
C and D hazardous locations or non hazardous locations only or the
equivalent.”
B. “WARNING: EXPLOSION HAZARD - Substitution of components may
impair suitability for use in Class I, Division 2 environments.”
C. “WARNING: EXPLOSION HAZARD - The area must be known to be
non hazardous before servicing/replacing the unit and before installing
or removing I/O wiring.”
D. “WARNING: EXPLOSION HAZARD - Do Not disconnect equipment
unless power has been disconnected and the area is known to be non
hazardous.”
The warning references on this side have only validity for modules with a
UL Class I, Devision 2 permission.
DIR 10000043403
(Version 00)
WARNINGWARNING

15
1. Allgemeine Hinweise
Die Analogsignaltrenner der Reihe 931S-F1C2D-DC dürfen nur von
qualifiziertem Fachpersonal installiert werden. Erst nach der fachgerechten
Installation darf das Gerät mit Hilfsenergie versorgt werden. Während des
Betriebs darf keine Bereichsumschaltung vorgenommen werden, da hierbei
berührungsgefährliche Teile offen liegen. Die nationalen Vorschriften (z. B.
für Deutschland DIN VDE 0100) bei der Installation und Auswahl der Zulei-
tungen müssen beachtet werden.
Bei Anwendungen mit hohen Isolationsspannungen ist auf genügend
Abstand bzw. Isolation zu Nebengeräten und auf Berührungsschutz zu
achten!
Bei Montage und Einstellarbeiten am 931S-F1C2D-DC ist auf
Schutzmaßnahmen gegen elektrostatische Entladung (ESD) zu
achten.
2. Anwendung
Der Analogsignaltrenner 931S-F1C2D-DC dient zur galvanischen
Trennung und Umwandlung von Frequenzsignalen. Ein- und Aus-
gangssignal sind über DIP-Schalter kalibriert umschaltbar. Ein Nach-
justieren der voreinstellbaren Messbereiche ist nicht erforderlich.
Das Ausgangssignal ist linear zur Frequenz.
ACHTUNGACHTUNGACHTUNGACHTUNG

16
3. Konfigurierung des Gerätes
3.1 Hilfsmittel
Zum Einstellen des Gerätes und zum Anschluss der Leitungen an die
Klemmen wird ein Schraubendreher mit einer Klingenbreite von 2,5 mm
benötigt.
3.2 Gerät öffnen
Stecker abziehen. Durch leichten Druck den
Verschluss auf beiden Seiten des Gehäuses
entriegeln (1), Gehäuseoberteil und Elektronik
herausziehen (2).
3.3 Einstellungen
Einstellung von Ein- und Ausgangsbereich,
minimalen Eingangsgröße und Messspanne mittels
der DIP-Schalter SW1 und SW2.
Einstellen des Eingangsbereiches über die DIP-
Schalter (kein Frequenzgenerator erforderlich):
Es sind 2 Fälle zu unterscheiden:
1. untere Messfrequenz = 0 Hz
– Betriebsart "0...fmax" auswählen. S2.3 = 0 und S2.4 = 0
– obere Messfrequenz über die DIP-Schalter S1 und S2.1, S2.2
einstellen (siehe Tabelle)
– Fertig
2. untere Messfrequenz ≠ 0 Hz
– zunächst muss die untere Messfrequenz gespeichert werden.
Betriebsart "speichern von fmin" auswählen. S2.3 = 1 und S2.4 = 0
11
2
SW2 SW1

17
Frequenz über die DIP-Schalter S1 und S2.1, S2.2 einstellen (siehe Tabelle)
Zum Speichern der Frequenz den Baustein kurz an die Spannungsversor-
gung anschließen
– Betriebsart "fmin...fmax" auswählen. S2.3 = 0 und S2.4 = 1
– obere Messfrequenz über die DIP-Schalter S1 und S2.1, S2.2
einstellen (siehe Tabelle)
– Fertig
Einstellen des Eingangsbereiches mit einem Frequenzgenerator:
– Die Schalterstellung für die Speicherung der min. Frequenz wählen:
S2.1=0; S2.2=1; S2.3=1 und S2.4=1
– Min. Frequenz am Baustein anlegen
– Baustein an die Spannungsvorsorgung anschließen
– Die LED leuchtet auf, wenn die Eingangsfrequenz gemessen wird.
Wenn die LED erlischt ist die Frequenz gespeichert worden und der
Baustein kann wieder von der Spannungsversorgung getrennt werden.
– Vorgang mit der max. Frequenz wiederholen: S2.1=1; S2.2=0; S2.3=1
und S2.4=1
– Sonderbereich auswählen: S2.1=1; S2.2=1; S2.3=1 und S2.4=1
– Fertig

18
Auswahl der Frequenz
Schalter 2
C12
X1 0 0
X10 0 1
X100 1 0
X1000 1 1
Auswahl der Frequenz
Schalter 1
B 5 678
0,0 0 0 0 0
0,1 0 0 0 1
0,2 0 0 1 0
0,3 0 0 1 1
0,4 0 1 0 0
0,5 0 1 0 1
0,6 0 1 1 0
0,7 0 1 1 1
0,8 1 0 0 0
0,9 1 0 0 1
Auswahl der Frequenz
Schalter 1
A 1234
0 0000
1 0001
2 0010
3 0011
4 0100
5 0101
6 0110
7 0111
8 1000
9 1001
10 1010
11 1011
12 1100
13 1101
14 1110
15 1111
Auswahl der Betriebsart
Schalter 2
Betriebsart 3 4
0...fmax 0 0
fmin...fmax 0 1
speichern von fmin 1 0
f=(A+B)xC
