Allen-Bradley DeviceNet CompactPCI 1784-CPCIDS User manual

Publication 1784-IN036B-EN-P - May 2001
Installation Instructions
DeviceNet CompactPCI Communication Interface
Card
Catalog No. 1784-CPCIDS
To the Installer
The DeviceNet CompactPCICommunication Interface Card (catalog number
1784-CPCIDS) is a Compact Peripheral Component Interconnect (CompactPCI)
card. The card is an open-bus interface that provides DeviceNet configuration and
I/O scan capabilities.
This document contains:
topic page
Important User Information 2
Rockwell Automation Support 3
Related Publications 4
Purpose 4
Audience 5
System Requirements 5
Communication on DeviceNet 5
Compliance to European Union Directives 5
Use Care When Handling the Card 6
Terminology 7
Verify the Contents of Your 1784-CPCIDS Order 7
Introducing the 1784-CPCIDS Communication Interface Card 8
Install the 1784-CPCIDS Card 8
Connect to the Network 10
Install the 1784-CPCIDS Driver and IOLinx in Windows NT 11

2DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
I mportant User Information
Because of the variety of uses for the products described in this publication, those
responsible for the application and use of this control equipment must satisfy
themselves that all necessary steps have been taken to assure that each application
and use meets all performance and safety requirements, including any applicable
laws, regulations, codes, and standards.
The illustrations, charts, sample programs, and layout examples shown in this guide
are intended solely for purposes of example. Since there are many variables and
requirements associated with any particular installation, Allen-Bradley does not
assume responsibility or liability (to include intellectual property liability) for actual
use based upon the examples shown in this publication.
Allen-Bradley publication SGI-1.1, Safety Guidelines for the Application,
Installation, and Maintenance of Solid State Control (available from your local
Allen-Bradley office), describes some important differences between solid-state
equipment and electromechanical devices that should be taken into consideration
when applying products such as those described in this publication.
Reproduction of the contents of this copyrighted publication, in whole or in part,
without the written permission of Allen-Bradley Company, Inc., is prohibited.
Install the 1784-CPCIDS Driver and IOLinx in Windows 2000 for the First Time 14
Update the 1784-CPCIDS Driver and IOLinx in Windows 2000 18
Use the DeviceNet Test Application for the 1784-CPCIDS 24
Interpret Status Indicators (LEDs) 27
Specifications 30
topic page

DeviceNet CompactPCI Communication Interface Card 3
Publication 1784-IN036B-EN-P - May 2001
Throughout this document we use notes to make you aware of safety
considerations:
Attention statements help you to:
•identify a hazard
•avoid the hazard
•recognize the consequences
R ockwell Automation Support
Rockwell Automation offers support services worldwide, with over 75 sales/support
offices, over 500 authorized distributors, and 260 authorized systems integrators
located throughout the United States alone, plus Rockwell Automation
representatives in every major country around the world. Contact your local
Rockwell Automation representative for:
•sales and order support
•product technical training
•warranty support
•support service agreements
Obtain Pre-Sales Product Support
If you need to contact Rockwell Automation for pre-sales product support, try one
of the following methods:
•Call your local Rockwell Automation representative
•Network pre-sales support line, 1.440.646.3638 (3NET)
•Pre-Sales e-mail, [email protected]l.com
ATTENTION
!
This notation identifies information about practices or
circumstances that can lead to personal injury or death,
property damage, or economic loss.
IMPORTANT This notation identifies information that is critical for successful
application and understanding of the product.

4DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
Obtain Technical Product Support
If you need to contact Rockwell Automation for technical assistance, try one of the
following methods:
Related Publications
The table below lists publications that you may want to refer to for additional
information. To view or download publications, visit
www.theautomationbookstore.com or www.ab.com/manuals
You can purchase a printed manual by:
•contacting your local distributor or Rockwell Automation representative
•visiting www.theautomationbookstore.com and placing an order
•calling 800.963.9548 (USA/Canada) or 001.320.725.1574 (outside
USA/Canada)
Purpose
Use this document to learn how to install and use the DeviceNet CompactPCI
Communication Interface Card.
type of technical support access at
Personalized Service Call your local Rockwell Automation representative
Post-sales Technical Support 1.440.646.5800
Email your questions to racleaskt[email protected]m
Internet site www.ab.com
title publication number
Getting Results
with RSNetWorx for DeviceNet
9399-DNETGR
DeviceNet Cable System
Planning & Installation Manual
DN-6.7.2
DeviceNet Network
Troubleshooting Guide
ABT-N100-TSJ20
DeviceNet System Overview DN-2.5
DeviceNet PCI Communication Interface
Card User Manual
1784-6.5.30
IOLinx SDK Data Sheet NETS-SP010C-US-E

DeviceNet CompactPCI Communication Interface Card 5
Publication 1784-IN036B-EN-P - May 2001
Audience
Read this manual before you install or use the DeviceNet CompactPCI
Communication Interface Card. You should be familiar with DeviceNet technology.
System Requirements
You must use a Separated Extra Low Voltage (SELV) or a Protected Extra Low
Voltage (PELV) power supply to comply with CE Low Voltage Directives.
In North America, use a UL listed or CSA Certified computer chassis. The DeviceNet
network must use a UL listed or CSA Certified Class 2 power supply.
You also need:
•Windows NT 4.0 with Service Pack 5 or later or Windows 2000 with Service
Pack 1 or later
•one open CompactPCI slot
•approximately 2 MB disk space
•RSNetWorx for DeviceNet V2.11.51 or later
•RSLinx V2.10.118 or later
Communication on DeviceNet
You must have IOLinx for the 1784-PCIDS Card or RSLinx application software to
communicate on a DeviceNet network with a 1784-CPCIDS card.
For details about communicating on a DeviceNet network, see your application
software documentation.
Compliance to European Union Directives
If this product has the marking, it is approved for installation within the
European Union and EEA regions. It has been designed and tested to meet the
following directives.

6DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
EMC Directive
This product is tested to meet Council Directive 89/336/EEC Electromagnetic
Compatibility (EMC) and the following standards, in whole or in part, documented
in a technical construction file:
•EN 50081-2 EMC - Generic Emission Standard,
Part 2 - Industrial Environment
•EN 50082-2 EMC - Generic Immunity Standard,
Part 2 - Industrial Environment
This product is intended for use in an industrial environment.
Low Voltage Directive
This product is tested to meet Council Directive 73/23/EEC Low Voltage, by
applying the safety requirements of EN 61131-2 Programmable Controllers, Part 2 -
Equipment Requirements and Tests.
•For specific information required by EN 61131-2, see the appropriate
sections in this publication, as well as the following Allen-Bradley
publications:
•Industrial Automation Wiring and Grounding Guidelines, publication
1770-4.1
•Automation Systems Catalog, publication B111
This equipment is classified as open equipment and must be installed (mounted) in
an enclosure during operation as a means of providing safety protection.
Use Care When Handling the Card
ATTENTION
!
The card uses CMOS technology, which is highly sensitive to
electrostatic discharge (ESD). ESD may be present whenever
you are handling the card. Handling a card without any EDS
protection can cause internal circuit damage that may not be
apparent during installation or initial use.

DeviceNet CompactPCI Communication Interface Card 7
Publication 1784-IN036B-EN-P - May 2001
Take these precautions to guard against electrostatic damage:
•Before handling the card, be sure to touch a grounded object such as a PC’s
metal chassis to discharge any built-up static charge.
•Avoid touching the backplane connector or interface connector pins.
•When the card is not in use, store it in the anti-static bag in which it was
shipped.
Terminology
Verify the Contents of Your 1784-CPCIDS Order
With this package you should receive:
•1784-CPCIDS card
•terminal block connector
•driver and utility (IOLinx) CD for the 1784-CPCIDS card
•DeviceNet CompactPCI Communication Interface Card Installation
Instructions, publication 1784-IN036B-EN-P
IMPORTANT Remember, a computer with ac power disconnected is not a
grounded object.
this term means
DeviceNet networking standard maintained by Open DeviceNet Vendor
Association
CompactPCI Compact Peripheral Component Interconnect
1784-CPCIDS DeviceNet CompactPCI scanner and messaging card

8DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
Introducing the 1784-CPCIDS Communication Interface Card
The 1784-CPCIDS Communication Interface Card, with appropriate software, is a
Compact Peripheral Component Interconnect (CompactPCI) open-bus interface
card.
Install the 1784-CPCIDS Card
IMPORTANT Be certain that you know how to:
•install hardware in your computer
•configure the computer’s options before you install the card
Consult your computer’s documentation for specific information.
30628-M
S

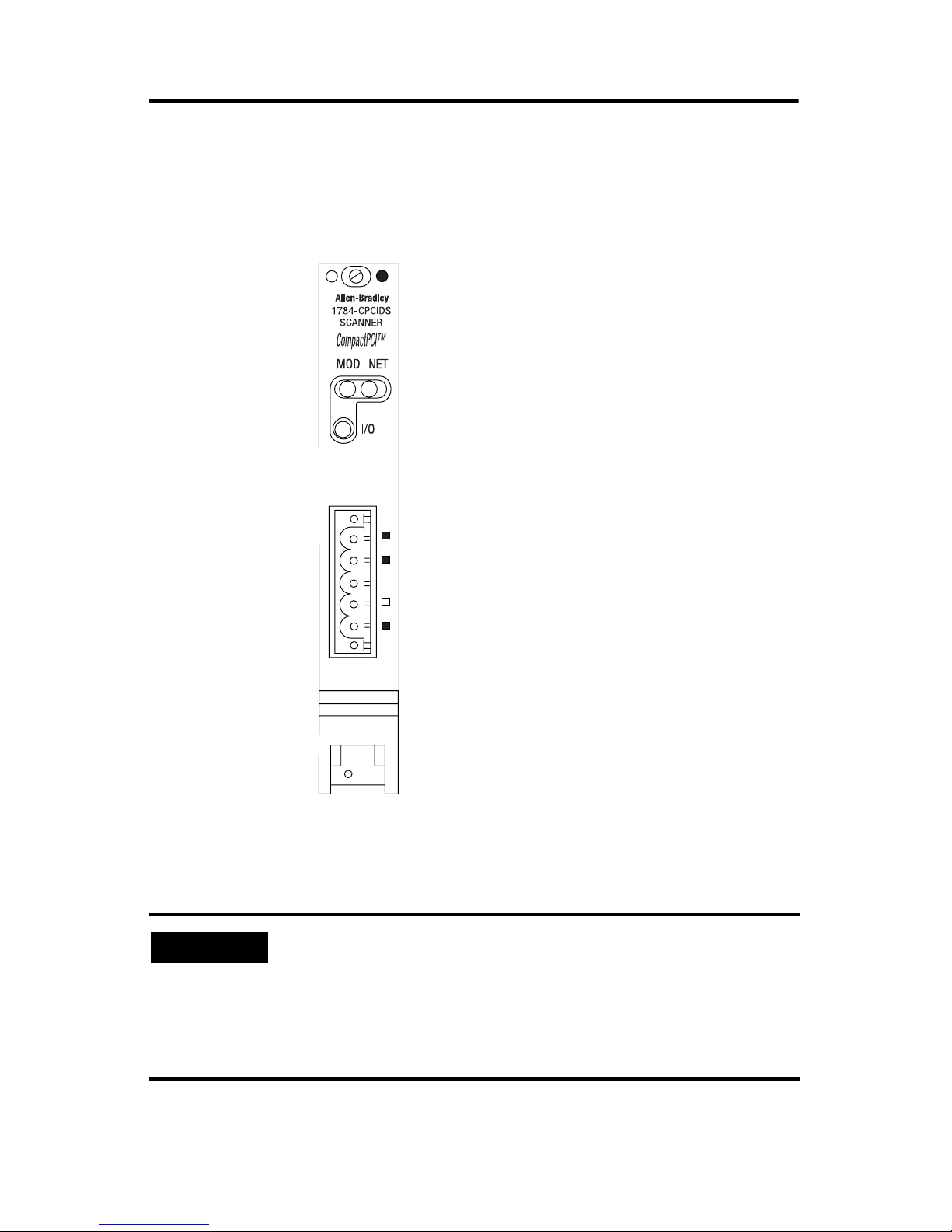

The 1784-CPCIDS Communication
Interface Card provides DeviceNet
configuration and I/O scan capabilities.

DeviceNet CompactPCI Communication Interface Card 9
Publication 1784-IN036B-EN-P - May 2001
You need a Phillips-head or a flat-head screwdriver, depending on your system.
To install the card:
1. Gain access to the computer’s expansion slots.
2. Insert the card into an open CompactPCI slot in the computer.
Access the Computer’s Expansion Slots
To install the 1784-CPCIDS card, you must access the computer’s expansion slots.
Refer to your computer’s user guide for instructions on how to:
1. Power down the host computer by turning off the power switch.
2. Select a vacant CompactPCI expansion slot.
3. Remove the slot’s expansion cover by loosening the screws on the top and
bottom of the cover.

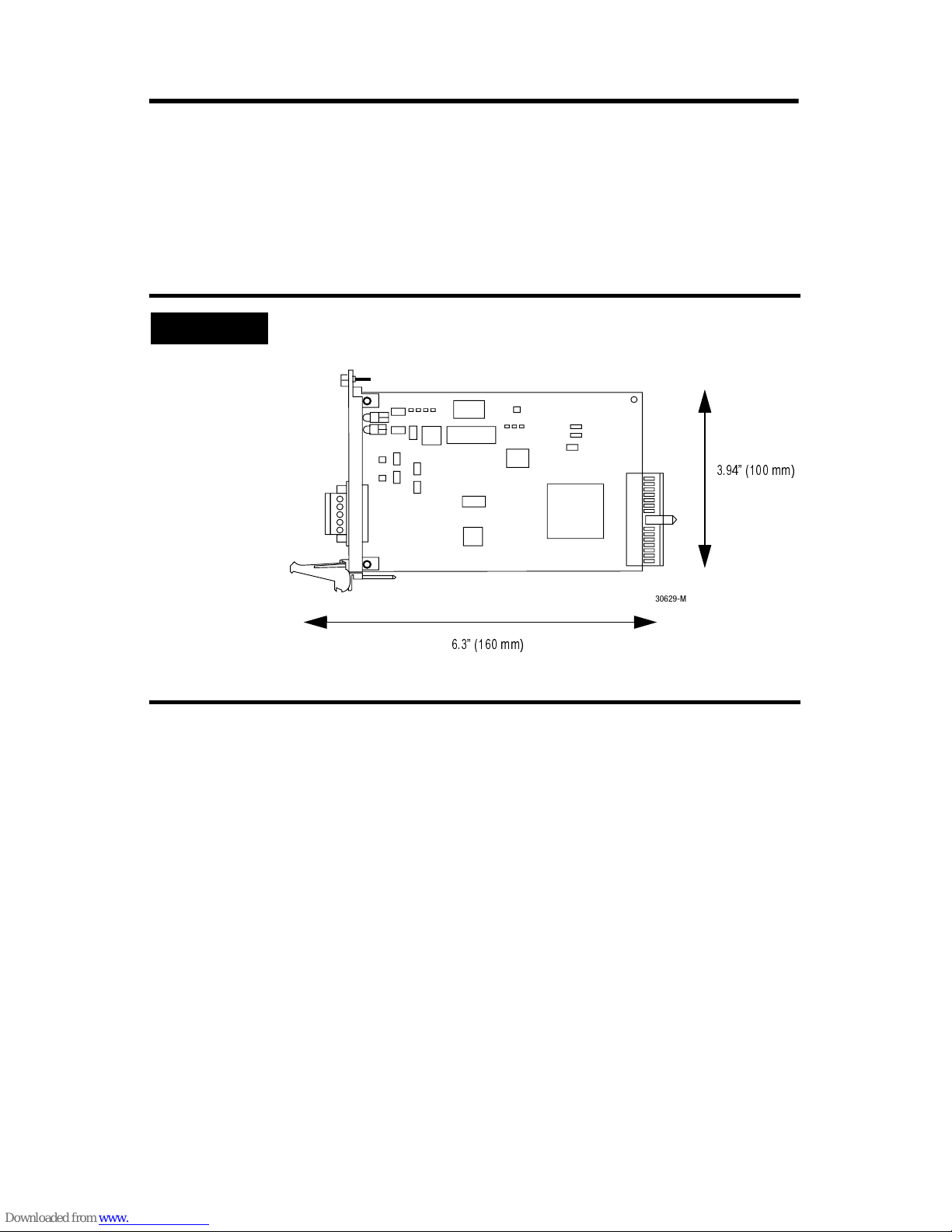

IMPORTANT The 1784-CPCIDS card is 3.94” (100 mm) high and 6.3” (160 mm)
long.
´PP
´PP
30629-M

10 DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
Insert the Card
To insert the card inside the computer:
1. Follow the card handling instructions on page 6.
2. Insert the 1784-CPCIDS card into the backplane connector until the ejector
locks into the rail and card lock.
3. Tighten the top and bottom expansion cover screws.
4. Turn on the computer to make sure it powers up correctly.
Connect to the Network
This figure and table show the necessary network connections you make to the
card. The label (on the retaining bracket) is color-coded for easy wiring.
pin number wire color abbreviation description
1 black V- 24V dc power return
2 blue CAN_L data low - data line
3 bare DRAIN shield
4 white CAN_H data high - data line
5 red V+ +24V dc
30630 M

DeviceNet CompactPCI Communication Interface Card 11
Publication 1784-IN036B-EN-P - May 2001
Install the 1784-CPCIDS Driver and IOLinx in Windows NT
Uninstall the Previous Version of IOLinx
1. Shut down all applications that use the IOLinx DeviceNet driver, including
RSLinx and SoftLogix 5.
2. Click Start ⇒Settings ⇒Control Panel.
3. Double click the Add/Remove Programs icon.
4. Depending on which previous version of IOLinx was installed, double-click
on one of the following to remove it:
•1784-PCIDS Drivers for IOLinx
•IOLinx for the 1784-PCIDS Card
5. Select Yes to uninstall IOLinx.
IMPORTANT Be sure that your 1784-CPCIDS card is properly installed. Refer
to Install the 1784-CPCIDS Card on page 8.
IMPORTANT Before you install the new driver and IOLinx, you must uninstall
any earlier versions of IOLinx. If you do not currently have
IOLinx installed, go to Install the New Driver and IOLinx on page
12.
TIP
If you are prompted to remove unused shared files, select No
to All.

12 DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
Install the New Driver and IOLinx
1. Insert the CD into the computer’s CD-ROM drive.
2. If Autorun is configured for your CD-ROM drive, go to step 5 on page 12.
3. Select Start ⇒Run.
4. At the Run pop-up menu, type d:\setup where dis your CD-ROM drive
letter.
5. You see the IOLinx for the 1784-PCIDS screen.
IMPORTANT We recommend that you exit all Windows programs before
running this Setup program.
TIP
The CD-ROM supports Windows Autorun. If you have Autorun
configured, once the CD is inserted into the CD-ROM drive,
the installation will automatically start at the first setup screen.

DeviceNet CompactPCI Communication Interface Card 13
Publication 1784-IN036B-EN-P - May 2001

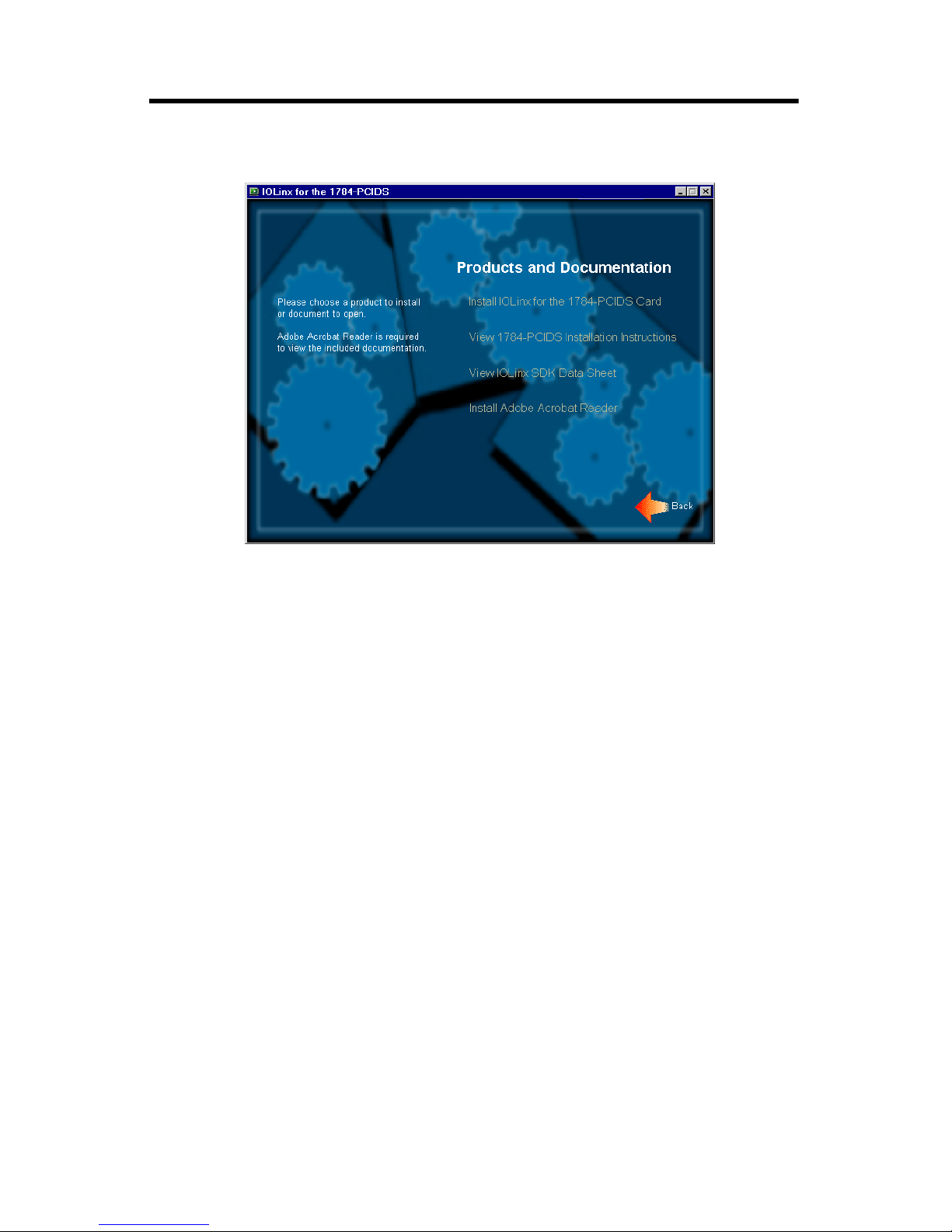

6. Click on Install Products. You see this screen:
7. Click on Install IOLinx for the 1784-PCIDS Card.
8. Follow the on-screen instructions to install IOLinx.

14 DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
Install the 1784-CPCIDS Driver and IOLinx in Windows 2000 for
the First Time
Install the New Driver
1. When you boot up your computer for the first time after installing your
1784-CPCIDS card, you see the Found New Hardware Wizard.
2. Click Next.
IMPORTANT Use this procedure only if this is the first time that you are
installing the 1784-CPCIDS driver and IOLinx on this computer.
Otherwise, use the Update the 1784-CPCIDS Driver and IOLinx
in Windows 2000 procedure on page 18 instead of this
procedure.
IMPORTANT Be sure that your 1784-CPCIDS card is properly installed. Refer
to Install the 1784-CPCIDS Card on page 8.

DeviceNet CompactPCI Communication Interface Card 15
Publication 1784-IN036B-EN-P - May 2001
3. Click on Search for a suitable driver for my device (recommended).
4. Click Next.
5. Select Specify a Location.

16 DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
6. Click Next.
7. In the Found New Hardware Wizard, click Browse and browse to this
location:
x:\IOLinx for DeviceNet\abpcids.inf
where x is the drive where the installation files are stored.
8. Click Open.
9. Click OK.
10. Follow the on-screen instructions for installing the driver.
11. Go to the next section, Install IOLinx, on page 16.
Install IOLinx
if then
you are installing from CD-ROM
and
Auto Insert Notification (a.k.a. Autorun) is
enabled on your CD-ROM drive
insert the CD-ROM into the computer’s
CD-ROM drive
the Setup Utility will start automatically.
Click anywhere in the Wizard screen to bring
it back on top of the Setup Utility window.
you are installing IOLinx from a
compressed file
download IOLinx from
http://www.ab.com/networks/iolinx and
unzip the files into a temporary directory
IMPORTANT To ensure that the card works properly, you must install IOLinx
as described on page 16.
IMPORTANT We recommend that you exit all Windows programs before
running this Setup program.
TIP
The CD-ROM supports Windows Autorun. If you have Autorun
configured, once the CD is inserted into the CD-ROM drive,
the installation will automatically start at the first setup screen.

DeviceNet CompactPCI Communication Interface Card 17
Publication 1784-IN036B-EN-P - May 2001
1. Insert the CD in the computer’s CD-ROM drive.
2. If Autorun is configured for your CD-ROM drive, go to step 5 on page 17.
3. Select Start ⇒Run.
4. At the Run pop-up window, type d:\setup where dis your CD-ROM drive
letter.
5. You see the IOLinx for the 1784-PCIDS screen.
6. Click on Install Products. You see this screen:

18 DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
7. Click on Install IOLinx for the 1784-PCIDS Card.
8. Follow the on-screen instructions to install IOLinx.
Update the 1784-CPCIDS Driver and IOLinx in Windows 2000
Uninstall the Previous Version of IOLinx
1. Shut down all applications that use the IOLinx DeviceNet driver, including
RSLinx and SoftLogix 5.
2. Click Start ⇒Settings ⇒Control Panel.
3. Double-click the Add/Remove Programs icon.
4. Depending on which previous version of IOLinx was installed, double-click
on one of the following to remove it:
•1784-PCIDS Drivers for IOLinx
•IOLinx for the 1784-PCIDS Card
IMPORTANT Use this procedure only if you have previously installed the
1784-CPCIDS driver and IOLinx on this computer. If you have
not previously installed the 1784-CPCIDS driver and IOLinx on
this computer, use the Install the 1784-CPCIDS Driver and IOLinx
in Windows 2000 for the First Time procedure on page 14
instead of this procedure.
IMPORTANT Before you update the new driver and IOLinx, you must uninstall
any earlier versions of IOLinx. If you do not currently have
IOLinx installed, go to the Update the Driver procedure on page
19.

DeviceNet CompactPCI Communication Interface Card 19
Publication 1784-IN036B-EN-P - May 2001
5. Select Yes to uninstall IOLinx.
6. Reboot the computer.
Update the Driver
1. Right-click on My Computer.
2. Select Manage.
3. On the Computer Management window that appears, select Device
Manager.
TIP
If you are prompted to remove unused shared files, select No
to All.
if then
IOLinx version 1.14 or earlier was installed go to step 4 on page 20
IOLinx version 1.15 or later was installed go to step 5 on page 20

20 DeviceNet CompactPCI Communication Interface Card
Publication 1784-IN036B-EN-P - May 2001
4. If IOLinx version 1.14 or earlier was installed, follow this procedure:
a. Click on Other Devices to expand the list.
b. Right-click on the Network Controller that corresponds to the
1784-CPCIDS card that you are updating and select Properties.
c. Go to step 6.
5. If IOLinx version 1.15 or later was installed, follow this procedure:
a. Select Allen-Bradley PCI Family.
b. Right-click on the Allen-Bradley 1784-PCIDS that corresponds to the
1784-CPCIDS card you are updating and select Properties.
c. Go to step 6.
Click on Other Devices to
expand it. Then right-click
on Network Controller.
Click on Allen-Bradley PCI Family to
expand it. Then right-click on
Allen-Bradley 1784-PCIDS.
