2.3 Unit Structure and Dimensions 4

1
Preface
1. PREFACE
In order to provide our customers with quality, reliability and versatility,
been made to strict production standards. This manual includes all the necessary
information about installation, debugging, discharging and maintenance. Please read this
manual carefully before you open or maintain the unit. The manufacture of this product will
not be held responsible if someone is injured or the unit is damaged, as a result of
improper installation, debugging, or unnecessary maintenance. It is vital that the
instructions within this manual are adhered to at all times. The unit must be installed by
qualified personnel.
this product has
The unit can only be repaired by qualified installer centre , personnel or an authorised
dealer.
Maintenance and operation must be carried out according to the recommended time and
frequency, as stated in this manual.
Use genuine standard spare parts only.
Failure to comply with these recommendations will invalidate the warranty.
Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature
constant. For split type unit, The indoor unit can be Discretely hidden or semi-hidden to
suit a luxury house.
Our heat pump has following characteristics:
1 Durable
The heat exchanger is made of PVC & Copper Nickle tube which can withstand
prolonged exposure to swimming pool water.
2 Installation flexibility
The unit can be installed outdoors or indoors.
3 Quiet operation
The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor,
which guarantees its quiet operation.
4 Advanced controlling
The unit includes micro-computer controlling, allowing all operation parameters to be
set. Operation status can be displayed on the LED wire controller. Remote controller can be
chosen as future option.
1

2
Specification
2
2.SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT : R410A
Unit
Heating Capacity
Heating Power Input
Running Current
Power Supply
Compressor Quantity
Compressor
Fan Quantity
Fan Powerlnput
Fan Rotate Speed
Fan Direction
Noise
Water Connection
Water Flow Volume
Water Pressure Drop(MAX)
Unit Net Dimensions(L/W/H)
Unit Shipping Dimensions(L/W/H)
Net Weight
Shipping Weight
Model
kW
BTU/h
kW
A
W
RPM
dB(A)
mm
kPa
mm
mm
kg
kg
3
m /h
ALLPH91Kw
91
310000
17.5
31.2
380~415V/3N～/50Hz
4
scroll
3
200×3
830
vertical
61
63
28
16
see the drawing of the units
see package label
see nameplate
see package label
Heating: Outdoor air temp:24℃/19℃, Inlet water temp:26℃

3
Unit Structure and Dimensions
3
2
.2 The dimensions for Swimming Pool Heat Pump Unit
2.SPECIFICATION
Models :ALLPH91Kw
Airflow direction
1920
Water Inlet
φ110
Water Outlet
φ110
240
160
1070
2170
174

4
Installation and Connection
3.1 Installation illustration
3.INSTALLATION AND CONNECTION
4
Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration
are necessary spare parts for the water system ,that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
Chlorinator cell
Water outlet
Pool
Valve
Water supply
Water inlet Water pump
Sand filter
(or other type filter)
The unit will perform well in any outdoor location provided that the following three factors are
present。
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the
supplier. Unlike a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units
discharge air will be re-circulated.
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a
continuous source of fresh air which reduces it efficiency and may prevent adequate heat
delivery.
3.2 Swimming Pool Heat Pumps Location
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the
distance from the pool, the greater the heat loss from the piping. For the most part ,the piping
is buried. Therefore, the heat loss is minimal for runs of up to15 meters(15 meters to and from
the pump = 30 meters total), unless the ground is wet or the water table is high. A very rough
estimate of heat loss per 30 meters is 0.6 kW-hour,(2000BTU) for every 5 ℃ difference in
temperature between the pool water and the ground surrounding the pipe, which translates to

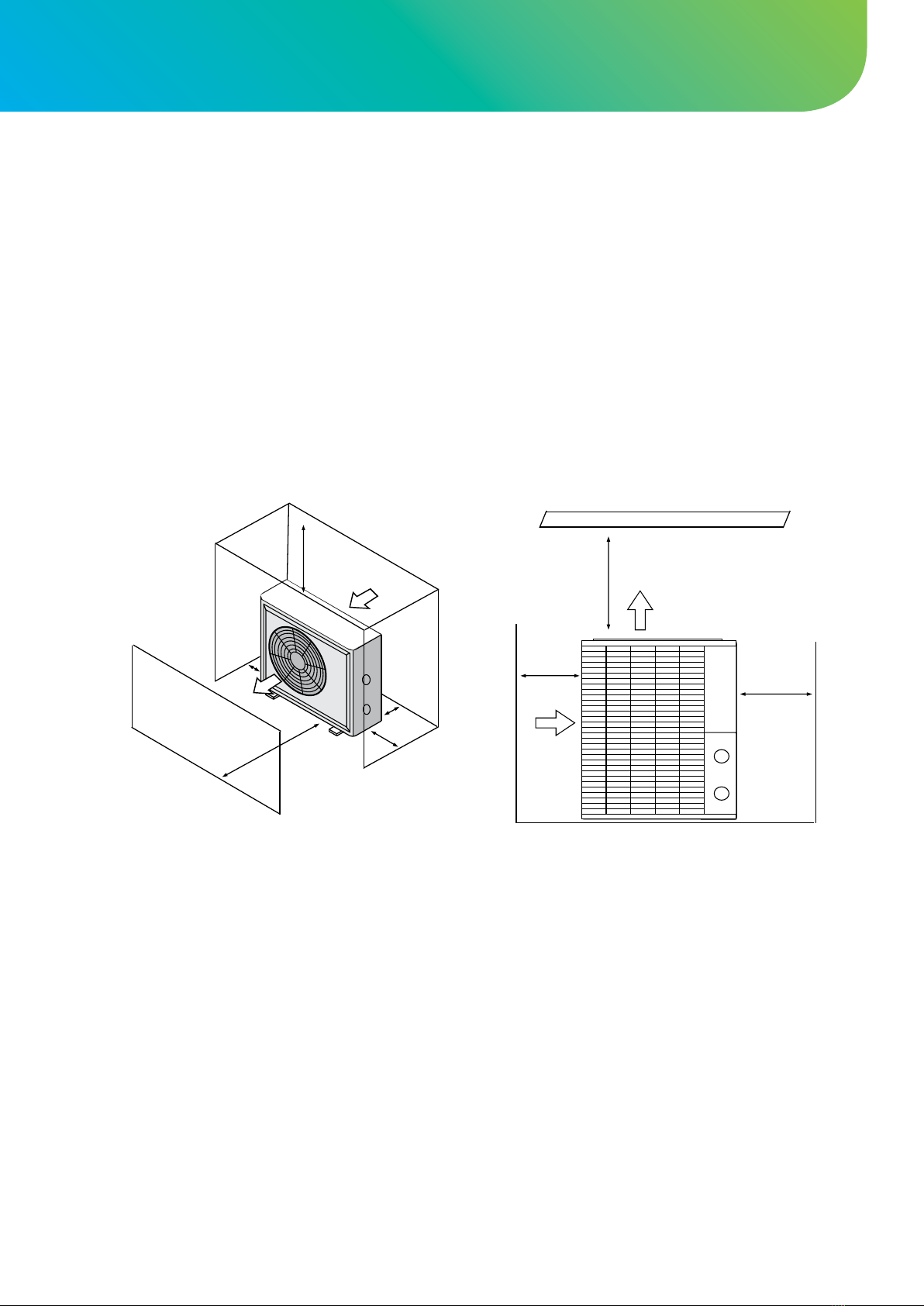

3.3 How Close To Your Pool?
5
3.INSTALLATION AND CONNECTION
Air inlet
Air outlet
Air inlet
Air outlet
2500mm
700mm
300mm
500mm
2000mm
1000mm
800mm
700mm

5
Installation and Connection
3.1 Installation illustration
3.INSTALLATION AND CONNECTION
4
Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration
are necessary spare parts for the water system ,that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
Chlorinator cell
Water outlet
Pool
Valve
Water supply
Water inlet Water pump
Sand filter
(or other type filter)
The unit will perform well in any outdoor location provided that the following three factors are
present。
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the
supplier. Unlike a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units
discharge air will be re-circulated.
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a
continuous source of fresh air which reduces it efficiency and may prevent adequate heat
delivery.
3.2 Swimming Pool Heat Pumps Location
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the
distance from the pool, the greater the heat loss from the piping. For the most part ,the piping
is buried. Therefore, the heat loss is minimal for runs of up to15 meters(15 meters to and from
the pump = 30 meters total), unless the ground is wet or the water table is high. A very rough
estimate of heat loss per 30 meters is 0.6 kW-hour,(2000BTU) for every 5 ℃ difference in
temperature between the pool water and the ground surrounding the pipe, which translates to
3.3 How Close To Your Pool?
5
3.INSTALLATION AND CONNECTION
Air inlet
Air outlet
Air inlet
Air outlet
2500mm
700mm
300mm
500mm
2000mm
1000mm
800mm
700mm

6
Installation and Connection
3.4 Swimming Pool Heat Pumps Plumbing
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter
and pool pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 40mm NB PVC pipe for connection to
the pool or Swimming Pool filtration piping. By using a 50 NB to 40NB you can plumb 50NB
PVC piping straight into the unit.
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow
easy draining of unit for winterizing and to provide easier access should servicing be
required.
Condensation: Since the Heat pump cools down the air about 4 -5℃, water may condense on
the fins of the horseshoe shaped evaporator. If the relative humidity is very high, this could
be as much as several litres an hour. The water will run down the fins into the basepan and
drain out through the barbed plastic condensation drain fitting on the side of the basepan.
This fitting is designed to accept 3/4" clear vinyl tubing which can be pushed on by hand and
run to a suitable drain. It is easy to mistake the condensation for a water leak inside the unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the
pool pump running. If the water stops running out of the basepan, it is condensation. AN
EVEN QUICKER WAY IS to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine
present, then it's condensation.
3.INSTALLATION AND CONNECTION
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no
special plumbing arrangements except bypass(please set the flow rate according to the
nameplate). The water pressure drop is less than 10kPa at max. Flow rate. Since there is no
residual heat or flame Temperatures, The unit does not need copper heat sink piping. PVC
pipe can be run straight into the unit.
6
To pool
From pump
PVC COUPLER
RECOMMENDED(Provided)
CONDENSATION
DRAIN
BARB FTG
3.INSTALLATION AND CONNECTION
7
3.5 Swimming Pool Heat Pumps Electrical Wiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it
simply prevents the flow of electricity to or from the pool water. Grounding the unit is still
required to protect you against short circuits inside the unit. Bonding is also required.
3.6 Initial startup of the Unit
NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to
circulate water through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wire
controller, It should start in several seconds.
3. After running a few minutes make sure the air leaving the top(side) of the unit is
cooler(Between 5-10 ℃)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically,
5. Allow the unit and pool pump to run 24 hours per day until desired pool water emperature is
reached. When the water-in temperature reach setting, The unit just shuts off. The unit will
now automatically restart (as long as your pool pump is running)when the pool temperature
drops more than 2℃below set temperature.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to
protect control circuit components and to eliminate restart cycling and contactor chatter.
This time delay will automatically restart the unit approximately 3 minutes after each control
circuit interruption. Even a brief power interruption will activate the solid state 3 minute
restart delay and prevent the unit from starting until the 5 minute countdown is completed.
Power interruptions during the delay period will have no effect on the 3 minute countdown.
The unit has a separate molded-in junction box with a standard electrical conduit nipple
already in place. Just remove the screws and the front panel, feed your supply lines in
through the conduit nipple and wire-nut the electric supply wires to the three connections
already in the junction box (four connections if three phase). To complete electrical hookup,
connect Heat Pump by electrical conduit, UF cable or other suitable means as specified (as
permitted by local electrical authorities) to a dedicated AC power supply branch circuit
equipped with the proper circuit breaker, disconnect or time delay fuse protection.
Disconnect - A disconnect means (circuit breaker , fused or un-fused switch) should be
located within sight of and readily accessible from the unit, This is common practice on
commercial and residential air conditioners and heat pumps. It prevents remotely-energizing
unattended equipment and permits turning off power at the unit while the unit is being
serviced.

7
Installation and Connection
3.4 Swimming Pool Heat Pumps Plumbing
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter
and pool pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 40mm NB PVC pipe for connection to
the pool or Swimming Pool filtration piping. By using a 50 NB to 40NB you can plumb 50NB
PVC piping straight into the unit.
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow
easy draining of unit for winterizing and to provide easier access should servicing be
required.
Condensation: Since the Heat pump cools down the air about 4 -5℃, water may condense on
the fins of the horseshoe shaped evaporator. If the relative humidity is very high, this could
be as much as several litres an hour. The water will run down the fins into the basepan and
drain out through the barbed plastic condensation drain fitting on the side of the basepan.
This fitting is designed to accept 3/4" clear vinyl tubing which can be pushed on by hand and
run to a suitable drain. It is easy to mistake the condensation for a water leak inside the unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the
pool pump running. If the water stops running out of the basepan, it is condensation. AN
EVEN QUICKER WAY IS to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine
present, then it's condensation.
3.INSTALLATION AND CONNECTION
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no
special plumbing arrangements except bypass(please set the flow rate according to the
nameplate). The water pressure drop is less than 10kPa at max. Flow rate. Since there is no
residual heat or flame Temperatures, The unit does not need copper heat sink piping. PVC
pipe can be run straight into the unit.
6
To pool
From pump
PVC COUPLER
RECOMMENDED(Provided)
CONDENSATION
DRAIN
BARB FTG
3.INSTALLATION AND CONNECTION
7
3.5 Swimming Pool Heat Pumps Electrical Wiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it
simply prevents the flow of electricity to or from the pool water. Grounding the unit is still
required to protect you against short circuits inside the unit. Bonding is also required.
3.6 Initial startup of the Unit
NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to
circulate water through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wire
controller, It should start in several seconds.
3. After running a few minutes make sure the air leaving the top(side) of the unit is
cooler(Between 5-10 ℃)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically,
5. Allow the unit and pool pump to run 24 hours per day until desired pool water emperature is
reached. When the water-in temperature reach setting, The unit just shuts off. The unit will
now automatically restart (as long as your pool pump is running)when the pool temperature
drops more than 2℃below set temperature.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to
protect control circuit components and to eliminate restart cycling and contactor chatter.
This time delay will automatically restart the unit approximately 3 minutes after each control
circuit interruption. Even a brief power interruption will activate the solid state 3 minute
restart delay and prevent the unit from starting until the 5 minute countdown is completed.
Power interruptions during the delay period will have no effect on the 3 minute countdown.
The unit has a separate molded-in junction box with a standard electrical conduit nipple
already in place. Just remove the screws and the front panel, feed your supply lines in
through the conduit nipple and wire-nut the electric supply wires to the three connections
already in the junction box (four connections if three phase). To complete electrical hookup,
connect Heat Pump by electrical conduit, UF cable or other suitable means as specified (as
permitted by local electrical authorities) to a dedicated AC power supply branch circuit
equipped with the proper circuit breaker, disconnect or time delay fuse protection.
Disconnect - A disconnect means (circuit breaker , fused or un-fused switch) should be
located within sight of and readily accessible from the unit, This is common practice on
commercial and residential air conditioners and heat pumps. It prevents remotely-energizing
unattended equipment and permits turning off power at the unit while the unit is being
serviced.

8
Usage and Operation
8
Welcome
V1.0
v1.0
Loading......
Press the button to set the clock,
the timer on or timer off
Press this button to check button function
or system state.
Press this button to change the current mode, page up
or confirm current operation.
ON/OFF Press this button to start up/shut off the unit,
cancel current operation or back to upper interface.
HELP
MODE
CLOCK

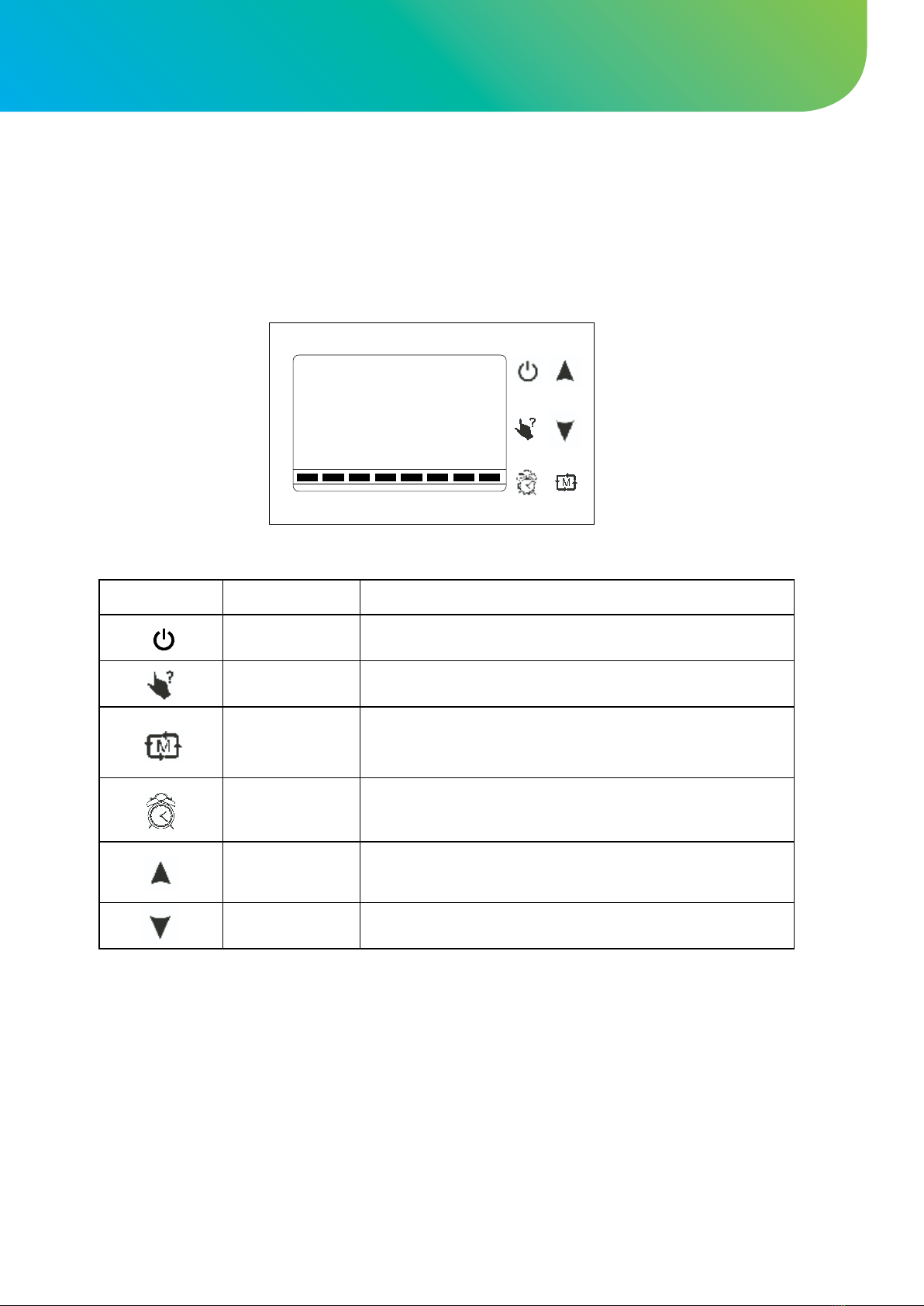

Button Name Function
4.1Function of wire controller
Press this key to select the upward option or increase
the parameter value.
Press this key to select the downward option or
decrease the parameter value.
Up
Down

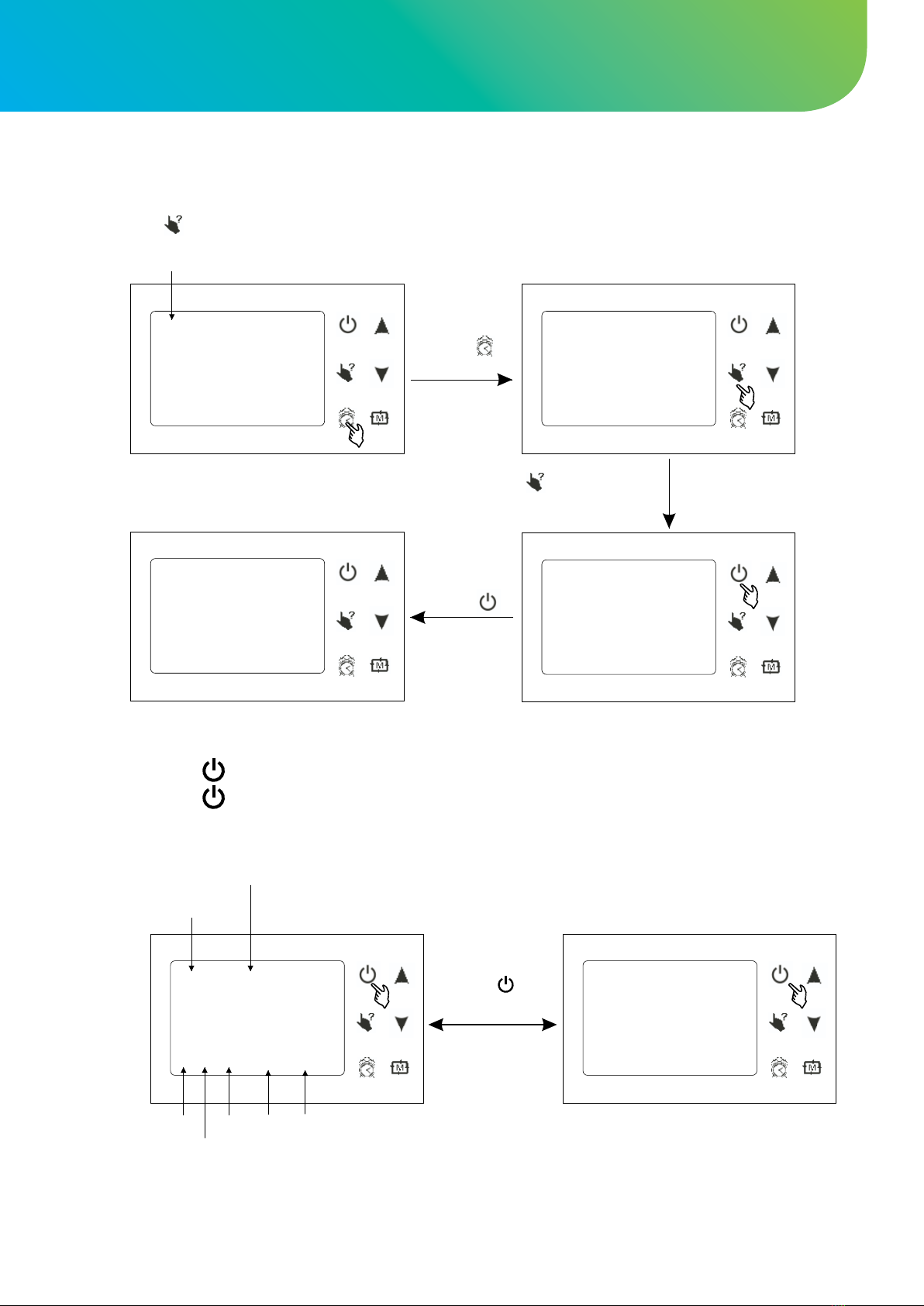

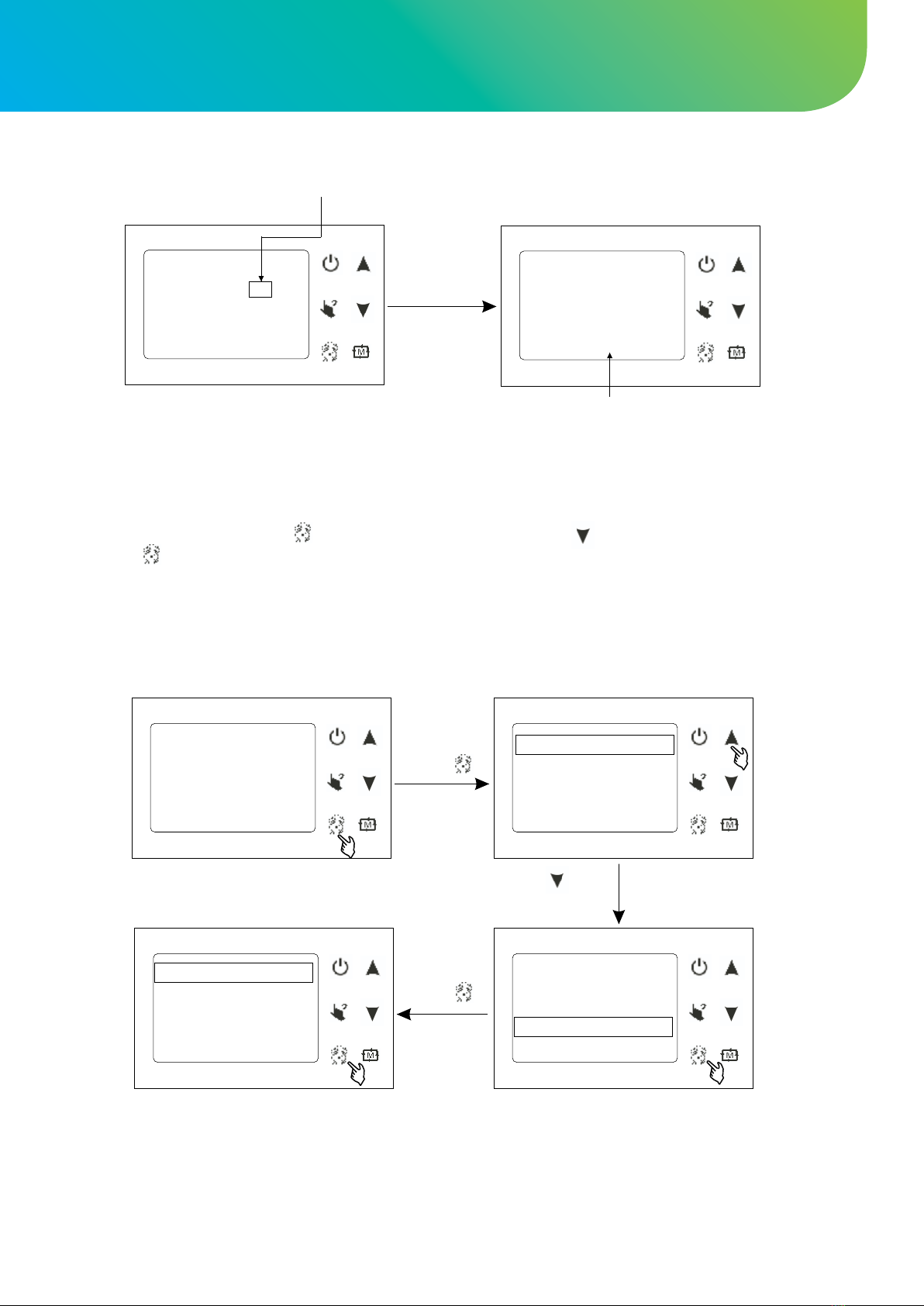

4.1 The way to use
You can use “ ”at any interface, it will show relevant button function of current interface.
You can press “ ”to exit the "help" interface.
For example：
Press “ ”at main interface, system will show all button function; Press “ ”at clock
interface, system will show“ ”、“ ”、“ ”and“ ”button function.
ON：Eco.heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
1.
Pressing this key could turn
on/off the unit, cancel the
current operation or return
to the former interface.
Press“ ”
This symbol means
you can page up
2.
Pressing this key could
select the upward option or
increase the value of a
certain parameter.
3.
Pressing this key could
select the downward option
or decrease the value of a
certain parameter.
4.
Pressing this key could
switch unit mode, enter
into the next interface or
save settings.
5.
Pressing this key could set
the system time, or time for
regular shutdown or
restart.
6.
Pressing this key could
check the unit state or
show you the key
functions.
Mode
Both are OK when system show ON or OFF
ON：Eco.heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
Press“ ”
Press“ ”
Press“ ”
Press“ ”
Press“ ”
Press“ ”
4.Usage of wire controller
In the boot state
In the boot state
4. USAGE AND OPERATION
4. USAGE AND OPERATION
9

9
Usage and Operation
4.1 The way to use
You can use“ ”at any interface, it will show relevant button function of current interface.
You can press“ ”to exit the "help" interface.
For example：
Press“ ”at main interface, system will show all button function; Press“ ”at clock
interface, system will show“”“ ”“ ” and“ ”button function.
ON：Eco.heating
Inlet temp.: 25.0
Outlet temp.: 25.0
31/03/2011 09:10 THU.
1.
Pressing this key could turn
on/off the unit, cancel the
current operation or return
to the former interface.
Press“”
This symbol means
you can page up
2.
Pressing this key could
select the upward option or
increase the value of a
certain parameter.
3.
Pressing this key could
select the downward option
or decrease the value of a
certain parameter.
4.
Pressing this key could
switch unit mode, enter
into the next interface or
save settings.
5.
Pressing this key could set
the system time, or time for
regular shutdown or
restart.
6.
Pressing this key could
check the unit state or
show you the key
functions.
Mode
Both are OK when system show ON or OFF
ON：Eco.heating
Inlet temp.: 25.0
Outlet temp.: 25.0
31/03/2011 09:10 THU.
Press“ ”
Press“ ”
Press“ ”
Press“ ”
Press“ ”
Press“ ”
4.Usage of wire controller
In the boot state
In the boot state
4. USAGE AND OPERATION
9

10
10
4. USAGE AND OPERATION

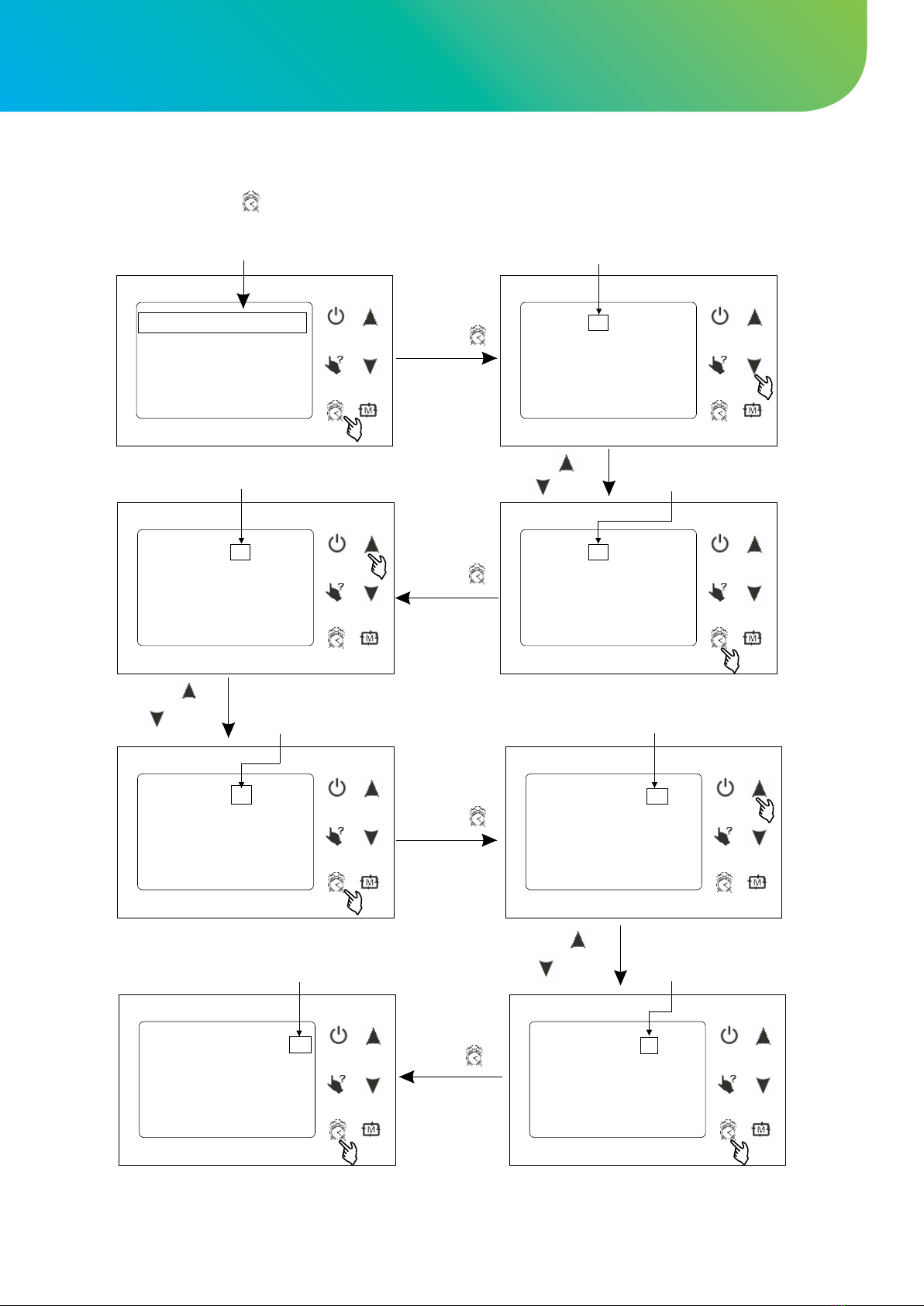

Press “”at clock interface, the screen shows as follow:
Date：31/01/2011
Time：05：55
Week：Thursday
Timer
Date format
Both are OK when system shows ON or OFF
Press“”
to enter
1. Up or down arrow
selects items
2. Clock key changes
status
3. On/off key exits
Press“”to show
relevant button function
Press“ ”
to exit
4.2.2 Starting up and shutting down
Press “”in the shutdown state for 1s to start up the system;
Press “”in the startup state for 1s to shut down the system.
For example：
Press“”
for 1s
Running state
MODE
（By actual state）
Month
Date Time Week
ON：Eco.heating
Inlet temp.: 2 5.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
ON：Eco.heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
OFF：Heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
Year
ON：Heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
In the shutdown state
In the startup state
Usage and Operation

11
10
4. USAGE AND OPERATION
Press “ ”at clock interface, the screen shows as follow:
Date： 31/01/2011
Time： 05：55
Week： Thursday
Timer
Date format
Both are OK when system shows ON or OFF
Press“ ”
to enter
1. Up or down arrow
selects items
2. Clock key changes
status
3. On/off key exits
Press“ ”to show
relevant button function
Press“ ”
to exit
4.2.2 Starting up and shutting down
Press “ ”in the shutdown state for 1s to start up the system;
Press “ ”in the startup state for 1s to shut down the system.
For example：
Press“ ”
for 1s
Running state
MODE
（By actual state）
Month
Date Time Week
ON：Eco.heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
ON：Eco.heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
OFF：Heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
Year
ON：Heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
In the shutdown state In the startup state
4. USAGE AND OPERATION
11
4.3 The operation of mode switching
At main interface, you can switch modes of cooling, economic heating, heating, rapid
heating by pressing “ ”. Or switch modes of cooling, economic heating and automatic.
The different unit gets different mode types.
Attention：the operation of mode is invalid when the unit you buy is cooling only or heating only.
For example：
Press“ ”
to switch
modes
Mode

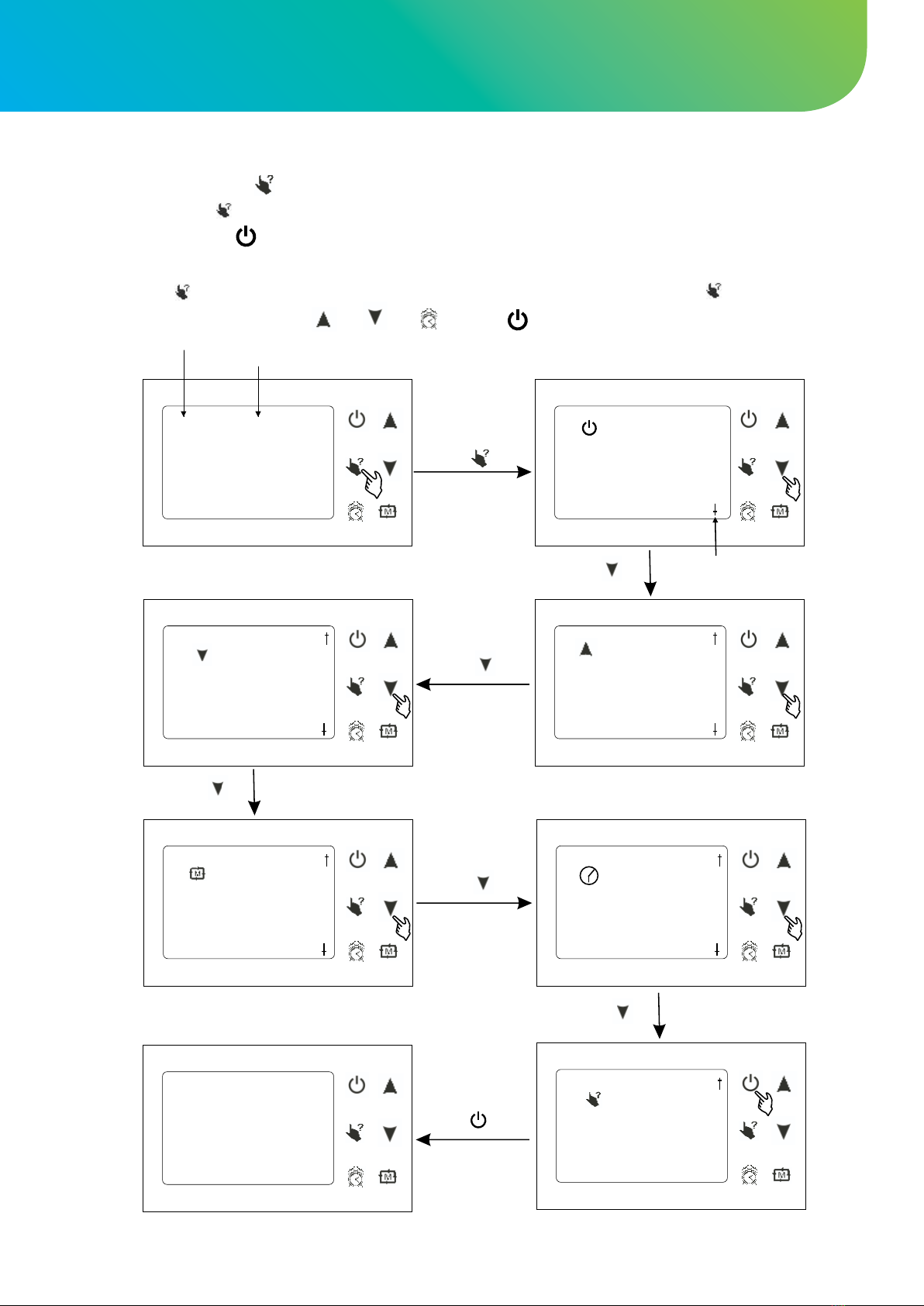

4.4 The operation of system state checking
At any interface, you can enter system working state by pressing“ ”twice, press“ ”
（pageup）or “ ” （pagedown）to select the needing parameter, press“ ”to enter, and
press “ ”to exit.
For example：
Press“ ”
Temperature
Switch
Output
Press“ ”
T01 Inlet water 25.0℃
T02 Outlet water 25.0℃
T03 Coil 1 30.5℃
T04 Coil 2 32.5℃
T05 Ambient 23.5℃
T06 Deice 1 4.5℃
T07 Deice 2 4.5℃
T08 Suction 1 20.5℃
Press“ ”
Press“ ”
Press“ ”
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
ON：Eco.heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
Mode
ON：Cooling
Inlet temp.:25.0℃
Outlet temp.:25.0℃
31/03/2011 09:10 THU.
1.
Pressing this key could turn
on/off the unit, cancel the
current operation or return
to the former interface.
Temperature
Switch
Output
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
Usage and Operation

12
Usage and Operation
4. USAGE AND OPERATION
12
4.5 The operation of parameter setting
At main interface, press“ ”or“”to enter parameter setting interface, press
“ ”（increasing）or“ ”（decreasing）can change parameter value, press“ ”to save the
setting and exit . Press“ ”can not save the setting but exit.（You can refer to parameter table
to set relevant temperature.）

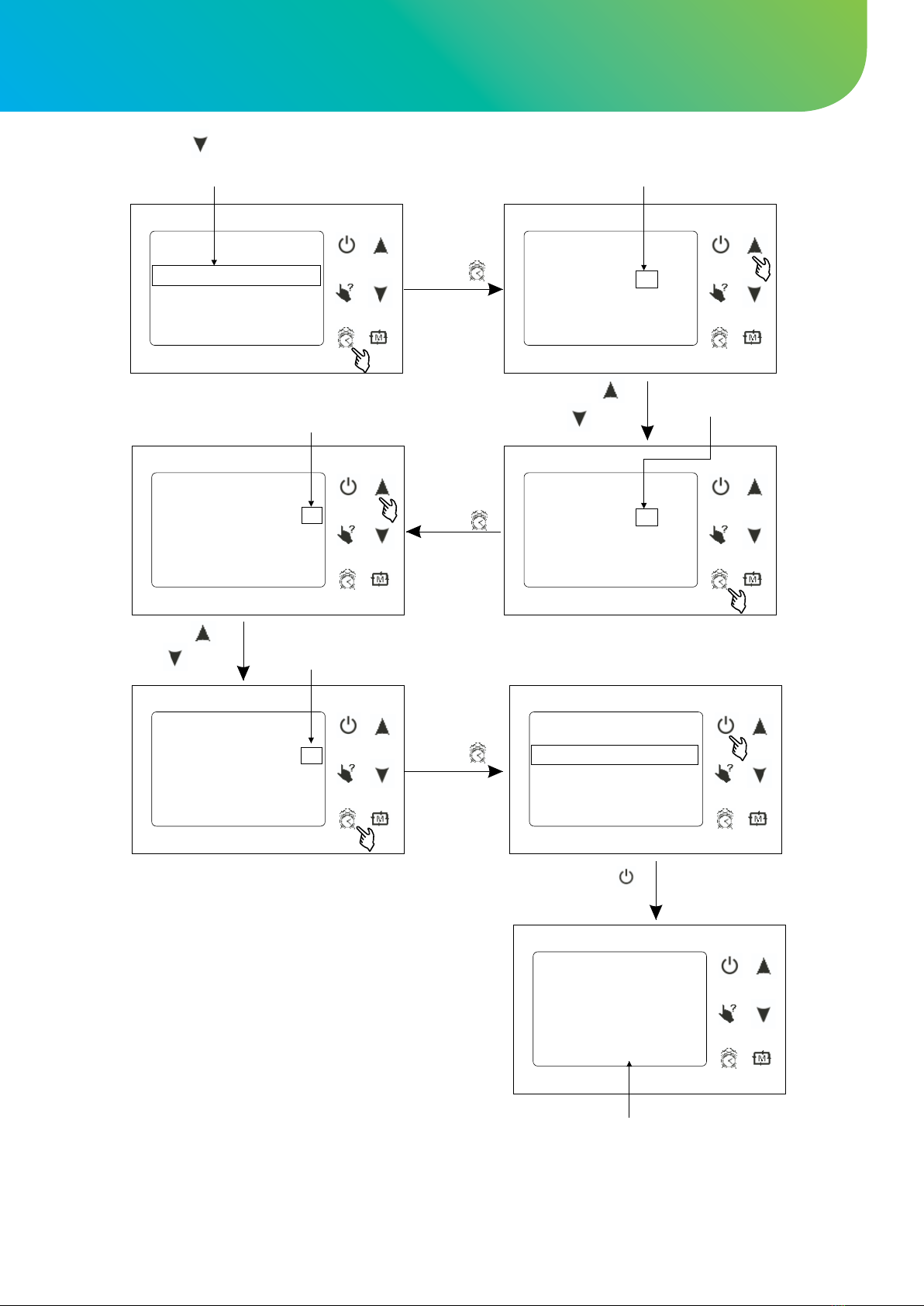

Cooling set point：
12.0℃
Press“”
or“”
Press“”
or“”
Press“ ”
to save the
setting

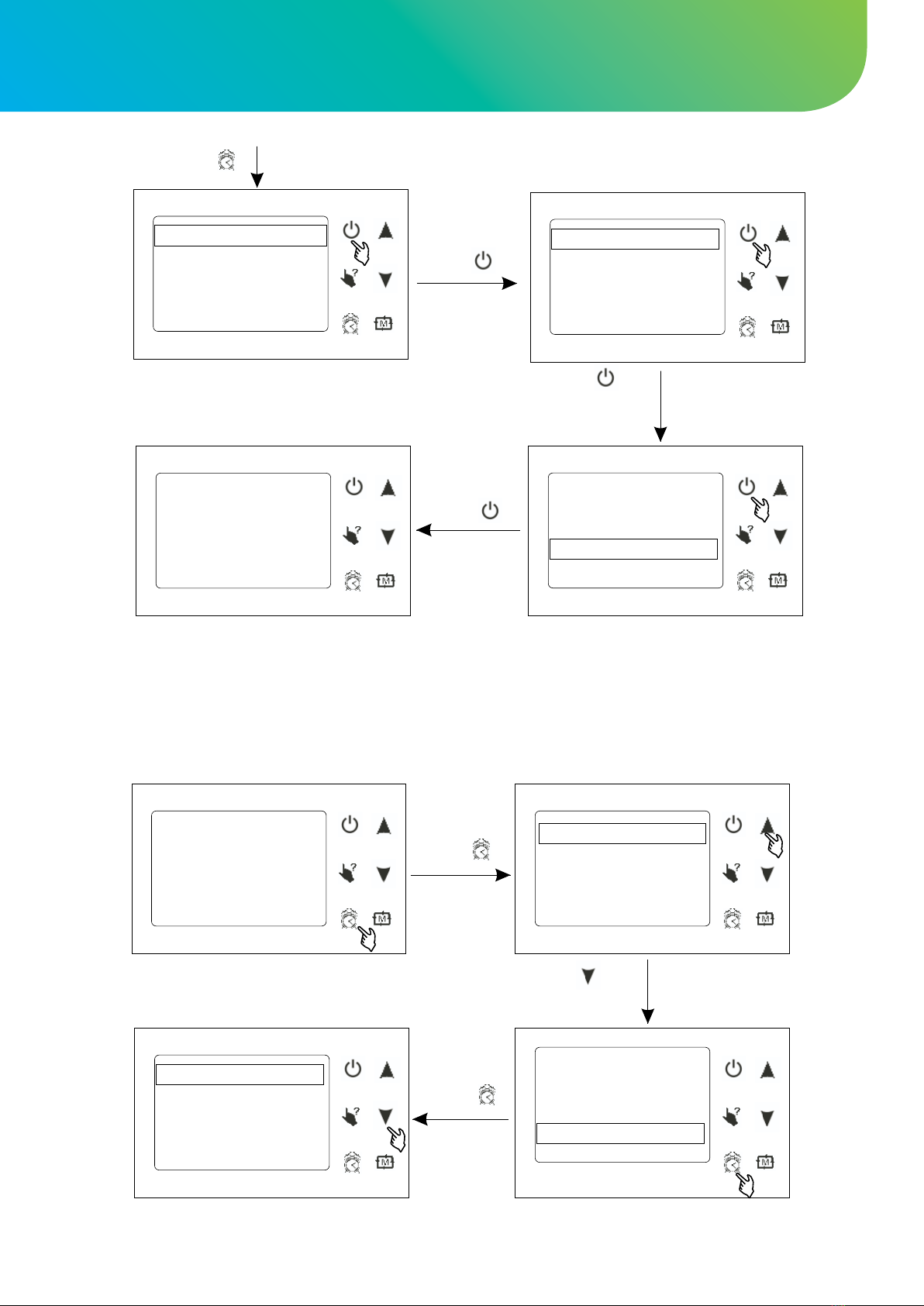

4.6 The operation of clock setting
At main interface, press“”to enter clock setting interface, select the needing parameter
and press“”，at this time, parameter value flashing, press“ ”(increasing)or“”
(Decreasing) can change parameter value, then press“”to save, press“ ”can cancel the
setting or back to the main interface.（“timer setting”refer to timer operation）
Press“”
to enter clock
interface
ON：Cooling
Inlet temp.: 25.0
Outlet temp.: 25.0
31/03/2011 09:10 THU.
Cooling set point：
13.0℃
ON：Cooling
Inlet temp.
Outlet temp.
31/03/2011 09:10 THU.
ON：Cooling
Inlet temp.
Outlet temp.
31/01/2011 05:55 THU.
Date：31/01/2011
Time：05：55
Week：Thursday
Timer
Date format
℃
℃
: 25.0
: 25.0
℃
℃
: 25.0
: 25.0
℃
℃

13
Usage and Operation
11
1
1
13
Press“”to select
needing parameter
Press“”
Hour bit flashing
Press“”
or“”
Press“”
to save the
hour value
Hour bit flashing
Minute bit flashing
Press“”
or“”
Press“”
to exit
The time has been changed
Tips：The setting of date and week is the same with clock;
If there is no operation in 10s, system will remember parameter setting automatic
and back to the main interface.,
As follows：
Date：31/01/2011
Time：05：55
Week：Thursday
Timer
Date format
Date：31/0 /2011
Time：05：55
Week：Thursday
Timer
Date format
Date：31/01/20
Time：06：55
Week：Thursday
Timer
Date format
Date：31/0 /2011
Time：06：55
Week：Thursday
Timer
Date format
Date：31/01/2011
Time：06：41
Week：Thursday
Timer
Date format
Date：31/01/2011
Time：06：41
Week：Thursday
Timer
Date format
ON：Cooling
Inlet temp.: 2 5.0℃
Outlet temp.: 25.0℃
31/01/2011 06:41 THU.
Minute bit flashing
Press“”
to save the
minute value
4. USAGE AND OPERATION

14
Usage and Operation
14
4. USAGE AND OPERATION
4.7 The operation of timer setting
You can set four timer on and timer off according to you needing.
At main interface, press “”to enter timer setting, press “”to select “Timer”, then
press“”to enter timer setting interface,（timer setting：you can set four timer on and timer
off, and the time you set can from Monday to Sunday.） ，the operation is the same with clock
setting.
For example：
Hour bit flashing
No operation
in 10s
It has been changed
Press“”
to enter clock
interface
Press“”to
select "Timer"
Timer zone
Daily timer Press“”
to enter Timer
interface

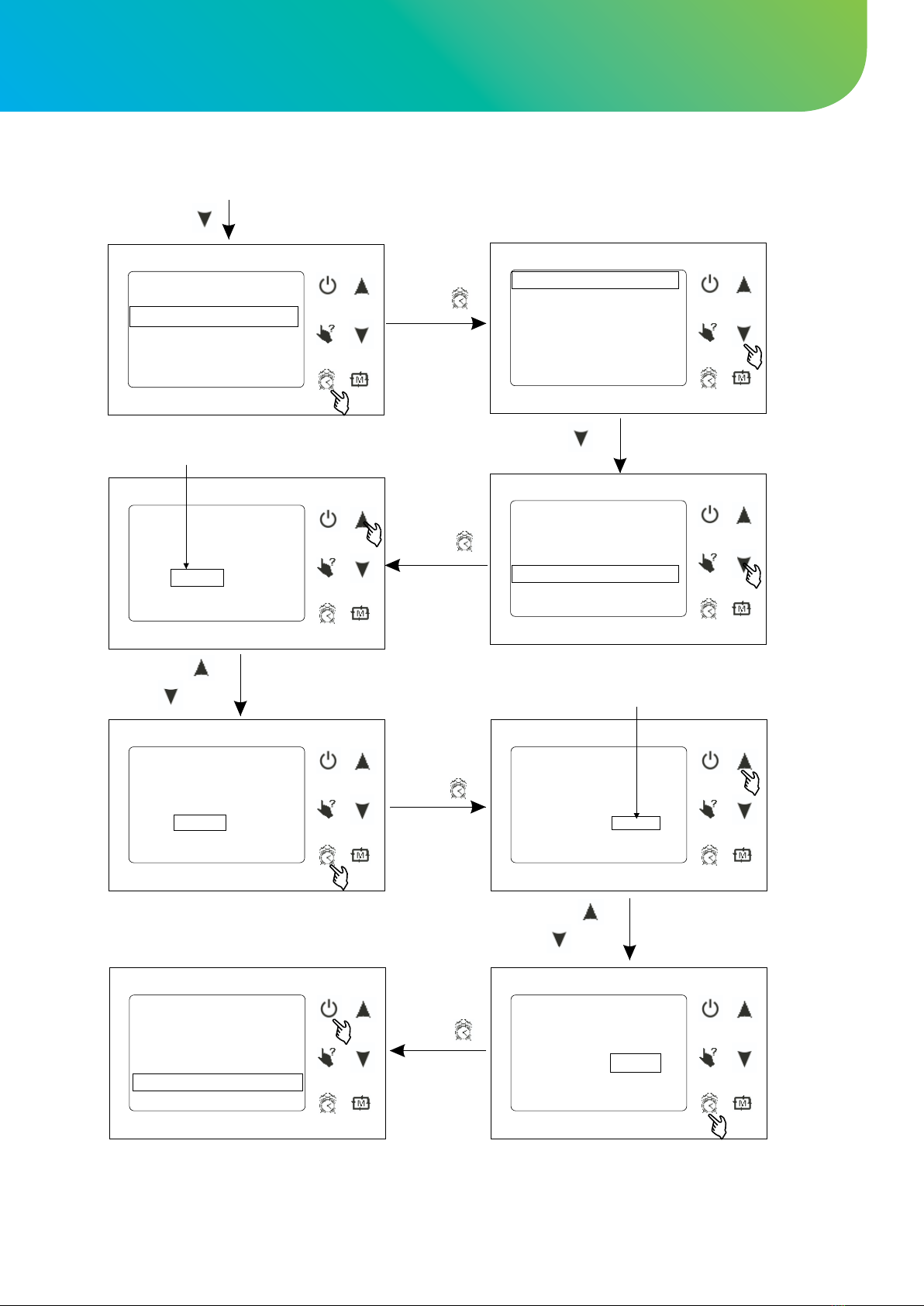

A. Timer setting
Date：31/01/2011
Time：06：55
Week：Thursday
Timer
Date format
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/01/2011 06:55 THU.
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/01/2011 06:55 THU.
Date：31/01/2011
Time：05：55
Week：Thursday
Timer
Date format
Date：31/01/2011
Time：05：55
Week：Thursday
Timer
Date format

15
Usage and Operation
4. USAGE AND OPERATION
15
Press“”
to enter Timer
setting interface
Timer1:00:00-00:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Press“”
Hour bit flashing
Hour bit flashing
Press“”
or“”
Press“”
Minute bit flashing
Timer1:07:30-00:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Press“”
or“”
Press“”
Press“”
Timer1:00:00-00:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Timer1:07:00-00:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Timer1:07:00-00:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Timer1:07:30-00:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Timer1:07:30-22:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Timer1:07:30-22:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Minute bit flashing Hour bit flashing
Hour bit flashing
Minute bit flashing
Press“”
or“”

16
Usage and Operation
16
4. USAGE AND OPERATION
Press“”
Press“”
to back to upper
interface
Press“”
to back to
upper interface
Tips：1) The operation of Timer2, Timer3, Timer4 is the same with Timer1;
2) Timer1 :07:30-22:00 means system starts up at 7:30, and shut down at 22:00 automaticly;
3) If there is no operation in 10s, system will memory parameter setting automaticly.
Press“”
to enter clock
interface
Press“”to
select "Timer"
Press“”
to enter timer
interface

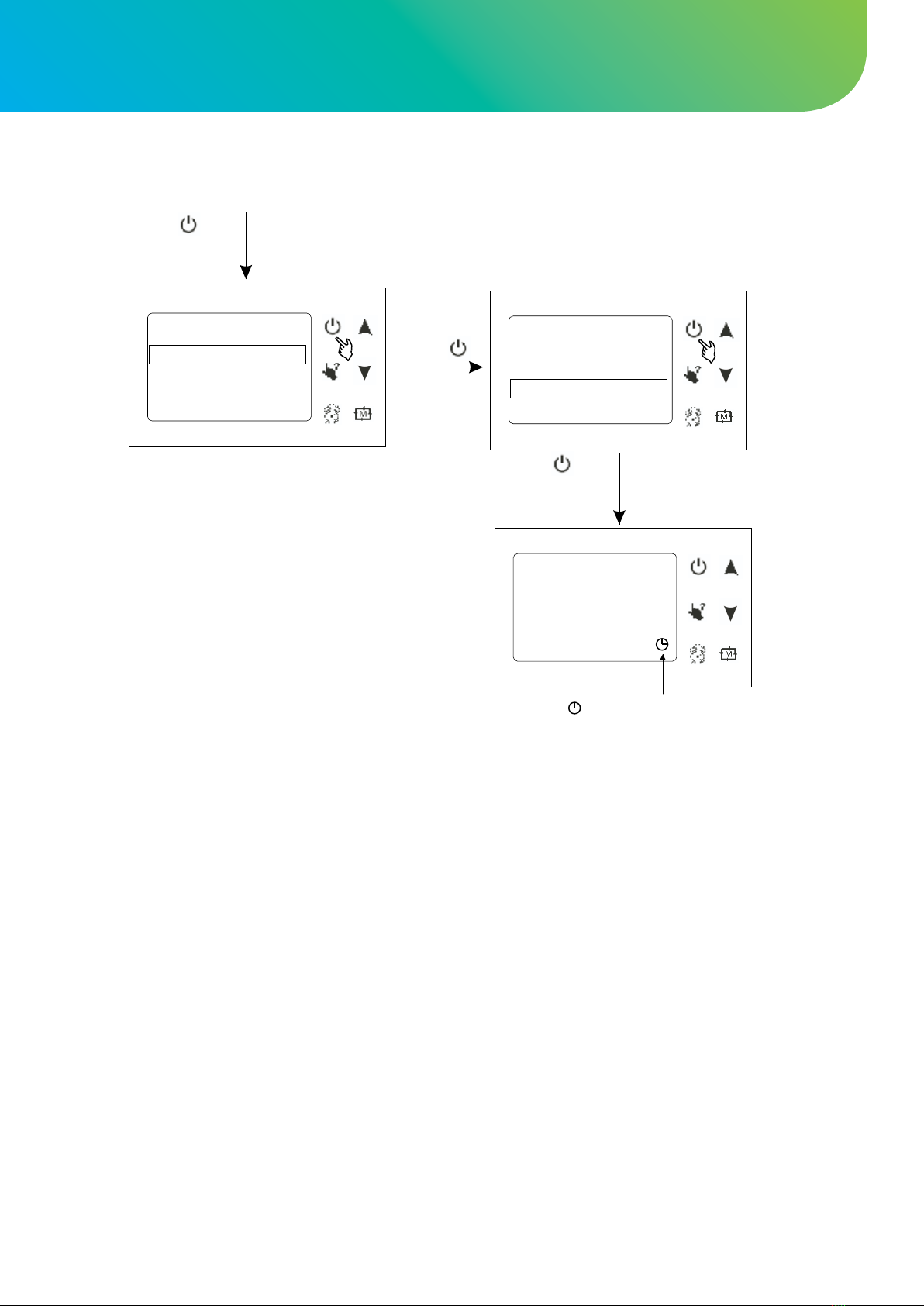

B. The operation of daily timer
Timer1:07:30-22:00
Timer2:00:00-00:00
Timer3:00:00-00:00
Timer4:00:00-00:00
Timer zone
Daily timer
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/01/2011 06:55 THU.
Date：31/01/2011
Time：05：55
Week：Thursday
Timer
Date format
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/01/2011 06:55 THU.
Date：31/01/2011
Time：05：55
Week：Thursday
Timer
Date format
Date：31/01/2011
Time：05：55
Week：Thursday
Timer
Date format
Timer zone
Daily timer
Press“”
to back to
upper interface

17
Usage and Operation
4. USAGE AND OPERATION
17
Press“”
Mon.:Timer1
Tue.: Timer1+ Timer3
Wed.: ON
Thu.: Timer3+ Timer1
Fri.: Timer4
Sat.: Timer2+ Timer4
Sun.: OFF
Press“”
to enter
“Daily timer ”
Press“”
Press“”
Flashing
Press“”
or“”
Press“”
Flashing
Press“”
or“”
Press“”
Timer zone
Daily timer
Mon.:Timer1
Tue.: Timer1+ Timer3
Wed.: ON
Thu.: Timer3+ Timer1
Fri.: Timer4
Sat.: Timer2+ Timer4
Sun.: OFF
Mon.:Timer1
Tue.: Timer1+ Timer3
Wed.:ON
Thu.: Timer3+ Timer1
Fri.: Timer4
Sat.: Timer2+ Timer4
Sun.: OFF
Mon.:Timer1
Tue.: Timer1+ Timer3
Wed.:ON
Thu.: Timer3+ Timer1
Fri.: Timer2
Sat.: Timer2+ Timer4
Sun.: OFF
Mon.:Timer1
Tue.: Timer1+ Timer3
Wed.:ON
Thu.: Timer3+ Timer1
Fri.: Timer2+Timer4
Sat.: Timer2+ Timer4
Sun.: OFF
Mon.:Timer1
Tue.: Timer1+ Timer3
Wed.:ON
Thu.: Timer3+ Timer1
Fri.: Timer2+Timer3
Sat.: Timer2+ Timer4
Sun.: OFF
Mon.:Timer1
Tue.: Timer1+ Timer3
Wed.:ON
Thu.: Timer3+ Timer1
Fri.: Timer2+Timer3
Sat.: Timer2+ Timer4
Sun.: OFF

18
Usage and Operation
18
4. USAGE AND OPERATION
Press“ ”
to back to upper
interface
Press“ ”
to back to
upper
interface
If " " has been shown, it means
timer on/off has been set
Tips：The Timer operations of Monday, Tuesday, Wednesday, Thursday, Saturday, Sunday is
the same with Friday.
Monday：OFF : means Monday Timer hasn't been set, and the running state is the same with
Sunday at 24:00, for example, if system is running at 24:00 on Sunday, then
it will be running the whole day on Monday, and vice versa;
Wednesday：ON : means system will be running the whole day on Wednesday
Thursday：OFF : means system will be off the whole day on Thursday;
Saturday：Timer1+Timer2 : means the time to start up and to shut down is according to Timer1
and Timer2.
If there is no operation in 10s, system will memory the parameter setting automaticly and back
to main interface.
Timer zone
Daily timer
Date： 31/01/2011
Time： 05：55
Week： Thursday
Timer
Date format
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/01/2011 06:55 THU.
Press“ ”
to back to upper
interface
4. USAGE AND OPERATION
19
4.8 Keyboard lock
To avoid mis-operations, please lock the controller after parameter setting.
At the main interface, pressing “ ”for 5 seconds，the keyboard will be locked.
When the keyboard is locked, pressing“ ”for 5 seconds, the keyboard will be unlocked.
NOTES:
When the unit is in alarming state, the key lock can be removed automaticly.
Press“ ”
Locked
4.9 Malfunction display
There will be malfunction code showing on the controller screen when relative malfunction
occurs.
You can refer to the malfunction table to find out the failure cause and solution.
For example：
P01
Inlet water temp.
Failure
Failure number：1
Malfunction code
Malfunction
Failure number
press“ ”
or“ ”can check
next malfunction
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/01/2011 06:55 THU.
ON：Cooling
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/01/2011 06:55 THU.
4.10 Parameter table
Set-point of cooling target temp.
Meaning
Set-point of heating target temp.
Set-point of auto mode target temp.
Default Remarks
27℃Ajustable
Ajustable
Ajustable
27℃
27℃
