Allied Telesis AT-FS7016 User manual

AT-FS7016
AT-FS7024
Fast Ethernet Smart Switches
Installation Guide
PN 613-50469-00 Rev A

Copyright 2003 Allied Telesyn, Inc.
960 Stewart Drive Suite B, Sunnyvale, CA 94085, USA
All rights reserved. No part of this publication may be reproduced without prior written
permission from Allied Telesyn, Inc.
Ethernet is a registered trademark of Xerox Corporation. All other product names,
company names, logos or other designations mentioned herein are trademarks or
registered trademarks of their respective owners.
Allied Telesyn, Inc. reserves the right to make changes in specifications and other
information contained in this document without prior written notice. The information
provided herein is subject to change without notice. In no event shall Allied Telesyn,
Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever,
including but not limited to lost profits, arising out of or related to this manual or the
information contained herein, even if Allied Telesyn, Inc. has been advised of, known, or
should have known, the possibility of such damages.

iii
Electrical Safety and Emissions Compliance
Statement
Standards: This product meets the following standards.
RFI Emission EN55022 Class A, EN6100-3-2,
EN6100-3-3 1
Warning: In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures. 2
Immunity EN55024 3
Electrical Safety TUV-EN60950, UL60950 (cULus) 4
Important: Appendix B contains translated safety statements for installing this
equipment. When you see the , go to Appendix B for the translated safety statement in
your language.
Wichtig: Anhang B enthält übersetzte Sicherheitshinweise für die Installation dieses
Geräts. Wenn Sie sehen, schlagen Sie in Anhang B den übersetzten
Sicherheitshinweis in Ihrer Sprache nach.
Vigtigt: Tillæg B indeholder oversatte sikkerhedsadvarsler, der vedrører installation af
dette udstyr. Når De ser symbolet , skal De slå op i tillæg B og finde de oversatte
sikkerhedsadvarsler i Deres eget sprog.
Belangrijk: Appendix B bevat vertaalde veiligheidsopmerkingen voor het installeren
van deze apparatuur. Wanneer u de ziet, raadpleeg Appendix B voor vertaalde
veiligheidsinstructies in uw taal.
Important: L'annexe B contient les instructions de sécurité relatives à l'installation de
cet équipement. Lorsque vous voyez le symbole , reportez-vous à l'annexe B pour
consulter la traduction de ces instructions dans votre langue.
U.S. Federal Communications Commission
Radiated Energy
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with this instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Note: Modifications or changes not expressly approved of by the manufacturer or the
FCC, can void your right to operate this equipment.
Canadian Department of Communications
This Class A digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur
le matériel brouilleur du Canada.

iv
Electrical Safety and Emissions Compliance Statement
Tärkeää: Liite B sisältää tämän laitteen asentamiseen liittyvät käännetyt turvaohjeet.
Kun näet -symbolin, katso käännettyä turvaohjetta liitteestä B.
Importante: l’Appendice B contiene avvisi di sicurezza tradotti per l’installazione di
questa apparecchiatura. Il simbolo , indica di consultare l’Appendice B per l’avviso di
sicurezza nella propria lingua.
Viktig: Tillegg B inneholder oversatt sikkerhetsinformasjon for installering av dette
utstyret. Når du ser , åpner du til Tillegg B for å finne den oversatte
sikkerhetsinformasjonen på ønsket språk.
Importante: O Anexo B contém advertências de segurança traduzidas para instalar este
equipamento. Quando vir o símbolo , leia a advertência de segurança traduzida no seu
idioma no Anexo B.
Importante: El Apéndice B contiene mensajes de seguridad traducidos para la
instalación de este equipo. Cuando vea el símbolo , vaya al Apéndice B para ver el
mensaje de seguridad traducido a su idioma.
Obs! Bilaga B innehåller översatta säkerhetsmeddelanden avseende installationen av
denna utrustning. När du ser , skall du gå till Bilaga B för att läsa det översatta
säkerhetsmeddelandet på ditt språk.

v
Table of Contents
Electrical Safety and Emissions Compliance Statement ....................iii
Welcome to Allied Telesyn .........................................................................vii
Where to Find Web-based Guides ...................................................................vii
Document Conventions ...................................................................................viii
Contacting Allied Telesyn ...............................................................................viii
Online Support .........................................................................................viii
E-mail and Telephone Support................................................................viii
Returning Products ..................................................................................viii
For Sales or Corporate Information ..........................................................ix
Obtaining Management Software Updates .............................................. ix
Tell Us What You Think ............................................................................ix
Chapter 1
Overview .......................................................................................................... 1
Key Features....................................................................................................... 3
Status LEDs........................................................................................................ 4
Port Speed........................................................................................................... 5
Duplex Mode ....................................................................................................... 5
Auto MDI/MDI-X................................................................................................ 6
RS-232 Terminal Port ........................................................................................ 6
Power Requirements .......................................................................................... 7
Network Topologies ............................................................................................ 8

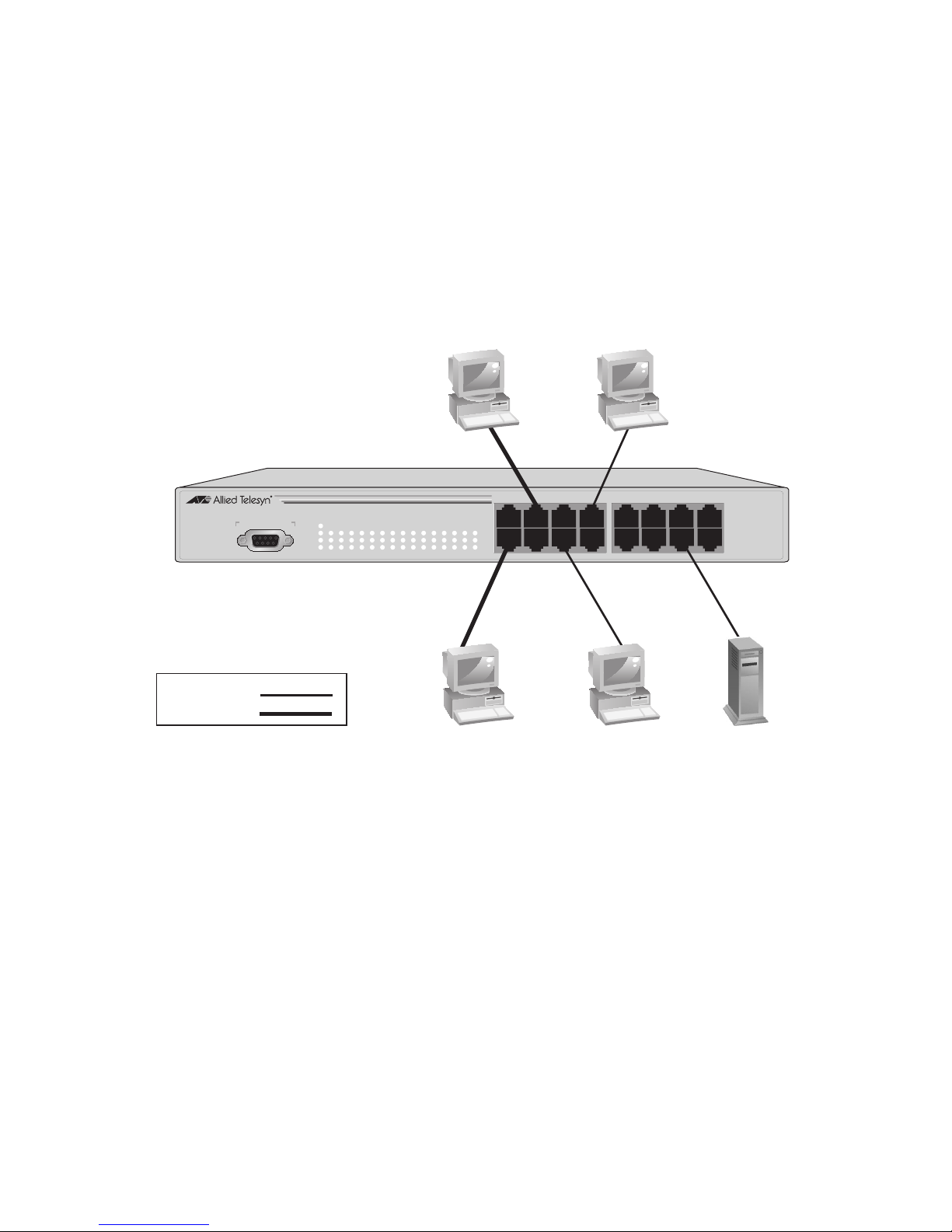

Power Workgroup Topology........................................................................ 8
Collapsed Topology...................................................................................... 9
Mixed Topology.......................................................................................... 10
Chapter 2
Installation .................................................................................................... 11
Verifying the Package Contents ...................................................................... 11
Planning the Installation................................................................................. 12
Selecting a Site ................................................................................................. 13
Reviewing Safety Guidelines ........................................................................... 14
Installing the Switch on a Table or Desktop................................................... 15
Rackmounting the Switch................................................................................ 17
Warranty Registration ..................................................................................... 19

Table of Contents
vi
Chapter 3
Troubleshooting ...........................................................................................21
Appendix A
Technical Specifications ............................................................................23
Physical .............................................................................................................23
Environmental ..................................................................................................23
Electrical Rating ...............................................................................................24
Agency Compliance...........................................................................................24
Pinout Assignments..........................................................................................25
Appendix B
Translated Safety and Emission Information .......................................27

vii
This guide contains instructions on how to install the AT-FS0716 and
AT-FS0724 Fast Ethernet Smart Switches.
Where to Find Web-based Guides
The user guides for all Allied Telesyn products are available in Portable
Document Format (PDF) from the Allied Telesyn web site at
www.alliedtelesyn.com. You can view the documents online or download
them onto a local workstation or server.
Once you have installed your AT-FS7016 and AT-FS7024 switch, refer to the
following guide for instructions on how to manage and configure your unit:
❑AT-S67 and AT-S68 Software Management User’s Guide
PN 613-50494-00
Welcome to Allied Telesyn

Welcome to Allied Telesyn
viii
Document Conventions
This guide uses the following conventions:
Note
Notes provide additional information.
Caution
Cautions informs you that performing or omitting a specific action may
result in equipment damage or loss of data.
Warning
Warnings informs you that performing or omitting a specific action may
result in bodily injury.
Contacting Allied Telesyn
This section provides Allied Telesyn contact information for technical support
as well as sales or corporate information.
Online Support
You can request technical support online by accessing the Allied Telesyn
Knowledge Base from the following web site: kb.alliedtelesyn.com. You can
use the Knowledge Base to submit questions to our technical support staff and
review answers to previously asked questions.
E-mail and Telephone Support
For Technical Support via e-mail or telephone, refer to the “Support &
Services” section of the Allied Telesyn web site: www.alliedtelesyn.com.
Returning Products
Products for return or repair must first be assigned a Return Materials
Authorization (RMA) number. A product sent to Allied Telesyn without a
RMA number will be returned to the sender at the sender’s expense.
To obtain a RMA number, contact Allied Telesyn’s Technical Support at our
web site: www.alliedtelesyn.com

AT-FS7016 and AT-FS0724 Installation Guide
ix
For Sales or Corporate Information
You can contact Allied Telesyn for sales or corporate information at our web
site: www.alliedtelesyn.com. To find the contact information for your
country, select “Contact Us” then “Worldwide Contacts”.
Obtaining Management Software Updates
New releases of management software for our managed products can be
downloaded from either of the following Internet sites:
❑Allied Telesyn web site: http://www.alliedtelesyn.com
❑Allied Telesyn FTP server: ftp://ftp.alliedtelesyn.com
If you would prefer to download new software from the Allied Telesyn FTP
server from your workstation’s command prompt, you will need FTP client
software and you will be asked to log in to the server. Enter ‘anonymous’ as
the user name and your e-mail address for the password.
Tell Us What You Think
If you have any comments or suggestions on how we might improve this or
other Allied Telesyn documents, please fill out the General Enquiry Form
online. This form can be accessed by selecting “Contact Us” from
www.alliedtelesyn.com.

1
Chapter 1
Overview
The AT-FS7016 and AT-FS7024 are Layer 2, Fast Ethernet Smart Switches.
These switches offer a range of features and capabilities, including limited
management that simplifies the task of creating or expanding an Ethernet or
Fast Ethernet network.
A Fast Ethernet Smart Switch can be used in a network environment which
requires some configuration and minimum maintenance and monitoring.
The AT-FS7016 switch features 16 10/100Base-TX twisted pair ports. The
AT-FS7024 switch features 24 10/100Base-TX twisted pair ports. Each twisted
pair port has a RJ-45 connector and a maximum operating distance of 100
meters (328 feet). These ports are capable of Auto-negotiating to 10 or 100
Mbps and feature half- and full-duplex operation.
Each switch also features a RS-232 Terminal Port for out-of-band
management.
The AT-FS7016 and AT-FS7024 switches feature an internal power supply and
are designed for desktop or rackmount installation.

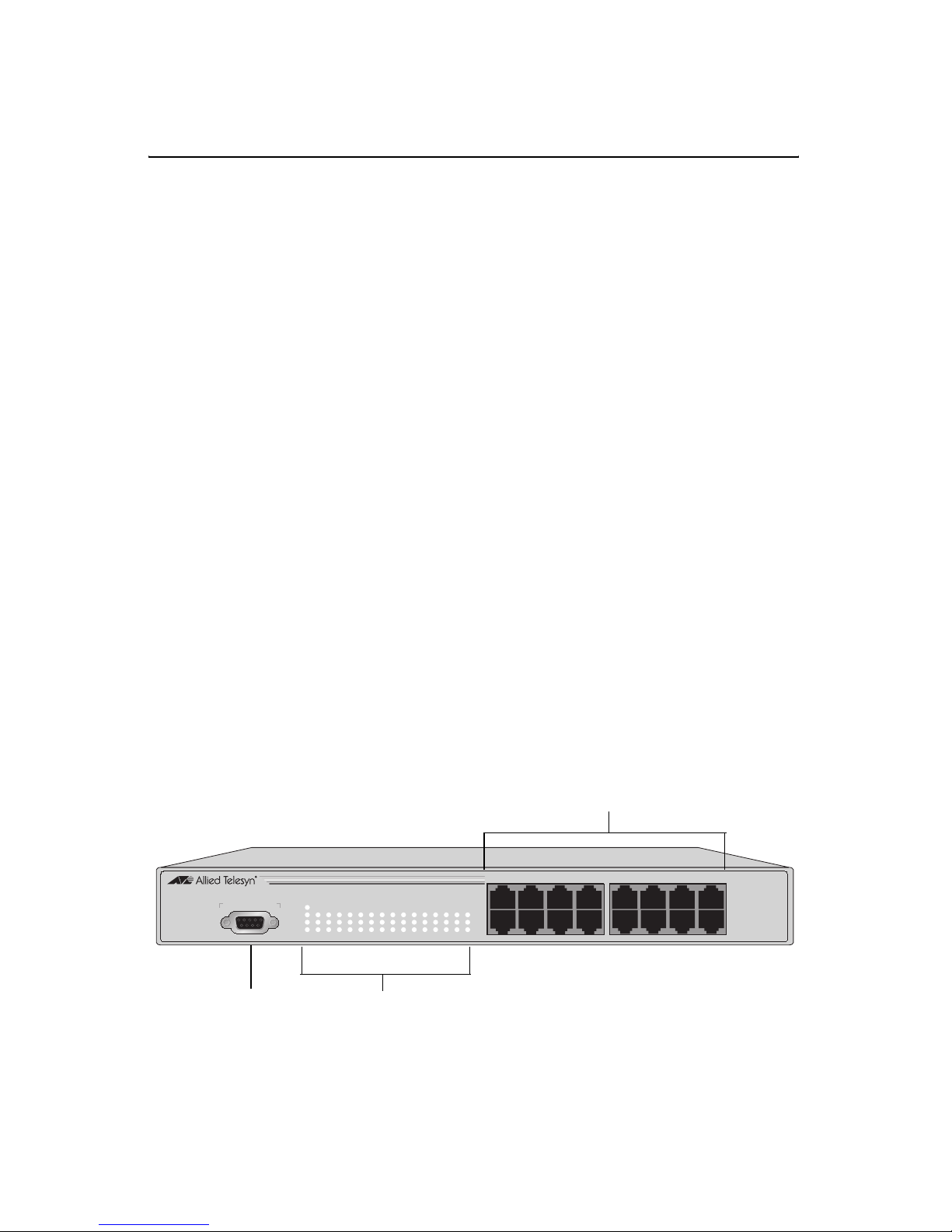

Figure 1 illustrates the front panel of the AT-FS7016 switch.
Figure 1 AT-FS7016 Front Panel
AT-FS7016
16 Port Fast Ethernet Smart Switch
10 12 14 16
9111315
2468
1357
AUTO
MDI / MDI-X
POWER
LINK/ACT
100M
FDX
12345678910111213141516
RS-232 TERMINAL PORT
RS-232
Terminal Port
10/100Base-TX
Twisted Pair Ports
Status LED

Overview
2

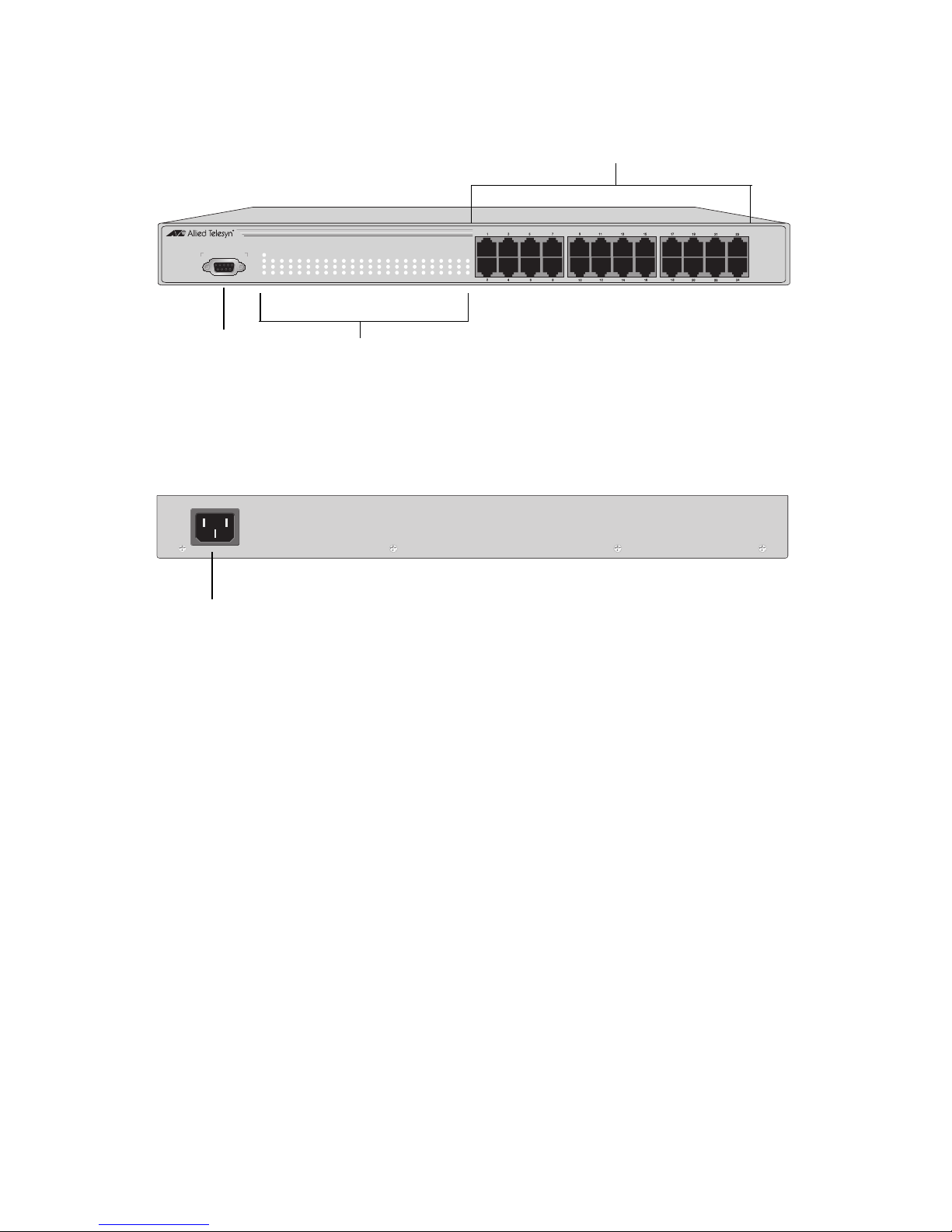

Figure 2 illustrates the front panel of the AT-FS7024 switch.
Figure 2 AT-FS7024 Front Panel
Figure 3 illustrates the back panel of the AT-FS7016 and AT-FS7024 switches.
Figure 3 Back Panel
RS-232
Terminal Port
Status LEDs
AT-FS7024
24 Port Fast Ethernet Smart Switch
POWER
LINK/ACT
100M
FDX
123456789101112131415161718192021222324
RS-232 TERMINAL PORT
AUTO
MDI / MDI-X
10/100Base-TX
Twisted Pair Ports
Power Receptacle

AT-FS7016 and AT-FS7024 Installation Guide
3
Table 1 lists the number of ports, connector type, and maximum operating
distance for each smart switch.
Table 1 AT-FS7016 and AT-FS7024 Smart Switches
Key Features
The AT-FS7016 and AT-FS7024 Smart Switches have the following key
features:
LEDs for power and port status
Fixed 16 or 24 10/100Base-TX twisted pair ports
Auto MDI/MDI-X on all ports
Full- or half-duplex operation on all ports
RS-232 terminal port for out-of-band management
Supports the following software functions:
— Port mirroring
— Port-based VLANs
— Quality of Service (QoS)
— Port trunking
—Portconfiguration
MAC address table with a capacity of 4000 addresses
Store and forward switching mode
For use on a desktop or a standard 19-inch rack
Model Number of
Ports
10/100Base-TX
Connector Maximum Operating Distance
AT-FS7016 16 RJ-45 100 m (328 ft)
AT-FS7024 24 RJ-45 100 m (328 ft)

Overview
4
Status LEDs
Table 2 lists the status LEDs for the AT-FS7016 and AT-FS7024 switches.
Table 2 Status LEDs
LED Color Description
POWER Green Power is applied to the switch.
LINK/ACT Green
Blinking
OFF
A valid link has been established on the port.
The port is transmitting data.
A link has not been detected on the port.
100M Green
OFF
The port is operating at 100 Mbps.
The port is operating at 10 Mbps.
FDX Green
OFF
The port is operating in full-duplex mode.
The port is operating in half-duplex mode.

AT-FS7016 and AT-FS7024 Installation Guide
5
Port Speed
The twisted pair ports are 10/100Base-TX compliant and are capable of both 10
Mbps and 100 Mbps speeds. You can set the port speed manually or, since the
ports are IEEE 802.3 Auto-negotiation compliant, you can let the switch set
each port’s speed automatically. With Auto-negotiation, the switch
automatically matches the highest possible common speed between the port on
the switch and the port on the end-node. For example, if an end-node is capable
of only 10 Mbps, the switch sets the port connected to the end-node to 10 Mbps.
Note
Auto-negotiation is activated as the default on each twisted pair port on
the switch. To deactivate Auto-negotiation and set the speeds manually,
refer to the AT-S67 and AT-S68 Software Management User’s Guide.
Duplex Mode
The duplex mode refers to the manner in which an end-node sends and receives
data on the network. Depending on its capabilities, an end-node can operate in
either half- or full-duplex mode. An end-node operating in half-duplex can
either send or receive data, but not both at the same time. However, an end-
node operating in full-duplex can send and receive data simultaneously. The
best network performance is achieved when an end-node can operate in full-
duplex mode.
Each twisted pair port on the AT-FS7016 and AT-FS7024 switch can operate
in either half- or full-duplex mode. The twisted pair ports are IEEE 802.3u-
compliant and will Auto-negotiate the duplex mode setting.
If desired, Auto-negotiation on one or all of the ports can be disabled so that you
can set the duplex mode manually through the management software.
Note
In order for a port on the switch to successfully Auto-negotiate its duplex
mode with an end-node, the end-node should also be set to Auto-
negotiation. Otherwise, a duplex mode mismatch can occur. A port on the
switch using Auto-negotiation will default to half-duplex if it detects that
the end-node is not using Auto-negotiation. This will result in a
mismatch if the end-node is operating at a fixed duplex mode of full-
duplex. Consequently, when connecting an end-node with a fixed duplex
mode of full-duplex to a switch port, you should use the management
software to disable Auto-negotiation on the port and set the port speed
and duplex mode manually.

Overview
6
Auto MDI/MDI-X
An RJ-45 twisted pair port on a 10 Mbps or 100 Mbps Ethernet network device
can have one of two possible wiring configurations: MDI or MDI-X. The RJ-45
port on a PC, router, or bridge is typically wired as MDI, while the twisted pair
port on a switch or hub is usually MDI-X.
To connect two 10 Mbps or 100 Mbps network devices together that have
dissimilar port wiring configurations, such as MDI to MDI-X, you would use a
straight-through twisted pair cable. To connect two network devices that have
the same wiring configuration, such as MDI to MDI, you would use a crossover
cable.
When a port on the AT-FS7016 or AT-FS7024 switch is set to Auto-negotiation,
the switch enables the auto MDI/MDI-X feature. The RJ-45 port automatically
determines the configuration of the port on the device to which it is connected
and then configures itself appropriately. This features allows you to use either
a straight-through or crossover cable when connecting a device to the twisted
pair port.
The auto MDI/MDI-X feature is available only when a port is set to Auto-
negotiation. If Auto-negotiation is disabled, the port defaults to MDI-X. In this
case you would use a crossover cable to connect the port to an end-node with a
MDI-X port (such as another switch).
RS-232 Terminal Port
The RS-232 Terminal Port is used to establish a local (out-of-band)
management session with the switch. To establish a local management session,
you connect either a VT100 terminal or a PC with a terminal emulation
program to the port.
The RS-232 Terminal Port has a DB-9 female connector and uses a straight-
through RS-232 cable (not provided). The default settings for the RS-232
Terminal Port are:
Bits per second: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None

AT-FS7016 and AT-FS7024 Installation Guide
7
Note
These default settings are for a DEC VT100 or ANSI terminal, or an
equivalent terminal emulation program.
Power Requirements
The AT-FS7016 and AT-FS7024 switches use a universal internal switching
power supply. Allied Telesyn ships power cords with these units to the U.S.,
Continental Europe, and the U.K. The AT-FS7016 switch requires input of 100
- 240 V AC, 0.8A, 50/60 Hz. The AT-FS7024 switch requires input of 100 - 240
V AC, 0.5A, 50/60 Hz. These switches have a maximum power consumption of
27W.

Overview
8
Network Topologies
The AT-FS7016 and AT-FS7024 Fast Ethernet Smart Switches can be used in
a variety of network topologies. Three types of topologies are described below.
Power Workgroup Topology
A power workgroup topology, shown in Figure 4, allows each end-node to
directly connect to a 10/100Base-TX twisted pair port on an AT-FS7016 switch.
This gives each end-node a dedicated 10 Mbps or 100 Mbps link.
Figure 4 Power Workgroup Topology
AT-FS7016
16 Port Fast Ethernet Smart Switch
10 12 14 16
9111315
2468
1357
AUTO
MDI / MDI-X
POWER
LINK/ACT
100M
FDX
12345678910111213141516
RS-232 TERMINAL PORT
Workstations
Workstations Server
AT-FS7016
10 Mbps
100 Mbps

AT-FS7016 and AT-FS7024 Installation Guide
9
Collapsed Topology
In the topology illustrated in Figure 5, an AT-FS7016 switch connects together
10/100 Mbps Ethernet hubs. This type of topology is often referred to as a
collapsed backbone topology. The switch functions as the focal point of the
network by acting as a bridge between the different workgroups. The switch
transfers an Ethernet frame from hub-to-hub only when the destination end-
node for the frame is on a different hub than the end-node that originated the
frame. This reduces the amount of unnecessary data traffic in each workgroup,
freeing up bandwidth and improving network performance.
Figure 5 Collapsed Topology
AT-FS7016
16 Port Fast Ethernet Smart Switch
10 12 14 16
9111315
2468
1357
AUTO
MDI/ MDI-X
POWER
LINK/ACT
100M
FDX
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
RS-232 TERMINAL PORT
54321
6
7
8
54321
6
7
8
54321
6
7
8
AT-FS7016
Ethernet Hubs
Workstations Server
10 Mbps
100 Mbps

Overview
10
Mixed Topology
Figure 6 illustrates a network of three AT-FS7024 switches. The workstations
and servers are connected either directly to a switch or indirectly through an
Ethernet hub. The switches are connected together through 10/100Base-TX
twisted pair ports.
Figure 6 Mixed Topology
AT-FS7024
24 Port Fast Ethernet Smart Switch
POWER
LINK/ACT
100M
FDX
123456789101112131415161718192021222324
RS-232TERMINAL PORT
AUTO
MDI/MDI-X
54321
6
7
8
AT-FS7024
24 Port Fast Ethernet Smart Switch
POWER
LINK/ACT
100M
FDX
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
RS-232TERMINAL PORT
AUTO
MDI/MDI-X
AT-FS7024
24 Port Fast Ethernet Smart Switch
POWER
LINK/ACT
100M
FDX
123456789101112131415161718192021222324
RS-232TERMINAL PORT
AUTO
MDI/MDI-X
54321
6
7
8
10 Mbps
100 Mbps
AT-FS7024
Workstations
Workstations
Ethernet
Hubs
Ethernet
Hubs
AT-FS7024 AT-FS7024
Server
Server
Workstations
