FLIGHT MANUAL
for a sailplane
Model: SZD-54-2 „Perkoz”
Serial No:
Registration:
T HIS SAILPLANE IS TO BE OPERATED IN COMPLIANCE WITH INFORMATION AND LIMITATIONS
CONTAINED HEREIN . T HIS DOCUMENT SHOULD BE ALWAYS STORED ONBOARD .

Intentionally left blank

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 0.
ISSUANCES
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 0.1
SECTION 0.
ISSUANCES
0.
0.1. Record of revisions................................................................................... 0.2
0.2. List of effective pages............................................................................... 0.4
0.3. Table of contents...................................................................................... 0.5
0.4. Table of figures ........................................................................................ 0.6

SECTION 0.
ISSUANCES
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 0.2 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision
0.1. Record of revisions
Any revision of the present Manual, except actual weighing data, must be
recorded in the following table and in case of approved Section endorsed by the
Agency (EASA).
The new or amended text in the revised page will be indicated by a black
vertical line in the outer margin, and the Revision No. The number and date of the
last revision will be shown in the footer of the page.
With every revision, the pages affected with this revision must be listed in the
following table.
The new or amended text from the foregoing page which is placed on the new
inserted page, will be indicated by a black vertical line in the outer margin, and the
Revision No. The number and date of the last revision will be shown in the footer of
the page.
The page must be listed in the following page.
Rev.
No.
Affected
Section Affected Page Date of Issue
No. and Date of
Approval
Insertion
Date & Signature
1 4 0.4, 4.2, 4.5/1,
4.5/2 July 2015

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 0.
ISSUANCES
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 0.3
Rev No
Affected
Section Affected Page Date of Issue
No and Date of
Approval
Insertion
Date & Signature

SECTION 0.
ISSUANCES
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 0.4 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision No 1 July 2015
0.2. List of effective pages
Section Page Date of Issue Section Page Date of Issue
0 0.1 April 2014 4 4.17 April 2014
0.2 April 2014 4.18 April 2014
0.3 April 2014
1 | 0.4 July 2015 5 5.1 April 2014
0.5 April 2014 5.2 April 2014
0.6 April 2014 5 5.3 April 2014
5.4 April 2014
1 1.1 April 2014 5.5 April 2014
1.2 April 2014 5.6 April 2014
1.3 April 2014 5.7 April 2014
1.4 April 2014 5.8 April 2014
1.5 April 2014
1.6 April 2014 6 6.1 April 2014
6.2 April 2014
2 2.1 April 2014 6.3 April 2014
2.2 April 2014 6.4 April 2014
2.3 April 2014 6.5 April 2014
2.4 April 2014 6.6 April 2014
2.5 April 2014 6.7 April 2014
2.6 April 2014 6.8 April 2014
2.7 April 2014 6.9 April 2014
2.8 April 2014 6.10 April 2014
2.9 April 2014
2.10 April 2014 7 7.1 April 2014
7.2 April 2014
3 3.1 April 2014 7.3 April 2014
3.2 April 2014 7.4 April 2014
3.3 April 2014 7.5 April 2014
3.4 April 2014 7.6 April 2014
3.5 April 2014 7.7 April 2014
3.6 April 2014 7.8 April 2014
7.9 April 2014
4 4.1 April 2014 7.10 April 2014
1 | 4.2 July 2015 7.11 April 2014
4.3 April 2014 7.12 April 2014
4.4 April 2014 7.13 April 2014
4.5 April 2014 7.14 April 2014
1 | 4.5/1 July 2015
1 | 4.5/2 July 2015 8 8.1 April 2014
4.6 April 2014 8.2 April 2014
4.7 April 2014 8.3 April 2014
4.8 April 2014 8.4 April 2014
4.9 April 2014
4.10 April 2014 9 9.1 April 2014
4.11 April 2014 9.2 April 2014
4.12 April 2014 9.3 April 2014
4.13 April 2014 9.4 April 2014
4.14 April 2014
4.15 April 2014
4.16 April 2014
List of pages for Supplements is enclosed in page 9.3

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 0.
ISSUANCES
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 0.5
0.3. Table of contents
SECTION 0. ISSUANCES
SECTION 1. GENERAL
SECTION 2. LIMITATIONS
SECTION 3. EMERGENCY PROCEDURES
SECTION 4. NORMAL PROCEDURES
SECTION 5. PERFORMANCE
SECTION 6. MASS AND BALANCE
SECTION 7. SAILPLANE AND SYSTEMS DESCRIPTION
SECTION 8. SAILPLANE HANDLING, CARE AND MAINTENANCE
SECTION 9. SUPPLEMENTS

SECTION 0.
ISSUANCES
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 0.6 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision
0.4. Table of figures
Fig. 1-1. 3-view drawing.......................................................................................... 1.5

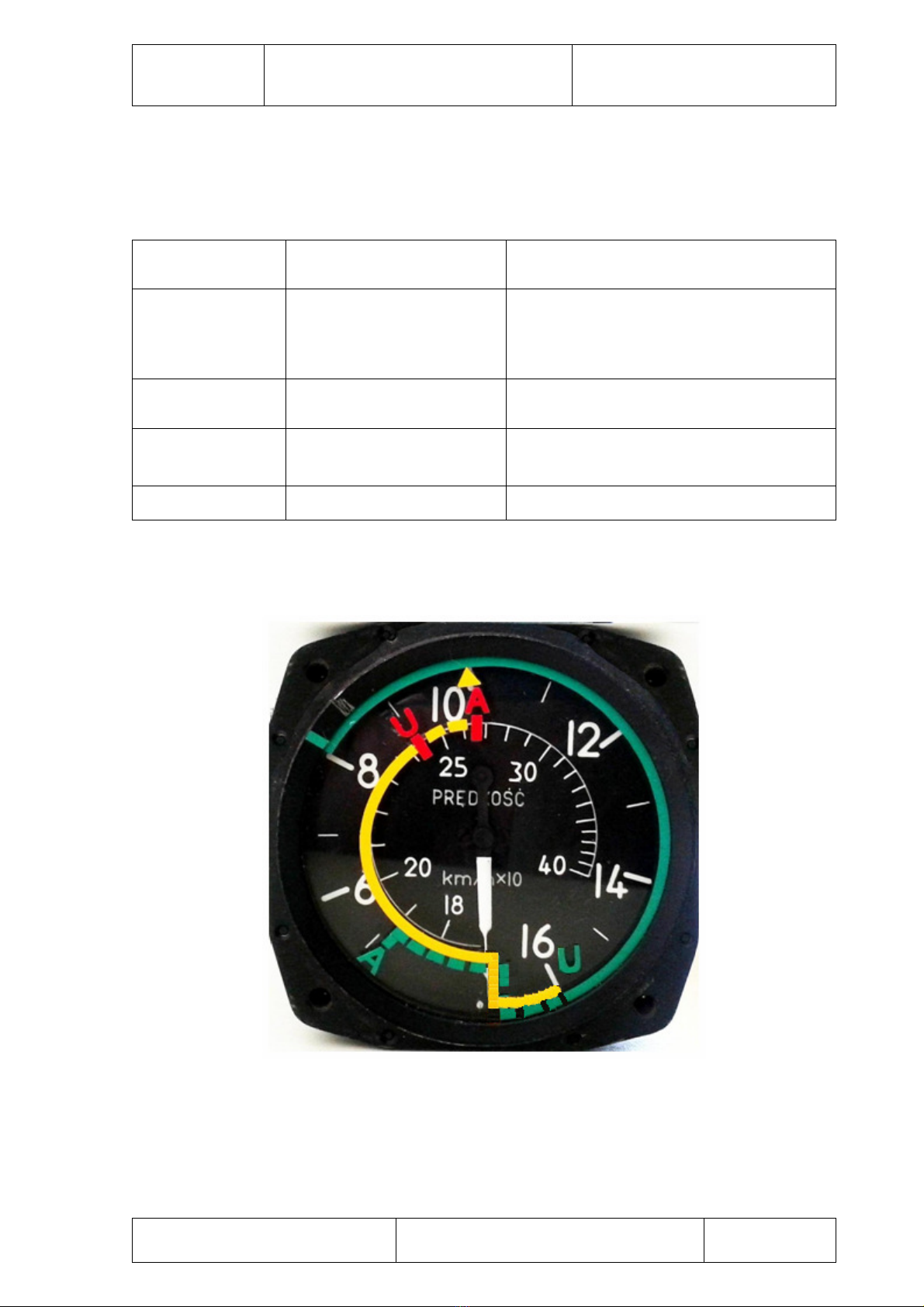

Fig. 2-1 Airspeed indicator colour marking.............................................................. 2.3
Fig. 4-1. Assembling wing tip: flat or winglet ........................................................... 4.3
Fig. 4-2. Wing tips - flat / winglets, assembly ......................................................... 4.6
Fig. 4-3. Assembling long wing tips ........................................................................ 4.8
Fig. 4-4. Detail A wing – long wing tip connection................................................... 4.9
Fig. 4-5. Detail B wing – long wing tip connection................................................... 4.9
Fig. 4-6. Tailplane assembling .............................................................................. 4.11
Fig. 5-1. AIS calibration – normal flight ................................................................... 5.3
Fig. 5-2. AIS calibration – inverted flight ................................................................. 5.4
Fig. 5-3. Speed polar without winglet...................................................................... 5.6
Fig. 5-4. Speed polar with winglet........................................................................... 5.7
Fig. 5-5. Speed polar with long wing tips (20 m wing span).................................... 5.8
Fig. 6-1. CG range limits for a sailplane without pilots ............................................ 6.3
Fig. 6-2. Scheme to sailplane CG calculation ......................................................... 6.5
Fig. 6-3. Table of individual loading plan with sample values ................................. 6.8
Fig. 6-4. Sample of individual loading plan table..................................................... 6.9
Fig. 7-1. Cockpit equipment and controls................................................................ 7.3
Fig. 7-2. Instrument panel at front seat ................................................................... 7.6
Fig. 7-3. Instrument panel at rear seat.................................................................... 7.6
Fig. 7-4. Scheme of electric installation .................................................................. 7.8

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 1.
GENERAL
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 1.1
SECTION 1.
GENERAL
1.
1.1. Introduction .............................................................................................. 1.2
1.2. Certification basis..................................................................................... 1.2
1.3. Warnings, cautions and notes .................................................................. 1.2
1.4. Descriptive and technical data ................................................................. 1.3
1.5. Three-view drawing.................................................................................. 1.5

SECTION 1.
GENERAL
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 1.2 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision
1.1. Introduction
The Flight Manual has been prepared to provide pilots and instructors with
information for the safe and efficient operation of the SZD-54-2 "Perkoz” sailplane.
This Manual includes primarily the material required to be furnished to the pilot
by Certification Specifications CS–22. It also contains supplemental data supplied by
the sailplane producer.
1.2. Certification basis
SZD-54-2 „PERKOZ” sailplane model has been approved by European
Aviation Safety Agency (EASA) in accordance with CS–22, Amendment 2 of 5 March
2009, and has gained Type Certificate No. EASA.A.574
Category of Airworthiness:
U - Utility
A - Aerobatic
1.3. Warnings, cautions and notes
The warnings, cautions and notes used in the Flight Manual are defined as
follows:
WARNING : means that the non-observation of the corresponding procedure
leads to an immediate or important degradation of the flight
safety.
CAUTION : means that the non-observation of the corresponding procedure
leads to a minor or to a more or less long term degradation of the
flight safety.
NOTE : draws the attention on any special item not directly related to
safety but which is important or unusual.

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 1.
GENERAL
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 1.3
1.4. Sailplane data and technical description
SZD-54-2 „Perkoz” is a two-seat sailplane for primary schooling and training,
including basic-, and advanced aerobatics as well as cloud flying in the scope
allowed by operation rules.
The sailplane is made of composite: primary structure in glass-epoxy, with
some components (exchangeable wing tips, canopy frame, rudder) in carbon-epoxy.
Monocoque structure fuselage, integral with fin. The cockpit with tandem seats
arrangement enclosed with one-piece canopy, side-opening to the right. Emergency
jettison mechanism located on canopy frame, on the starboard. The canopy
equipped with “Röger hook”.
Seated pilot attitude in the cockpit. Back rest at front seat with no regulation /
fixed. Seat pan of rear seat adjustable on ground (vertical position and distance from
pedals). Pedals at front seat adjustable in-flight, pedals at rear seat – fixed. At both
seats additional back cushions are provided, not fastened to back rest, to enhance
comfort for short pilot. Both seats equipped with 5-point safety harness, plus optional
second lap seat belt.
Monorail, fixed landing gear. Sprung main wheel equipped with hydraulic
brake. Nose- and tail wheels non-sprung, without brakes.
Two panel wing, of tapered outline with exchangeable wing tips: flat type
(Category U and A), winglets (Category U only) or long wing tips with winglets
(increasing wing span to 20 m; Category U only), NN-8 laminar airfoil, sandwich skin
composite-foam-composite. Wing spar of glass roving reinforced composite.
Two-plate air brakes extending on wing top surface only. Ailerons on wings of
20 per cent chord ratio, sandwich structure. Long aileron tips with constant chord.
Tailplanes in conventional arrangement, with horizontal tailplane shifted
slightly to the rear. Stabilizer and fin of sandwich structure. Elevator of sandwich
structure, mass balanced. Composite carbon-epoxy rudder with horn type balance –
aerodynamic, and mass. In a fin an antenna for radio transceiver is provided.
Instrument panels located at front-, and rear seats, the latter – optional.
Efficient cockpit venting is ensured by nose air intake, with adjustable dumper and by
side windows with deflectable ventilation tabs.
Control systems for elevator, aileron and air-brake – push-rod type. Rudder
control system mixed: cable/push-rod. Longitudinal trim control – spring type. Tow
release control – cable type. Wheel brake operated with Bowden tow-rod.

SECTION 1.
GENERAL
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 1.4 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision
BASIC TECHNICAL DATA:
Span 17,50
20,00 [m]
Length 8,44 [m]
Height (tailplane with tail wheel) 2,05 [m]
Wing airfoil NN8
Root chord 1,30 [m]
Mean standard chord (MSC) 0,990 0,959 [m]
Wing area 16,36 17,30 [m
2
]
Aspect ratio 18,70 23,135
Tailplane span 3,40 [m]
Sailplane empty mass
(new glider with minimum equipment)
375 +
10 380 + 10 [kg]
Category „U” 585 585 [kg]
Maximum in-flight mass
Category „A” 565 -- [kg]
Maximum wing loading 35,76 33,84 [kg/m
2
]

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 1.
GENERAL
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 1.5
1.5. Three-view drawing

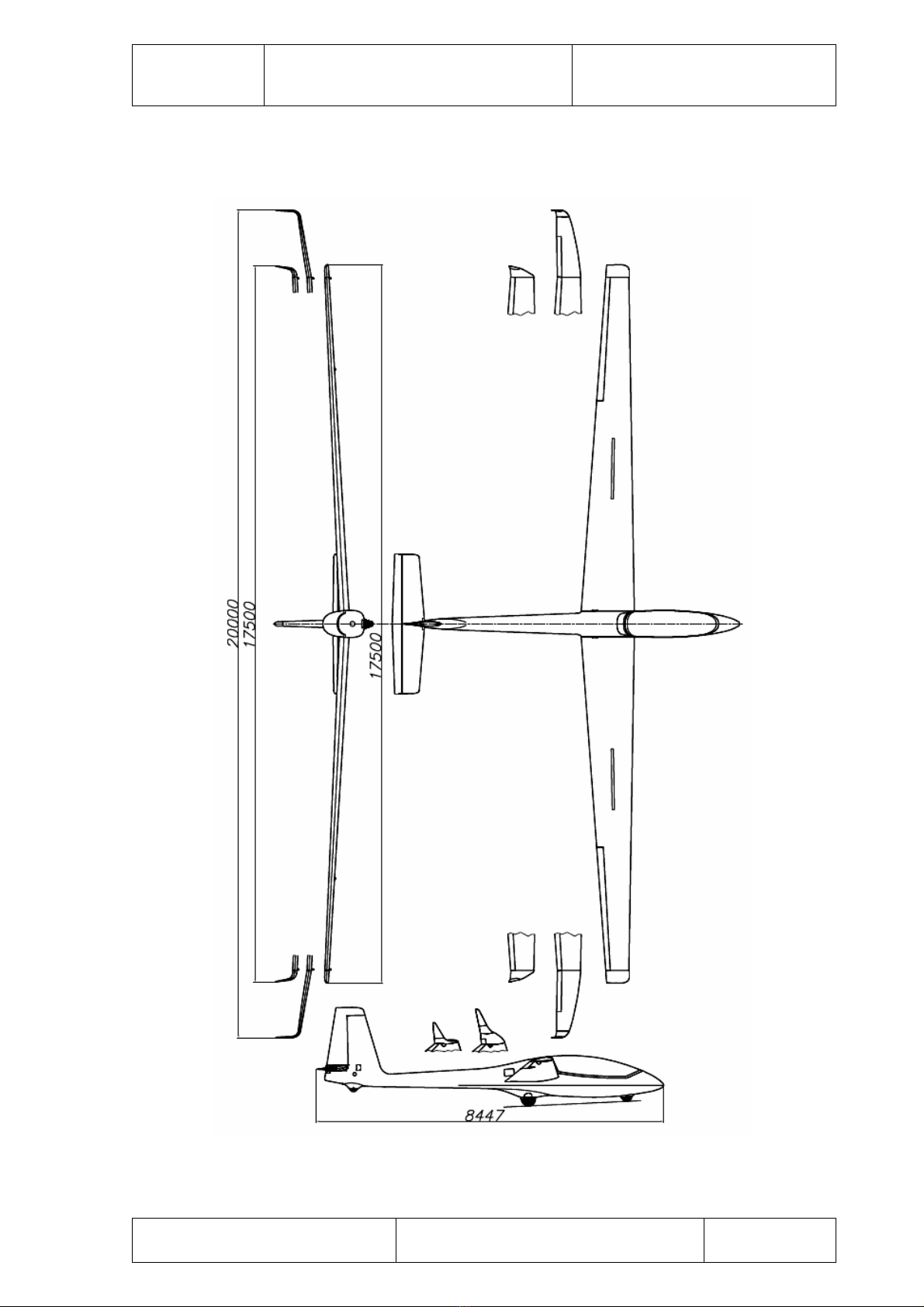

Fig. 1-1. 3-view drawing

SECTION 1.
GENERAL
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 1.6 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision
Intentionally left blank

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 2.
LIMITATIONS
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 2.1
SECTION 2.
LIMITATIONS
2.
2.1. Introduction .............................................................................................. 2.2
2.2. Airspeed limitations ................................................................................. 2.2
2.3. Airspeed indicator markings ..................................................................... 2.3
2.4. Mass......................................................................................................... 2.4
2.5. Centre of gravity....................................................................................... 2.4
2.6. Approved manoeuvres ............................................................................. 2.5
2.7. Manoeuvring load factors ......................................................................... 2.6
2.7.1. Accelerometer markings ................................................................... 2.6
2.8. Flight crew................................................................................................ 2.7
2.9. Kinds of operation .................................................................................... 2.8
2.10. Equipment ................................................................................................ 2.8
2.11. Aerotow and winch-launching .................................................................. 2.9
2.11.1. Aerotowed take-off............................................................................ 2.9
2.11.2. Winch-launched take-off ................................................................... 2.9
2.12. Other limitations ....................................................................................... 2.9
2.13. Limitations placards.................................................................................. 2.10

SECTION 2.
LIMITATIONS
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 2.2 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision
2.1. Introduction
Section 2 includes operating limitations, instrument markings, and basic
placards necessary for safe operation of the sailplane, its standard systems and
standard equipment.
The limitations included in this section and in Section 9 have been approved
(by EASA).
2.2. Airspeed limitations
Airspeed limitations and their significance for sailplane operation are defined
as follows:
[km/h] IAS
Category:
SPEED
U A
REMARKS
V
NE
Never exceed speed
244 266
Do not exceed this speed i
n any operation and
do not use more than 1/3 of control deflection
V
RA
Rough air speed
160 190
Do not exceed this speed except in smooth air,
and then only with caution.
Examples of rough air are lee-
wave rotor,
thunderclouds etc.
V
A
Manoeuvring speed
160 190
Do not make full or abrupt control movement
above this speed, because under certain
conditions the sailplane may be overstressed by
full control movement.
V
T
Maximum aerotowing
speed
150 150
Do not exceed this speed during aerotowing
V
W
Maximum winch-
launching speed
140 140
Do not exceed this speed during winch-
launching
In the following table the allowed V
NE
values for various flight altitudes are
given:
Flight altitude, [km]
0 ÷
÷÷
÷3
4 5 6 7 8 9 10
U V
NE
IAS [km/h] 244 232 220 208 196 185 175 164
A V
NE
IAS [km/h] 266 252 239 227 214 202 191 179

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 2.
LIMITATIONS
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 2.3
2.3. Airspeed indicator markings
Airspeed indicator markings and their colour-code significance are shown below
Marking IAS value or range
[km/h] Significance
GREEN arc
86 ÷ 169 ÷ 160 Category
„U”
86 ÷ 190 Category „A”
from 160 dashed line
Normal operating range.
Lower limit is 1.1·V
S1
at maximum mass
and most forward CG
upper limit is rough air speed.
YELLOW arc 160 ÷ 244
to 266 - dashed
Manoeuvres must be conducted with
caution and only in smooth air.
radial RED line 244 Category „U”
266 Category „A”
Maximum speed for all operations
for the given sailplane Category.
YELLOW triangle 100 Approach speed at maximum mass
V
S1
= sailplane stalling speed at given mass, with air-brake retracted.
Fig. 2-1 Airspeed indicator colour marking

SECTION 2.
LIMITATIONS
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 2.4 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision
2.4. Mass
Maximum take-off mass:
Category Utility (U) 585 [kg]
Category Aerobatic (A) 565 [kg]
17.5 m 405 [kg]
Maximum non lifting parts mass (with pilots) Cat. U 20.0 m 395 [kg]
Cat. A 385 [kg]
Maximum mass in baggage compartment:
(without battery and standard equipment tools) 17 [kg]
2.5. Centre of gravity
Limits for centre of gravity range (in flight allowed) are defined as follows:
−front limit 273 mm aft of Datum
(23.5% MSC – 17.5 m and 23.3% MSC – 20 m),
−rear limit 495 mm aft of Datum
(46% MSC – 17.5 m and 46.4% MSC – 20 m),
"MSC" stands for Mean Standard Chord
NOTE:
Size and position of MSC are different for short and long wing tips.
Datum is the plane perpendicular to wing root airfoil chords plane, passing
through points on leading edge of root airfoils.
Method of CG position calculation is given in item 6.3.
Limits of CG position for sailplane without pilots are given in item 6.2.
NOTE:
Observation of all limitations relating to sailplane load plan, as well
as these relating to CG range limits of sailplane without pilots,
ensures to maintain the sailplane CG within the range allowed for
flight.

SZD-54-2
„Perkoz” FLIGHT MANUAL SECTION 2.
LIMITATIONS
Issue II April 2014
Revision
Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01 page 2.5
2.6. Approved maneuvers
SZD-54-2 „Perkoz” sailplane is approved for operation in Utility (U) and
Aerobatic (A) Categories.
WARNING:
Performing aerobatic maneuvers approved for Category A is allowed
on the sailplane equipped with plane wing tips only (without
winglets)
In Aerobatic (A) Category −all up mass limited to 565 kg −sailplane is
approved to perform the following manoeuvres (and derivative thereof):
spin inverted spin
loop inverted loop
stall turn inverted stall turn
Immelman turn lazy eight
slow roll barrel roll
half roll half loop controlled half roll half loop
climbing turn tail slide
Cuban eight inverted Cuban eight
eight steep turn
flick roll inverted flick roll
flick roll downward inverted flick roll downward
flick roll in downward angle inverted flick roll in downward angle
In Utility (U) Category −all up mass limited to 585 kg −sailplane is approved
to perform the following maneuvers:
loop stall turn
spin climbing turn
lazy eight steep turn
The recommended entry speed for particular maneuvers is given in Section 4.
(item 4.6.9.).

SECTION 2.
LIMITATIONS
FLIGHT MANUAL SZD-54-2
„Perkoz”
page 2.6 Allstar PZL Glider Sp. z o.o.
Doc. No. 542.4.01
Issue II April 2014
Revision
2.7. Maneuvering load factors
The allowed maneuvering load factors are:
Aerobatic Category:
up to V
NE
= 266 [km/h]
maximum positive load factor + 7,0
maximum negative load factor - 5,0
Utility Category:
up to V
A
= 160 [km/h] up to V
NE
= 244
[km/h]
maximum positive load factor + 5,3 + 4,0
maximum negative load factor - 2,65 - 1,5
NOTE :
The above data refer to configuration with air-brake retracted.
With air-brake extended, the maximum limit maneuvering load factors are:
positive +3,5, negative -1,5 – over the whole range of operation speed.
2.7.1. Accelerometer markings
Marking Value Significance
Red line + 7,0
- 5,0
Limit maneuvering load factors
for Aerobatic Category sailplane
