Allview Viva H8 User manual

1
Allview Viva H8
User manual……….…………3
Pъководство за употреба....34
Οδηγός Χρήστη……….……62
Betriebsanleitung................106
Használati utasítás..............138
Manual de utilizare……….170

2
EN
BG
GR
1
Power button
1
Включване
1
Πλήκτρο ενεργοποίησης
2
Volume buttons
2
Сила на звука
2
κουμπιά έντασης
3
Earphones jack
3
Гнездо за слушалки
3
Υποδοχή ακουστικών
4
Back camera
4
Задна Камера
4
πίσω κάμερα
5
SIM slot
5
Слот за SIM картата
5
υποδοχή της κάρτας SIM
6
MicroSD slot
6
Слот за MicroSD карта
6
Υποδοχή κάρτας MicroSD
7
Loud speaker
7
Високоговорител
7
μεγάφωνο
8
Micro USB
8
Micro USB
8
Micro USB
9
Back Button
9
бутон Back
9
πίσω κουμπί
1
0
Microphone
1
0
Микрофон
1
0
Μικρόφωνο
DE
HU
RO
1
Power-Taste
1
Bekapcsoló gomb
1
Buton pornire/oprire
2
Lautstärketasten
2
Hangerő gombok
2
Butoane volum
3
Ohrhörer Anschluss
3
fülhallgató jack
3
Mufa casti
4
Zurück Kamera
4
hátsó kamera
4
Camera spate
5
SIM-Slot
5
SIM slot
5
Slot SIM
6
MicroSD-Slot
6
MicroSD slot
6
Slot MicroSD
7
Lautsprecher
7
hangszóró
7
Difuzor
8
Micro USB
8
Micro USB
8
Micro USB
9
back Button
9
Vissza gomb
9
Buton Inapoi
1
0
Mikrofon
1
0
mikrofon
1
0
Microfon

3
User manual
Allview Viva H8
Foreword
Thank you for purchasing our product.
These operational guidelines for the user, to ensure you a quick and convenient to use,
read the instructions carefully before use.
This player is a specialized top quality portable player product with a series of
remarkable functions. There will be no separate notice in the case of any change in
content of this text.
This company will continue to provide new functions for the development of the
product, and there will be no separate change in the case of any change in the
product’s performance and functions. While this unit is used as a mobile hard disk,
this company will not be held liable for the security of files saved in the disk.
If the actual setup and the application methods are not identical to those as set forth
in this manual, please access to the latest product information of this company's
website.

4
Key Functions
Capacitive touch screen, support multi-touch;
Support WIFI, 3G wireless Network;
Integrates dual cameras, front 0.3 mpx, back 5 mpx
Network video conversation and support photography function;
Adopt android 4 system;
Support auto rotation the screen horizontally or vertically;
Support Web browsing, chat online, online video, online games and download
etc;
Support ten thousands games and programs download and install.
Supporting lyric synchronous display;
Supports maximum 720P HD resolution video file putout
Supporting picture browsing, rotation and lantern slide playing in multiple
formats;
Support E-book function, playing in multiple formats;
USB2.0 high rate transmission;
Built-in microphone and long time recording;
Supporting firmware upgrade;
Supporting Micro SD Card; Support OTG function, can expand storage space

5
Basic Operation
Power on
In the shutdown state, long press " " button boots
Power off
In the power on state, long press the " " key 3 seconds then pop-up device
options, select "Power off " for shut down.
Sleep
Under normal operating conditions, short press the power button to get tablet into
hibernation. Now, the screen will close. Short press the power button again to resume
the normal mode. You can set the device to enter sleep mode automatically after a
desired time of non-operation.
Power reset
If there is shutdown to the player in the process of operation, you can turn off and
restart the player by pressing "reset" key.
Screen time out
If you do not contact the player within the set time, and do not operate by the
button, the contact screen will be automatically turned off.
In any state, short press " " button and for activation; Then skid the lock upwards
to the green of spotted which will accomplish to access to the upper interface.
If it is necessary to deactivate the contact screen time out function, you can set the
[Screen time out] option under [display] function into "Never ".
Using the Micro SD card
After this unit is connected with the computer, you will find two moving disks.
The first one is the built-in memory disk for this unit and the other is the disk for the
Micro SD card. If no card is inserted, the second disk can not be opened. This unit
supports the extension of the Micro SD card from 128MB to 32GB.
Inserting and Pulling out the Micro SD card
Inserting:
Put the Micro SD card face up (side with words), and slightly force the card into

6
the socket of the card, i.e. connecting the unit. Under this state, you can play the
content in the Micro SD card.
Pulling:
Slightly push the Micro SD, and it will bounce by a section, and then you can take
it out.
Caution:
Please perform inserting and pulling operation when power is off! Otherwise, it
will lead to the loss or damage to the files within the unit! If no card is inserted, the
computer will be unable to perform read and write operation for the disk notes of the
later removable disk (Micro SD card).
Battery:
High capacity Polymer battery is used for this unit.
The duration available of the battery power depends on volume, types of playing
files and operation of batteries. The player can be set up by the user as "user define
power off time" or "display setup" to save batteries.
Charging:
This unit can be recharged by USB port, you can also use DC Charger:
Take out the DC charger, plug it into the wall outlet with AC 220V, then plug in the
DC jack into the device DC-in jack.
Warnings for charging:
1. A new battery may be empty and not charged before you get the device.
2. If the device is not used for long time, it is better to charge it to full capacity
every 2 or 3 months during storage.
Power adapter is a key component of the portable player, which play a crucial role
in keeping the portable player’s normal work and protecting your security when using
the player, a long-term customer surveys and after-sales service Practice shows that
the malfunction of the portable player In many cases were caused by using
inappropriate accessories, in particular the power adapter.
Use the substandard power adapter will shorten the life of the portable player by
considerably, the voltage instability will seriously affected the normal work of the

7
portable player and bring permanent damage on the player’s performance and
reliability, Use the substandard power adapter will also reduced the vocal quality of
the players, shutdown the player when you using it, In addition, Use the substandard
power adapter will cause combustion and explosion which will disserve the safety of
the consumers.
Gravity induction and horizontal、vertical screen switch
Through the clicked " ", open/locking gravity induction and horizontal 、
vertical screen switch function.
Return to main interface
In any interface, touch icon " " to access to main interface.
Return to upper interface or menu
In any interface, touch icon " ", click the "" key to access to upper interface
or menu. You can also click short press the " " key to accomplish it.
Points for Attention
1. Do not use the player in exceptionally cold or hot, dusty, damp or dry
environments.
2. Do not allow the player to fall down while using it.
3. Please charge your battery when
A. Battery power icon shows an empty icon;
B. The system automatically shuts down and the power is soon off when you
switch on the unit once again;
C. There is no response if you operate on any key
4. Please do not disconnect power abruptly when the player is being formatted or
in the process of uploading or downloading. Otherwise it may lead to the error in the
program.
5. When this unit is used as a moving disk, the user shall store or export files in
the proper file management operation method. Any improper operation method may
lead to the loss of files, for which this Company will be held no liable.
6. Please do not dismantle this unit by yourself. If there is any inquiry, please

8
contact the dealer.
7. There will be no separate notice in the case of any change in the functions and
performance of this product.
Warning: We take no responsibility for situations where the phone is used other
than as provided in the manual.
Our company reserves the right to make changes in the content of the manual without
making this fact public. These changes will be posted on the company website to the
product it amends.
The contents of this manual may be different from that in the product. In this last
case will be considered.
To avoid the problems that might occur with the service shops approved by Visual
Fan Ltd. (because Visual Fan reserves the right to stop the collaboration with any
service shop which was previously approved and mentioned in the waranty card on the
date on which the product batch was sold on the market), before taking a product to the
service shop, please check the updated list of approved service shops on Allview
website at the section: “Support&Service – Approved service”.
Main interface
The main interface is separated into 5 screens display.
Slide screen left or right which will accomplish to flip file.

9
Change desktop wallpaper
Press on a blank space on the main interface, can pop up desktop wallpaper
Settings menu
Display all functional icon
Short press the icon will display the installed functions icon, click on
corresponding functional icon to be able to access the function menu. In the main
menu, the system can be set to run existing applications, install a new application, start
the touch calibration, music player, video player, web browsing, games and other
operations.

10
Add window small plugin
The main interface, touch the screen on the right side of the " " control icon,
and then click above on the screen "WIDGETS" long according to select small plugin,
can add to desktop .
Display the background programs that are running
Any interface, click the " " icon to the left of the screen, pop up the
background is run the program list, click on the program icon, can switch over to the
background of the open programming interface. To right sliding program icon, can
close this program in the operation.

11
Shows notice information
The main interface, click on the lower right corner of the screen the clock display
area, can open notice , notice can show the current USB state, networking state and the
battery power and other information
Delete the desktop icon
The main interface, long press on the application of the interface program icon,
stay icon amplification, will be selected to screen the icon of the mobile above a
garbage can, this icon region shows orange, let go can delete.
Move desktop icon
The main interface, long press the interface of the application program icon, stay
icon amplification, may to the selected icon of move.
Installed APK
1. take the need to install the software of the APK format downloaded to the
player or TF card
2. Click "file manager" icon and select the need to install the APK application
3. Choose the path of the APK is application, click on the APK program to install,
to start the installation

12
Uninstall APK application
1. Click on the desktop "Settings", into the "Settings"-" application ", select and
click on the need to uninstall program
2. Click on the "uninstall" icon to start program the unloading

13
Video Player
In the main menu, select the option of "Gallery" to be able to access video folder.
File list interface
Function of keys
" ":Shot press it to come back to the main interface
" ": Short press it to return to the upper interface
Touch & slide screen upward and downward which will accomplish to

14
flip video folder.
Video playing interface
Function of keys
'' / '': play or pause current movie
'' / ": shot press to play the last /next movie, long press for fast rewind
/ forward;
 “ / ”: press it to volume up or down
" " key: short press it to return to the upper interface " M " key: short
press it to popup movie setting interface.
Tips:
1. This player support maximum 2160 resolution video files.
2. Subtitle display
This player supports "*.SRT" subtitle files (The user can download it from the website)
for the synchronous playing of subtitle and video.
When there is any subtitle file with the same name in the folder for playing video, the
player will be able to achieve synchronous subtitle display
3. It supports video playing in multiple formats, high-definition video etc.
As parameters such as formats, coding modes, definition and code flow rates of video
files provided by the internet differ, the player is unable to be compatible with all

15
video files (especially those video files with high definition or high code rates). If the
downloaded video files are out of the range supported by the player, which renders it
impossible to play normally in the player, it is recommended that the video conversion
software from a third party be used, and file formats be converted via computers into
the ones within the range supported by the player before the same are duplicated into
the player for playing.
Player Progress, Drag the line to change the player progress.
Audio Player
In the main menu, select the option of "Music" to be able to access music folder.
Music folder interface
Function of keys
'' '': Return to main interface
'' '': Return to upper interface
Up/down to touch screen, can realize the file list to scroll function
Artist: according to the singer classification music files
Album: according to album classification music files
Song: display all music files
Playlist: to display the play music files in the list
Now playing: into the background music played interface

16
Music playing interface
Function of keys
'' '': Return to main interface
'' '': Return to upper interface
'' / ": shot press to play the last /next music, long press for fast
rewind / forward;
'' '': Click start/stop playing music
'' " : Click into play lists
 " ": Click on open/close songs random play mode
" " key: short press it to return to the upper interface
Lyric Display
When there is any lyric file with the same name in the folder for playing music, the
player will directly access the lyric display interface.
This player supports "*.Lrc" lyric files (The user can download it from the website
of "http://www.51lrc.com", or search "LRC Lyric" to have the lyric file) for the
synchronous playing of lyrics and music.

17
Pictures
In the main menu, select the option of "Gallery" to be able to access Photo folder.
Picture viewing interface
Function of keys
'' '': In slide form browse all pictures
'' '': Pictures management: delete, Rotate left, Rotate right, you can also sort
according to the location, time, people and tags setting picture group
'' '': Delete picture
'' '': Through you can click on the icon to set and understand pictures
information, including: Slideshow, Edit, Rotate left, Rotate right, Crop, Details,
Set picture as

18

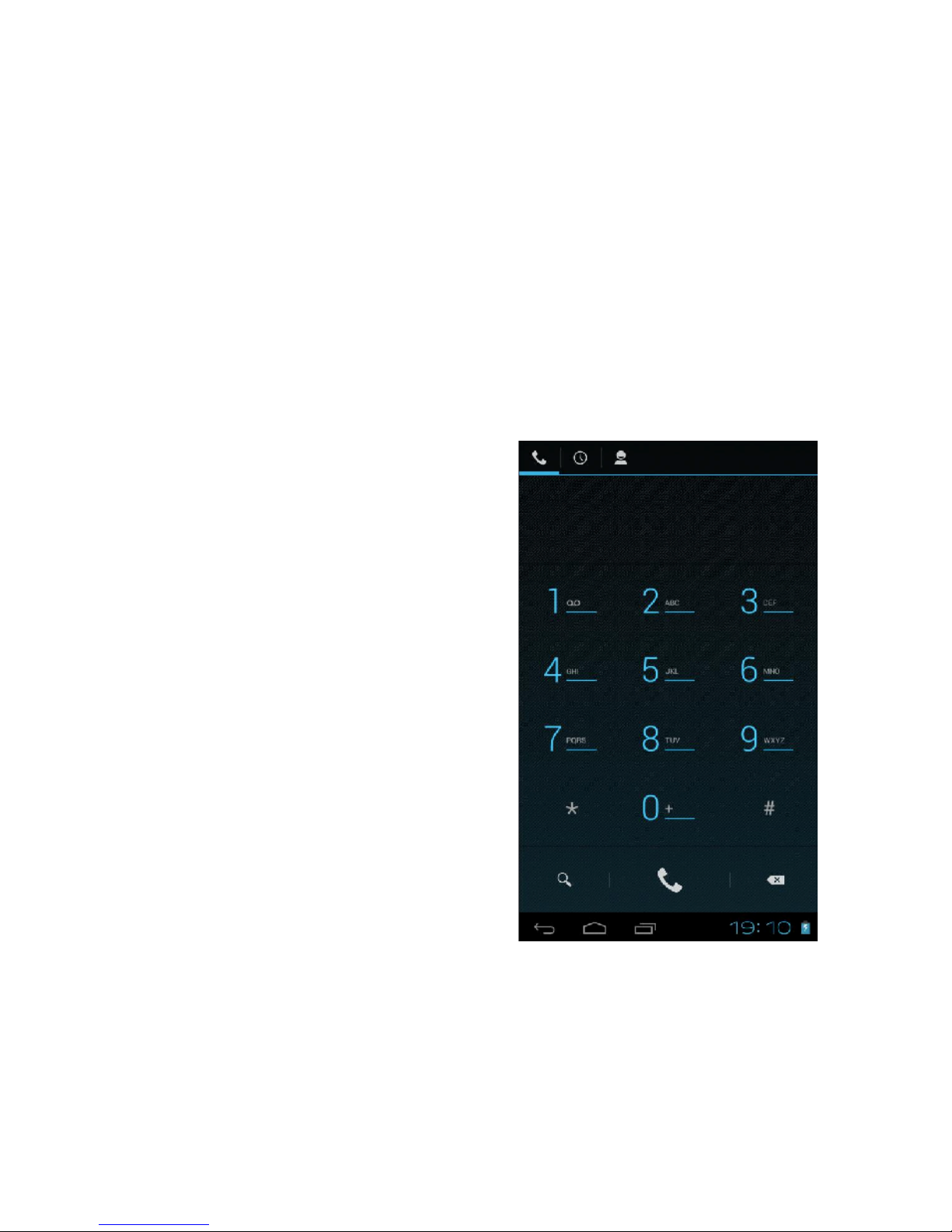

Call function
Make a call
Take one of the following to make a call:
1. In phone tab: Input the phone numbers and press the green Send key; ÿIn call log tab:
press the contact in the list and select the call item to call; ÿIn contacts tab: press the
contact in the list and select the call item to call; ÿIn favorites tab: press the contact in
the list and select the call item to call;
2. Smart Dialing: press the Smart Dialing, and direct input the phone numbers and
press the green send key;
Answer calls
To answer a call, press the green Send key.
Hang up the phone
Press hang up key to hang up the phone
Contacts
To view the contacts, touch Phone icon, and then touch the Contacts tab from the top of
the screen. In the contacts tab contacts is a specific group that can be stored by favorites
item.

19
TIP: To search a contact, press the Menu key, touch the search item in the popup menu.
Then touch the input box to open the keyboard, type the name to search, the contact
will list below if it exists.
Add contacts
1. Press the green Send key whenever;
2. Touch the Contacts tab;
3. Press the Menu key;
4. Touch New contact;
5. Type the contact’s information;
6. Touch Done.
Messaging
All the received messages are classified by contact
name. The inbox includes SMS and MMS.
Read messages
1. In the Menu screen, touch the Messaging icon;
2. Touch the message to open.
Send text messages
1. In the Menu screen, touch the Messaging icon;
2. Touch new message;
3. Touch to select the To field, type the phone
number that will receive the message;
4. Touch to select the Type to compose field and
type the message that will send;
5. Touch Send.
MMS
MMS stands for Multi-media Message Service, it could transmit the message contains
Multi-media file, including text, picture, sound etc.

20
Send MMS
Photos taken by camera are stored on the memory card. Make sure the memory card
has been installed before using the camera.
1. Touch Attach symbol from top-right corner of the screen;
2. Select one of the following options:
Pictures
Touch to find and attach one of the existing pictures
Camera picture
Touch to take a new picture to attach
Videos
Touch to find and attach one of the exiting videos files
Capture video
Touch to make a new video file to attach
Audio
Touch to find and attach one of the existing audio file
Record Audio
Touch to record an audio file to attach
Slideshow
Touch to attach one of existing slideshow.
5. Touch to select the To field and type the phone number;
6. Touch to select Type to compose field and type message;
7. Touch Send.
