Alpatronix HX101 User manual
1
User Manual for the HX101
Bluetooth Stereo Headphones
Guaranteed
100%
Satisfaction
To activate the 1-year warranty on your
Bluetooth headset, visit
http://www.alpatronix.com/register
and click on the warranty link to register your product
by filling out a simple and easy form. Alpatronix
warranty will fully cover your purchase against all
defects in material and/or workmanship for an entire
year. Most return policies only allow returns for a
period of 14 – 30 days from the date of purchase, so
hurry and register your product to give yourself peace
of mind knowing Alpatronix has got you covered for a
whole year.
2
Thank you for choosing the Alpatronix HX101 Bluetooth Stereo Headphones. The HX101
has been designed by some of our most skilled audio engineers for comfort and precise
sound. Please take some time to read this User’s Manual before using your device for the
first time. If there are any problems with your purchase (wrong color, size, fit, etc.), or if you
believe you have received a broken or defective product, please contact Alpatronix
- Friday, 9am to 5pm Pacific Time). Our Customer Service Staff can help you with just about
anything, and strive to make your experience in dealing with Alpatronix a positive and
enjoyable one.
Register your product
Please register your product and activate your 1-year warranty. It’s quick and easy.
Most return policies only allow for a defective product to be returned within 14 - 30 days after
the date of purchase…and most problems that happen due to defects in material and
workmanship have a knack of happening after this return period has ended. We have seen
the sad-puppy look on customers’ faces for too long and understand how upsetting it is to
spend your hard-earned dollars on something that stops working after a few weeks! That’s
why Alpatronix’s Ironclad Warranty will protect you for a whole year against all defects in
material and/or workmanship. So register your product at www.alpatronix.com/register and
and rest easy that you are covered no matter what the return policy is where you purchased
your product!
If you have a defective product and need us to take care of you, contact us by email at
our support team will make this a quick and easy process with as little pain as possible.
Customer Service hours are Monday - Friday, 9am - 5pm Pacific Time.
Notice: Alpatronix warranty is only valid when purchased from Alpatronix or its authorized
resellers, and within the country in which the product was purchased. If you are not sure
whether the retailer you are purchasing from is an authorized retailer, please contact us and
we will be happy to further assist you. Alpatronix sells directly on Amazon.com, and on the
Alpatronix.com website. Alpatronix warranty does not cover user damage. Tampering
with your device or user damage voids the manufacturer warranty.
3
Part A. Setup
Step I. Fully charge your HX101 headphones
Your HX101 is equipped with a high-quality lithium polymer rechargeable battery. For
first-time use, please charge your headset for at least 4 hours. Even though the LED
indicators may indicate that the battery has charged long before reaching 4 hours, please
keep the device connected to the charger for a full 4 hours to ensure your battery operates
at its full capacity. All consecutive charges will take about 2 hours. It is also recommended
not to charge the device using a car charger for the first time.
When the HX101 is connected to a charger, the LED light will indicate the charging status.
When charging, the LED will glow red. Once the HX101 is charged, the LED will turn blue.
When fully charged, your HX101 is capable of playing for up to 24 hours, or be on standby
for up to 900 hours!
4

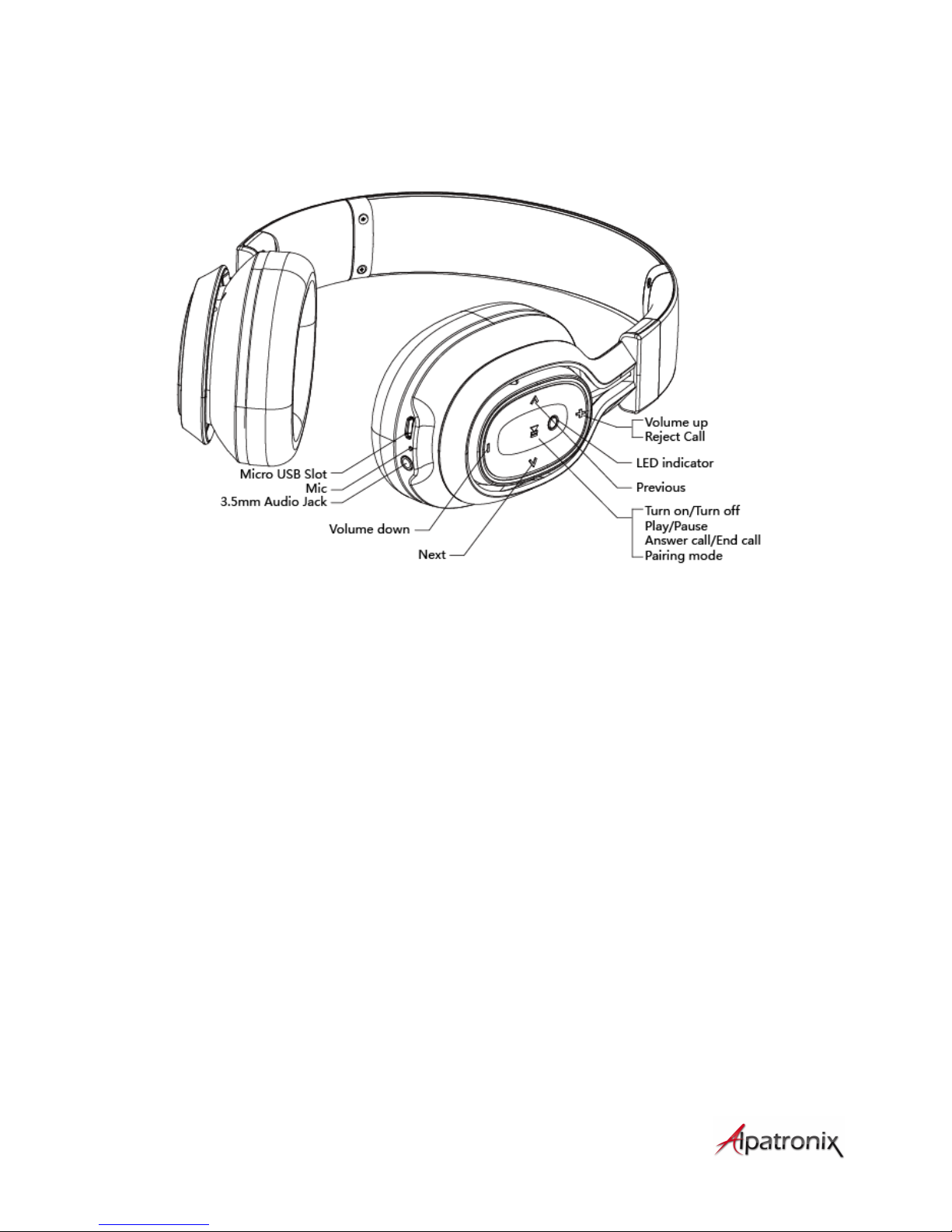

Step II. Learn your headphone’s buttons and functions
5
Step III. Pair your headphones to your device(s)
Normal Pairing
The HX101 is a wireless headphone and needs to be paired to your computer or mobile
device before using (to ensure your product is compatible, see “Compatibility” on page 7).
Even better, the HX101 is equipped with Bluetooth 4.1, allowing it to be connected to two
devices at the same time (only one device can be actively connected and playing at any
given time)! To pair the headphones with the first device,
1. Make sure the HX101 is turned OFF. If your headphone is ON (LED light blinking),
turn it off by pressing and holding the Multifunction Button for 3seconds.
2. Place the HX101 in pairing mode by pressing and holding the Multifunction Button for
8 seconds. After 3 seconds, the headphone will turn on and the LED will flash blue. It
is important to continue to hold down the button until the LED flashes blue and red
rapidly. At this time, the headphone is in pairing mode.
3. On your computer or mobile device, make sure that Bluetooth is turned ON, and that
your device is discoverable.
4. On your computer or mobile device, search for available Bluetooth devices. Find and
select “Alpatronix HX101”. Most devices don’t require a password for pairing, but if
prompted, enter “0000”.
5. Your device should be paired to the HX101 without any problems. If pairing is
unsuccessful, repeat steps 1 - 4. If you are still unsuccessful, contact Alpatronix
Customer Service for help.
Note: The HX101 is programmed to turn off after 2 minutes of being disconnected from a
mobile device. This is a power-saving measure designed to keep your headphone’s
battery from draining in the event that you forget to shut it off before leaving.
Pairing with a Bluetooth transmitter
To pair the HX101 with a Bluetooth transmitter, please follow the steps below:
1. Keep your headset and transmitter within 3ft of one another.
2. Place the headset into pairing mode.
3. Turn the Bluetooth transmitter ON and place it in pairing mode. It will automatically
search for Bluetooth devices and send a pairing request.
4. If a code is needed, the transmitter will automatically enter “0000”.
Pairing with two devices simultaneously
The HX101 can pair with two Bluetooth devices simultaneously (multi-pairing) and take calls
from any of them. After pairing with the device #1, turn the headset off and repeat the
pairing procedure with device #2. Once pairing with device #2 is successful, turn the
headphone off, and then turn it back on again. The headset will automatically connect to
the phone it was paired with last (device #2). Press “Volume +” and “Volume -”
6
simultaneously to enable multipoint connection. Once done, go to the list of trusted
devices on device #1 and select HX101.
Notes
•Before connecting to a Bluetooth device, please turn on the Bluetooth function of that
device.
•When turned ON, the HX101 will automatically pair to the last device it was
connected to. However, on some devices (such as some Nokia cell phones), you
must enable “Automatic Pairing” in order to allow the headset to connect your device
after initial pairing.
Compatibility
The Alpatronix HX101 is compatible with ALL Apple desktops, laptops, iPads, iPhones, and
iPods (if Bluetooth enabled). It is also compatible with all major Android tablets and
smartphones including Samsung Galaxy, HTC, and most other manufacturers. The HX101
operates on the industry’s highest standards and works with any device that recognizes
HSP, HFP, A2DP, and AVRCP.
Compatibility with Windows desktops, laptops, tablets, and smartphones may vary and
depend on the specific driver installed on your device. Windows products do not use a
universal Bluetooth driver, and Alpatronix cannot guarantee compatibility of every driver with
the HX101. You can search and install Bluetooth drivers that support the standards listed
above manually. Alpatronix does not offer a specific driver for the HX101.
Please note that Bluetooth technology operates on a Master/Slave system. The streaming
source is the Master, and the HX101 is the Slave. Your device is responsible for how audio
is played through the headphones. While the HX101 has the latest Bluetooth and audio
technology built in, your device must also be equipped with the same technology in order to
enjoy the full capability of the HX101.
7
Step IV. Turn the headphone ON/OFF
To turn the headphones ON, press and hold the Multifunction button 2 seconds. The LED
will flash blue twice, followed by a chime. When the headphones are turned on, it will
automatically search for the paired device and connect to it if available. If the paired device
is not available, the headphones will enter standby mode indicated by a flashing red LED.
After 3 minutes, the headphones will automatically shut off.
To turn the headphones OFF, press and hold the Multifunction Button again for 2 seconds.
The LED will flash, followed by another chime.
If your paired device goes outside the Bluetooth range of the HX101, it will automatically
enter standby mode, and after 2 minutes it will shut off.
LED Indicator Guide:
Mode
LED Color
Flashing Pattern
Power ON
Blue
Flashes twice
Power OFF
Red
Flashes twice
Pairing
Red and Blue
Flashing consecutively
Standby
Blue
Flashes 3 times every 5 seconds
Incoming call
Blue
Flashes continuously
Low battery
Red
Flashes twice every 2 seconds
Charging
Red
Glowing solid while charging
Fully charged
Blue
Glowing solid when charged (connected to charger)
8
Part B. Basic Use Instructions
Features
The HX101 was designed to deliver the perfect fusion between uncompromised comfort,
elegant style, and precision sound. In doing so, we paid attention to every small detail to
deliver big performance. Here are some of the features you will find in your HX101:
•Telescopic adjustments allow you to adjust the headphones for almost any head size.
•Comfortable leather ear pillows provide the ultimate comfort for prolonged wear.
•Hand-selected 40mm neodymium original diaphragm provides a full-range, high
quality, clear, and balanced sound with deep lows and crystal clear highs.
•A2DP protocol provides perfectly balanced sound.
•Audio Video Remote Control Protocol (AVRCP) allows for control of calls and music
directly from your headset. Please note that your streaming device or software must
also be AVRCP enabled.
•Bluetooth chipsets offered by CSR are the highest industry standard. Your HX101
supports AptX compression algorithm. Please note that to hear true AptX sound, your
streaming device must also be equipped with AptX, and the audio being streamed
must be recorded in AptX as well.
•CVC 6.0 noise cancellation algorithm allows for precision noise cancellation and call
clarity.
Operation
After the HX101 is paired with your mobile device, you can use the headset to answer calls,
enjoy music, or talk with friends and loved ones using programs such as Skype, FaceTime,
or any other audio/video chat software.
1. Music streaming and calling
The HX101 is a lean, mean, amazing music playing machine! Packed with awesome
technology to provide balanced and high definition sound (high bandwidth Bluetooth
4.1 and CSR AptX), CVC 6.0 noise cancellation, and an ergonomic design to provide
ultimate comfort and noise isolation, it is the best way to enjoy your music wirelessly.
The HX101 also folds to a small size and comes with a semi-hard carrying case, so
that you can take it around with you!
Music streaming is the default mode of the HX101. When there is an incoming call or
you attempt to place a call, the HX101 will pause the music and switch over to call
mode automatically.
While playing music,
a. Play/Pause: Press the multifunction button to play music. Press again to
pause.
9
b. Volume +/-: Press the volume + or - buttons to adjust the volume. When the
volume reaches maximum/minimum, you will hear a chime.
c. Skip forward/back: Press the < or > buttons to skip back or forward.
d. Answer/hang up a call: Press the multifunction button to answer an incoming
call. Press again to hang up.
e. Reject an incoming call: Press and hold the volume + button for 2 seconds.
f. Transfer a call: While on a call, press and hold the volume + button for 2
seconds to transfer the call to your phone (disable the headset). You can
also change the output source directly on your phone.
g. Mute a call: While on a call, you can mute (disable the microphone) by
pressing and holding the volume - button for 2 seconds. Press and hold for 2
seconds again to unmute.
2. Using the AUX cord
You can use the auxiliary cord to listen to music even if your device’s battery is dead.
However, the AUX cord cannot be used to answer calls. To do this,
a. Turn the headset off.
b. Connect the AUX cord to the headset and your device.
c. You will need to adjust the volume and music playback directly through the
streaming device while in AUX mode.
3. AptX Technology
The HX101 is equipped with CSR AptX technology to play very high quality audio.
Please note that your streaming device will also have to be AptX in order to be able to
enjoy AptX’s quality audio. Also your music will need to be recorded with AptX and in
high quality, otherwise having AptX in the headset alone will not make a difference in
playback quality.
4. Skype/FaceTime/Etc.: The HX101 can be used to video chat/conference with family,
friends, and business partners. Operation of the headset while using Skype is similar
to any other phone call. You can press MFB to answer an incoming call or to hang up
the current call, and adjust the volume using the volume +/- buttons. Once a Skype
call is finished, the headphone will resume normal music playback mode.
Note: Skype has independent Audio/Video settings. If you experience any issues
when using Skype, go to Skype Settings àAudio/Video, and select the appropriate
speaker and microphone settings.
10
Part C. Maintenance and Support
Frequently Asked Questions
Note: Most Bluetooth issues (distortion, music/call cutting out, etc.) can be resolved by
un-pairing the headset, then pairing it again with your device. Try removing the headset
from the list of trusted devices, then going through the pairing steps again. Contact
Alpatronix Customer Service if the problem persists.
1. Problem: The HX101 emits an intermittent chime and the LED flashes twice every
couple of seconds.
Solution: This indicates a low battery power. Charge your HX101 for 2 hours, or
until the LED light turns solid blue.
2. Problem: I charged my HX101 for a few minutes but it still doesn’t power on.
Solution: When the battery is depleted, the HX101 needs at least 40 minutes of
charge time in order to power up. Please note that it is not recommended to partially
charge any battery-operated device. For maximum battery life, always ensure to fully
charge your battery and avoid disconnecting in the middle of a charging cycle. Due to
the long playback time for this device, normally it is best to put the device on the
charger at night, so that by morning it is good to go for another day of fun!
3. Problem: No LEDs come on when connecting to a charger.
Solution: A few scenarios may be true here:
a. If the battery is completely depleted prior to charging, it may take a few
minutes for the LED light to turn on. If the LED does not turn on after 10-15
minutes,
b. You may have a broken/defective charging cord. Connect a different micro
USB cord to see if the problem is resolved. To check the same cable and
see if it is defective or not, connect the cord to a different device (Samsung
galaxy phones, digital cameras, etc.) to see if the charging signal appears.
c. You may have a defective USB charger. Plug the cord to a different wall
charger (or laptop/computer USB port) to see if the problem is resolved.
d. If none of the above scenarios fixes the problem, contact Alpatronix Customer
Service for assistance.
4. Problem: No sound is coming from my headphone
Solution:
a. Make sure the headphone is fully charged and turned on.
b. Make sure the headphone is paired and connected to your streaming device. If
your HX101 has been paired to other devices, the other devices may be
overriding the streaming device you are currently using. If unsure, you can
always pair it again with your device. See instructions under “Step III. Pair
your headphones to your device(s)”.
i. Sometimes if your headset and device are paired, but the streaming
device (normally a computer or a laptop) has been inactive and goes
into sleep mode, Bluetooth connections are severed. When waking
11
your computer or laptop from sleep mode, you can reconnect the
headset by selecting it from the list of trusted devices.
c. Make sure the headphone volume AND your streaming device volumes are
both turned up. The HX101 is programmed to control the volume of your
device directly, but some devices do not allow this, meaning the volume of the
device and the headset may have to be controlled separately.
d. Make sure the HX101 is within the operating range of your streaming device.
While the normal Bluetooth range is 30ft (10m), the range may significantly
decrease if there are obstructions between the device and the HX101.
e. Some mobile devices only support one connected device at a time. Make sure
your device is not connected to any other Bluetooth device.
5. Problem: My headphone is fully charged and turned on, but cannot play music.
Solution: Most Bluetooth issues are resolved if you re-pair the HX101 and your
streaming device. This should not happen frequently. Once paired, the HX101 should
easily search and pair automatically with your device when turned on. If you
experience increased issues with your device, contact Alpatronix Customer Service
for assistance.
6. Problem: My mobile device cannot find the HX101.
Solution: Make sure the HX101 is charged and in pairing mode. See “Step III. Pair
your headphones to your device(s)” for instructions on how to put the HX101 in
pairing mode.
Note: Sometimes when a device is connected to too many Bluetooth devices, it
cannot search and find additional devices effectively. If you have too many devices
on your trusted device list, or if your mobile device is actively connected to many
other Bluetooth devices, try disconnecting other devices before searching for the
HX101.
7. Question: Do I need to pair the HX101 with my streaming device every time I use it?
Answer: No. The HX101 only needs to be paired for the first time. After first time
pairing, simply turn the headphone on, and it will automatically search for the last
trusted device and pair with it if it is within range.
8. Problem: There is some noise coming from the headphone when placing a
phone/Skype call.
Solution: The sound quality of your calls may be affected by several factors:
a. Weak mobile signal
b. Distance between the HX101 and your mobile device
c. Internet speed (if using Skype, Facetime, etc.)
Extend the life of your HX101
The HX101 is built to last. There are steps you can take to ensure your device operates to
the maximum length of time possible:
1. The HX101 is NOT waterproof. Avoid any contact with moisture. Do not submerge in
water, and avoid any water/moisture/sweat splash. Moisture damage is NOT
12
supported by manufacturer’s warranty, and can expose you to risk of electric shock,
device overheating, or explosion.
2. Do not store in a wet/damp environment. Keep the HX101 in a dry environment.
3. Avoid exposure to direct heat, extreme cold, or sunlight for prolonged periods.
4. For long-term storage, keep the HX101 in its carrying case to avoid damage from
weather, dust, etc. Charge the battery at least every 6 months to ensure maximum
battery life.
5. If the headset has not been used for a long time (more than 2 months), charge the
battery first before operation.
6. Please don’t attempt to replace the built-in battery of your device. This will cause
permanent damage and void the manufacturer’s warranty.
7. Do not attempt to disassemble the headset. It will damage the device, and voids the
manufacturer’s warranty.
8. The HX101 is designed to operate in temperatures of 40° - 95°F (5° - 35° Celsius).
Please avoid exposure to freezing or hot temperatures. Do not place in fire or
puncture the casing.
9. Avoid bending or twisting the HX101. This may cause permanent deformation. Only
fold the headset from the designated joints.
10.Avoid drops from significant heights or on hard surfaces. If there are any visible
damages to the body of the headset, discontinue use and contact Alpatronix for help.
Please note that damage to internal circuitry of the device or the battery may cause
risk of electric shock or battery explosion.
11.Listening to music at maximum volume for prolonged periods of time can be
damaging to your ear and expose you to increased risk of tinnitus, hearing damage,
or hearing loss. Please listen at a reasonable volume.
12.Please only use the included USB cable, or other high quality branded cables in the
market. Also only use high quality branded wall and car chargers. Avoid using
generic, low quality cables and chargers as they may damage your HX101 and your
streaming device.
13.Avoid contact with dust and dirt. This is a general rule of thumb for any electronic
device, unless it is declared to be dustproof.
14.Clean the HX101 only with a clean, soft, and dry fabric. Only use industry approved
screen cleaners if necessary. Avoid using any water, detergents, or other liquids for
13
cleaning the device, even in the form of a wet cloth.
15.Do not dispose the headset in trash. Batteries and plastic material can be harmful to
the environment and can be recycled to avoid environmental impact. Please only
dispose of this device at your nearest hazardous waste collection facility. Contact
your local hazardous waste authority for more information.
Alpatronix Customer Service
If there is any problem with this device’s performance, please contact Alpatronix Customer
Service prior to returning the product. While defects and shipping damages are rare, they
sometimes do happen and we will make every effort to replace your product as fast as
possible. We apologize for any inconvenience in advance.
All Alpatronix products come with a 1-year manufacturer’s warranty to protect you beyond
normal return periods against any defects in material or workmanship.
Alpatronix Customer Service Department may be reached by email at
hours are 9am - 5pm, Monday - Friday (Pacific Time).
Feature
Specification:
Bluetooth edition
Bluetooth V4.1 + AptX
Transmit Range
30ft (10m)
Frequency Response
20Hz - 20KHz
Status Indication
LED indicator
Compatible Products
and Protocols
Devices: Most Bluetooth products: All Apple
desktops, laptops, iPads, iPhones, and iPods
(Bluetooth enabled). All Android smartphones.
Most other Bluetooth smartphones, tablets, and
computers.
Protocols: HSP, HFP, A2DP, AVRCP
Charging
USB interface
Charge Time
2-3 hours
Playback time
About 24 hours
Standby time (paired
with mobile standby)
More than 900 hours
14
Alpatronix is a registered trademark of Saritek Technical Solutions, Inc.
P.O. Box 17070
Anaheim, CA 92817
United States of America
Bluetooth name and logo are registered trademarks of Bluetooth SIG.
All other brands are registered trademarks of their respective owners.
Table of contents
Other Alpatronix Headphones manuals
